MAD X7215 VTOL Airplane Drone Motor Overview
MAD X7215 is Suitable for 120E-170E aircraft, equivalent to petrol engine of about 30-40CC, these are very high efficiency VTOL engines. Various mounting options suitable for aircraft and multicopters. Optimised for best performance. Max thrust 14.8kg, more powerful and efficient than the same thrust motors in the market.Waterproof and dustproof. IP35 protection class.

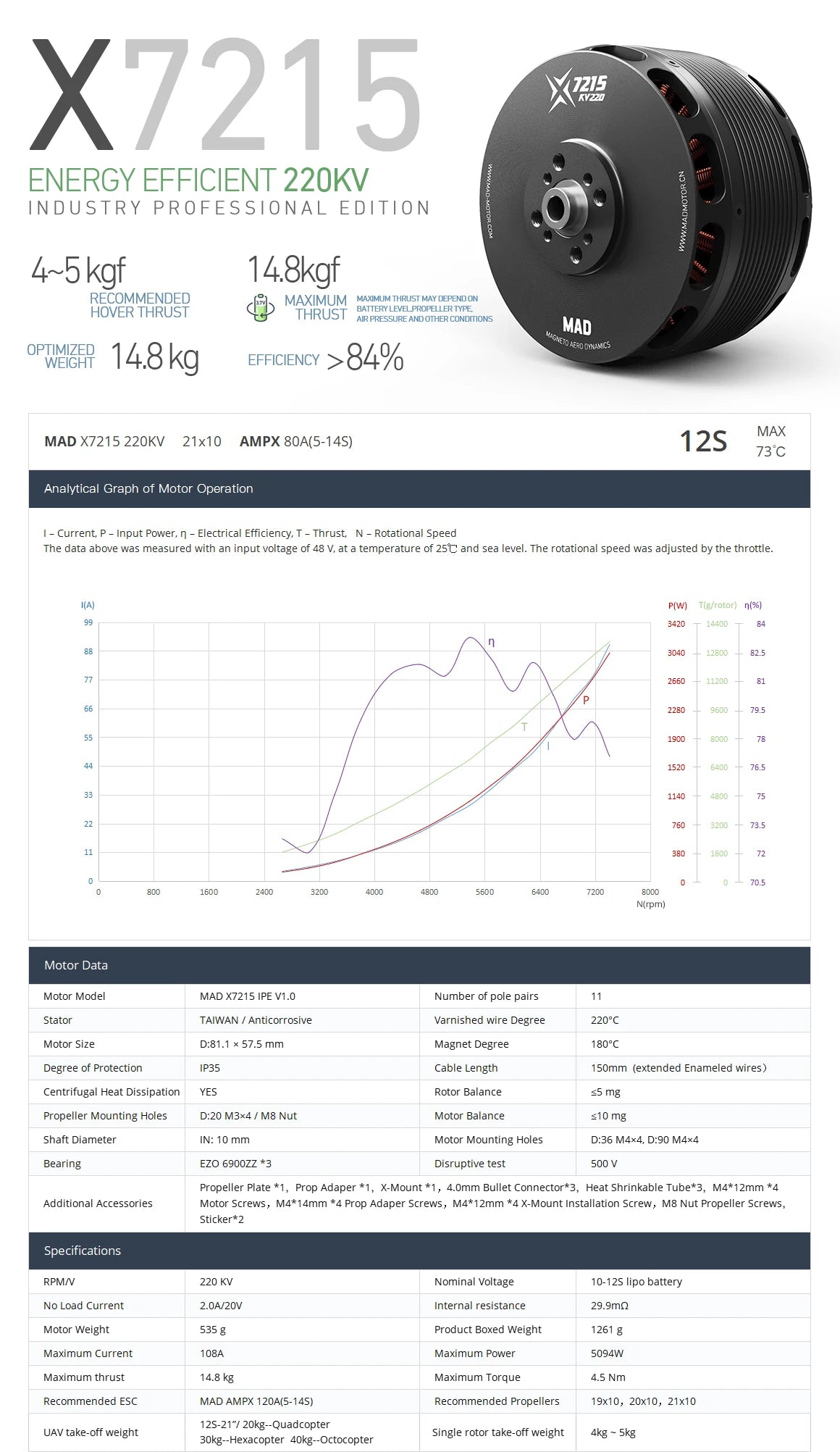

MAD X7215 Drone Motor Specifications
Motor Data |
| Motor Model | MAD X7215 IPE V1.0 | Number of pole pairs | 11 |
| Stator | Anticorrosive | Varnished wire Degree | 220°C |
| Motor Size | D:81.1 × 57.5 mm | Motor Balance | 180°C |
| Degree of Protection | IP35 | Cable Length | 150mm (extended Enameled wires） |
| Centrifugal Heat Dissipation | YES | Rotor Balance | ≤5 mg |
| Propeller Mounting Holes | D:20 M3×4 / M8 Nut | Motor Balance | ≤10 mg |

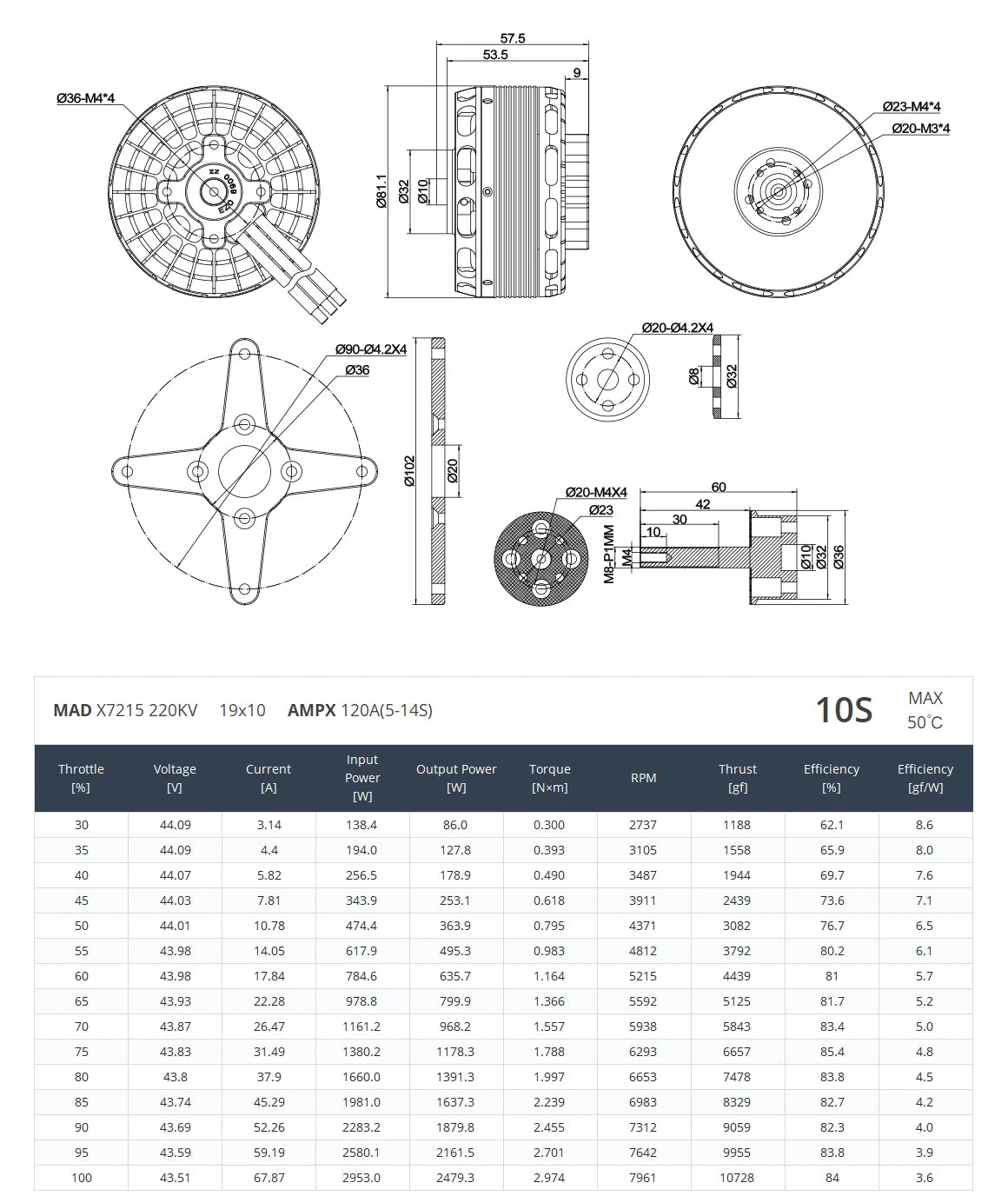

| Shaft Diameter | IN: 10 mm | Motor Mounting Holes | D:36 M4×4, D:90 M4×4 |
| Bearing | 6900ZZ *3 | Disruptive test | 500 V |
MAD X7215 220KV:
| Specifications | Details | Specifications | Details |
|---|
| RPM/V | 220 KV | Nominal Voltage | 10-12S lipo battery |
| No Load Current | 2.0A/20V | Internal Resistance | 29.9mΩ |
| Motor Weight | 535 g | Product Boxed Weight | 1261 g |
| Maximum Current | 108A | Maximum Power | 5094W |
| Maximum Thrust | 14.8 kg | Maximum Torque | 4.5 Nm |
| Recommended ESC | MAD AMPX 120A (5-14S) | Recommended Propellers | 19×10, 20×10, 21×10 |
| UAV Take-off Weight | 12S-21″ 20kg–Quadcopter | Single Rotor Take-off Weight | 4kg ~ 5kg |
