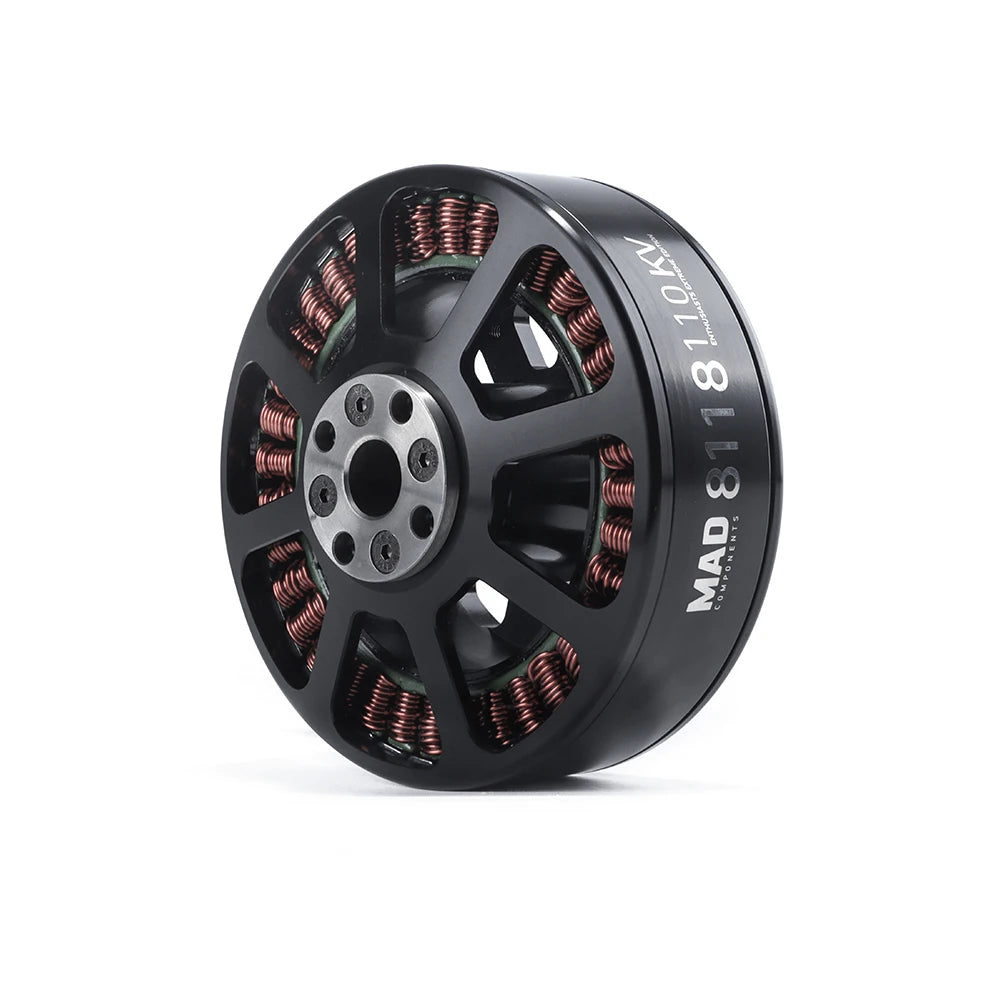

MAD 8118 EEE Drone Motor Overview
The MAD 8118 EEE V1.0 Brushless Drone Motor is a high-performance motor designed for heavy-lift drones, featuring a 100 KV rating, a maximum thrust of 14.5 kg, and a maximum power of 2962W. It operates efficiently with a 12S lipo battery, has a motor weight of 620 g, and provides excellent durability with IP45 rain protection and anticorrosive stator materials. Ideal for large UAVs, it supports quadcopters up to 22kg, hexacopters up to 33kg, and octocopters up to 44kg, ensuring powerful and reliable performance for demanding aerial applications.
MAD 8118 EEE Drone Motor SPECIFICATIONS
اسم العلامة التجارية: MAD COMPONENTS
Is Electric: No battery
المنشأ: البر الرئيسي للصين
المواد: معدن
العمر الموصى به: 14+y
قطع غيار السيارات والمركبات: المحركات
الحجم: 88.6x38mm
لنوع المركبة: الطائرات
الاستخدام: المركبات وألعاب التحكم عن بعد
التصديق: م
التصديق: RoHS
ترقية قطع الغيار/الإكسسوارات: المحرك
الأجهزة الطرفية/الأجهزة الطرفية للتحكم عن بُعد: MOTOR
مستلزمات الأدوات: الفئة المجمعة
الكمية: 1 قطعة
رقم الموديل: MAD 8118 EEE
سمات الدفع الرباعي: المحركات

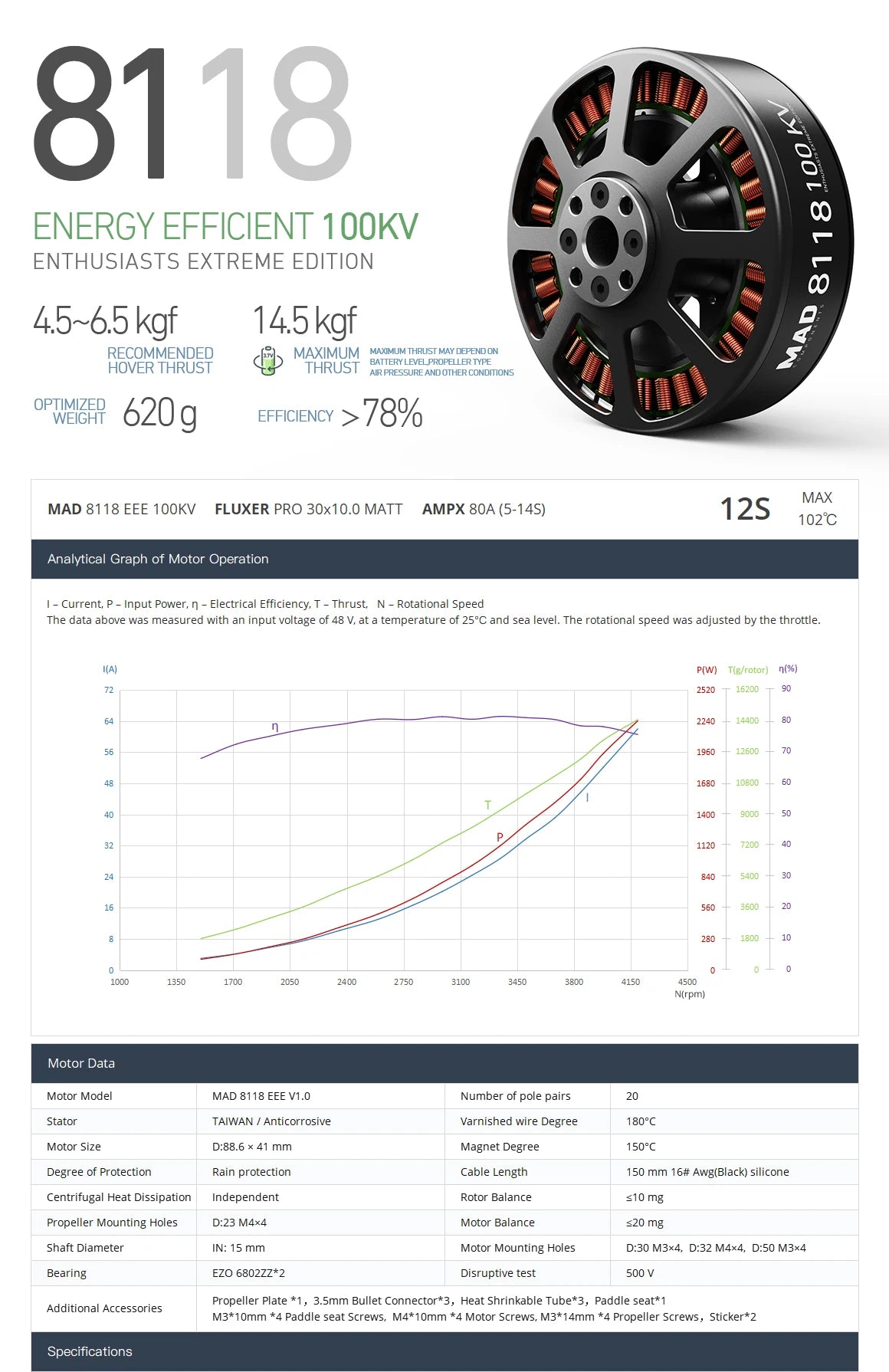

MAD 8118 EEE Motor Data
| Motor Data | |||
|---|---|---|---|
| Motor Model | MAD 8118 EEE V1.0 | Number of pole pairs | 20 |
| Stator | TAIWAN / Anticorrosive | Varnished wire Degree | 180°C |
| Motor Size | D:88.6 × 41 mm | Magnet Degree | 150°C |
| Degree of Protection | Rain protection | Cable Length | 150 mm 16# Awg(Black) silicone |
| Centrifugal Heat Dissipation | Independent | Rotor Balance | ≤10 mg |

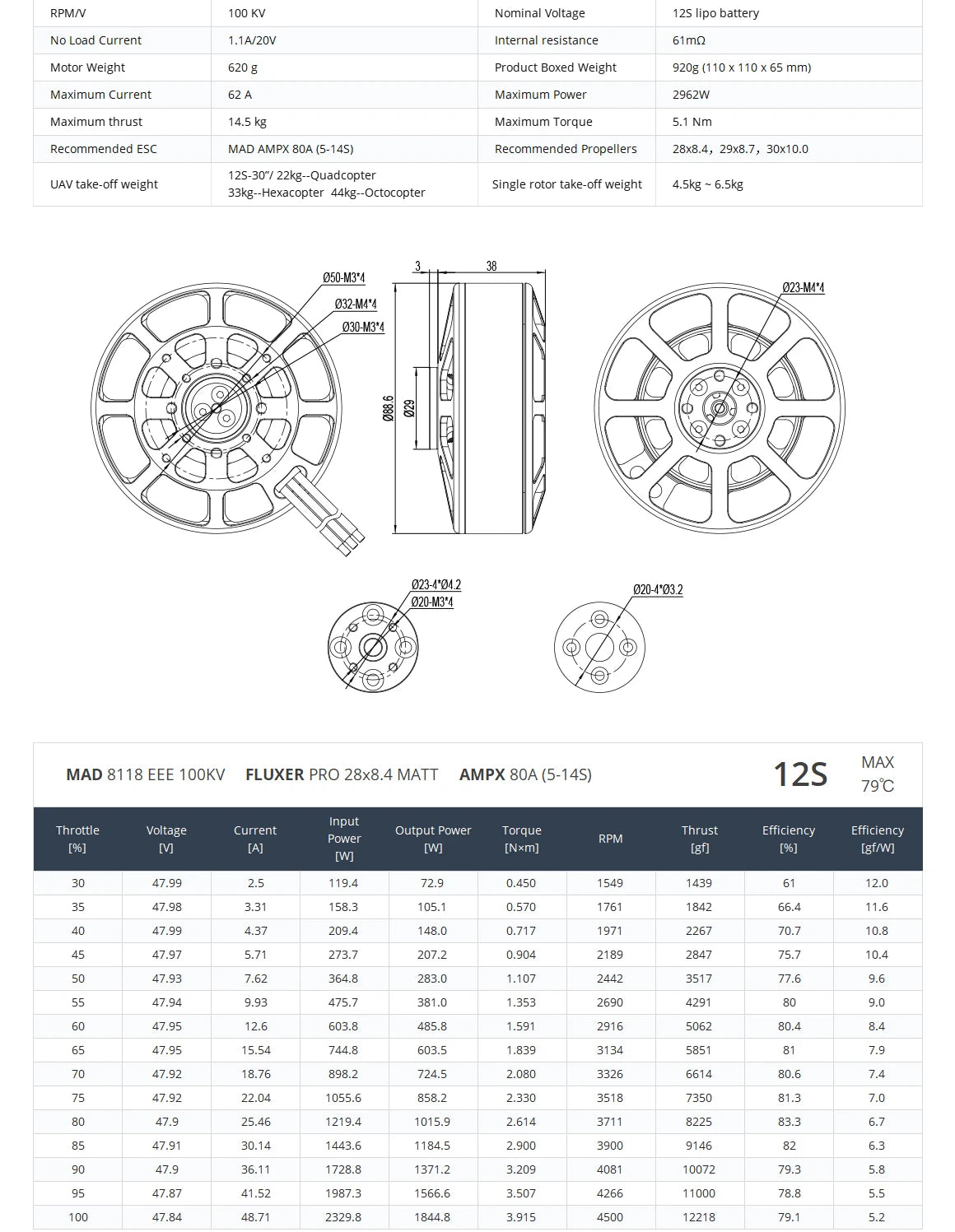

| Propeller Mounting Holes | D:23 M4×4 | Motor Balance | ≤20 mg |
| قطر العمود | IN: 15 mm | Motor Mounting Holes | D:30 M3×4, D:32 M4×4, D:50 M3×4 |
| المحمل | EZO 6802ZZ*2 | Disruptive test | 500 V |
| Additional Accessories | Propeller Plate 1, 3.5mm Bullet Connector3, Heat Shrinkable Tube3, Paddle seat1, M3*10mm 4 Paddle seat Screws, M410mm 4 Motor Screws, M314mm 4 Propeller Screws, Sticker2 |
| المواصفات | |||
|---|---|---|---|
| RPM/V | 100 KV | الجهد الاسمي | 12S lipo battery |
| No Load Current | 1.1A / 20V | Internal resistance | 61 mΩ |
| Motor Weight | 620 g | Product Boxed Weight | 920g (110 x 110 x 65 mm) |
| Maximum Current | 62 A | Maximum Power | 2962W |
| Maximum thrust | 14.5 kg | Maximum Torque | 5.1 Nm |
| Recommended ESC | MAD AMPX 80A (5-14S) | Recommended Propellers | 28×8.4, 29×8.7, 30×10.0 |
| UAV take-off weight | 12S-30″/22kg–Quadcopter | ||
| 33kg–Hexacopter | |||
| 44kg–Octocopter | |||
| Single rotor take-off weight | 4.5kg ~ 6.5kg |
Products Description
8108 motor is the most classical product among UAV motors. MAD 8108 EEE is one of the most efficient motors among them, and the most widely used motors for UAV of high-end aerial photography, exploration, Archaeology, Remote sensing surveying, Mapping etc. Endurance flight time varies from 30-120mins.
MAD 8112,8116 & 8118 are upgraded versions based on MAD8108 this efficient motor, pulling larger powerful thrust by increasing stator height. And also widely used on many multirotor applications.
*Open body design for better passive heat dissipation.
*Propeller installation compatibility.
*Reduced motor weight.
*Motor mounting holes standarization.

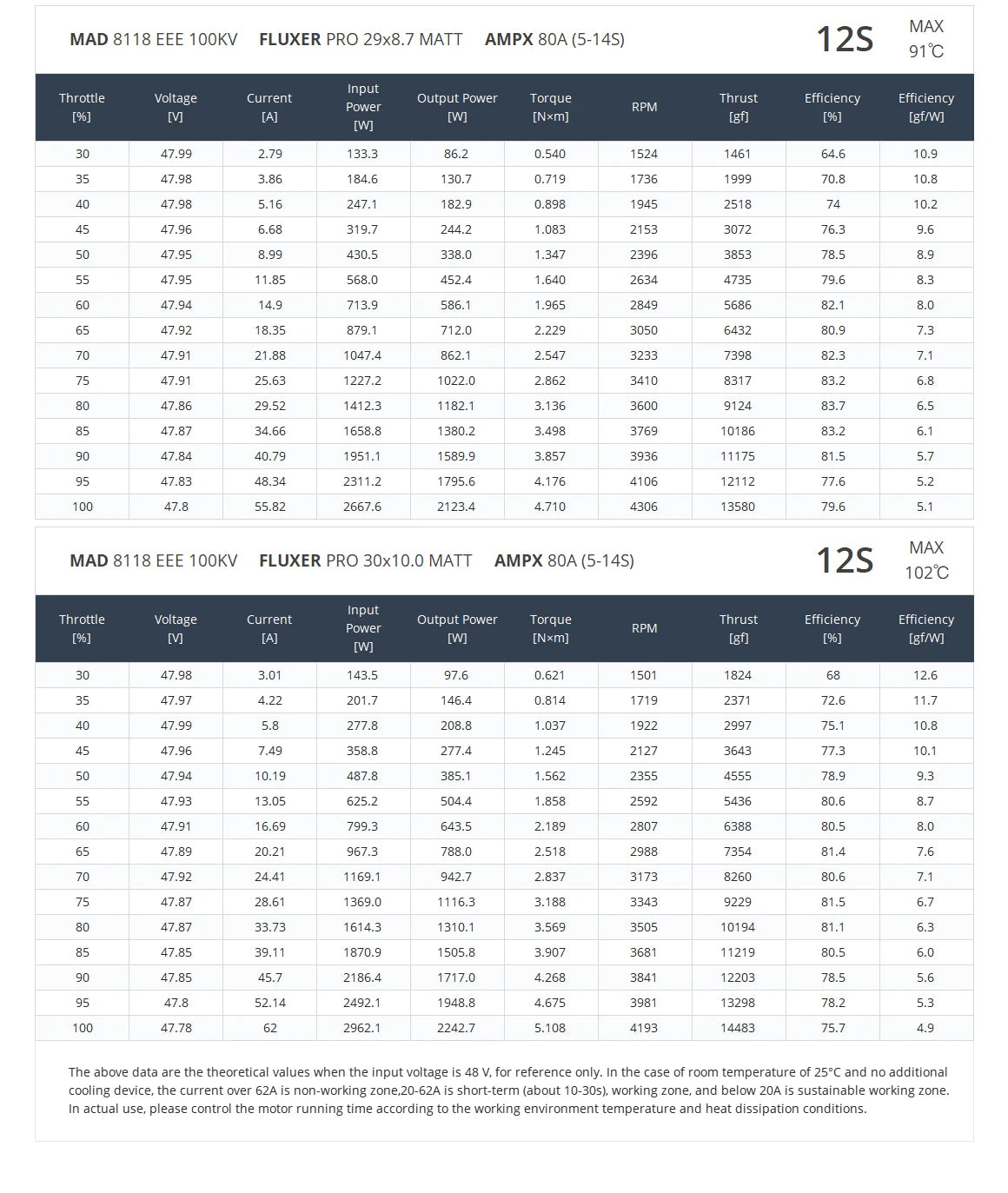

Motor Test Benchmarks
