المواصفات
الاستخدام: المركبات وألعاب التحكم عن بعد
ترقية قطع الغيار/الإكسسوارات: الإطار
مستلزمات الأدوات: البطارية
الأجهزة الطرفية/الأجهزة الطرفية للتحكم عن بُعد: وحدة التحكم عن بُعد
العمر الموصى به: 12+y
قطع غيار السيارات والمركبات: الهوائيات
المنشأ: البر الرئيسي للصين

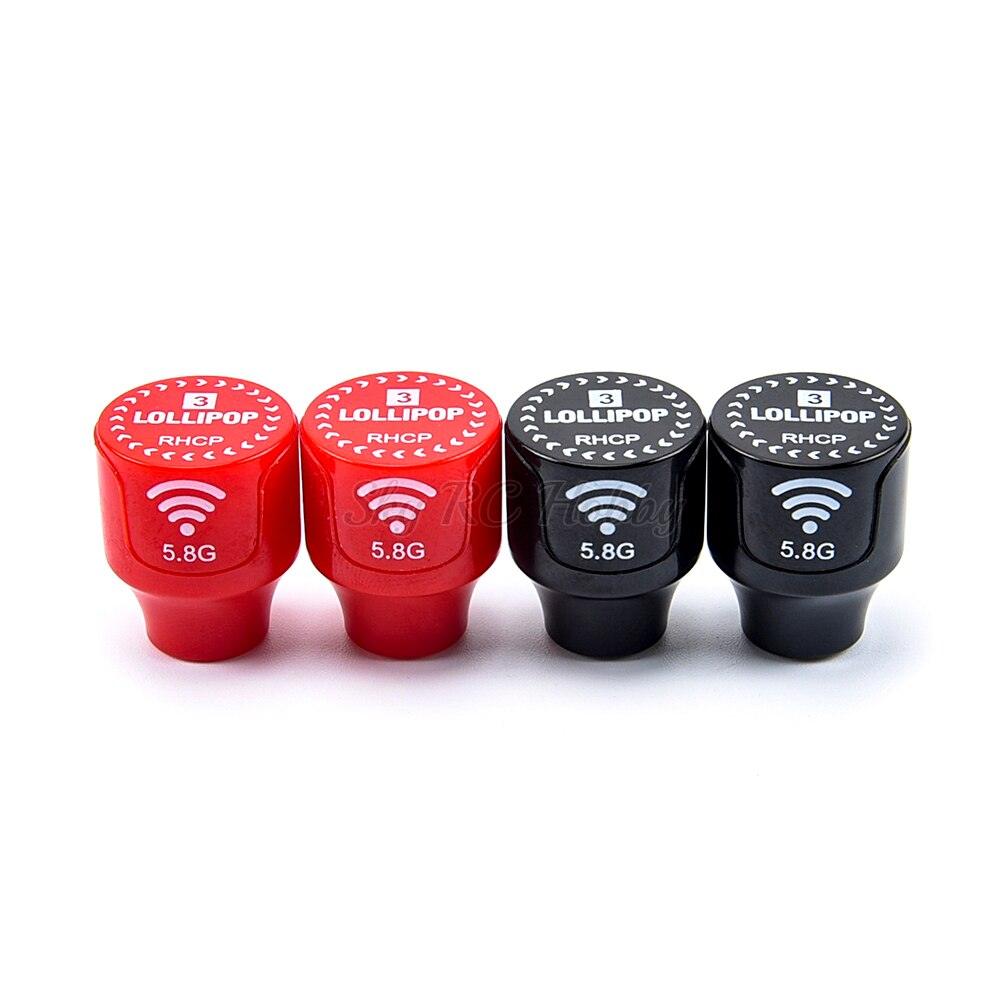

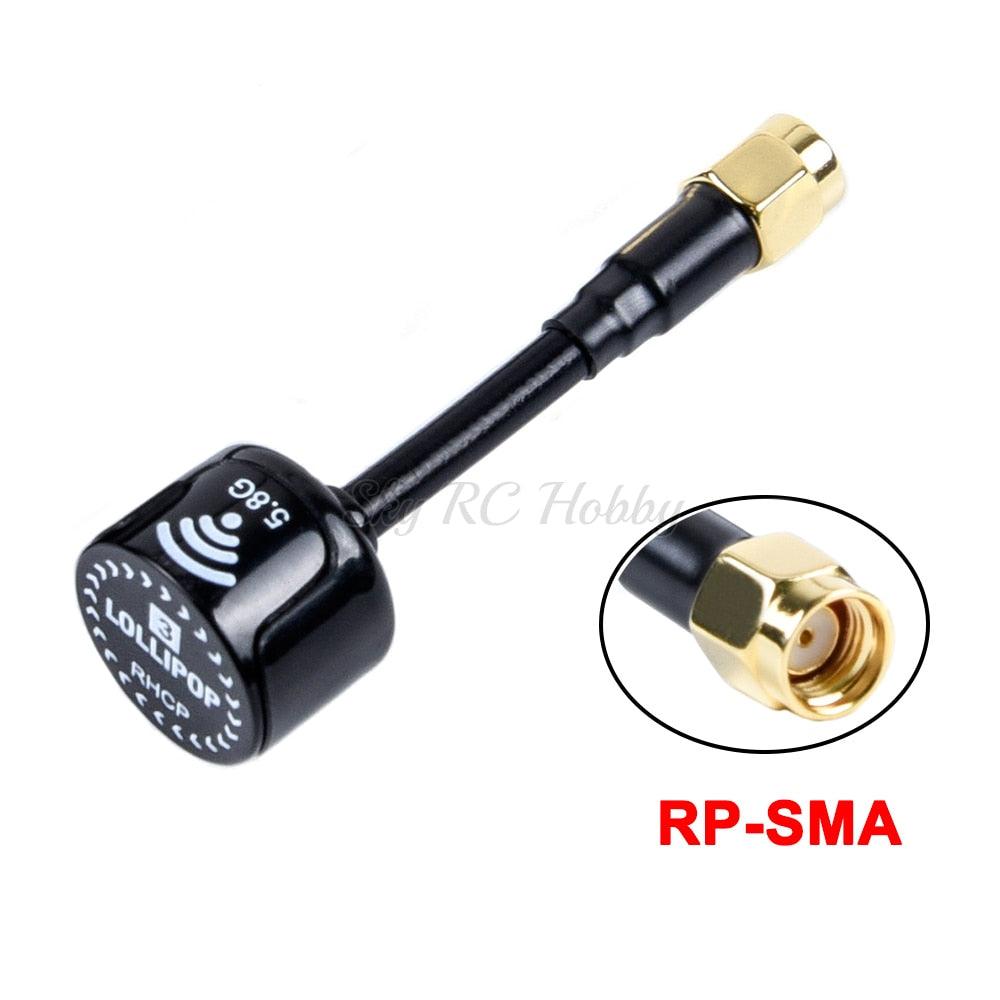

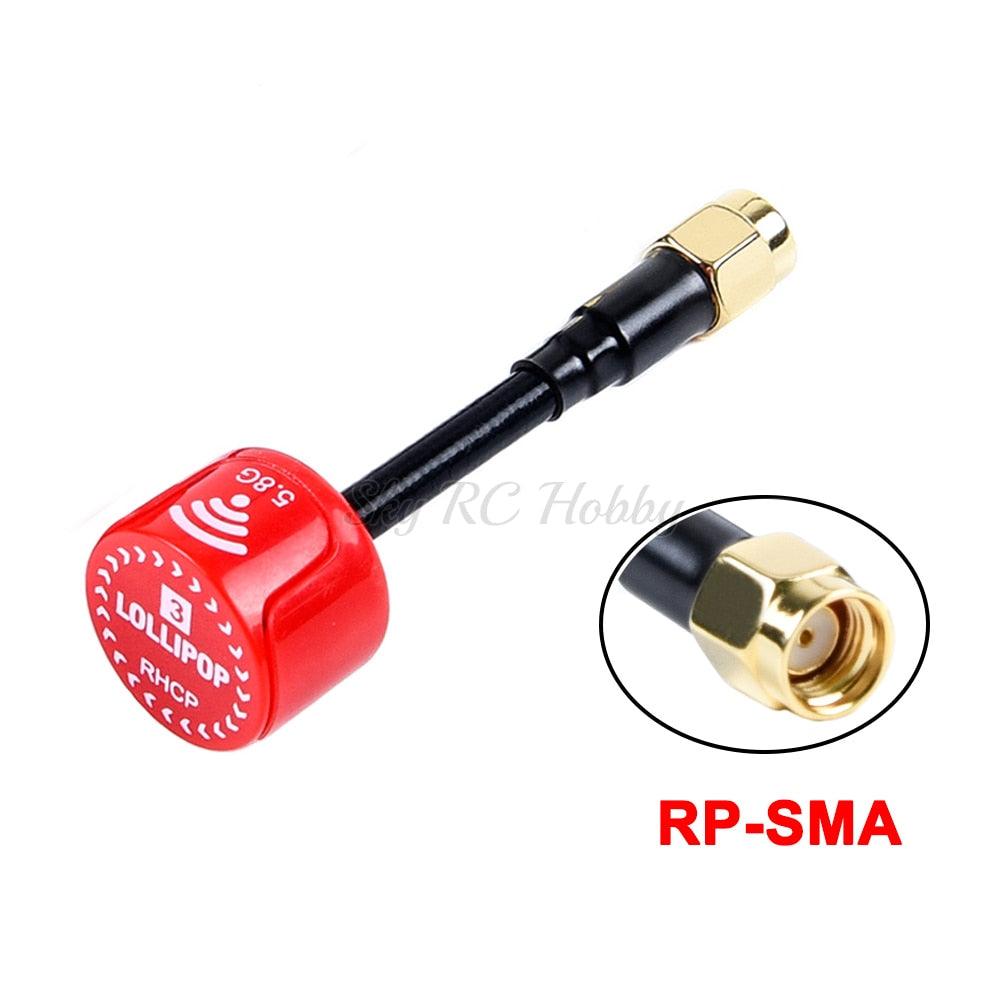

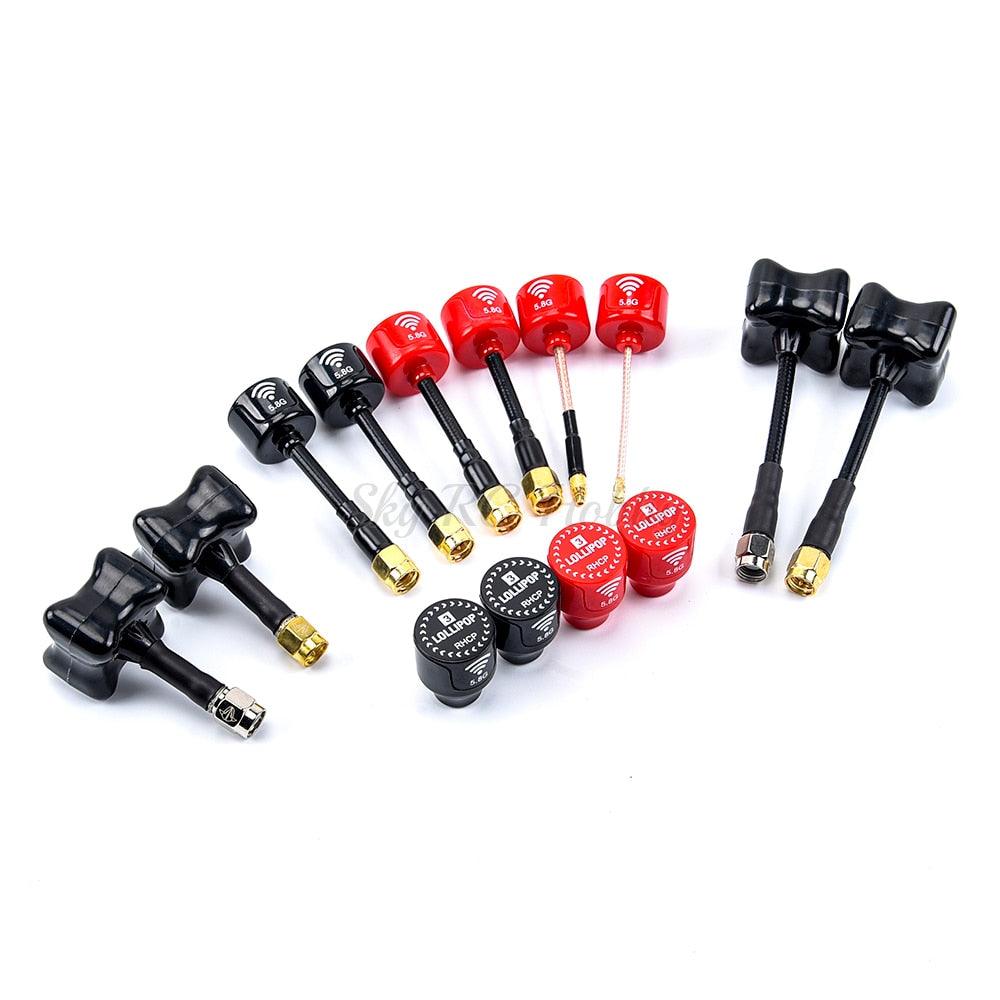

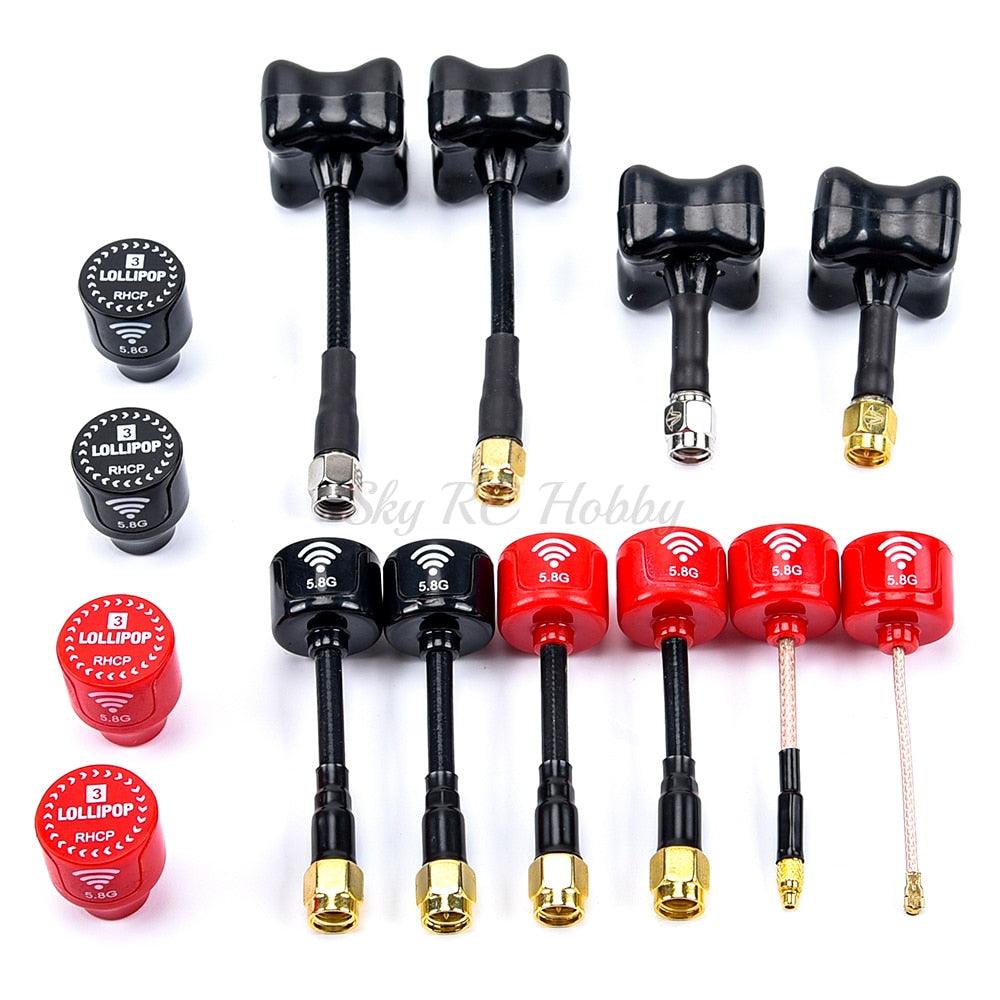

رقم الموديل: Lollipop3 / BlackSheep / Stubby FPV Mini Antenna
المواد: المواد المركبة
سمات الدفع الرباعي: التجميع
لنوع المركبة: الطائرات
اسم العلامة التجارية: ريديتوسكي
Package Included: Send it as your choice
Brand:Readytosky
Weight: SMA/RP-SMA:7.6g / UFL:2.9g / straight MMCX: 3.7g

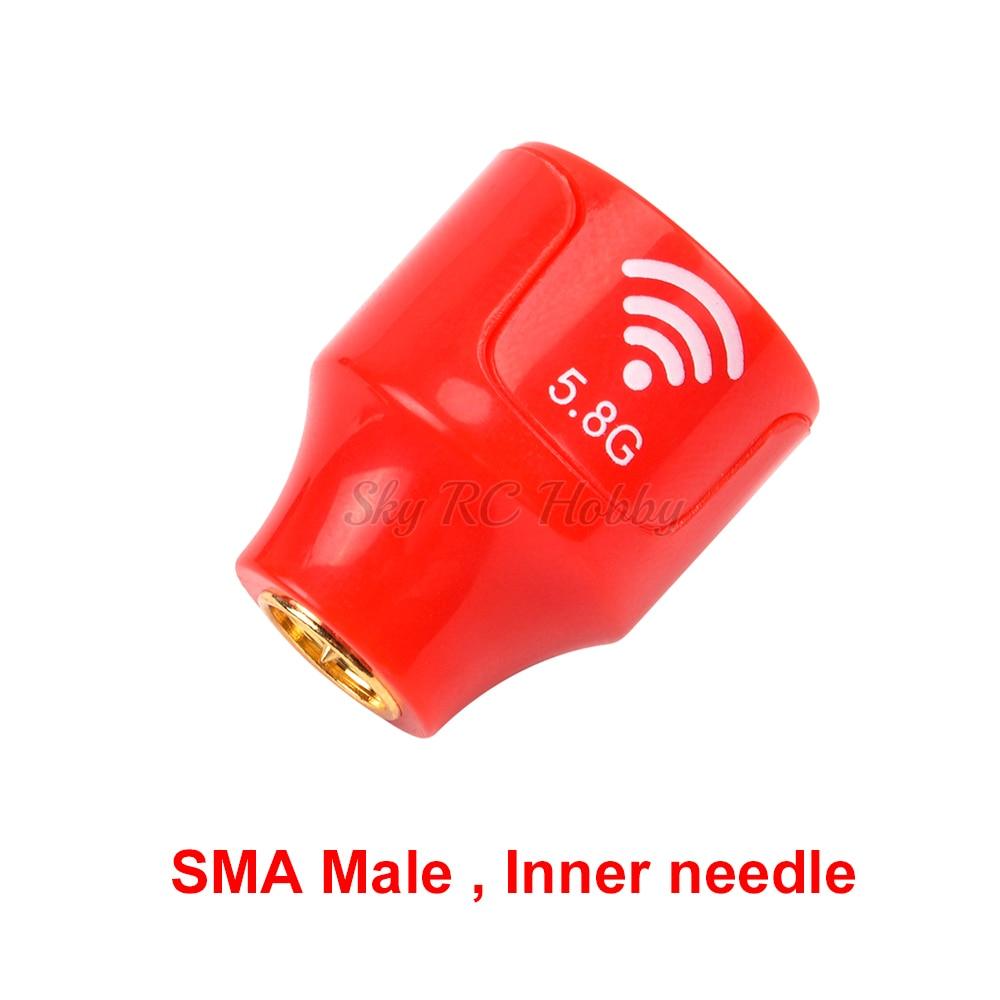

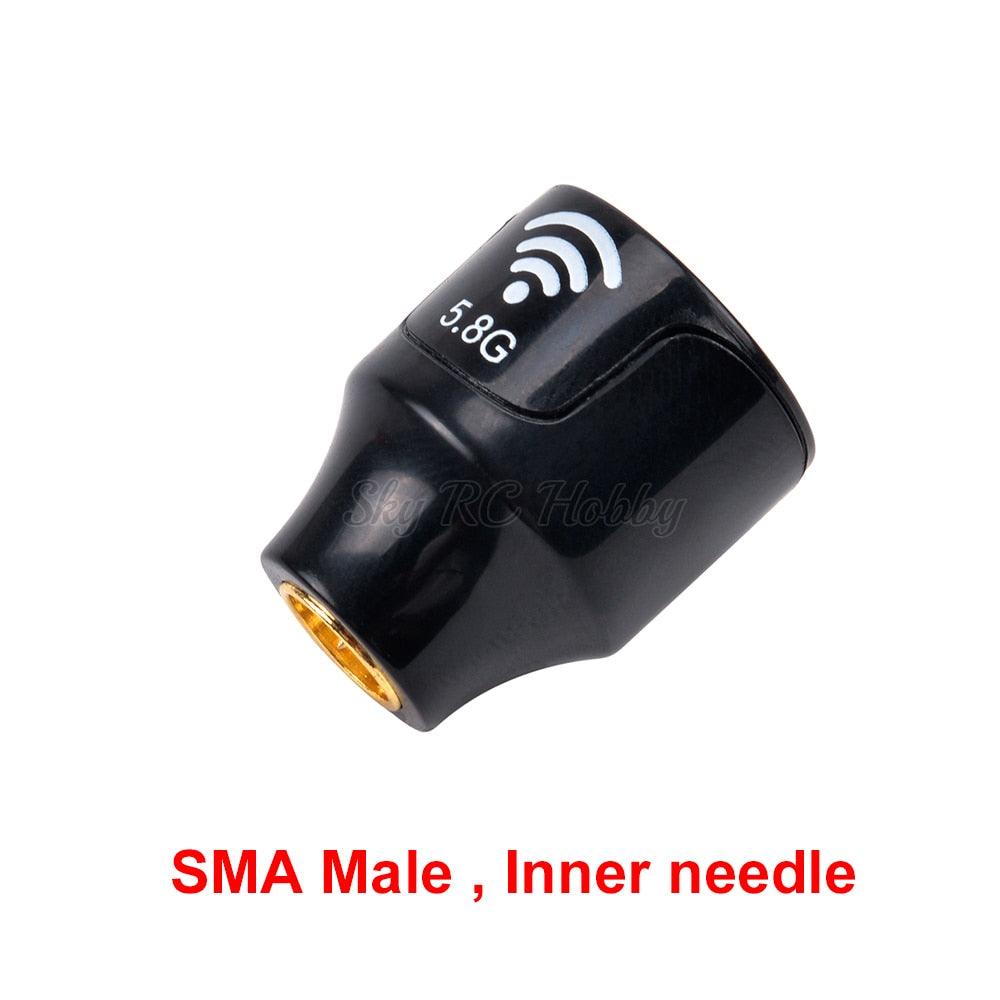

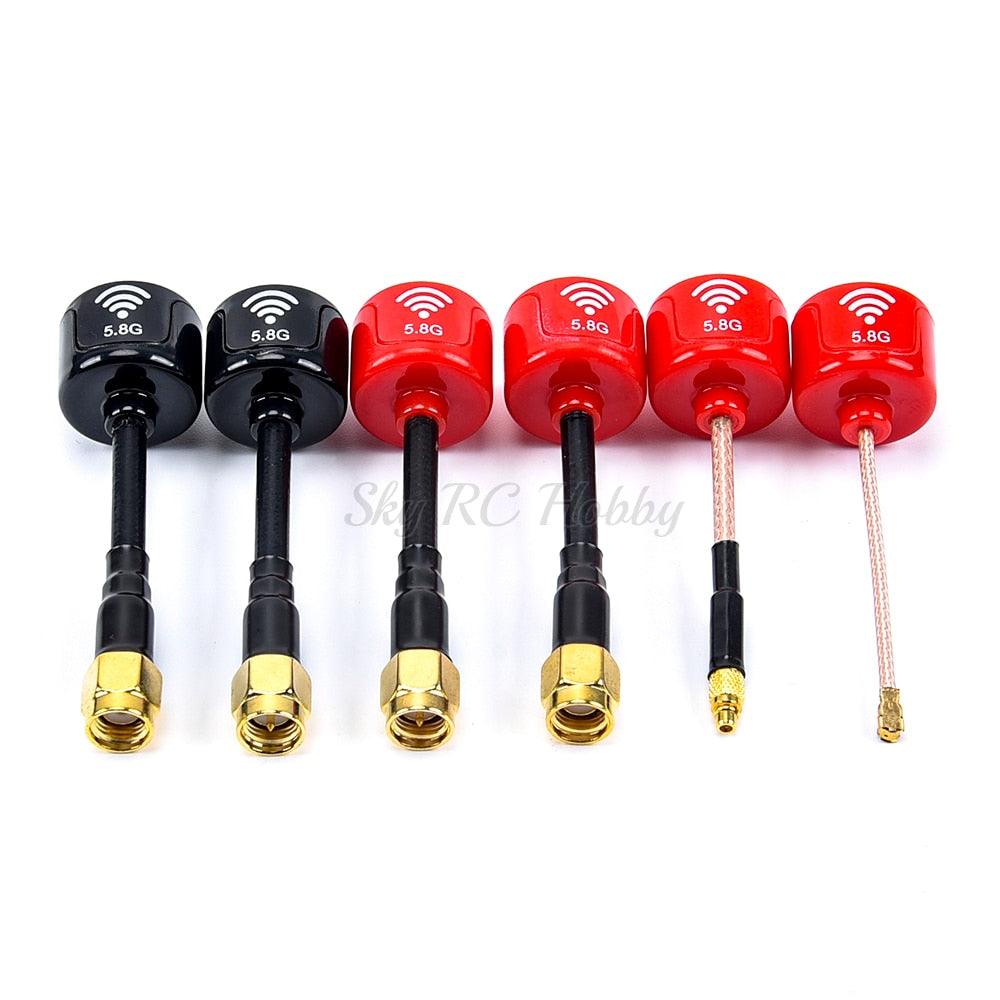

Interface: SMA / RPSMA / UFL / straightMMCX
Length:

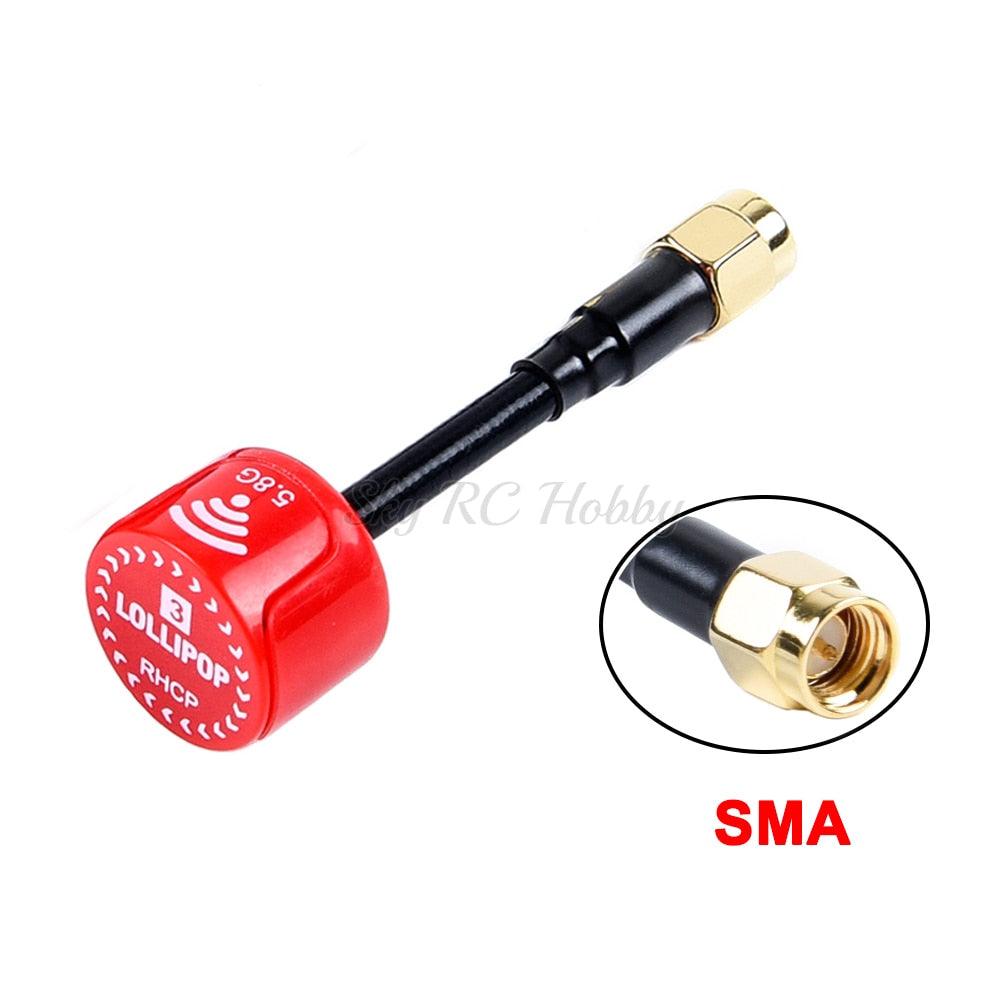

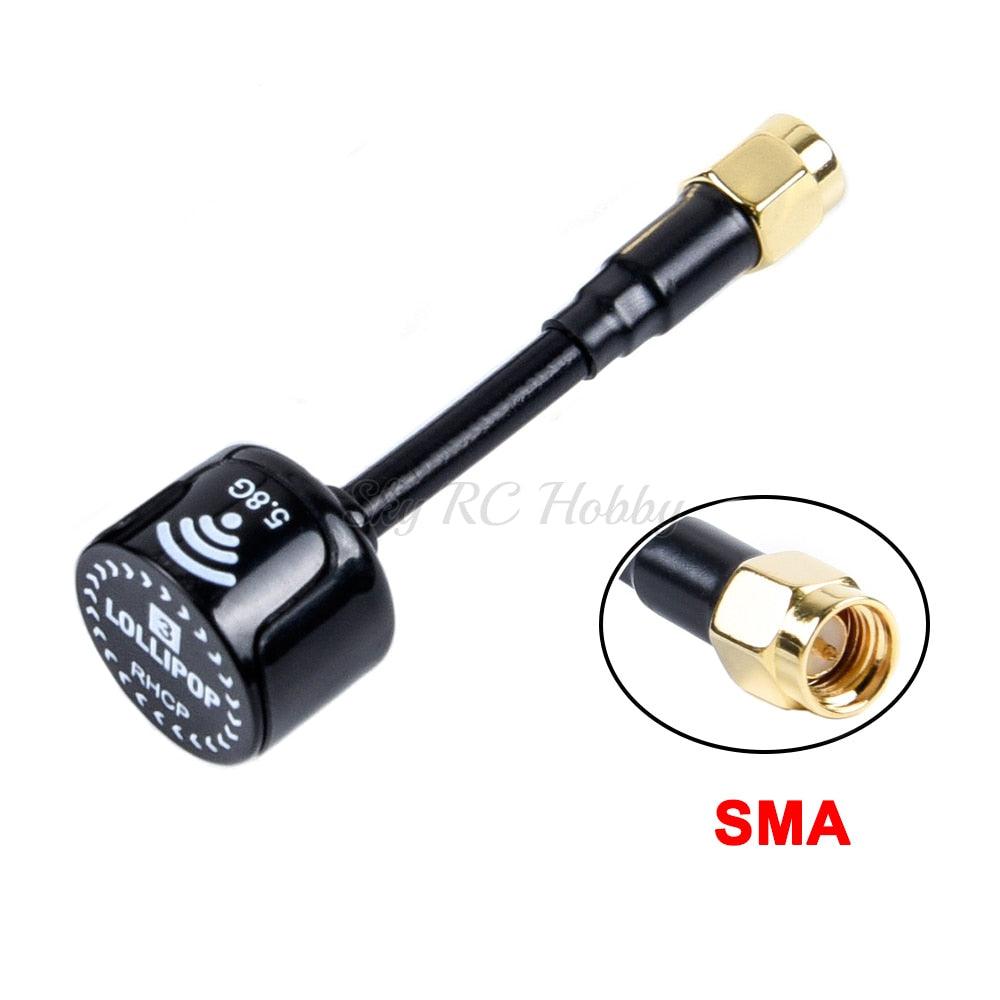

SMA, RPSMA:61mm

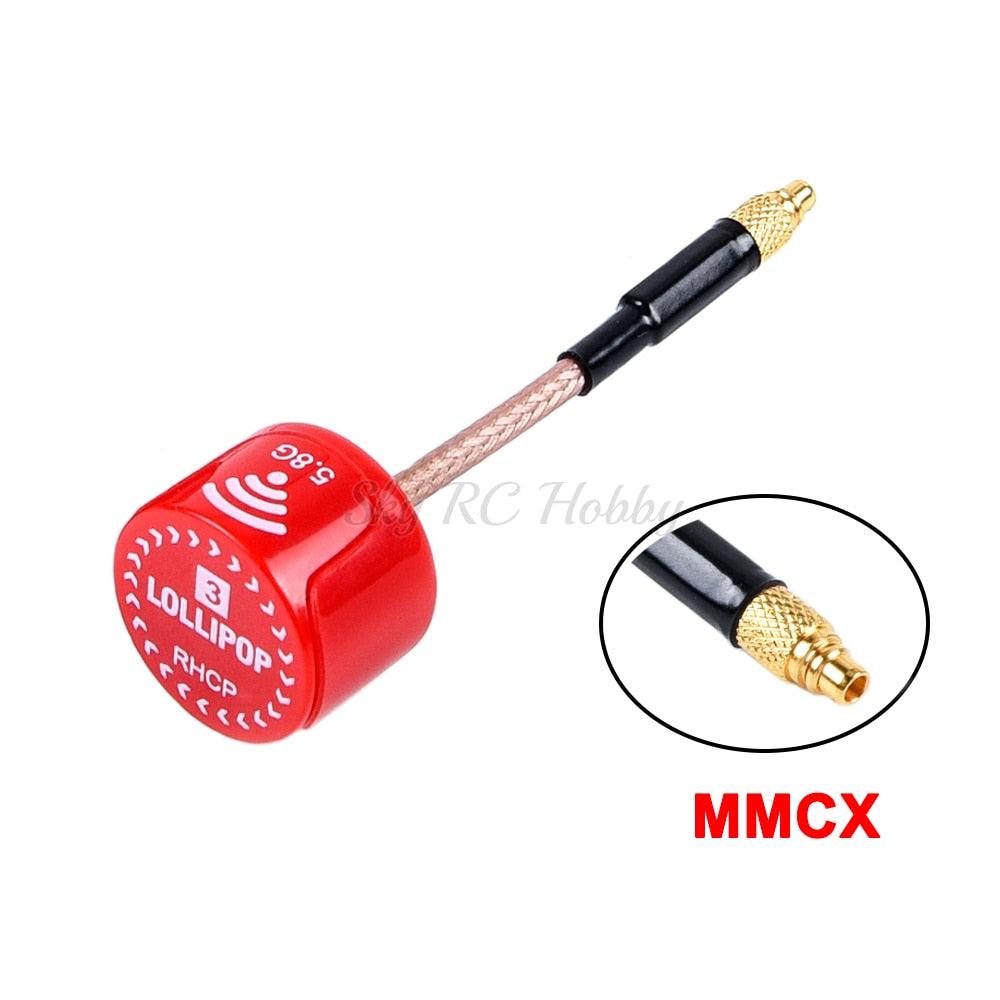

MMCX :60mm

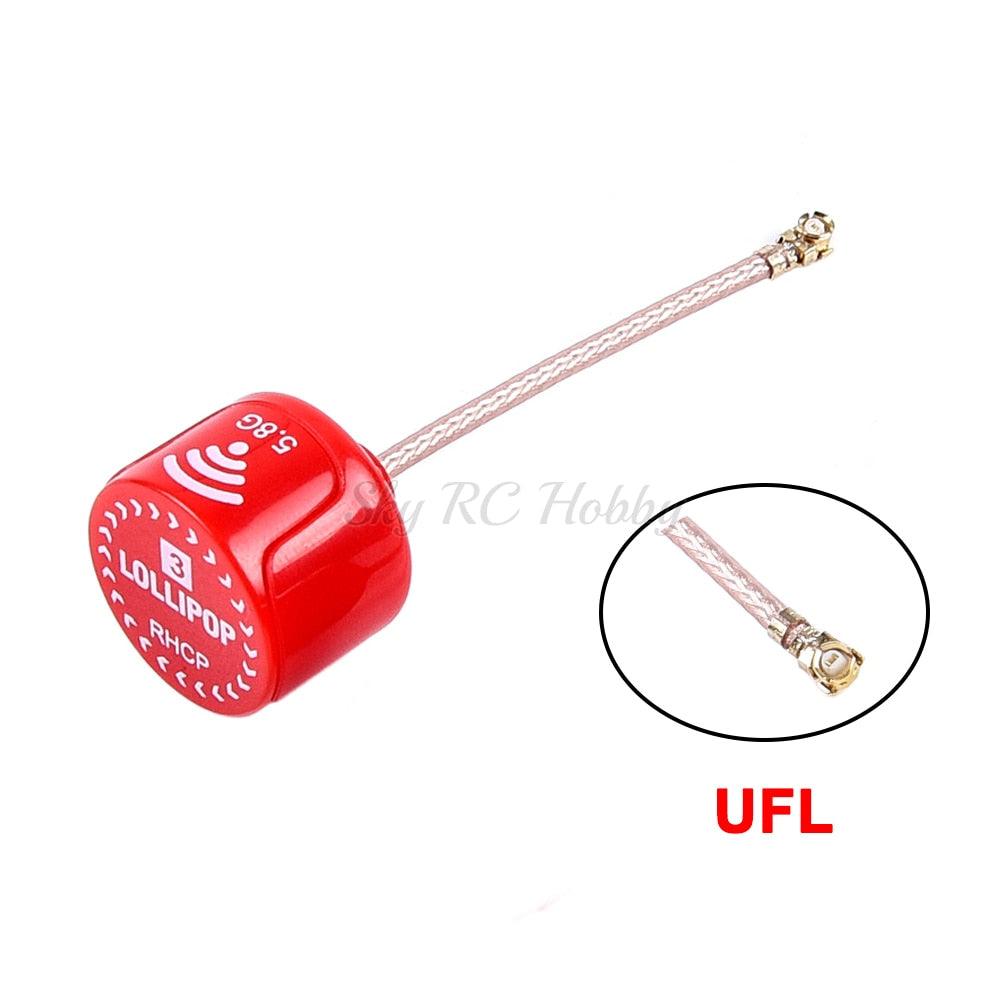

UFL :60mm

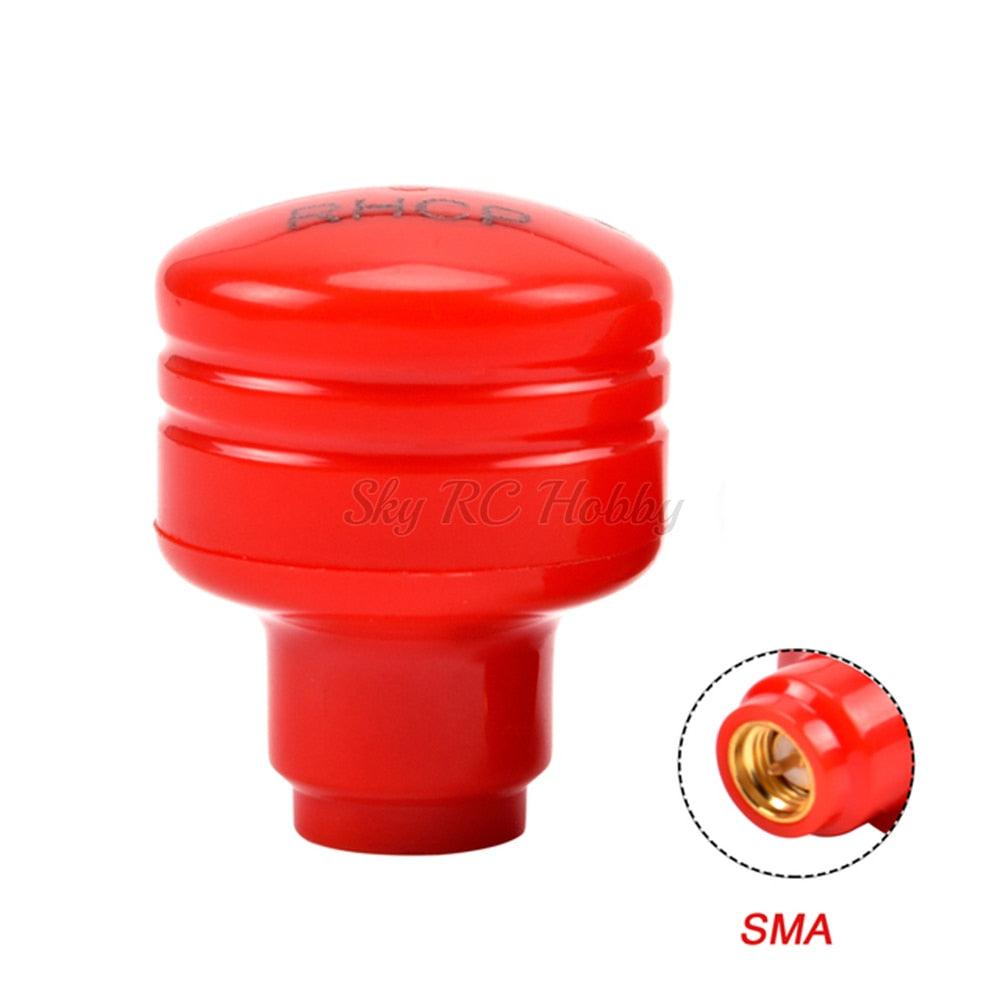

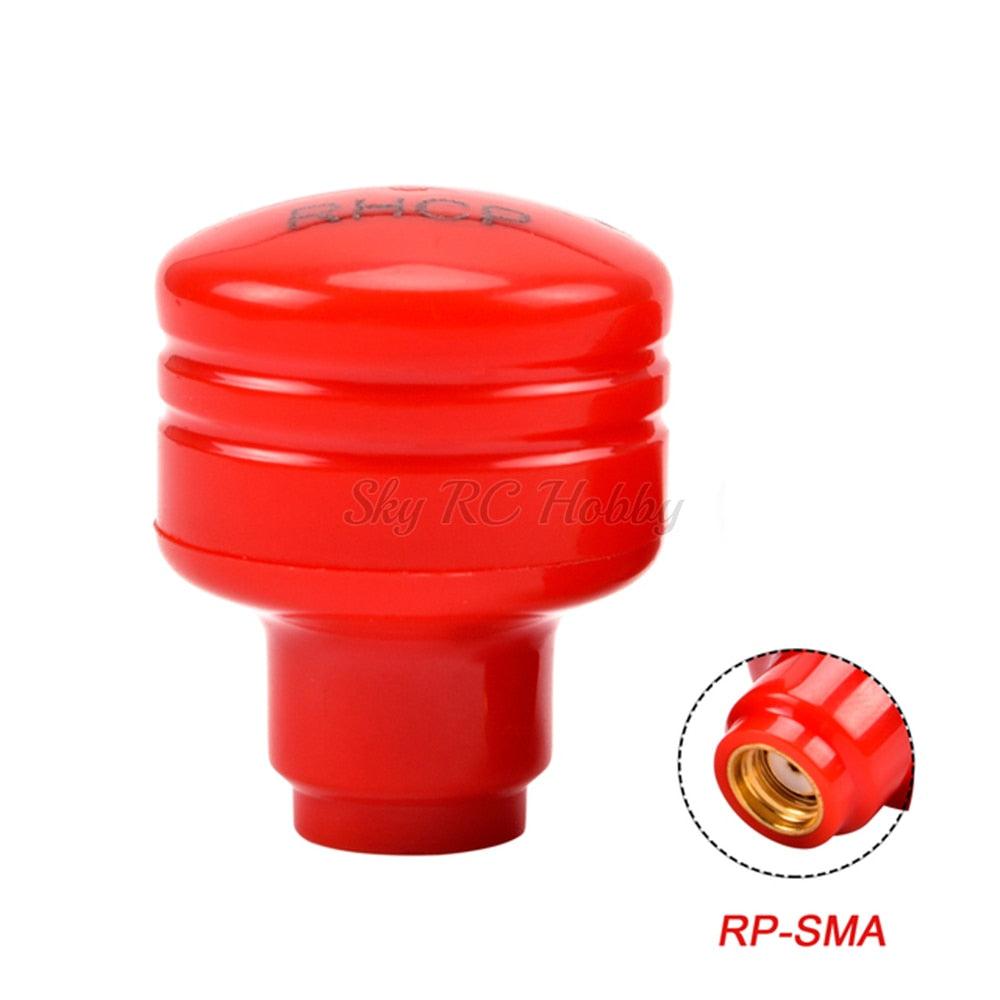

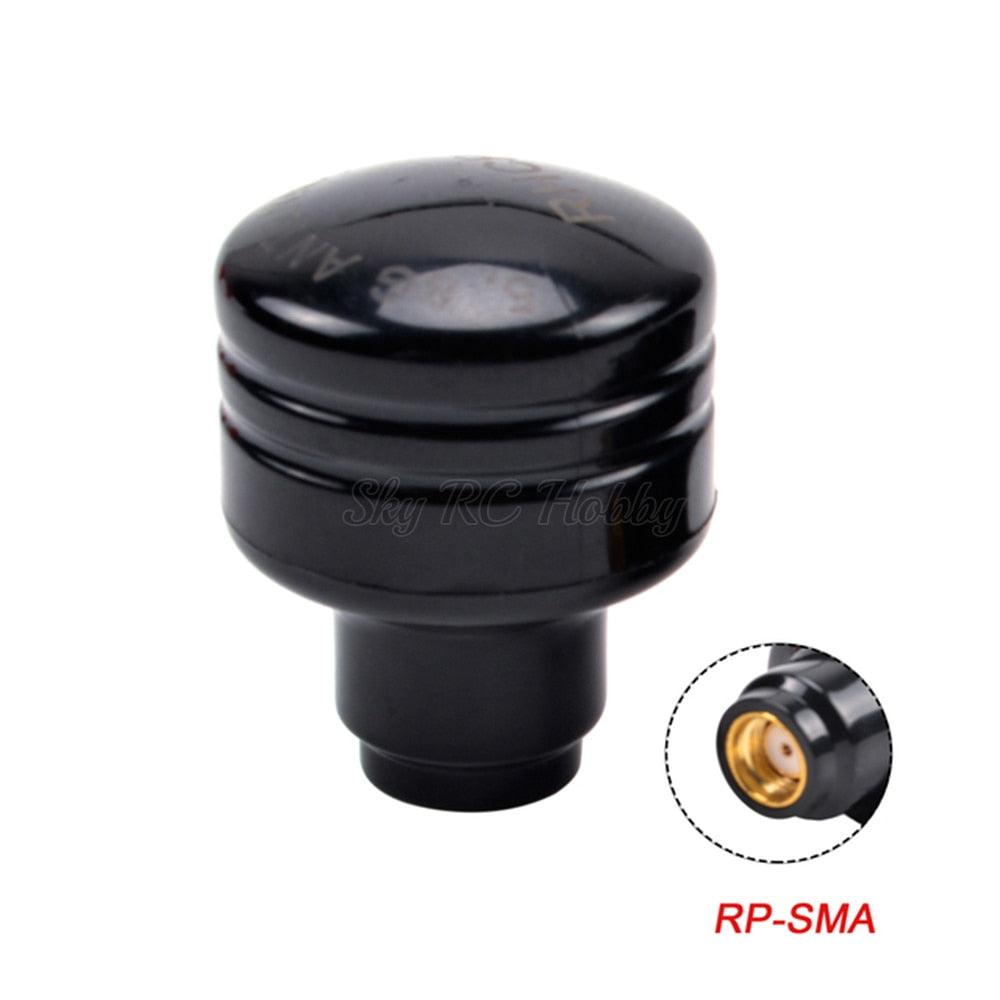

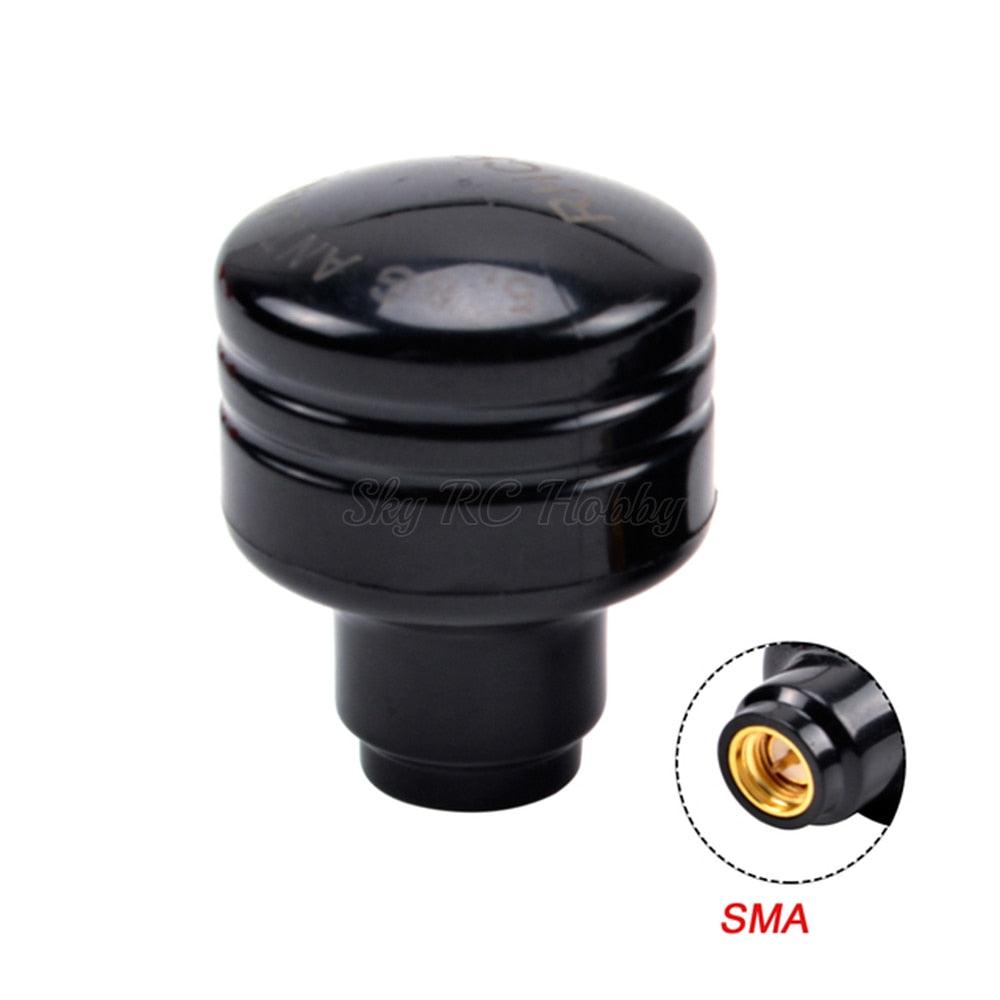

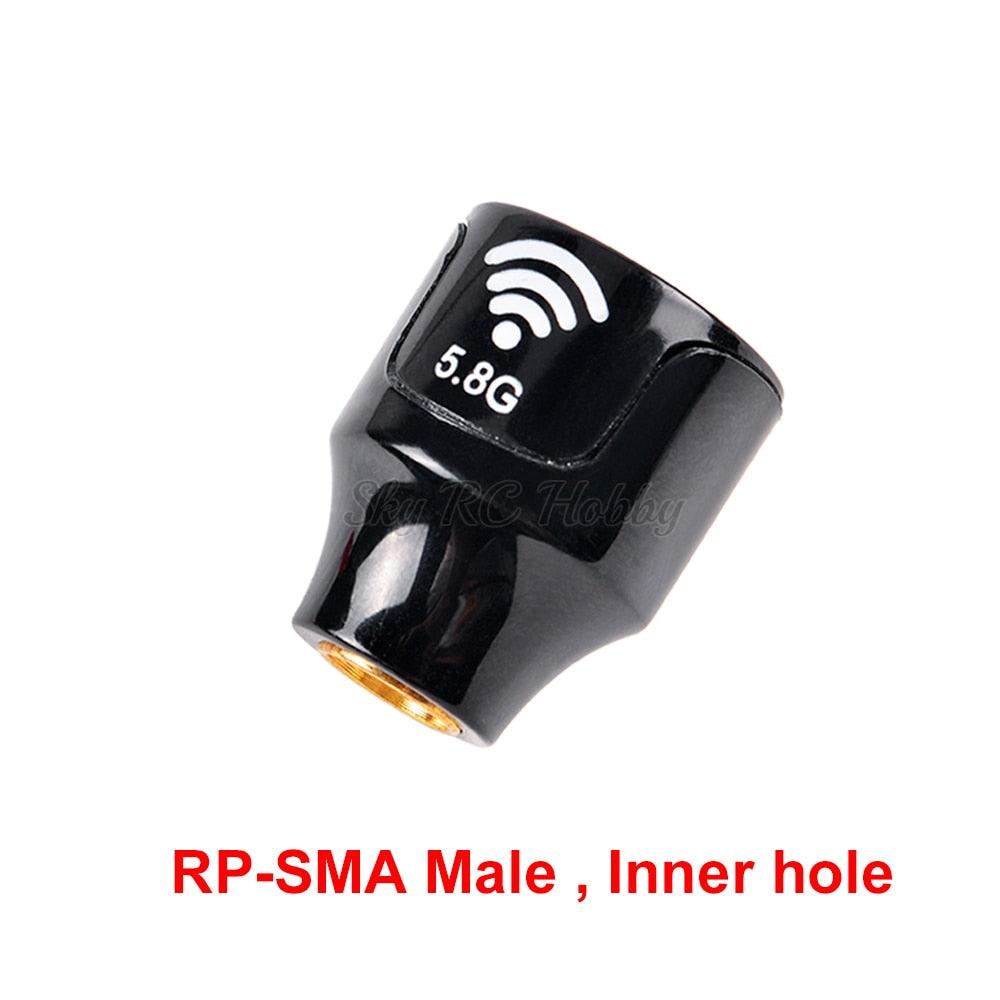

Super Mini Stubby 5.8G 5dBi Antenna
Frequency:5000-6000MHz
Gain:5dBi
Axial Ratio:0.74
Weight:6.8g
Height:Φ21*28mm

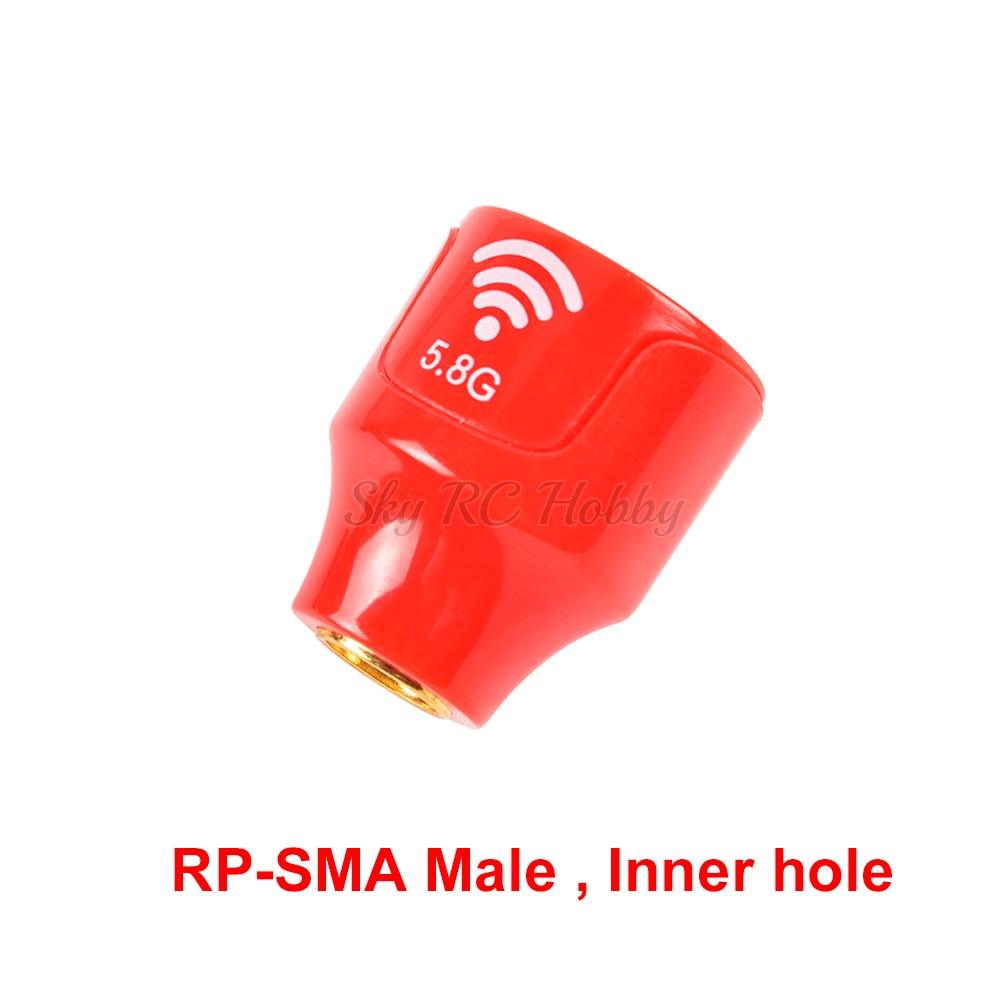

Connector: RP-SMA(inner hole) or SMA (inner needle)

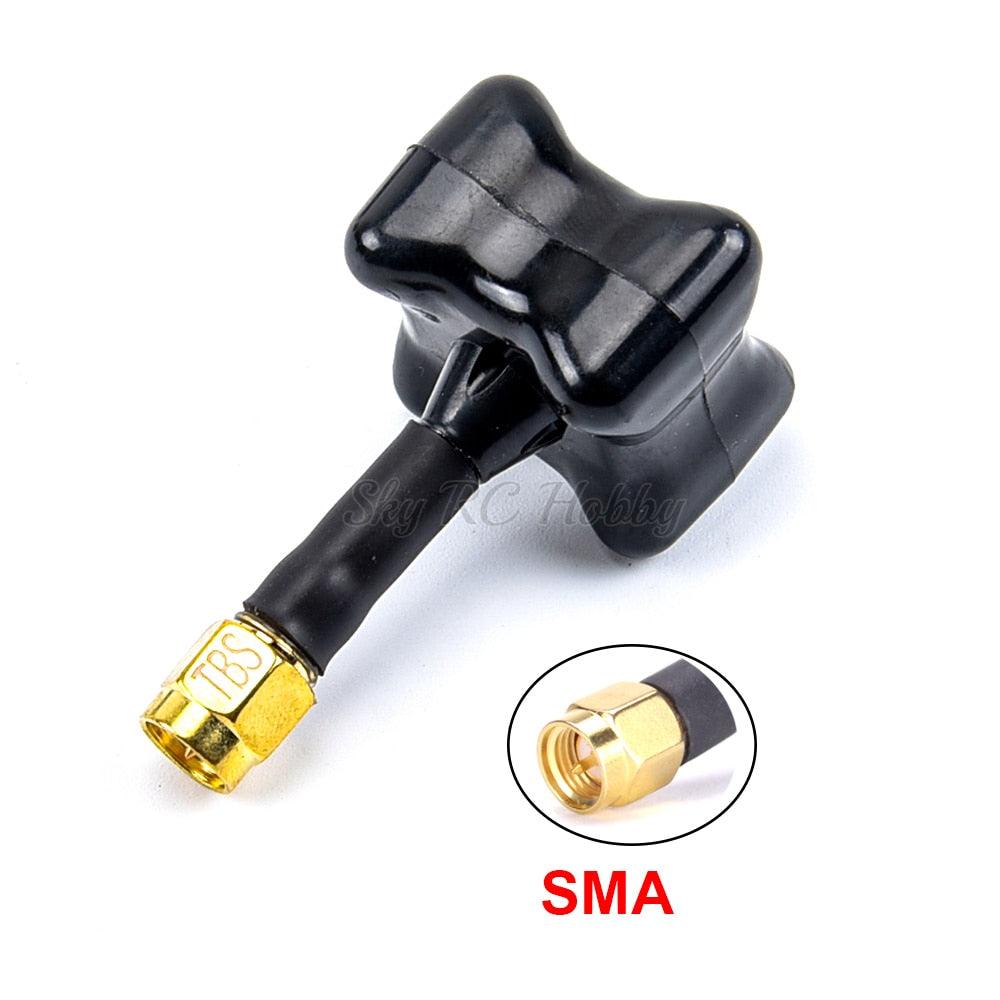

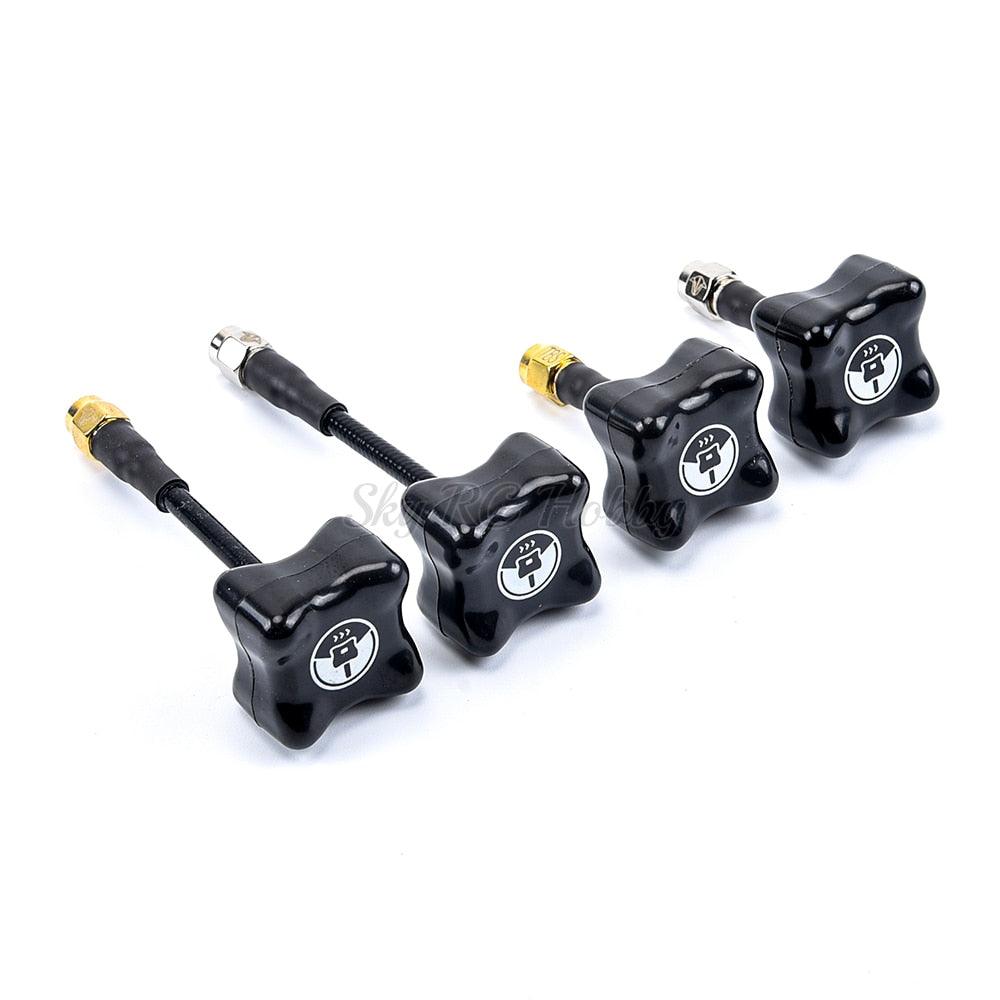

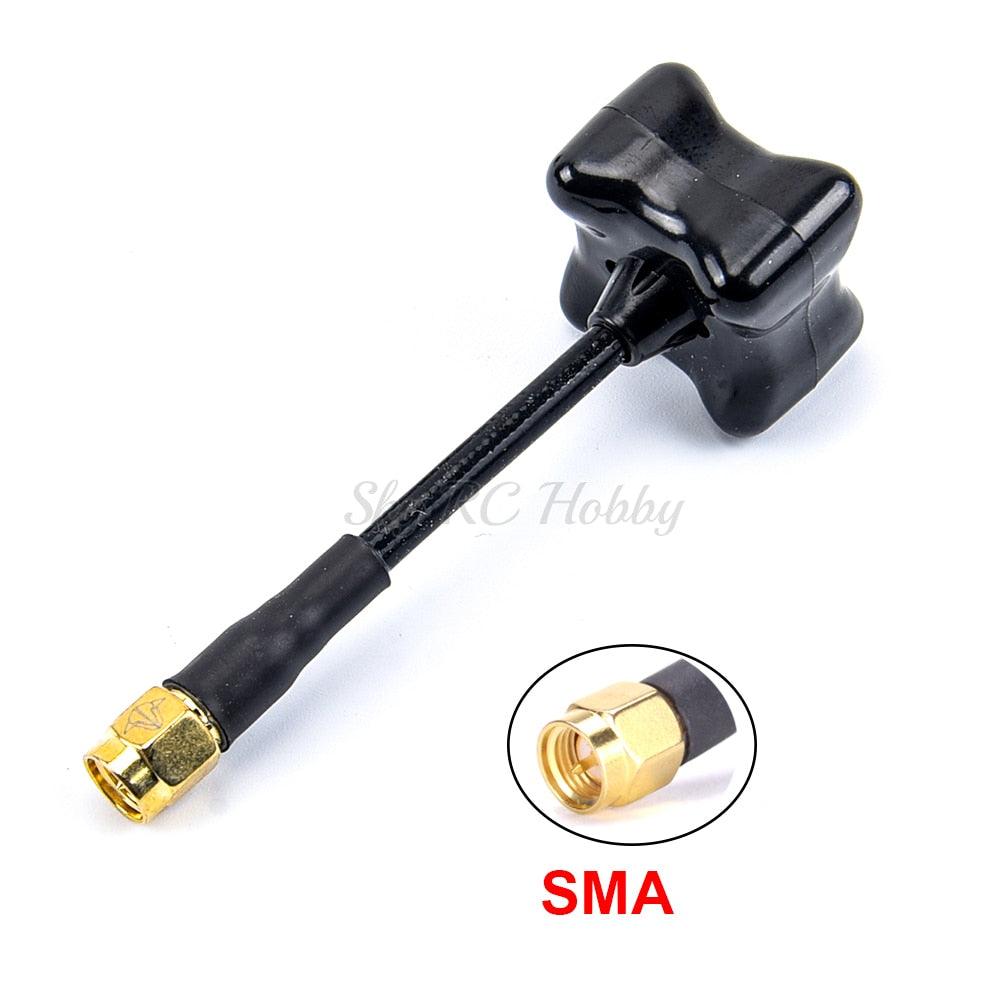

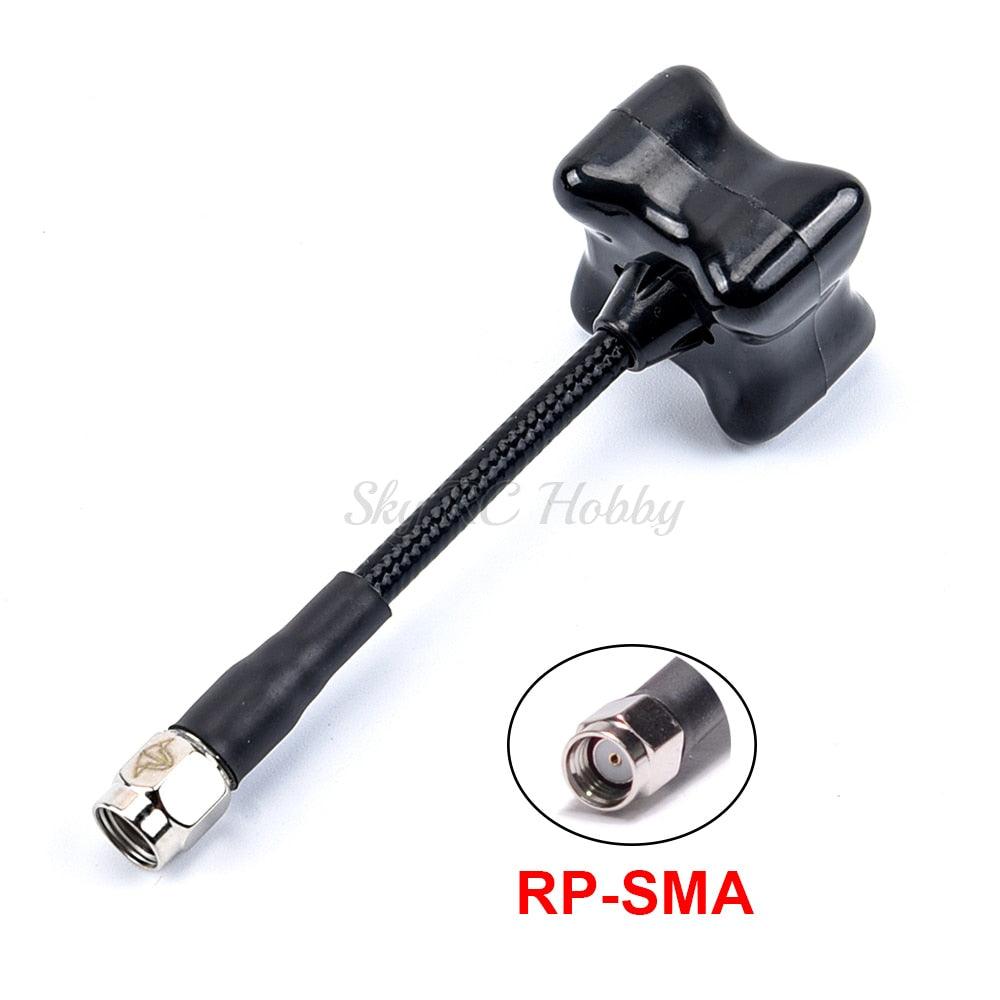

Black Sheep BlackSheep 5.8G antenna RP-SMA / SMA (Long / Short version)
While other antennas rely on copycat designs the TBS Triumph takes a giant leap in 5.8 GHz antenna technology. Video Aerial Systems LLC (IBcrazy) and Team-BlackSheep have come together to re-invent how the modern 5.8 circular polarized antenna should look and perform.
In our quest for the cleanest video signal and best range possible, we have ventured way beyond the traditional bent lobes of Cloverleaf designs and invested significant time and effort in finding the best antenna designs known to man, and modifying them specifically for FPV use.
After extensive design and testing, we focused on making sure the Triumph was durable enough to take even the toughest of abuse. After many test flights and extensive feedback from our pilots, we decided to use a double-jacket heavy duty Semi-Rigid cable and tin-plated connectors. For protection we created a special foam-filled and ultrasonic welded enclosure to secure the antenna from inbound trees, or other objects 🙂
FEATURES:
Manufactured and tested to highest standards
Best in class range and signal quality
Extra compact and low weight
Ultrasonic welded and foam infused cover for ultimate crash-protection
Double-jacket semi-rigid cable for heavy impact resistance
TECHNICAL SPECIFICATIONS:
Frequency range: 5500-6000MHz
Gain: 1.26dbic
Axial Ratio: 0.74
Height:85mm, 3.3 in
Connector: RP-SMA (inner hole)
Connector: SMA (inner needle)

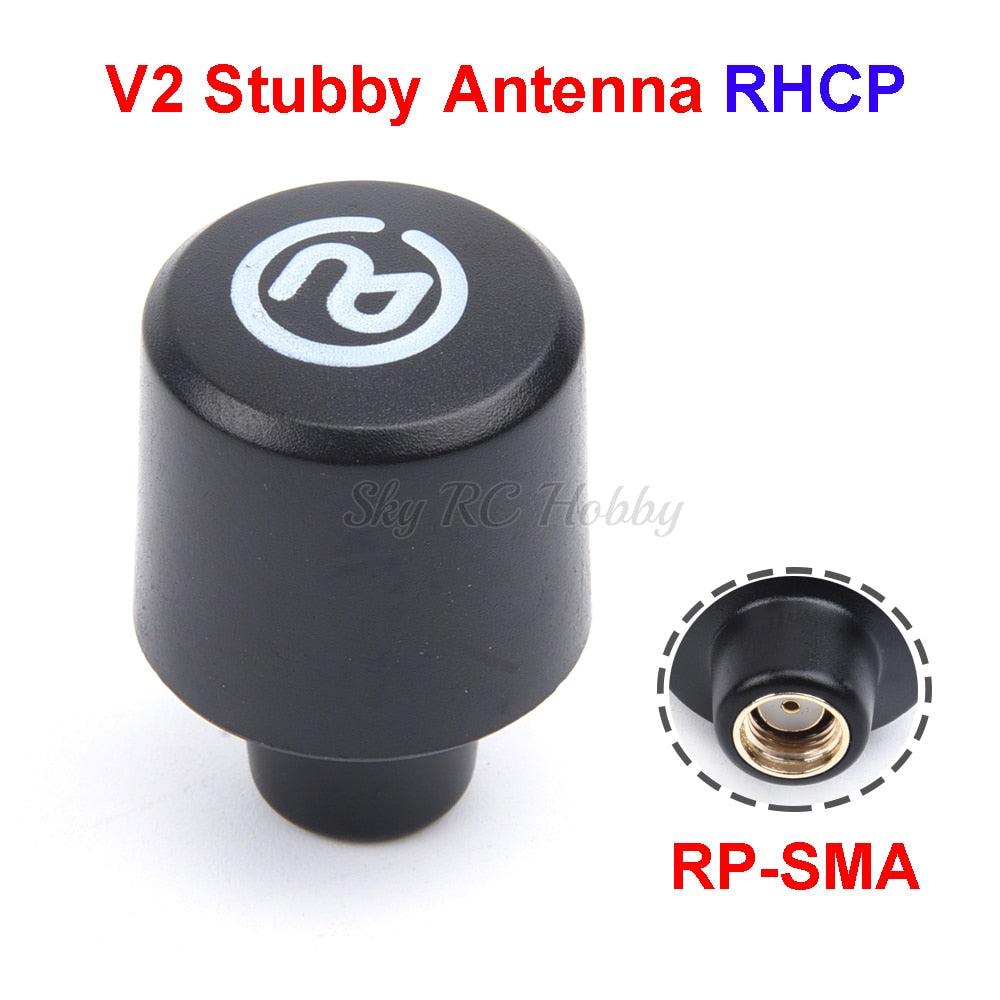

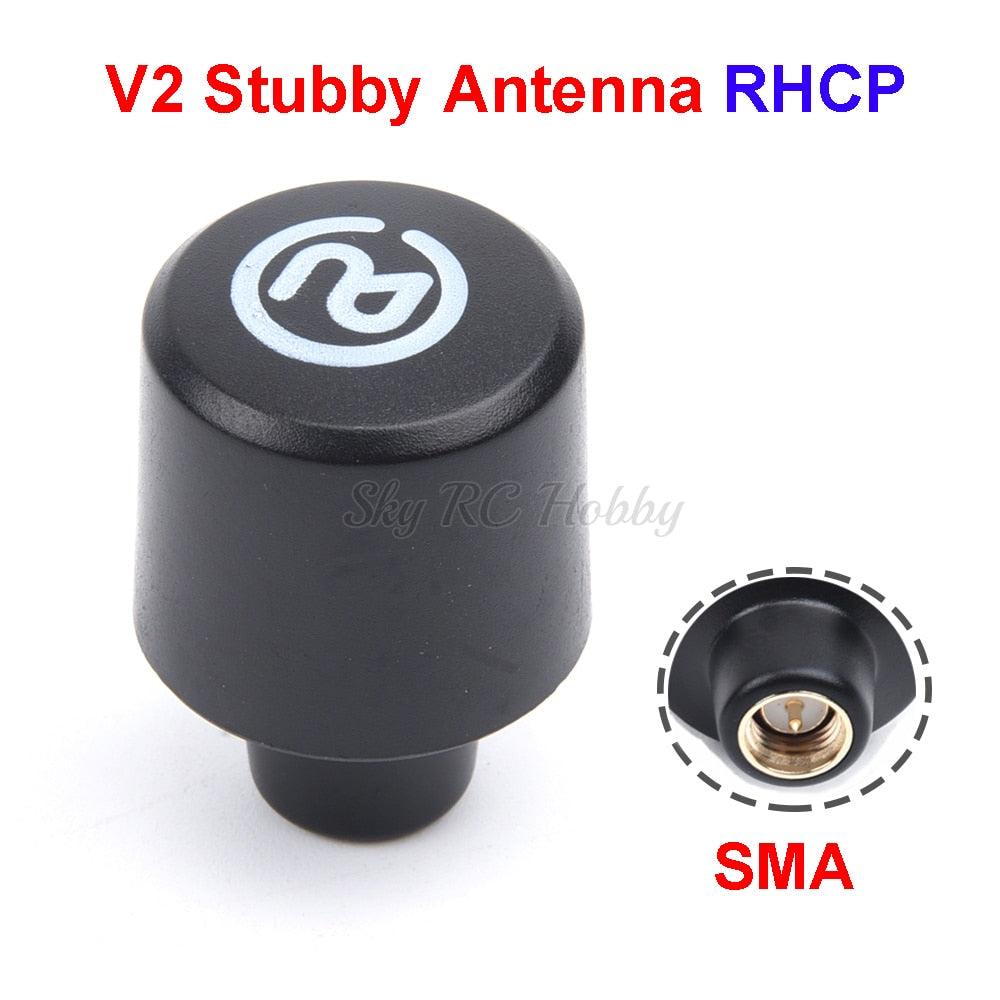

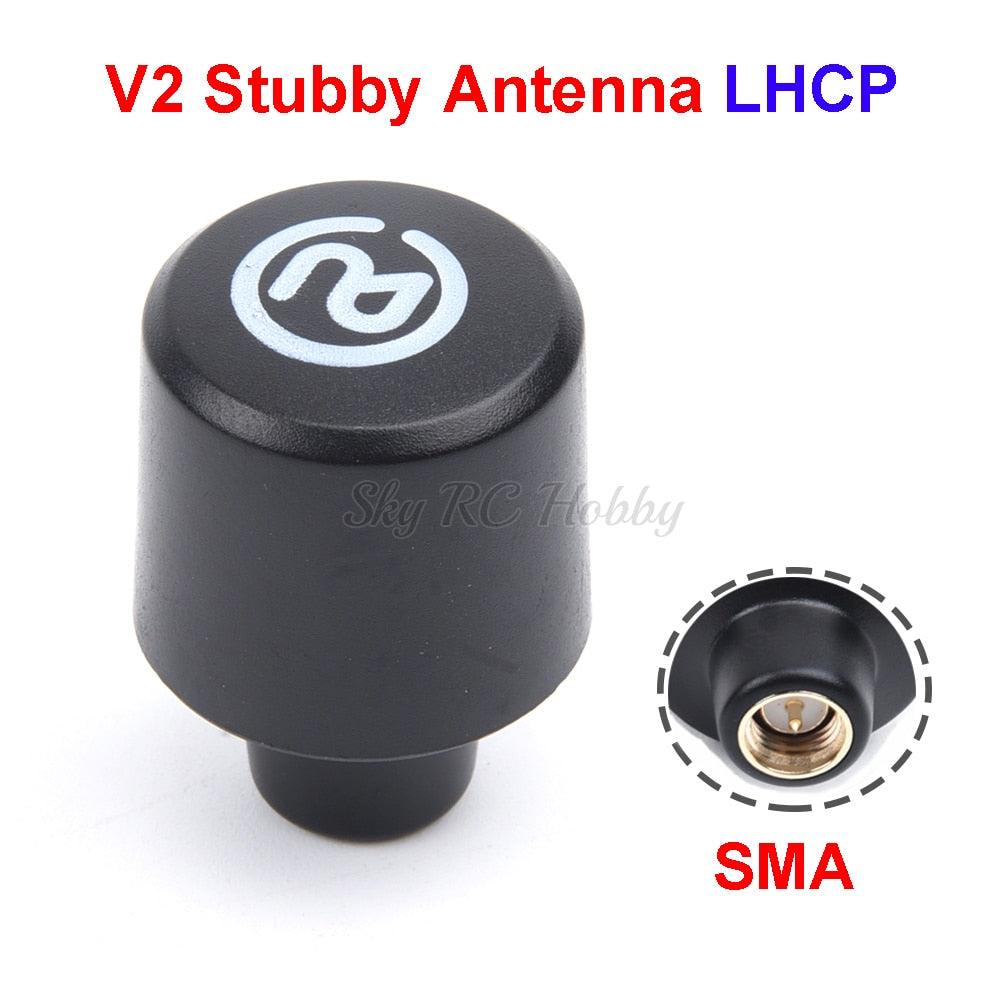

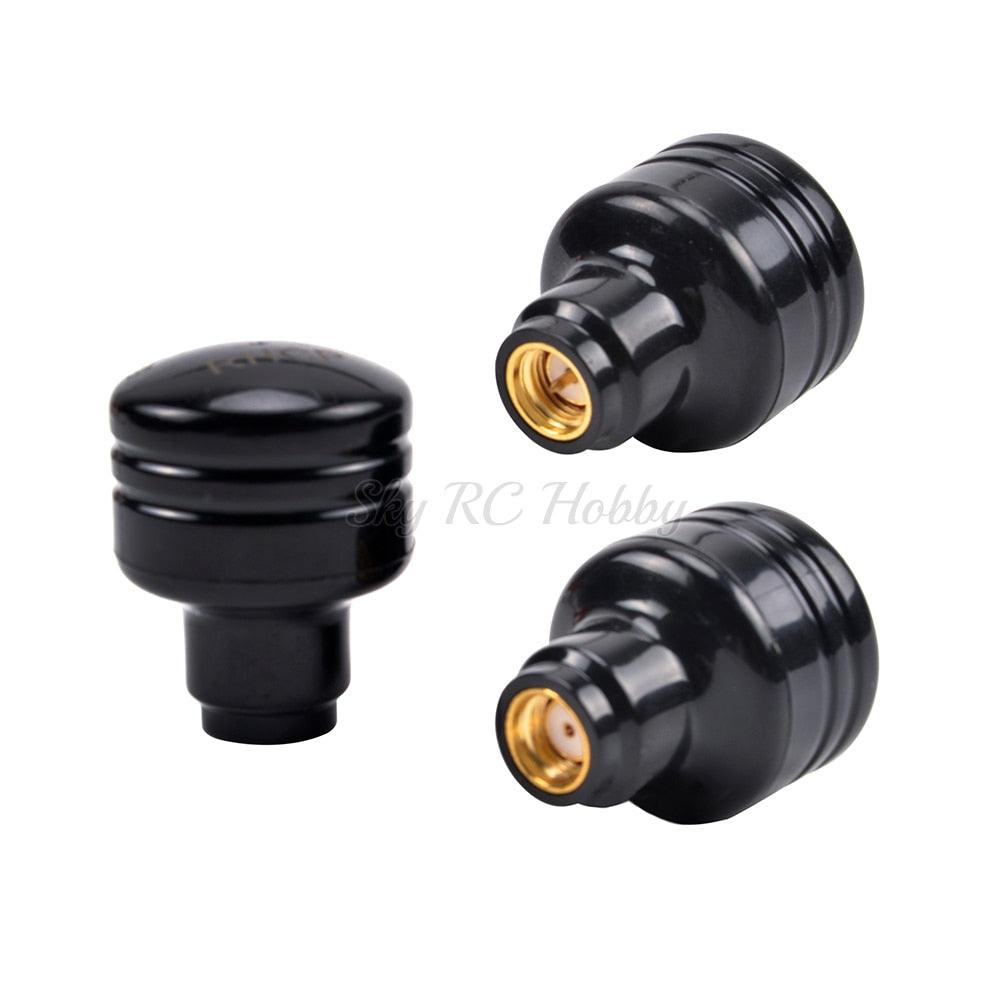

V2 Stubby 5dBi FPV Antenna
Frequency:5600-5900MHz
Gain:5dBi
VSWR: ≤1.5
Polarization：RHCP / LHCP
Axial Ratio:1.2
Weight:6.2g
