JX Servo RD-B7640MI-360 SPECIFICATIONS
Brand Name: JX Servo
Origin: Mainland China
Material: Metal
Use: Vehicles & Remote Control Toys

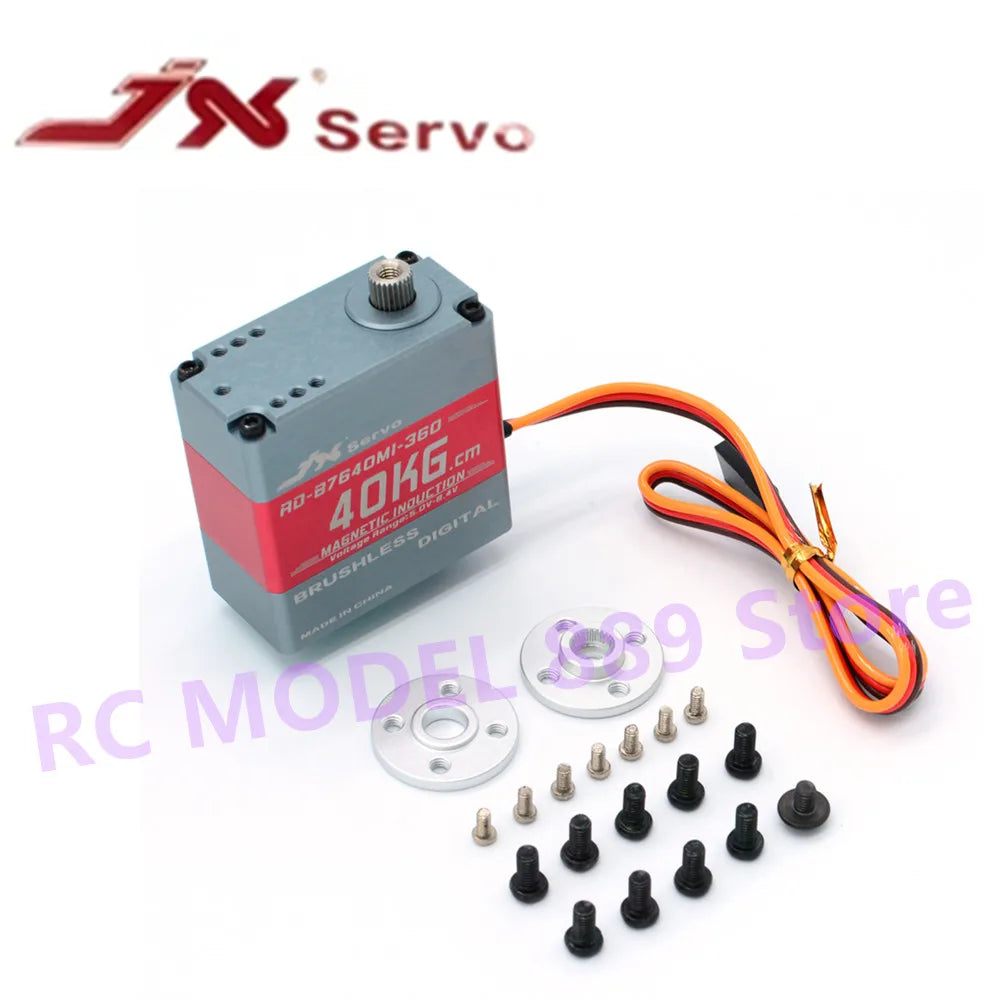

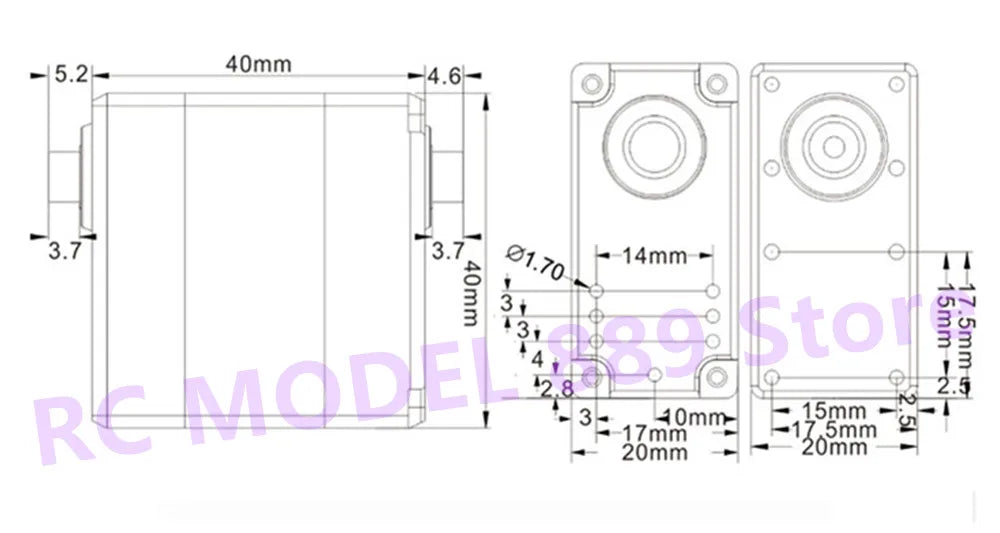

JX Servo RD-B7640MI-360 40kg 8.4V brushless servo 360 degree Magnetic induction full CNC Aluminium Hulls Robot Mechanical Arm —High performance robot servo — High-precision metal gears with hard anodizing — Full CNC aluminium hulls and structure — High quality brushless motor — Dual ball bearings —Dual Axis Servo(Dual shaft servo) SPECIFICATIONS: Dead band: 2μs Neutral point: 1500μs Pulse width:500μs-2500μs Motor: Brushless Max angle:360°±2° Working frequence: 330hz Voltage:5.0V/7.2V/8.4V Speed(5.0V/7.2V/8.4V): 0.15/0.13/0.11sec/60° Stall torque(5.0V/7.2V/8.4V): 33/35/40 kg.cm Demension: 40X20X40mm Weight: 76 g Connector Wire Length: JR 265mm Spline Count: 25T Package Included: 1 x Servo 1 x Set of Accessories
JX Servo RD-B7640MI-360: A brushless servo with magnetic induction, featuring a full CNC aluminum hull and a mechanical arm for robotics applications. It has an operating voltage of 8.4V, a weight capacity of 40kg, and a rotation speed of 0.11 seconds per 60 degrees (360-degree range).
