JX Servo PS-5521MG SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servos
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: KV1100
Model Number: PS-5521MG
Four-wheel Drive Attributes: Battery
Wheelbase: Screws

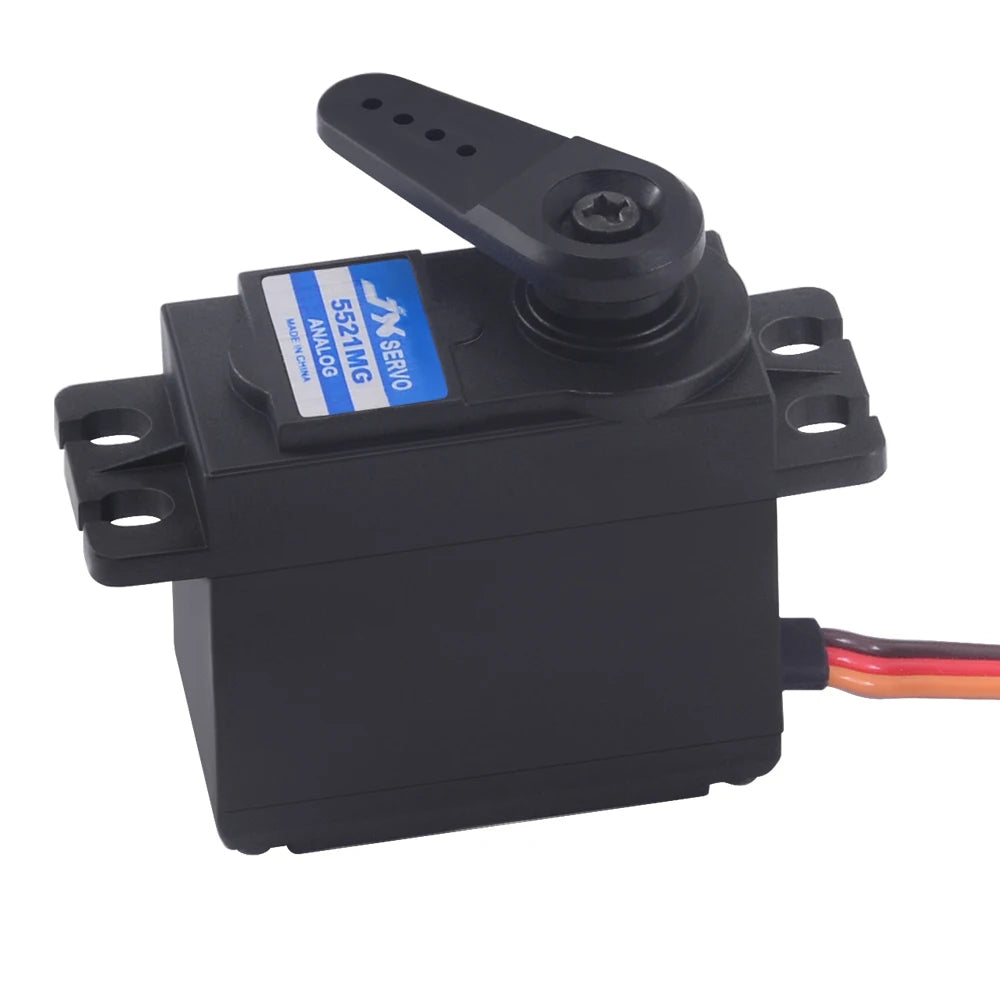

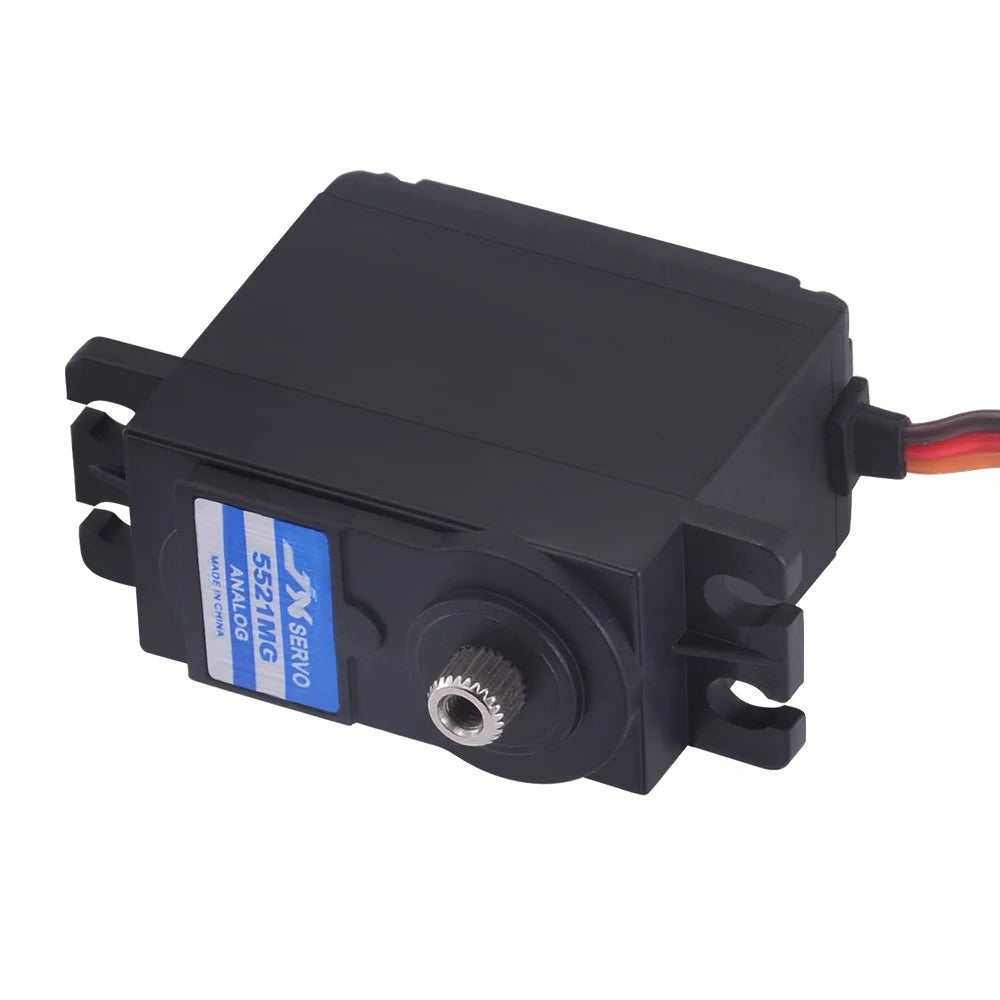

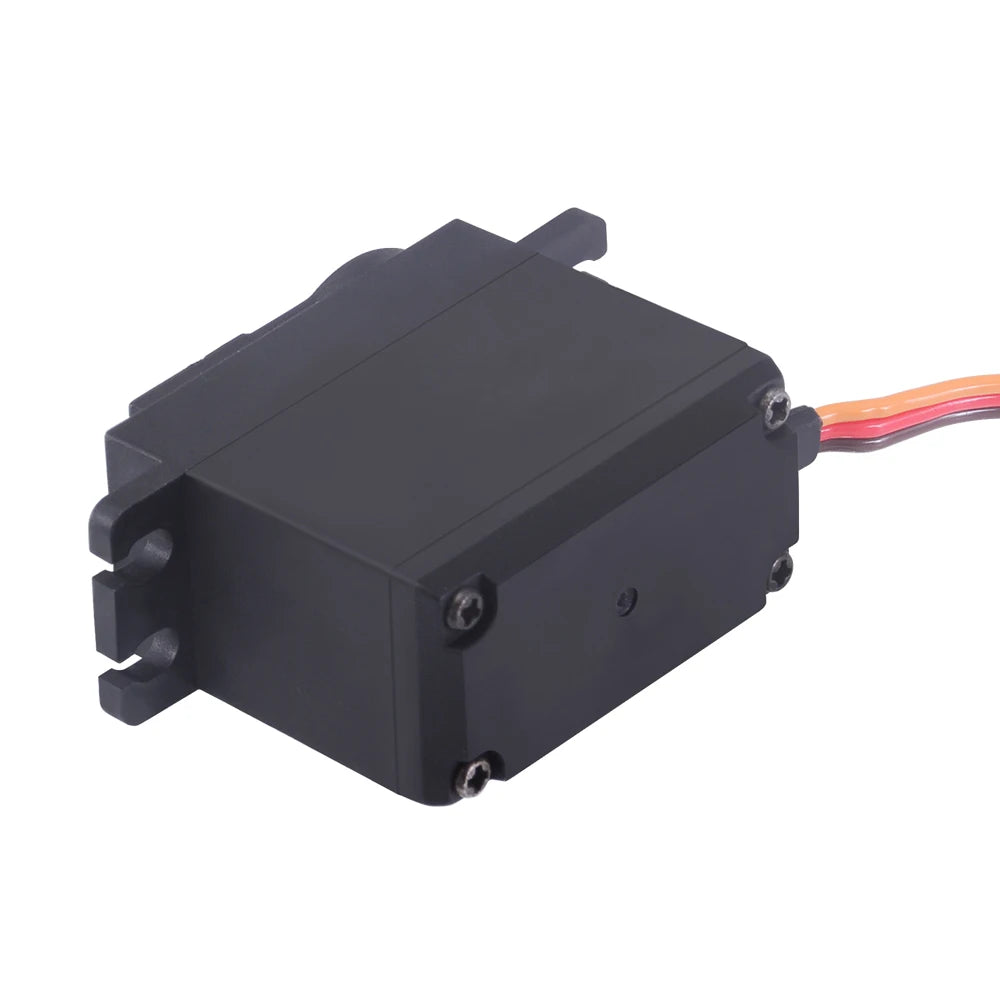

JX Servo PS-5521MG 55.6g High Precision Metal Gear Analog Standard Servo
FEATURE:
— High-precision Taiwan-made metal gears
— Dual ball bearings
SPECIFICATIONS:
Dead band: 7μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg-cm (281.89 oz/in)

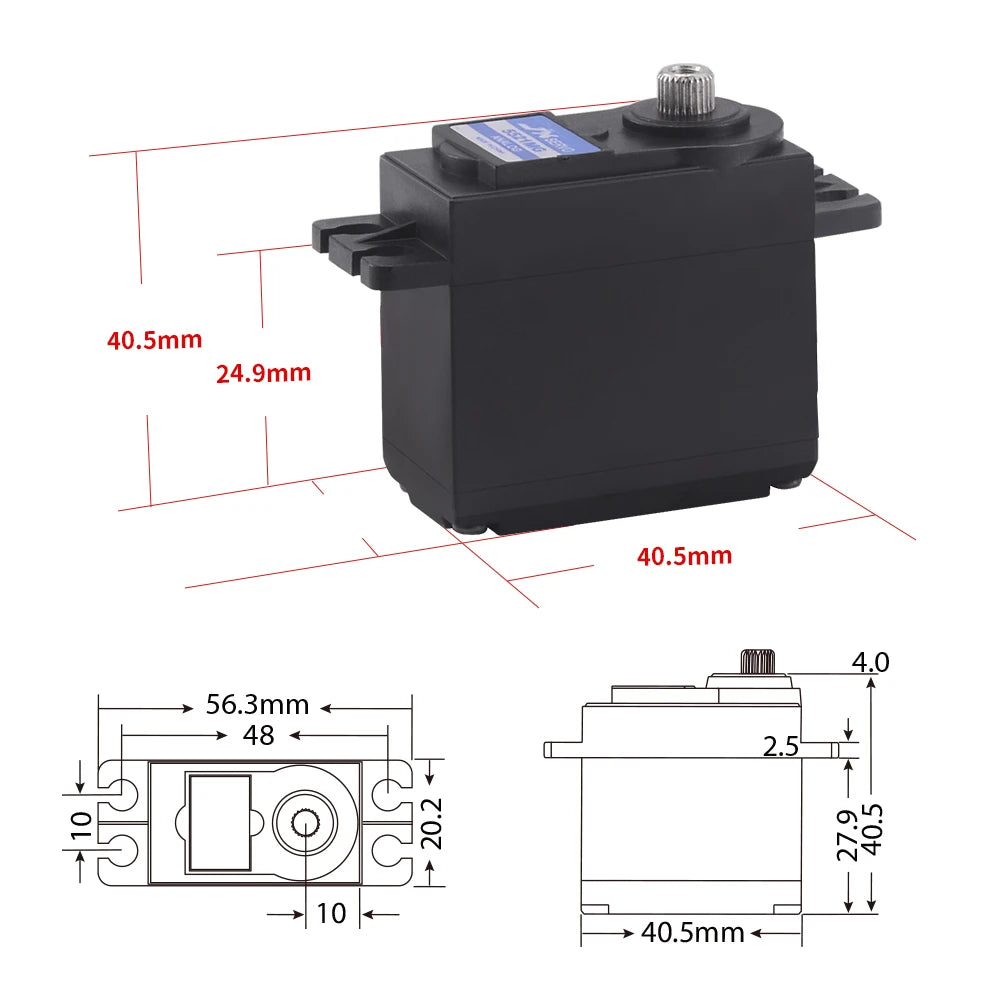

Dimensions: 40.5X20.2X38mm /1.59 X0.80X49 in
Weight: 55.6 g (1.96oz)

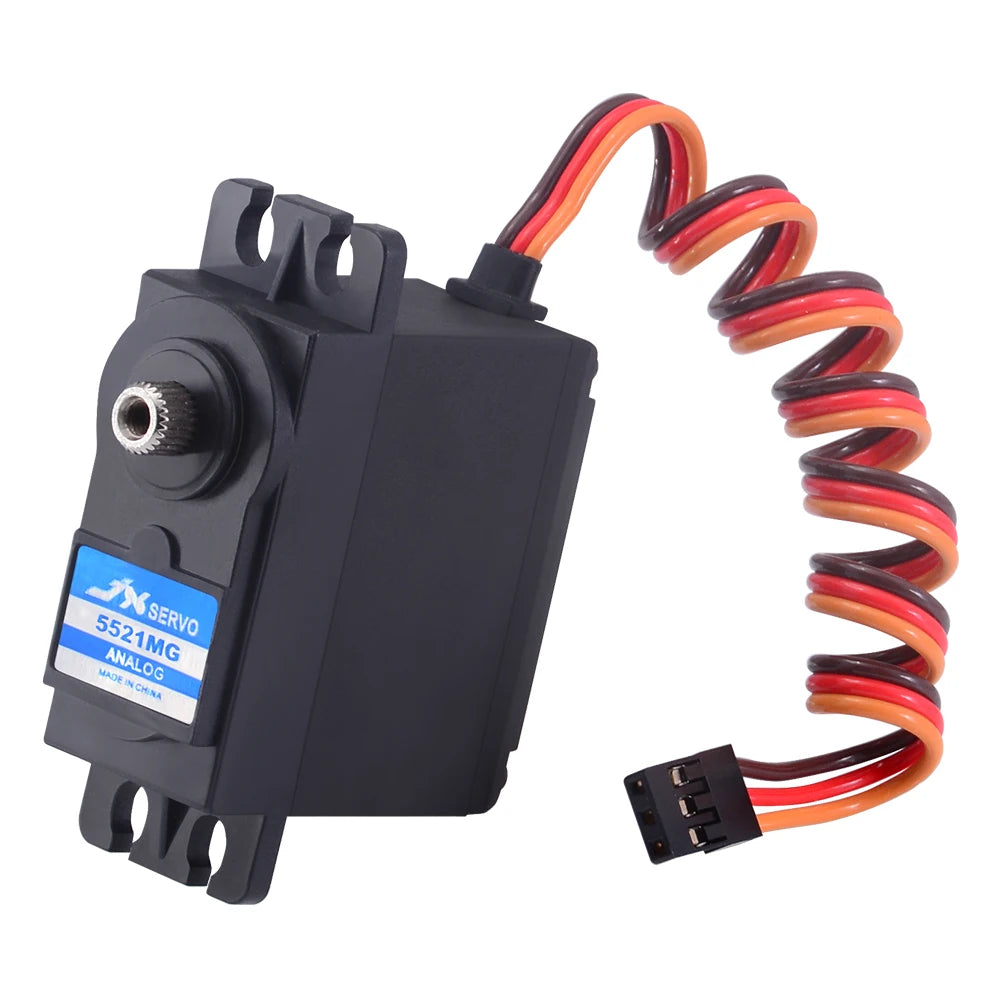

Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Tooth Count: 25

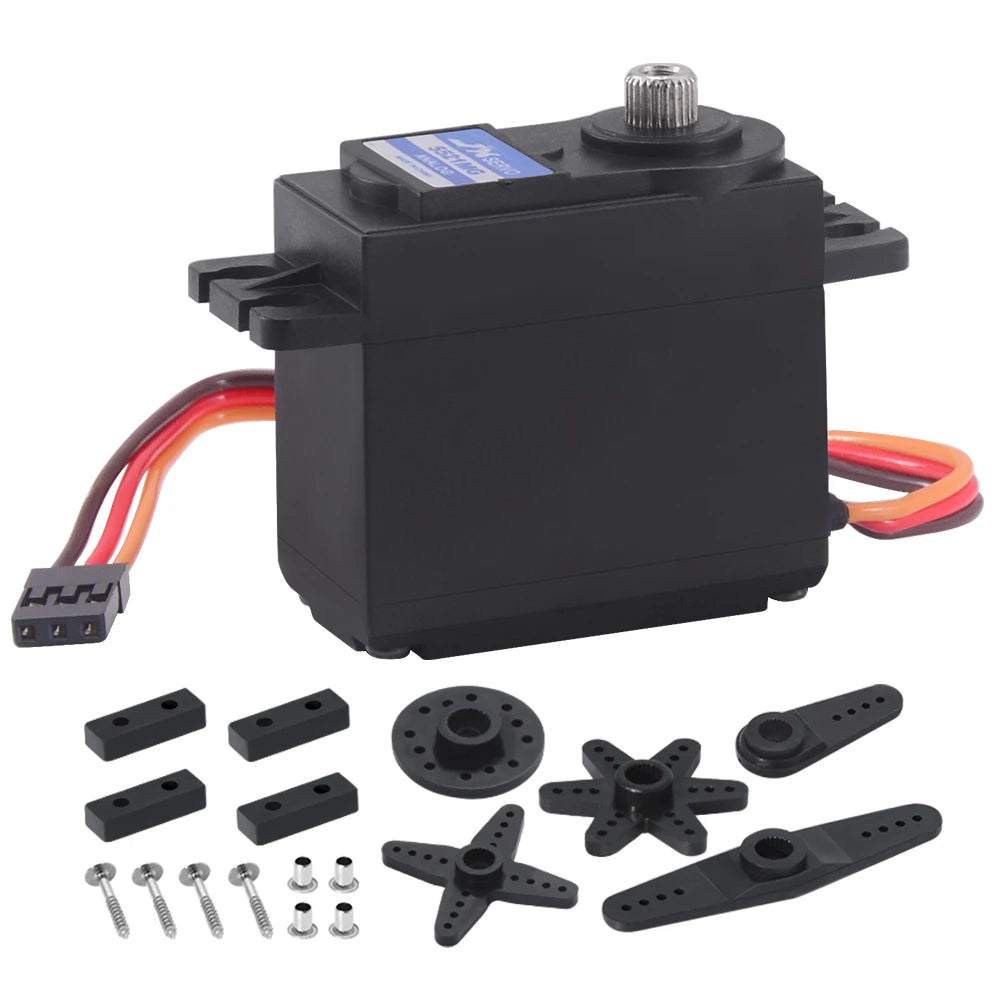

Package including:
1*JX Servo PS-5521MG
1*Spare parts
