JX Servo PDI-HV5212MG SPECIFICATIONS
Brand Name: JX
Material: Metal
RC Parts & Accs: Servos
Size: 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: KV1100
Model Number: PDI-HV5212MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
FEATURE:
— High performance high voltage digital coreless Short body servo
— High-precision Taiwan-made aluminium gears with hard anodizing
— Full CNC aluminium Shell structure
— Dual ball bearings
— Waterproof
SPECIFICATIONS:
Dead band: 1μs
Control System: +Pulse Width Control
Working frequence: 1520μs / 330hz
Operating Voltage: DC6~8.4V
Motor: coreless motor
Operating Temperature Range: -10 to + 60°C
Operating Speed (6V): 0.09sec/60°
Operating Speed (8.4V): 0.07sec/60°
Stall Torque (6V): 9.4kg.cm (118.9oz/in)
Stall Torque (8.4V): 11.82kg.cm (164.14oz/in)
Potentiometer Drive: Direct Drive

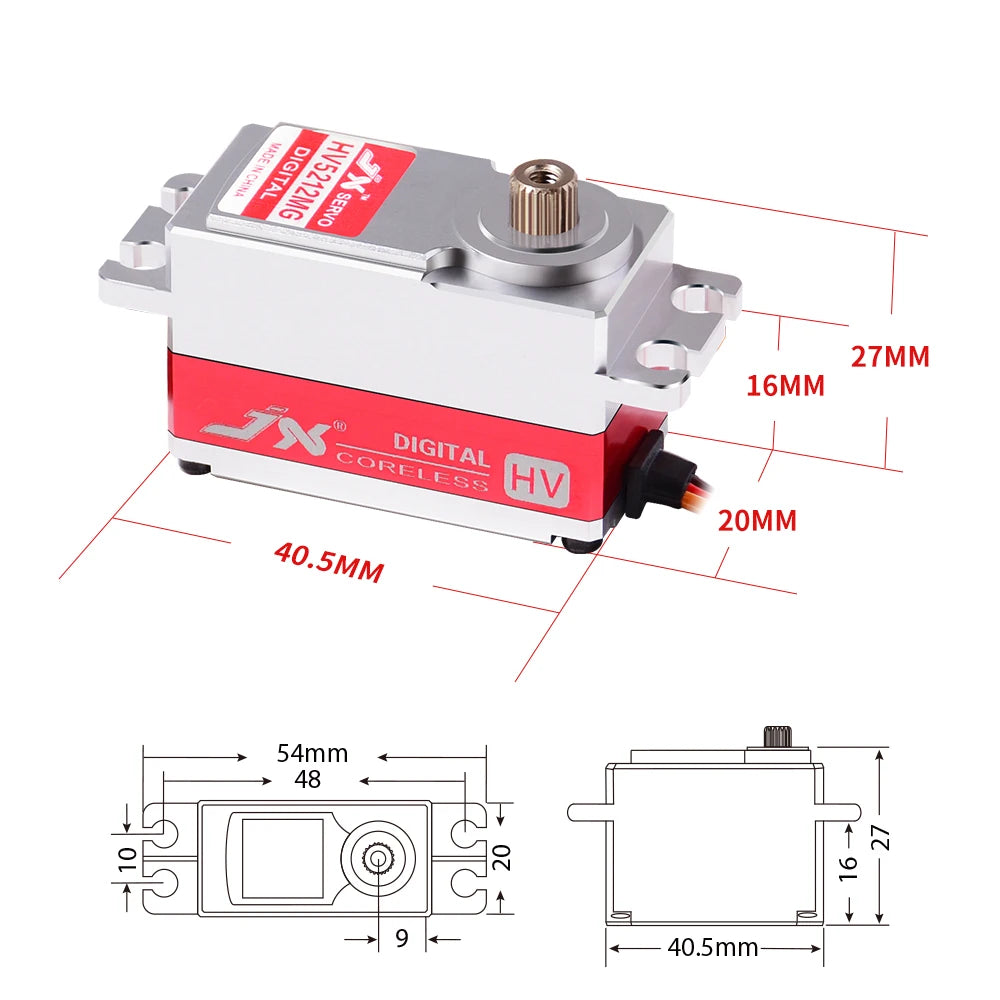

Dimensions: 40.5X20.5X 26.8mm /1.59 X0.80X1.05 in
Weight:52 g (1.67oz)

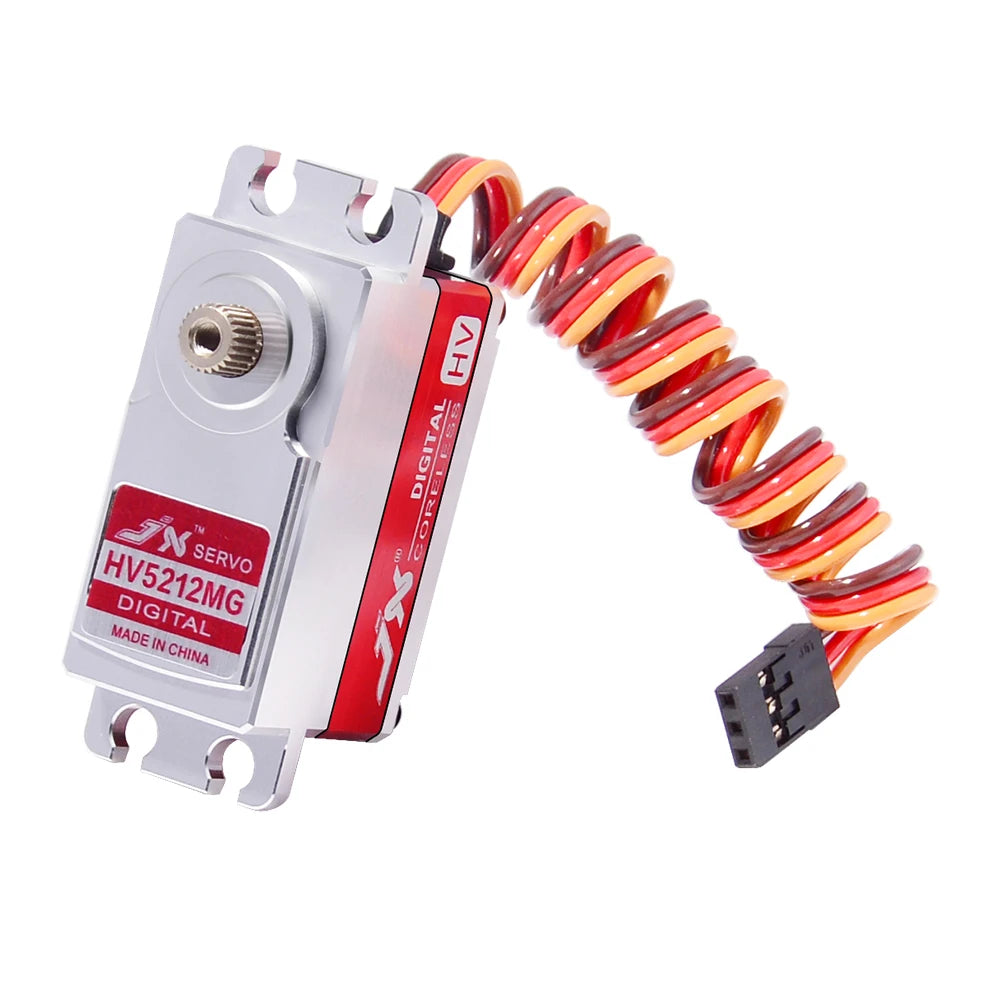

Connector Wire Length: JR 220 mm
Bearing: 2BB
Tooth Count：25
