JX Servo PDI-5521MG SPECIFICATIONS
Brand Name: JX
Origin: Mainland China
Material: Plastic
Plastic Type: ABS
Recommend Age: 14+y
RC Parts & Accs: Servos
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Technical parameters: KV1100
Model Number: PDI-5521MG-180
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Gear Teeth: 25T
Control Angle: 180 Degree
Factory supply，Huge stocks, Support wholesale！Please kindly to contact us, the price can be negotiated 🙂
JX Servo Technology have established a reputation for reliability and value. JX Servo produce servos for all applications from RC Modelling, UAV, Robotics to industrial applications. JX Servo offer an affordable solutions for all kinds of servo applications and are backed up with years of R&D and production development to ensure reliable quality servos are always delivered quickly.
FEATURE:
— High performance digital standard servo
— High-precision Taiwan-made metal gears
— High quality brushed motor
— Dual ball bearings
SPECIFICATIONS:
Dead band: 2μsl
Working frequency: 1520μs / 330hz
Operating Voltage: DC4.8~6.0 V
Operating Speed (4.8V): 0.18sec/60 degrees
Operating Speed (6V): 0.16 sec/60 degrees
Stall Torque (4.8V): 17.25kg.cm (239.55oz/in)
Stall Torque (6.0V): 20.32 kg.cm (281.89 oz/in)

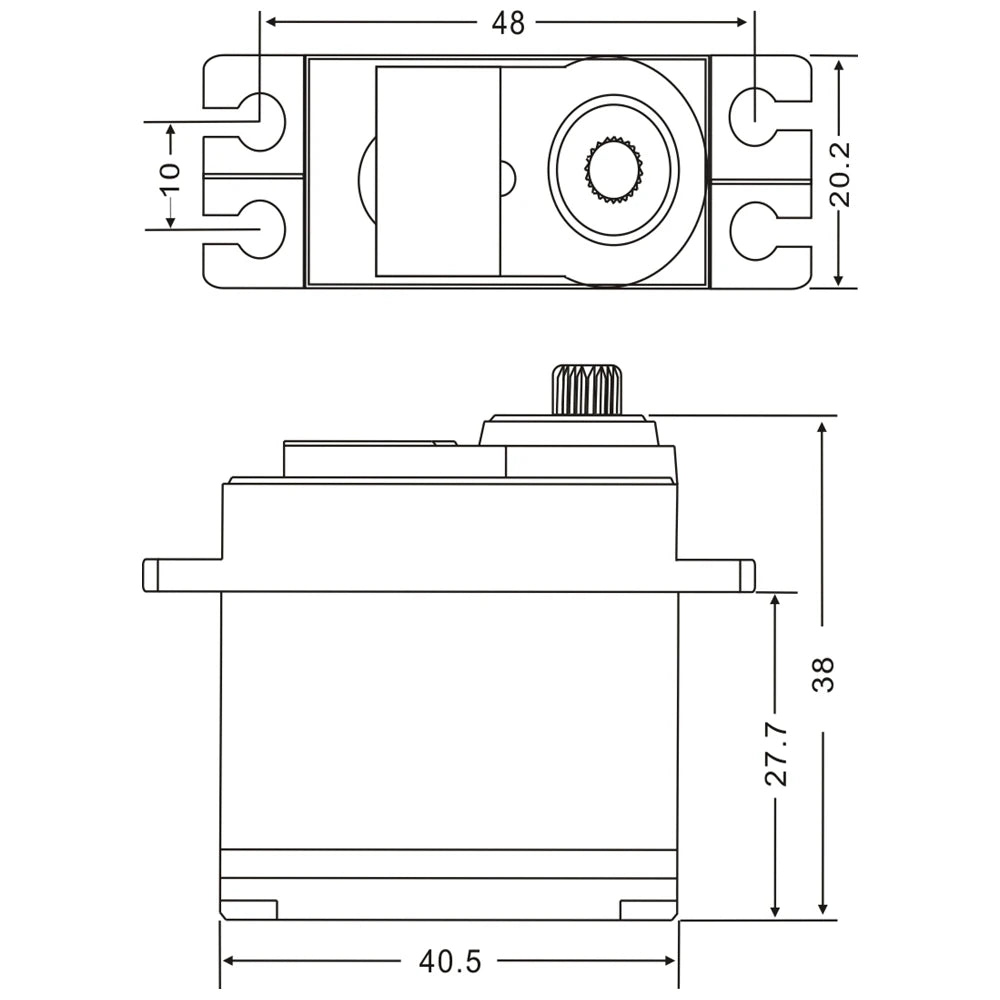

Dimensions: 40.5X20.2X44.2mm /1.59 X0.80X1.74 in
Metal Teeth:25T
Control Angel:180 Degree
Weight: 55.6 g (1.96oz)
Connector Wire Length: JR 265 mm (10.43in)
