JX Ecoboost Servo CLS6027HV SPECIFICATIONS
Origin: Mainland China
Material: nylon
Use: Vehicles & Remote Control Toys
Welcome to our shop in China has a physical warehouse bulk spot supply, wholesale cooperation can be sent to :[email protected] or WeChat contact: WJX88999
FEATURE:
—–CNC metal On the cover In the shell
—–High-precision Taiwan-made aluminium gears with hard anodizing
—-27kg Large torque 0.09s 7.4V
—-Coreless Motor
Brand:JX servo
Model:CLS6027HV
Description:JX Ecoboost 27kg Coreless Motor Servo
Dead band: 2μs
Working Frequence:1520μs / 330hz
Motor: coreless motor
Operating Speed (6V): 0.11sec/60°
Operating Speed (7.4V): 0.09sec/60°
Stall Torque (6V): 22.6kg.cm (313.99oz/in)
Stall Torque( 7.4V): 27.4kg.cm (381.37oz/in)
Dimensions: 40.5X20.5X40mm /1.59X0.80X1.57in
Weight: 60g (1.9oz)
Connector Wire Length: JR 265 mm (10.43in)
Bearing: 2BB
Gear Tooth:25T
Wire/Color:JR 265 mm/ -Brown +Red S Orange

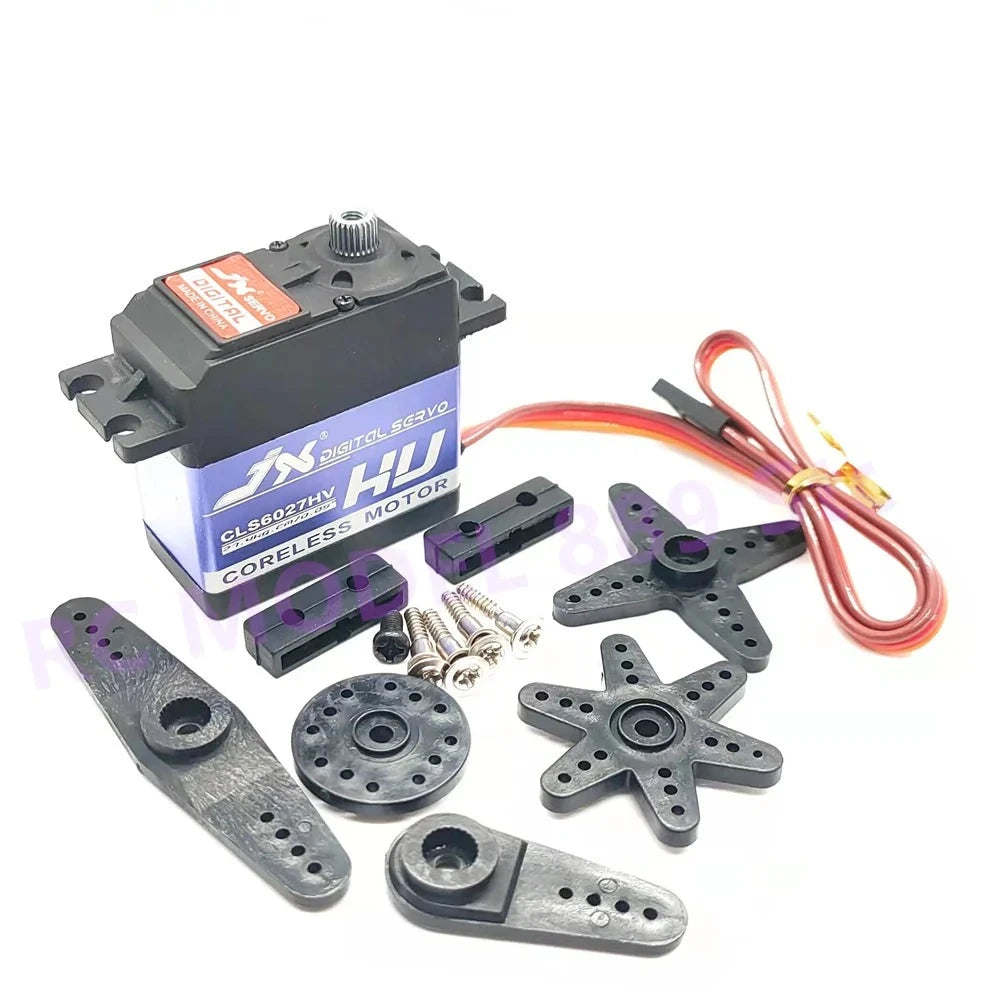

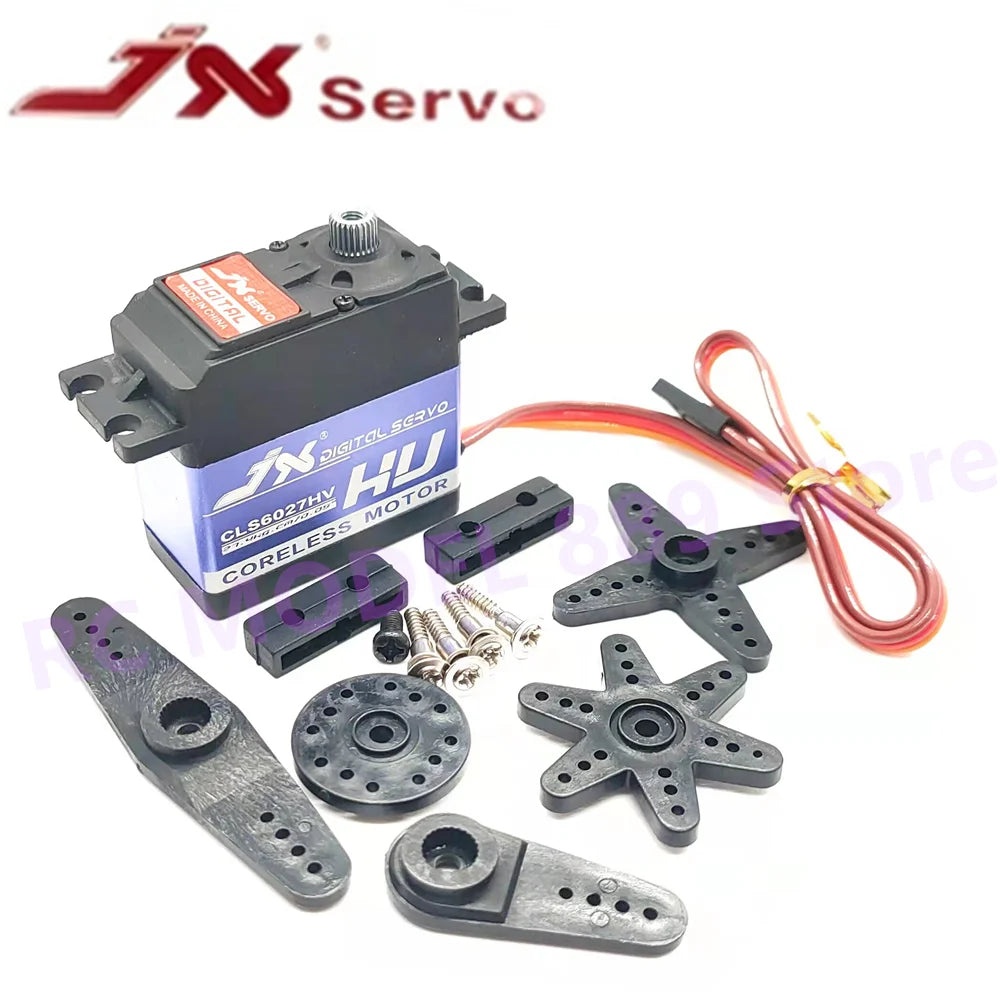

Package Included:
1 x Servo
1 x Bag of Accessories
