SPECIFICATIONS
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servo
Size: 40.5X20.2X38mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Servo
Remote Control Peripherals/Devices: Servo
Tool Supplies: Assembled class
Technical parameters: Value 5
Model Number: JX Servo CLS5830HV
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws

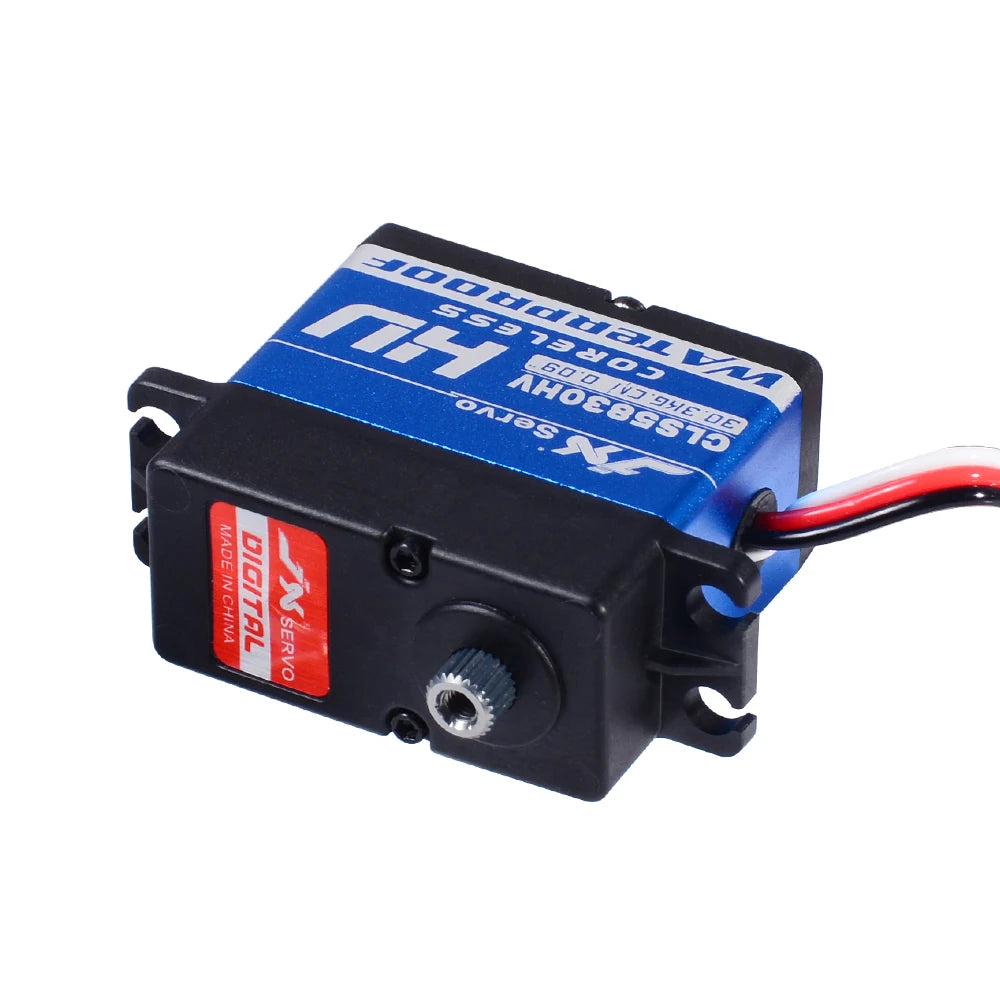

Excellent servo choice for RC rock crawlers, cars or buggys that need a water proof servo solution. Also ideal for boats or or industrial uses where water is a problem.
FEATURE：
—–CNC metal On the cover In the shell
—–High-precision Taiwan-made aluminium gears with hard anodizing

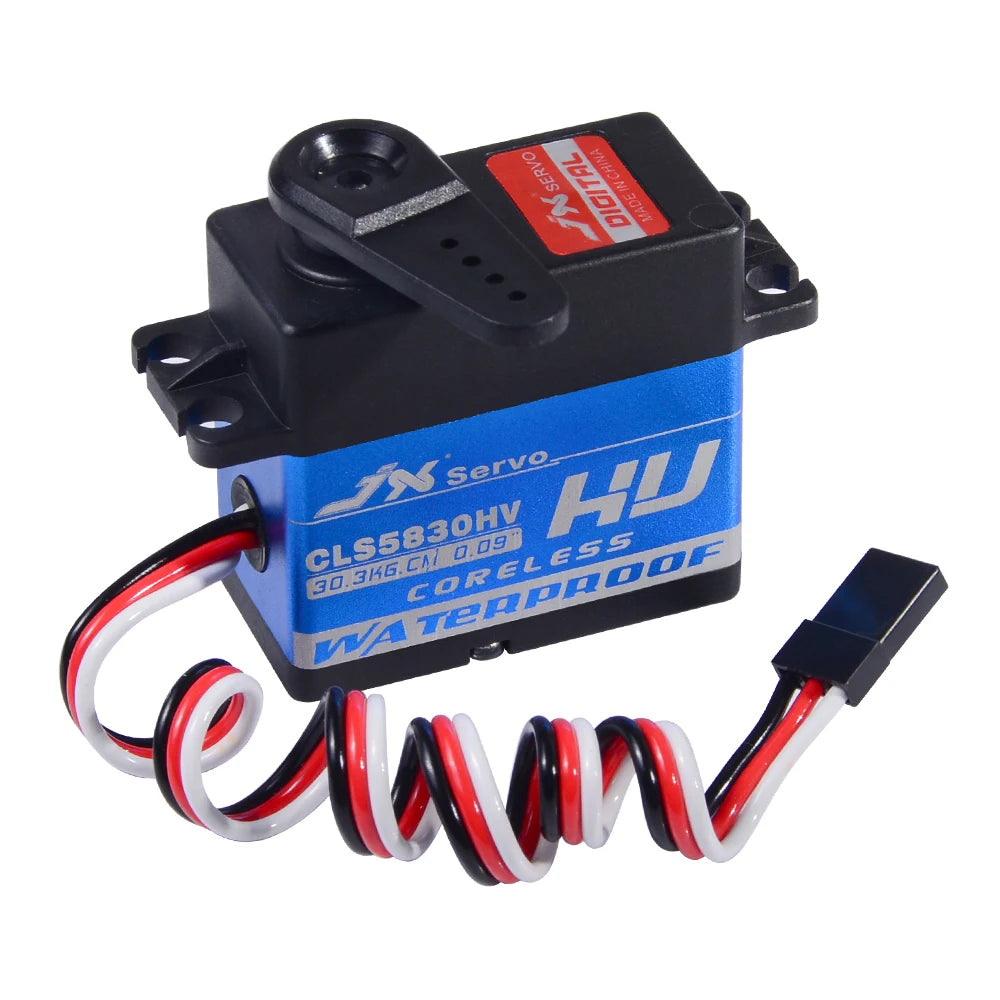

—–High Voltage Coreless Digital Servo
SPECIFICATIONS：
Dead band： 1μs
Working frequence：1520μs / 330hz
Motor：Coreless
Operating Speed 6.0v : 0.11 sec/60°
Operating Speed 8.4v : 0.09 sec/60°
Stall Torque 6.0v : 24.7 kg.cm
Stall Torque 8.4v : 30.3 kg.cm

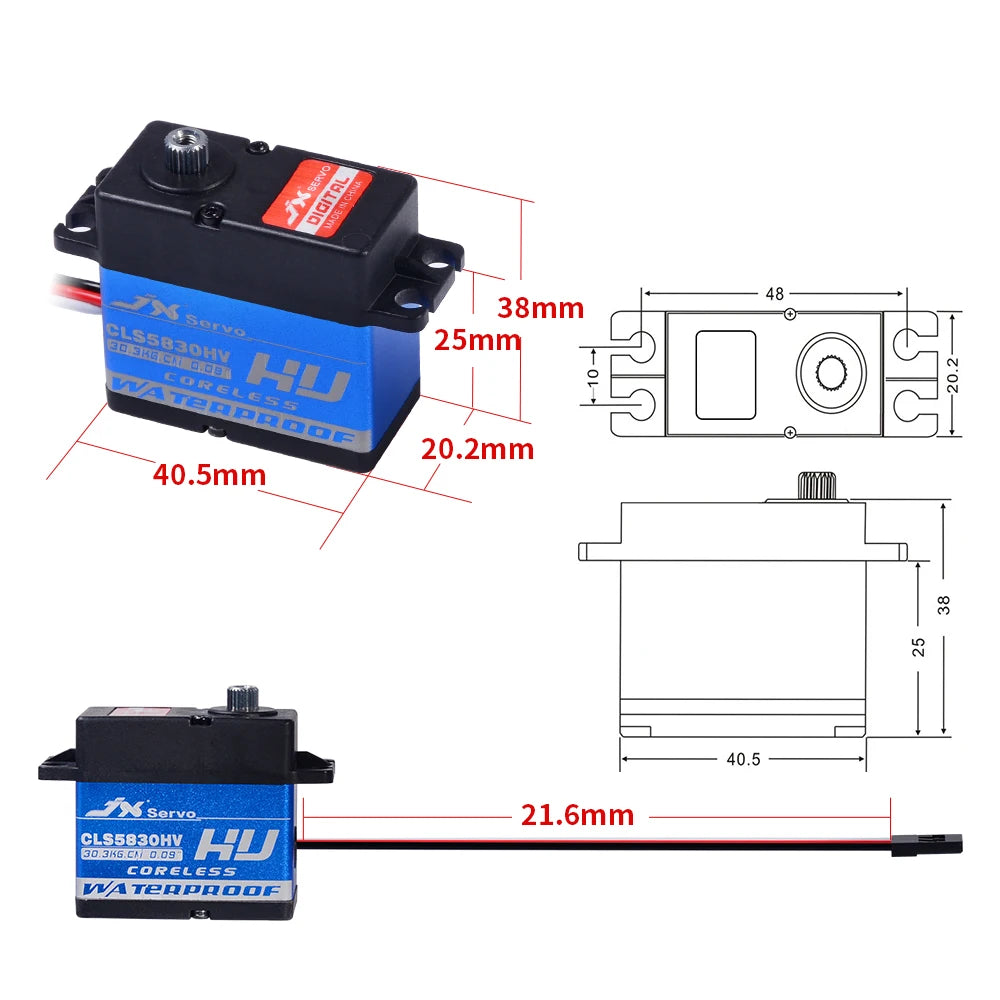

Dimensions：40.5X20.2X38mm
Weight：58 g
Wire/Color：JR 265 mm/ -Brown +Red S Orange
Bearing：2BB

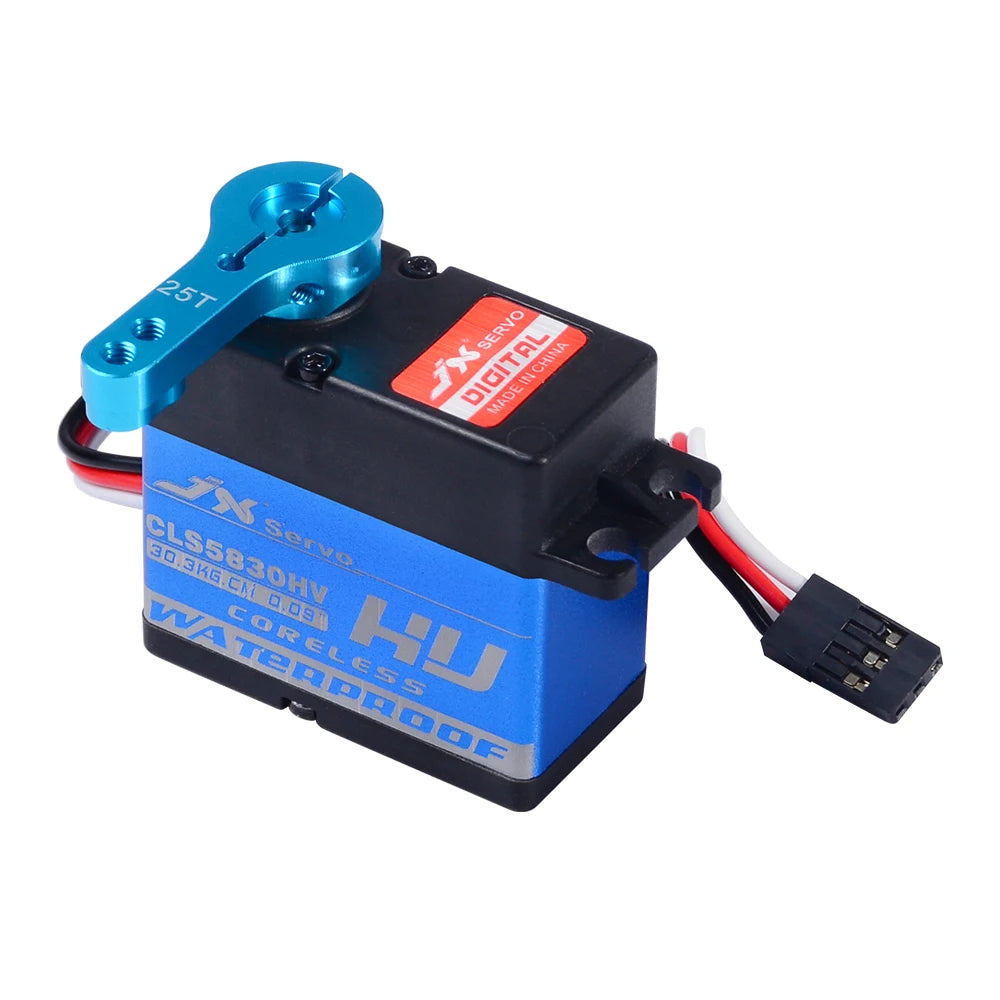

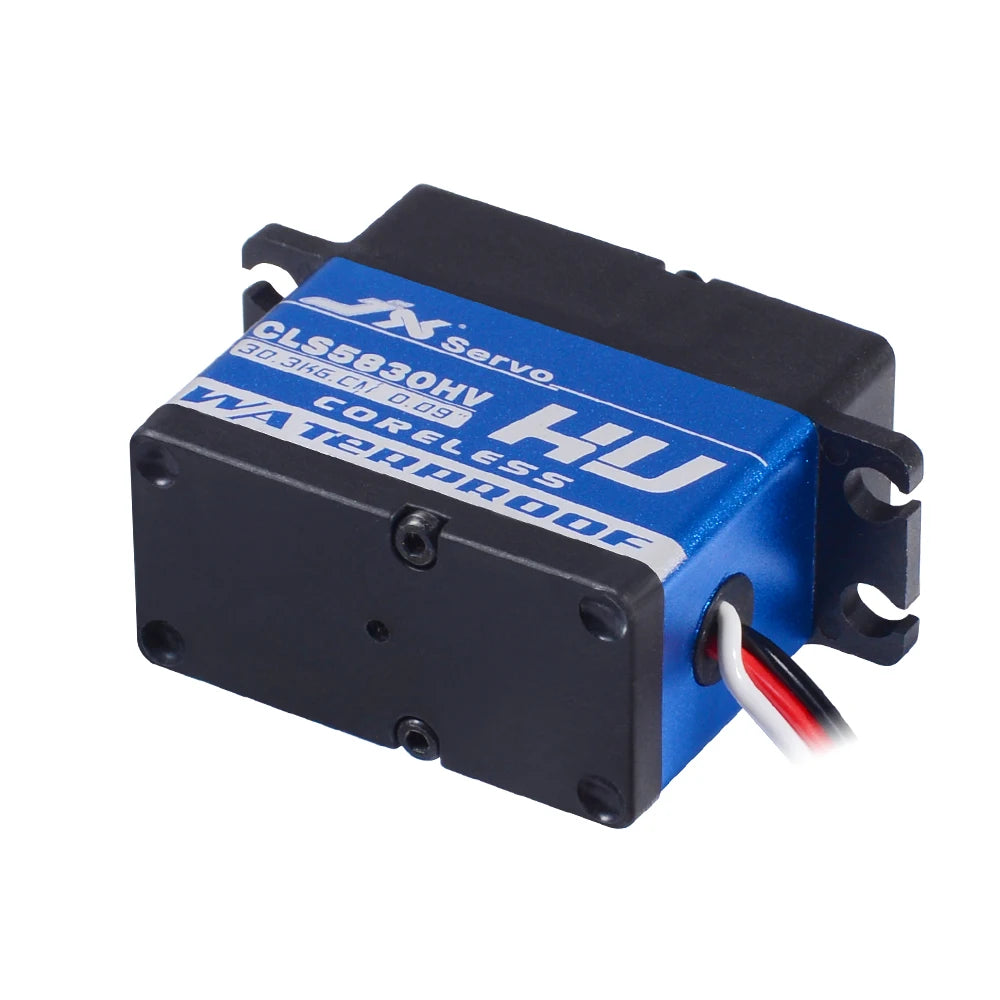

JX Servo CLS-5830HV, an 8.4V, 30kg servo with a speed of 0.09 seconds per 60 degrees, featuring a full waterproof and high-quality coreless HV design for car crawlers, TRX4, SCX10 RC boats, and other RC models.
