JX Servo BLS-HV7132MG – 32KG 7.4V Servo SPECIFICATIONS
Brand Name: JX Servo
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servos
Size: 40.5*20.5*36mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Battery
Quantity: 1 pcs
Technical parameters: KV1100
Model Number: BLS-HV7132MG
Four-wheel Drive Attributes: Assemblage
Wheelbase: Upper Shell
Brand Name: JX
FEATURE:
— High voltage
— High performance programmable digital brushless standard servo
— High-precision Taiwan-made steel gears with hard anodizing
— Full CNC aluminium Shell structure
— Dual ball bearings
— Waterproof
SPECIFICATIONS:
Dead band: 1μs
Working frequence: 1520μs / 330hz
Motor: brushless motor
Operating Speed (6V): 0.09sec/60°
Operating Speed (7.4V): 0.07sec/60°
Stall Torque (6V): 27.5kg.cm
Stall Torque (7.4V): 32.5kg.cm

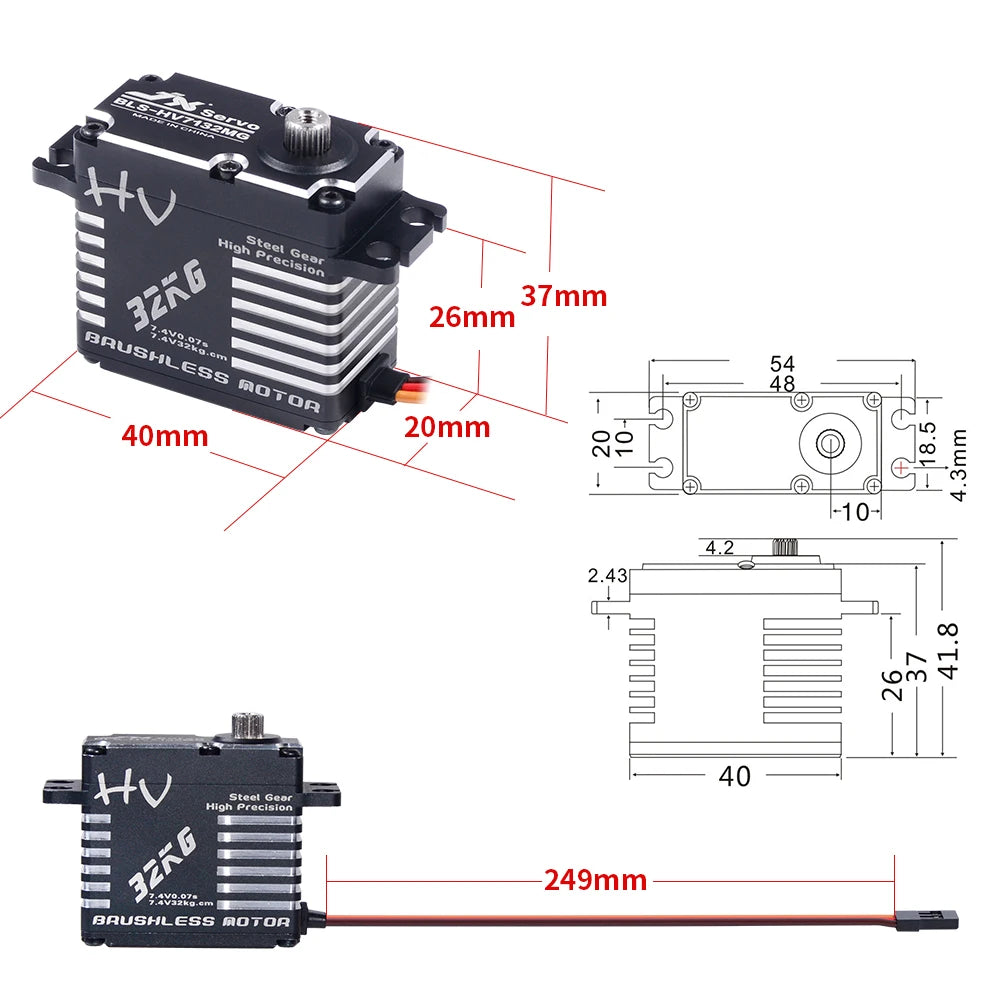

Dimensions: 40.5X20.5X36mm
Weight: 71 g
Connector Wire Length: JR 265 mm
Bearing: 2BB
Tooth Count: 25
