المواصفات

المواد: المواد المركبة

Jx steering gear is mainly used in:

Robot industry, remote control models, toy cars, industrial production equipment and medical education equipment, etc.

All products have passed CE, FCC, ROHS certification.

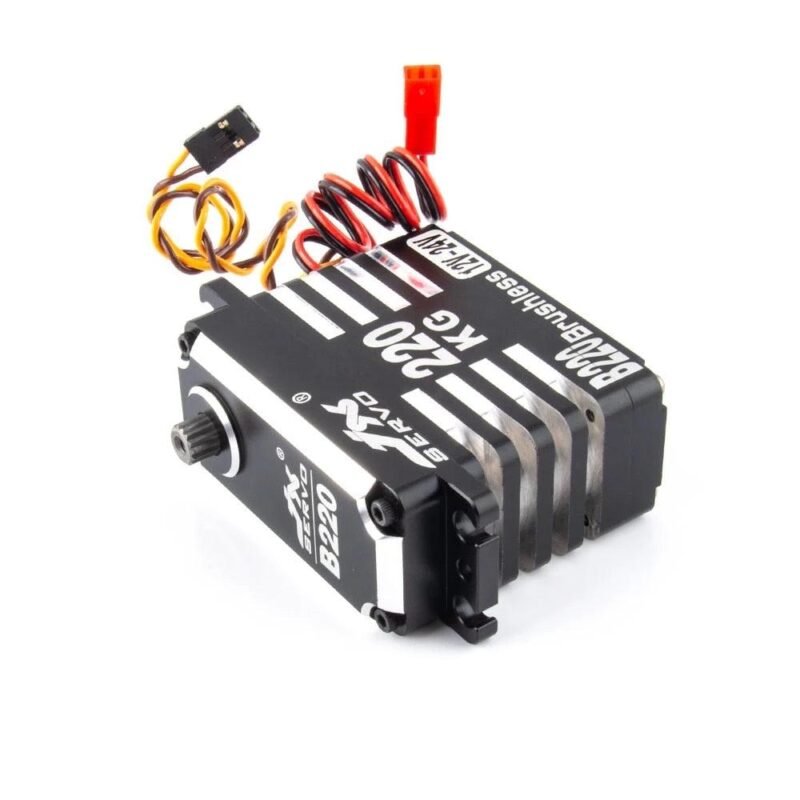

Model: B220 servo

الميزات:

1.CNC full metal aluminum shell

2. High-precision metal gears made in Taiwan

3. Double ball bearings

4.12V-24V high voltage digital brushless servo

Scope of application:

1.1/5 Remote control gasoline car

2. Large helicopter, fixed wing

3. Robot, industrial control arm

4. Large drone

Parameter:

PWM control (1500 u-sec is the central point)

Max Angle:180°

Pulse width:1000-2000μs=90°

Pulse width:500-2500μs=180°

Dead band: 4μs 1520μs / 330hz

Motor: Brushless Motor

Working voltage: 12V-24V (Largest voltage) Operating Speed (12V): 0.19sec/60°

Operating Speed (15V): 0.17sec/60°

Operating Speed (18V): 0.15sec/60°

Stall Torque (12V): 128kg.cm

Stall Torque (15V): 160kg.cm

Stall Torque (18V): 215kg.cm

Dimensions: 65.8X30X58.8mm

Weight: 260 g

Connector Wire Length: JR 265 mm (10.43in)

المحمل: 2 ب ب

Gear Teeth:15T

تتضمن العبوة:
1 x Servo
1 x Bag of Accessories
