SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Lithium Battery
Tool Supplies: Assembled class
Technical parameters: Value 2
Remote Control Peripherals/Devices: Motor
Recommend Age: 12+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: Xing-E 2207 Pro
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: NoEnName_Null
PRODUCT DESCRIPTION

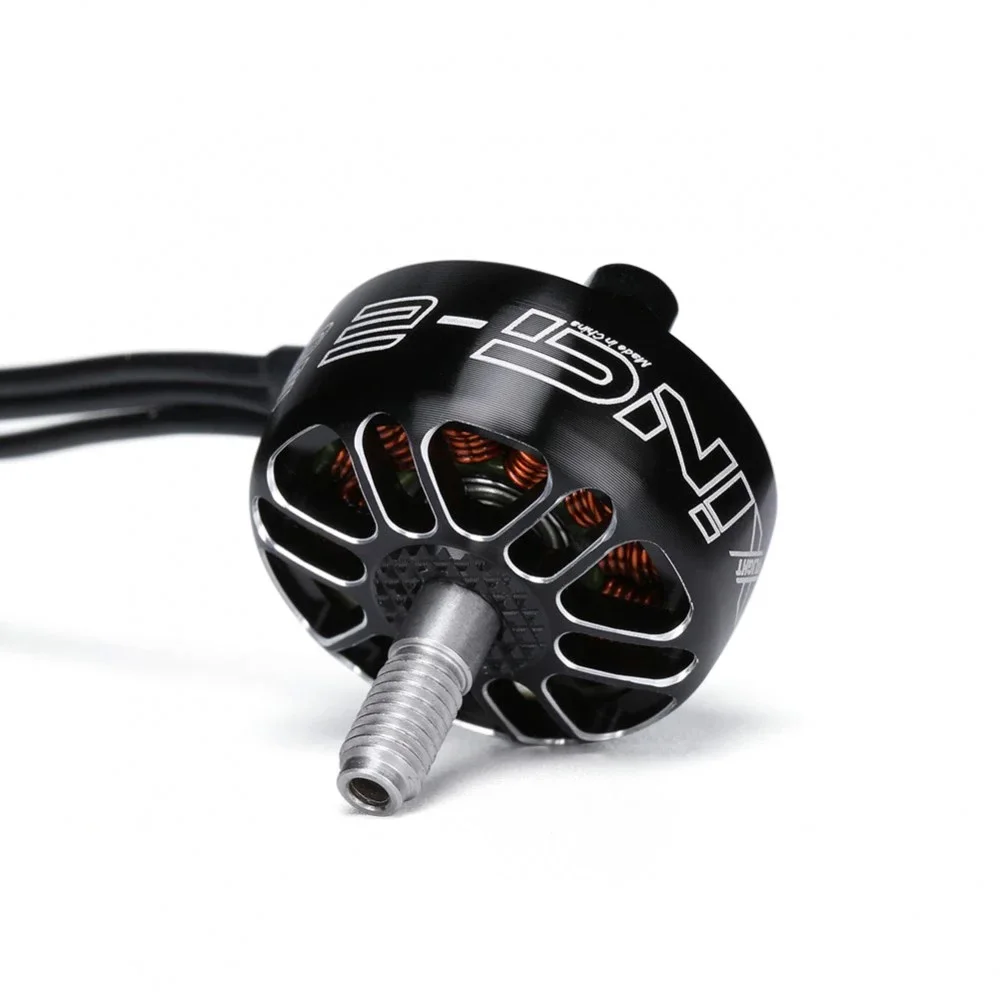

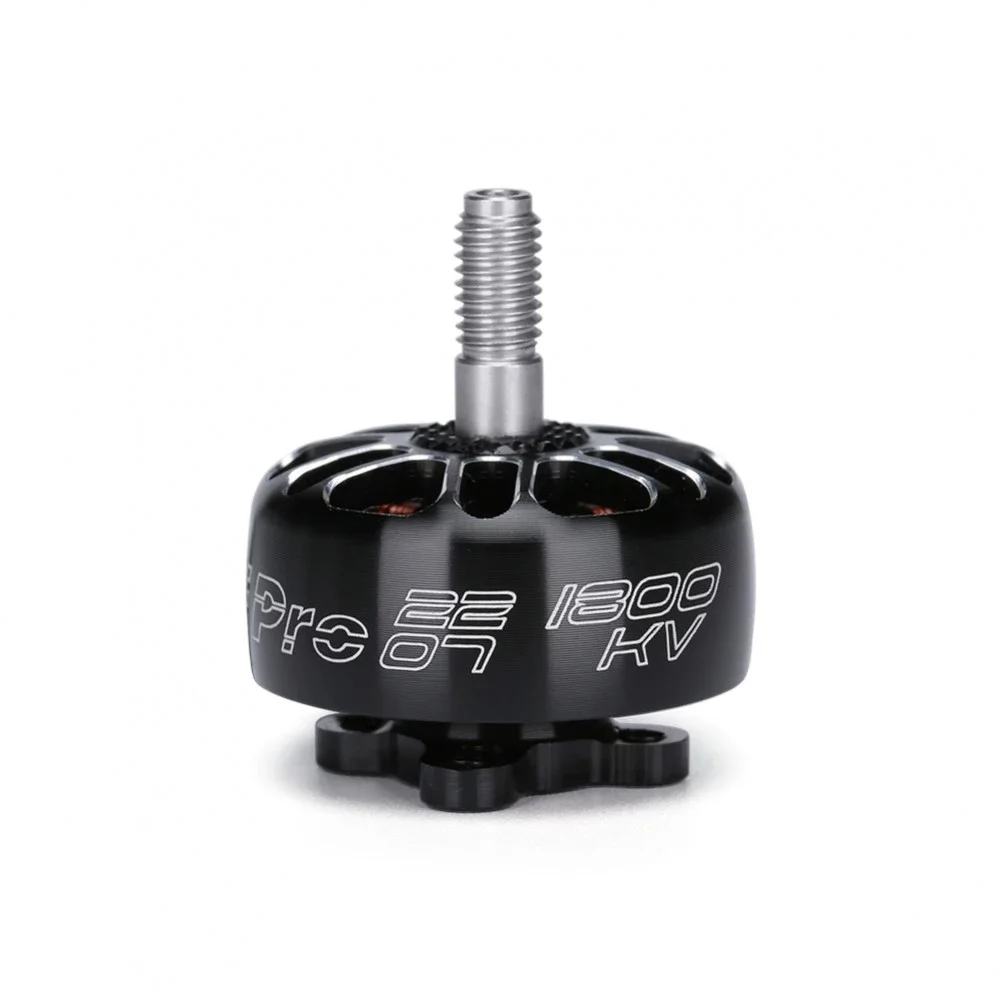

XING-E
series are very strong and powerful FPV motors for FPV racing, great
value choice with well known XING performance.focuses on quality, the
XING-E series affordable motors that are strong and durable.
This
2207 sized motor features a High-strength 4mm steel hollow shaft,
Single strand windings for performance, M3 shaft screw, and larger
9x4x4mm NSK bearings.

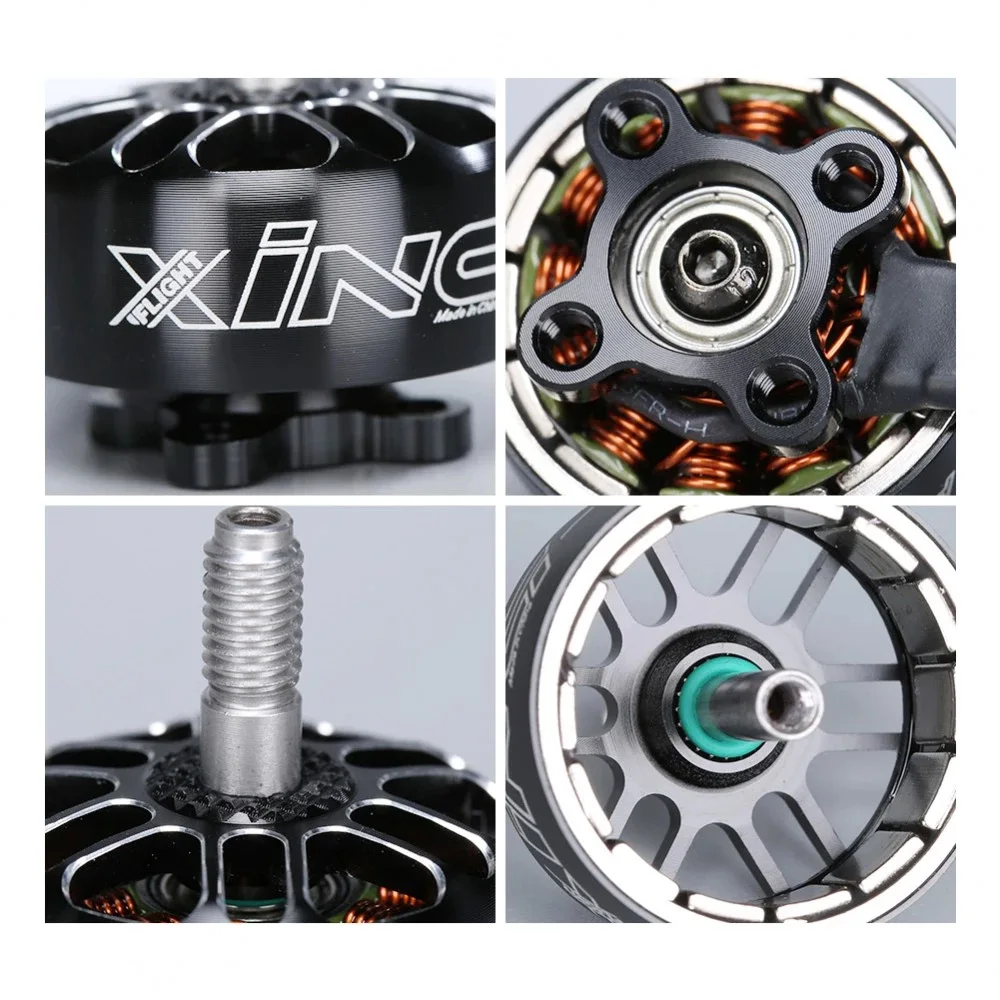

Features
-High-strength 4mm Steel shaft
-N52H High-temperature magnets, NSK bearings
-16x16mm hole pattern
-Single strand copper winding
-Hex bolt shaft set screw
Specifications
-Configuration:12N14P
-Stator Diameter:22mm
-Magnets: N52SH Curved
-Bearing Size: 9x4x4
-Shaft Diameter: 4mm / Steel
-Base Mounting Pattern: 16x16mm M3 Thread
-Motor Dimension: 28.5×19.7mm

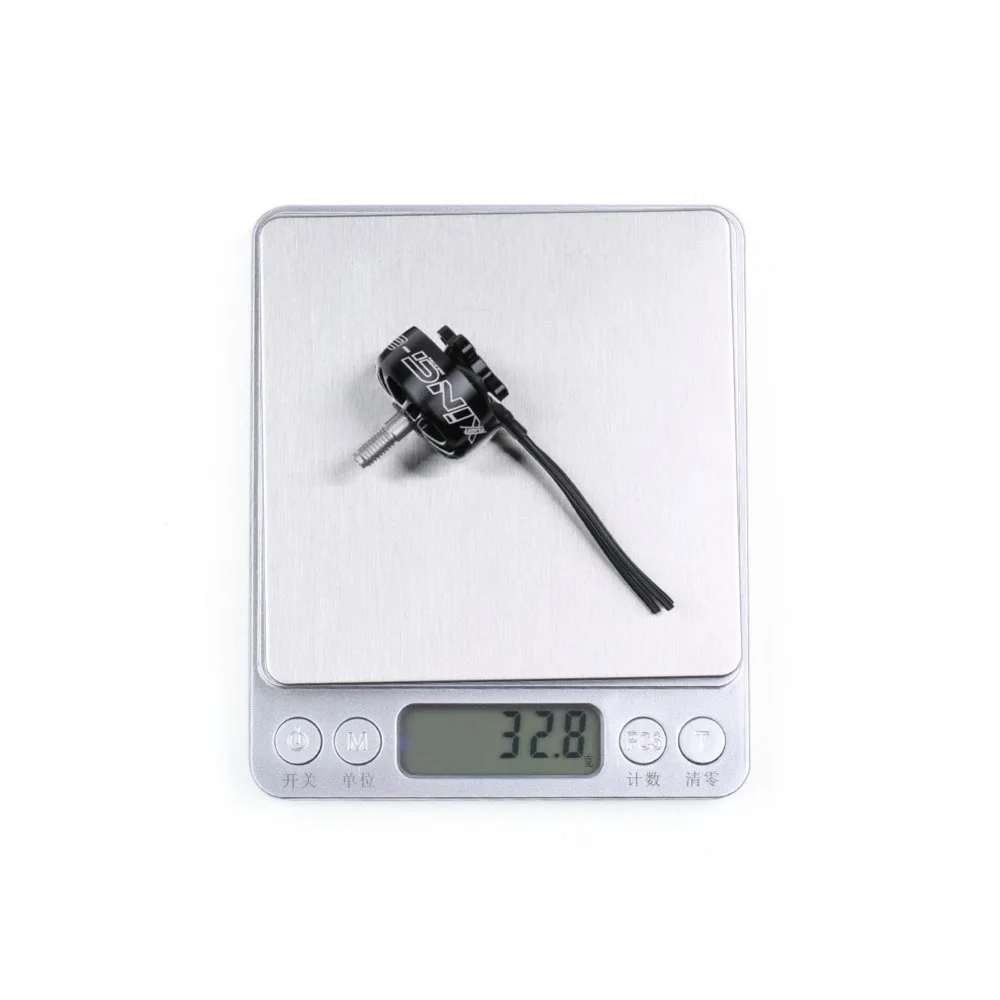

-Weight: 33.8g (150mm wires)
-Idle Current @12.6v (Io):1.2 A
-Cells (LiPo): 2-6S
-Max Burst Current <10s: 35.22A
-Max Power (W) 60s: 845W
-Internal Resistance (Rm):81.5mΩ
-Motor Wire Length:150mm / 20AWG
