iFlight Taurus X8 V3 FPV Drone SPECIFICATIONS
قاعدة العجلات: اللوحة السفلية
الاستخدام: المركبات وألعاب التحكم عن بعد
ترقية قطع الغيار/الإكسسوارات: الإطار
مستلزمات الأدوات: البطارية
المعايير الفنية: القيمة 2
الحجم: 283*283mm
الأجهزة الطرفية/الأجهزة الطرفية للتحكم عن بُعد: وحدة التحكم عن بُعد
العمر الموصى به: 12+y
قطع غيار السيارات والمركبات: الهوائيات
الكمية: 1 قطعة
المنشأ: البر الرئيسي للصين
رقم الموديل: Taurus X8 V3 HD
المواد: ألياف الكربون
سمات الدفع الرباعي: التجميع
لنوع المركبة: الطائرات
التصديق: م
اسم العلامة التجارية: IFLIGHT
الوصف:：الوصف

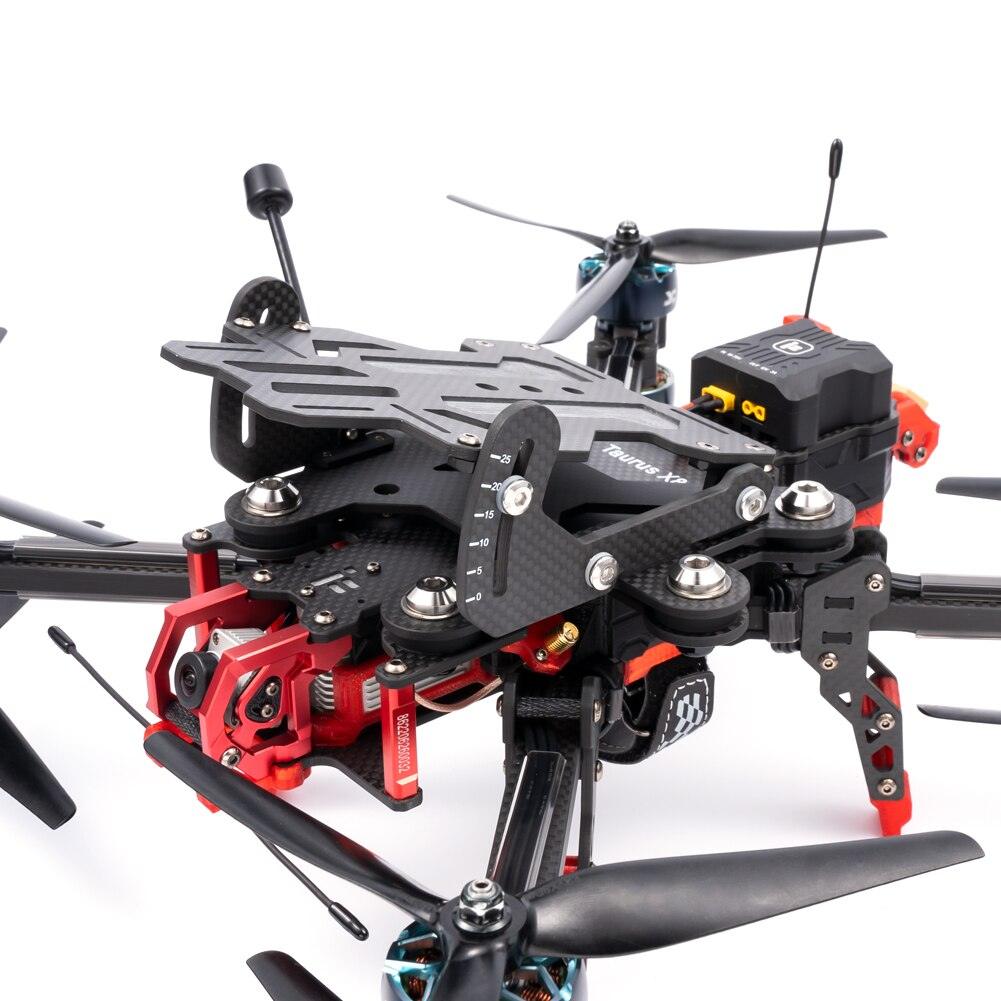

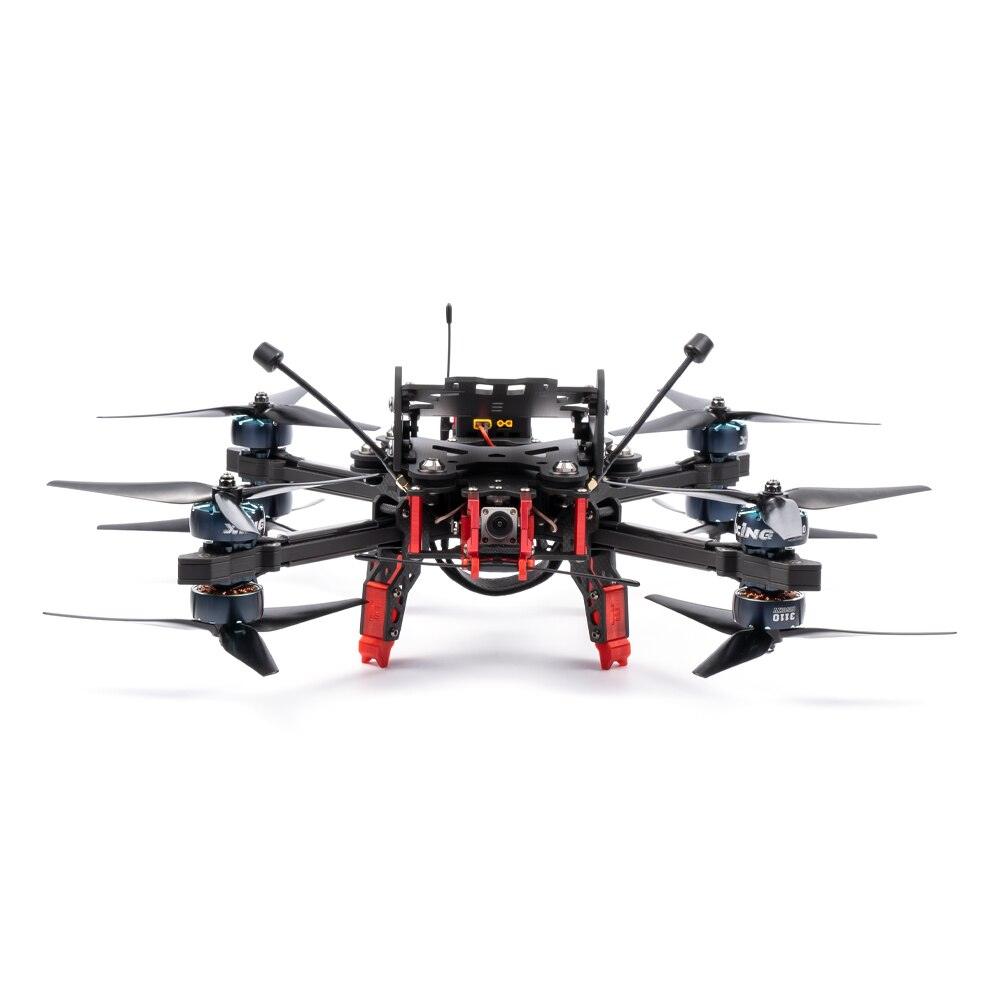

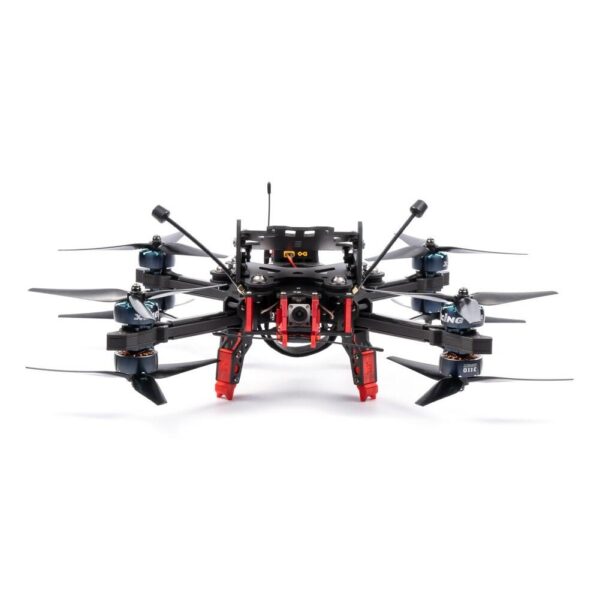

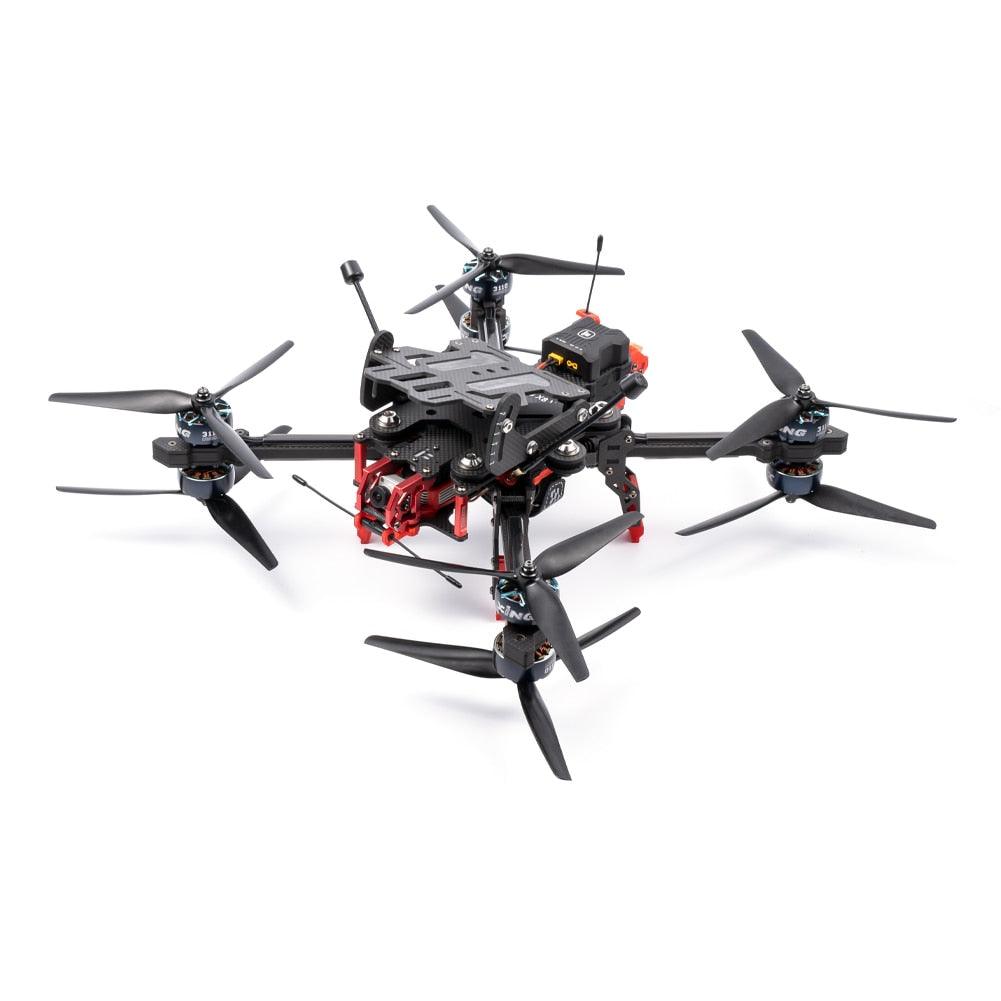

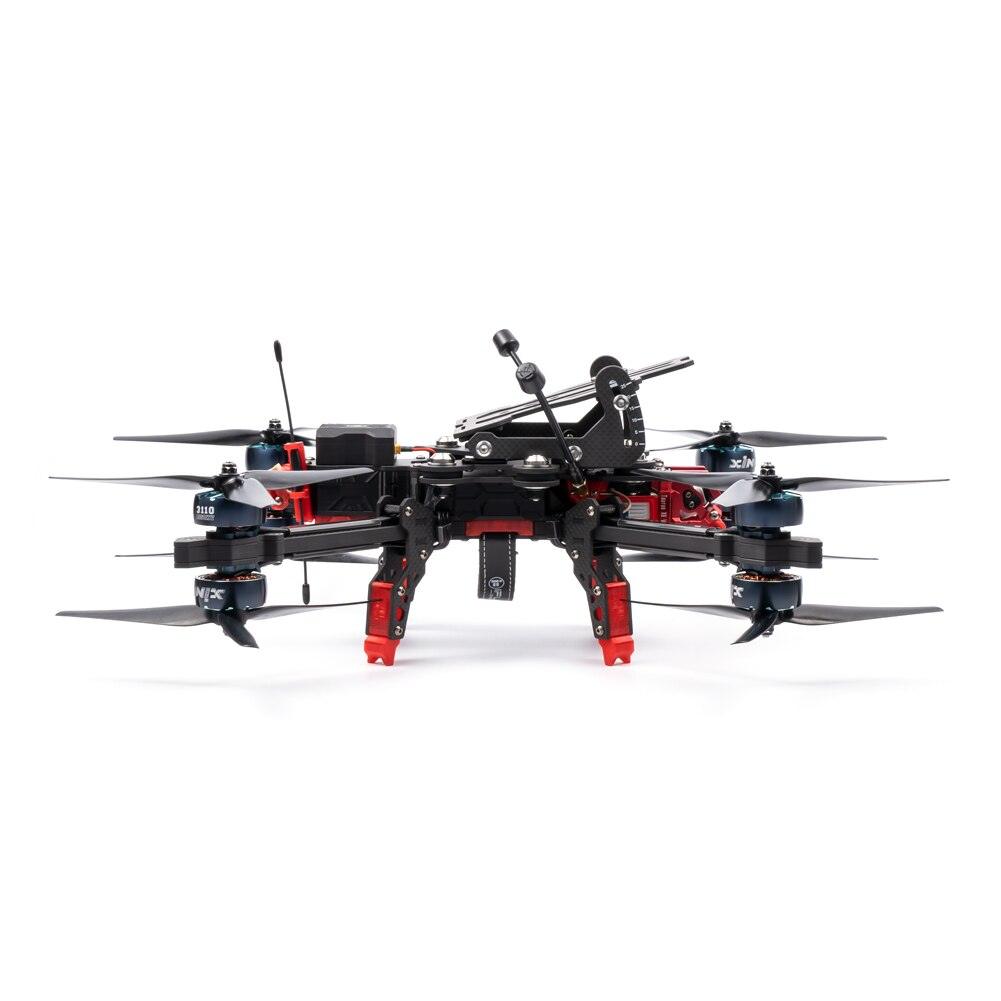

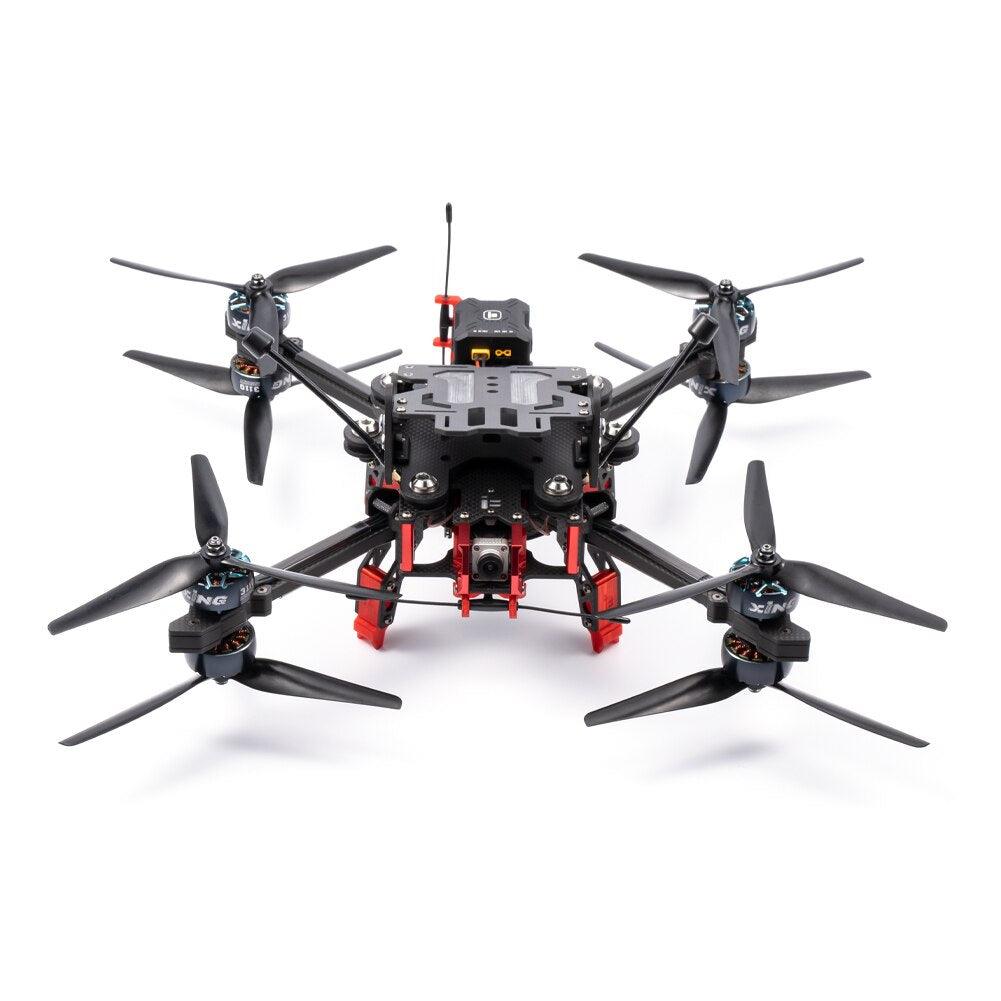

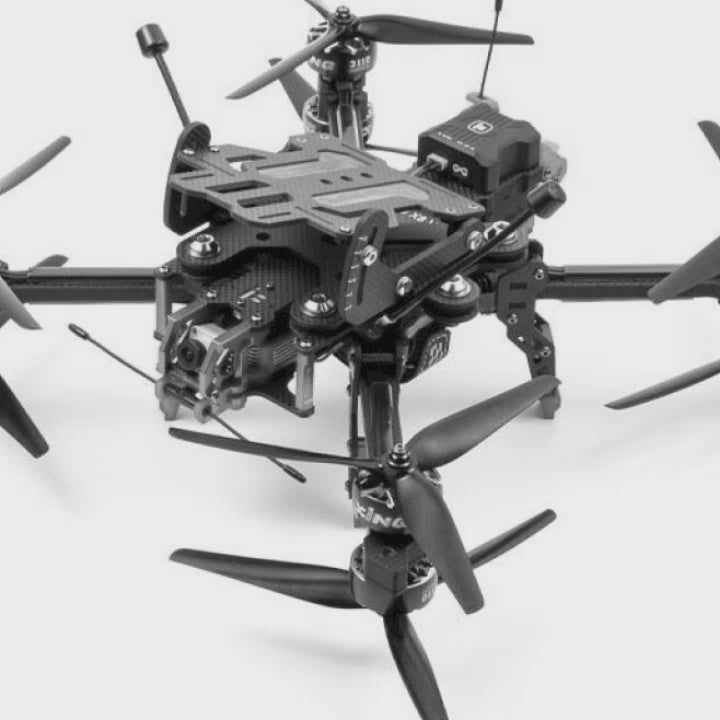

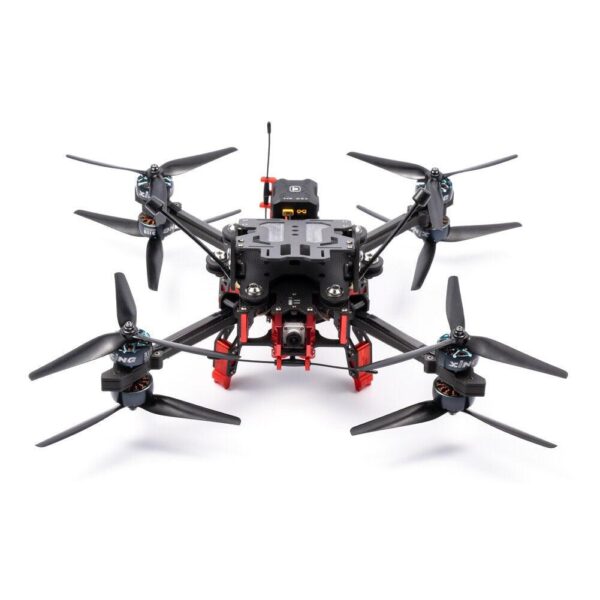

Let’s introduce our new iFlight Taurus X8 V3 BNF, our heavy duty gear to lift those big cams!
Engineered with professionals for professionals, a BNF that’s aimed for carrying big payloads offering a soft-damped universal platform for DSLR or cinema cameras (Red Komodo, Zcam, BMPCC, etc) featuring DJI’s FPV HD transmission system. Redundant ESC and motor setup for maximum performance but also a safety factor. Even in case of an overload or failure, one remaining ESC and 4 motors will be able to carry your expensive camera back to you. In case you get troubles with signal interference, radio signal loss, or complete FPV transmission fail the GPS rescue feature will automatically take over control, climb to max flight altitude, and descent towards your liftoff location until the signal transmission is regained (no automated landing). The integrated TPU landing gear provides sufficient height for most terrain and offers some protection on harder landings.
2kg maximum payload for a variety of top-mounted cameras and the ability to fine-adjust the stable mount for a perfectly balanced CG (Center of Gravity). The underslung battery acts as a power source as well as a counterweight to strategically slide the weight more front or back to counter camera lenses of different weight or length. The adjustable CNC aluminum mount offers angles from 5 to 35 degrees and can be safely secured for reproducible outcomes. No jello, no jitter, no problem; Our silicon-ball dampened carbon camera base is decoupled from the rest of the frame to reduce the amount of vibration generated by motors and propellers. For the perfect cinematic shot we recommend and additional software stabilization in the post or a hardware module (for example SteadXP).
The estimated flight time with 6S 4400mAh and attached cinema camera is about 4-6min, depending on speed and wind conditions! (set includes one battery)
الميزات:
- Optimized CG through the adjustable camera and battery mount
- 2kg max payload for various cinema and DSLR cameras
- XING2 3110 1250KVefficient and powerful wide stator motors
- Stable silicon-ball decoupled camera CNC mount
- Redundant ESC and motor configuration
-
GPS flight data and rescue functionality
مضبوطة مسبقاً ومعدة مسبقاً:
- لا تقلق بشأن الضبط، فقد قمنا بذلك من أجلك بالفعل! تم تطبيق ضبط أساسي لـ PID- وفلتر من أجل تجربة طيران رائعة!
- لاستعادة النغمات أو التحديثات المفقودة، يُرجى مراجعة مقالنا المرتبط على"تفريغ البرامج الثابتة/المصنع"
- Angle-Mode (self-balancing level mode) is enabled by default to make sure your first flight doesn’t end in a mess!
- يُرجى مراجعة مقالنا المرتبط بـ"كيفية تعطيل وضع الزاوية وتفعيل وضع الأكرو"
- GPS Rescue is ON by default.Please check our linked article on“GPS Rescue Mode // Setup”
Taurus X8 V3 BNF Specs:
- Top and bottom plate spacing: 20-31mm (aluminum standoff height)
- GPS module: iFlight M8Q-5883-GPS & Compass V2.0
- BLITZ F7 Pro Flight Controller
- Weight: 1.58kg (without battery)
- Motor: XING 3110 1250KV
- Body Size: 283*283mmmm
- Wheelbase: 400mm
-
Propeller size: 8 inch
FC // BLITZ F7 Pro Flight Controller
- Mount pattern: 35*35mm/ 4mm PCB hole diameter
- Smartaudio / IRC Tramp VTX protocol supported
- Firmware target: IFLIGHT_BLITZ_F7_PRO
- Input Voltage: 14.8V-34V (4S-8S LIPO)
- Motor outputs: 4x (SH1.25 connector)
- Flash: 512MB (Blackbox flash)
- I2C serial: SDA / SLA pads
- Dimensions: 41*41.5mm
- Barometer: DPS310
- OSD Chip: AT7456E
- LED controller: Yes
- MCU: STM32 F722
- Weight: 17g (±2)
- Beeper pad: Yes
- Gyro: MPU6000
-
UARTS: 6
ESC // BLITZ E80 4-IN-1 Pro 80A ESC
- BLHeliSuite download (BL32): https://github.com/blheli-configurator/blheli-configurator/releases
- Supports DShot DShot150/300/600/MultiShot/ OneShot etc.
- Constant current：80A，100A（Burst）
- Mounting Holes: 35*35mm/Φ3mm
- Current sensor: Yes, scale 100
- Firmware: IFLIGHT_BLITZ_G2
- Telemetry: Supported
- Weight:65g(±10)
- Volts input: 2-8S
-
BEC: No
Taurus X8 V3 HD BNF Included Components and Parts
- 8 x HQ 8X4X3 CW propeller + 8 x HQ 8X4X3 CW propeller (Color may vary)
- 2 x Albatross LHCP 5.8GHz SMA FPV Antenna
- 2 x iFlight Lipo Strap 20*400mm (Black)
- 2 x iFlight Lipo Strap 20*500mm (Black)
- 1 x DJI FPV Air Unit Module + Nebula Pro كاميرا
- 1 x Fullsend X 6S 70C 4400mAh
- 1 x Taurus X8 V2 Frame
- 1 x Prop Wrench
مهم
يوصى باستخدام جهاز التحكم عن بُعد DJI للمبتدئين لأنك لن تحتاج إلى إعداد جهاز استقبال آخر، ولكنه اختياري أيضاً في هذه الطائرة بدون طيار BNF لأنه غير مطلوب من أجل استخدام نظام FPV. إذا لم تختر استخدام وحدة التحكم عن بُعد DJI، فيمكنك اختيار خيار جهاز الاستقبال لجهاز الإرسال الخاص بك ثم ربطه بجهاز الراديو الخاص بك كالمعتاد.
ملاحظة:
- تُختبر جميع منتجات iFlight BNFs قبل الشحن لضمان أعلى مستويات الجودة.
- إذا كنت لا تزال تواجه مشكلة بعد استلام شحنتك، يُرجى الاتصال فوراً بدعم عملاء iFlight على www.iflightrc.freshdesk.com.
- لا تتحمل iFlight أي مسؤولية عن المشكلات المتعلقة بمعدات الطرف الثالث DJI أو Caddx (أجهزة إرسال الفيديو، والنظارات الواقية، وأجهزة الراديو، وما إلى ذلك) ويجب الإبلاغ عنها مباشرة إلى www.caddxfpv.com/pages/contact-us أو www.dji.com/support.
———
مقالة ذات صلة:
(في حالة وجود أي خطأ في المعلومات في المقالة، يكون وصف المنتج هو المعيار).
Review: iFlight Taurus X8 HD: Elevating Professional Drone Videography
مقدمة:
The iFlight Taurus X8 HD drone sets a new standard for professional-grade aerial videography. With its impressive payload capacity of up to 2kg, this drone is capable of carrying high-end DSLR cameras, including Red Komodo, Z-Cam, and BMPCC. Designed with redundancy and safety in mind, the Taurus X8 HD ensures a reliable flight experience, even when faced with hardware failures. In this review, we’ll explore the features, specifications, and capabilities of the iFlight Taurus X8 HD, a powerful tool for capturing stunning cinematic footage.
Redundancy and Safety:
When handling expensive camera equipment, it’s crucial to have a reliable and robust drone platform. The Taurus X8 HD addresses this concern with its eight rotors and dual ESC boards. This redundancy system ensures that even if a propeller, motor, or ESC fails, the drone can still safely land. Additionally, the built-in M8Q-5883-GPS module provides the option for fail-safe return to home in case of signal loss or manual triggering, adding an extra layer of safety and peace of mind.
Flight Performance and Control:
With its 400mm wheelbase and 8-inch propellers, the Taurus X8 HD offers exceptional stability and maneuverability. The quadcopter is equipped with Xing 2806.5 motors and a SucceX-D F7 TwinG V2.1 flight controller, featuring two ICM20689 gyros and eight motor outputs. This configuration, combined with BetaFlight 4.0.5 firmware, ensures precise control and smooth flight performance. The drone can reach a top speed of 130km/h, allowing for dynamic shots and quick aerial movements.
Integrated DJI FPV System:
iFlight has chosen to integrate the popular DJI FPV Air unit and DJI FPV camera into the Taurus X8 HD. This decision enhances the drone’s video transmission capabilities, providing high-definition digital video to DJI FPV goggles and remote controllers. The DJI digital FPV system offers a seamless and immersive experience, elevating the quality of your footage and enhancing the pilot’s situational awareness.
Adjustable Camera Mount and Versatility:
The Taurus X8 HD features a CNC camera mount that allows for precise adjustment of camera angles, ranging from 5° to 35°. This versatility enables pilots to capture the perfect perspective for their shots, whether it’s smooth cinematic footage or dynamic action sequences. The drone’s 6S LIPO compatibility, with suggested battery options ranging from 4000mAh to 5500mAh, ensures extended flight times for prolonged shooting sessions.
المواصفات الفنية:
– Frame Type: X frame layout
– Wheelbase: 400±2mm
– Dimensions: 283x283mm
– Flight Controller Mounting Pattern: 30.5×30.5mm
– Motor Type: 8 x 28xx series (19x19mm mounting pattern)
– Propeller Size: 8-inch
– Build Weight: 1547±15 grams (without battery)
الخلاصة:
The iFlight Taurus X8 HD drone establishes itself as a reliable and versatile aerial videography platform, capable of carrying professional-grade DSLR cameras. Its redundancy features ensure safe landings even in the event of hardware failures, offering peace of mind to photographers and videographers. With its exceptional flight performance, integrated DJI FPV system, and adjustable camera mount, the Taurus X8 HD opens up a world of creative possibilities. If you’re a professional seeking a reliable and powerful tool for capturing breathtaking aerial footage, the iFlight Taurus X8 HD is a drone worthy of consideration.
