• After our big success with the iFlight ProTek series, we are now happy to announce another member. The ProTek25 Pusher!

• Aiming for pilots looking for less weight but great durability, maximum performance but long distance and flight time.

• A lot of thought was put into creating the best light pusher style 2.5inch quad on the market.

• Cinematic as well as light freestyle is where this rig feels home. Cruising through the smallest gaps, chasing skateboards or just for fun in your backyard. Our iFlight naked Hero8 TPU case kit should be the perfect addition getting nice shots from literally anywhere.

• Durable aerodynamic PP body and carbon two-piece frame construction

• Only 8 screws to detach the main plastic body from the carbon frame, motors and electronics. Quick, easy and cheap repair or customization!

• Reversed Pusher-style design for enhanced thrust and efficiency

• Propeller thrust can travel without any disturbance of frame or wires; Increased flight time, less noise and less propwash!

• Powerful XING 1404 motors to carry your naked GoPro

• Lightweight, efficient and maximum power for it’s size; More than enough thrust for cruising and acro flying without restriction!

• Less than 250g weight including 4S650mAh battery and naked Hero8

• This drone is in a sub 250g category which can be used without license and registration in most countries!

Flight time:

• Batteries used: iFlight Fullsend 4S

• With naked GoPro: 650mAh 3-5min, 850mAh 4-6min

• Without naked GoPro: 650mAh 5-7min, 850mAh 6-8min

الميزات:

• High performance Whoop AIO F4 V1.1 AIO to save weight and space

• Caddx Polar Vista Digital HD System

• Butter smooth 1404 4600KV

مضبوطة مسبقاً ومعدة مسبقاً:

• First time using one of our BNFs? We carefully prepared an article onGeneral BNF Guideto make your entry as easy as possible!

• لا تقلق بشأن الضبط، فقد قمنا بذلك من أجلك بالفعل! تم تطبيق ضبط أساسي لـ PID- وفلتر من أجل تجربة طيران رائعة!

• لاستعادة النغمات أو التحديثات المفقودة، يُرجى مراجعة مقالنا المرتبط على"تفريغ البرامج الثابتة/المصنع"

• يتم تمكين وضع الزاوية (وضع مستوى التوازن الذاتي) افتراضيًا للتأكد من عدم انتهاء رحلتك الأولى بفوضى!

• يُرجى مراجعة مقالنا المرتبط بـ"كيفية تعطيل وضع الزاوية وتفعيل وضع الأكرو"

• Any issues binding your Frsky receiver? Please check on “How do I bind my Transmitter”

WE CARE ABOUT OUR CUSTOMERS:

• Checkout our Freshdesk page for helpful articles and explanations.

• If there’s any issue, question or suggestion left, please don’t hesitate to contact our customer support team on our iFlight FRESHDESK TICKET SYSTEM

• Open a ticket and provide all necessary information we need to analyze and help you solve your problem.

ProTek25 Pusher BNF Specs:

• Electronics: Whoop AIO F4 V1.1 AIO

• المحرك شينج 1404 4600 كيلو فولت

• Wheelbase: 108mm

• Body Size: 76.3*76.3mm

• Top plate thickness: 3mm

• Top and bottom plate spacing:21mm(aluminum standoff height)

• حجم المروحة: 2.5 بوصة

• FC pattern: 25.5*25.5mm / 20*20mm

• FPV cam spacing: 20mm

• Weight: 143.8g (without battery)

ProTek25 PusherHD Quad BNF Included Components and Parts

• طائرة كوادكوبتر رباعية مُصممة ومُختبرة مسبقاً

• 1x iFlight ProTek25 Pusher Frame

• 1x Caddx Polar Vista Digital HD System Kit

• 1x iFlight Sigma ipex/UFL LHCP5.8g antenna

• 2x iFlight Nazgul 2525 propeller (Set of 4 – Color May Vary)

• 1x TPU 650mah Battery Holder

FC + ESC AIO //  Whoop AIO F4 V1.1 AIO

• Size：30.5*30.5mm

• Mounting pattern：25.5*25.5mm/φ3mm

• الوزن: 7.4 جرام


• Connector：Micro-USB

• MCU：STM32F411

• Gyro：BMI270

• Blackbox：8MB

• BEC  output: 5V 2A

• INA pad：nR2

• Barometer：no

• Constant current：20A，25A（Burst）

• Input：2-4S

• Current sensor：yes

• BLHeli：BLHeli-S

• ESC Telemetry：no

• Firmware Target：IFLIGHT_F411_PRO

• ESC Firmware：Q-H-15 /Bluejay Q-H-50 (Bluejay)

Commando8 Specification:

ELRS module: ExpressLRS 915MHz or 2.4GHz (inbuilt in back of the radio)

• 915MHz system: SX1276


• 2.4GHz system: SX1280

Antenna options:

• Single-Band (915MHz)


• Single-Band (2.4GHz)

Control interface:

• 2x 2-position switches (can be used for arming; not momentary)


• 2x 5-axis menu buttons for full OpenTX or EdgeTX control

• 2x 3-position switches

RF Power:

• ExpressLRS 915MHz // Max Output 1000mW


• ExpressLRS 2.4GHz // Max Output 500mW

• Input: Mini High Precision Hall Gimbals with NMB bearings


• Battery: Built-in 4000mAh 1S2P 18650 Battery

• Charging: Type-C 20W Quick Charge

• Charging Connector: Type-C


• Radio Channels: 8

• Weight: 310g

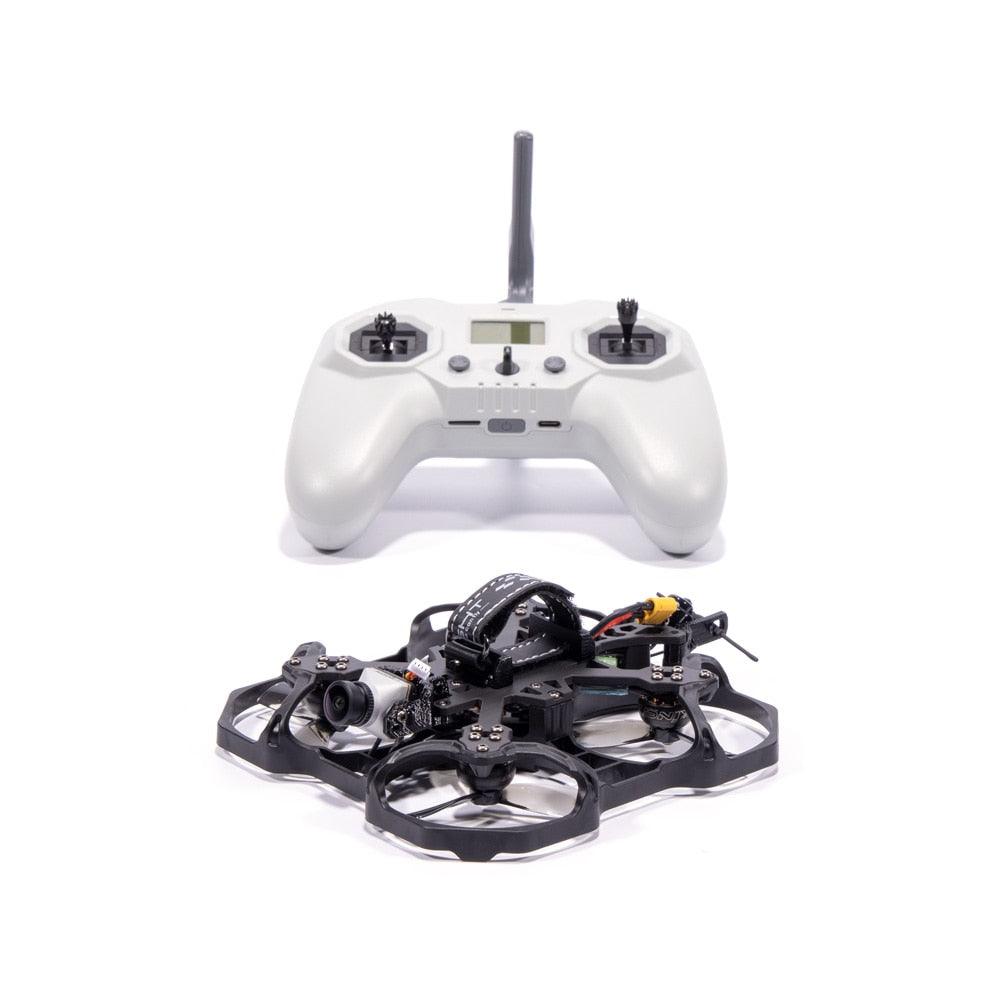

Package Included Components and Parts

• 1 x Commando 8 Radio Transmitter-ELRS (2.4G/915Mhz as optional)

• 2 x iFlight Nazgul 2525 propeller (Set of 4 – Color May Vary)

• 1 x iFlight ProTek25 Pusher BNF

• 1x 15x150mm battery strtap

• 1x 15x180mm battery strtap


The Battery Holder is not included and needs to be purchased separately!

ملاحظة:

• تُختبر جميع منتجات iFlight BNFs قبل الشحن لضمان أعلى مستويات الجودة.

• إذا كنت لا تزال تواجه مشكلة بعد استلام شحنتك، يُرجى الاتصال فوراً بدعم عملاء iFlight على www.iflightrc.freshdesk.com.

• لا تتحمل iFlight أي مسؤولية عن المشكلات المتعلقة بمعدات الطرف الثالث DJI أو Caddx (أجهزة إرسال الفيديو، والنظارات الواقية، وأجهزة الراديو، وما إلى ذلك) ويجب الإبلاغ عنها مباشرة إلى www.caddxfpv.com/pages/contact-us أو www.dji.com/support.
