SPECIFICATIONS
Wheelbase: Screws
Upgrade Parts/Accessories: Adapter
Tool Supplies: Grinded
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y,14+y
RC Parts & Accs: Connectors/Wiring
Quantity: 1 pcs
Origin: Mainland China
Model Number: 32bit Alexmos extend
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
PRODUCT DESCRIPTION
New Capabilities:
*Built-in Frame IMU
*Current sensor to measure battery power consumption
*CAN-bus to replace I2C for the IMU sensor and other periphery connection
*Dedicated 3x SPI/PWM ports for encoder connection
*Additional I2C port to connect 2nd IMU or encoders
*Built-in sound beeper
*Up to 6s LiPo battery is supported
Specifications:
Size of the board:50×50 mm
The distance between the mounting holes:45 mm
The diameter of the mounting holes: 3 mm
Power supply voltage: 8-26 V (3s-6s LiPo)
Maximum motor current: 1.5 A
5V output current to power external devices: up to 1 A
3V output current: 150 mA

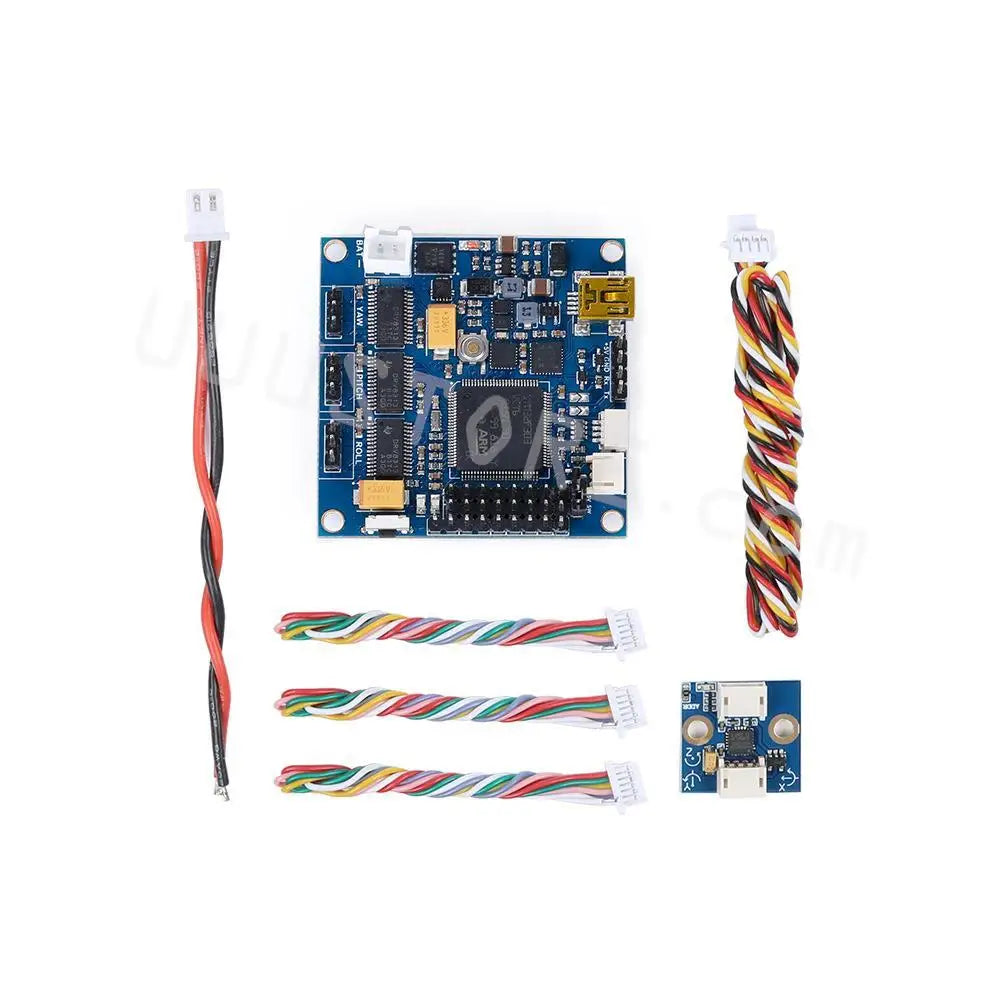

Package included:
1 BaseCam SimpleBGC 32-bit Extended

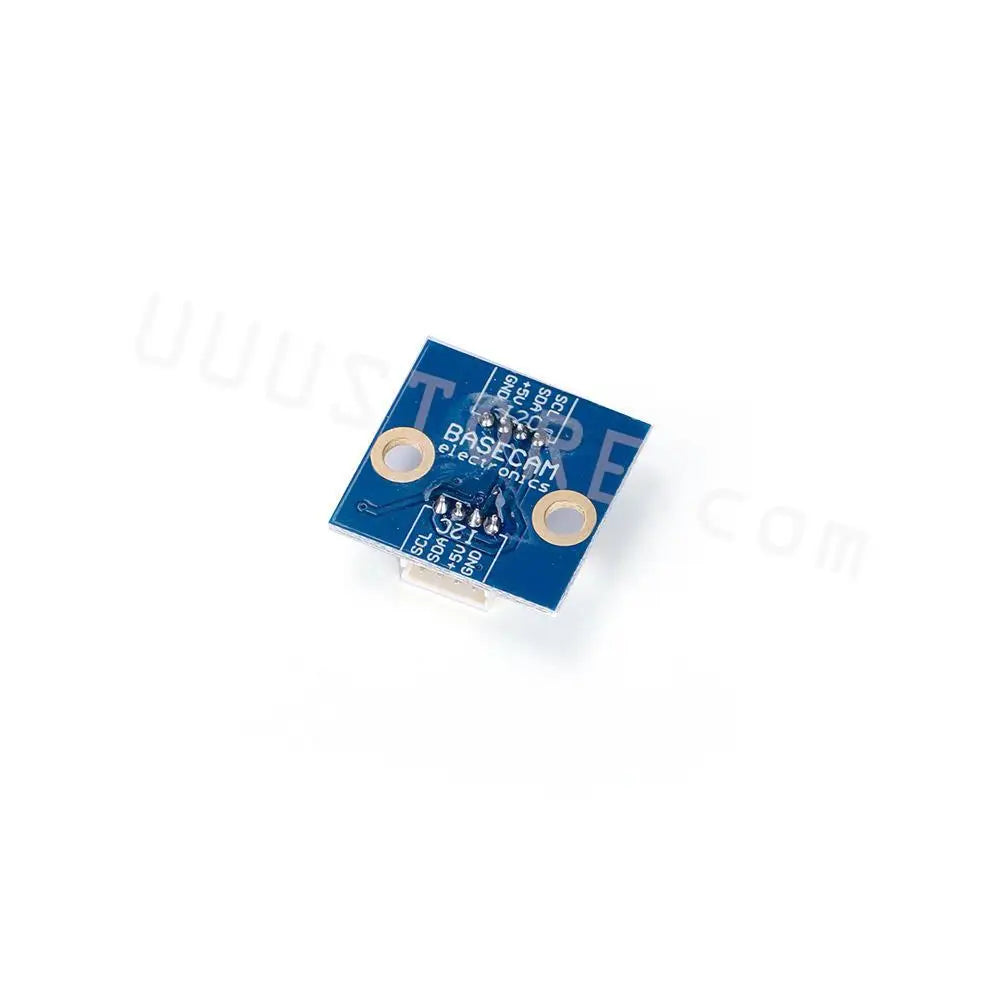

1 Camera IMU& NEccessory Wires
Manual download: https://levitezer.com/styled-2/blog-2/files/72d28d8da53e386944cd0f0b42a017b6-29.html
