iFlight Mach R5 215mm 5inch FPV Racing Frame Kit SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Frame
Tool Supplies: Battery
Technical parameters: Value 2
Size: 215mm 5inch
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Antennas
Quantity: 1 pcs
Origin: Mainland China
Model Number: Mach R5
Material: Carbon Fiber
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Certification: CE
Brand Name: IFLIGHT
Description：
- In response to our customer needs, this is our answer for all the racers in out there: The iFlight Mach R5!
- Quick-swap arm assembly for easy repair on your flying spot or race day.

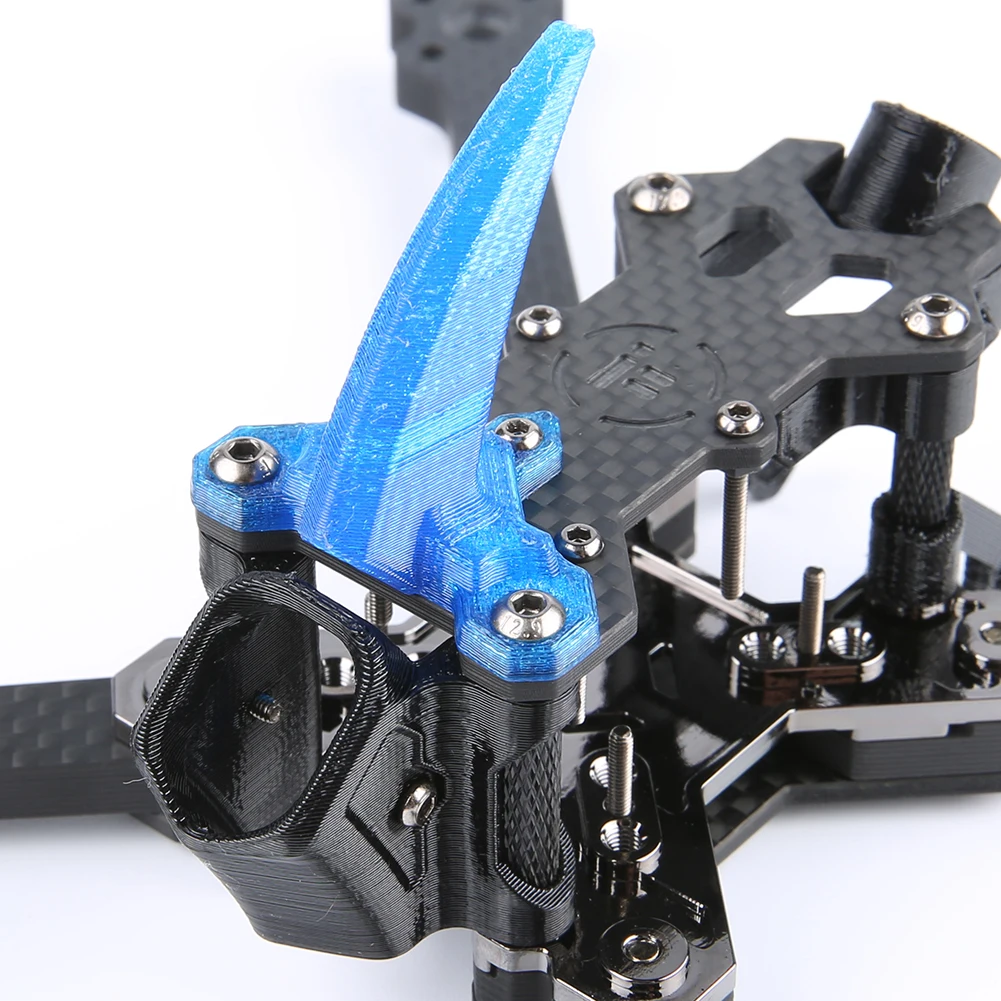

- Enhanced canopy design with low wind resistance for maximum speed and efficiency.
FEATURES:

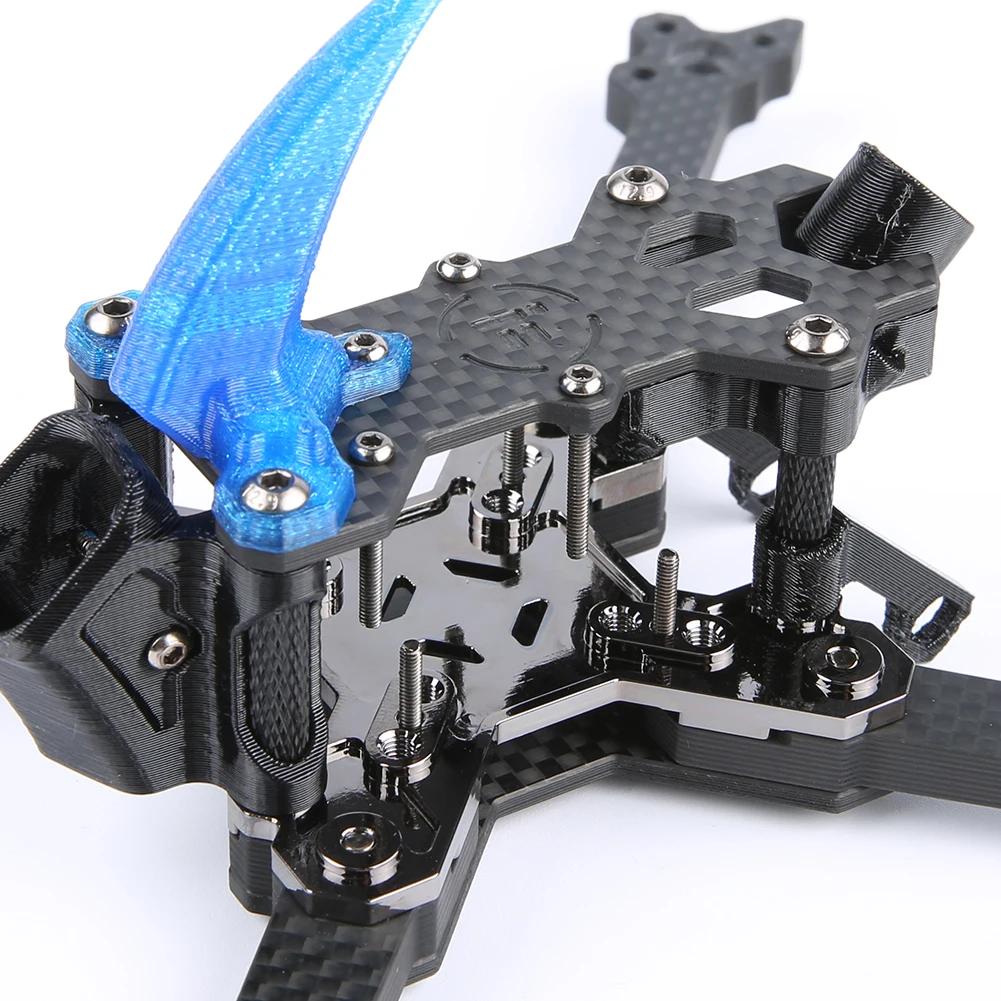

- Super durable design, 6mm arms and 7075 CNC middle plate
- 30.5*30.5/25.5*25.5mm/20*20mmmount holes for all flight controllers
- Compact & easy repairing design
Specifications:
- Wheelbase: 215mm
- Main body dimension: 152*152mm
- Arm thickness: 6mm

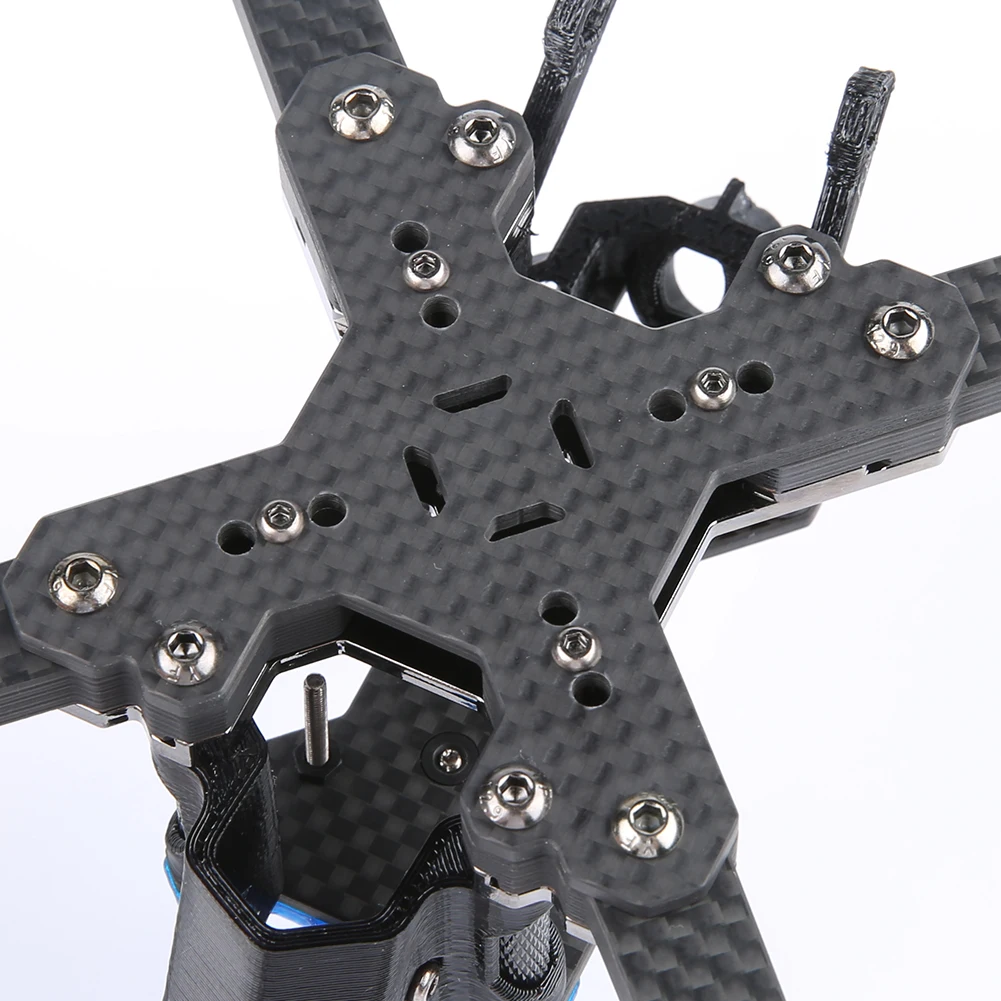

- Bottom plate thickness: 3mm
- Top plate thickness: 2.5mm
- Middle Plate thickness: 2.5mm CNC 7075 aluminum alloy

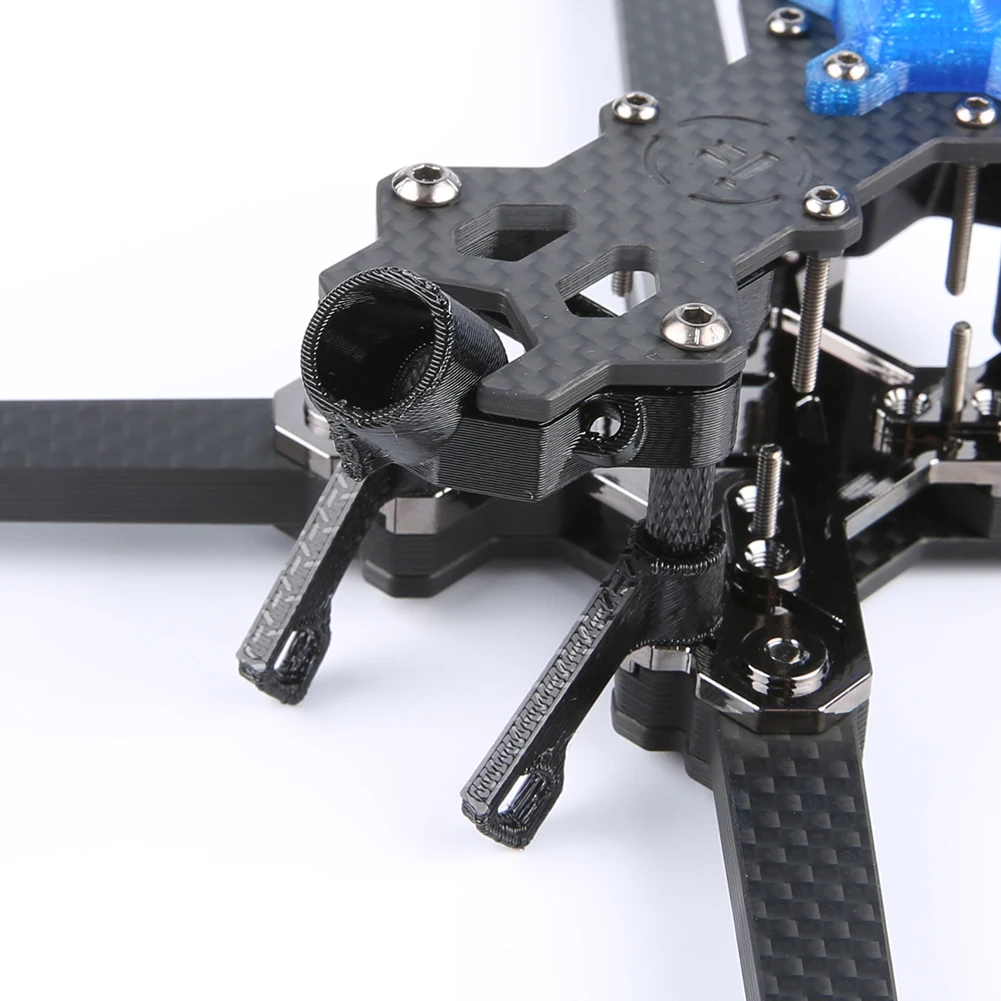

- TPU Camera plate
- FC: 30.5*30.5/25.5*25.5mm/20*20mm
- FPV Cam:14mm /19mm Micro / 20mm
Recommended parts(not included):
- Beast F7 AIO Board
- XING2 2506 1850KV motors
Package included:
- 1 x Mach R5 Frame
- 2 x battery straps (20*250mm)
- 1set x TPU parts
- 2x 2mm Anti-slip Battery Pads
