HGLRC Zeus F748 Stack SPECIFICATIONS
الاستخدام: المركبات وألعاب التحكم عن بعد
ترقية قطع الغيار/الإكسسوارات: المحول
مستلزمات الأدوات: فئة التجميع
الأجهزة الطرفية/الأجهزة الطرفية للتحكم عن بُعد: ESC
العمر الموصى به: 12+y
قطع غيار السيارات والمركبات: أجهزة التحكم في السرعة
المنشأ: البر الرئيسي للصين
المواد: المواد المركبة
سمات الدفع الرباعي: التجميع
لنوع المركبة: الطائرات
العلامة التجارية: HGLRC
Model: ZeusF748 STACK
Item Name: F7 Flight Controller & 48A BL_S 4in1 ESC Stack
Installing Hole:30.5X30.5mm.M3

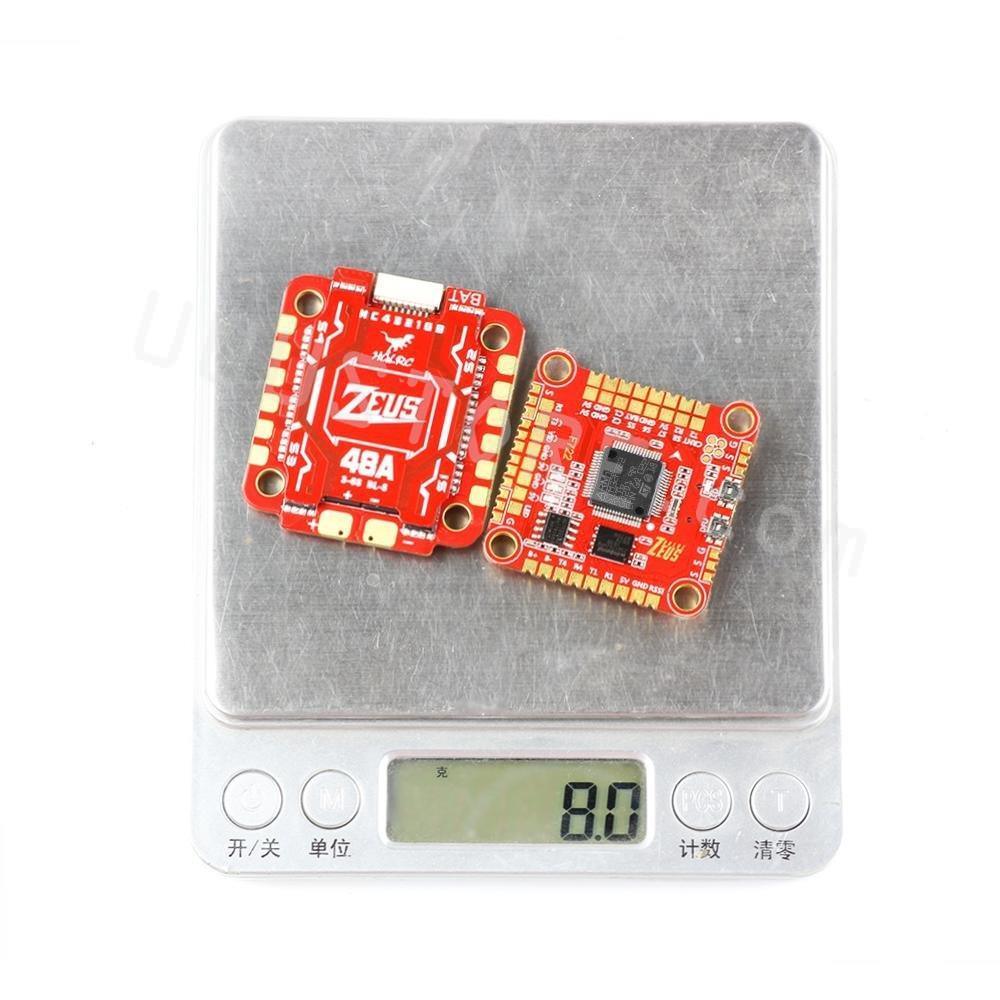

Weight:26.5g
Application: for 100mm-450mm Frame Kit
| Zeus F722 Flight Controller | وحدة MPU: MPU6000 وحدة المعالجة المركزية: STM32F722 RET6 جهد الإدخال: 3-6S ليبو 3-6S Built-in betaflight OSD BEC Output: 5V 3A ; 9V 2A Black Box: 16M Size: 37.3×37.3mm Weight: 8g |
| Zeus 48A BL_S 3-6S 4in1 ESC | جهد الإدخال: 3-6S ليبو 3-6S Steady Current: 48A Peak Current: 55A (10 Sec) Weight: 18.3g Support Protocols:DShot600/300/150/Oneshot125/42,MultiShot |

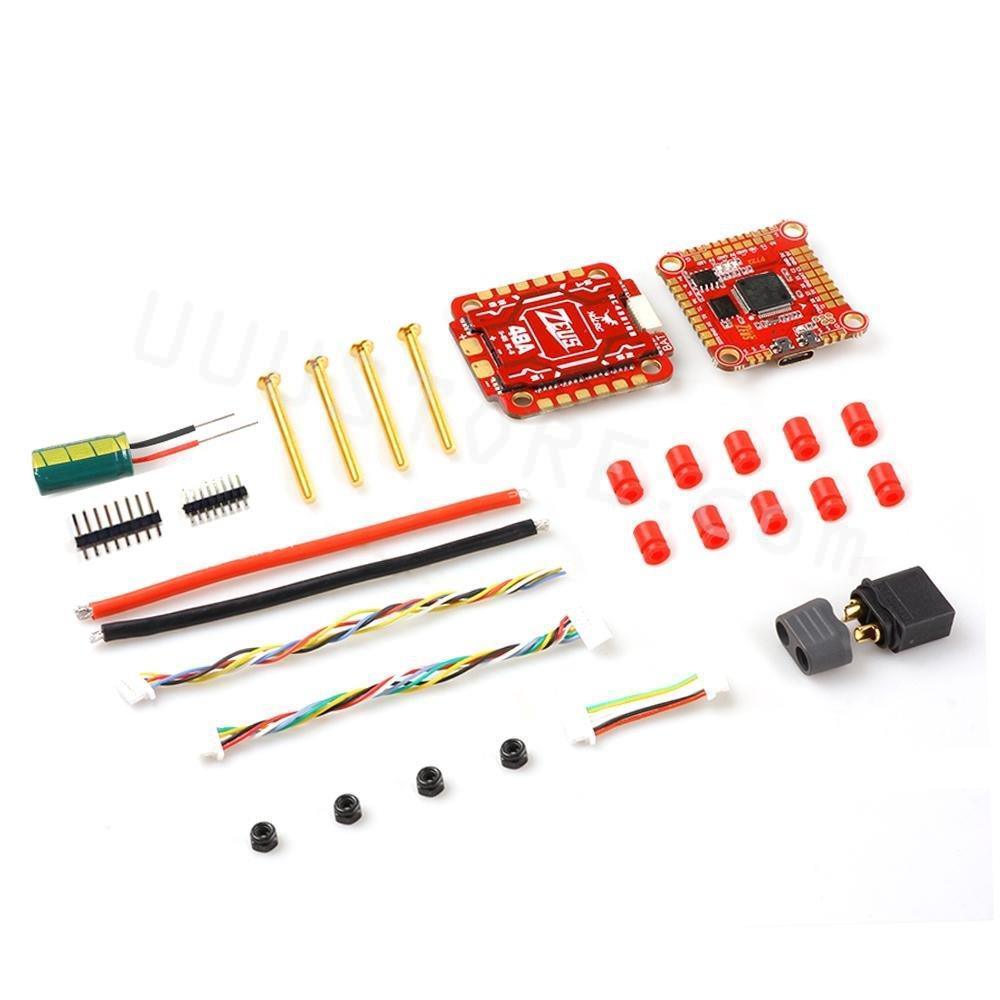

تتضمن العبوة:
1x Zeus F722 Flight Controller
1x Zeus 48A BL_S 3-6S 4in1 ESC
3x Connection Cable
1x Capacitor
10x Anti-vibration Stadoff
2x Power Cable
1x كيس براغي 1x

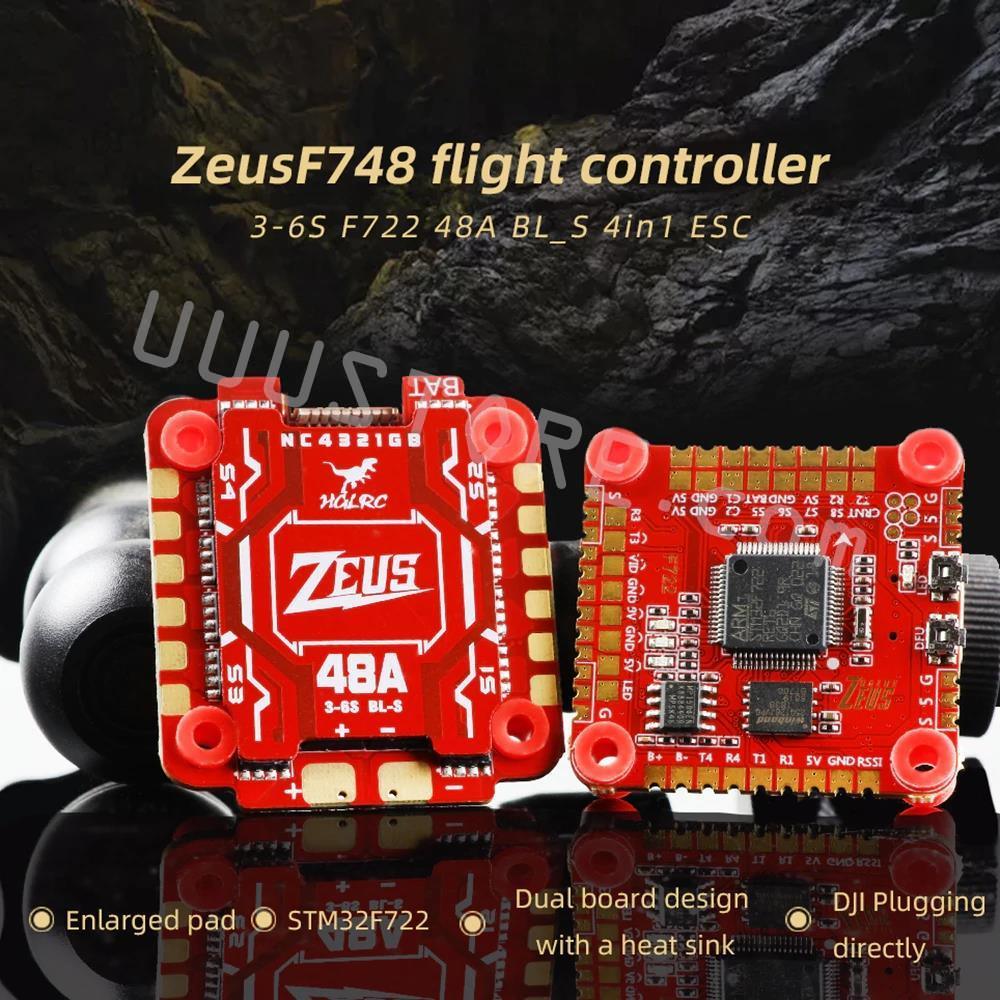

The Zeus F748 flight controller features a dual board design with an F722 chip, 6S support, and a 48A 4-in-1 ESC. It’s designed specifically for DJI digital VTX systems, boasting high-performance processing, high refresh rates, and an enlarged heat sink to ensure reliable operation. The ‘plug-and-play’ design eliminates the need for soldering, making it easy to install and use.
