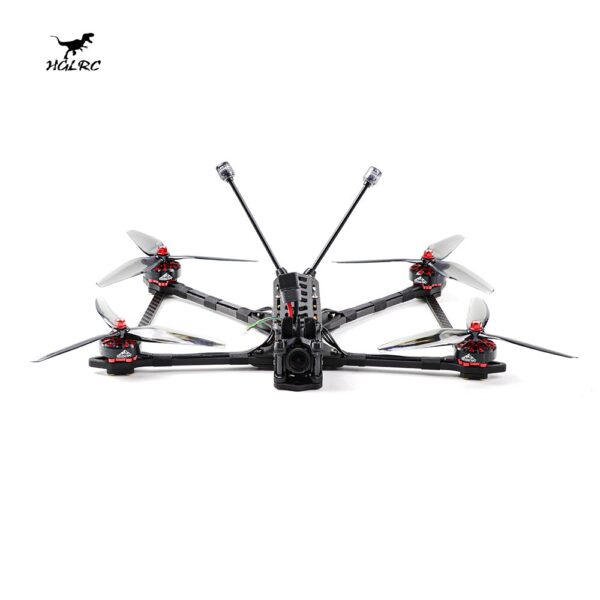

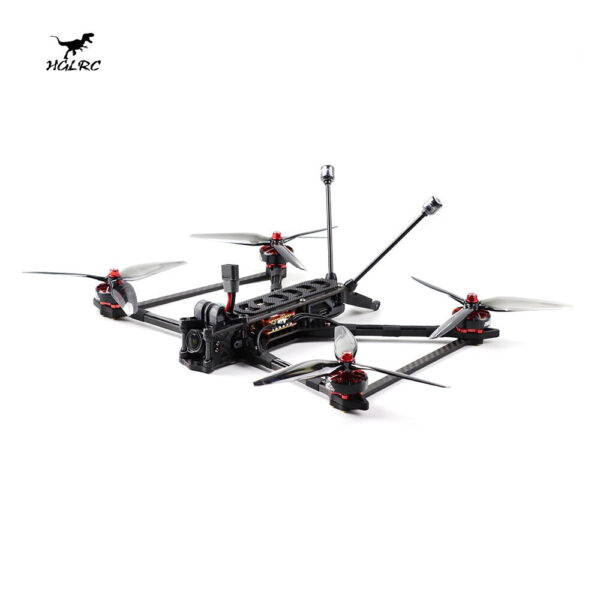

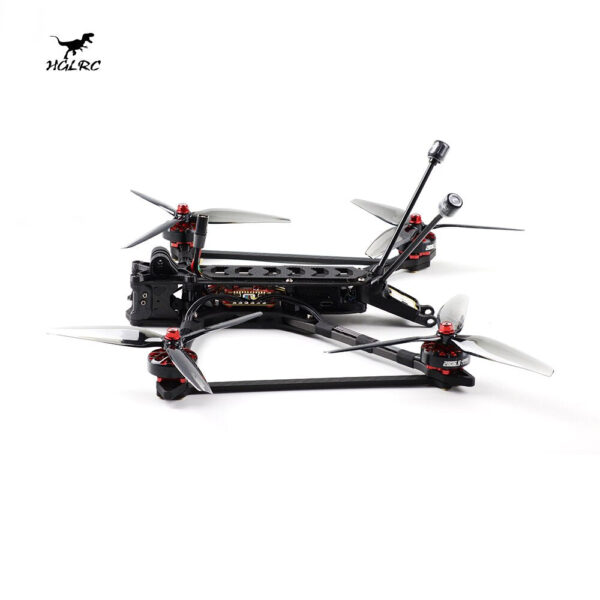

Rekon7 PRO Long Range FPV Racing Drone 6S Digital Version F722 Flight Controller 48A 4in1 ESC 2806.5 Motor CADDX AIR UNIT

Sunmary:

The Rekon 7 Pro is built for the most challenging long-range missions. Powerful yet efficient 2806.5 motors and 7″ props ensure it can carry high payloads like a GoPro Hero 9 and large batteries (I recommend 2200mah 6S Lipos or 6S 21700 Li-Ion packs). The design philosophy I followed for the 7 Pro was “zero compromises”! It has a Full DJI Air Unit, M80 Pro GPS with an extra-large ceramic antenna, dual antenna mounts for Crossfire diversity receivers, and Express LRS as well as a fully-sized 30×30 stack. It’s ready to conquer the highest mountain peaks!

الميزات:

– Full DJI Air Unit (Digital Version)
– Custom 2806.5 1250kV motors
– Extra large M80 Pro GPS for faster and better satellite lock
– Compatible with dual antenna crossfire diversity RX and Express LRS systems
– Low profile, extra-long frame to fit large batteries
– Arms mounted with extra sturdy M4 hardware

المواصفات:

Product Name:Rekon7 PRO Long Range FPV Racing Drone 6S Digital Version

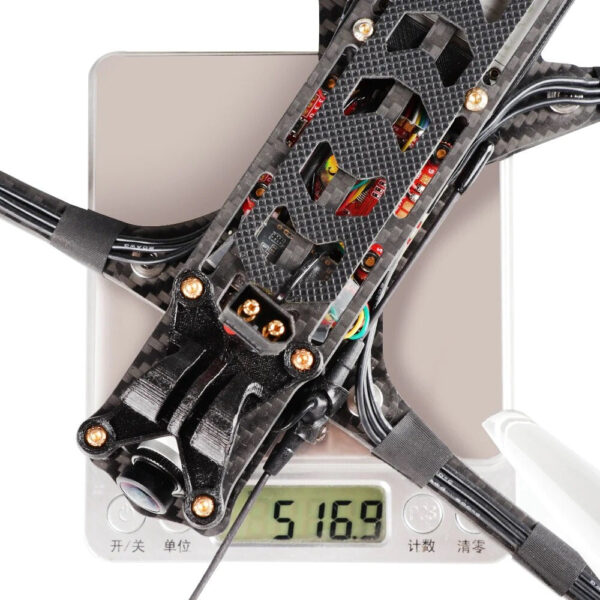

Weight:581.2g(without receiver)

Rekon7 PRO Long Range Frame 7 inches
Model:7 Inch Frame
Wheelbase:324mm
Size:337 * 246mm

Zeus F722 Flight Controller
MPU:BMI270
CPU:STM32F722 RET6
جهد الإدخال: 3-6S ليبو 3-6S
BEC:5V/2A,9V/1A

Zeus 48A BL_S 3-6S 4in1 ESC
Input:3-6S Lipo
Continuous current:48A
Peak curren:55A（10 Sec）

CADDX AIR UNIT
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-17.4V
Channels:8

AEOLUS 2806.5 1250KV Motor
Input voltage:25.2 V (6S)
Recommended blade:7 Inches

M80 PRO GPS
Power Supply:5V
Size:25mm x 25mm x 8.3mm

Soter FPV Drone Buzzer
Input voltage:5V
Size:22mm x 12mm x12mm

HQProp DP7X4X3 7 Inch 3-Blades Propeller
Quantity:2 CW & 2 CCW

DALPROP Fold 7 Inch 3-Blades Propeller
Quantity:2 CW & 2 CCW

تشمل:

1x Rekon7 PRO LR Frame
1x Zeus F722 Flight Controller
1x Zeus 48A BL_S 3-6S 4in1 ESC
1x CADDX AIR UNIT
4x AEOLUS 2806.5 1250KV Motors
1x M80 PRO GPS
1x Soter FPV Drone Buzzer
4x HQProp DP7X4X3 propeller
4x DALPROP Fold 7 propeller
2x Long Range Hammer Mini Antenna (LHCP)
2x 20*250mm Battery Straps
1x Receiver（Optional）

Recommended Battery:

6S:1800mAh-4200mAh

Rekon7 PRO Long Range FPV DJI O3 Air Unit Racing Drone 6S Digital Version F722 Flight Controller 48A 4in1 ESC 2806.5 Motor

الميزات:

– M80 PRO GPS pre-installed for more safety and reliability at long distance, with Betaflight/INAV firmware optional
– TBS Crossfire Diversity Nano RX pre-installed to cover your antenna dead ends, with Hammer long range antenna, bringing you stable signal when turning round
– Optimized the fixed method of the O3 picture. The lens can be fixed through 3D printing to improve the stability of the shooting and reduce the flight video jelly, thereby effectively reducing low -frequency vibration.

المواصفات:

Product Name:Rekon7 PRO Long Range FPV Racing Drone 6S Digital Version
Weight:0g( without receiver)

Rekon7 PRO Long Range Frame 7 inches
Model:7 Inch Frame
Wheelbase:324mm
Size:337 * 246mm

Zeus F722 Flight Controller
MPU:MPU6000
CPU:STM32F722 RET6
جهد الإدخال: 3-6S ليبو 3-6S
BEC:5V/2A,9V/1A

Zeus 48A BL_S 3-6S 4in1 ESC
Input:3-6S Lipo
Continuous current:48A
Peak curren:55A（10 Sec）

DJI O3 Air Unit
Operating Frequency:5.725-5.850 GHz
Input Power:7.4-26.4V

AEOLUS 2806.5 1250KV Motor
Input voltage:25.2 V (6S)
Recommended blade:7 Inches

M80 PRO GPS
Power Supply:5V
Size:25mm x 25mm x 8.3mm

Soter FPV Drone Buzzer
Input voltage:5V
Size:22mm x 12mm x12mm

HQProp DP7X4X3 7 Inch 3-Blades Propeller
Quantity:2 CW & 2 CCW

DALPROP Fold 7 Inch 3-Blades Propeller
Quantity:2 CW & 2 CCW

include:

1x Rekon7 PRO LR Frame
1x Zeus F722 Flight Controller
1x Zeus 48A BL_S 3-6S 4in1 ESC
1x DJI O3 Air Unit
4x AEOLUS 2806.5 1250KV Motors
1x M80 PRO GPS
1x Soter FPV Drone Buzzer
4x HQProp DP7X4X3 propeller
4x DALPROP Fold 7 propeller
2x Long Range Hammer Mini Antenna (LHCP)
2x 20*250mm Battery Straps
1x Receiver（Optional）

Recommended Battery:

6S:1800mAh-4200mAh
