HB5808 Receiver SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Tires
Tool Supplies: Battery
Technical parameters: Value 2
Size: As description
Remote Control Peripherals/Devices: Remote Controller
Recommend Age: 12+y
RC Parts & Accs: Receivers
Origin: Mainland China
Model Number: HB5808
Material: Metal
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes
Brand Name: uuustore

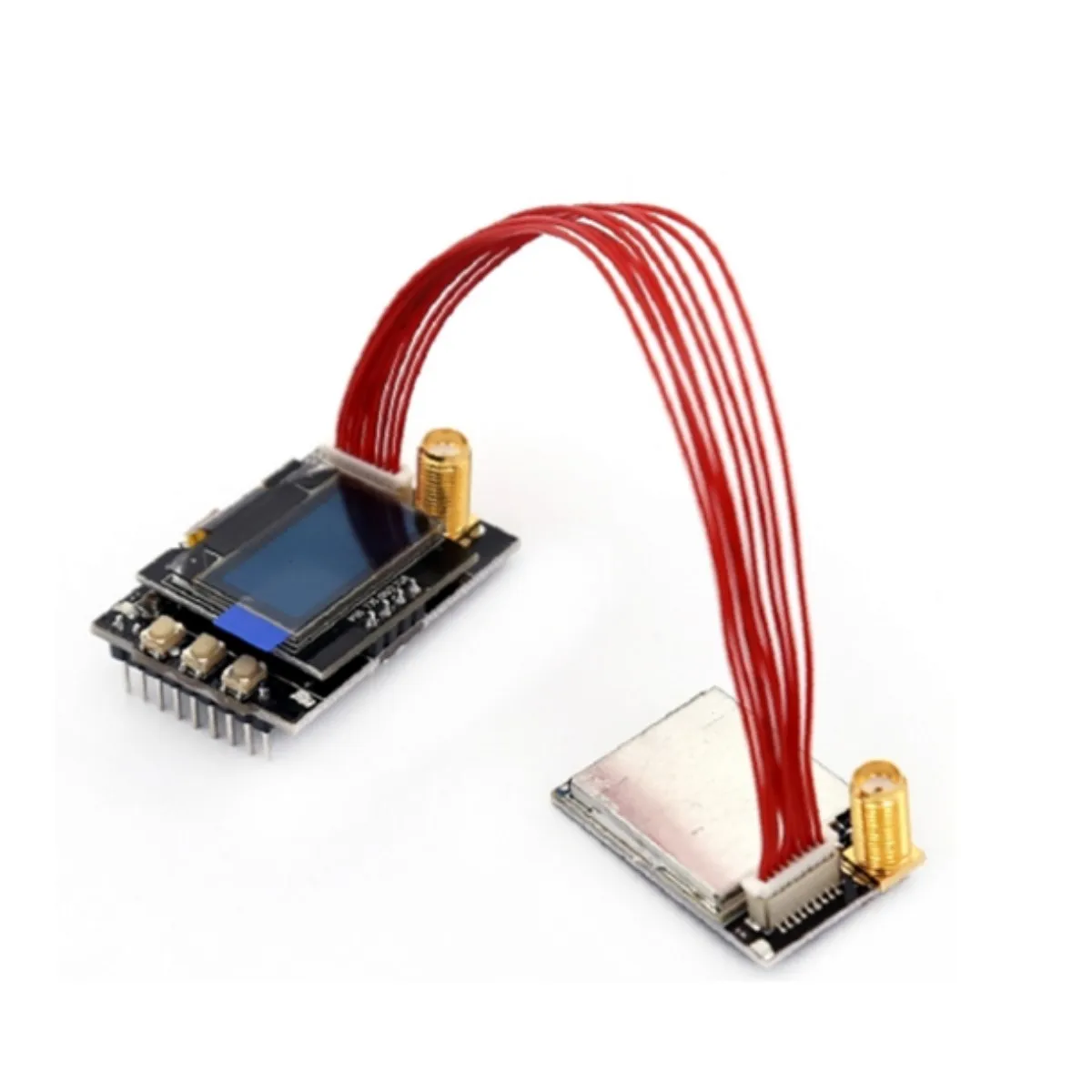

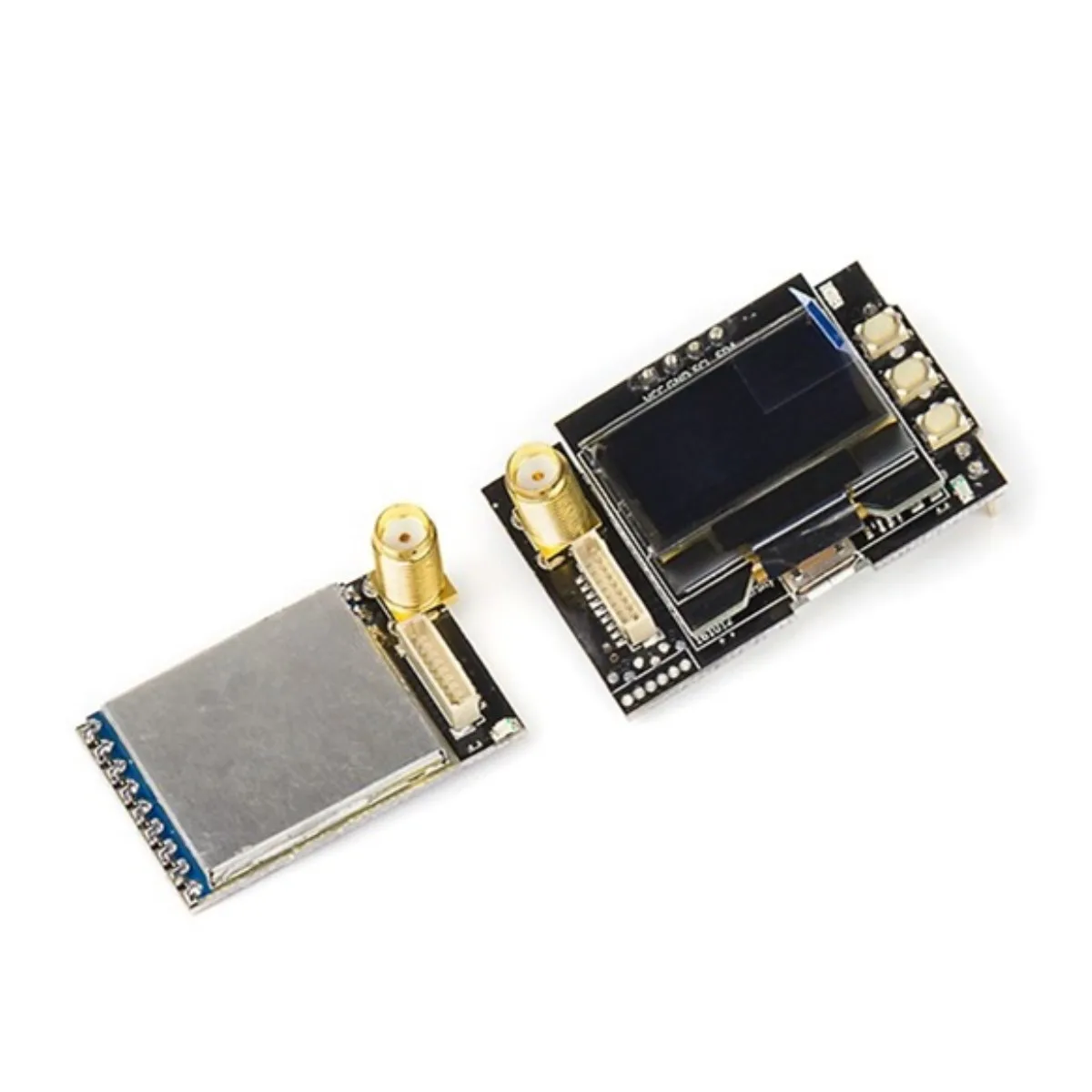

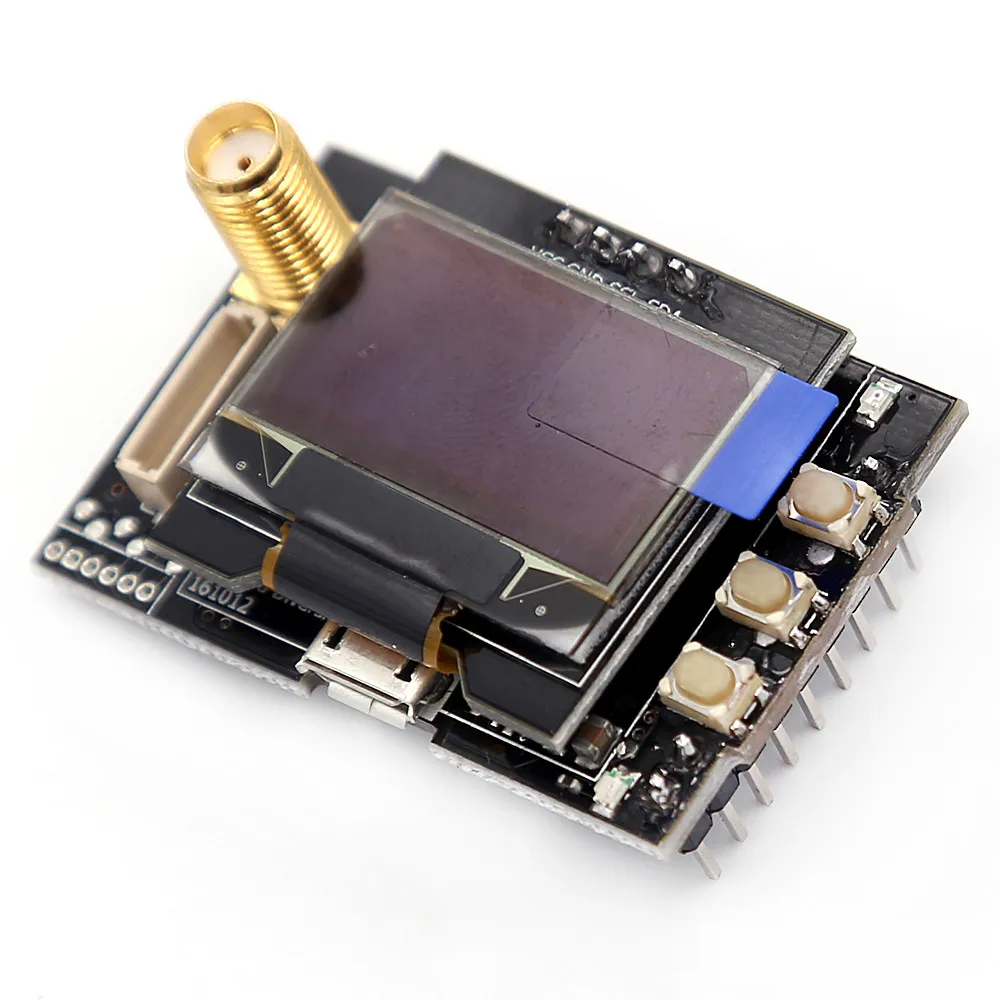

New HB5808 5.8GHz 5.8G 40CH Channel Diversity Dual Receiver for Fatshark Goggles w/Raceband high quality for racing drone
This diversity receiver is a fantastic upgrade for Fat Shark goggles to give you a true diversity reception capability.
Very easy to install and to get flying in no time at all. No soldering is required, making this a 5-minute job.
The Quanum HB5808 module itself is very user-friendly with 1 press auto search, and one press channel lock being the fastest way to get started. Alternatively, you can select and set channels manually.
By using the ‘Band Scanning’ function you can scan all of the 5.8GHz band and choose your desired channels from the available ones.

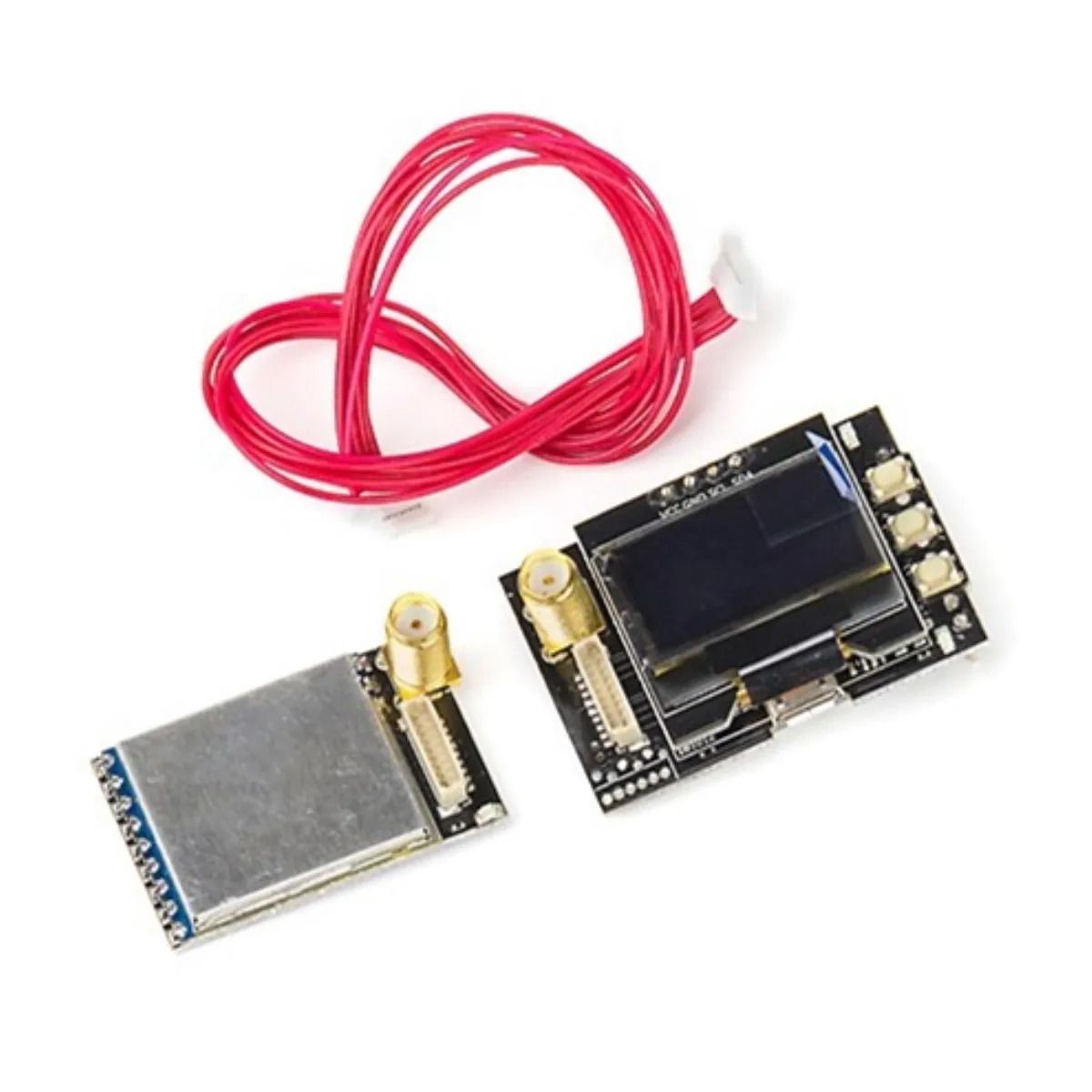

Package Included:(antennas are not included)
1 X Main Receiver
1 X Minor Receiver
1 X USB Cable
Features:
• True diversity receiver
• Plug and Play installation
• No soldering needed
• 40 Channels available
• Incorporates Raceband
• Band scanning function
• Auto search
• USB input for upgrade
Specs:
Type: HB5808 Receiver
Frequency: 5.645~5.945GHz
Channels: 40CH
Voltage Input: 5v
Display: OLED
Channel switch delay: <25ms
