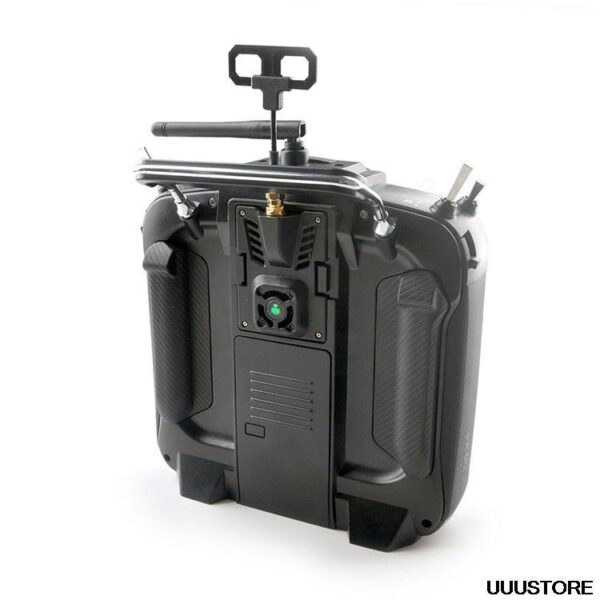

HappyModel ES24TX Pro ELRS – 1000mW 2.4G ExpressLRS ELRS Micro TX Module with Cooling Fan RGB LED Module for RC Airplane FPV Drone

Max output up to 1000mw, reserved Cooling Fan and RGB LED module. This Micro TX module support most of the OpenTX radio transmitter that with Micro JR bay. And this time the ES24TX Pro module comes completely assembled before out of factory.

المواصفات:

Regulatory Domain: ISM2400

MCU:ESP32(main),ESP8285(aux,as espbackpack)

RF chip: SX1281IMLTRT

JR standard 5pin socket

Frequency Range: 2400 MHz to 2500 MHz

Maximum receive refresh rate: 500Hz

Minimum receiver refresh rate: 25Hz

RF Output Power: >30dBm

Power supply voltage: 5v~10v

Weight: 51gram(without antenna)

Dimension: 70mm*49mm*32.5mm

Antenna gain: 4.18dBi

Firmware target: HappyModel_ES24TX_Pro_Series_2400_TX


Package include:

ES24TX Pro *1

Happymodel 2.4GHz Moxon antenna *1
