HappyModel Crux3 – 1S ELRS 3inch FPV Toothpick Drone F4 2G4 Built-in SPI ELRS 2.4G OPENVTX 400mW Caddx Ant EX1202.5 KV11500 1S

$134.27

+ شحن مجاني

اطلب المزيد من المعلومات

HappyModel Crux3 SPECIFICATIONS

Name: HappyModel Crux3 - 1S ELRS 3inch FPV Toothpick Drone F4 2G4 Built-in SPI ELRS 2.4G OPENVTX 400mW Caddx Ant EX1202.5 KV11500 1S - Drone
Price: 134.27 USD
Availability: InStock

الاستخدام: المركبات وألعاب التحكم عن بعد

ترقية قطع الغيار/الإكسسوارات: أخرى

مستلزمات الأدوات: أخرى

الأجهزة الطرفية/الأجهزة الطرفية للتحكم عن بُعد: وحدة التحكم عن بُعد

العمر الموصى به: 12+y

قطع غيار السيارات والمركبات: أجهزة الاستقبال

المنشأ: البر الرئيسي للصين

رقم الموديل: Crux3 1S ELRS

المواد: المواد المركبة

سمات الدفع الرباعي: أخرى

لنوع المركبة: طائرات الهليكوبتر

اسم العلامة التجارية: happymodel

Flight test video

الميزات:

40gram 1s brushless Toothpick drone

AIO Flight controller with ELRS Receiver and 5.8G VTX

CADDX ANT Camera

New 1202.5 KV11500 brushless motor

Recommend to use 1s 450mah/650mah/660mah/720mah battery

Compatible with CaddxFPV Peanut and Insta360 GO2

Carrying Caddxfpv peanut Got 4.5 minutes flying time with 1s 650mah battery

المواصفات:
اسم العلامة التجارية: هابي مودل
Item Name: Crux3 1S ELRS
Wheelbase: 115mm
Size: 97mmx97mmx35mm (without propellers)

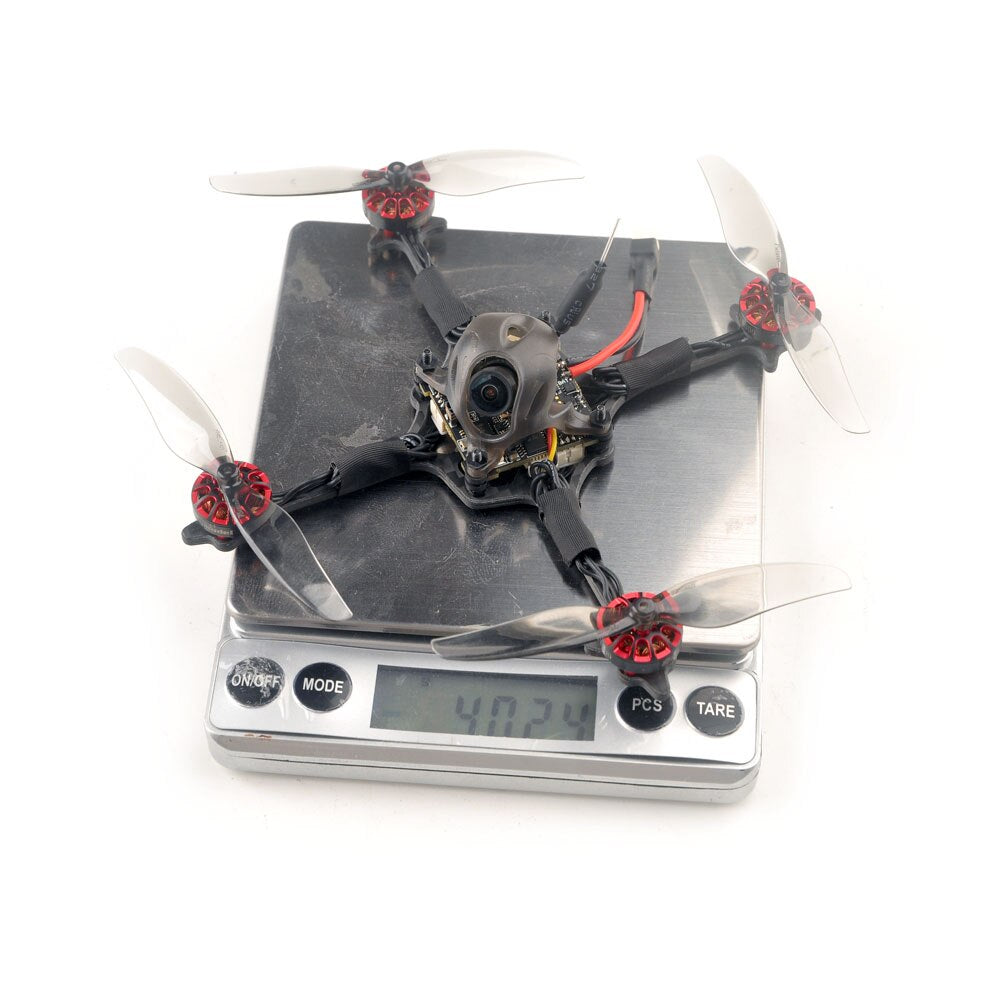

Weight: 40g(without battery)

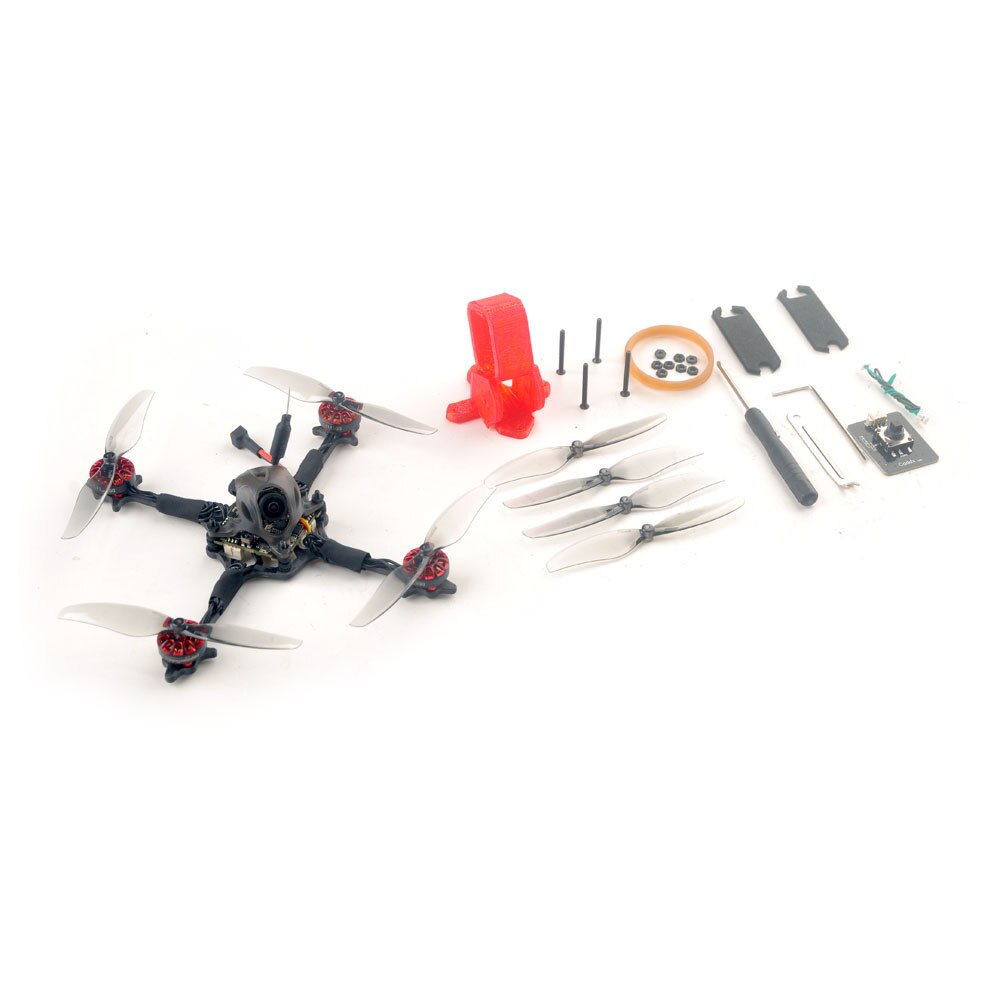

تتضمن العبوة:

Item Name	Qty
Crux3 Frame and canopy	1
ELRS F4 2G4 flight controller built-in SPI ExpressLRS 2.4G receiver	1
Happymodel EX1202.5 KV11500 brushless motor	4
Gemfan 75mm bi-blade Propellers(4cw+4ccw)	1
Caddx Ant 1200TVL Global WDR with OSD 2g Ultra Light Nano FPV Camera	1
5.8G 25mw~200mw 40ch vtx (Flight controller built-in)	1
Screw Driver	1
Propeller disassemble tool	1
3D Printed canopy for Insta360 GO2 and CaddxFPV Peanut
Happymodel Handbag	1

المحرك	Mode: EX1202.5 KV11500 Configu-ration:9N12P Stator Diamter:12mm Stator Length:2.5mm Shaft Diameter:Φ1.5mm Motor Dimension(Dia.Len):Φ14mm14.5mm Weight(g):4.4g No.of Cells(Lipo):1S
المراوح	Gemfan 75mm Center Thickness:5mm Prop Diameter:75mm Center Hole diameter:1.5mm Pitch:0.9in
Flight controller	MCU:STM32F411CEU6 (100MHZ, 512K FLASH) Sensor: MPU-6000(SPI connection) Original whoop size compatible Power supply: 1S battery input (DC 2.9V-4.35V) Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready Built-in Betaflight OSD(SPI Control) Built-in 5.8G VTX Built-in SPI ExpressLRS 2.4GHz receiver Built-in 5V 1A BECFlight controller firmware target: CRAZYBEEF4SX1280
Onboard 4in1 ESC	MCU upgraded to EFM8BB21 Power supply: 1S LiPo/LiPo HV Current: 5A continuous peak 6A (3 seconds) Support BLHeliSuite programmable Factory firmware: O_H_5_REV16_7.HEX Default protocol: DSHOT300
Onboard SPI ExpressLRS 2.4GHz Receiver	Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz RF Frequency: 2.4GHz Antenna : SMD antenna Telemetry output Power: <12dBm Receiver protocol to flight controller: CRSF Could bind with All ExpressLRS 2.4GHz TX module , ExpressLRS firmware need 1.0.0 or latest
Onboard 5.8g VTX	Output power: 25mw~200mw switchable Frequency: 40CH Input voltage: 3.3V 5.5V Current consumption: 300mA(type) Frequency: 5.8GHz 5bands 40 channels With Race band Smartaudio ready
Caddx ANT 1200tvl camera	مستشعر الصور مستشعر CMOS مقاس 1/3 بوصة الدقة الأفقية: 1200 تي في إل TV System: NTSC or PAL الصورة: 16:9 أو 4:3 التزامن: داخلي مصراع إلكتروني: بال بال: 1/50 ~ 100,000؛ NTSC: 1/60 ~ 100,000 S/N Ratio : >52dB (AGC OFF) إخراج الفيديو: CVBS العدسة: 1.8 مم Min. Illumination: [email protected] التحكم في الكسب التلقائي: نعم BLC: نعم WDR: WDR العالمية DNR: 3D DNR Dimensions: 1414mm(with bracket to 1919mm) مدخل طاقة واسع: تيار مستمر 3.7-18 فولت درجة حرارة العمل: -20 درجة مئوية ~ +60 درجة مئوية Weight: 2g (N.W.)
