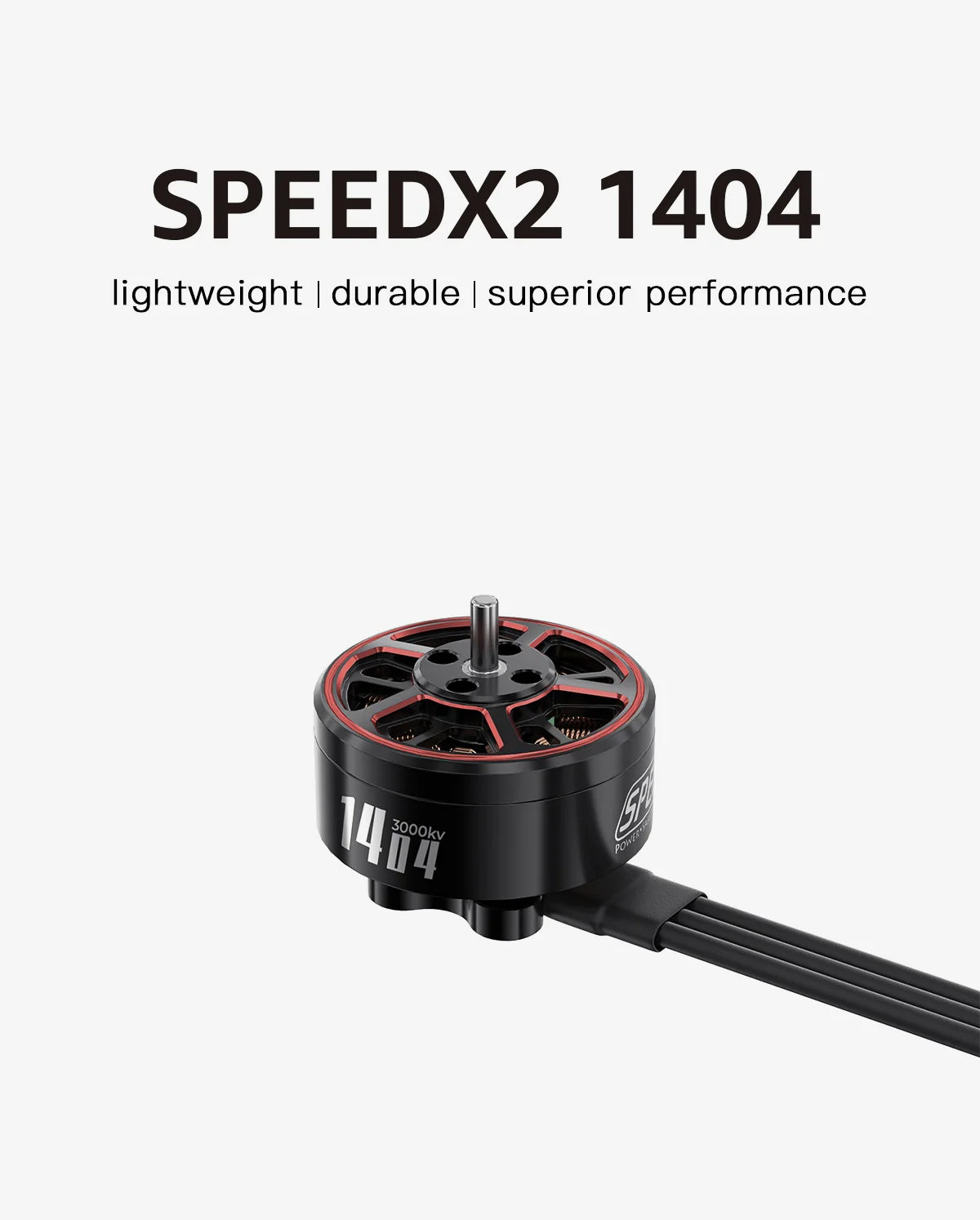

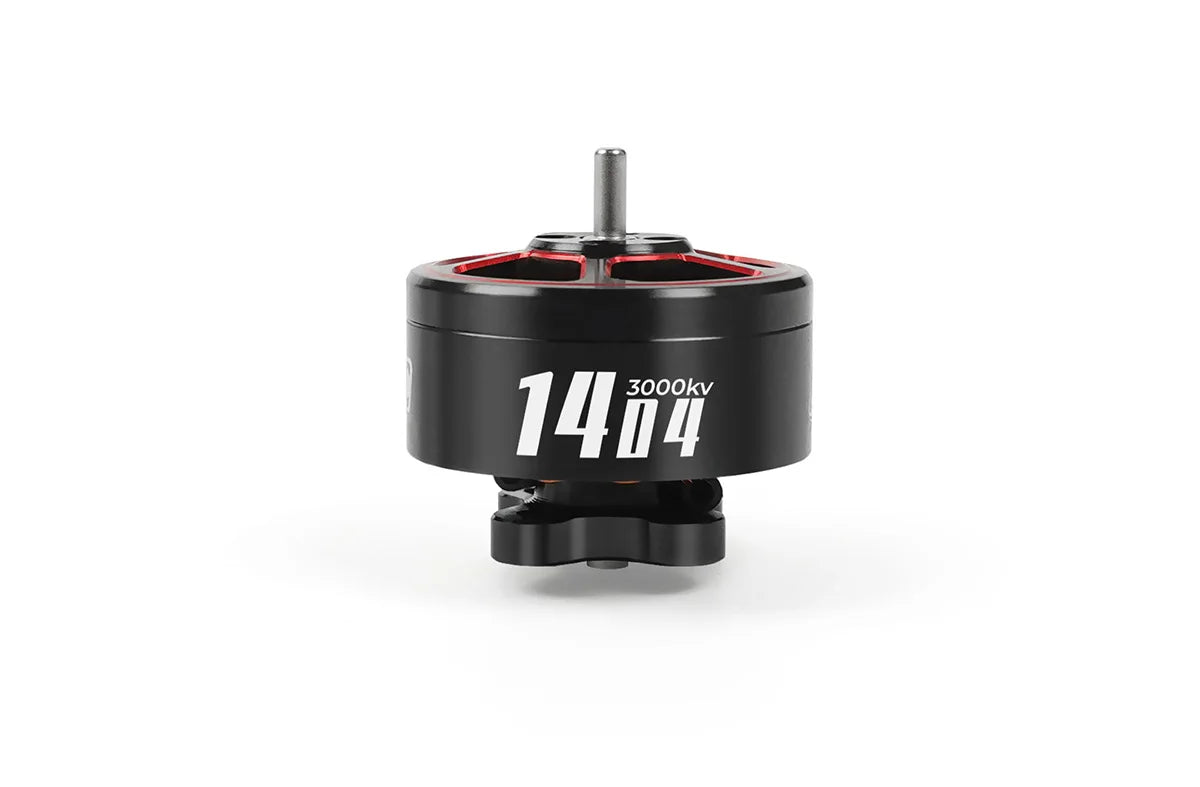

GEPRC SPEEDX2 1404 3000KV / 4600KV Motor SPECIFICATIONS
Brand Name: GEPRC
Is Electric: No battery
Origin: Mainland China
Material: Metal
Recommend Age: 14+y
RC Parts & Accs: Motors
For Vehicle Type: Helicopters
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Motors
Remote Control Peripherals/Devices: MOTOR
Tool Supplies: Assembly Category
Quantity: 1 pcs
Model Number: SPEEDX2 1404 3000KV / 4600KV Motor
Four-wheel Drive Attributes: Motors
Wheelbase: Screws
Specifications:
- Model: SPEEDX2 1404 3000KV Motor
- Max Watt: 160W
- Peak current: 10A/3″
- Interphase resistance: 0.33Ω
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 9N12P

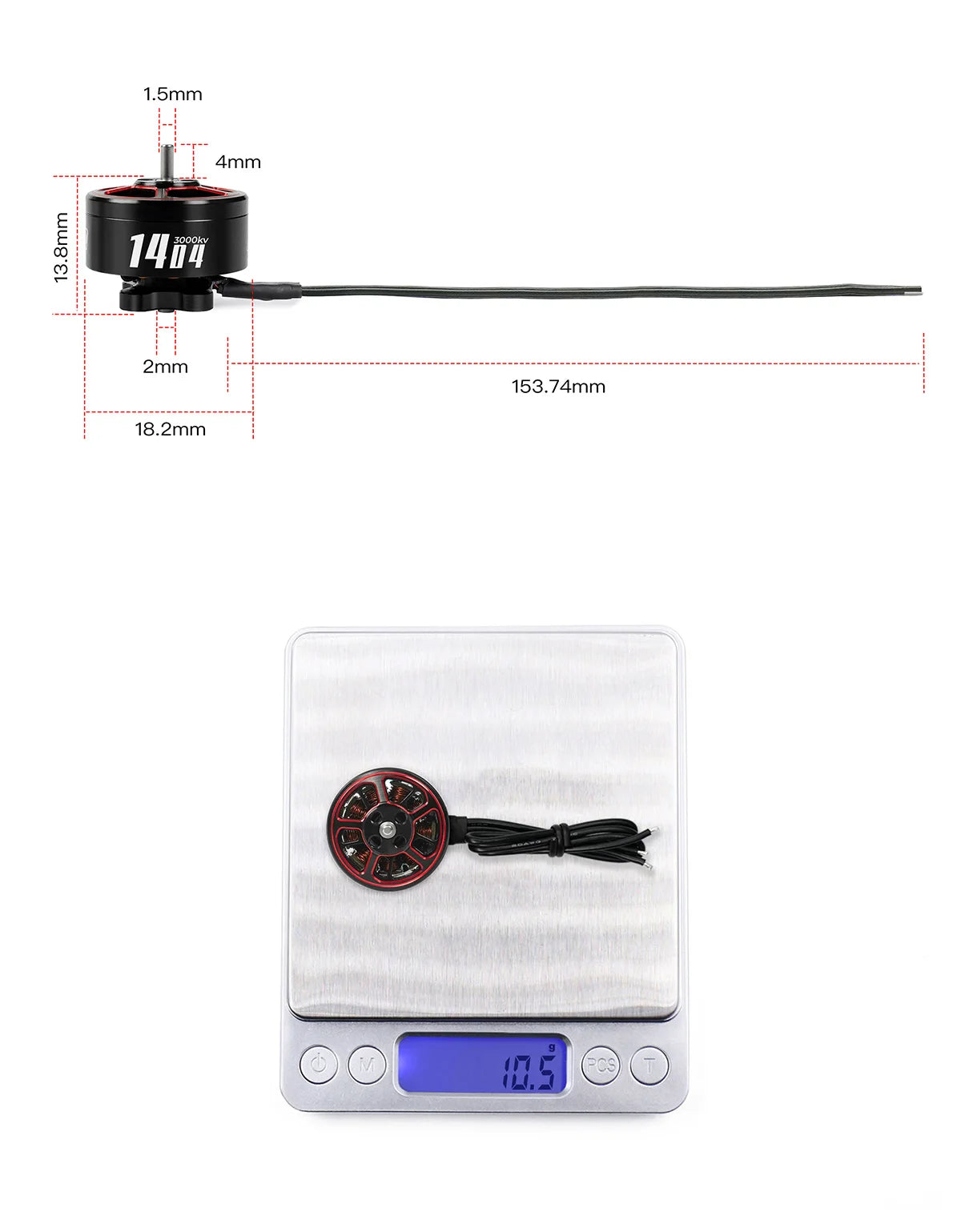

- Dimension: φ18.2mm*13.8mm
- Shaft Diameter: φ1.5mm
- Shaft Protruding Length: 4mm
- Mounting holes: 9mm*9mm（M2）
- Lead: 160mm/26AWG
- ESC: 12A/2-4S（7.4V-14.8V）
- Input Volts: 14.8V（4S LiPo)
- Winding: Single strand copper winding
- Weight: 10.5g (included wire)
- Suitable for: 3 inch – 4 inch lightweight models
- Model: SPEEDX2 1404 4600KV Motor
- Max Watt: 180W
- Peak current: 14.3A/3″
- Interphase resistance: 0.19Ω
- Magnet: N52H
- Bearing type: NSK/NMB
- Configuration: 9N12P
- Dimension: φ18.2mm*13.8mm
- Shaft Diameter: φ1.5mm
- Shaft Protruding Length: 4mm
- Mounting holes: 9mm*9mm（M2）
- Lead: 160mm/26AWG
- ESC: 20A/2-4S（7.4V-14.8V）
- Input Volts: 11.1V – 14.8V（3S – 4S LiPo)
- Winding: Single strand copper winding
- Weight: 10.5g (included wire)
- Suitable for: 2 inch – 3 inch lightweight models
Feature
1.Red with black color is obviously high-end.
2.Use bearings with excellent performance and strong anti-wear ability.
3.Lightweight silhouette, strong power.
4.Suitable for 2-inch-4-inch lightweight chassis.

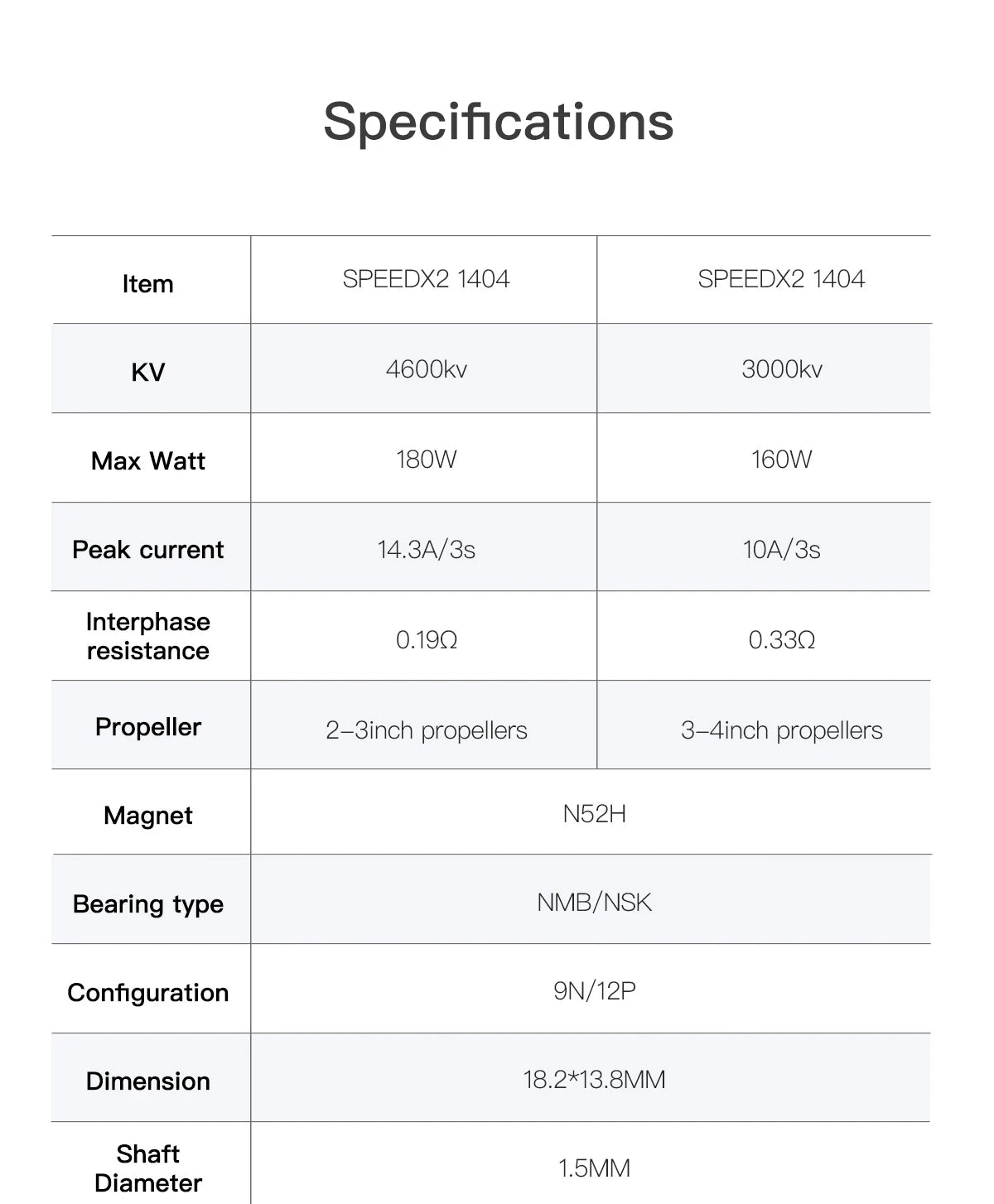

Specifications Item SPEEDX2 1404 KV 460Okv 3000kv Max Watt 180W 160W Peak current 14.3A/3s 1OA/3s Interphase 0.190 0.330 resistance Propeller 2-3inch propellers 3-4inch propellerns Magnet N52H Bearing type NMB/NSK Configuration 9N/12P Dimension 18.2*13.8MM Shaft 1.SMM Diameter .

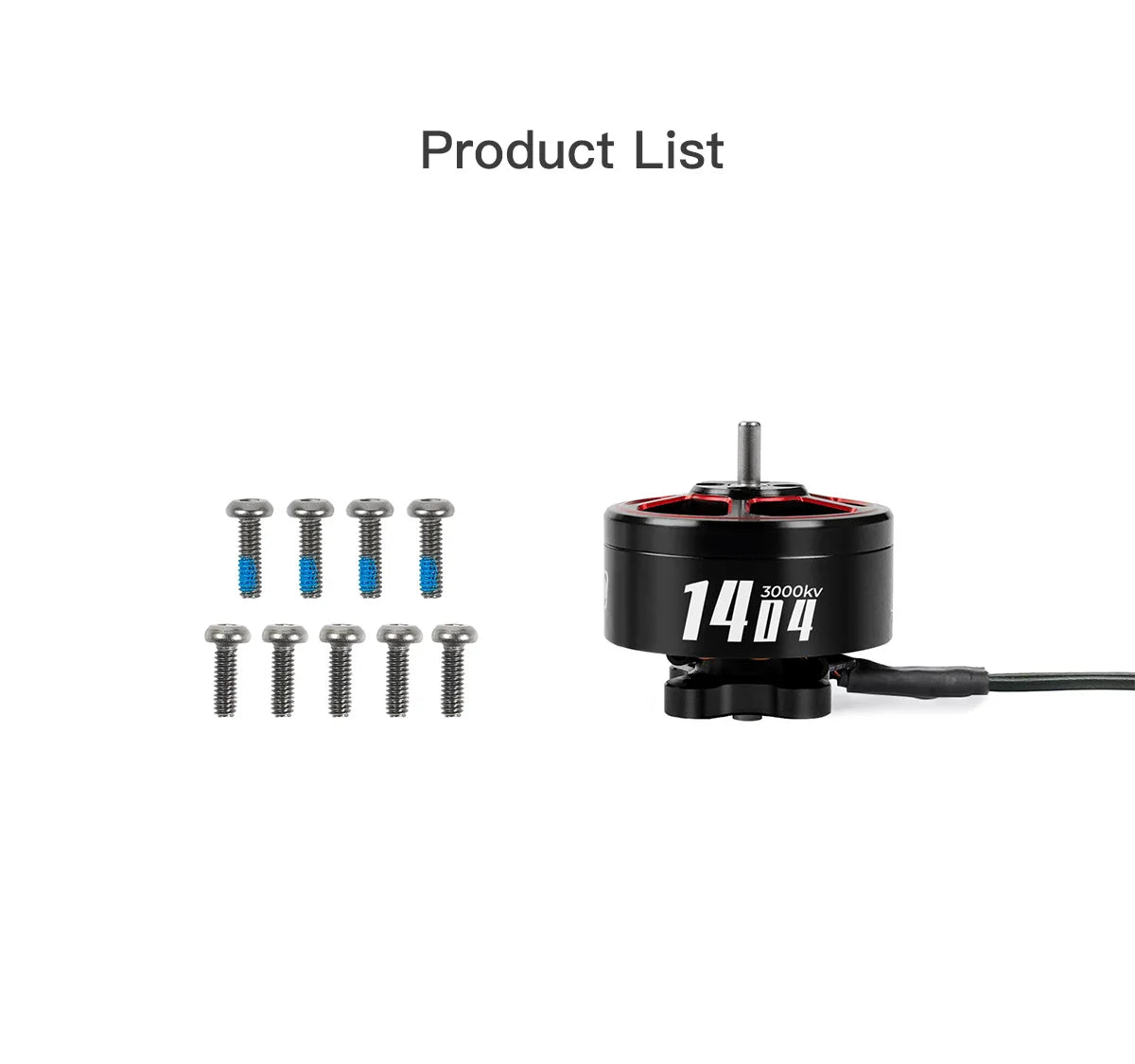

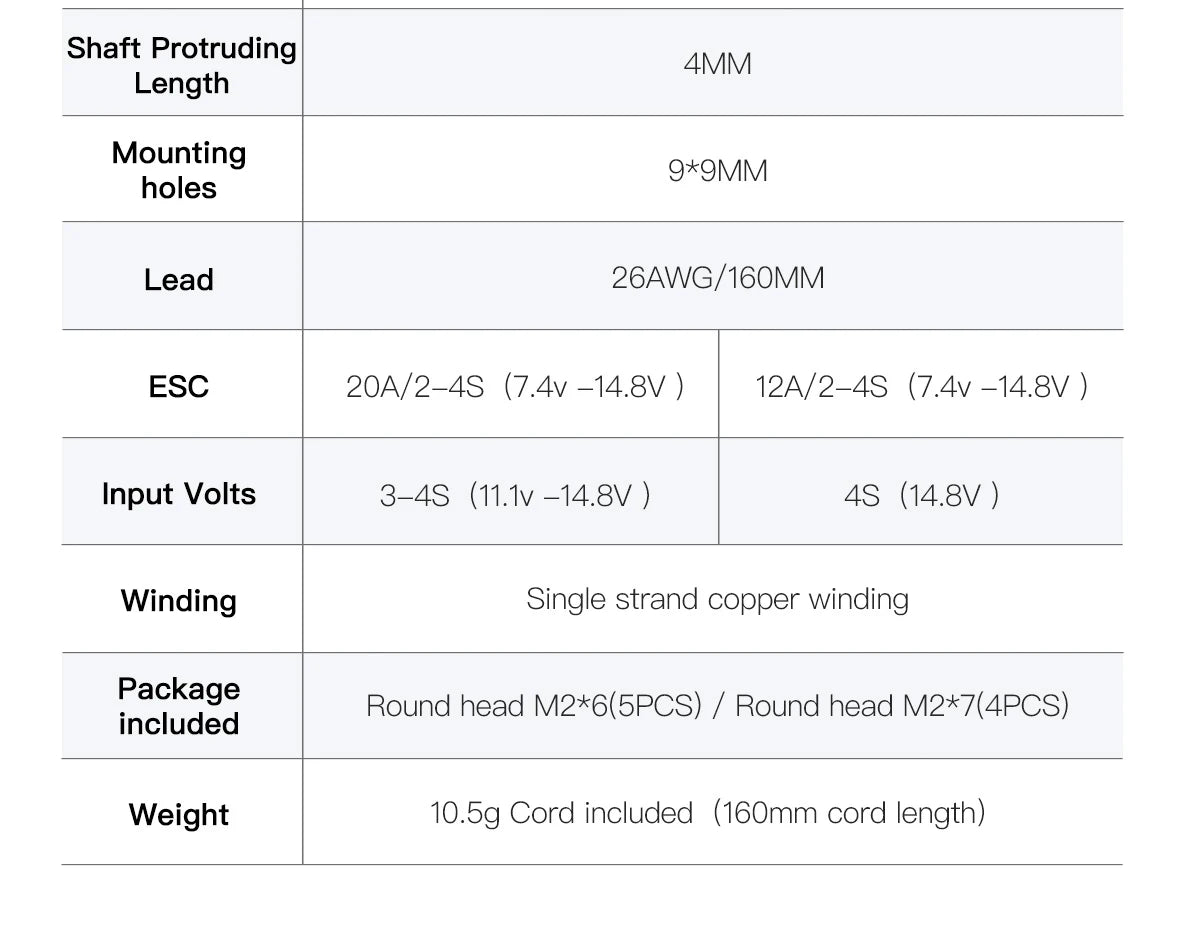

This motor features a protruding shaft that measures 4mm in length, with mounting holes measuring 9x9mm. The ESC (Electronic Speed Controller) has a lead wire made from 26AWG/16OMM material and supports voltage ranges of 7.4V to 14.8V for 2S to 4S battery configurations. The winding is single-strand copper with a round head M2x6mm screw (SPCS) or M2x7mm screw (APCS), included in the package. Additionally, the motor weighs approximately 10.5g and comes with a 16OMM cord of unknown length.
