المواصفات
تحذير: يرجى استخدام القاصرين تحت إشراف شخص بالغ
دقة التقاط الفيديو: 720P HD
النوع: طائرة هليكوبتر
حالة التجمع: جاهز تقريباً
المسافة البعيدة: 300 متر
جهاز التحكم عن بُعد: نعم
العمر الموصى به: 14+y
العمر الموصى به: 12+y
مصدر الطاقة: كهربائي
نوع المقابس: TX30
تتضمن العبوة: الصندوق الأصلي
تتضمن العبوة: كاميرا
تتضمن العبوة: تعليمات التشغيل
المنشأ: البر الرئيسي للصين
مستوى مهارة المشغل: خبير
مستوى مهارة المشغل: مبتدئ
مستوى مهارة المشغل: متوسط
NOTE: No remote control batteries
المحرك: محرك بدون فرشاة
رقم الموديل: ROCKET Plus
المواد: معدن
المواد: ألياف الكربون
المواد: بلاستيك
استخدام داخلي/خارجي: داخلي-خارجي
وقت الرحلة: 5 minutes
الميزات: التحكم في التطبيق
الأبعاد: 1.6-2 inch
وضع وحدة التحكم: MODE1
وضع وحدة التحكم: MODE2
قنوات التحكم: 8 قنوات
اسم العلامة التجارية: المركز العالمي لبحوث السياسات العامة
التصوير الجوي: نعم
Summary:

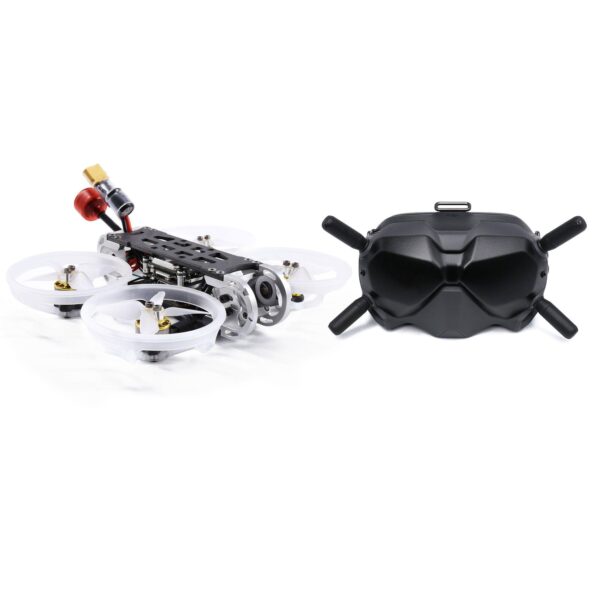

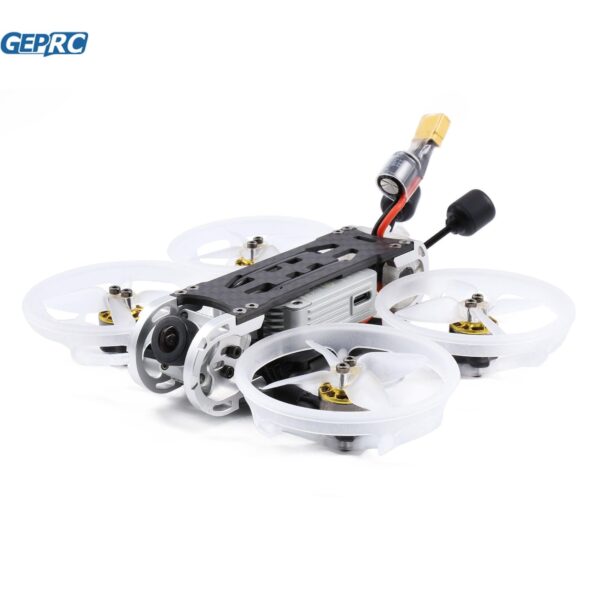

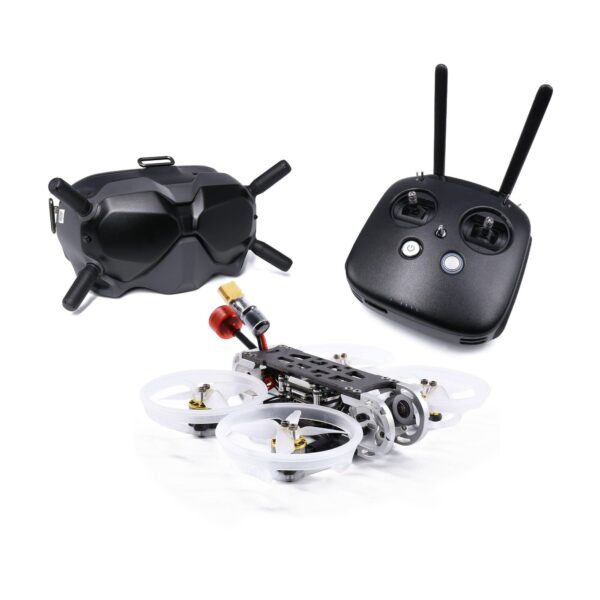

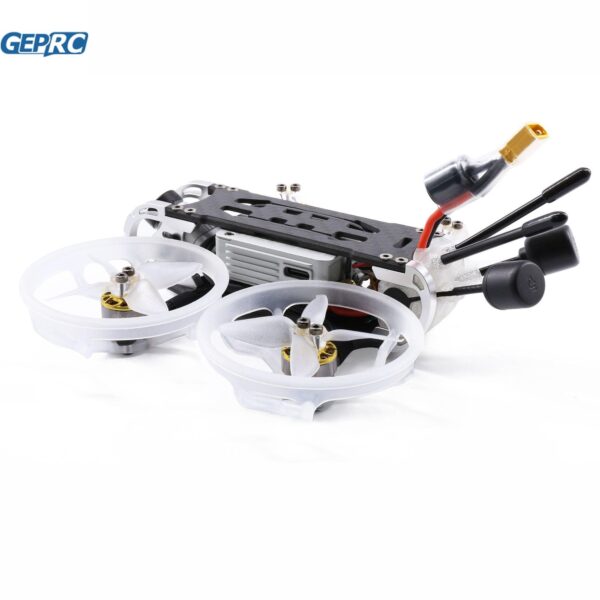

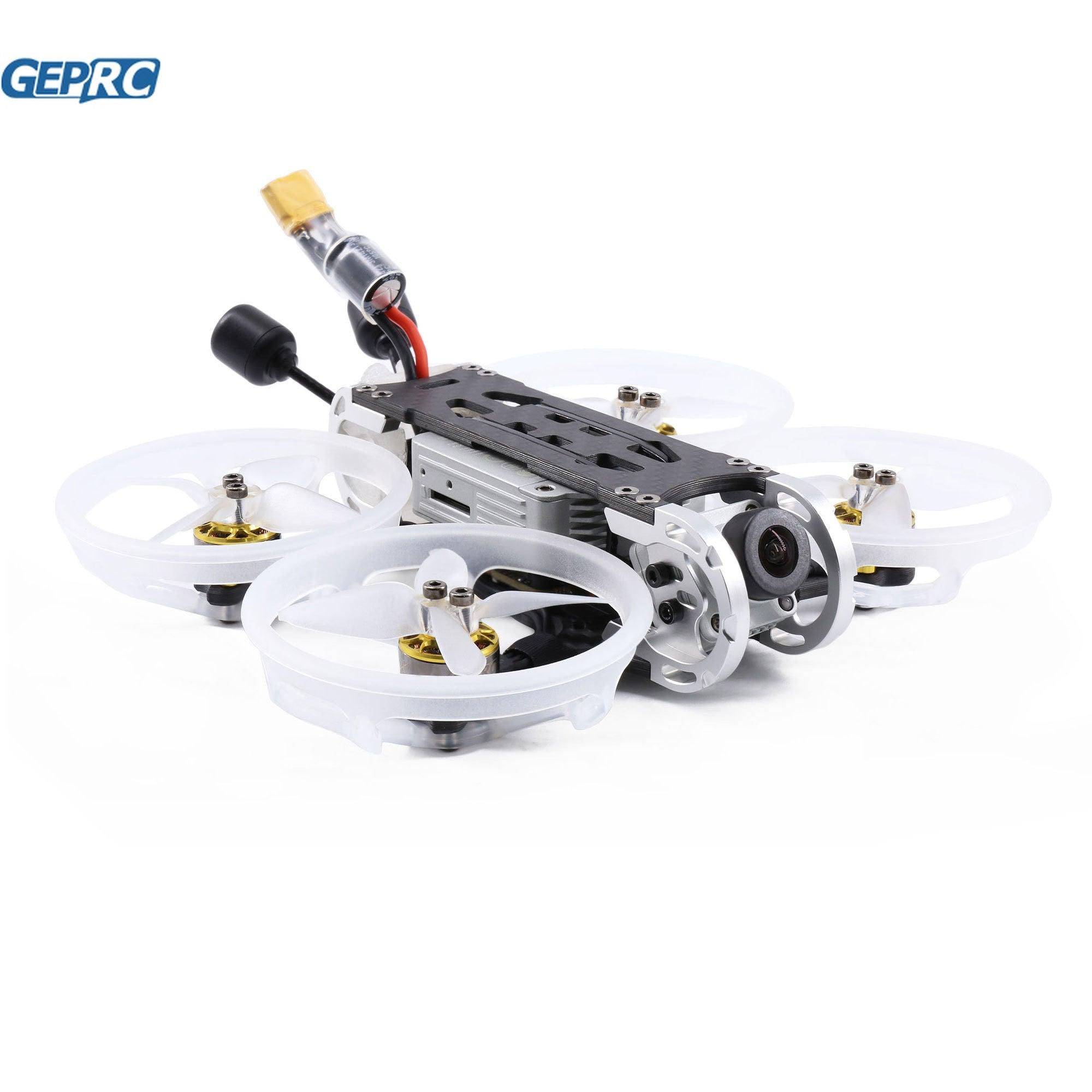

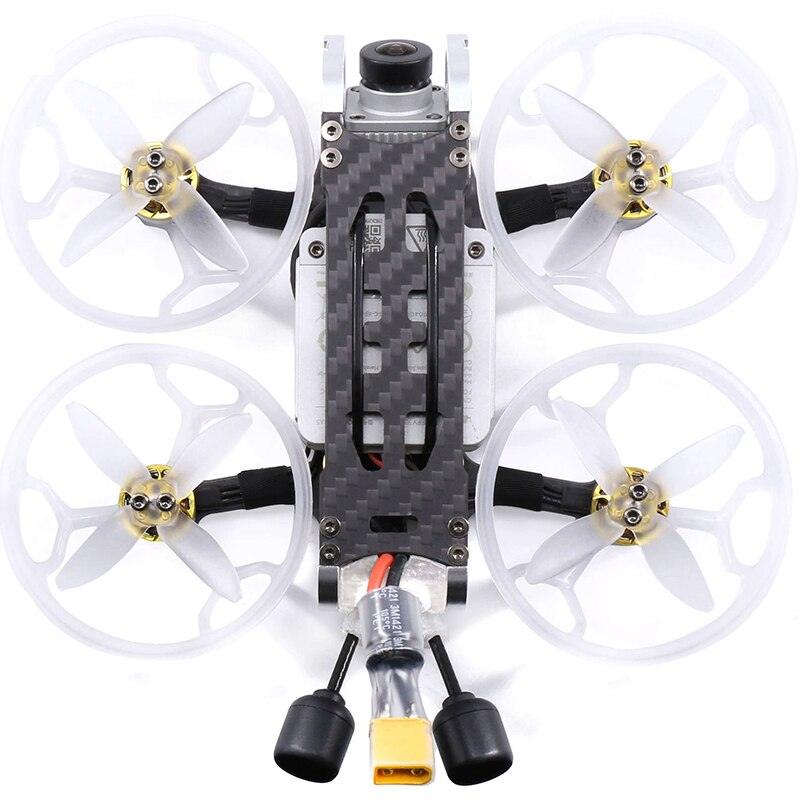

ROCKET is the latest Mini HD ( HIGH-DEFINITION) Digital image Transmission FPV SYSTEM MICRO QUAD developed by GEPRC. There are two versions of ROCKET to choose from, namely ROCKET PLUS and ROCKET LITE. They have their own advantages. ROCKET PLUS can record 1080P video at 60fps on the SD card of the DJI Air-Unit. It weighs 148g and has high playability. ROCKET LITE can’t record on the drone itself, it can only record 720P video on the FPV Goggle side, but the advantage is that it is lightweight which is only 128g.
ROCKET’s LITE and PLUS using the FPV system which is DJI FPV Air Unit and Caddx Vista HD FPV, each of which has its own advantages. The electronic system and power system use the latest AIO integrated board GEP-20A-F4 developed by GEPRC. It has high integration, lightweight and stability. The motor uses GR1204 5000KV, and it is equipped with a 2-inch 4-blade propeller, which has sufficient power and high efficiency, which is the perfect match and in addition the DJI FPV System has eight frequency channels, allowing eight pilots to fly simultaneously.
“BOTH VERSIONS ROCKET ” completely assembled and tuned by professional GEPRC team.
الميزات:
The re-Designed Frame is very compact and sturdy, and the propeller cannot be seen in the video.
With DJI Air Unit Digital HD video transmission system, the aircraft can record 1080P 60fps video and Goggle can record 720P video
Equipped with a 2-inch Props guards, very safe for flying indoor and outdoor, and the propeller will not be scratched
Full 3K carbon fiber plate with High-precision Carbon Fiber CNC engrave
Use new GEP-20A-F4 AIO to integrate flight control and ESC system
High efficiency power system, motor GR1204 5000KV and 2 inch 4-blades propeller
The flight controller with soft mounts, so that the gyroscope has a good operating environment
Completely eliminate jelly from footage and stable Image during the flight

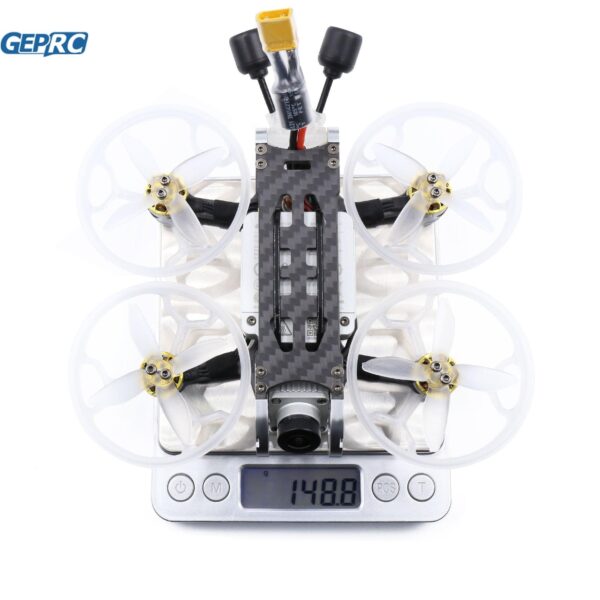

Light weight up to 148g (excluding battery)
Professional assembly process, eliminate some potential installation problems
المواصفات:
Model:ROCKET Plus
Frame:GEP-RP2
Stack:GEP-20A-F4 AIO
MCU:F411
IMU: MPU6000 gyro/accelerometer (SPI)
ESC:BLhelis 20A
Wheelbase:112mm
FPV System:DJI FPV Air Unit (1080P 60fps Record)
Motors:GR1204 5000KV
Props:2inch
Top plate thickness:3mm
bottom plate thickness:3mm
Weight:148g(without battery)
Battery:Recommended use 4S 650-850mAh
تشمل:
1x ROCKET Plus Quadcopter
4x 2inch Props(pairs)
