المواصفات
قاعدة العجلات: البراغي
الاستخدام: المركبات وألعاب التحكم عن بعد
ترقية قطع الغيار/الإكسسوارات: المحول
مستلزمات الأدوات: فئة التجميع
الحجم: 1 بوصة
الأجهزة الطرفية/الأجهزة الطرفية للتحكم عن بُعد: VTX
العمر الموصى به: 12+y
قطع غيار السيارات والمركبات: أجهزة الإرسال
الكمية: 1 قطعة
المنشأ: البر الرئيسي للصين
رقم الموديل: GEPRC RAD VTX 5.8G 1.6W
المواد: المواد المركبة
سمات الدفع الرباعي: التجميع
لنوع المركبة: طائرات الهليكوبتر
اسم العلامة التجارية: المركز العالمي لبحوث السياسات العامة
Summary:

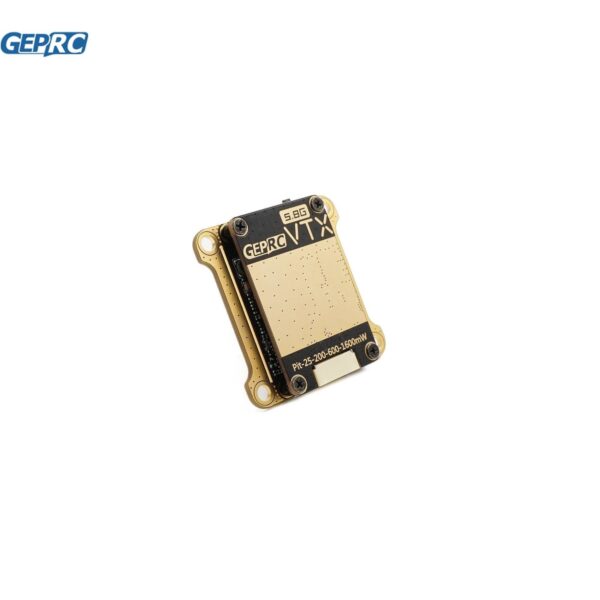

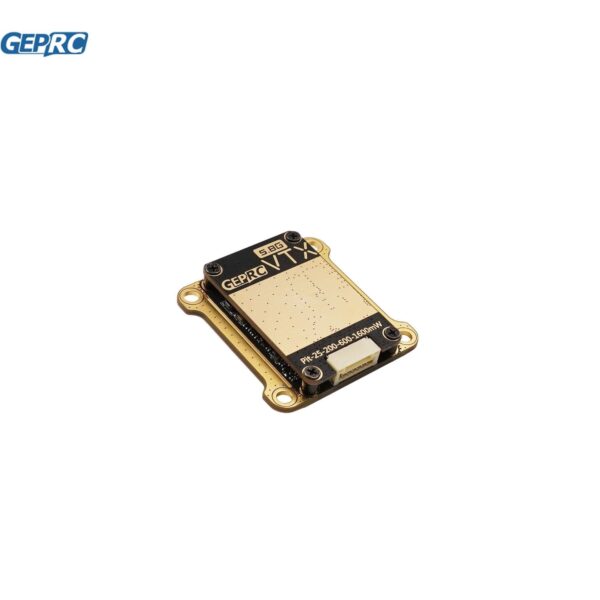

I’m glad to introduce the newly developed RAD VTX 1.6W by GEPRC.It is a super-power VTX with a maximum power of 1600MW and five adjustable gears:Pit/25mW/200mW/600mW/1600mW is adopted.The RAD adopts a double-layer PCB design to separate the power supply from the main-board,which can reduce and shield interference. Double layer structure for better heat dissipation. The built-in microphone on the VTX board,supports 7-36V voltage(2-8S Battery) input, uses the mainstream MMCX connector ,and the mounting hole is 30.5×30.5mm.
الميزة:
1600mW Super power ,Suitable for Long Range flight with good stability.
Five power channel: PIT mode/25mW/200mW/600mW/1600mW.
Two-layer board cooling structure,Separate power BEC and main-Board,Reducing and shielding from the insinal interference.
Temperature control protection function that can prevent high temperature burning
Wide voltage input, Supports 7V-36V Voltage input.
VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
VTX built in microphone,Real-time transmission of Drone’s sounds.
Has 3 regional frequency tables to meet the needs of various regions.
Two function buttons, three indicator lights, easy to control.
Mounting hole is 30.5mmx30.5mm.
المواصفات:
Model: GEPRC RAD VTX 5.8G 1.6W
Input voltage: DC 7-36V(2-8S Battery)
Output:5V@600mA(power 5V to Camera)
Input impedance: 75Ω
Protocol: IRC Tramp
Antenna interface: MMCX
Output power: PIT mode/25mW/200mW/600mW/1600mW PIT MODE
Frequency tables: Universal frequency table(40CH),American FCC frequency table(37CH),European EU frequency table(26CH)
Video format: PAL / NTSC
Microphone: Built in microphone
Size: 36×36.5×5.5mm

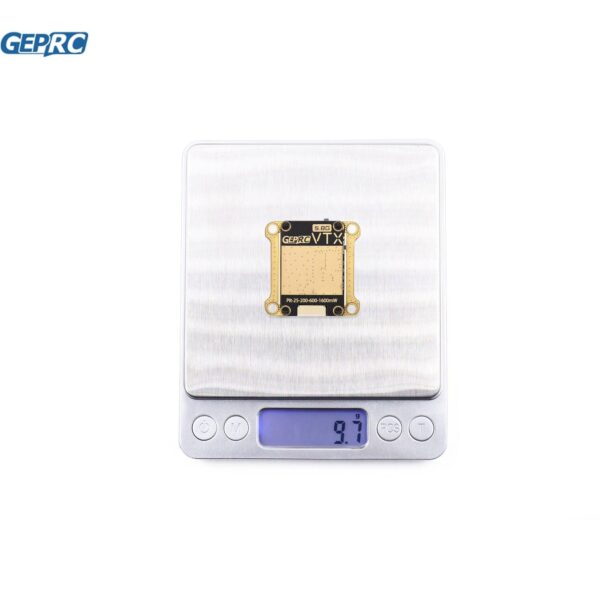

Weight: 9.7g(without cable)
Mounting hole: 30X30mm(M3)
Warning：
Install Antenna before use.
To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.

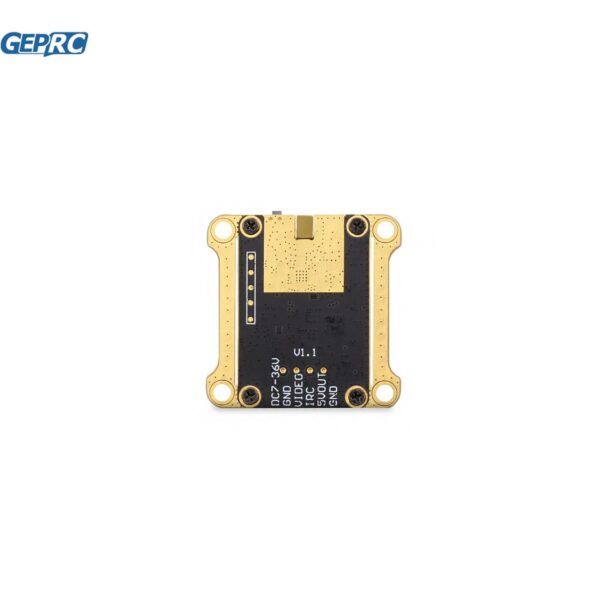

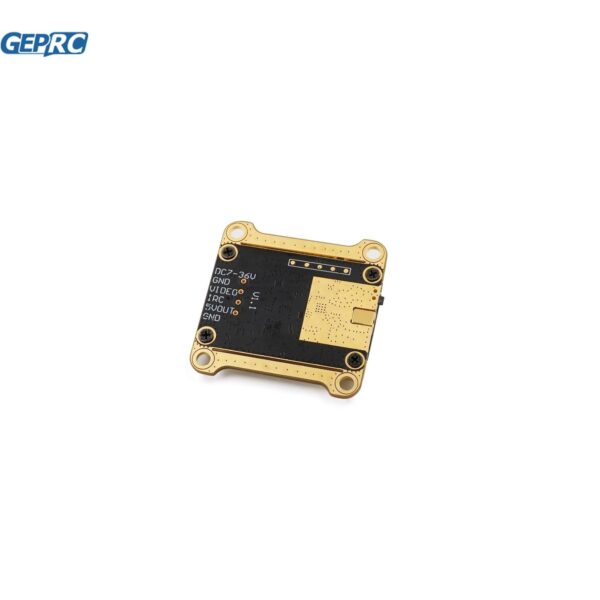

Connector definition description:
DC 7-36V: Input 2-8s Battery power
GND: Common ground wire
Video: connect to the video output port of FC or Camera
IRC: Connect to UART TX port of FC
5V OUT: output 5V power to the Camera
GND: Common ground wire
Description of button and indicator light:
Two function button are parallel in the VTX circuit, and the operation and function are the same
Blue light: Ch indicator
Green light: Band indicator
Red light: Power indicator

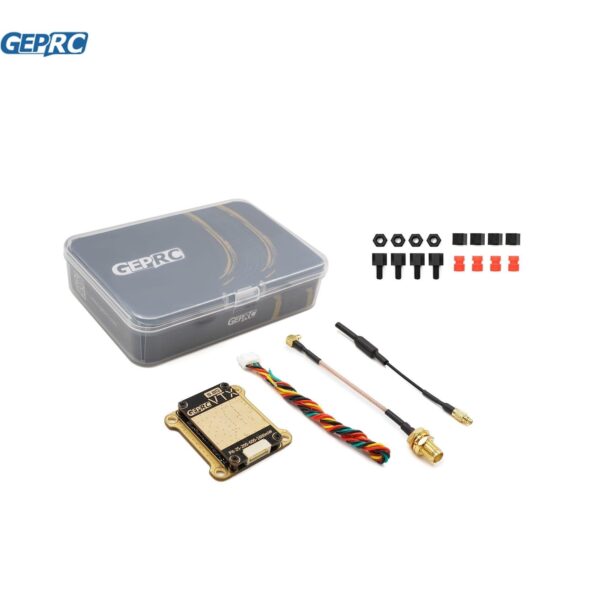

تشمل:
1 x GEPRC RAD VTX 5G8 1.6W
1 x 72mm MMCX Copper tube antenna
1 x GH 1.25*6P 150mm Connecting cable
1 x MMCX to SMA（Internal foramen）connector
1 x Matching screw package.
