الملخص

Throughout the whole journey, the GEPRC team keeps breaking through the boundary, innovating again in the field of long range FPV, and redefining the standard of long range, the high-performance long range FPV Crocodile75 V3 is officially released.

The appearance of the Crocodile75 V3 adopts a novel design, the overall structure is strengthened to effectively reduce the vibration of the fuselage and make the flight experience smoother and more stable.
The Crocodile75 V3 is equipped with an O3 Air Unit with additional special cooling components for an effective cooling environment.
The battery plug is integrated with the fuselage for convenient application. The power is upgraded with TAKER 32-bit_128K 60A ESC and 2806.5 1350KV motor, sufficient power. In terms of flight energy consumption, save power and efficiency.

The overall performance of Crocodile75 V3 has been carefully and strictly tuned by the GEPRC team to bring the most passionate flying experience for pilots.

الميزة

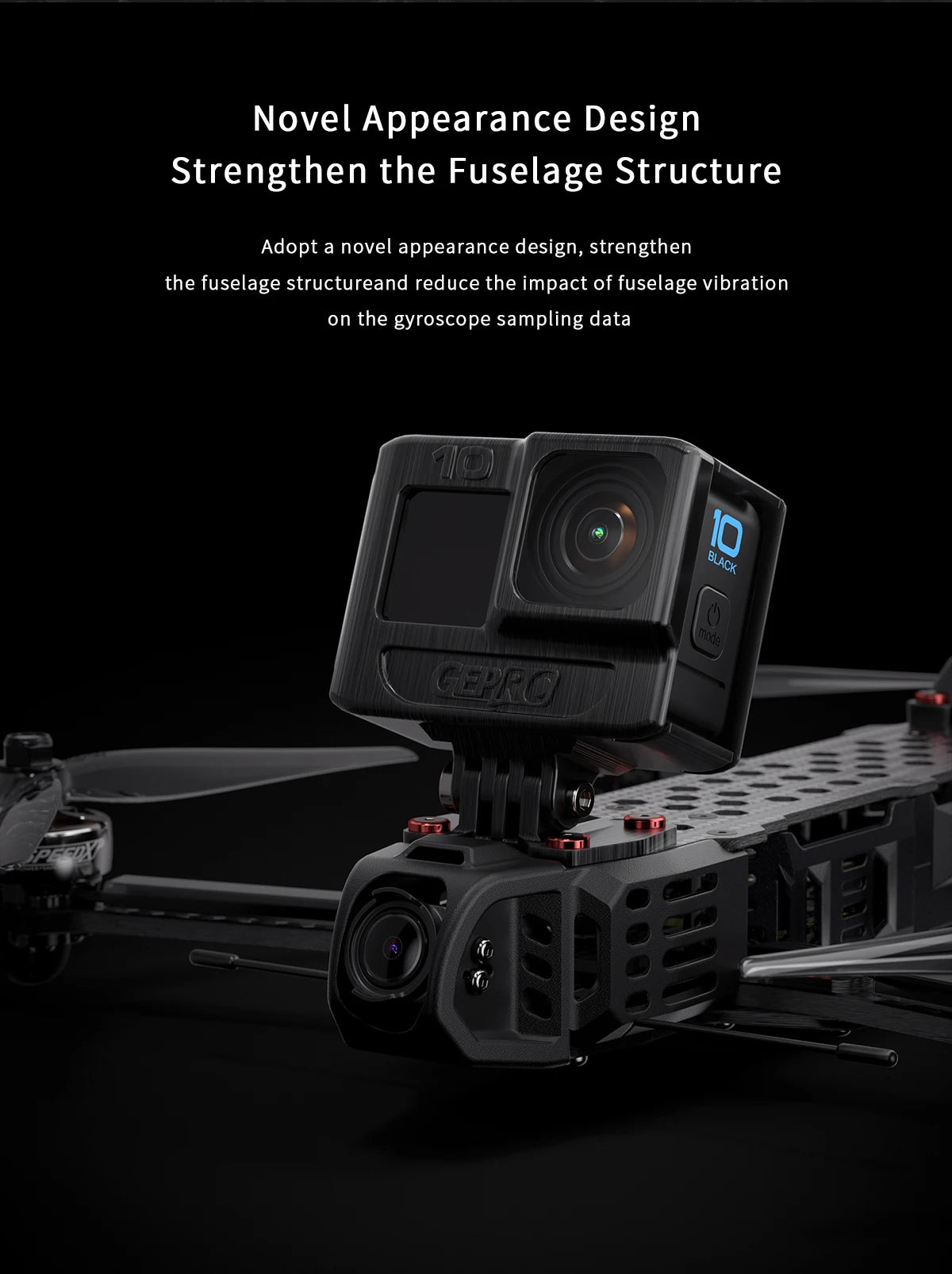

1. Adopt a novel appearance design, strengthen the fuselage structure, and reduce the impact of fuselage vibration on the gyroscope sampling data.
2. Equipped with SPEEDX2 2806.5 1350KV motor and HQ7.5×3.7×3 with sufficient power and high efficiency.
3. Upgrade the ESC to TAKER 32-bit_128K 60A.

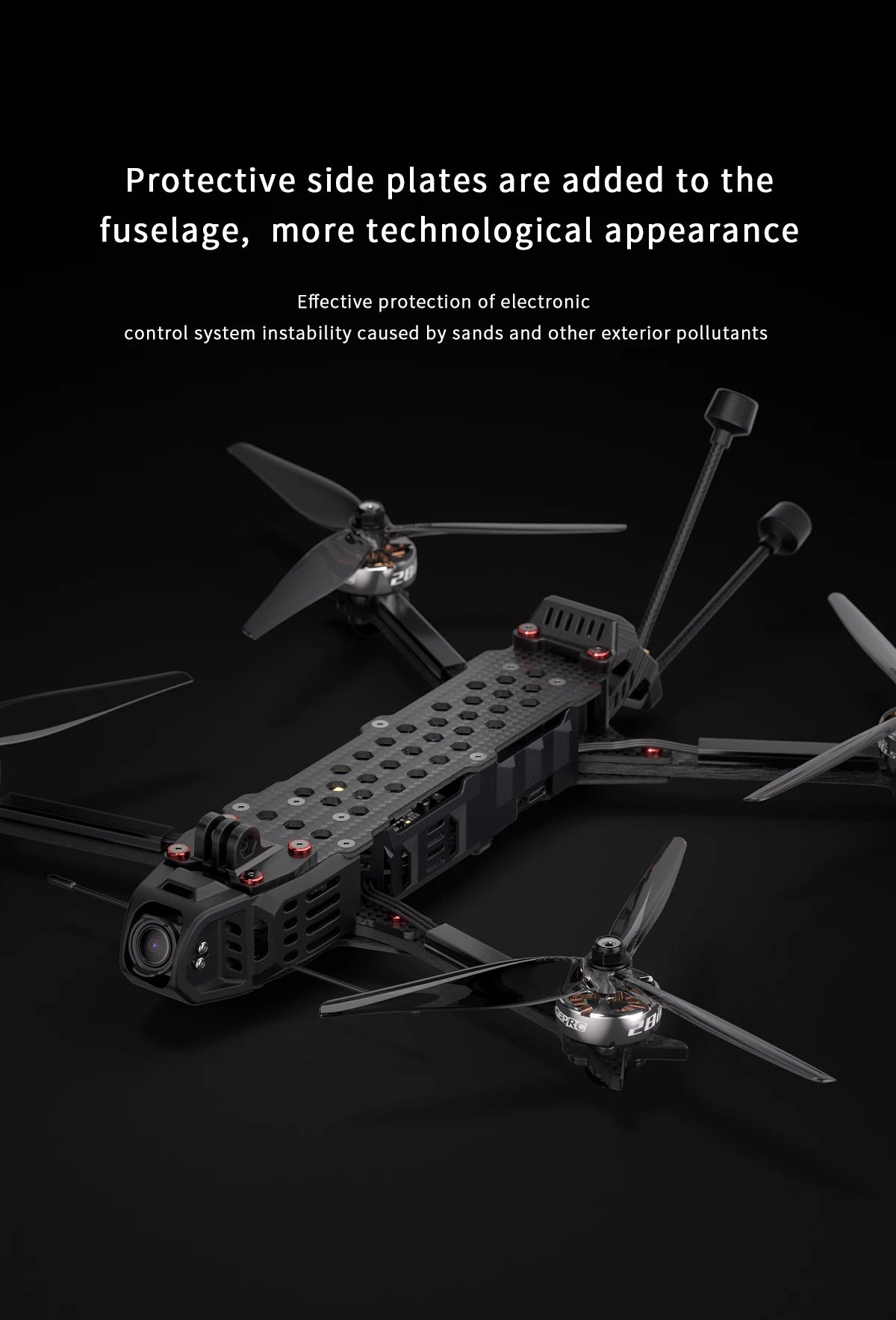

4. Add protective side panels to effectively protect the electronic control system from instability caused by sand and dust pollution

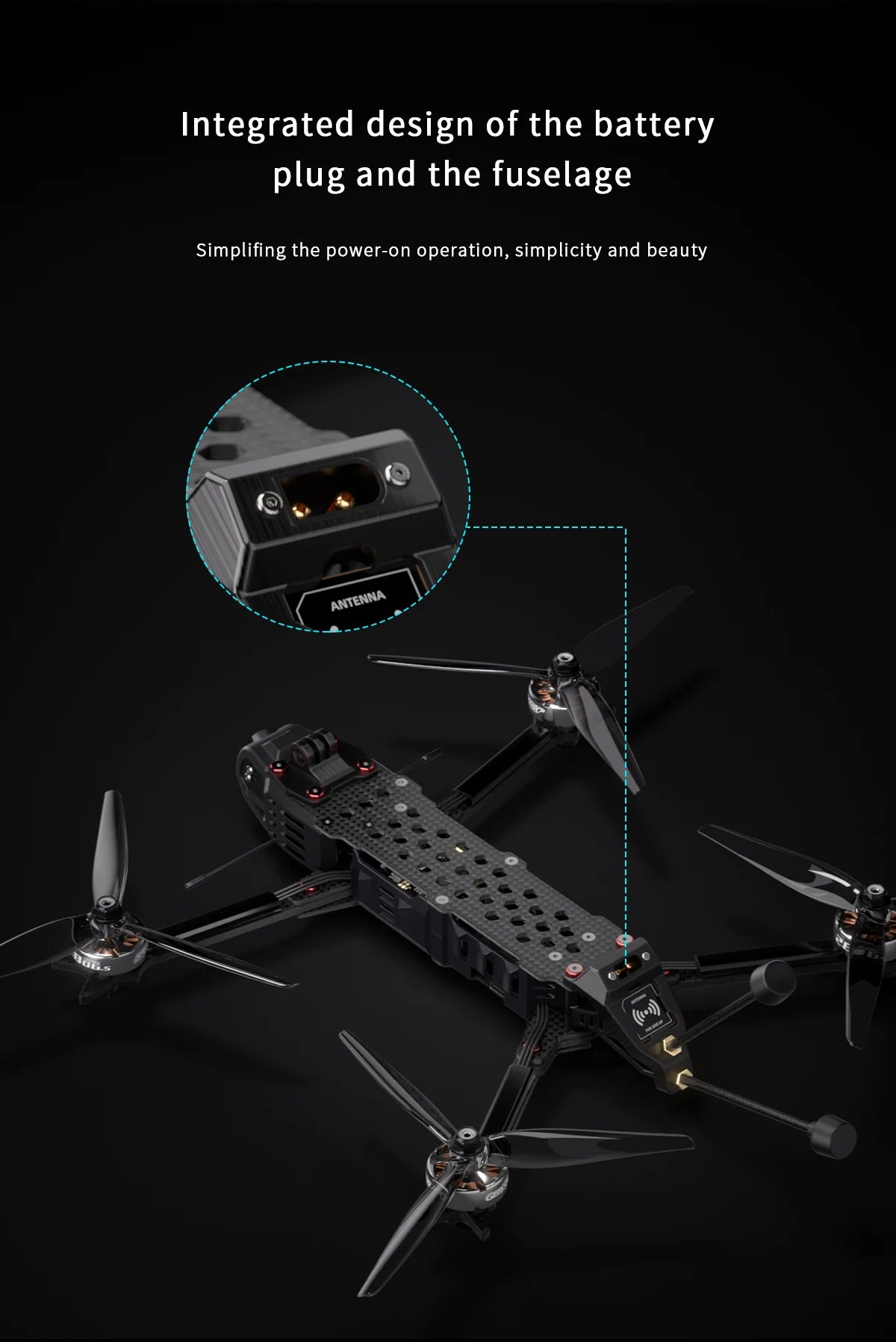

5. The integrated design of the battery plug and the body simplifies the power-on operation, simplicity and beauty.
6. Equipped with O3 Air Unit and added special heatsink, excellent heat dissipation, to avoid O3 Air Unit overheating and stop recording.

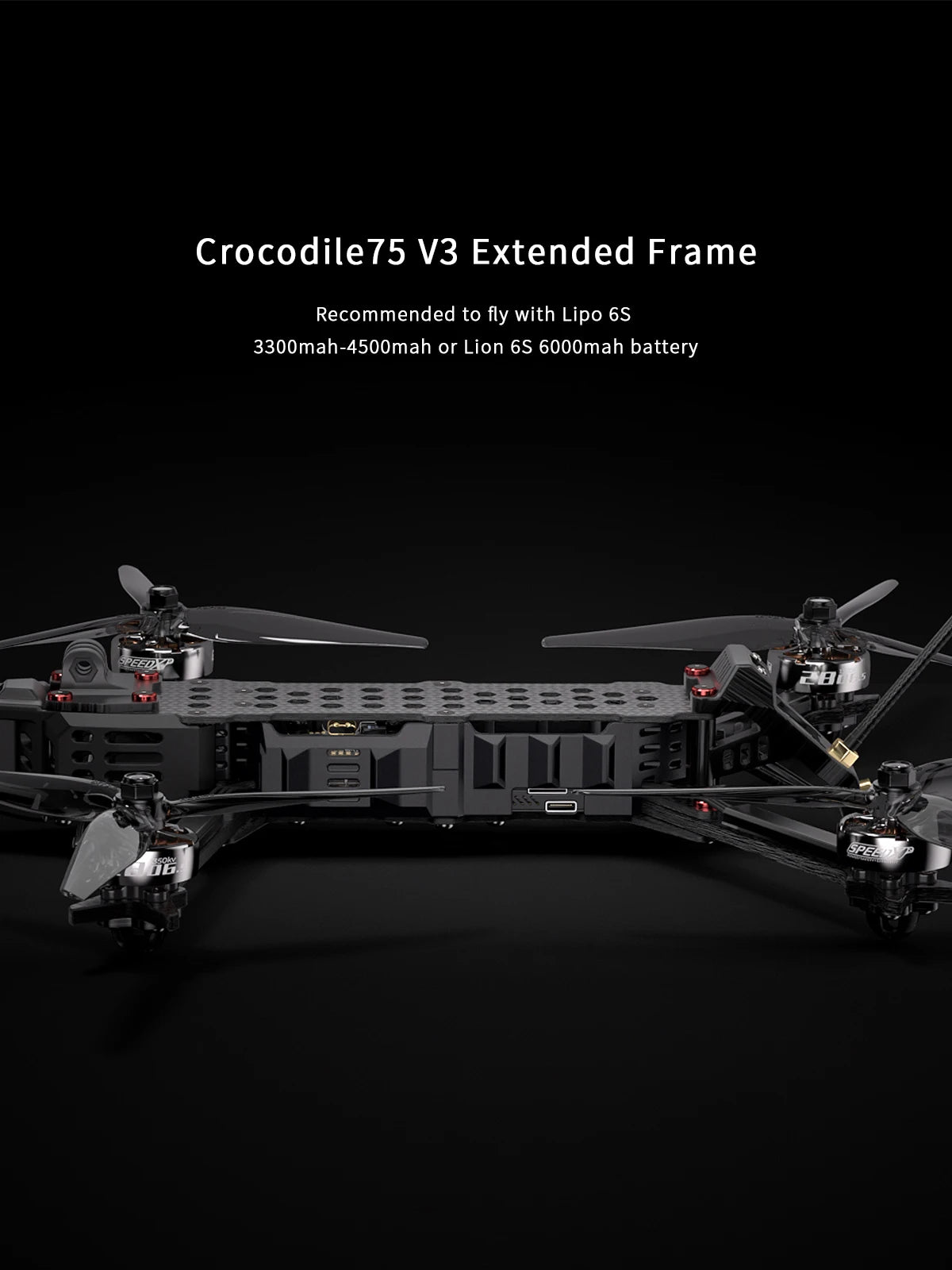

7. The Crocodile75 V3 has a lengthier fuselage, can be mounted with Lipo 6S 3300mah-4500mah or Lion 6S 6000mah battery for flight.
8. Perfect match for 7-inch or 7.5-inch propellers

المواصفات

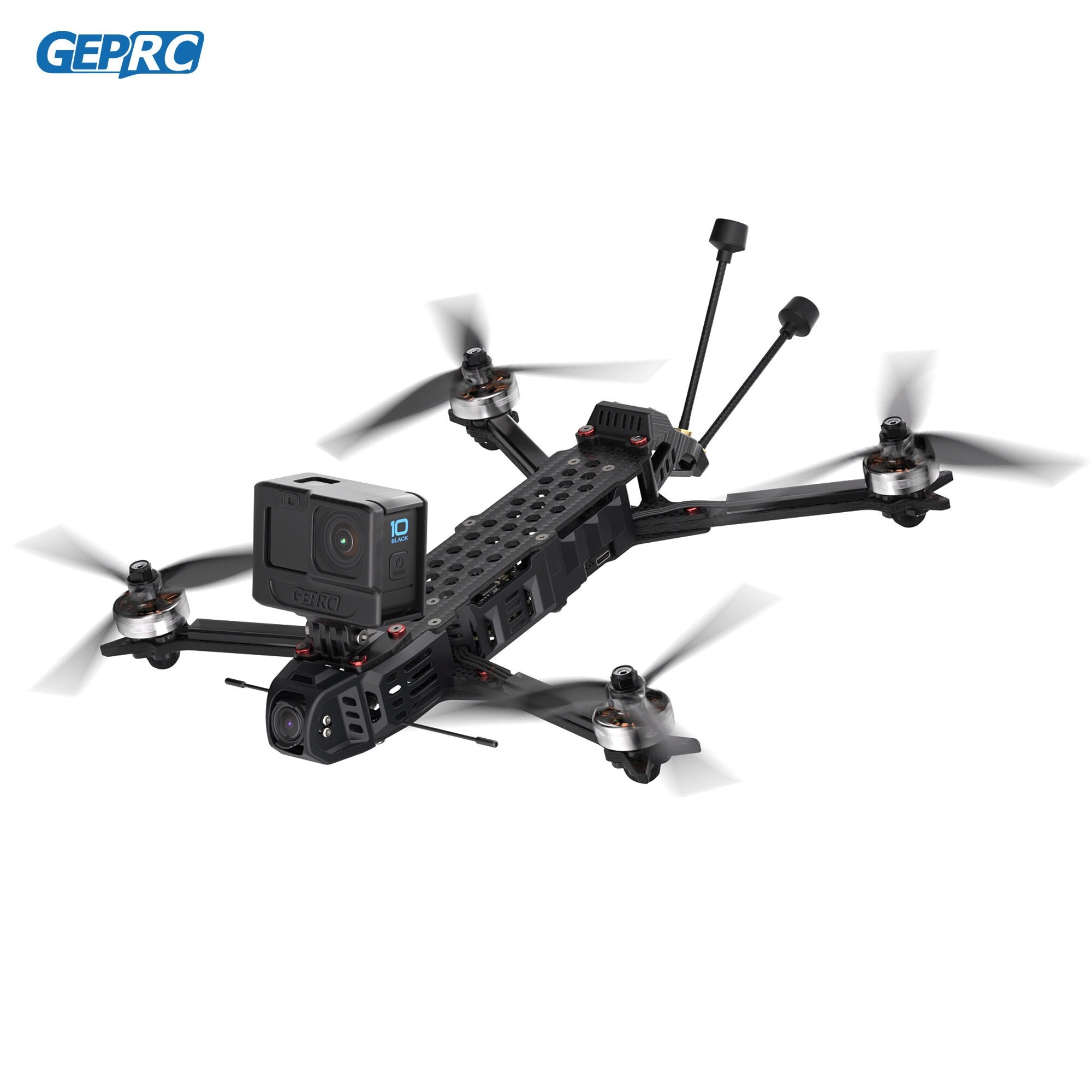

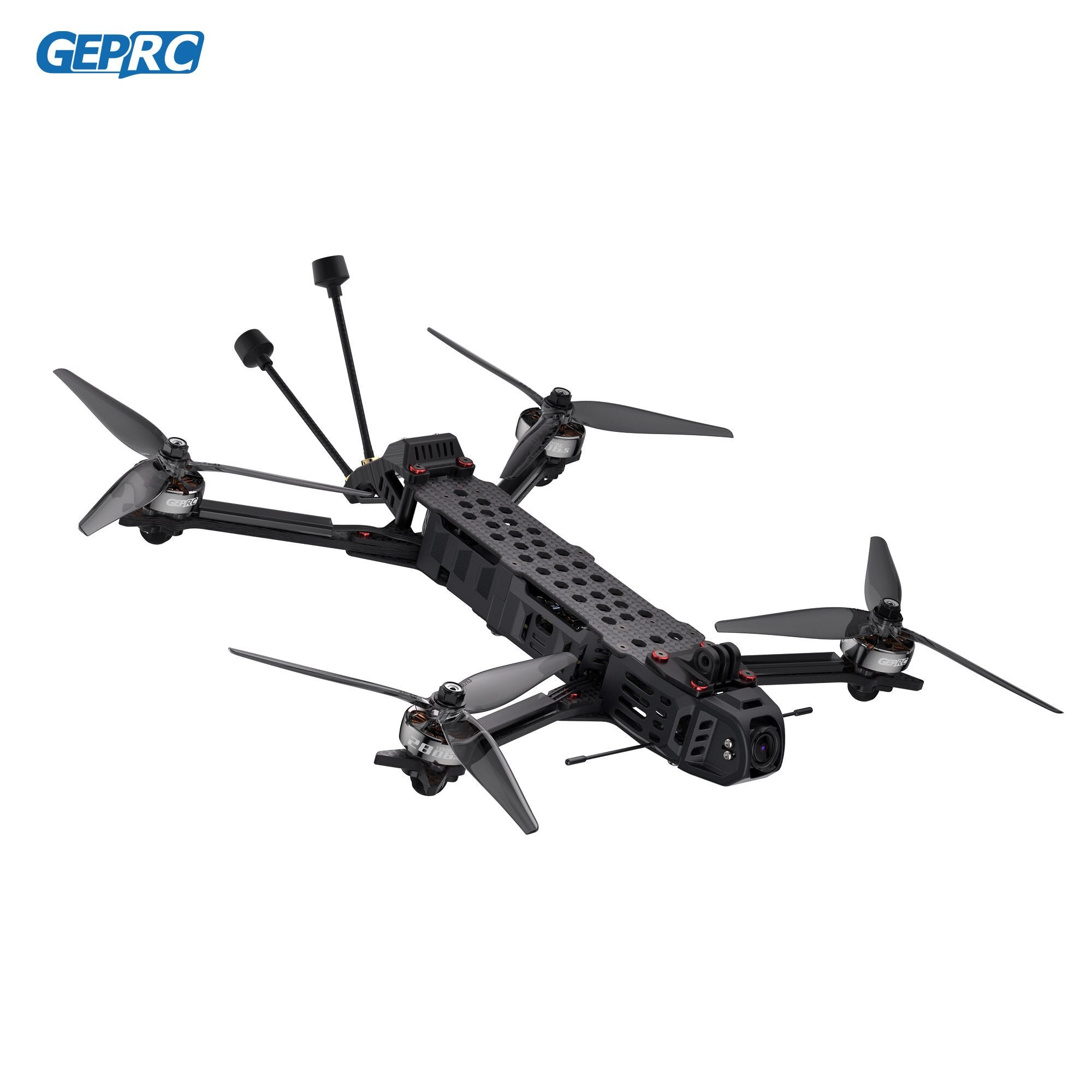

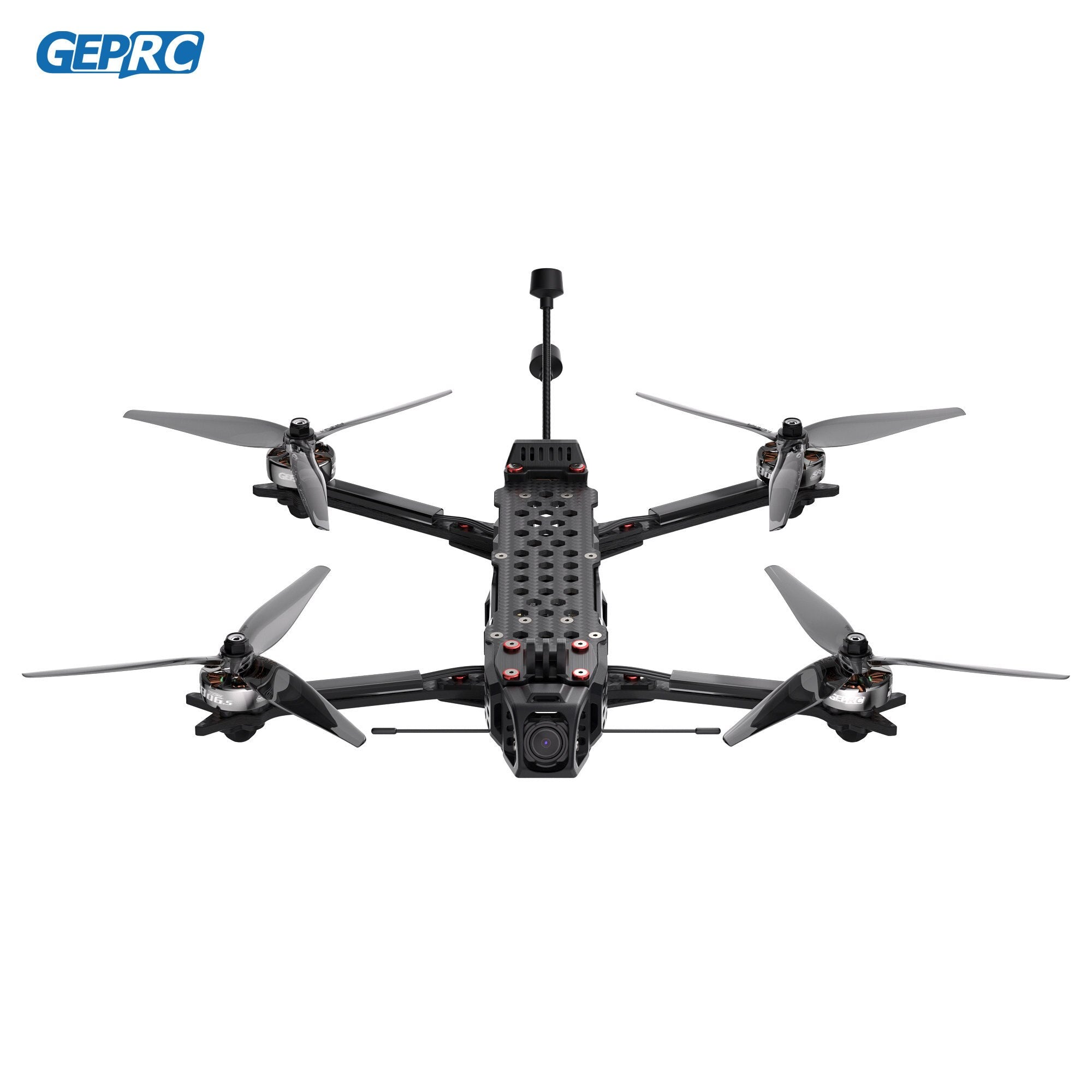

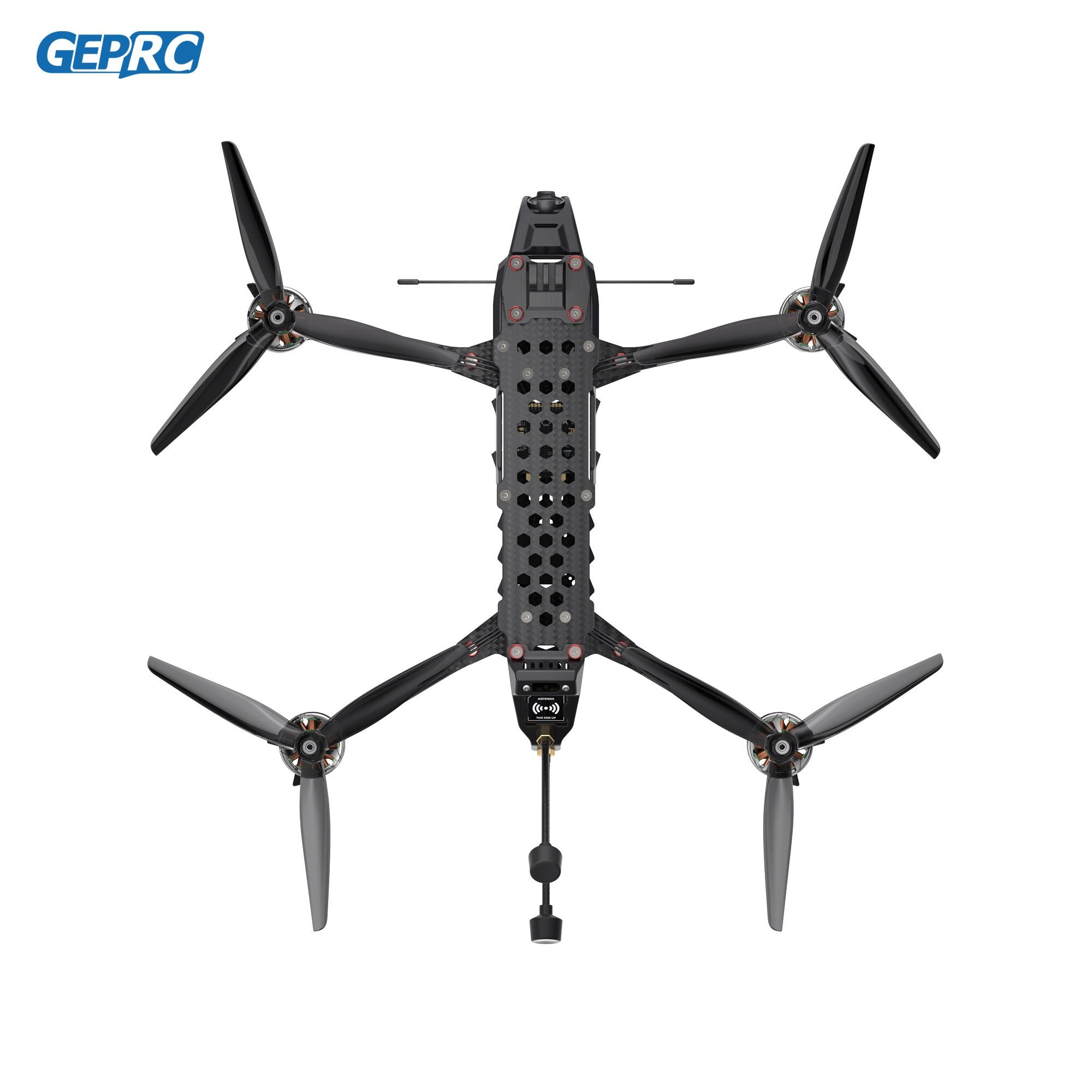

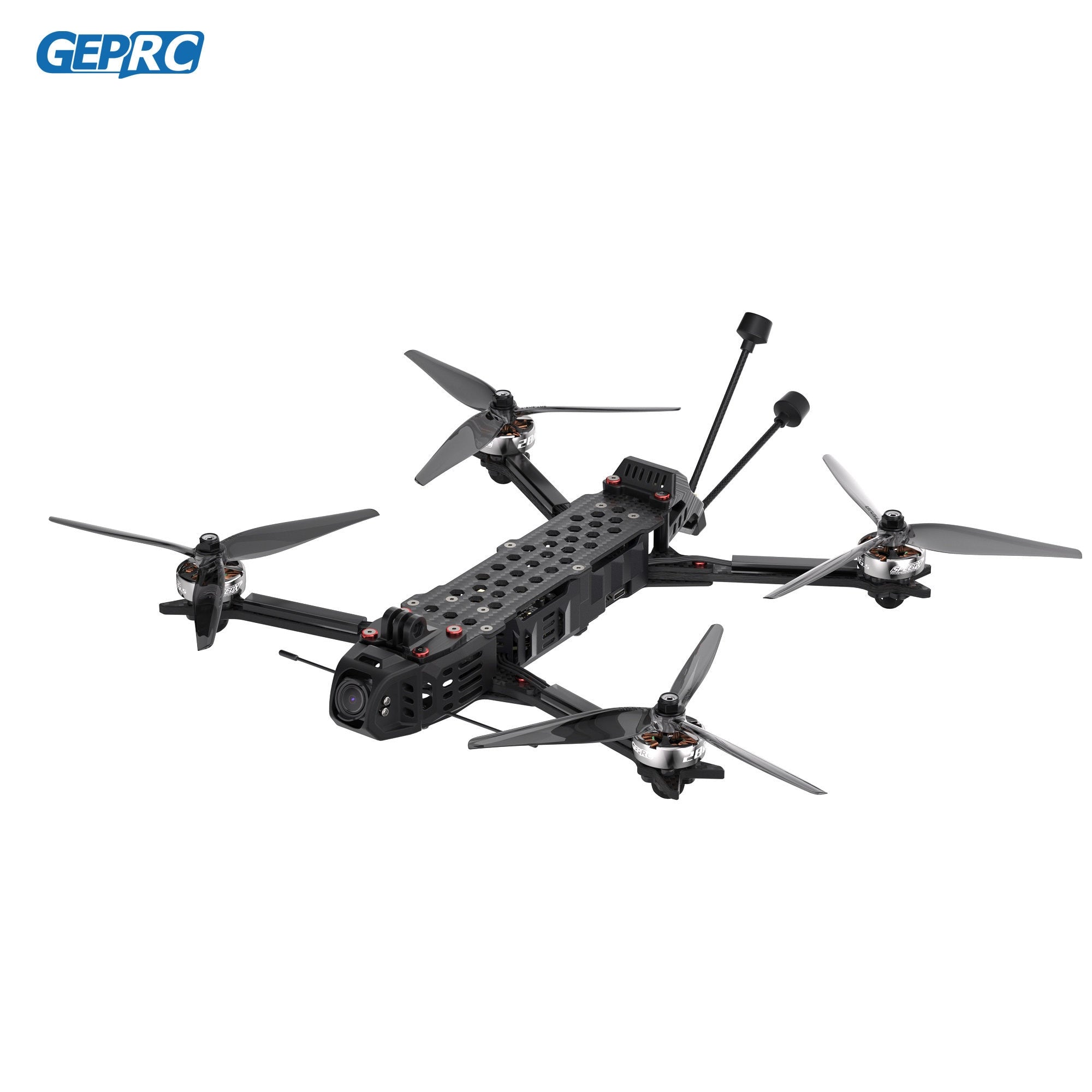

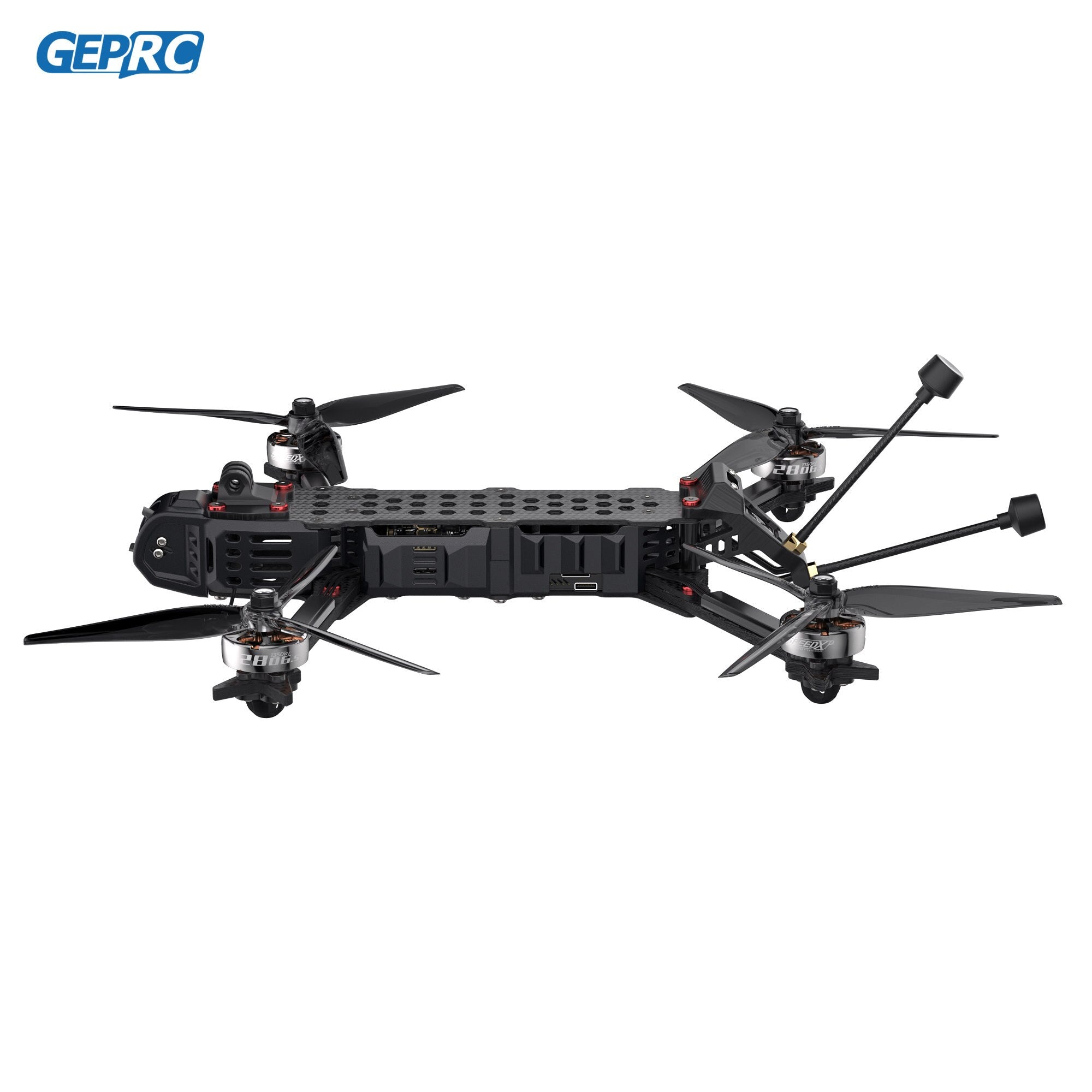

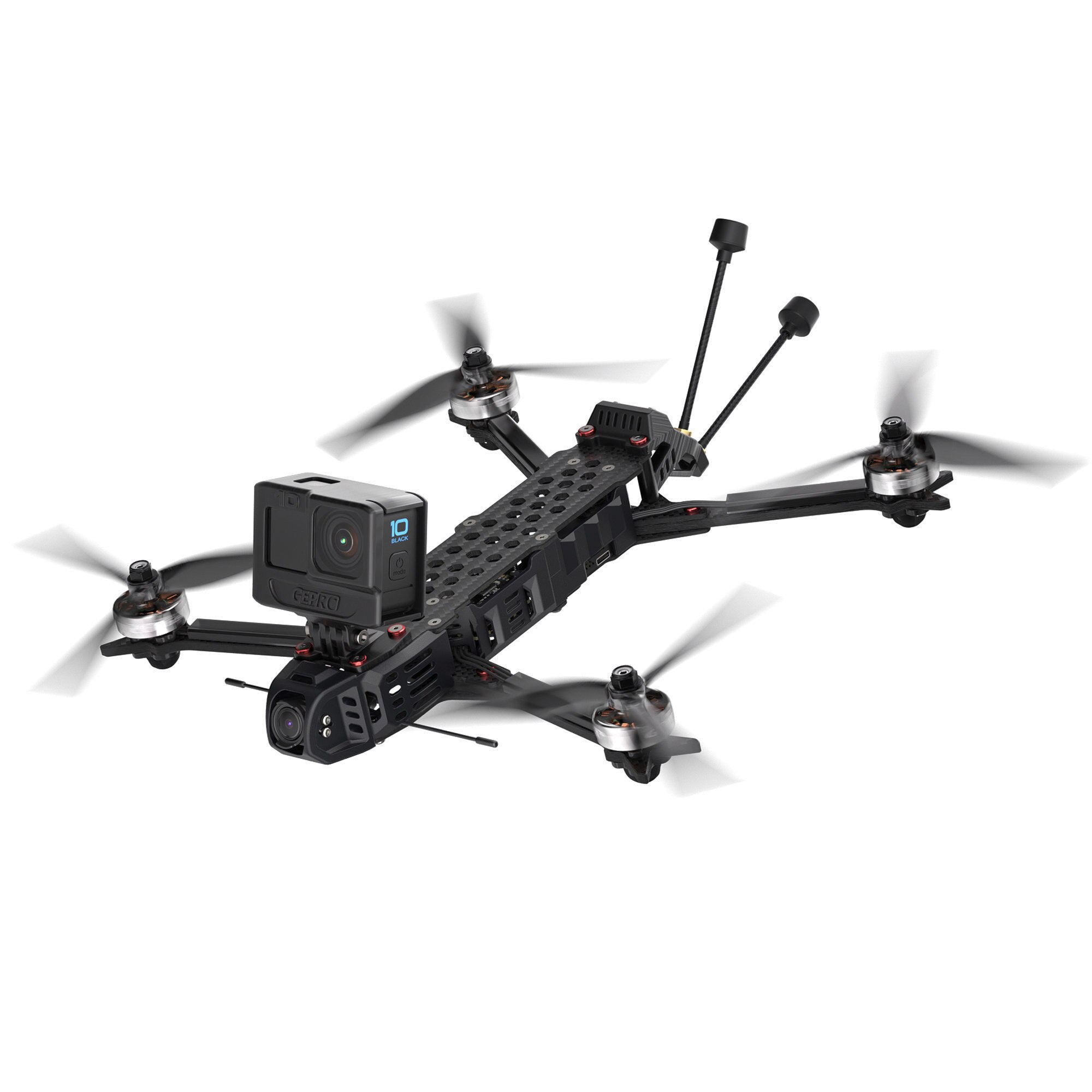

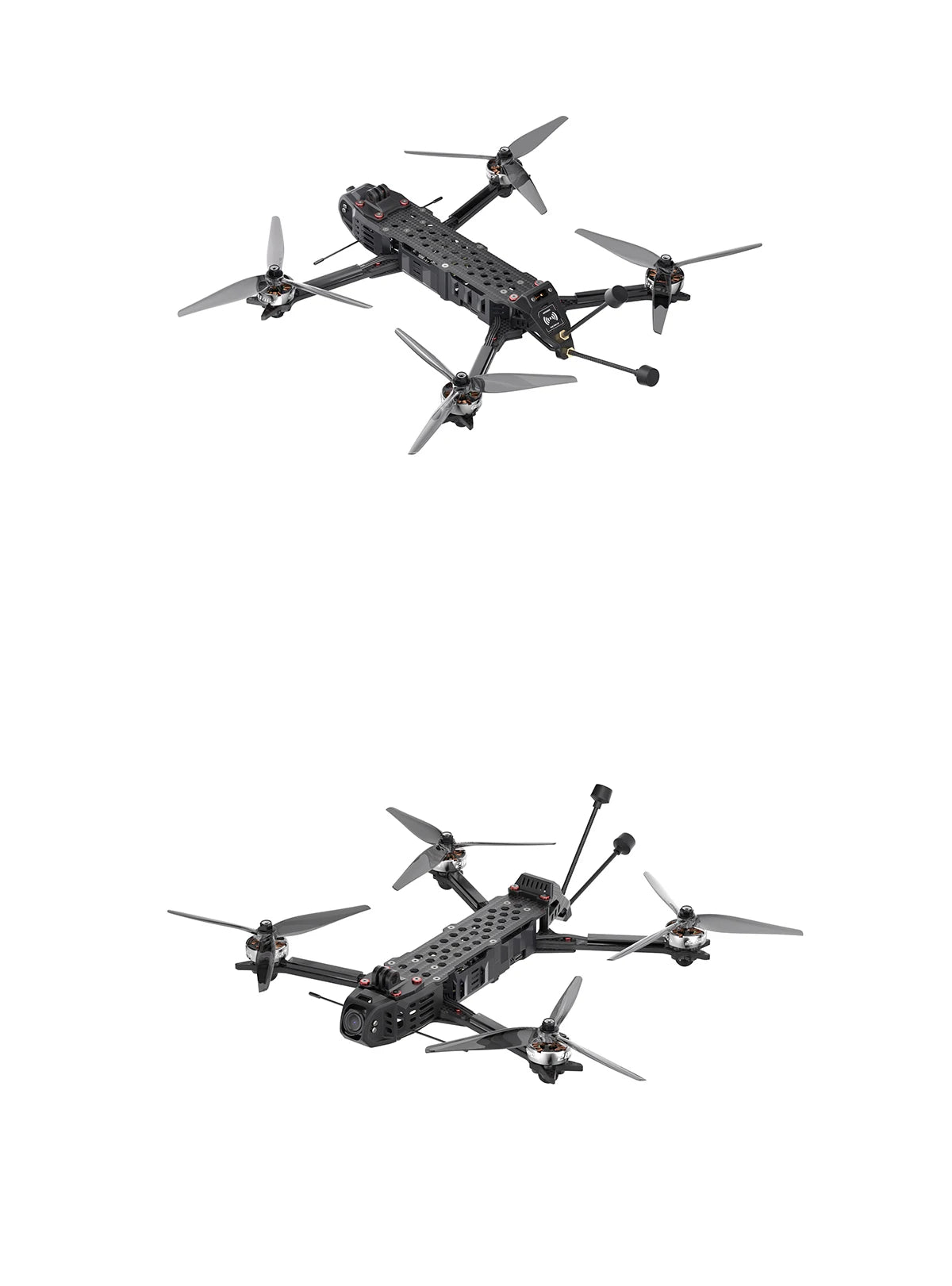

• Model: Crocodile75 V3 HD Avatar

• Frame: GEP-LC75V3

• Wheelbase: 342mm

• Top plate: 2.5mm

• Bottom plate: 3.0mm

• Arm plate: 6.0mm

• Splint plate: 2.5mm

• FC: SPAN F722-BT-HD V2

• ESC: TAKER 32Bit_128K 60A

• MCU:STM32F722RET6

• Gyro: ICM 42688-P

• OSD: Betaflight OSD w/AT7456E chip

• VTX: Avatar V2（Integrated 32G RAM）

• Camera: Avatar HD Camera v2(Comes with Gyro and Supports Gyroflow)

• Antenna: Momoda 5.8G LHCP SMA

• Motor: SPEEDX2 2806.5 1350KV

• Propeller: HQProp7.5×3.7×3

• Weight: 614g

• Receiver: PNP / TBS NanoRX / GEPRC ELRS 2.4G / GEPRC ELRS 915

• Recommended battery: Lipo 6S 2600mah-4200mah / Lion 6S 6000mah

• Flight time: 12-30 min

تشمل

1 x Crocodile75 V3 HD Avatar
4 x HQProp7.5×3.7×3
2 x M20*250mm battery straps
2 x Battery Silicone Pads
1 x Set of screws
1 x L-shaped screwdriver (1.5mm)
1 x L-shaped screwdriver (2mm)
1 x L-shaped screwdriver (3mm)
1 × مفتاح ربط 1 × M5
1 x Keychain
1 x GP Camera Base

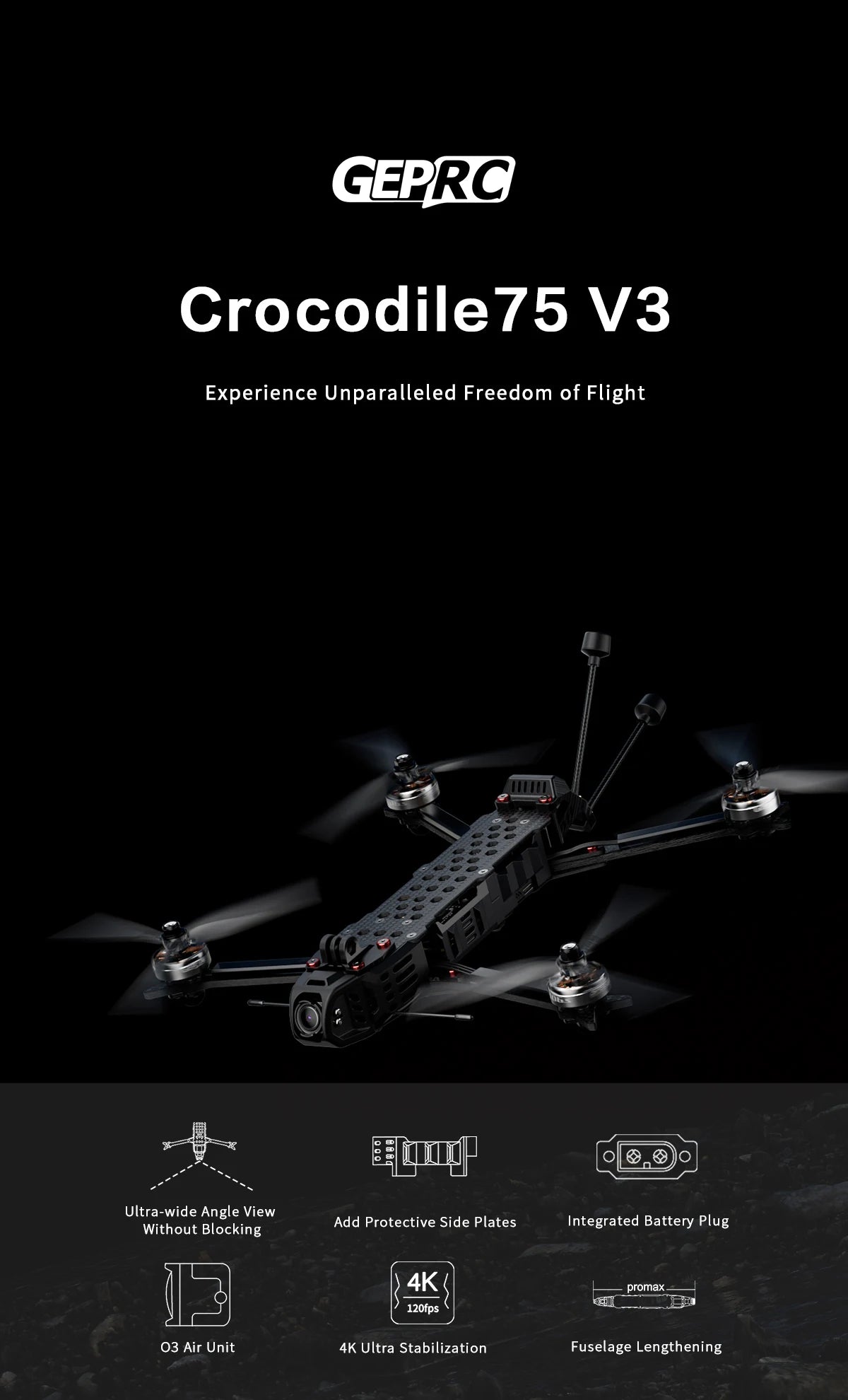

GEPRG Crocodile75 V3 Experience Unparalleled Freedom of Flight Ultra-wide Angle Without Blocking Add Protective Side Plates Integrated Battery 4K promax 120fps 03 Air Unit 4K Ultra Stabilization Fuselage Lengthening View

Featuring a unique design, this product enhances its structural integrity to minimize the effects of fuselage vibrations on gyroscopic sensor data accuracy.

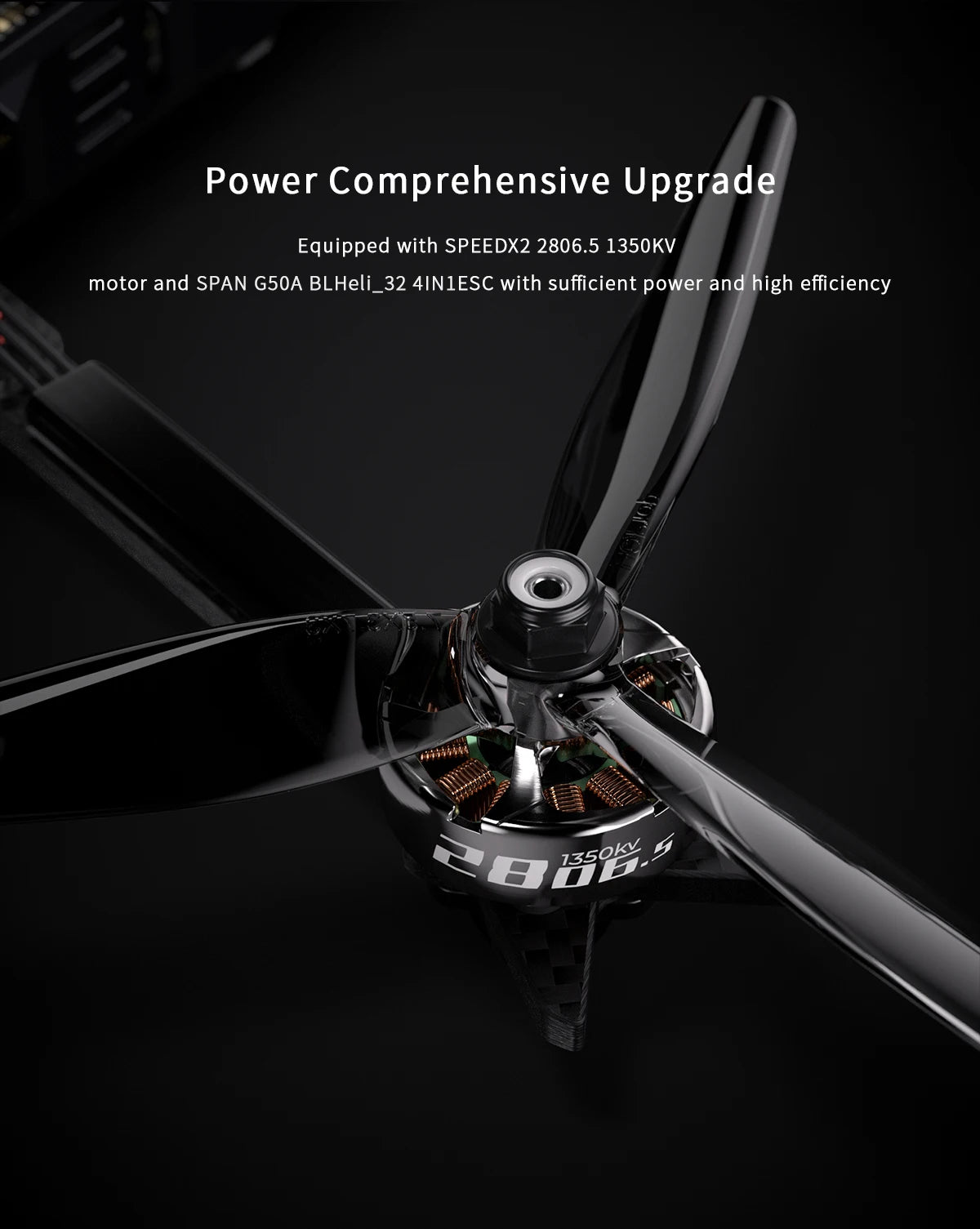

Comprehensive upgrade featuring a powerful SpeedX2 2806.5 1350KV motor, paired with the efficient Span GSOA BLHeli_32 ESC, providing ample power and high performance.

Integrated battery plug design simplifies power-on operations, combining aesthetics with functionality.

Enhanced protection for the electronic control system against sand and pollutant interference has been added, featuring aft-mounted airbags for improved crash absorption.

GEPRC Crocodile75 V3 recommends using either LiPo 6S batteries between 3300mAh and 4500mAh, or Lion 6S batteries with capacities up to 6000mAh for optimal performance.
