Gathering the experience and evolution of the GEPRC team in all aspects, CineLog35 V2 is finally launched to the market with better performance.

CineLog35 v2 version integrated with O3 VTX. The CineLog35 V2 version of the main carbon plate and injection protection frame increased the 7075 aluminum column for structural strengthening.

The battery mounting method uses a tie with 7075 aluminum parts fixed. The power XT60E1-M plug is integrated with the carbon plate for convenient application. The protective frame for O3 Air Unit adds a memory card and USB port for easy data reading.

Equipped with F722-45A AIO and the new SPEEDX2 2105.5 motor, more power, with aggressive power system and faster response.

This is a 3.5-inch HD FPV cinematic FPV drone that integrates cinematic, freestyle, leisure, and safety to meet the user’s requirements for flying and filming various scenes indoors and outdoors. The user’s satisfied voice is the motivation for us to move forward.

الميزة

1. New appearance design, strengthening carbon plate, hollow design, injection protection frame, noise reduction design, flight safety, silent.

2. Adopts the GEP F722-45A AIO V2 high performance flight controller.

3. Propeller Guard adds memory card and USB ports to O3 Air Unit for easy data reading

4. For O3 camera design independent under hanging shock absorption gimbal, to solve the camera IMU resonance issues, to achieve the optimal anti-shake effect.

5. SPEEDX2 2105.5 motor with HQ DT90 propeller, stable power output, and smooth flight feel.

6. Power cable using XT60E1-M plug and carbon plate integrated design, convenient application.

7. Battery installation method using a tie with 7075 aluminum parts fixed, solid and stable.

8. Carefully tuned 3.5-inch HD cinematic FPV with flexible and delicate flight feeling.

المواصفات

• Model: Cinelog35 V2 HD O3

• Frame: GEP-CL35 V2

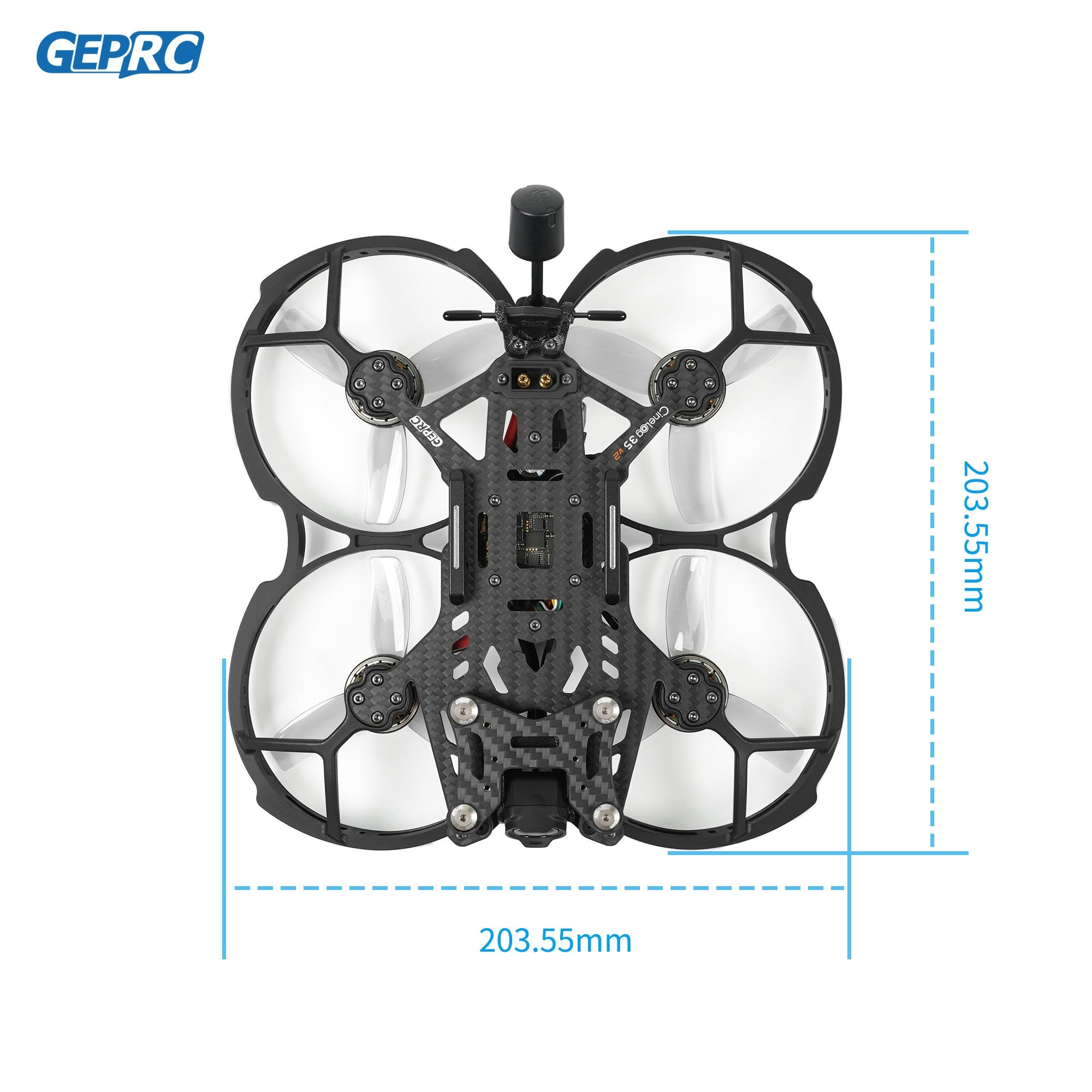

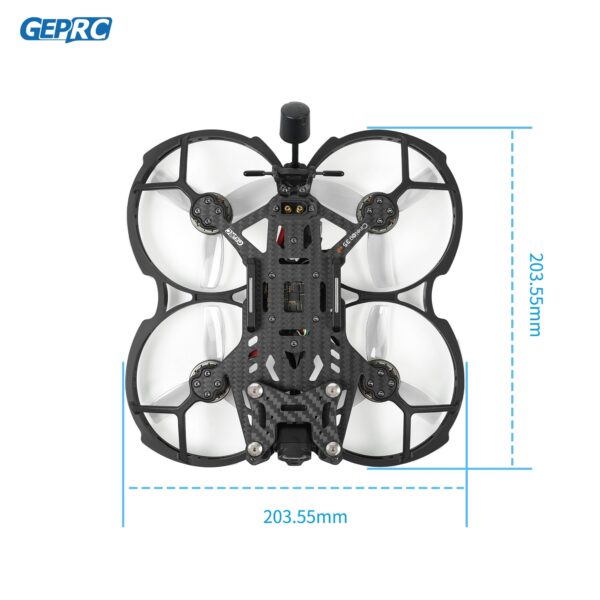

• Wheelbase: 142mm

• Gimbal plate: 2.0mm

• Top plate: 3.5mm

• Bottom plate: 1.5mm

• FC system:GEP-F722-45A AIO V2

• MCU: STM32F722RET6

• Gyro: ICM 42688-P

• OSD: Betaflight OSD w/AT7456E chip

• ESC: 8Bit 45A

• VTX: O3 Air Unit

• Camera: O3

• Antenna: 5.8G&2.4G

• Motor: SPEEDX2 2105.5 2650KV (6S)

• Propeller: HQProp D-T90MM

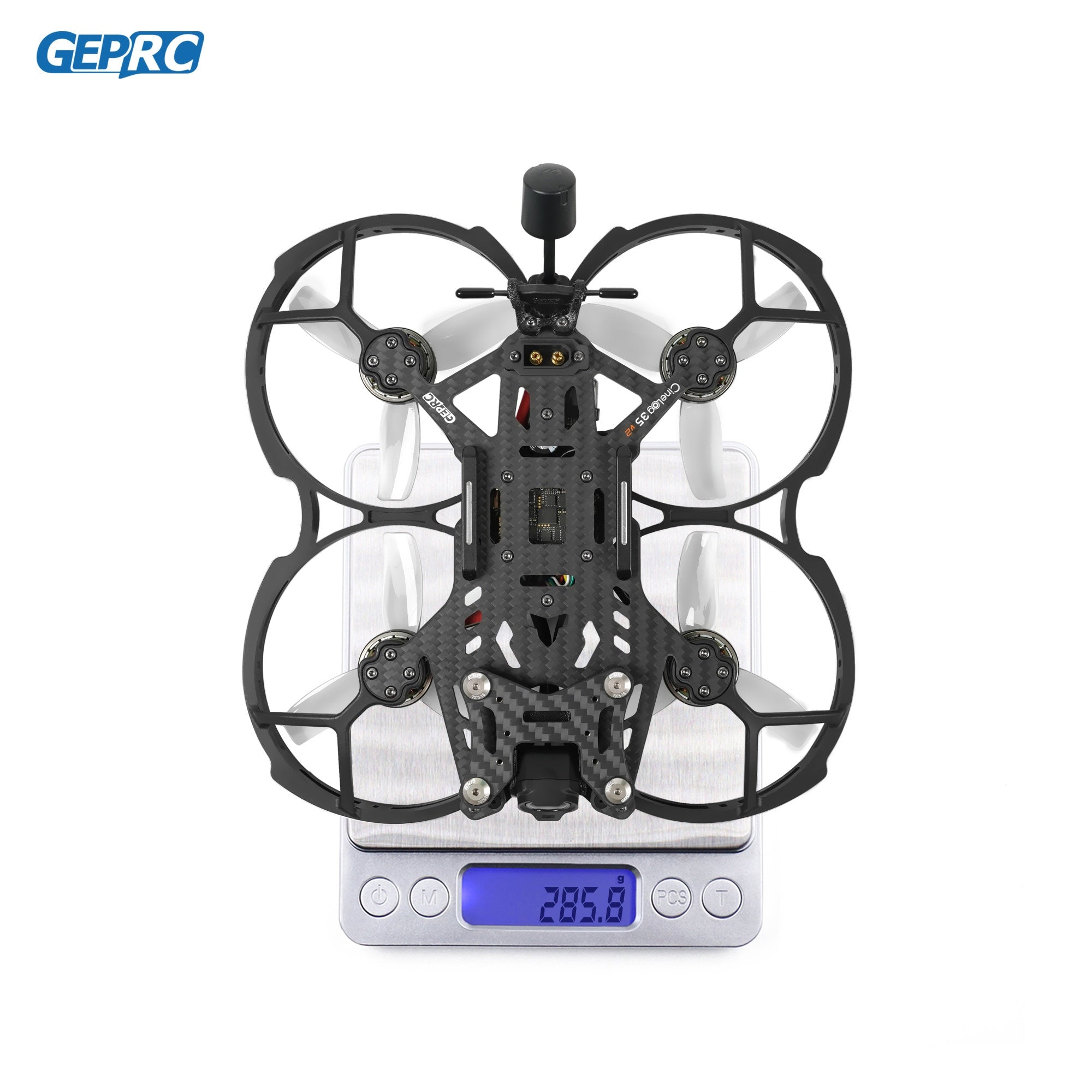

• CineLog35 V2 HD O3 TBSNanoRX weight: 285.8g

• Receiver: PNP, GEPRC ELRS 2.4G, TBS Nano RX

• Recommended battery: LiPo 1050mah-1300mah

• Flight time: 5′00″ -8′ 30″

تشمل

1 x Cinelog35 V2

2 x HQProp D-T90MM(2 pairs)

2x M20*250mm battery strap

2 x Battery Silicone Pads

1 x Set of screws

1 x L-shaped screwdriver (1.5mm)

1 x L-shaped screwdriver (2mm)

1 x L-shaped screwdriver (3mm)

1 × مفتاح ربط 1 × M5

1 x plastic tweezers

1 x Antenna fixed tube (pair)

1 x Keychain

1 x Naked fixed Base

1 x Naked  fixed Base

1 x Antenna fixed Base

Screw package includes:

2x cup head screws M2*18

2x round head screws with pad M2*5.5

1x round head screws M2*12

2x Rivet nut M2

4x round head screws M2*8

4x round head screws M2*7

4x round head screws M2*6

2x round head screws M2.5*6

2x hexagonal screw M1.6*8

1x Flange nuts M5

2x Press Rivet Nuts_Brass color M2*1.9-OD4.9

2x Iron nut M2

2x Iron nut M2

2x Camera lens PTZ shock absorbing rubber

GEPRC Cinelog 35 V2 03 Air Unit Bright Vision; Steady Forward hoq Compatible with FPV camera independent Optimized 2105.5 2650KV 03 Air unit damping gimbal memory card and USB ports connector method motor 49 battery battery fixing mechanism motor

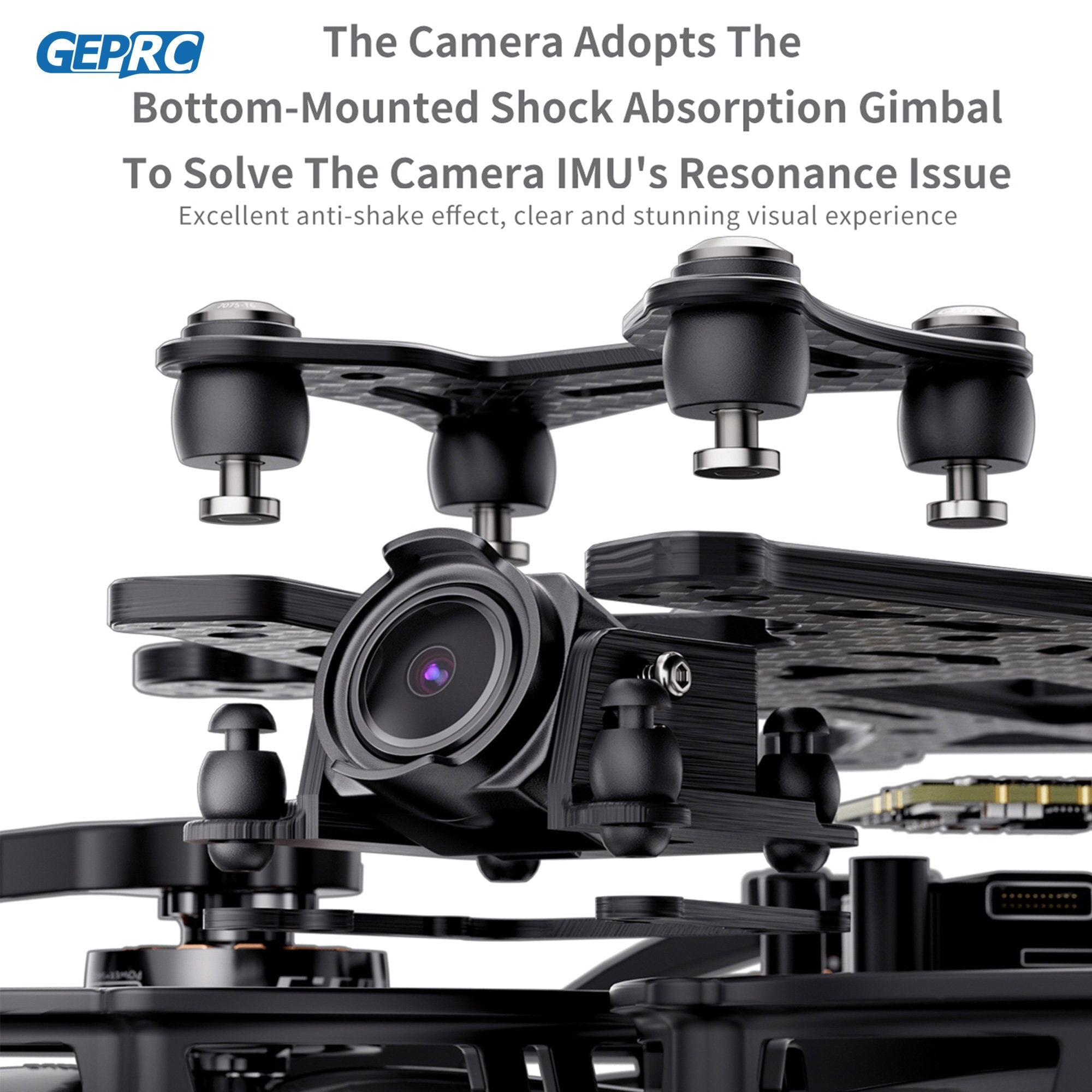

Equipped with a shock-absorbing gimbal mounted at the bottom, this camera effectively resolves the resonance issue between the camera’s IMU and gimbal, resulting in an excellent anti-shake effect that provides a clear and stunning visual experience.

The propeller guard and fuselage are optimized in terms of design, enhancing the overall structural integrity of the drone’s frame, which increases its resistance to impacts.

The O3 Air Unit features improved memory card functionality and a convenient USB port, designed for seamless data reading and plug-and-play usability.

The drone features a stable and reliable battery connector using an XT60 plug, allowing for easy one-handed operation and eliminating the hassle of powering on.

When flying without the camera or using the naked camera, simply move the battery forward to adjust the drone’s center of gravity. However, when you’re ready to mount the full-size camera, just rotate the battery backwards.

To achieve optimal performance, adjust the thrust angle (ATCO) and pitch (NAO), ensuring the motors are properly calibrated for smooth flight.

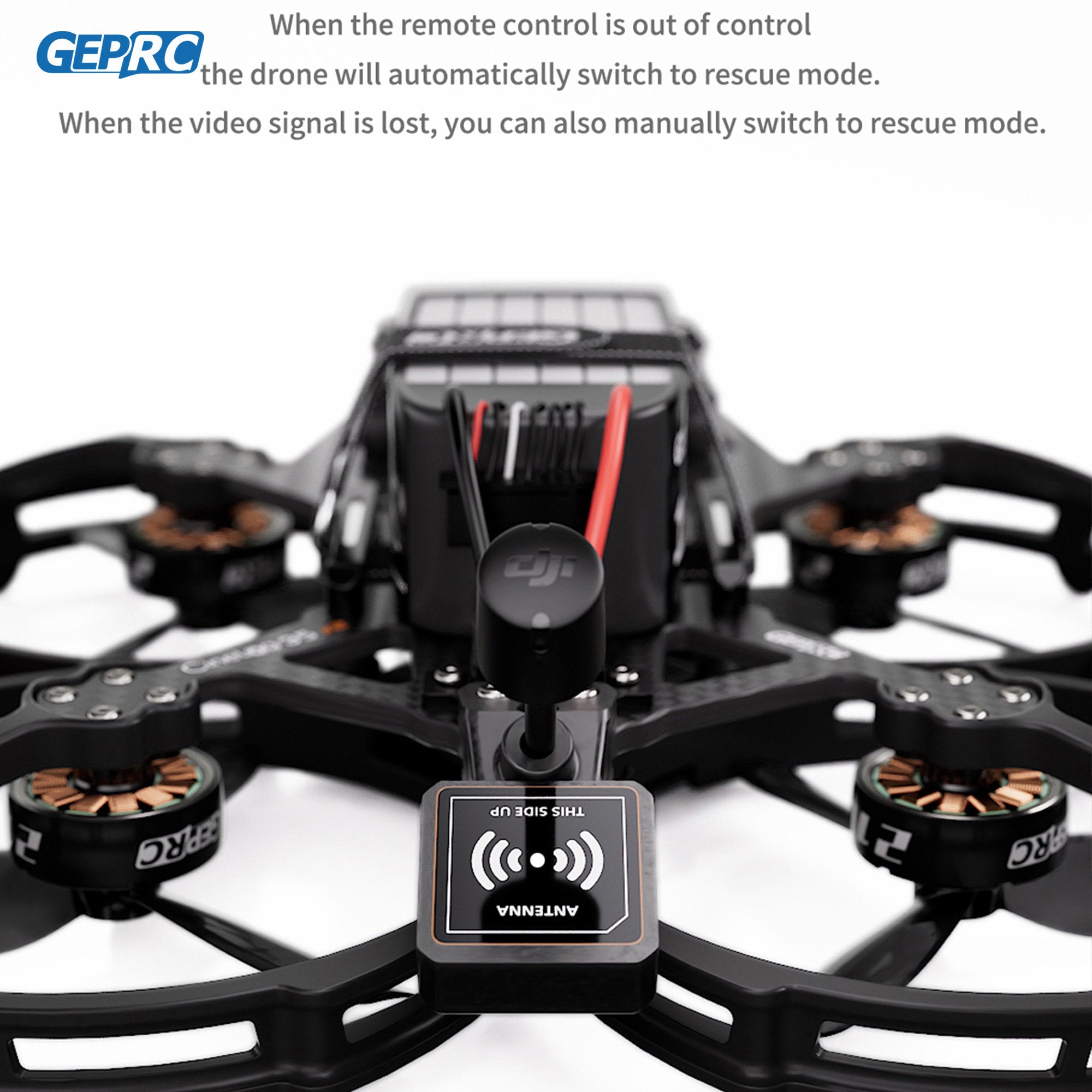

Equipped with GPS technology, this drone features an emergency rescue mode. If the remote control signal is lost or interrupted, the drone will automatically switch to rescue mode, ensuring a safe and controlled landing.

The GEPRC CineLog35 V2 HD drone features a GEP-F722-45A AIO VTX, linked to the O3 Air Unit Avatar V2 (32GB) and equipped with a Runcam Wasp camera, as well as an O3 Camera system.
