Frsky R9MM-OTA / R9mini-OTA 915MHz Mini Receiver SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Adapter
Tool Supplies: Battery
Technical parameters: Value 10
Size: /
Remote Control Peripherals/Devices: Receivers
Recommend Age: 12+y
RC Parts & Accs: Transmitters
Origin: Mainland China
Model Number: Frsky 900MHz Mini Receiver R9MM-OTA / R9mini-OTA
Material: Composite Material
Four-wheel Drive Attributes: Assemblage
For Vehicle Type: Airplanes

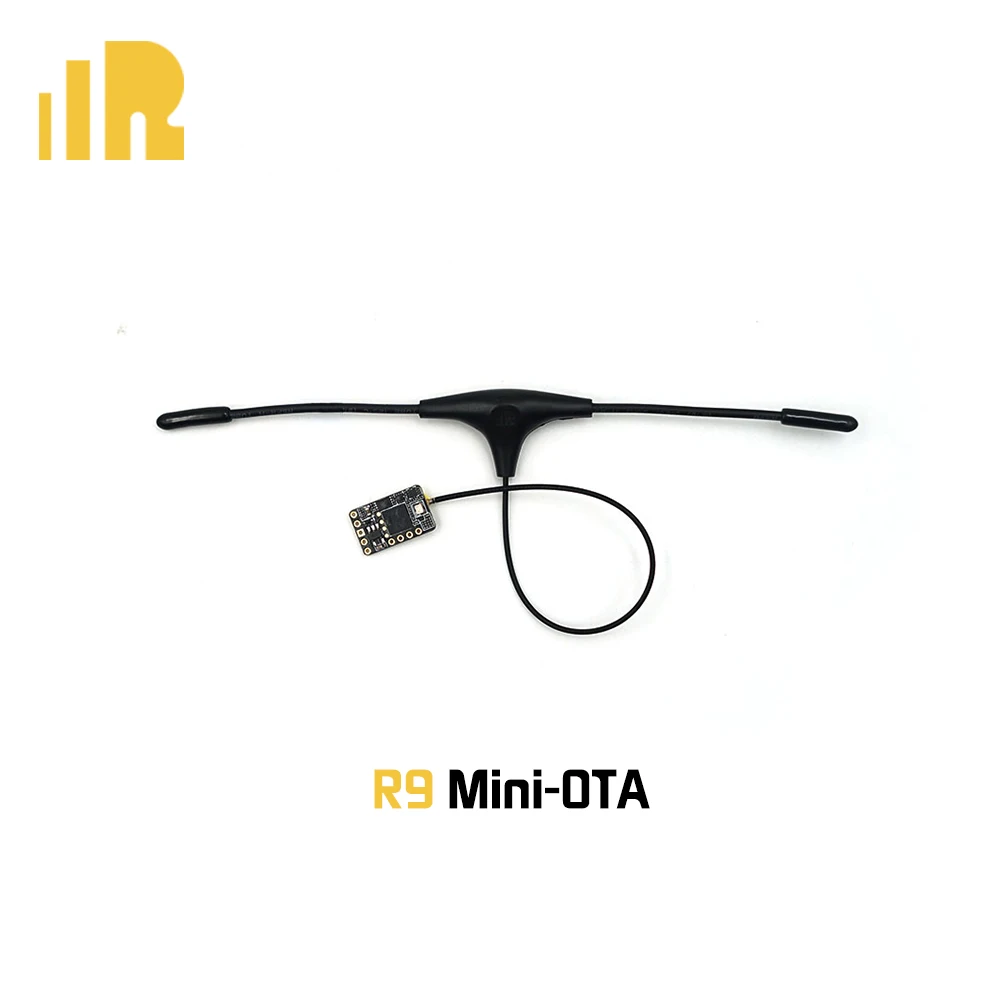

Frsky 900MHz Mini Receiver R9mini-OTA Compatible with Frsky R9M series Module
The 900MHz R9 MINI-OTA/MM-OTA receiver implements the ACCESS protocol, providing users with improved performance and functionality. Support for wireless firmware updates to make the receiver easier to bind. And the convenience of checking the current receiver firmware version. The R9MM’s compact form factor also extends to the OTA version. The R9 MINI-OTAR also supports redundancy. The 9MM-OTA also supports inverted S.Port.
R9mini-OTA:
Feature:
- 915MHz (non-LBT version)
- Mini size and ultra lightweight
- Support OTA firmware update
- Support firmware version check
- S.Port enables and supports telemetry data transfer (supports F.Port, download firmware to support this feature)
- Support for redundancy
- Low latency and high precision
- Use RSSI output in SBUS
- Support battery voltage detection
- Removable Ipex connection antenna
Specification:
- Dimension: 16*10*2.8mm (L×W×H)
- Weight: 0.7g (non-including antenna)
- Number of Channels:
- Non-LBT Version: 4/16CH (Telemetry)
- LBT- 8CH Version: 4/8CH (Telemetry) /
- LBT -16CH Version: 4/16CH (Telemetry) / 4/16CH (No Telemetry)
- Operating Voltage Range: DC 3.5V – 10V
- Operating Current: 100mA 5V
- Operating Range: Up to 10km or above
- Compatibility: R9M (Access)
