SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Tool Supplies: Grinded
Recommend Age: 18+,12+y
RC Parts & Accs: Antennas
Origin: Mainland China
Model Number: Antenna
Material: Plastic
For Vehicle Type: Helicopters
Brand Name: uuustore

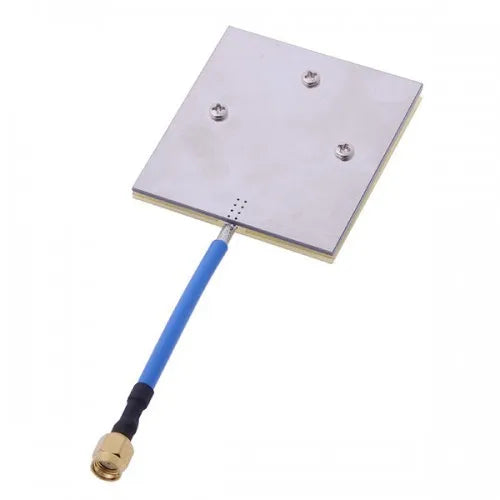

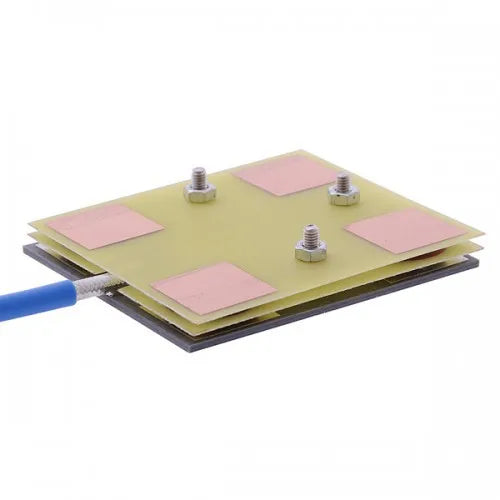

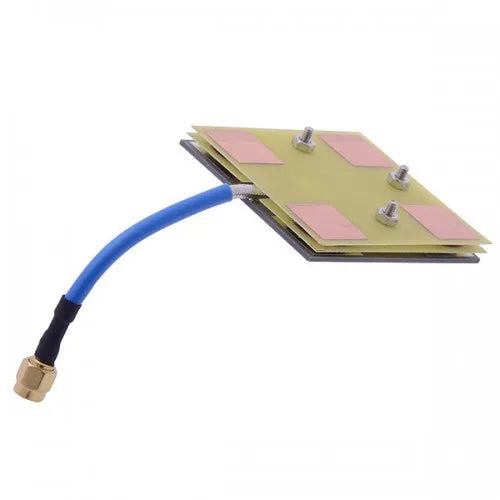

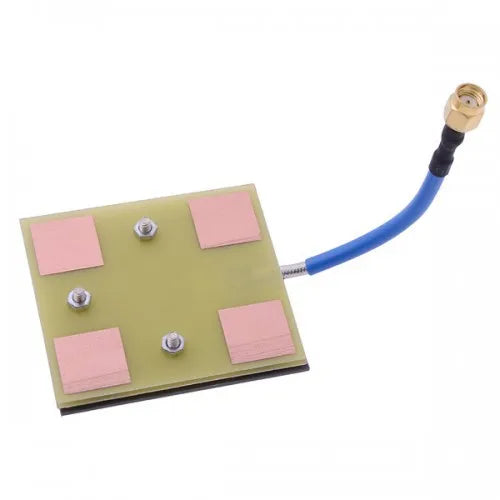

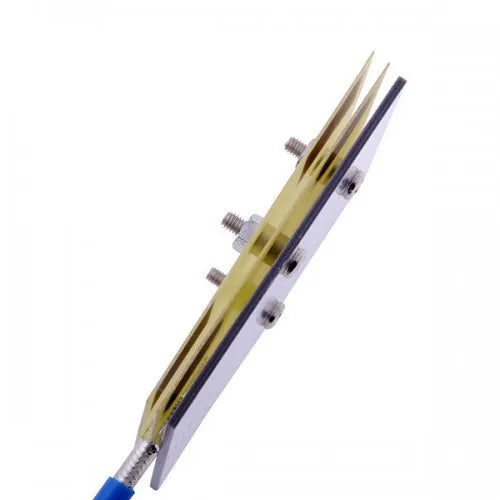

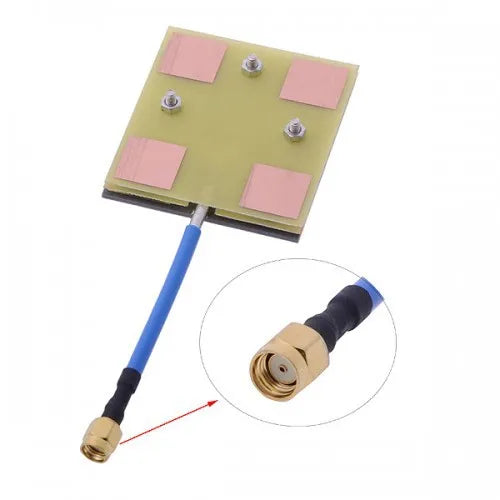

FPV 5.8Ghz 5.8g 14dbi High Gain Panel Antenna for Rx w/Angle RT-SMA Female Antenna Gains for Tx
A brand new design, 5.8 G Antenna gains for FPV aerial photo.
All the products have a strict test, the standing-wave ratio is lower than 1.5.
This is exactly the first choice for FPV, and it can effectively expand the launch distance and angle.
The blue part can bend.
GGSM: 5.8G
L shape with inner bore
Weight: 32g
Specially designed for RC FPV, mini size, high gain, low SWR and high self recovery function at any angle.
Transmitting distance: 15km with 5.8G 1200mw VTX/RX.
5km with 5.8G 600mw VTX/RX.
Frequency: 5600-5950 MHz
Gain-dBi: 14dBi
3db vertical beam width: 40 degree
3db Horizontal Beam width: 35degree
Impedance: 50 ohm
Polarization: Vertical
Sidelobe suppression:>=13DB
VSWR: =25DB
Maximum Power: 50W
Connector: rp-SMA
Dimensions: 60*55*6mm
DC Grounded
High self recovery function.
Weight: 34g
Total weight: 66g

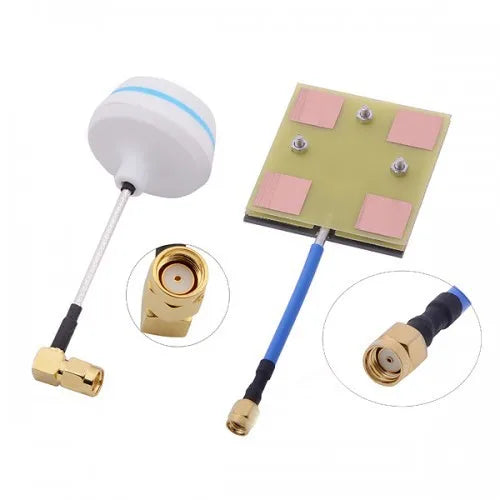

Package Include:
1* 5.8G 14dBi panel antenna

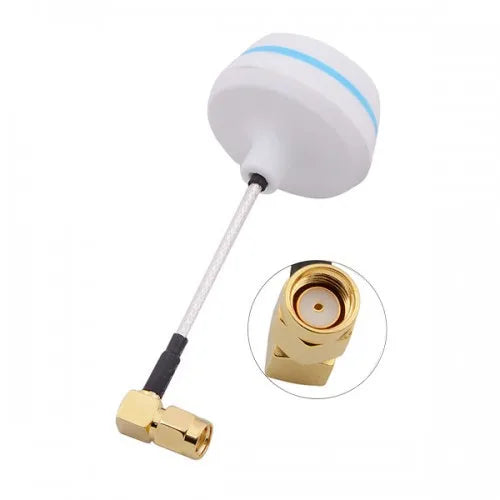

1* RX-SMS antenna gain
