FlySky FS IA4B 4CH 2.4G Receiver SPECIFICATIONS
Brand Name: Flysky
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Receivers

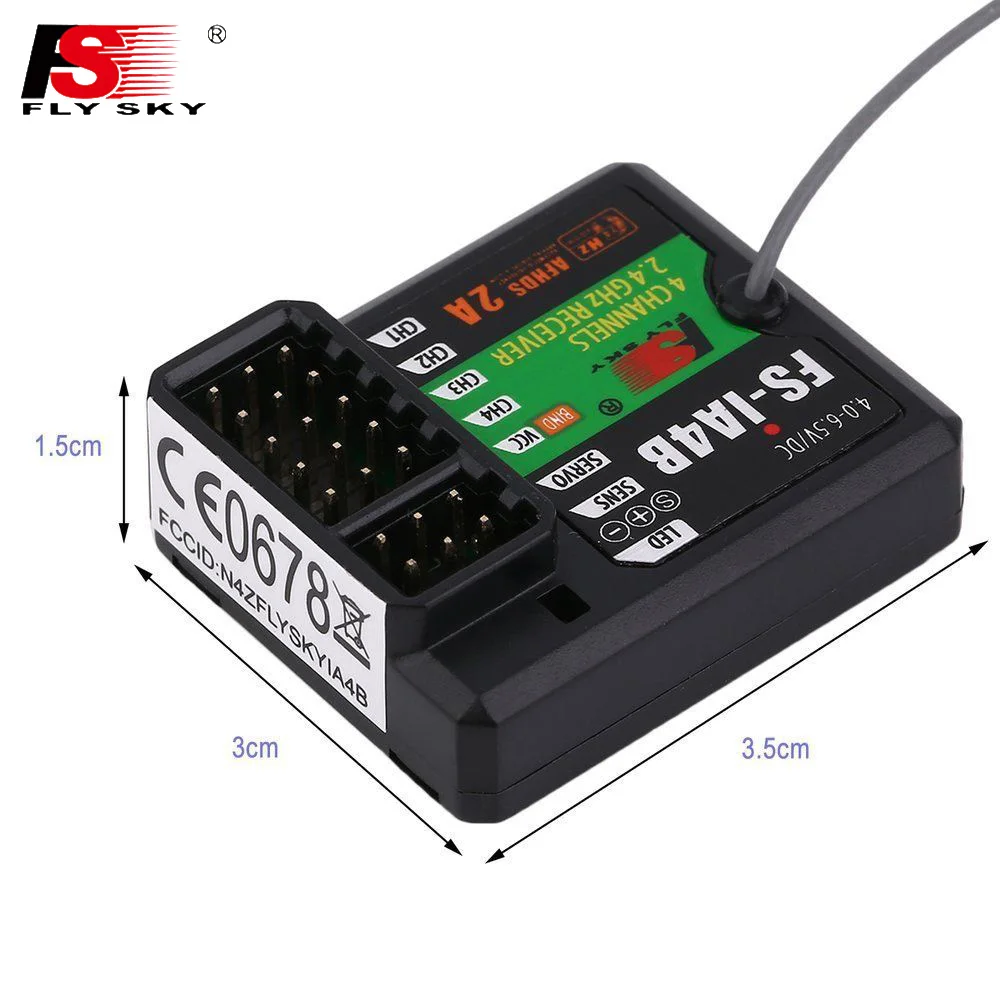

Size: 35*29*13mm
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: FS-IA4B
Remote Control Peripherals/Devices: Receivers
Tool Supplies: FS-IA4B
Technical parameters: Value 2
Model Number: VZKU6292
Four-wheel Drive Attributes: FS-IA4B

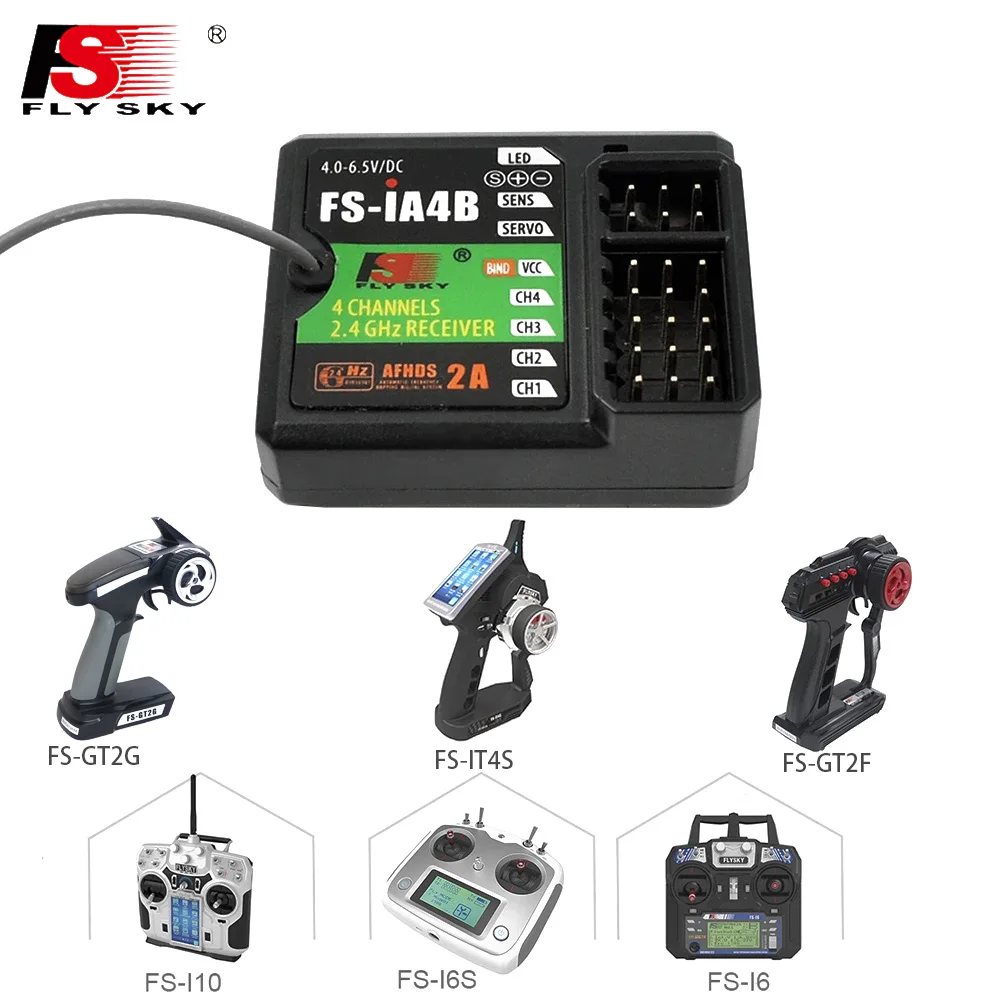

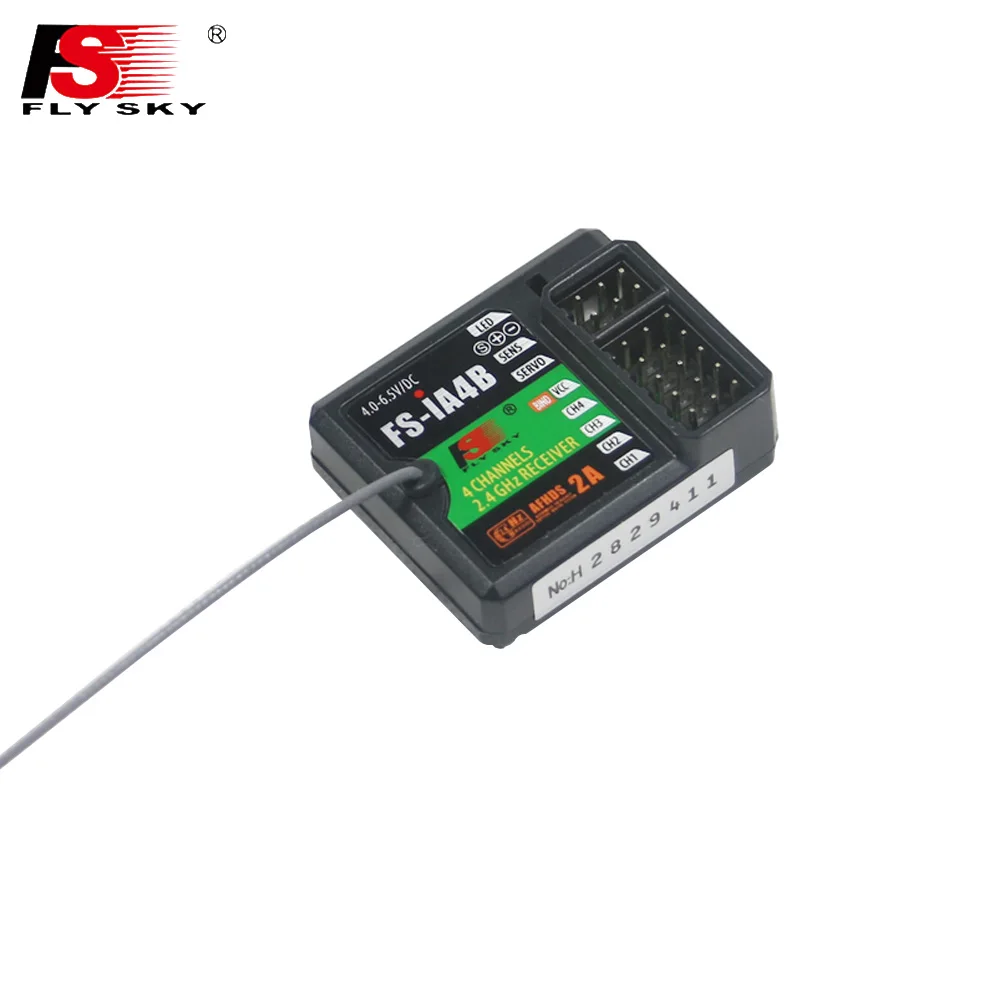

Fly Sky FS-IA4B 2.4G 4CH Receiver

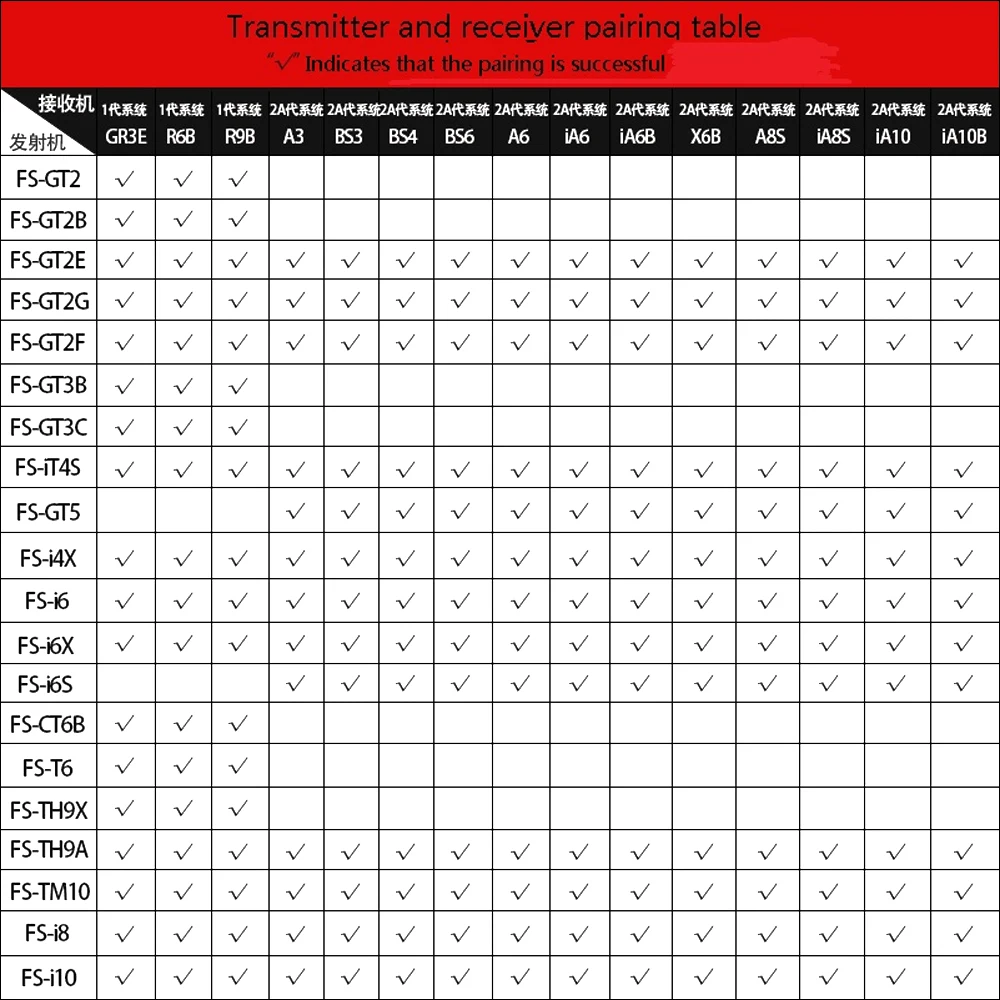

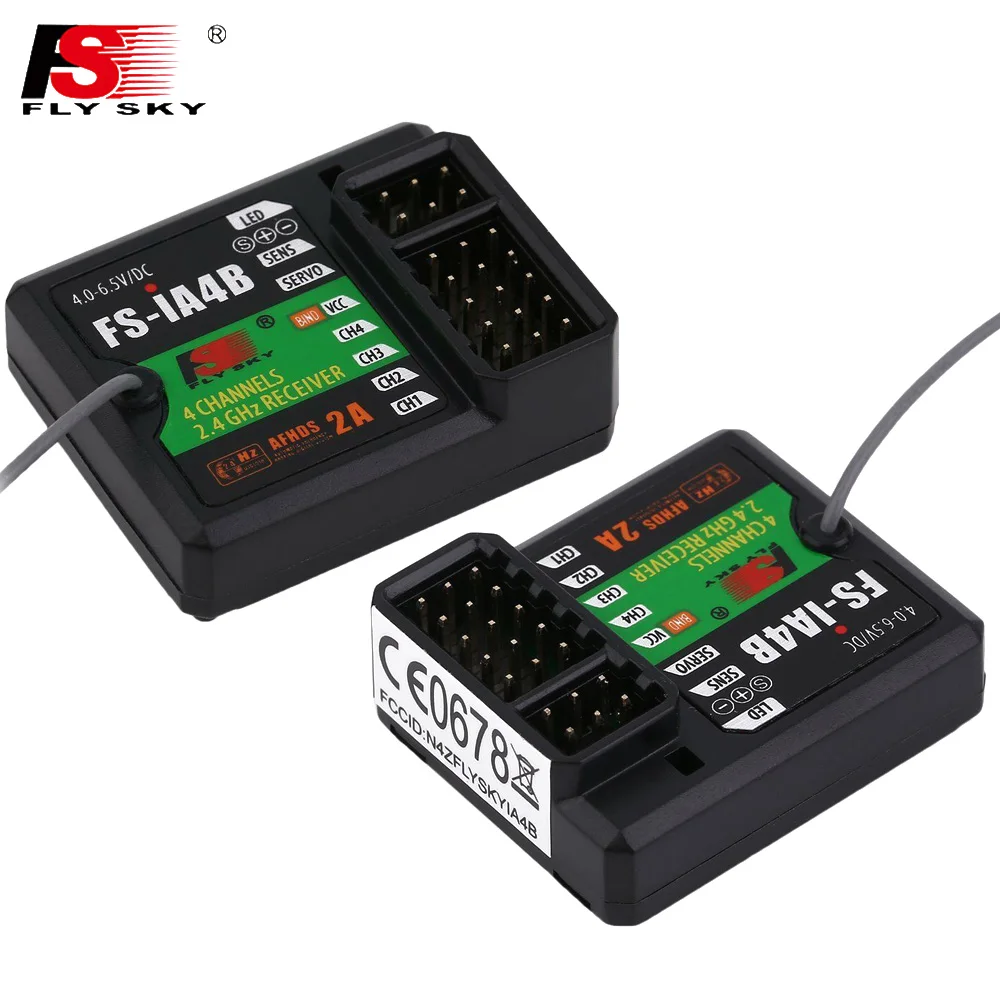

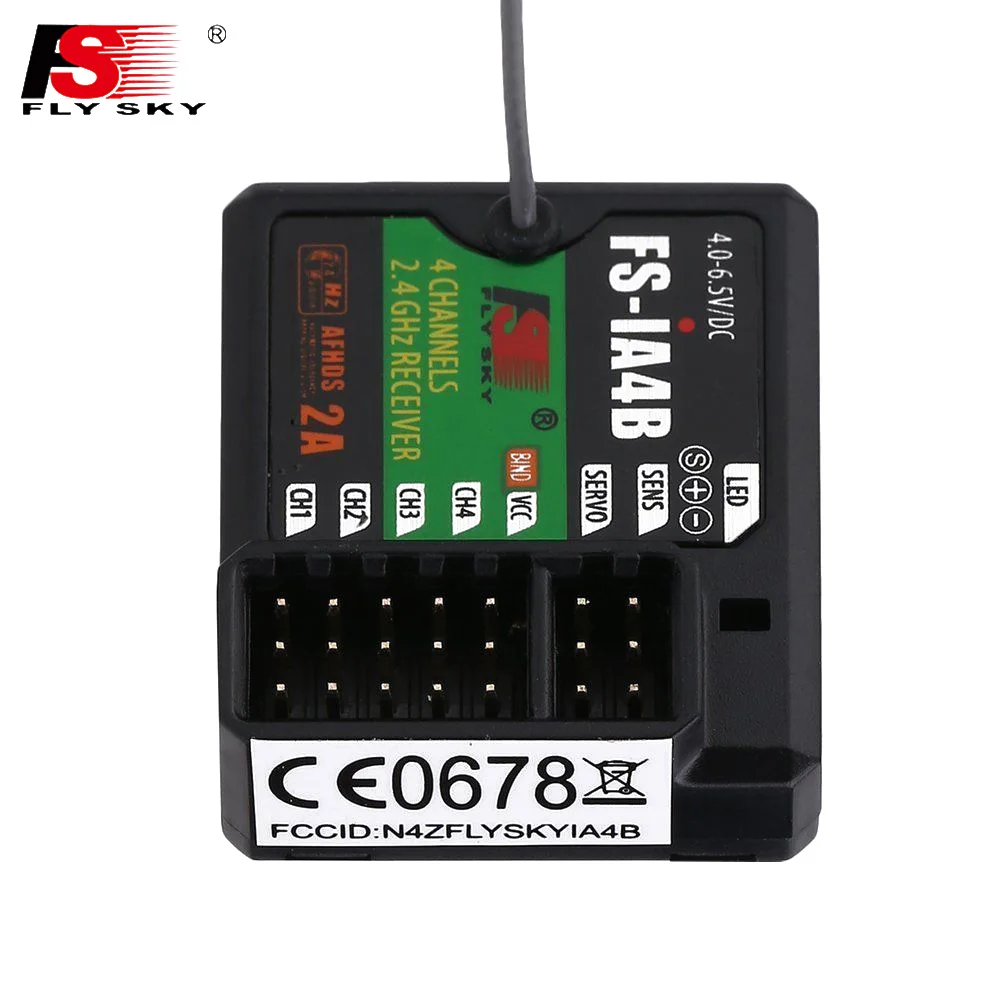

Features: 1. 4 channel receiver with stable performance and strong anti-interference 2. Adopting 2.4GHz automatic frequency hopping digital system signal operation, more reliable. 3. It’s receive sensitivity is -105dBm and the bandwidth is 500KHz. 4. With i-BUS port and data acquisition port. 5. Suitable for FS i4 i6 i10 iT4S transmitter RC car boat. Specifications: Condition: 100% Brand New Item Type: Receiver Color: Black Channel: 4 Suitable For: RC Car/Boat Frequency Range: 2.4055-2.475GHz Band: 140 Receive Sensitivity: -105dBm Bandwidth: 500KHz 2.4GHz System: AFHDS 2A Modulation Type: GFSK Power: 4.0-6.5V DC i-BUS Port: Yes Data Acquisition Port: Yes Antenna Length: 26mm / 1.02inch Size: 35.4 * 29.6 * 13mm / 0.51inch Certificate: CE0678, FCC Weight: 15g Port instruction: CH1-CH4: represent relevant channel of transmitter. BIND, VCC: represent the channel used for matching and input power respectively. SERVO: represent i-BUS port of outputting PPMS data and be used for connecting the serial bus receiver to expand channels. SENS: Represent input ports of all kinds of sensor data, and data acquisition modules can be connected in serial optionally.
