FLASHHOBBY D3548EVO 3548 (2826) 760KV 900kv 1150KV RC Brushless Motor SPECIFICATIONS
Wheelbase: Upper Shell
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Motor
Tool Supplies: Grinded
Technical parameters: Value 3
Remote Control Peripherals/Devices: Motor
Recommend Age: 14+y
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: D3548
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: Skyquist
Features:
48H Level Magnet
Precision Balanced Rotor Test
14P12N High Torque Motor Design
CNC 6061-T6 Aluminum Bell
High RPM Imported(NSK/NMB) Bearing
High Temperature Resistant Copper Wire Winding

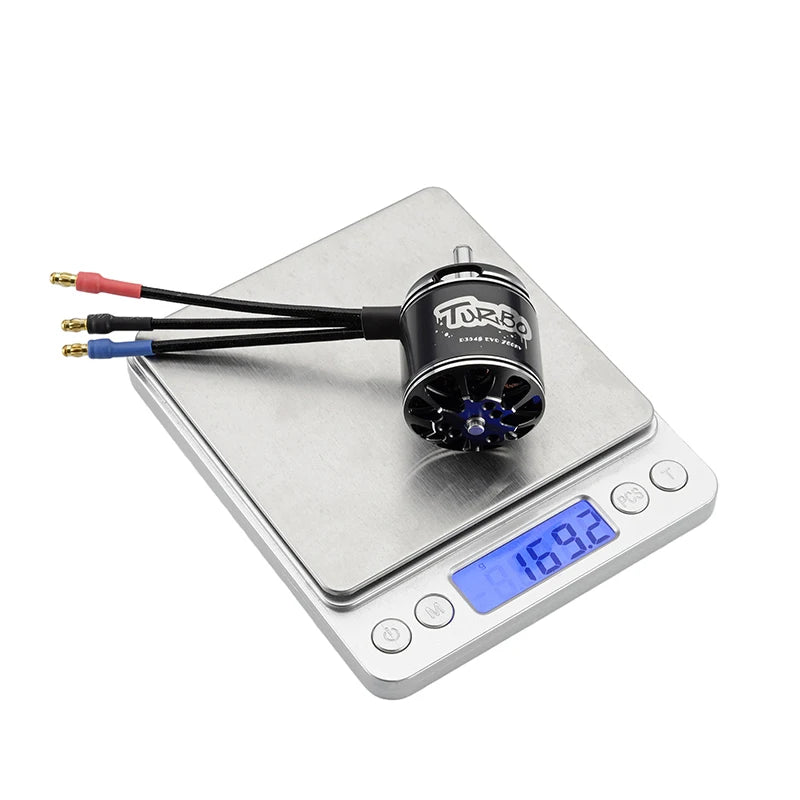

Weight: 170g(Including wires)

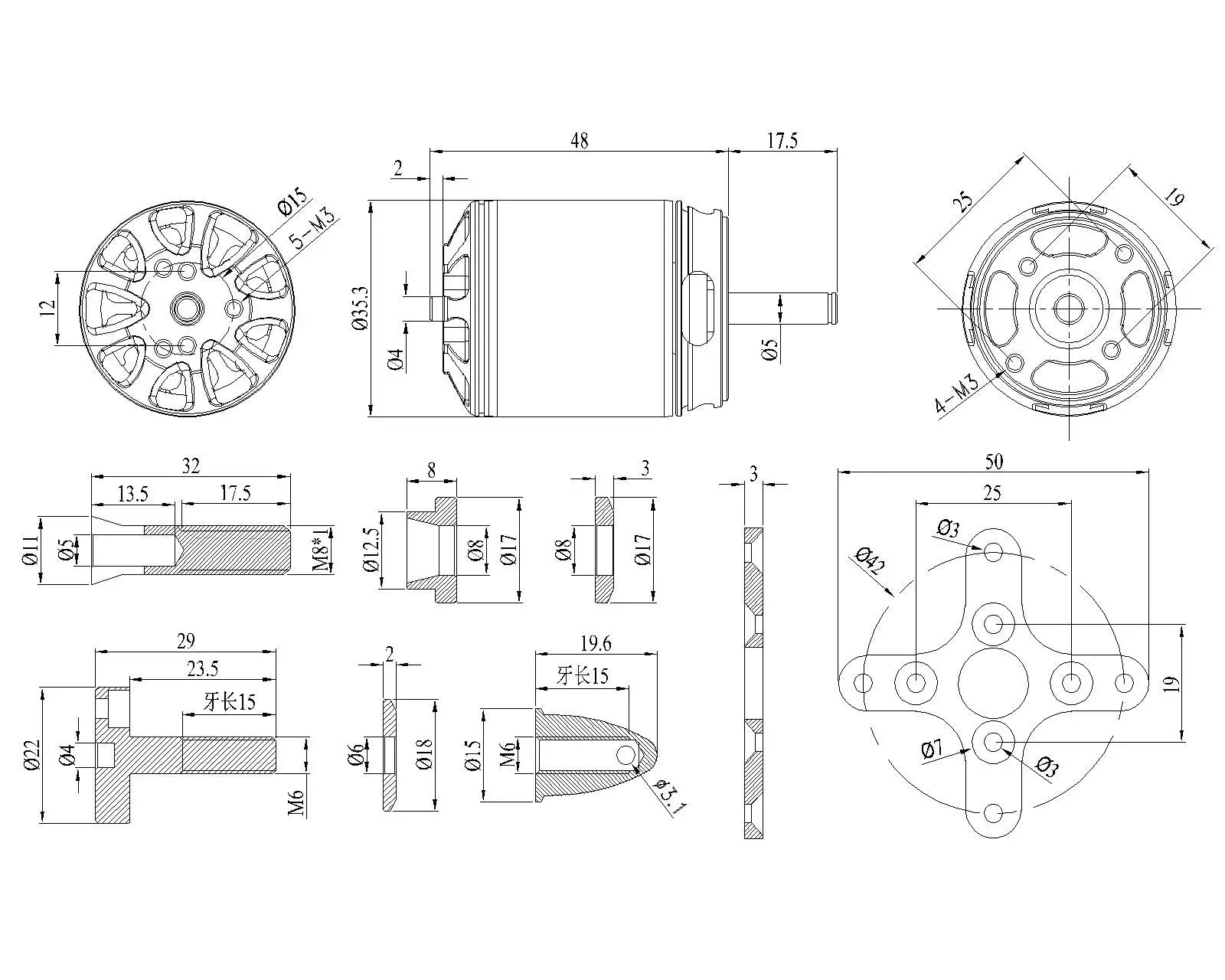

Motor Size: 35.3 x48mm
Shaft Size: 5.0*65.5mm
Motor Mount: 19*25mm(M3*4)
Configuration: 12N14P
KV Value: 760KV, 900KV,1150KV or customed KV
Working Temperature Range:-0℃~+80℃
Control Method:Use ESC And Adjust PWM signal For Control,PWM Adjustment Range 900- 2100US
Motor Type: Outrunner Brushless Motor,Three-phase Motor

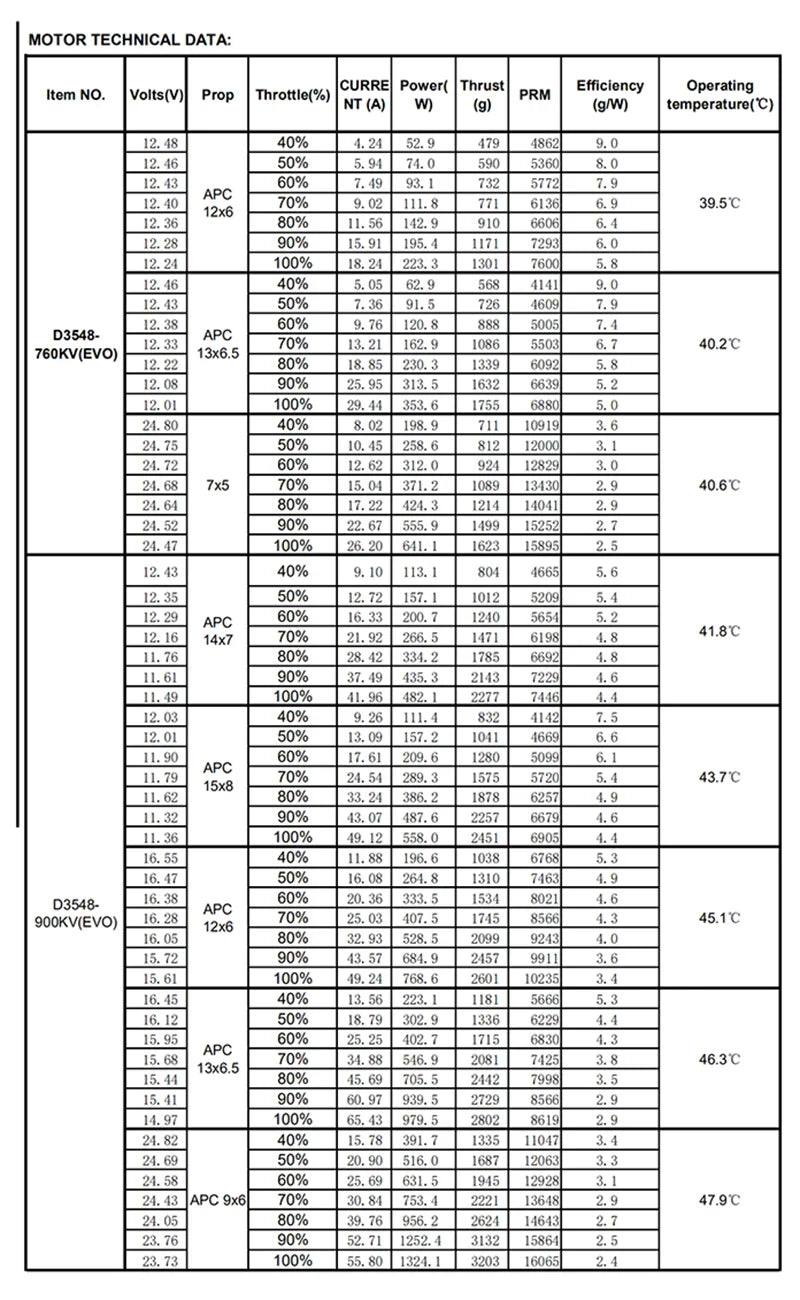

KV: 760KV
Max watts: 353.6W
Max Current: 29.44A
No Load current: 1.54A/10V
Resistance: 34.4mΩ
Battery: 3-4S Lipo
Suggested Prop: 13 inch prop
KV: 900KV
Max watts: 1324.1W
Max Current: 55.8A
No Load current: 2.66A/10V
Resistance: 24.0mΩ
Battery: 3-6S Lipo
Suggested Prop: 9 inch prop

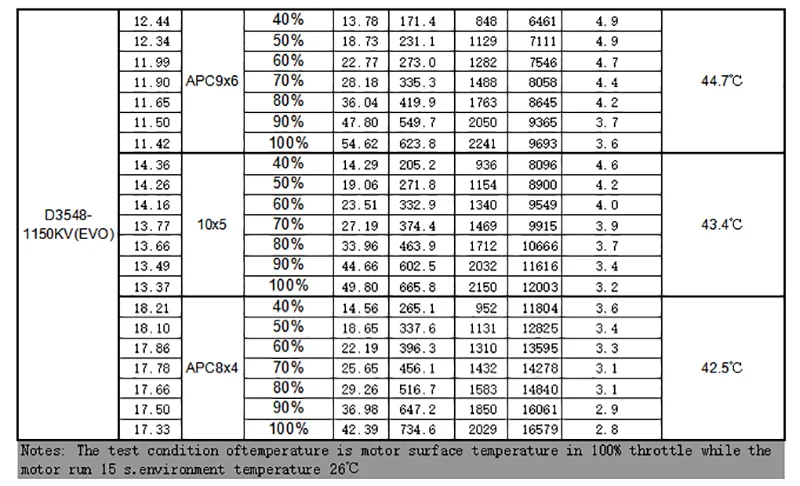

KV: 1150KV
Max watts: 623.8W
Max Current: 54.62A
No Load current: 3.34A/10V
Resistance: 19.0mΩ
Battery: 3-4S Lipo
Suggested Prop: 9 inch prop
