فلاشهوبي آرثر A1207 5200KV 6000KV 7000KV سباق الطبعة فرش السيارات ل RC FPV سباق بدون طيار لتقوم بها بنفسك الملحقات

$29.51

+ Free Shipping

Regional payment methods

رمز المنتج: غير محدد التصنيف: طائرة FPV بدون طيار

Ask for more info

Flashhobby Arthur A1207 5200KV 6000KV 7000KV Racing Edition Brushless Motor SPECIFICATIONS

Name: فلاشهوبي آرثر A1207 5200KV 6000KV 7000KV سباق الطبعة فرش السيارات ل RC FPV سباق بدون طيار لتقوم بها بنفسك الملحقات
Brand: Your Brand
SKU: 383364
Price: 29.51 USD
Availability: InStock

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Motor

Tool Supplies: Grinded

Technical parameters: Value 2

Size: mm

Remote Control Peripherals/Devices: Motor

Recommend Age: 12+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: A1207

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Brand Name: Flashhobby

KV: 5200KV/6000KV/7000KV( Optional)

Shaft Diameter: 1.5mm

Quantity: 4 PC

Input Voltage: 3-4S @ 5200KV/6000KV 2-3S @7000KV

Configuration: 9N12P

Cable Length: 110mm, 26AWG @5200KV&7000KV; 115mm,26AWG@6000KV

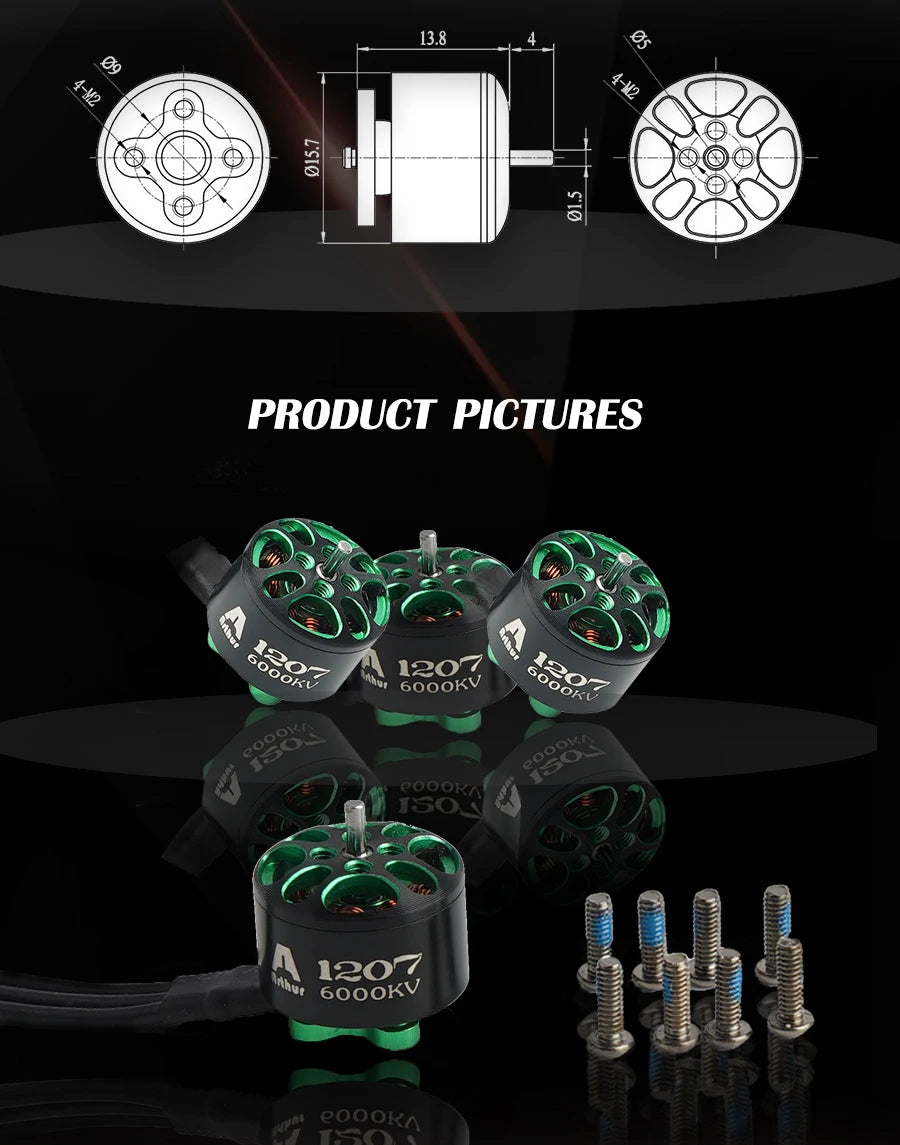

Motor Dimension: 15.7×13.8mm (Dia*Len)

Weight: 10.3g@7000KV 10.4g@5200KV&6000KV

Prop Mount Shaft Dia.: ф5*M2

Recommend: 2~3inch prop application(Not included)

Idle Current: 1.58A@5200KV; 2.46A@6000KV; 2.74A@7000KV

Max.Power: 324.5W@5200KV; 275W@6000KV; 290.5W@7000KV

Internal Resistance: 0.104Ω@5200KV; 0.08Ω@6000KV; 0.072Ω@7000KV

Peak Current: 20.29A@5200KV; 20.43A@6000KV; 24.21A@7000KV

Max. Pull: 445g@5200KV(4S/GF2504 3R); 374g@6000KV(4S/GF2040 3R); 385g@7000KV (4S/GF2540 3R)

Package Included:

1/4 x Flashhobby Arthur A1207 Motor

Basic Parameters:
– KV Value: 5200, 6000, or 7000
– Dimension: 15.7 x 13.8 mm (for 5200KV) or 15 x 13.8 mm (for 6000KV and 7000KV)
– Motor Cable: 26# AWG, 11 cm long (for 5200KV), or 25# AWG, 11 cm long (for 6000KV and 7000KV)
– Shaft Diameter: 1.0 mm
– Idle Current:
+ 5200KV: 1.58 A
+ 6000KV: 2.16 A
+ 7000KV: 2.74 A
– Max Power: 324.5 W (for 5200KV), 275.1 W (for 6000KV), or 290.5 W (for 7000KV)
– Weight (including cable): 10.4 g

Farbe	4 PC 5200KV, 4 PCs 6000KV, 4 PCs 7000KV, 1 PC 5200KV, 1 PC 6000KV, 1 PC 7000KV
