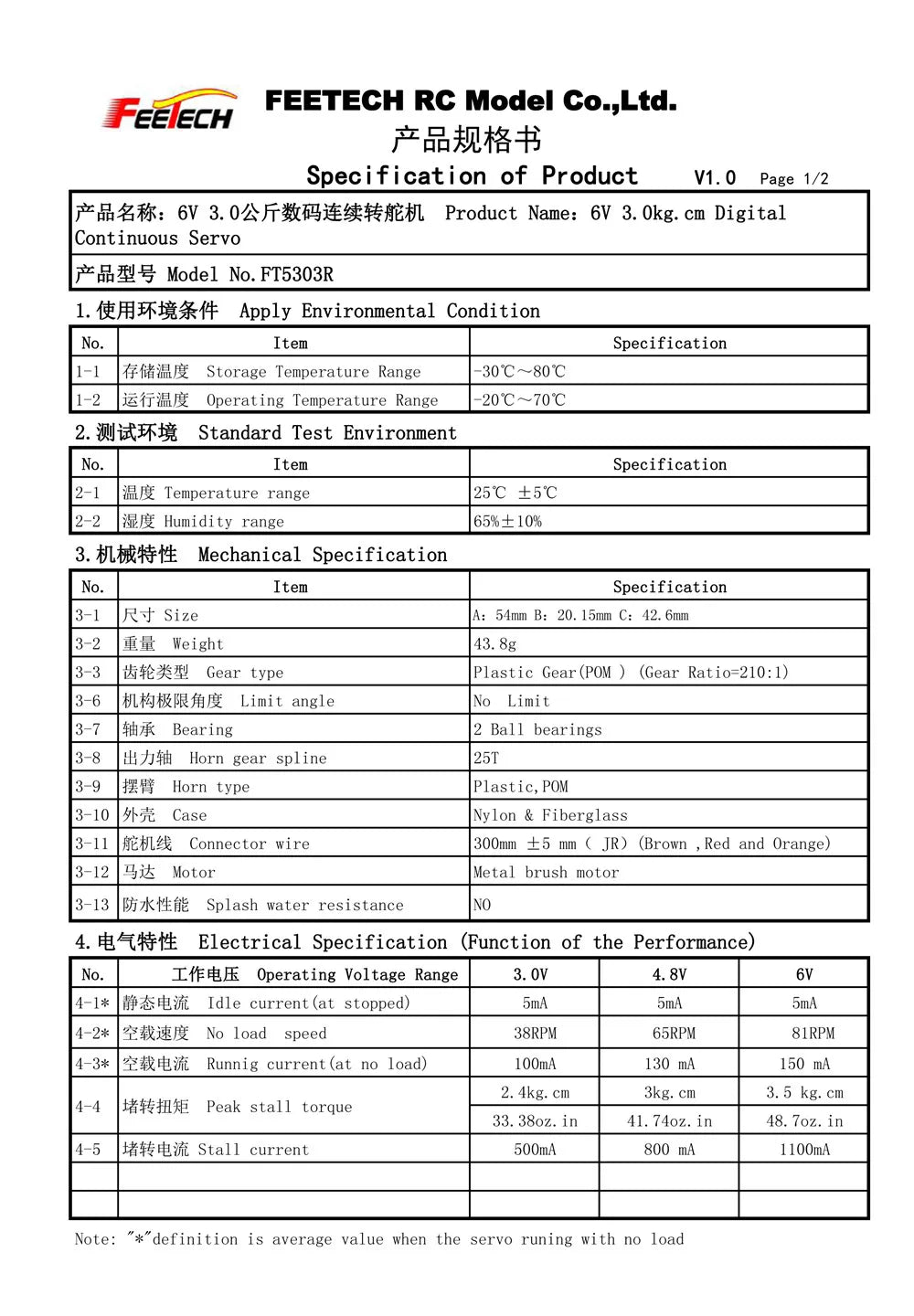

FEETECH FT5303R – 3V 6V Servo SPECIFICATIONS
Brand Name: Feetech
Origin: Mainland China
Material: Plastic
RC Parts & Accs: Servos
Size: 40.15*20.15*37.55mm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: FT5303R
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Bearing: 2 Ball bearings
Horn gear spline: 25T
Horn type: Plastic,POM
Case: Nylon & Fiberglass
Operating Voltage Range: 3-6V
Idle current(at stopped): 5mA
No load speed: 81RPM@6V
Runnig current(at no load): 150 mA @6V

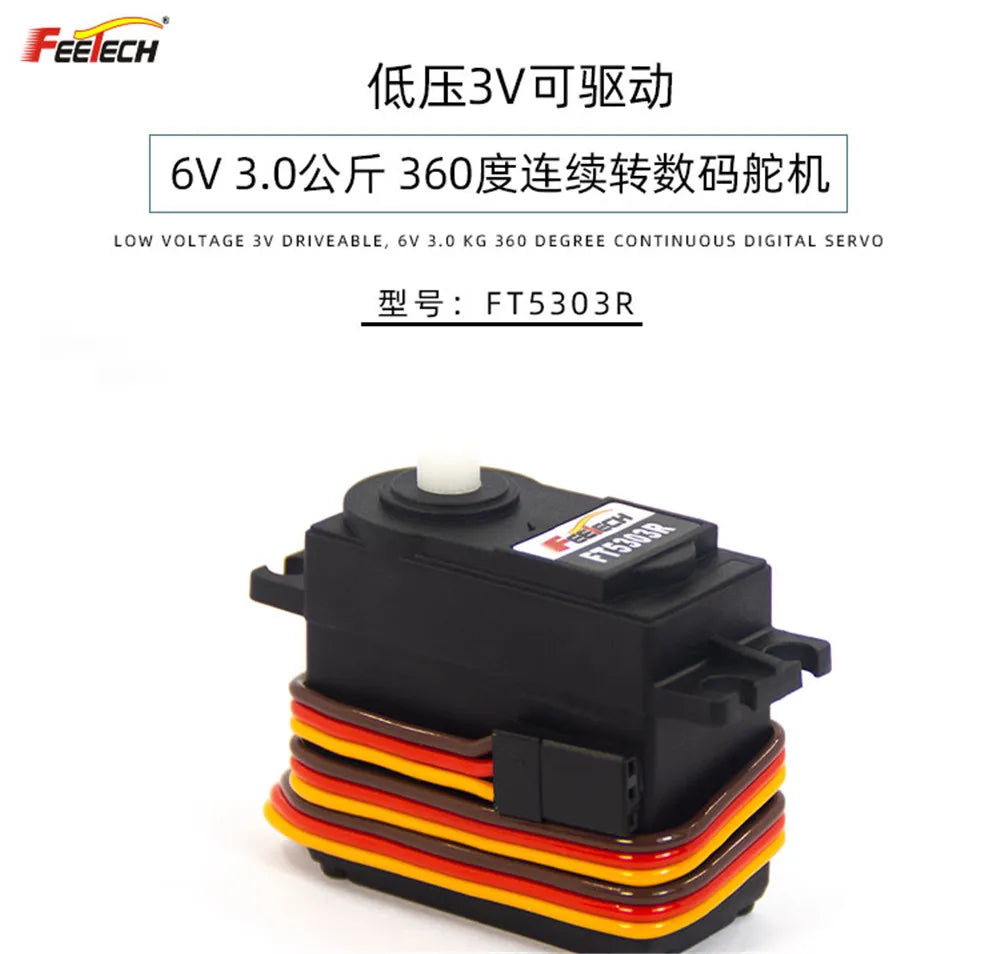

![FEETECH FT5303R, Feelech IEFBV =YKZ)] 6V 3.0AF 360E.](https://image.100drone.com/wp-content/uploads/2026/02/03070037/H5b33f40f957449ce869b6a2406225c8fF.webp "FEETECH FT5303R - 3V 6V 3.0kg.cm تروس بلاستيكية تدور للأمام والخلف 360 درجة دوران مستمر أجهزة تناظرية 16")
Feelech IEFBV =YKZ)] 6V 3.0AF 360E.14’4t3649E+L Low VOLTAGE 3v DRIVEABLE, 6v 3.0 KG 360 DEGREE CONTINUOUS DIGitAL SERVO #5: FT5303R 7S 7rn

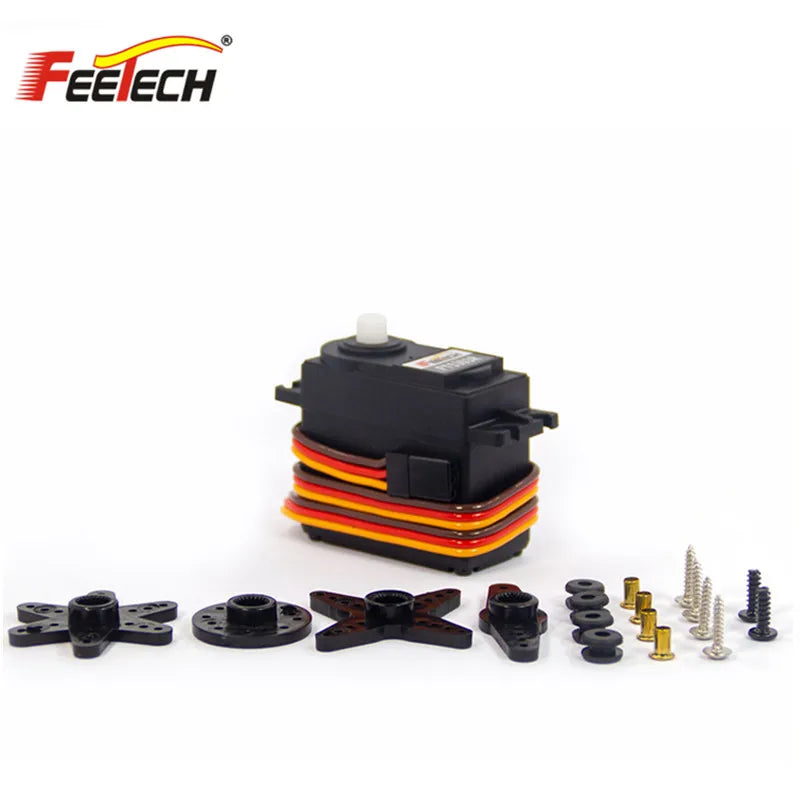

Product Information: FT5303R (Model No.) – This is a digital continuous servo that operates on both 3V and 6V power sources, with a torque capacity of 3.0 kg.cm. The servo features plastic gear rotation in both forward and backward directions, offering 360 degrees of continuous rotation. Kit Contents: White housing + kit. Environmental Conditions: Operating Temperature -25°C to +55°C; Relative Humidity – 65% ± 10%. No Item Specifications.

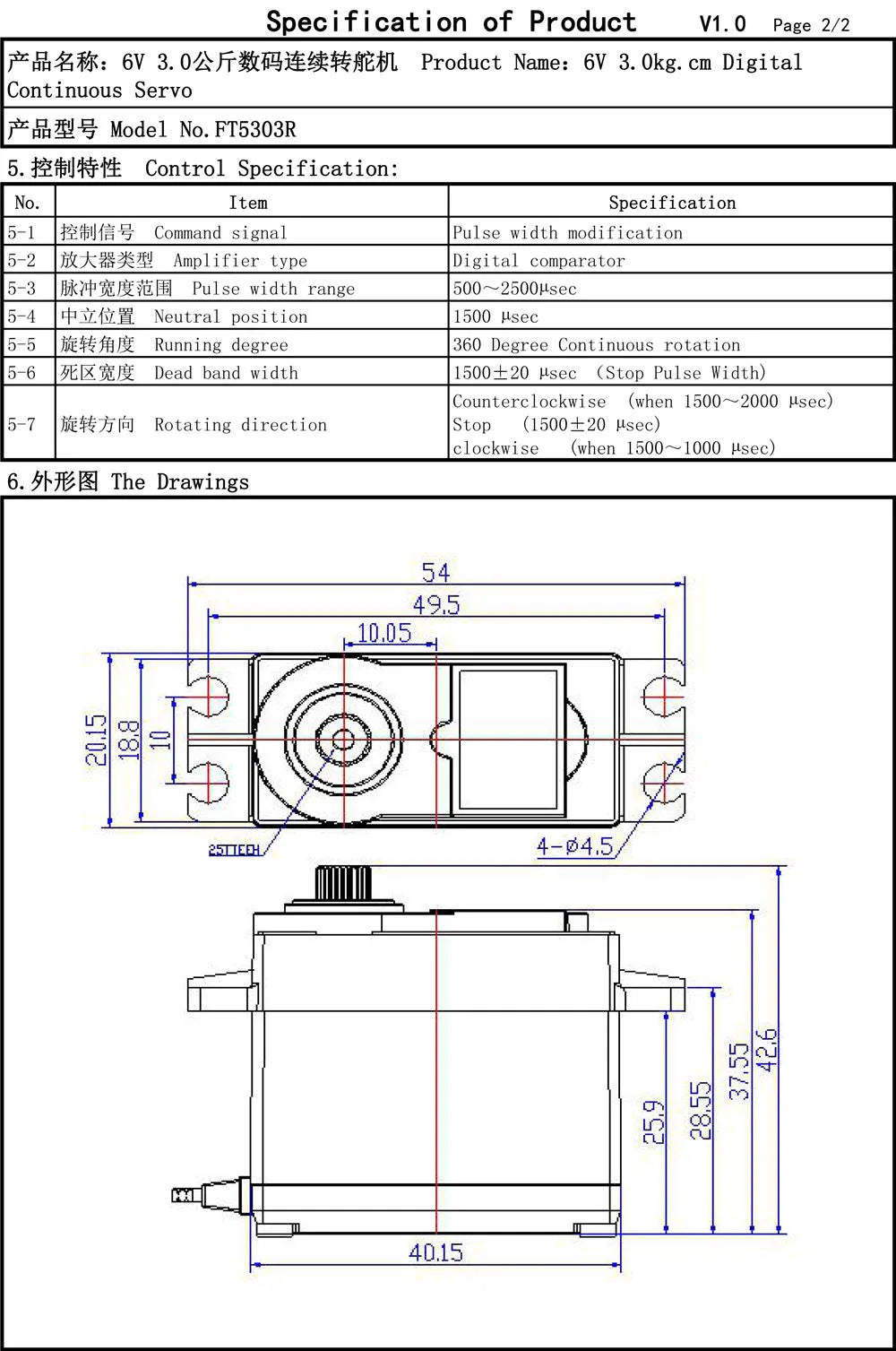

Control Specifications for FT5303R Servo:
* Command Signal: Pulse Width Modulation (PWM)
* Amplifier Type: Digital Comparator
* Pulse Width Range: 500-2500 μs
* Neutral Position: 1500 μs
* Running Degree: 360° Continuous Rotation
* Dead Band Width: ±20 μs around the neutral position
Detailed Images
