EFT G420 20L 4-Axis Agriculture Drone Specification
- مكان المنشأ: آنهوي، الصين
- اسم العلامة التجارية: EFT
- رقم الموديل: G420
- المادة: Plastic, Carbon
- Power: Hobbywing X9 plus motor, Hobbywing X9 PLUS Motor
- النوع: agriculture use
- الوظيفة: With Camera, APP Control, With Remote Control, Spray autimatically
- قالب خاص: نعم
- Capacity: 20 L
- Product name: G420
- الميزة: easy use/ good quality
- Battery: 22000mah
- Propeller: 36inch folding propeller
- Frame weight: 11kg
- قاعدة العجلات: 2038mm
- Max. take-off weight: 48.5kg
- Unfold size: 2665*1974*868mm
- Fold Size: 1192*623*868mm
EFT G420 20L Agriculture Drone Installation Guide
EFT G420 20L 4-Axis Agriculture Drone التفاصيل
Multifunctional Efficiency: Swap between Spray Spread and Spraying Systems Quickly
Compact Design: Unique Cross-Folding Structure for Easy Transportation
Customizable Power Options: Choose from Two Battery Schemes to Suit Your Needs
Robust Frame Design: Integrated Construction for Enhanced Strength and Durability
Water-Resistant Design: IP65 Rated Frame for Protection Against Dust and Water

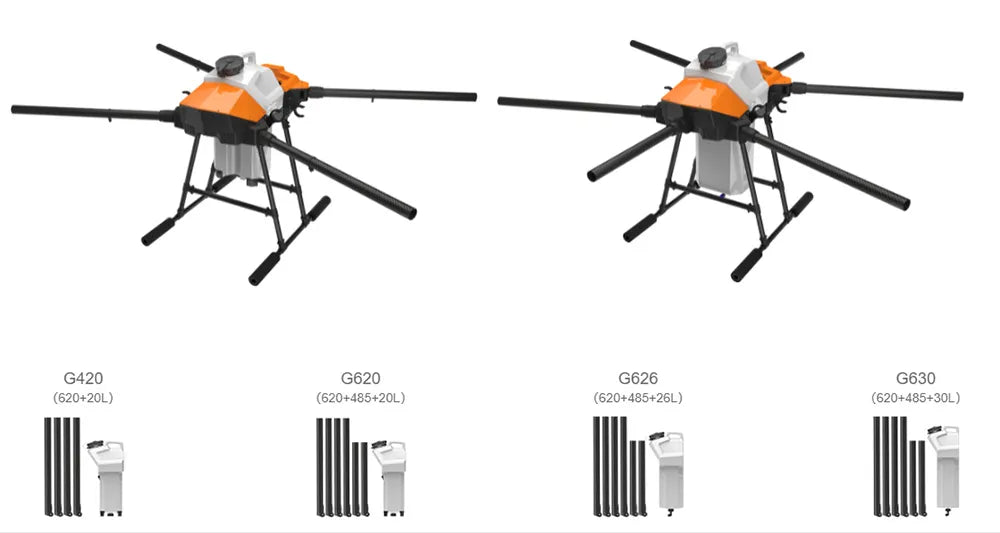

EFT’s latest 2021 GX series drone for agriculture has released, the GX series aircraft is based on the same body and there are 4 types of the models: G420, G620,G626 and G630.
 |  |  |  | |
| Item Model | G420 | G620 | G626 | G630 |
| Axis | 4 Axis | 6 محاور | 6 محاور | 6 محاور |
| سعة الخزان | 20L | 20L | 26L | 30L |
| قاعدة العجلات | 2028mm | 2028mm | 2028mm | 2028mm |
| Suggest Powe Combo | Hobbywing X9 Plus+36″ Propeller | Hobbywing X9+34″ Propeller | Hobbywing X9 Plus+36″ Propeller | Hobbywing X9 Plus+36″ Propeller |

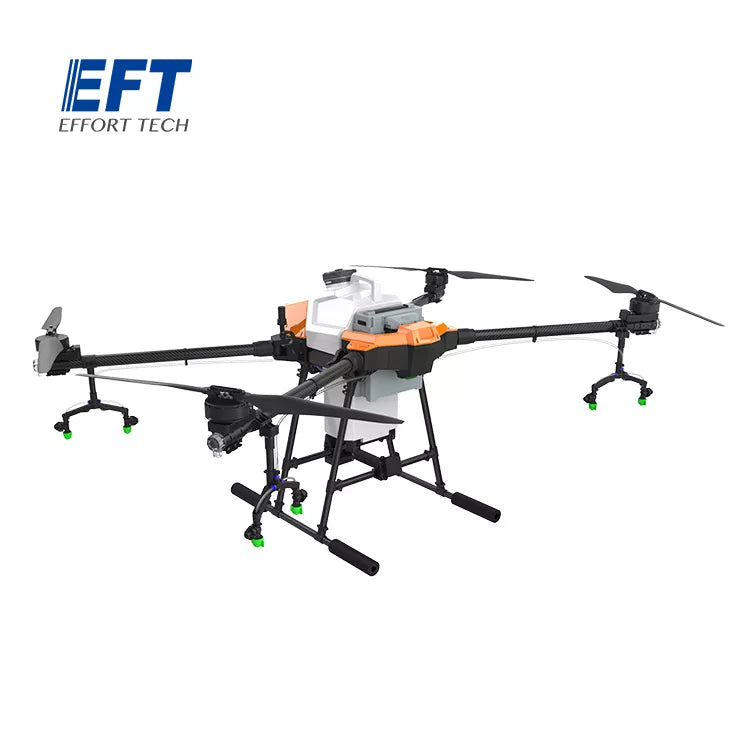

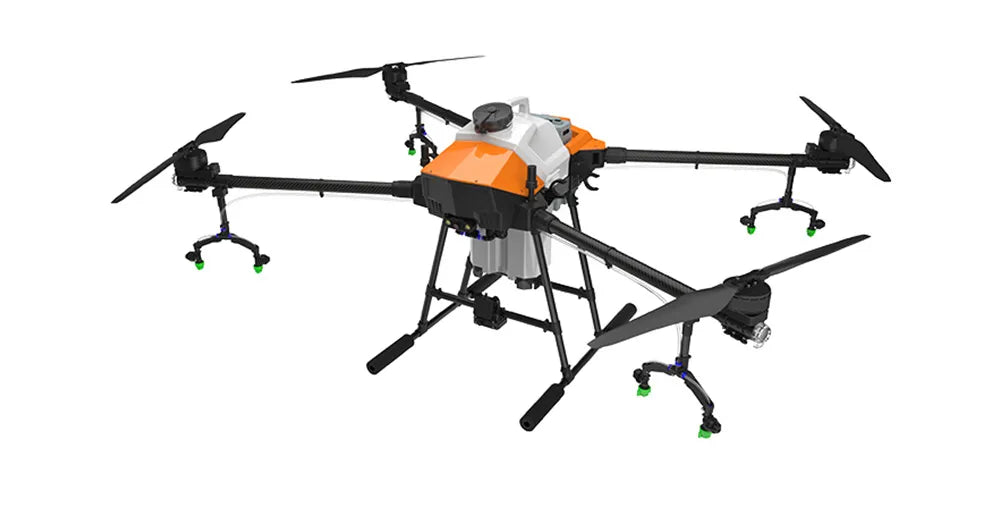

EFT G420 is one 20L high capacity platform specially designed for agriculture applications. The effective capacity of the drone is 20L. The drone adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. The frame kit or the Frame with the power combo is compatible with the mainstream flight controllers in the market, such as the JIYI K++, JIYI K3A Pro, Topgun, Hex Cube, PIX flight controller and etc.
المواصفات:
Item Brand: EFT
Item Model: G420
Wheelbase: 2038mm
Size (Unfolded): 2665 x 1974 x 868mm
Size (Folded): 1192 x 623 x 868mm

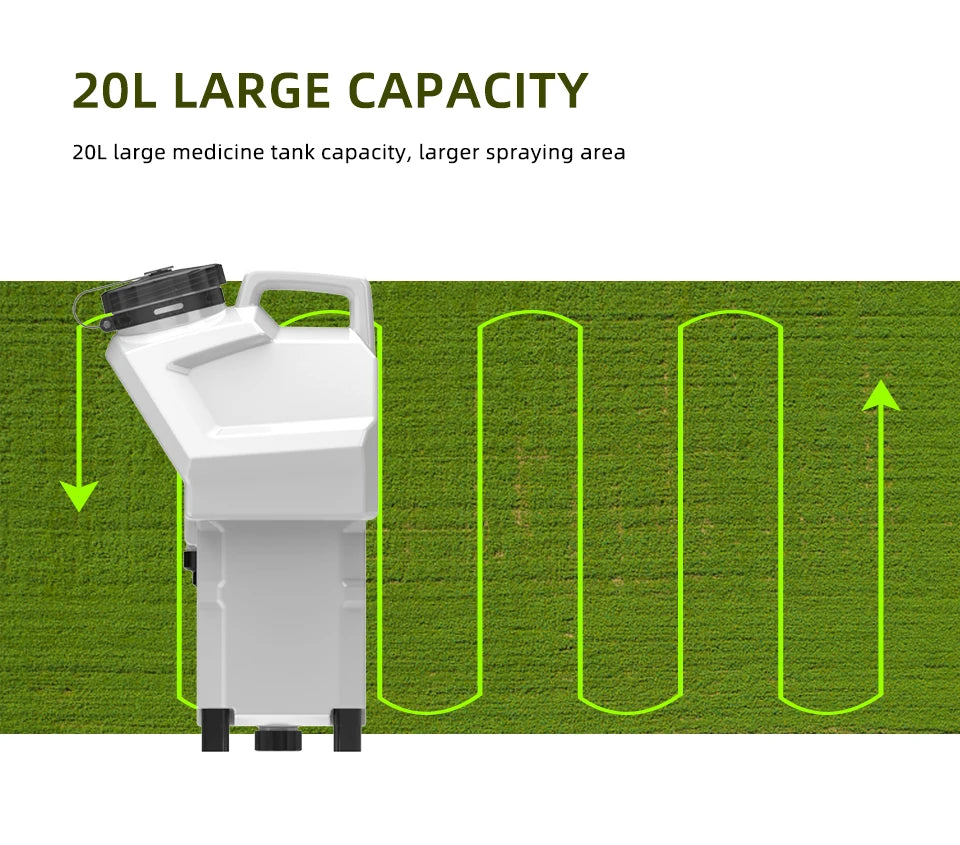

Tank Capacty: 20L
Frame Weight: 11kg
Frame+Power System Weight: 18kg
Frame+Power+Spraying system weight: 19.5kg
Non-Load take-off Weight: 28.2kg
Full take-off Weight: 48.5kg
Flying time test:
Non-Load Flying Time: 22 minutes 17 seconds (48V)
Full-load Flying Time: 7 minutes (47V)
Note: During the test, we use the Tattu 14S 22000mah battery, hobbywing X9 Plus power combo.
الميزات الرئيسية:

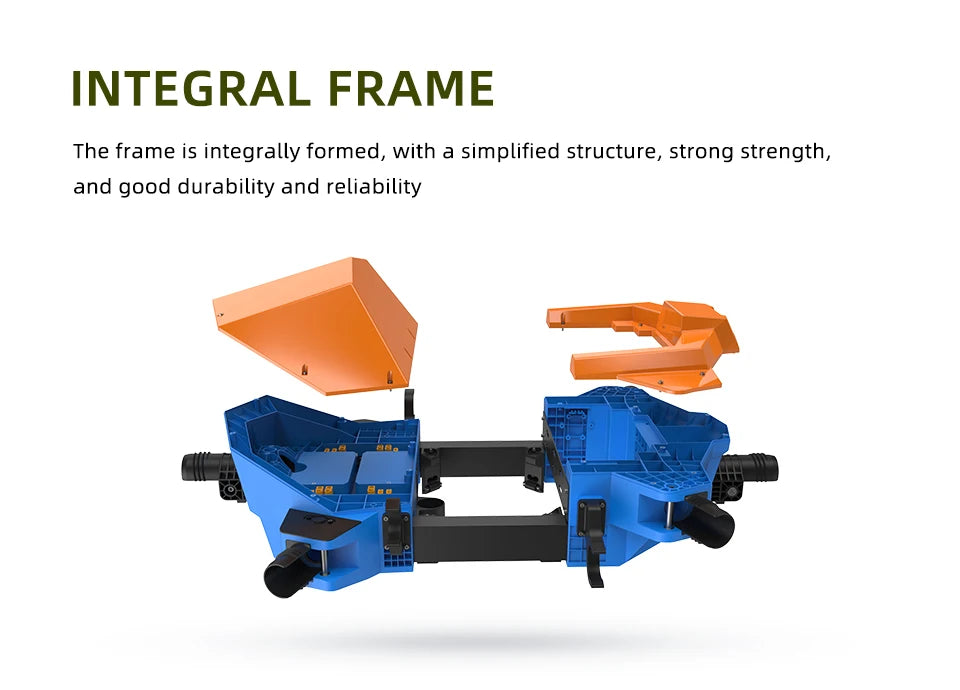

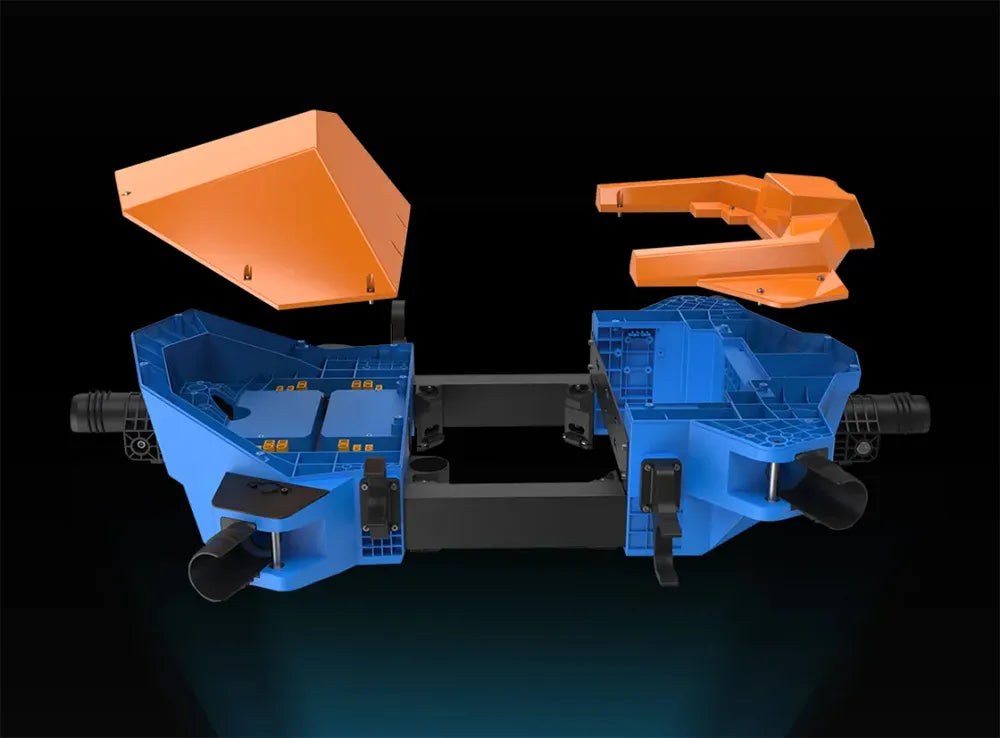

Integral Frame
The frame is integrally formed, with a simplified structure, strong strength, and good durability and reliability.

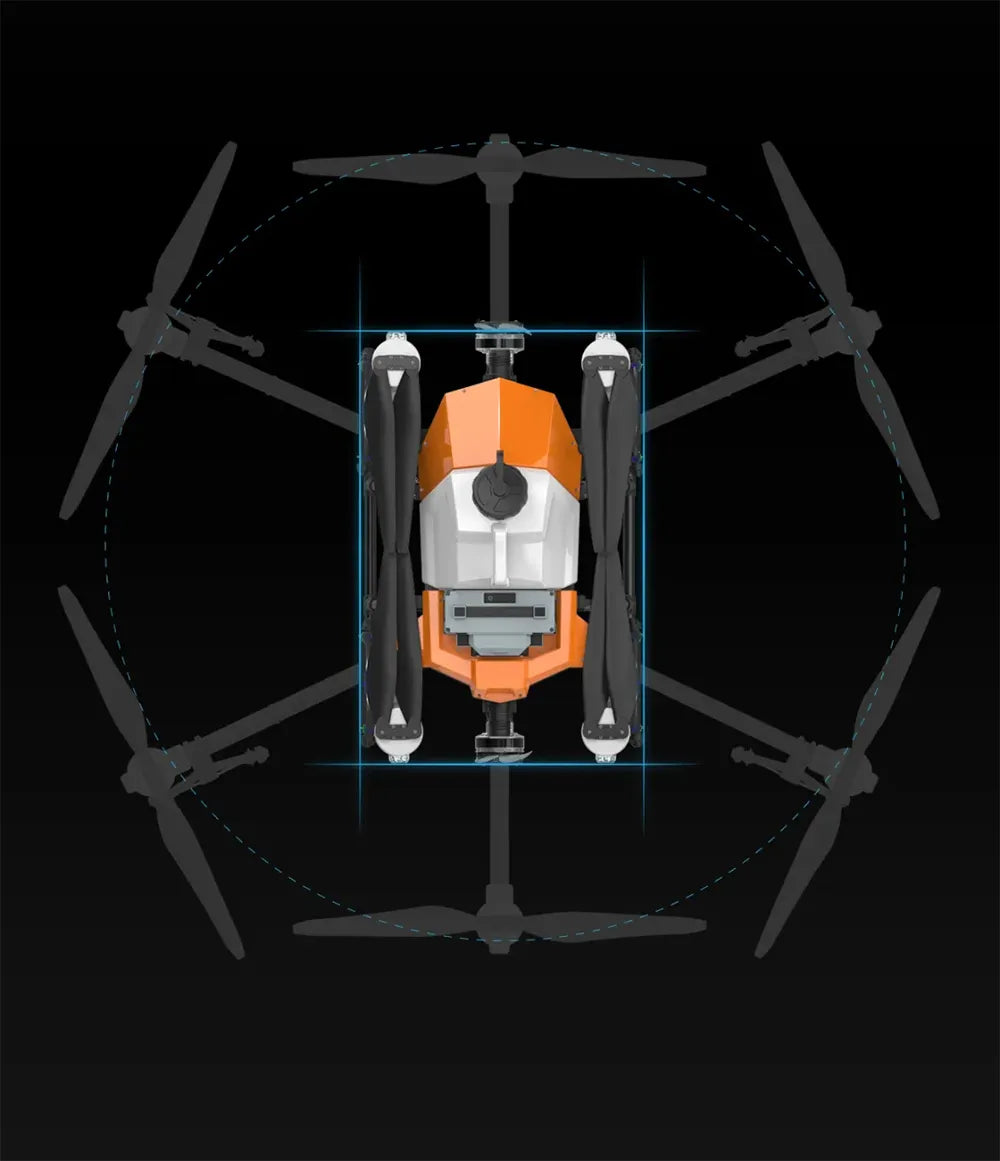

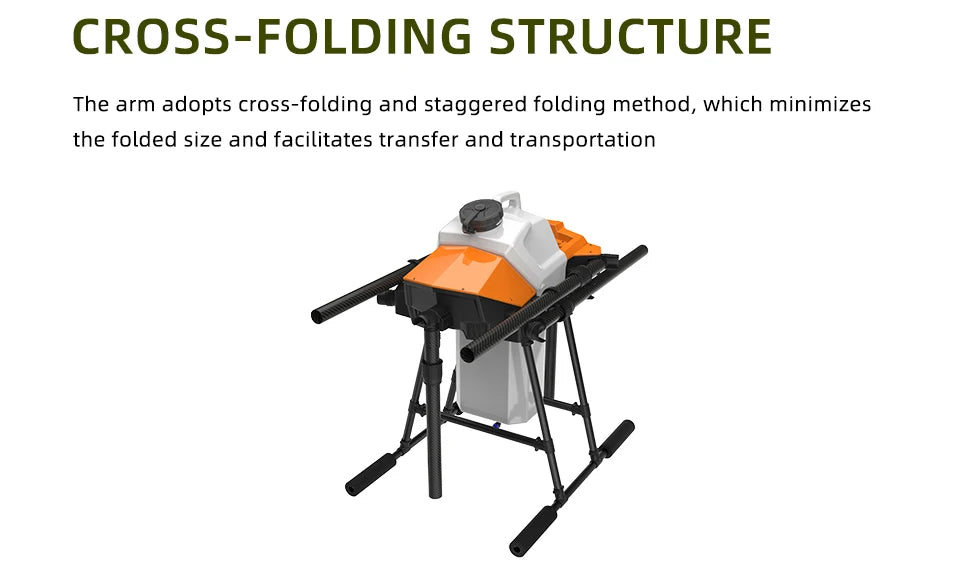

طريقة الطي المتقاطع
The arms of the G616 are folded in a staggered way, minisize the folding size, more convenient for transportation.

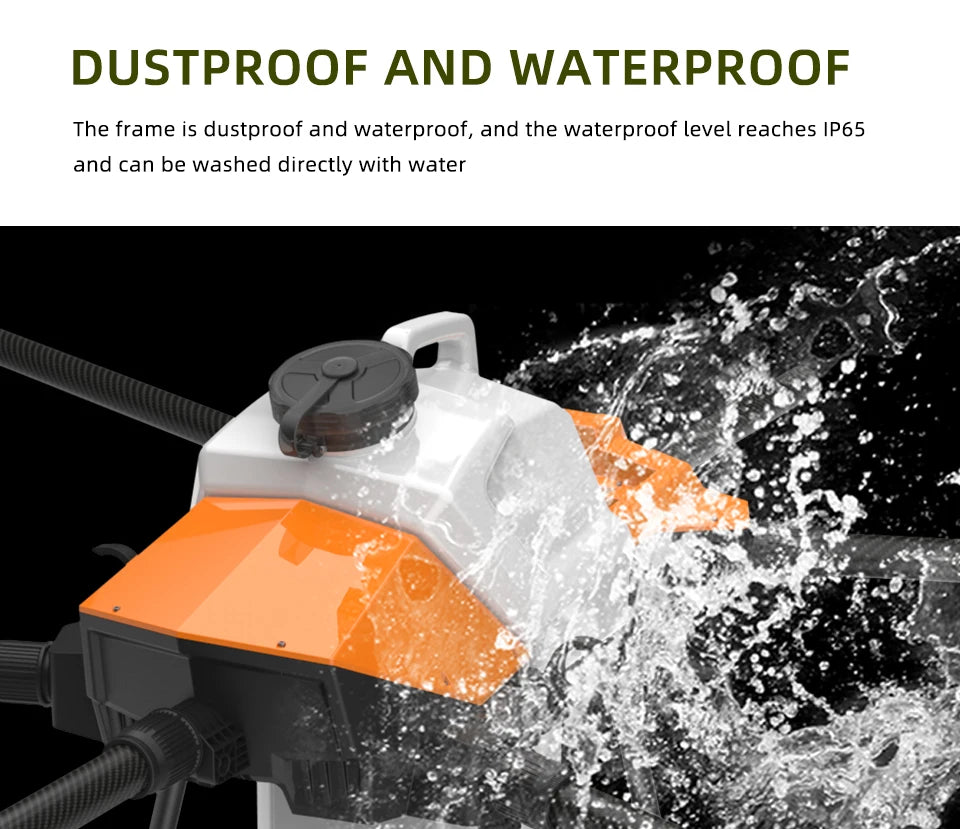

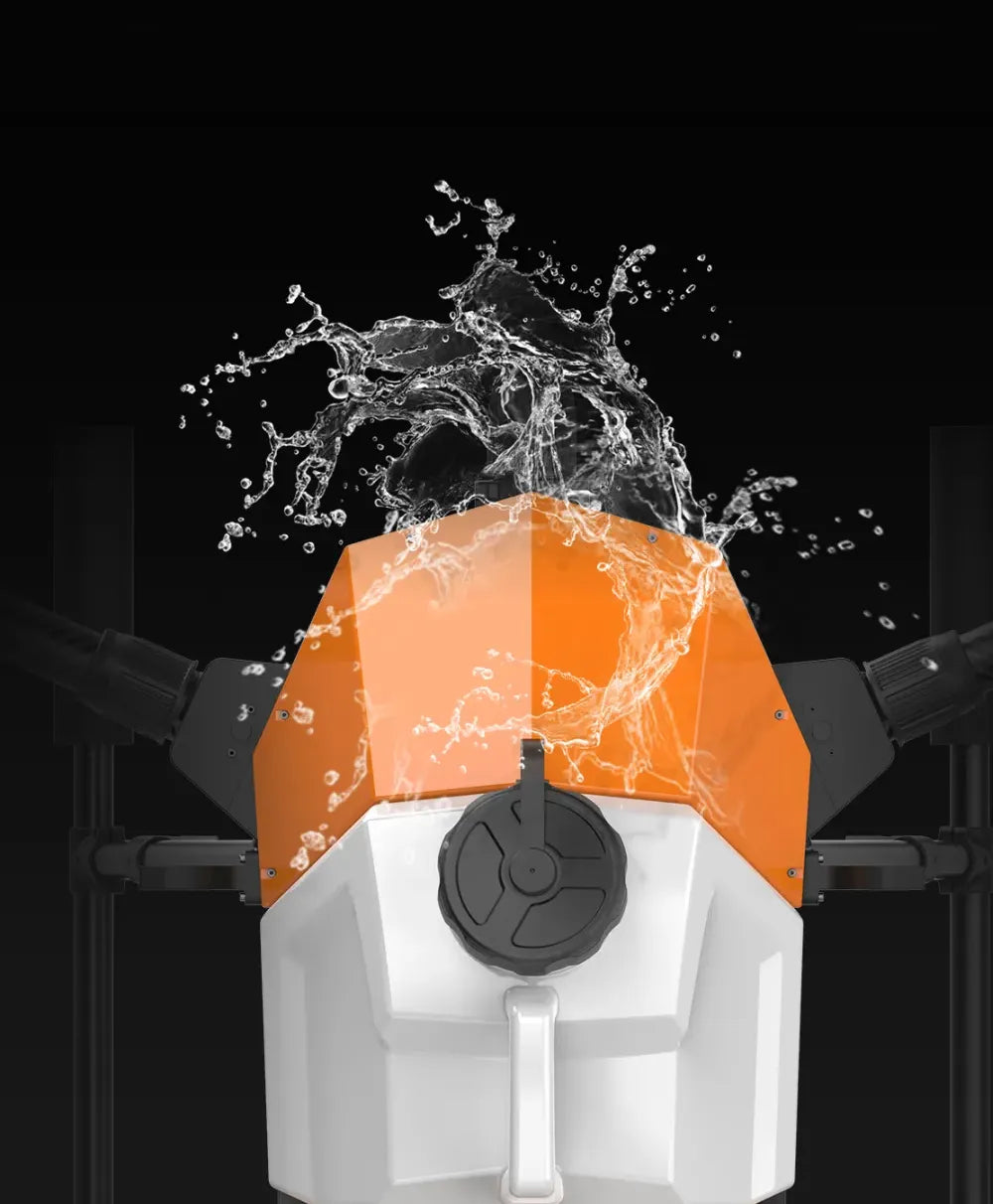

مقاوم للغبار ومقاوم للماء
الطائرة بدون طيار بأكملها مقاومة للغبار والماء، وتصل درجة مقاومة الماء إلى IP65. يمكن غسل الإطار مباشرةً بالماء.

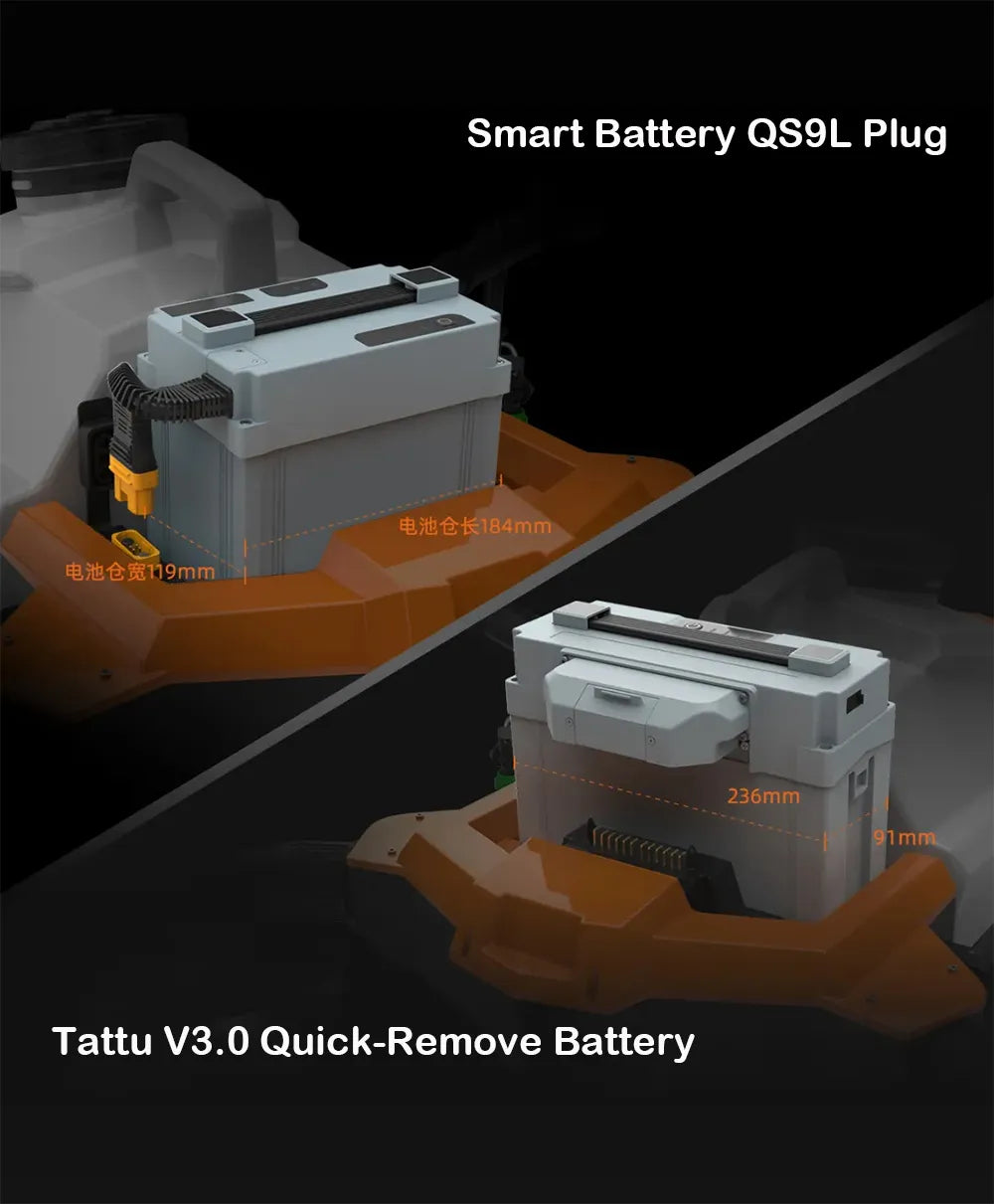

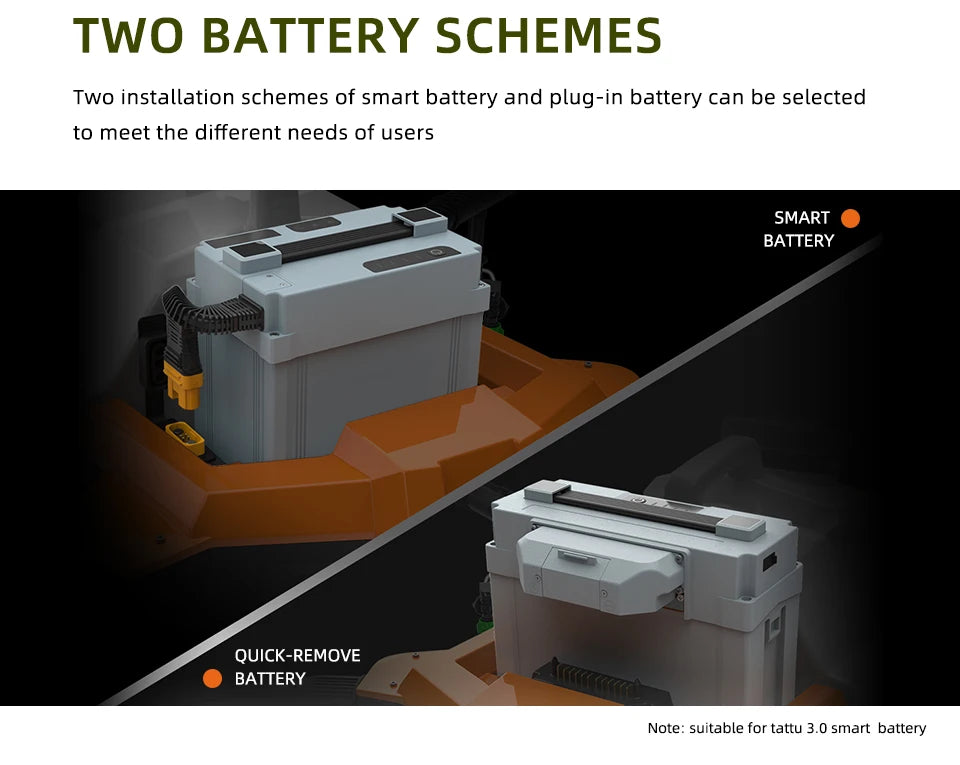

Two battery solutions
There are two power plugs reserved for the drone. One is with the QS9L plug for the normal smart battery. And the other is specially designed for Tattu V3.0 Quick-remove batteries.

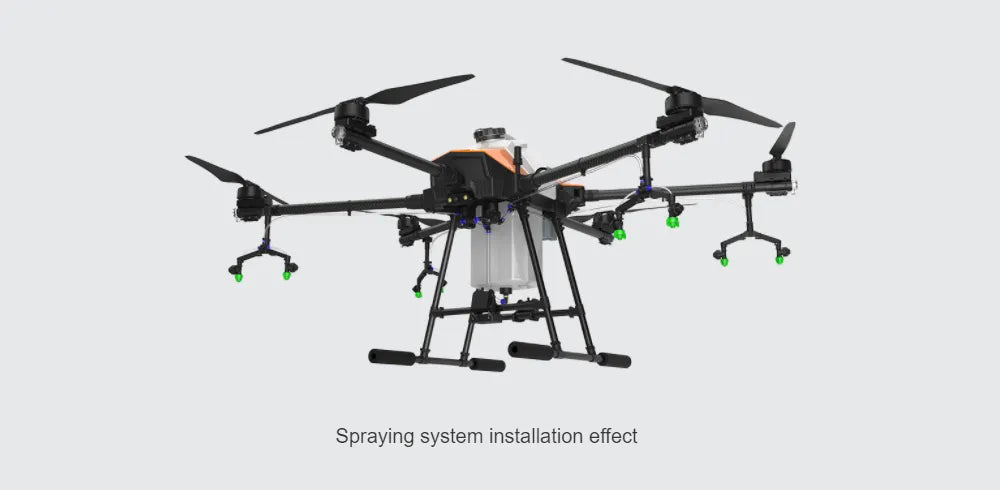

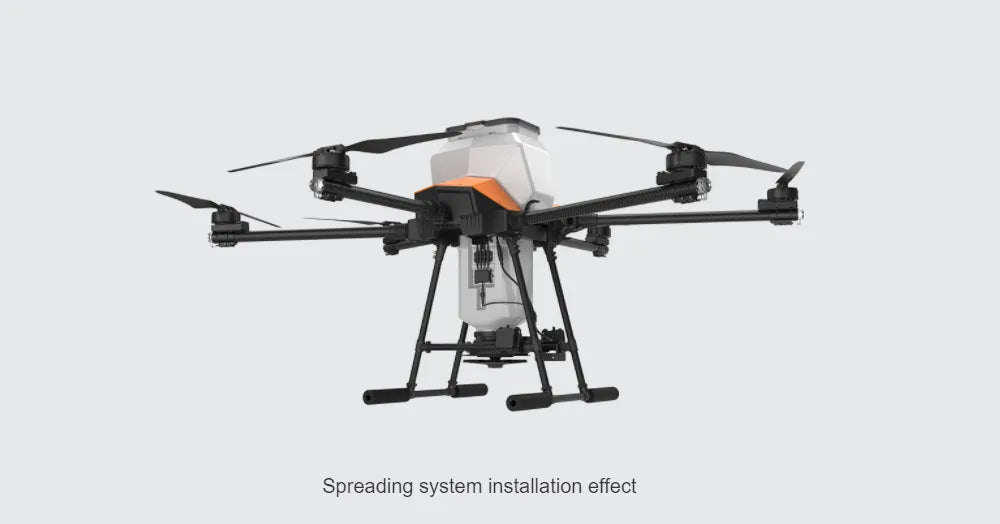

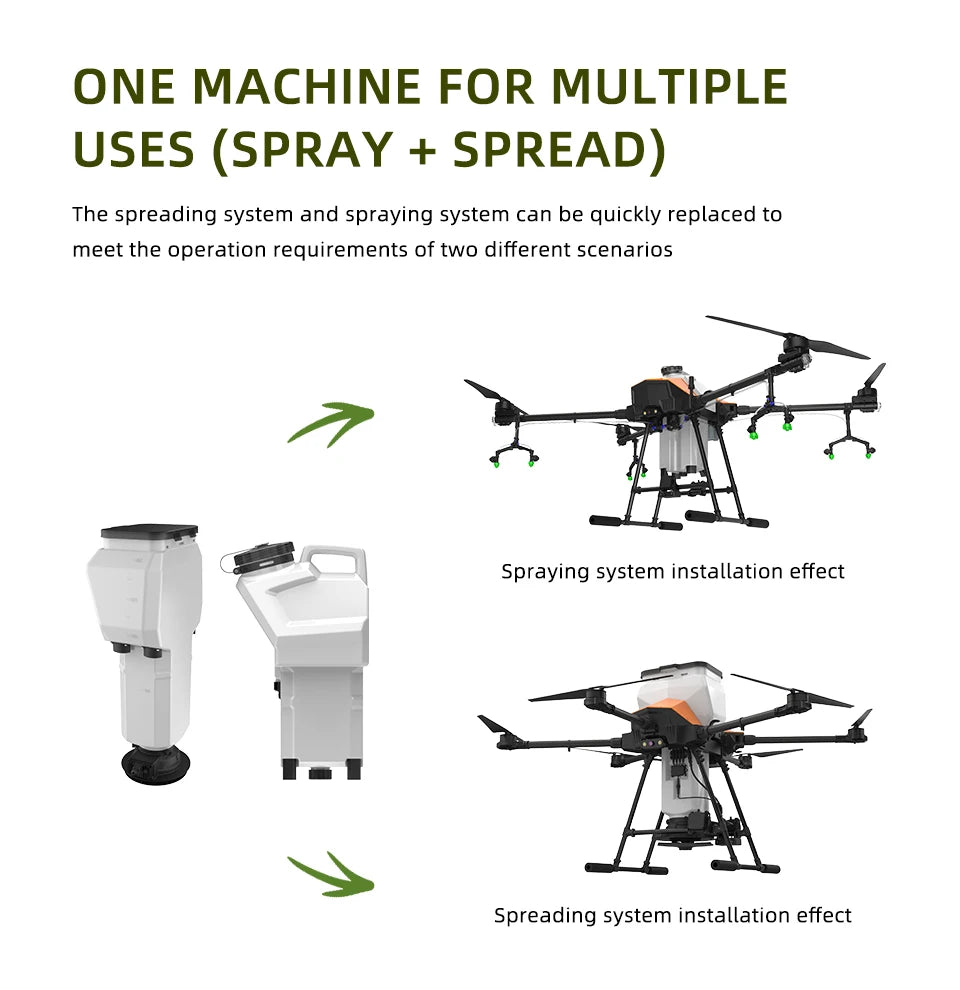

Multiple Uses (Spraying + Spreading)
The spreading system and spraying system can be quickly replaced to meet the operation requirements of the two different scenarios.

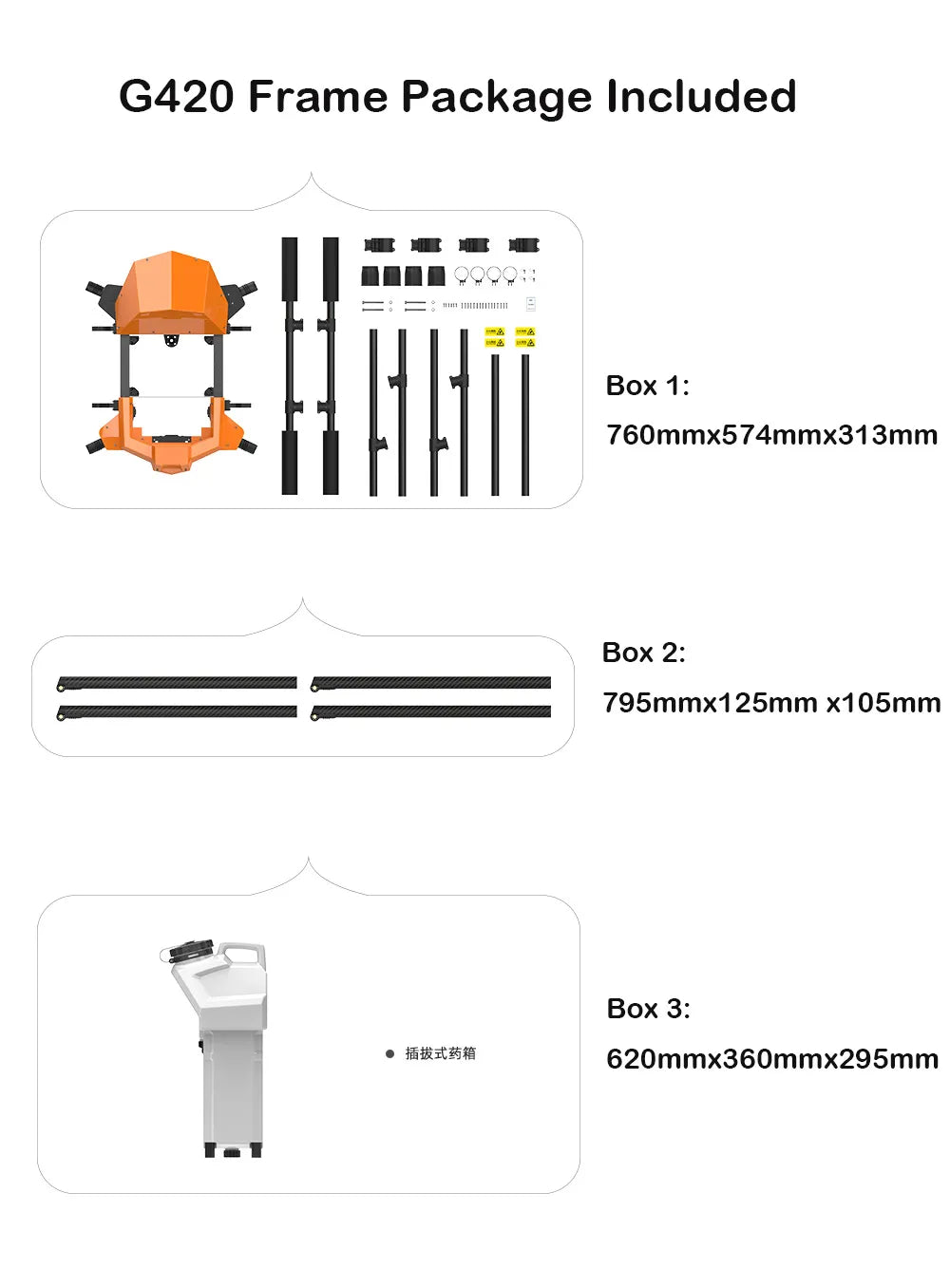

Comprehensive Packaging: G420 Frame Includes Three Boxes with Detailed Dimensions
