SPECIFICATIONS
Wheelbase: Bottom Plate
Upgrade Parts/Accessories: Frame
Tool Supplies: Assembled class
Technical parameters: KV1100
Size: As show
Remote Control Peripherals/Devices: Motor
RC Parts & Accs: Motors
Quantity: 1 pcs
Origin: Mainland China
Model Number: Mamba 220
Material: Metal
Four-wheel Drive Attributes: Motors
For Vehicle Type: Helicopters

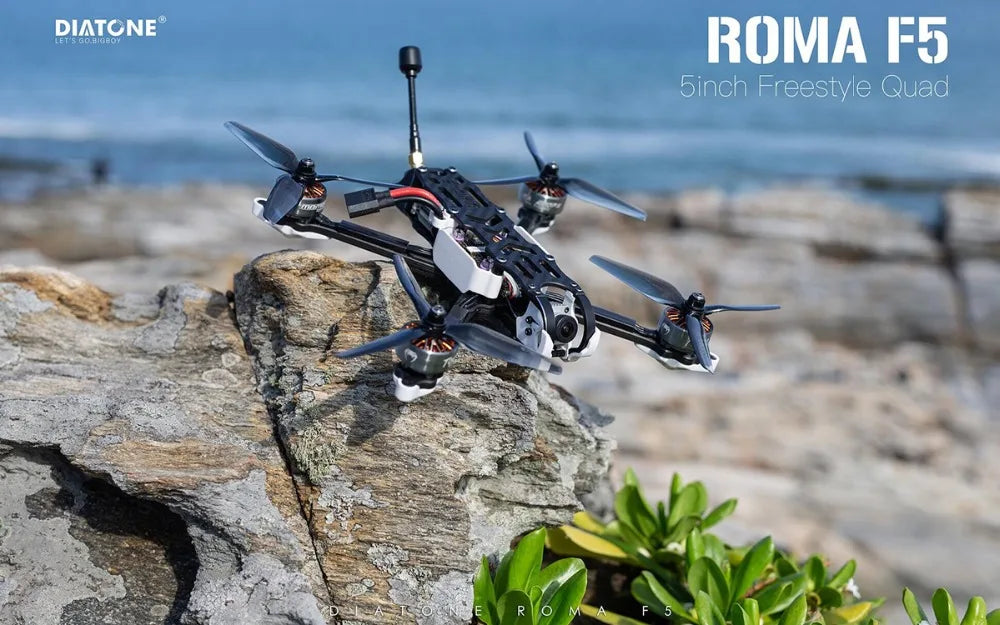

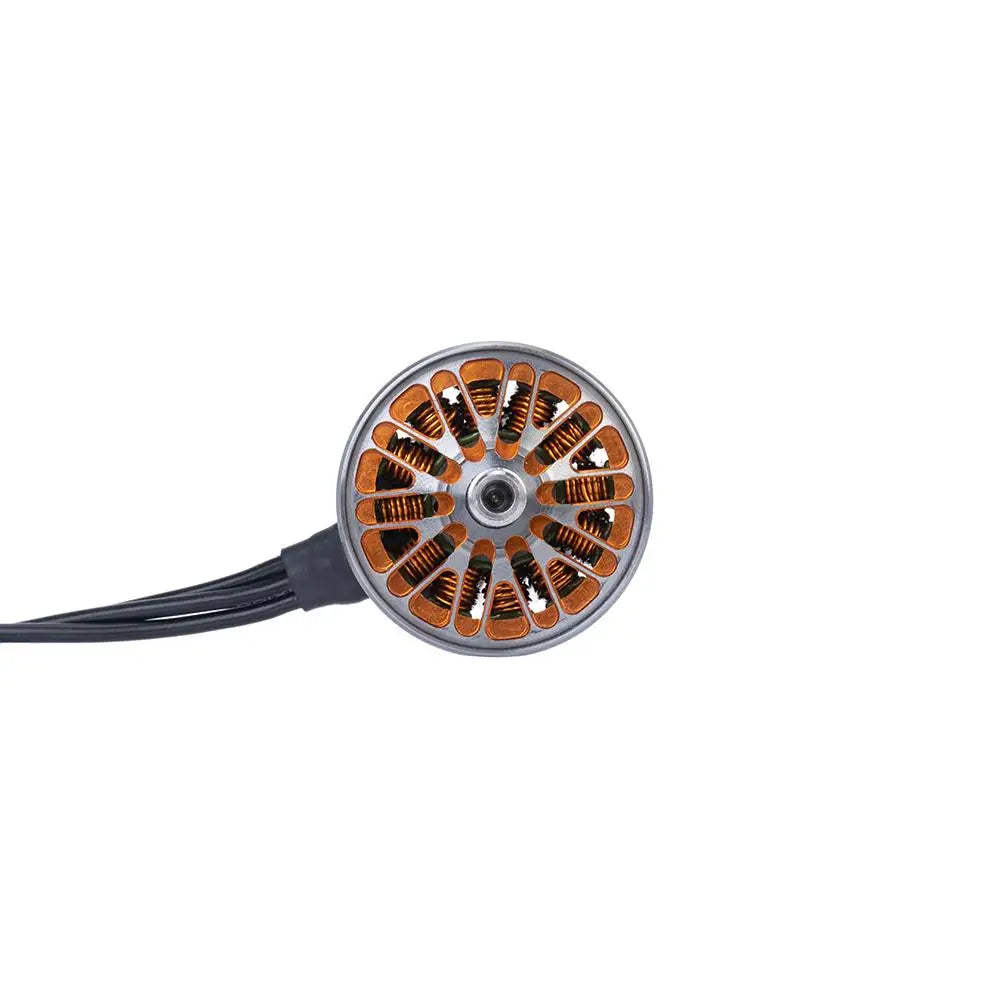

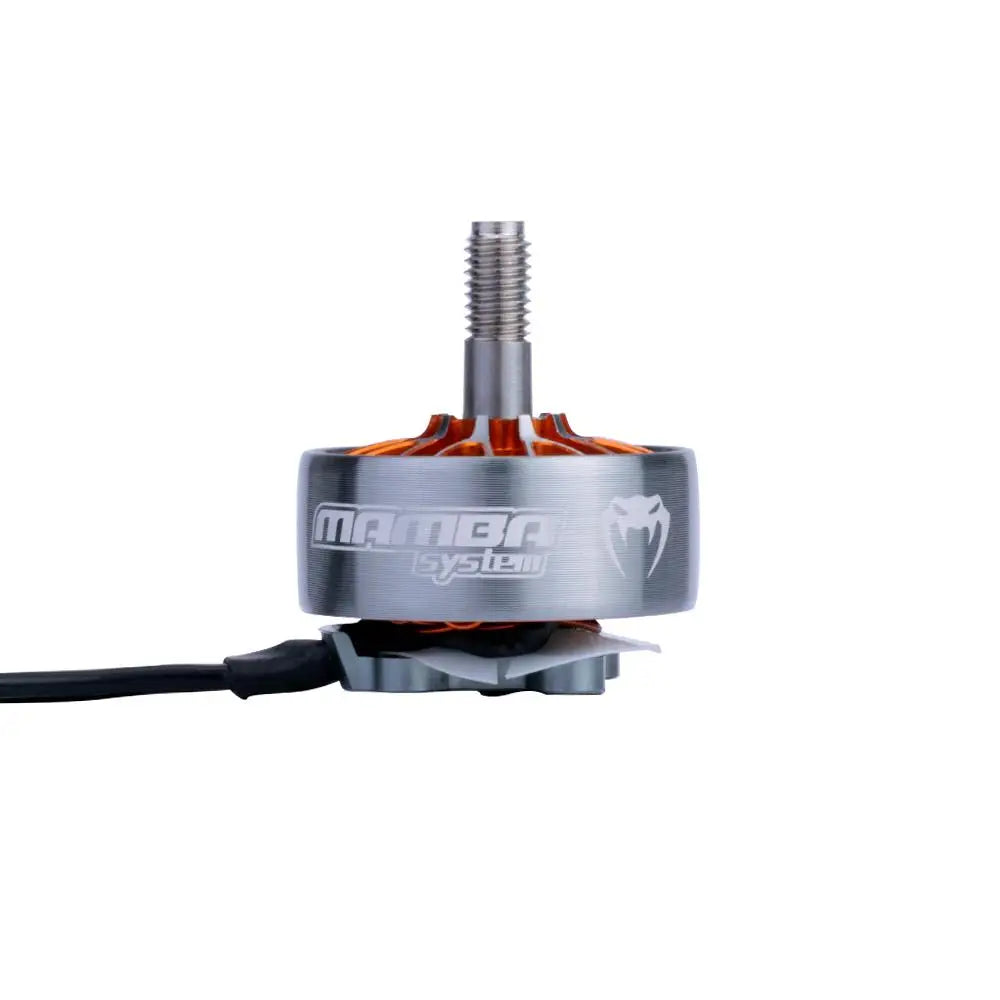

DIATONE MAMBA TOKA 2207.5 SERIES 2207 1700KV 1800KV 2450KV 2650KV 3-6S Brushless Motor for FPV Racing Freestyle Roma F5 Parts
Model:2207.5
KV:1700
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 38.5A
Maximum Power: 924W
Model:2207.5
KV:1800
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 4~6S (16.8V~25.2V)
Peak Current: 42.1A
Maximum Power: 1011W
Model:2207.5
KV:2450
Overall Dimension:Φ28.5×32.65mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 44.1A
Maximum Power: 706W
Model:2207.5
KV:2650
Overall Dimension:Φ28.5×32.5mm
prop mounting shaft diameter :M5
Installation hole position :16×16mm,M3
Prop: 5inch~6inch
Bearing: 4*9*4
Shaft Diameter:4mm
Lead Wire Size:24AWG ×190mm
slots/poles:12N14P
Magnet Wire: Class H,220℃ Enameled Wire
Stator Diamter:22mm
Stator Height:7.5mm
Rated Voltage: 3~4S (12.6V~16.8V)
Peak Current: 51.2A
Maximum Power: 819W
