SPECIFICATIONS
Wheelbase: Bottom Plate
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Mootor
Tool Supplies: Sticker
Technical parameters: Value 3
Remote Control Peripherals/Devices: ESC
RC Parts & Accs: Speed Controllers
Quantity: 1 pcs
Origin: Mainland China
Model Number: A2212 Motor and 40A ESC
Material: Composite Material
Four-wheel Drive Attributes: Motors
For Vehicle Type: Airplanes
Brand Name: Skyquist
XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz
XXD A2212 1400KV brushless outrunner motor:
– Shaft diameter: 3.17mm
– Dimension : 27.8mm x 27mm
– Recommended Propeller: 2-cells 7*3.5 , 3-cells 6×3
– Weight: 48g
XXD A2212 2200KV brushless outrunner motor:
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g
Item Name: SG90 Mini Analog Servo
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
operating voltage: 3.0-7.2V
Temperature range: -30~60
Dead band width: 7us
Item size: 3.2 x 3 x 1.2cm
Item weight: about 9g
Connector wire length: 24.5cm

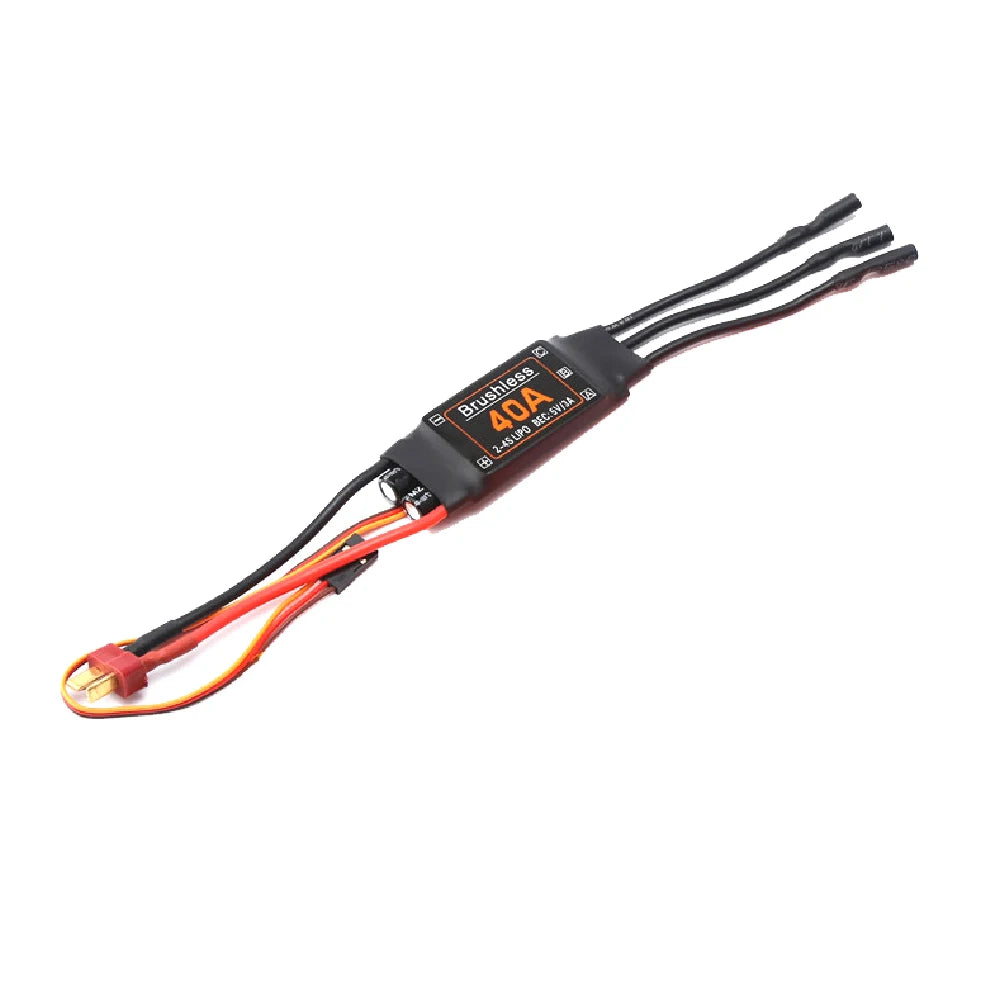

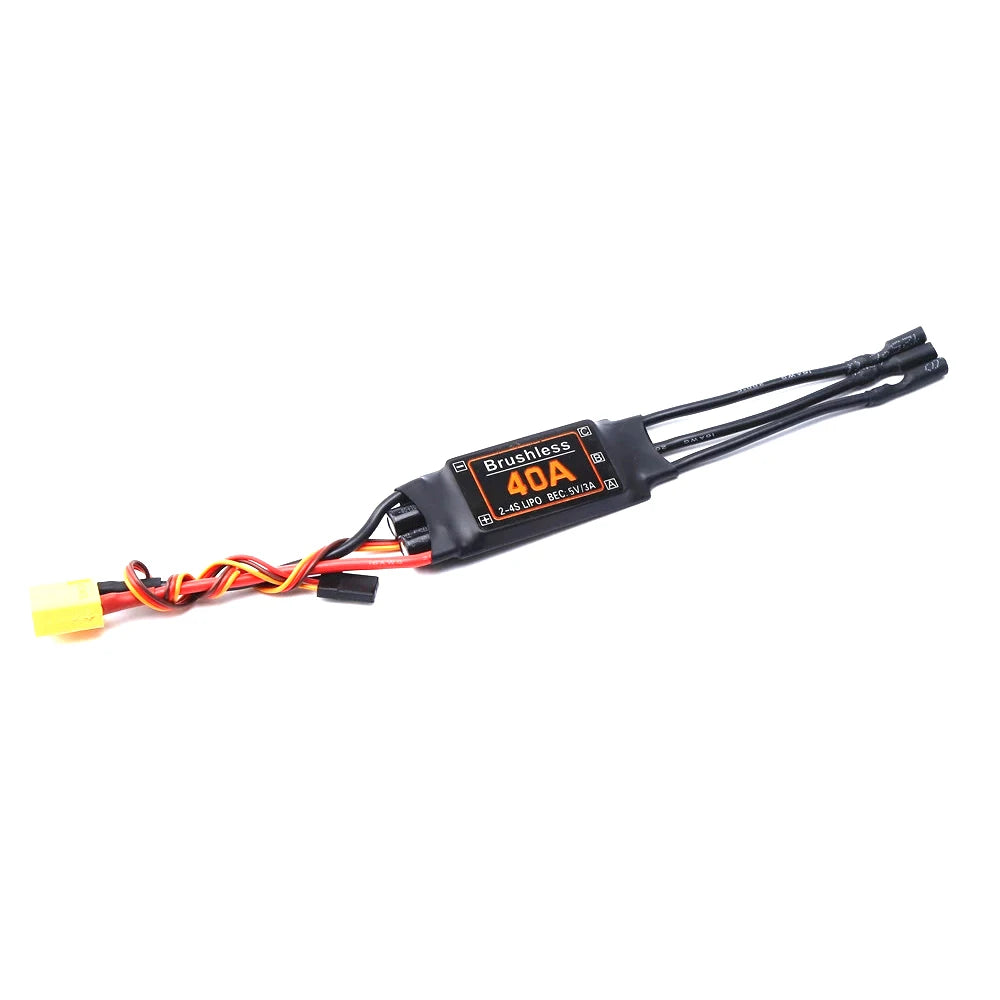

40A ESC:
Continuous / peak current: 40A/55A
Number of battery sections: 2-3S LiPo
BEC output: linear mode: 5V, 3A
Power cord: red -16AWG-100mm*1; black -16AWG-100mm*1
Output line: blue -16AWG-75mm*3
Power plug: T Plug (can be customized according to requirements)
Output plug: 3.5Mm bananer connect (female)
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz
– Shaft diameter: 3.17mm
– Dimension : 27.8mm x 27mm
– Recommended Propeller: 2-cells 7*3.5 , 3-cells 6×3
– Weight: 48g
Max Efficiency: 80%
Max Efficiency Current: 4-10A (>75%)
Current Capacity: 12A/60s
No Load Current @ 10V: 0.5A
No. Of Cells: 2-3 Li-Poly
Motor Dimensions: ?27.5 x 30mm
Shaft Diameter: ?3.17mm
Weight: 47g
Operating Speed (4.8V no load): 0.12sec/60 degrees
Stall torque: 1.2kg / 42.3oz(4.8V);1.6 kg / 56.4oz (6.0V)
operating voltage: 3.0-7.2V
Temperature range: -30~60
Dead band width: 7us
Item size: 3.2 x 3 x 1.2cm
Item weight: about 9g
Connector wire length: 24.5cm
Continuous / peak current: 40A/55A
Number of battery sections: 2-3S LiPo
BEC output: linear mode: 5V, 3A
Power cord: red -16AWG-100mm*1; black -16AWG-100mm*1
Output line: blue -16AWG-75mm*3
Power plug: T Plug (can be customized according to requirements)
Output plug: 3.5Mm bananer connect (female)
