AKK RC832 FPV Receiver SPECIFICATIONS
Brand Name: akk
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Transmitters
For Vehicle Type: Airplanes
Use: Vehicles & Remote Control Toys
Remote Control Peripherals/Devices: Receivers
Tool Supplies: Assembly Category
Technical parameters: Value 8
Model Number: RC832
Four-wheel Drive Attributes: Assemblage

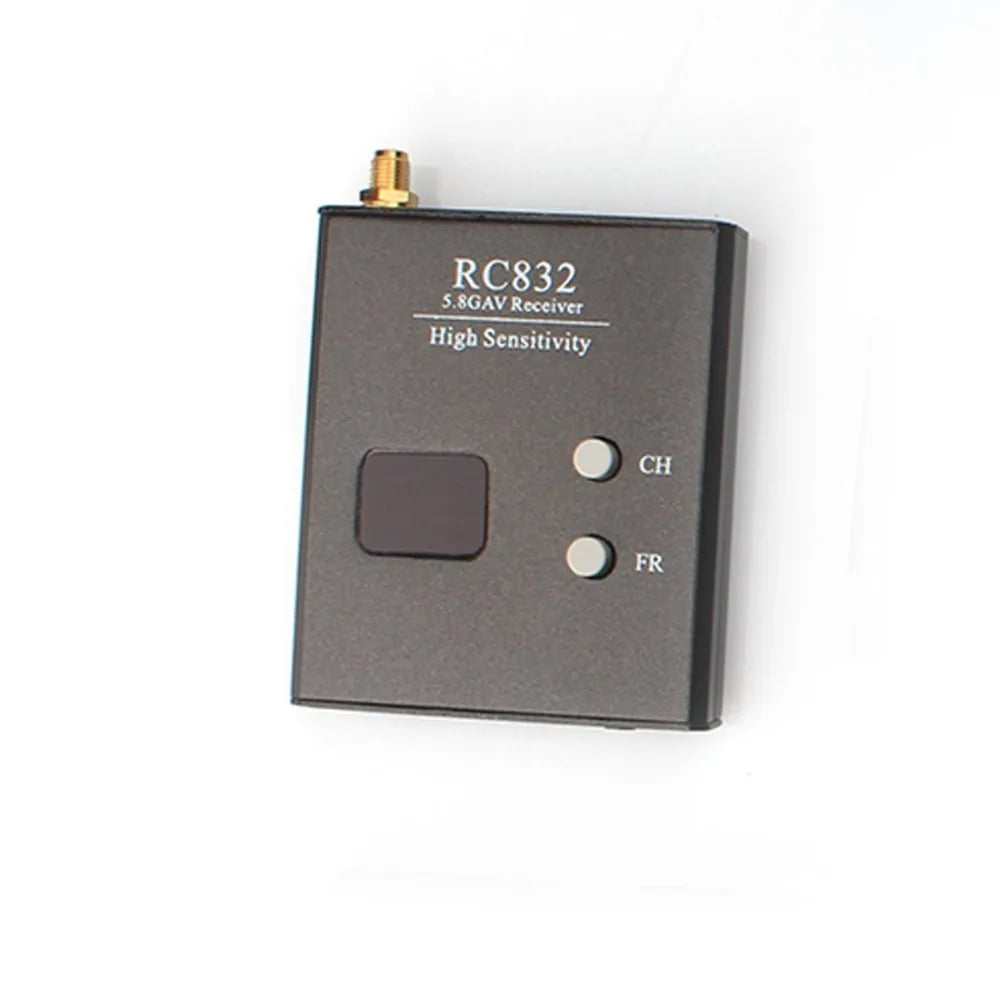

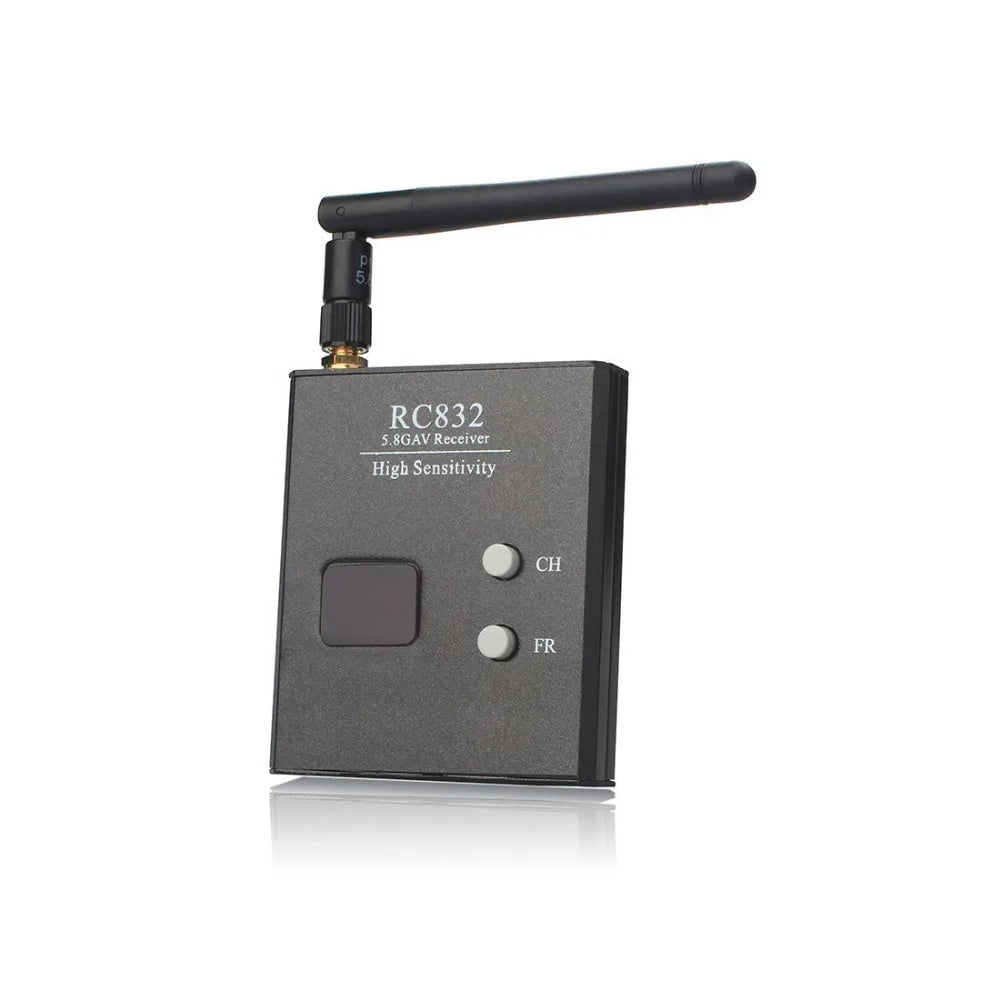

AKK 5.8G FPV 40CH RC832 Mini Receiver for Racing Drone and Multicopter
This 40 Channel 5.8GHz AV wireless receiver has high power, designed for all kinds of drones.
It supports 5 bands and all frequencies compatible
Easily Change frequency channels and bands by pressing button
Double-screen display for channels and bands

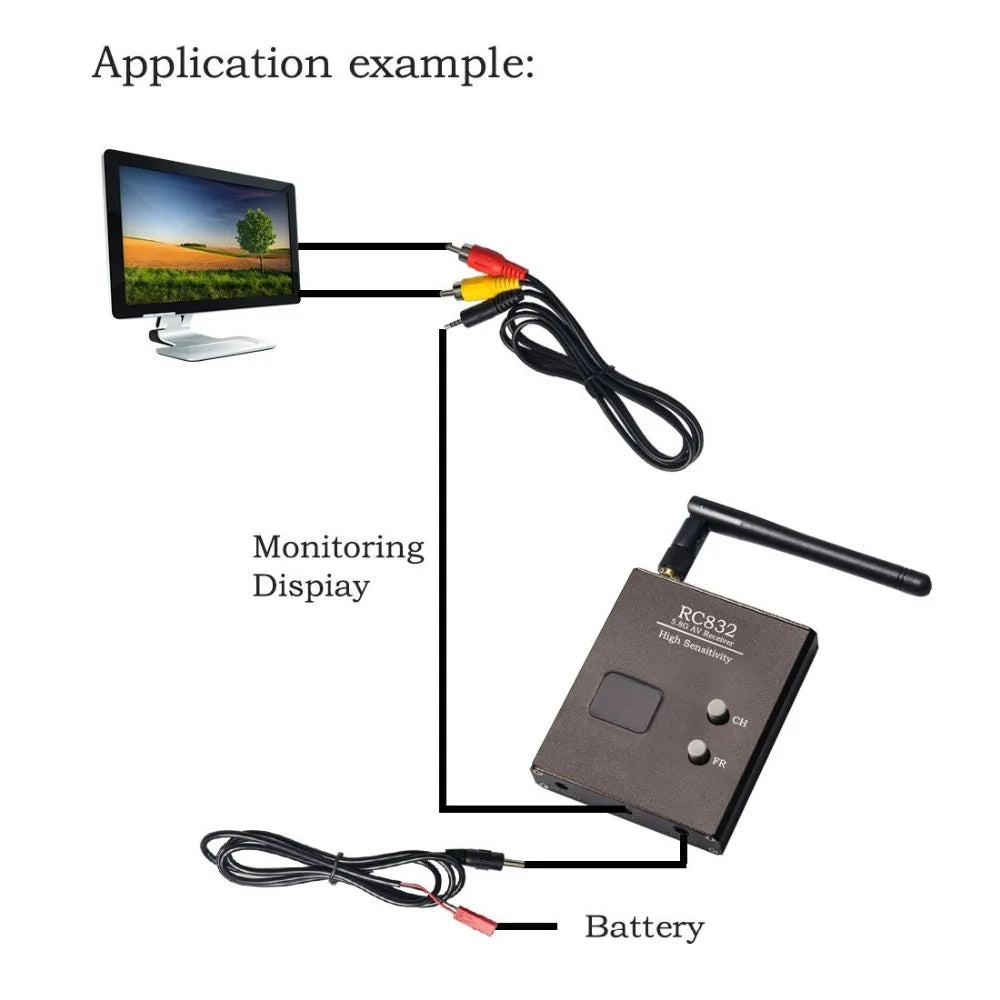

It is a Plug and play FPV receiver for Aerial Filming
Features:
40 Channel 5.8 GHz 600mW AV wireless receiver, designed for areas with too many frequencies in the air.
It supports 5 bands and all frequencies compatible. Easily Change frequency channels and bands by pressing button. Double-screen display for channels and bands.
It is a Plug and play FPV receiver for Aerial Filming.
Specification:

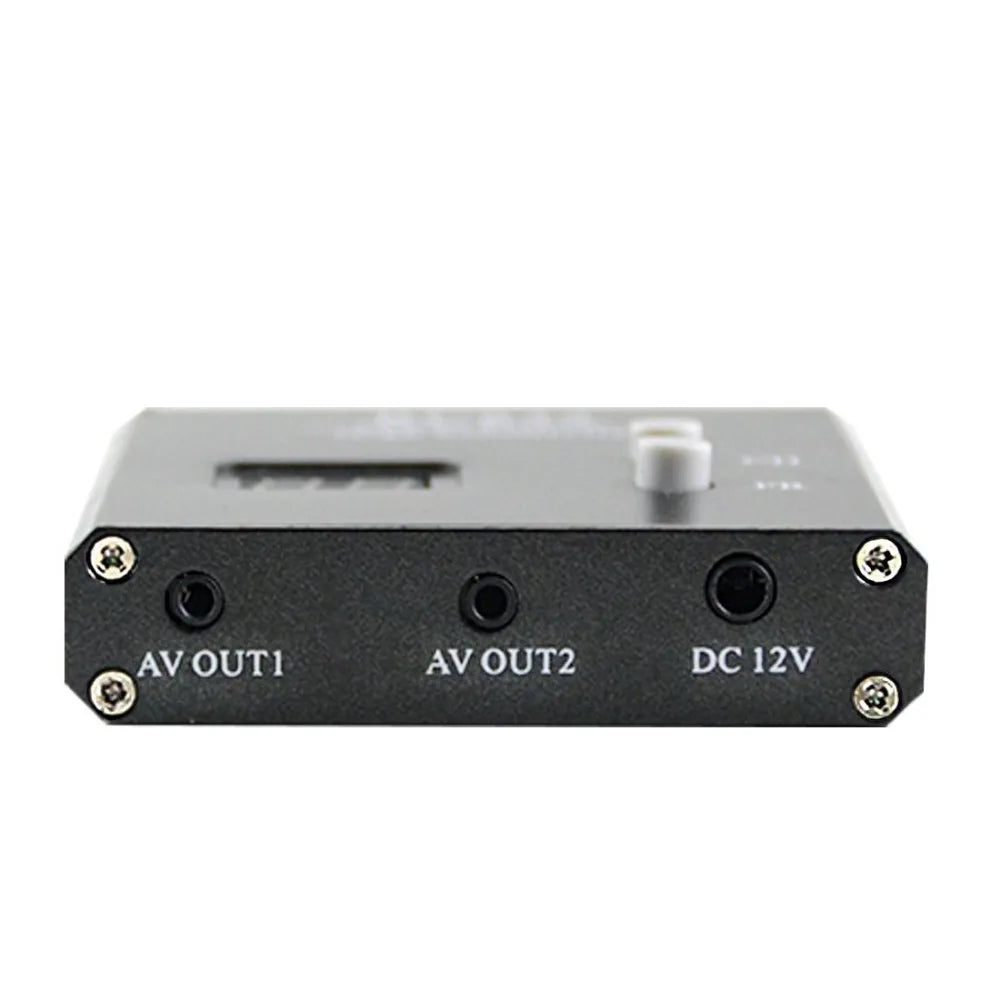

Power Supply: DC 12V
Antenna impedance: 50 Ohm
Video impedance: 75Ohm
Working Frequency: 5.8GHz
Available Channel: 40CH
Consumption Current: 200mA, Max
Antenna Gain: 2db
Antenna Connector: RP-SMA
Audio Carrier: 6.5MHz
Video Format : NTSC/PALDimension: 80x65x15mm
Weight: 85gPackage:

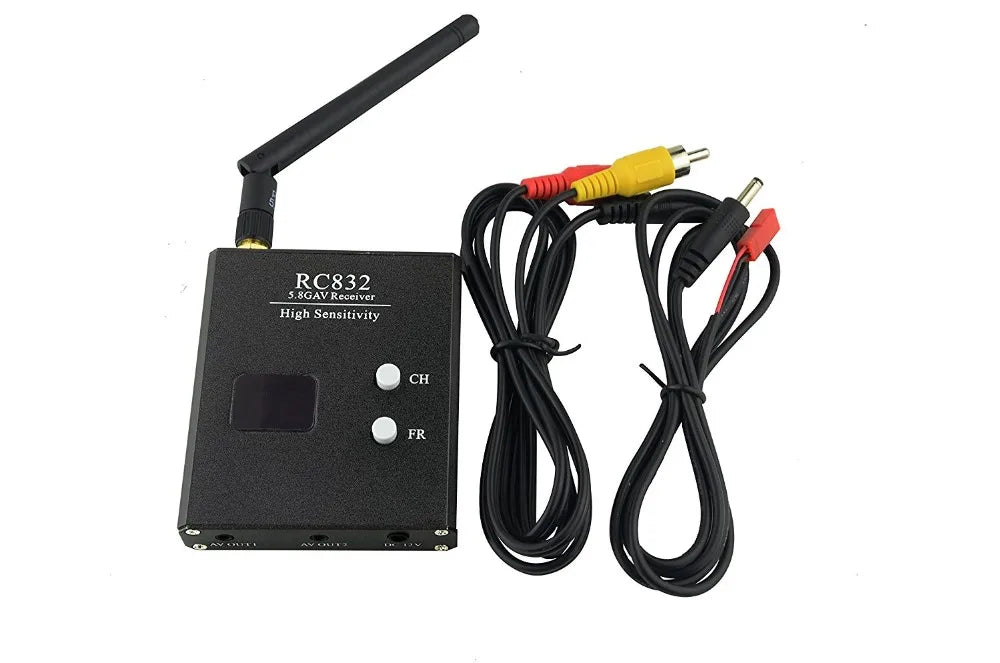

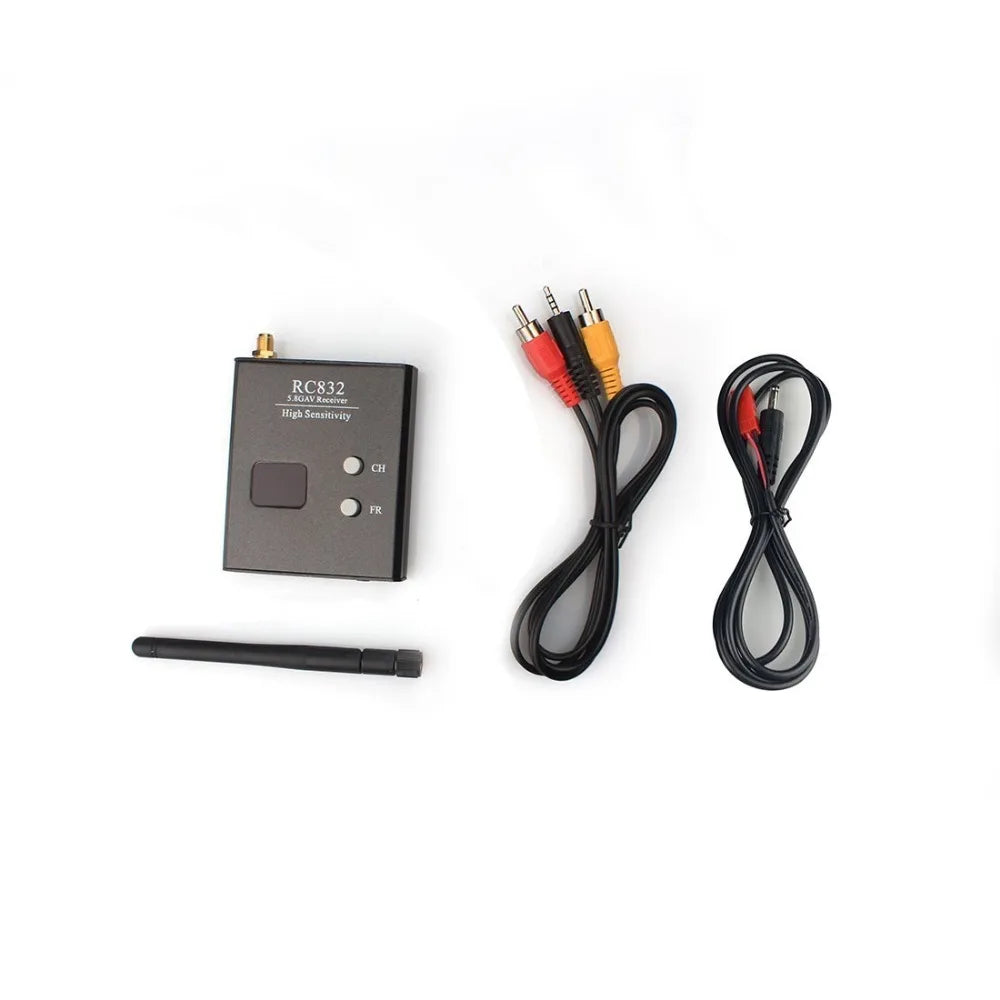

1 x RC832 5.8GHz 40CH FPV Receiver
1 x Antenna
1 x Power cable1 x User manual
1 x AV cable
Notice:
Please get a 12V lipo battery for the receiver. We do not suggest over-voltage battery or car battery.

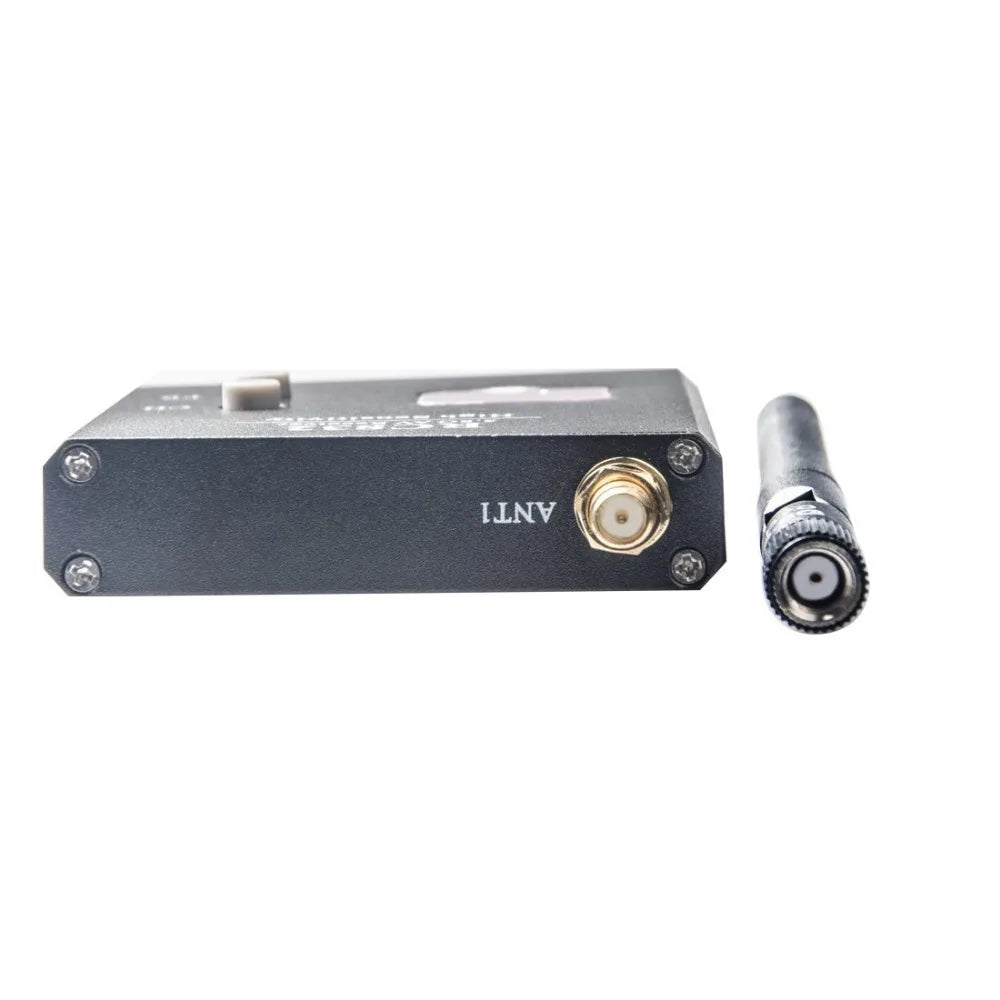

Please plug antenna before powering up, otherwise static electricity will damage the product.
