A2212 1000KV KV1400 2200KV A2208 محرك خارجي بدون فرش + 30A ESC + 1045 مجموعة المروحة رباعية الدوار لطائرة RC متعددة المراوح

$10.59

+ Free Shipping
- +

Regional payment methods

Payssion regional payment methods
رمز المنتج: غير محدد التصنيف:
Ask for more info

SPECIFICATIONS

Wheelbase: Screws

Use: Vehicles & Remote Control Toys

Upgrade Parts/Accessories: Gear

Tool Supplies: Cutting

Technical parameters: Value 7

Remote Control Peripherals/Devices: ESC

Recommend Age: 12+y

RC Parts & Accs: Engines

Origin: Mainland China

Model Number: Motor+ESC 30A

Material: Metal

Four-wheel Drive Attributes: Motors

For Vehicle Type: Airplanes

Brand Name: Skyquist

Li-xx(Li-ion or LiPo) / Ni-xx


Safety arming feature: regardless the throttle stick position, the motor will not spin after battery connected.
Throttle calibration: throttle range can be configured to provide best throttle linearity, fully compatible with all market available transmitters.
Programmable items:
Brake setting: brake enabled / brake disabled.
Battery type: Li-xx(Li-ion or LiPo) / Ni-xx(NiMh or NiCd).
Low voltage protection mode (cutoff mode): gradually reduce the output power / cutoff the output power.
Low voltage cutoff protection threshold (cutoff threshold): low / medium / high.
Start mode: normal / soft / very soft.
Timing: low / medium / high.
Reset: reset all the programmable items to their default settings.
Full protection features: low voltage cutoff protection / over-heat protection / throttle signal lost protection.

Specifications:

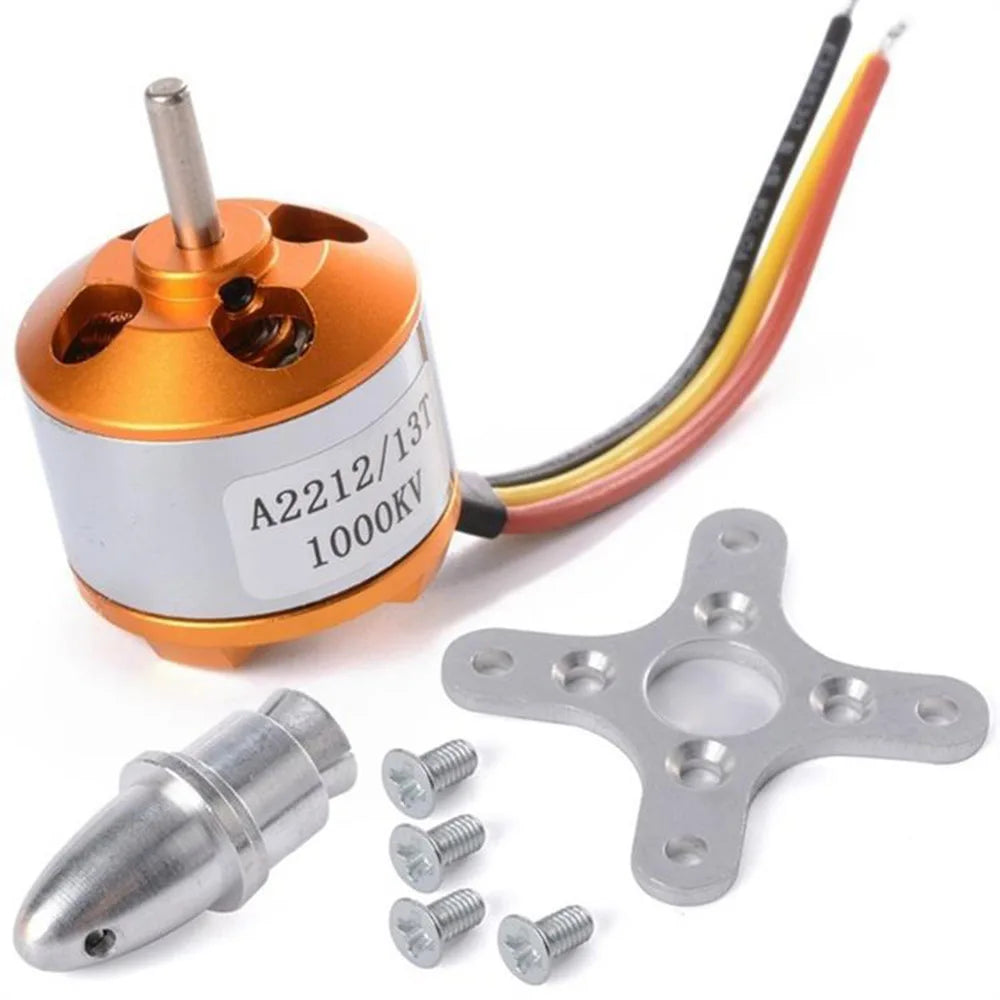

XXD A2212 1000KV brushless outrunner motor:
KV: 1000
Max. efficiency: 80%
Max. efficiency current: 4-10A (>75%)
Current capacity: 12A/60s
No Load current @ 10V: 0.5A
No. of cells: 2-3 Li-Poly
Motor size: 27.5 * 27mm / 1.1 * 1.1in
Shaft diameter: 3.17mm / 0.1in
Weight: 48g / 1.7oz

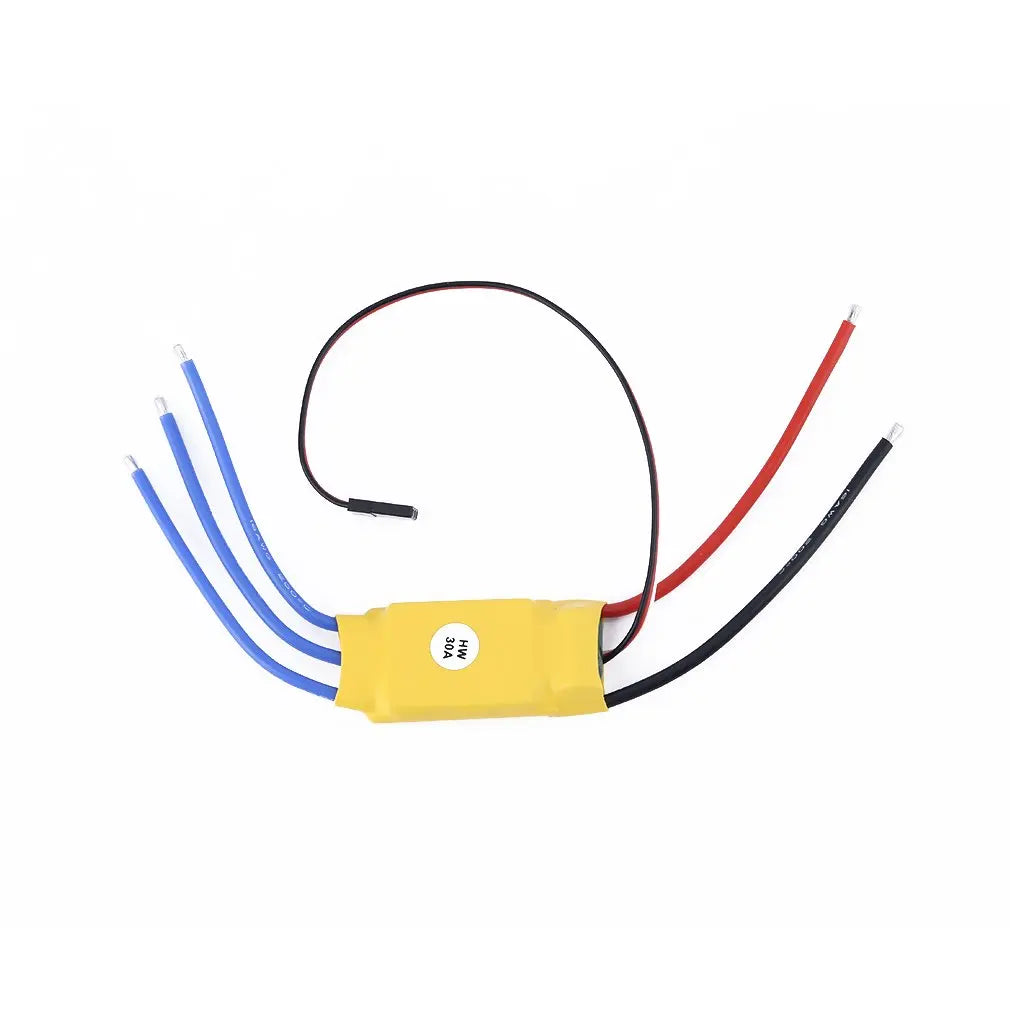

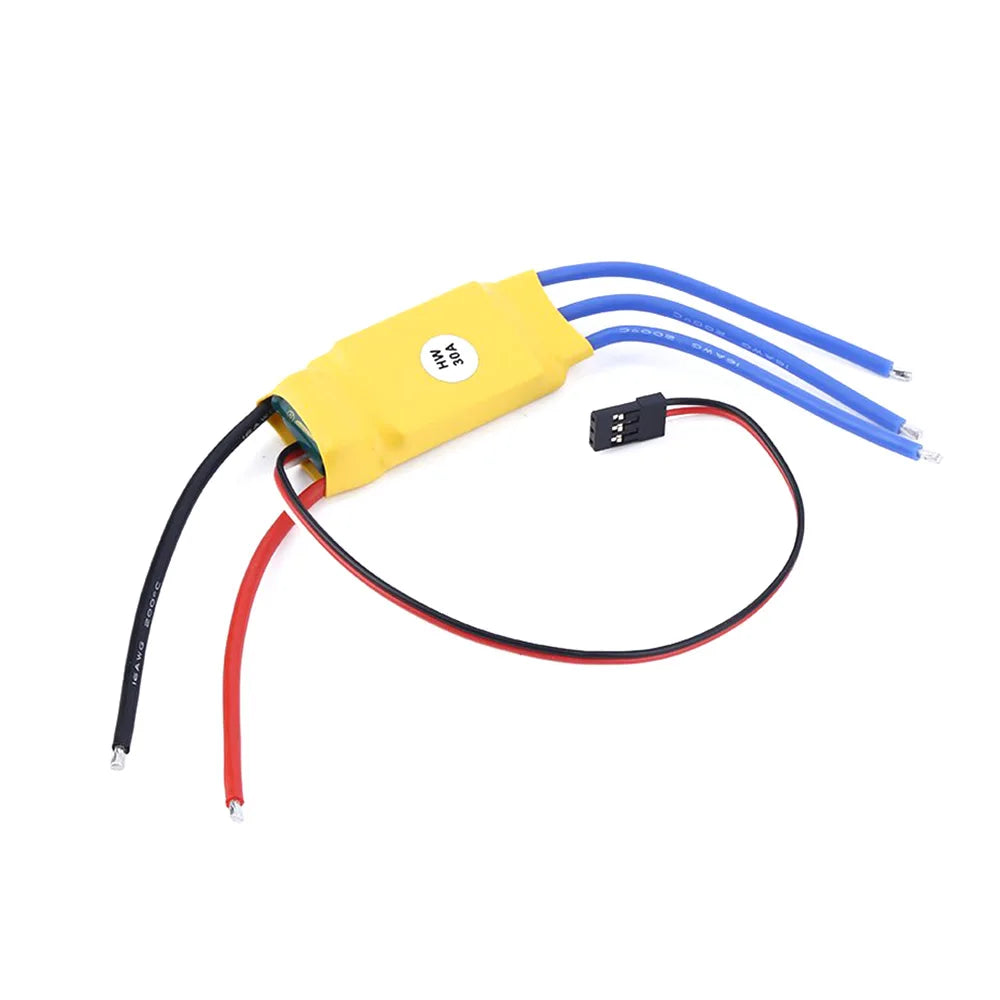

30A Brushless ESC:
Output: Continuous 30A, burst 40A up to 10 Secs.
Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery
BEC: 2A / 5V (Linear mode).
Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: Brushless Motor)
Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in
Weight: 25g / 0.9oz

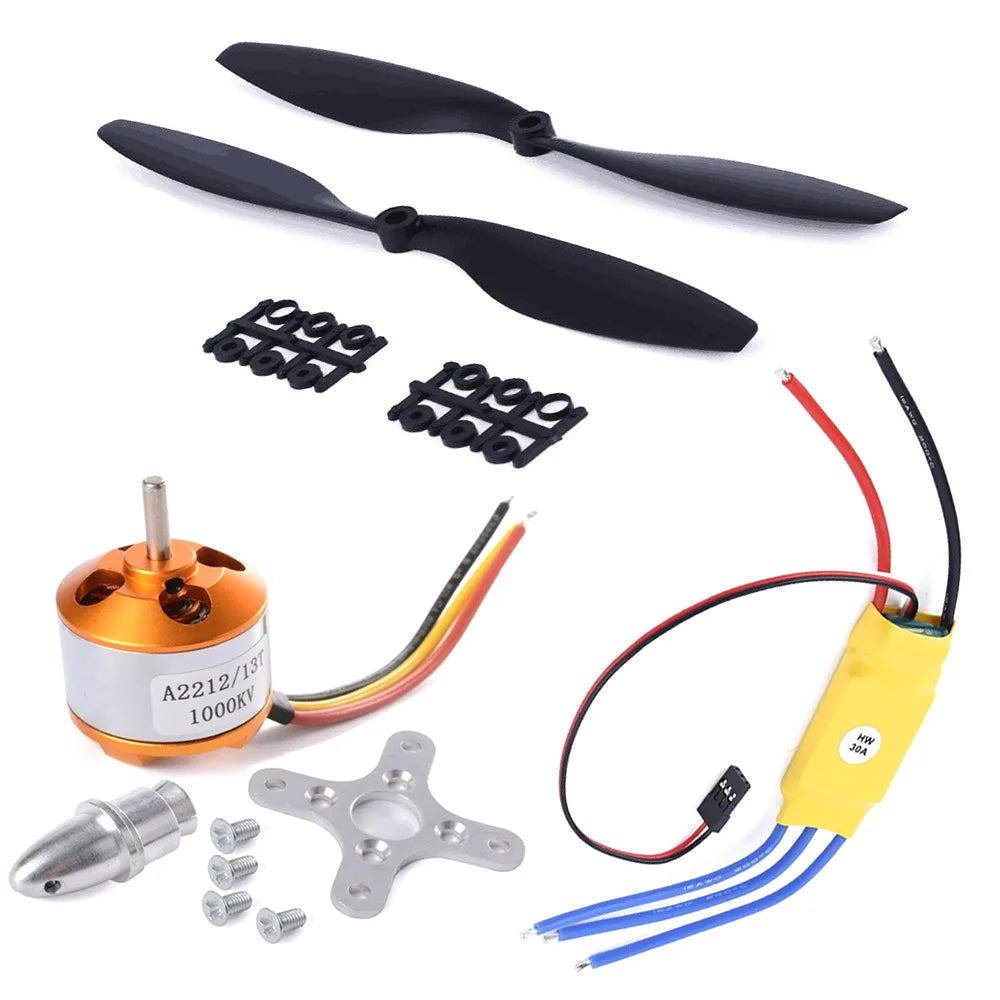

Packet content:
100% Brand New
1 * A2212 1000KV Brushless Outrunner Motor with Mounts
1 * 30A Build-in BEC 2A Brushless ESC
1 * Pairs of 1045L/R Propellers (Black)

motor size: 27.5 * 27mm / 1.1 * 1.1in Shaft diameter

100% Brand New 1 * A2212 1000KV Brushless Outrunner Motor with Mountsfull protection features: low voltage cutoff protection / over-heat protection .Reset: reset all the programmable items to their default settingsspeed: 210,000rpm for 2 poles BLM, 70,000rpm .Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIM
Color

A2212 KV2450 40A ESC, A2212 KV2700 40A ESC, A2208 KV2600 40A ESC, A2208 KV1100 30A ESC, A2212 KV2200 40A ESC, A2208 KV1400 30A ESC, A2212 KV2450 30A ESC, A2212 KV2700 30A ESC, A2208 KV2600 30A ESC, A2212 KV2200 30A ESC, A2212 KV930 30A ESC, A2212 KV1000 30A ESC, A2212 KV1400 30A ESC
