SPECIFICATIONS
Brand Name: ACASOM
Item Type: Antenna
Origin: Mainland China

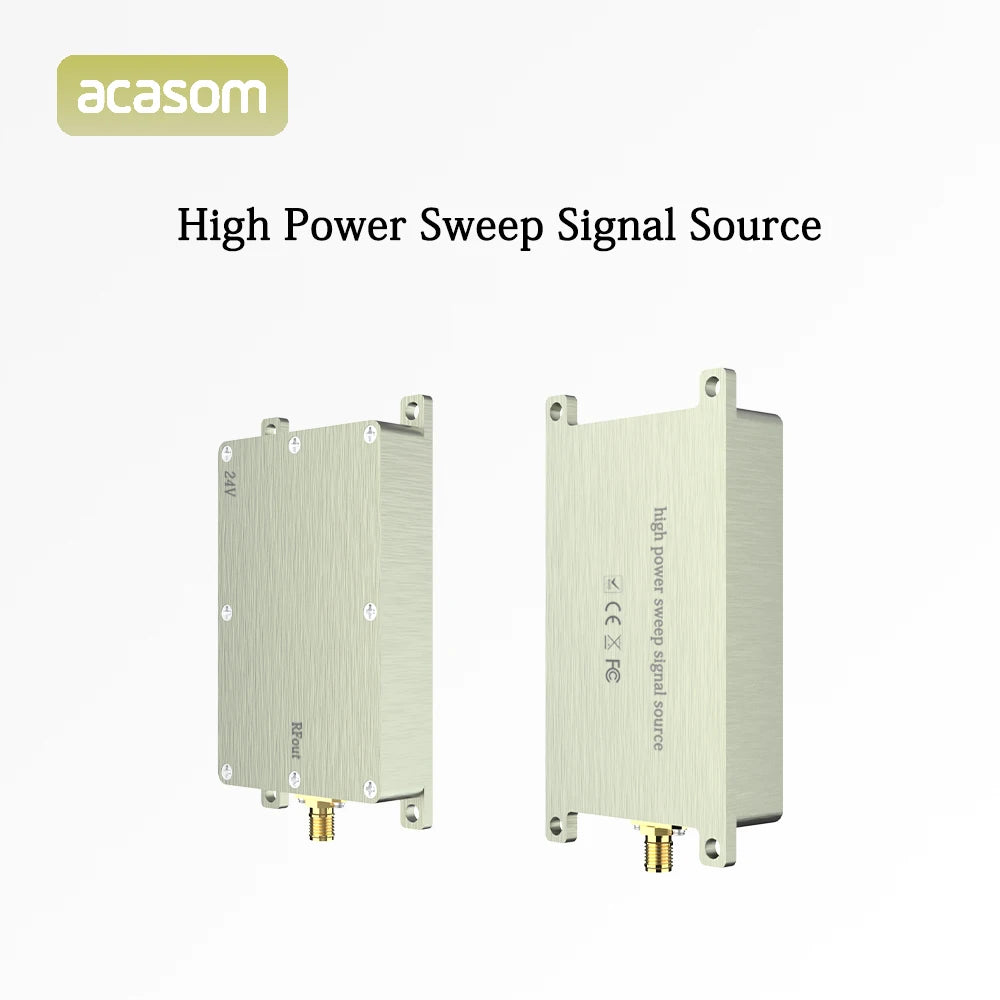

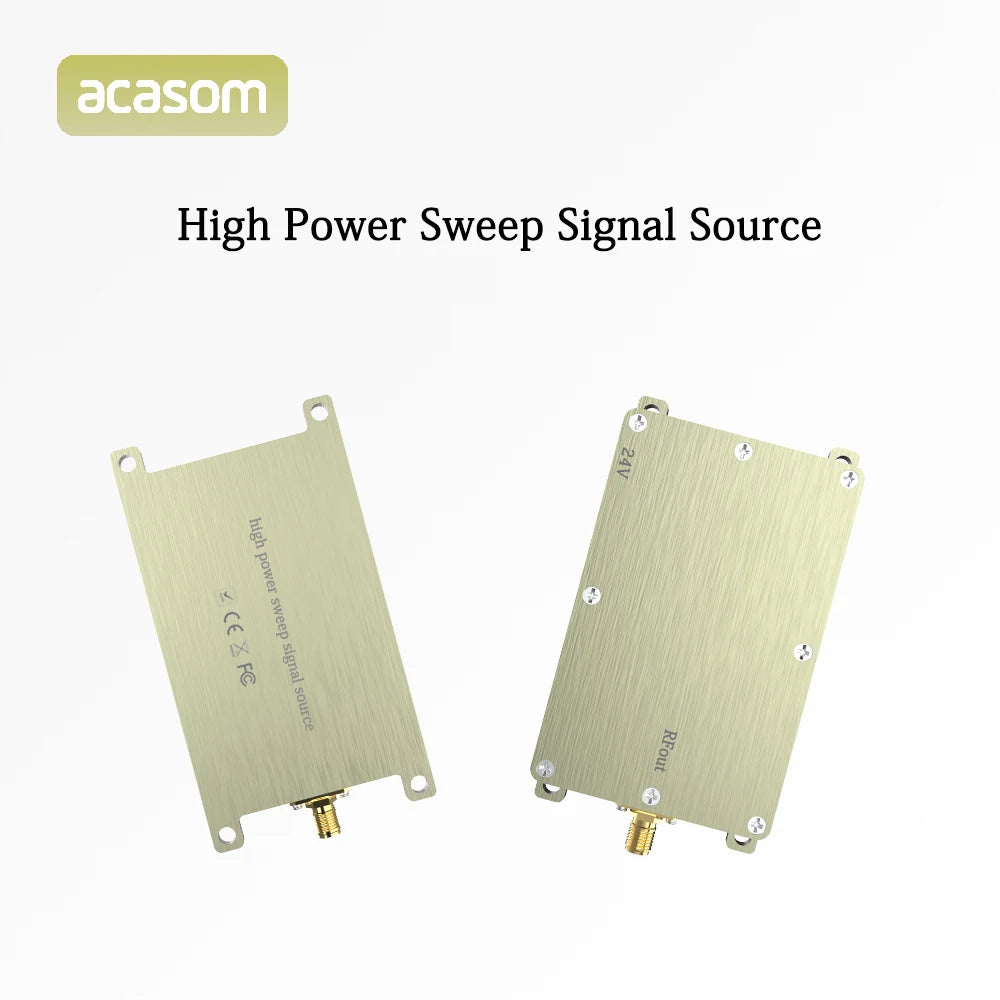

ACASOM 700MHz 830MHz 960MHz 1100MHz Sweep Signal Source FOR Anti-WiFi/FPV/Drone
High Power VCO For Blocking Drone Flying
Frequency Band Choice1：700MHz-830MHz
Frequency Band Choice2：830MHz-960MHz
Frequency Band Choice3：960MHz-1100MHz
RFOUT POWER1=47dBm（50W）
RFOUT POWER2=43dBm（20W）
Also Have 10W AND 40W
ACASOM accept customizing the power you need！
Number | Items | Specifications |
1 | Frequency Range | 700-830MHz |
2 | Operating Voltage | 28V |
3 | Flatness | ±0.5dB |
4 | Output Power | 47dBm |
5 | Current | 4.2A@47dBm 28V |
6 | Efficiency | 42%@43dBm |
7 | LED State | Red |
8 | Operating Temperature | -30℃～85℃ |
9 | Storage Temperature | -40℃～150℃ |
10 | Operating Humidity | ＜95%RH |

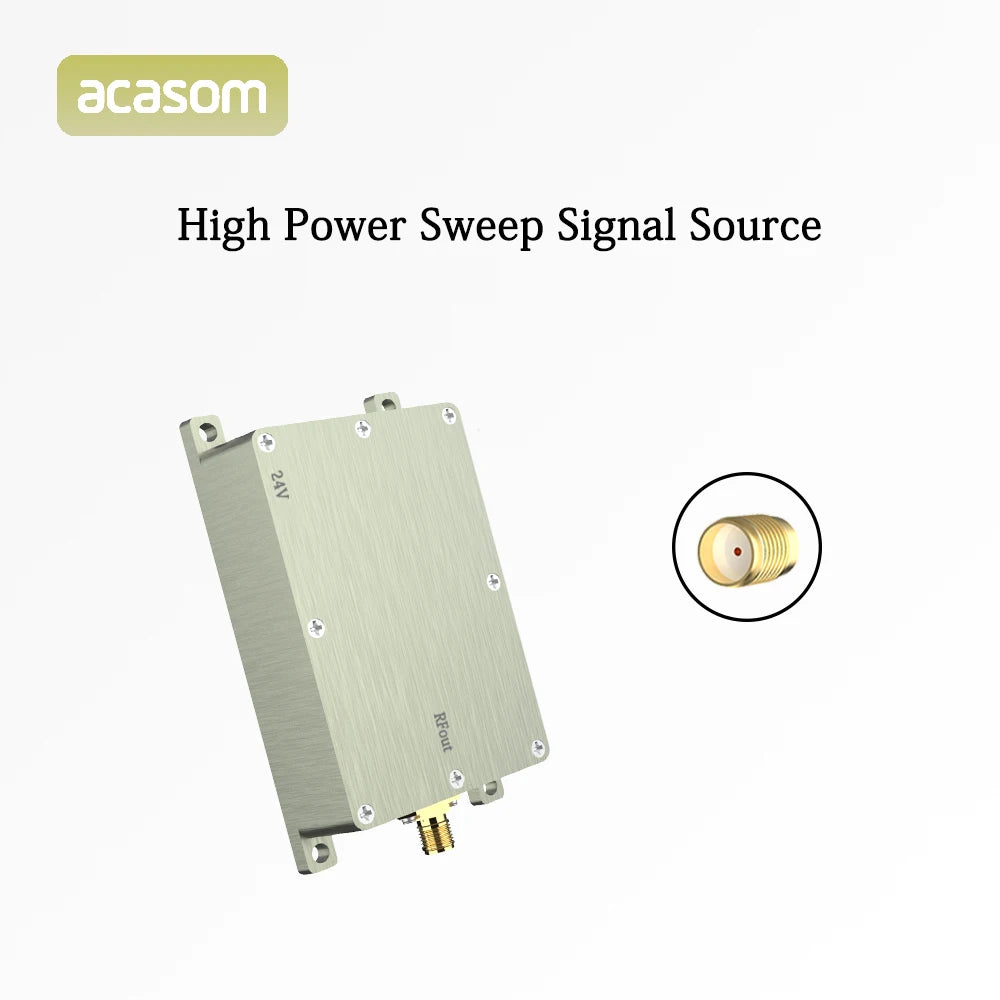

11 | RF Connector | Output: SMA-F |

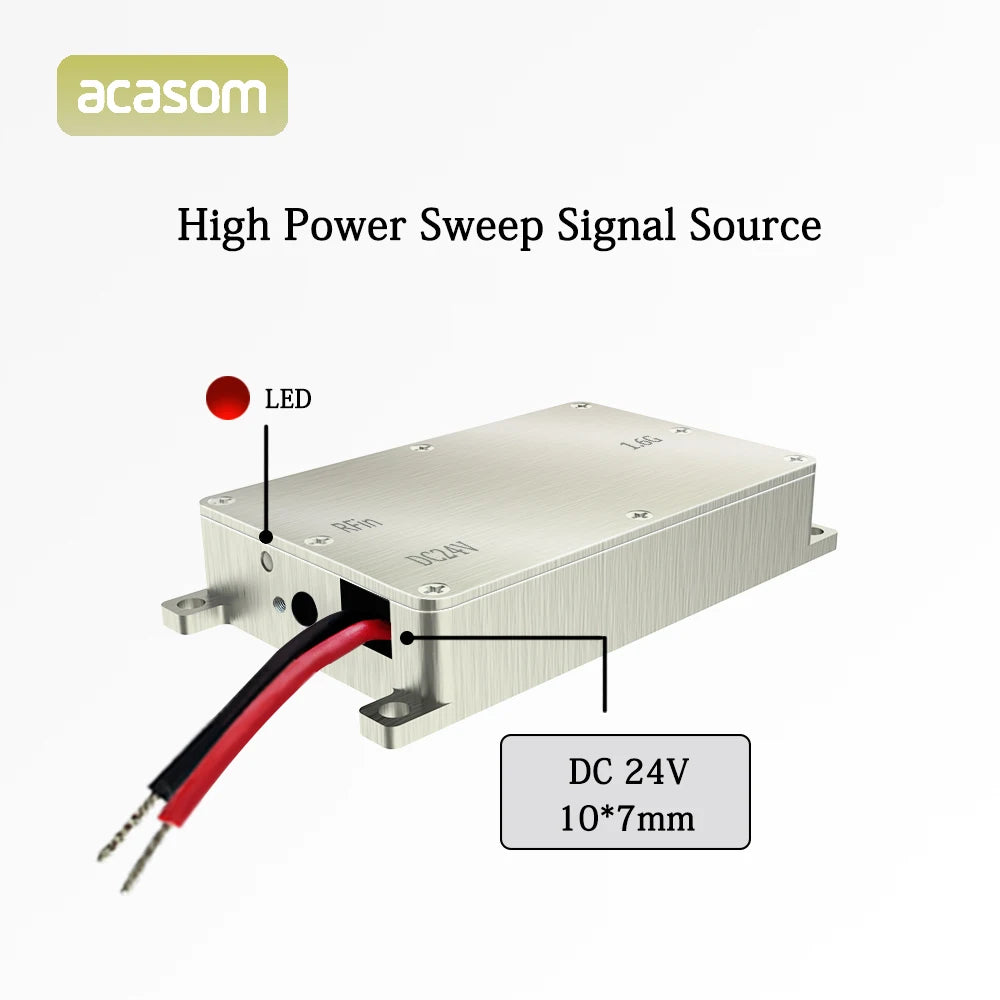

12 | Power Socket | 15cm red/black wire |
13 | Shell Material | Aluminum |

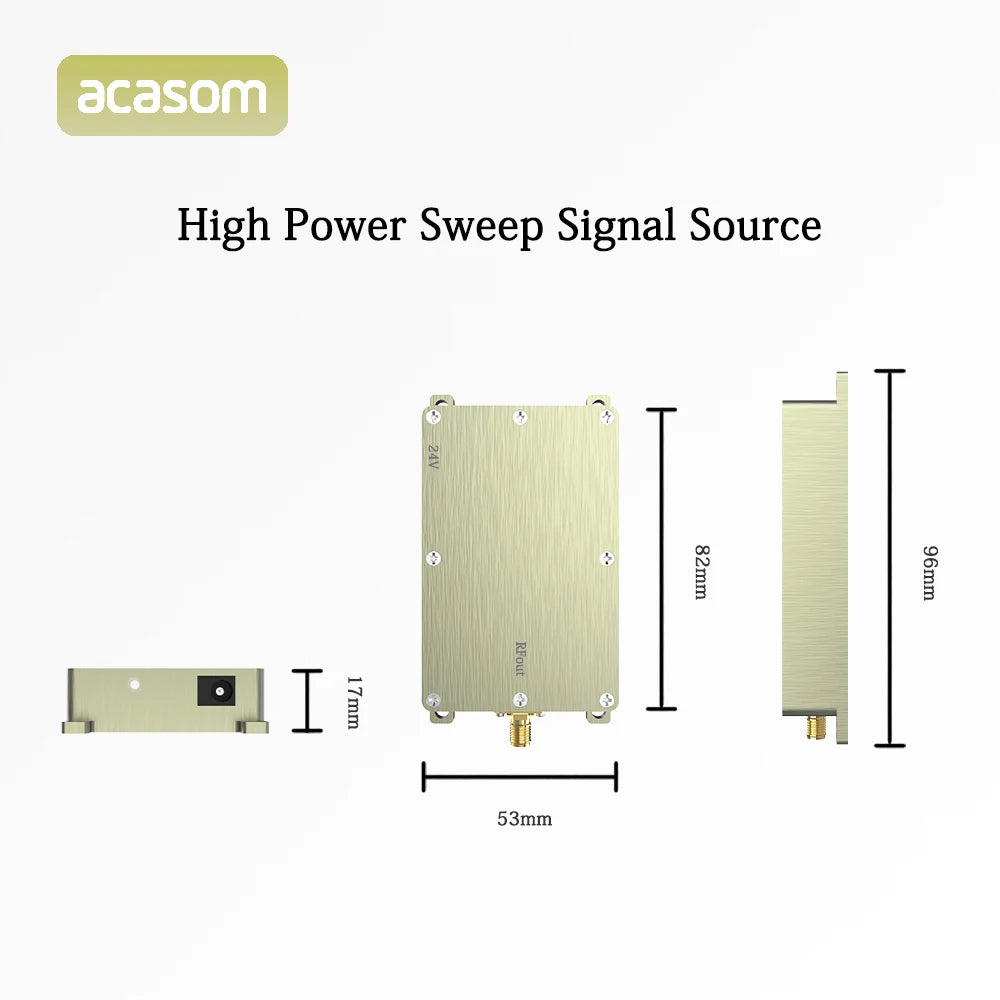

14 | Shell Size | 96*53*17mm |
15 | Net Weight | 0.15Kg |
1 28V /10A power supply.
2 Heat dissipation is recommended, such as adding heat sink or radiator fan.
3 Antenna should be screwed first, then plug the power adapter.
1* Sweep Signal Source
1: Standard express has a certain risk of getting lost. For products with higher value, we recommend to choose fast commercial express, we will also provide very favorable price, please contact us for specific express price.
2: We do not guarantee delivery time on all international shipments due to differences in customs clearing times in special countries. Please note that buyers are responsible for all additional custom fees, duties, and taxes for importation into your country. We will not refund shipping charges for reused shipments.
3: Because some countries have strict regulations on the import of such products, such as Brazil, Russia, Germany, etc., please make sure whether individual could import the product in your country, or if you have the qualification to import the product. The buyers are responsible for the lost if the goods are detained by the customs.
