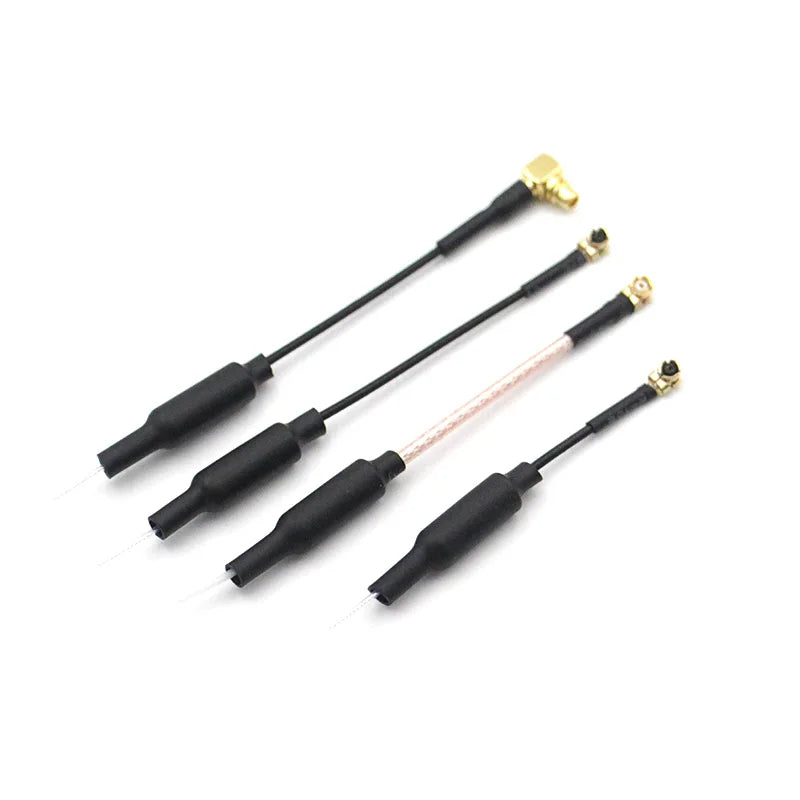

Sparkhobby 5.8G Image Transmission Copper Tube Antenna SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Tool Supplies: Assembled class
Recommend Age: 18+
RC Parts & Accs: Antennas
Origin: Mainland China
Model Number: 5.8GHz
Material: Composite Material
For Vehicle Type: Airplanes
Brand Name: SPARKHOBBY
Item: 5.8G Image Transmission Copper Tube Antenna
Parameters:
| Port | Total Length | Steel Tube Length | Steel Tube Diameter | Weight(g) |

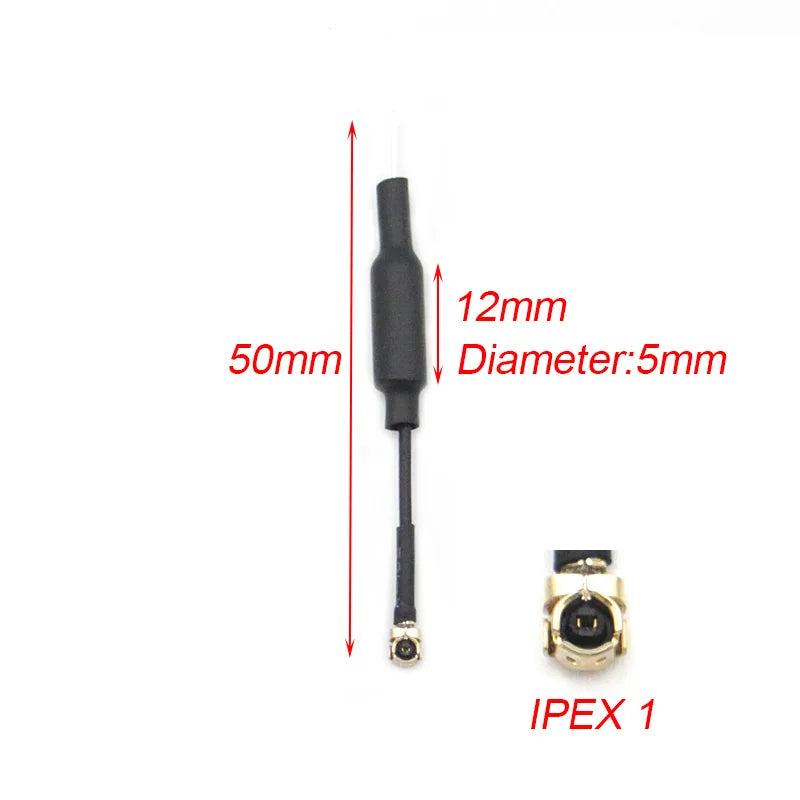

| IPEX 1 | 50mm | 12mm | 5mm | 0.5 |

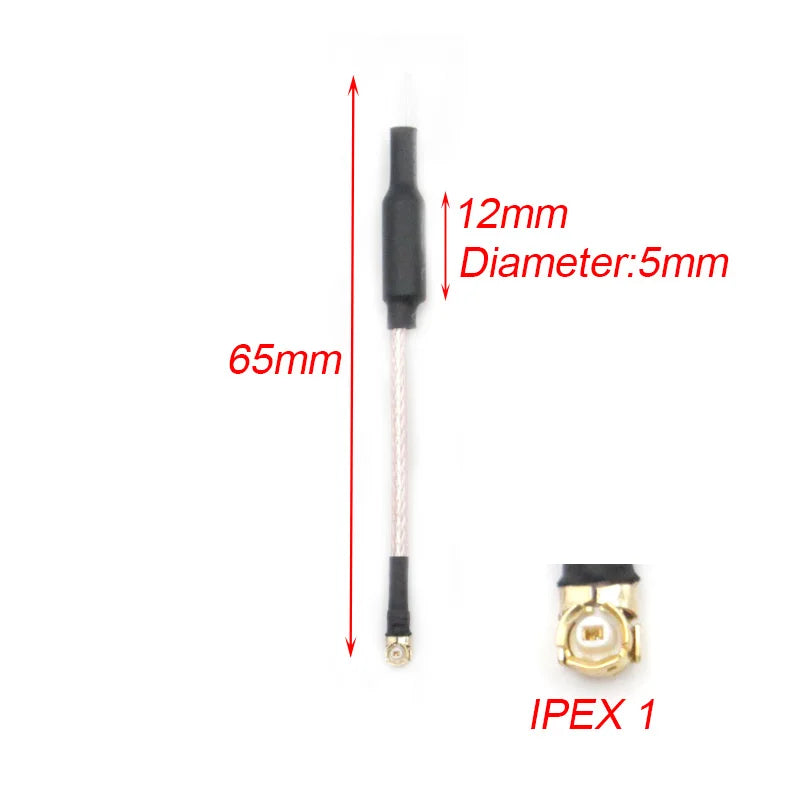

| IPEX 1 | 65mm | 12mm | 5mm | 0.8 |

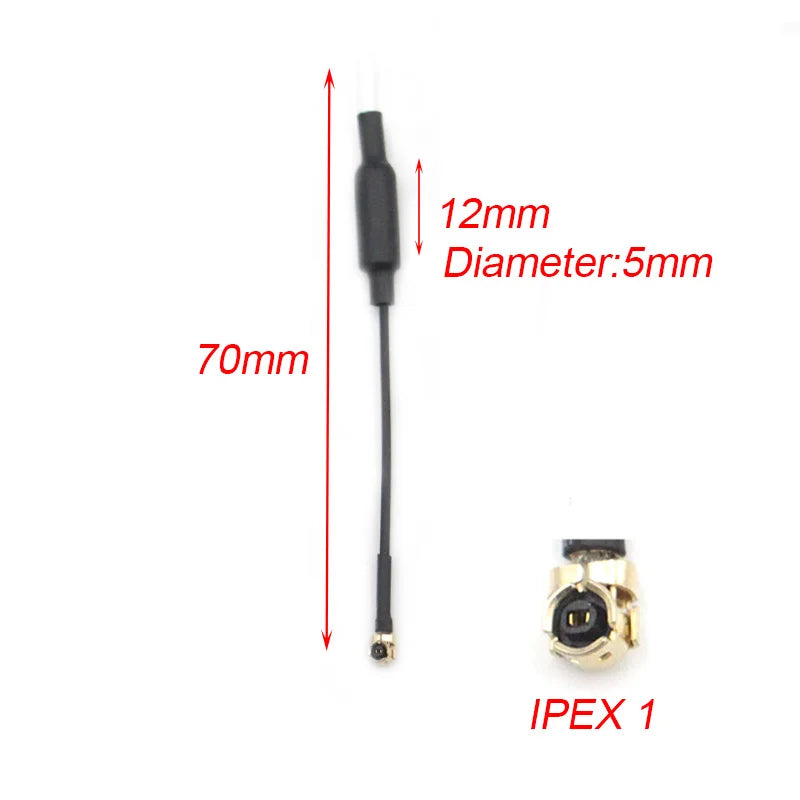

| IPEX 1 | 70mm | 12mm | 5mm | 0.6 |

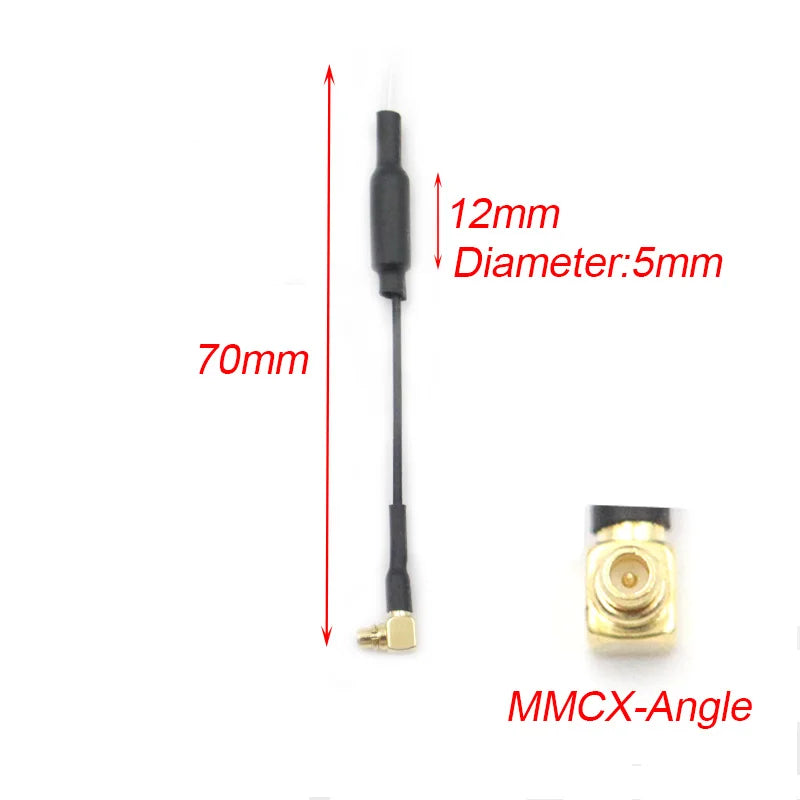

| MMCX Angle | 70mm | 12mm | 5mm | 1.1 |
- Frequency Range (MHz):5150-5850
Input Impendence (Ω):50
V.S.W.R:≤1.5
Gain (dBi):2.0
Antenna Length (mm):50/65/70
Radiator: Cuprum
Connect Type: MMCX/UFL - Package Included:
- 5.8G Image Transmission Copper Tube Antenna x 5pcs (Model optional)
