Product parameter：

Wheelbase: 230mm
Props: 5 inch 2-blade propeller
Material: T700 high-strength carbon plate

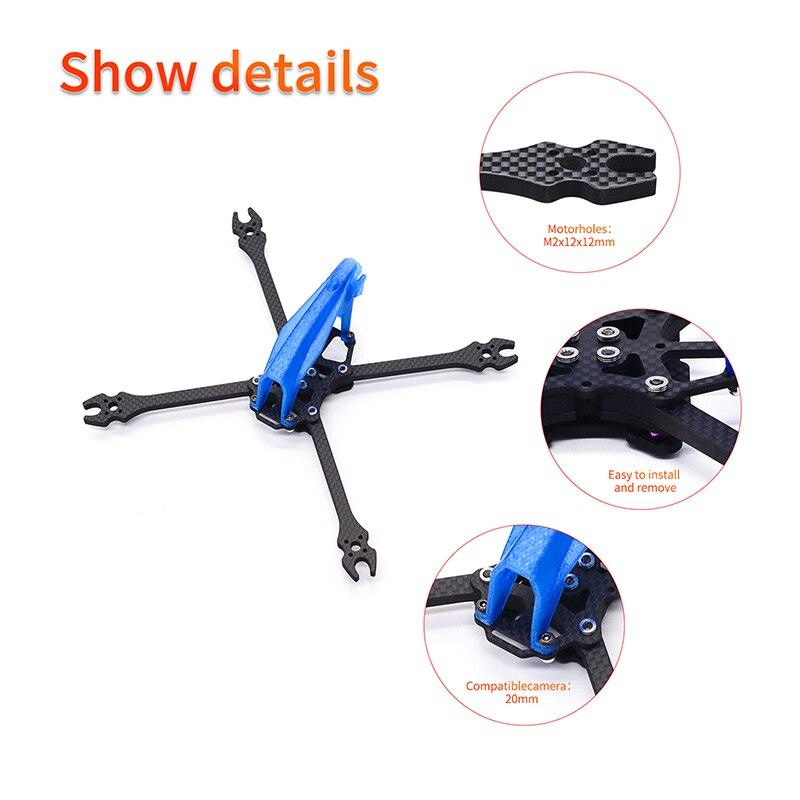

Camera hole position: 20mm
Arm thickness: 5mm
Motor hole position: M2x12x12mm
Arm width: 8mm
AIO FC hole position: 25.5*25.5mm

Gyarados 230 frame features:

1. Wide X body mechanism design, the flight experience is soft with the default parameters, it is a toothpick machine rack for novices.

2. Lightweight design: The arm is 8mm wide, which is more than 30% narrower than the ordinary 5-inch machine arm. The frame weight is 83g, and the hand feels light.

3. Fine workmanship and strong and anti-explosion: The frame adopts aerospace-grade T700 carbon plate material, the manufacturer’s independent sub-film cutting is integrated, and the double-sided chamfer design is anti-cutting, and the strength is 38.8% higher than that of the ordinary T300 frame.

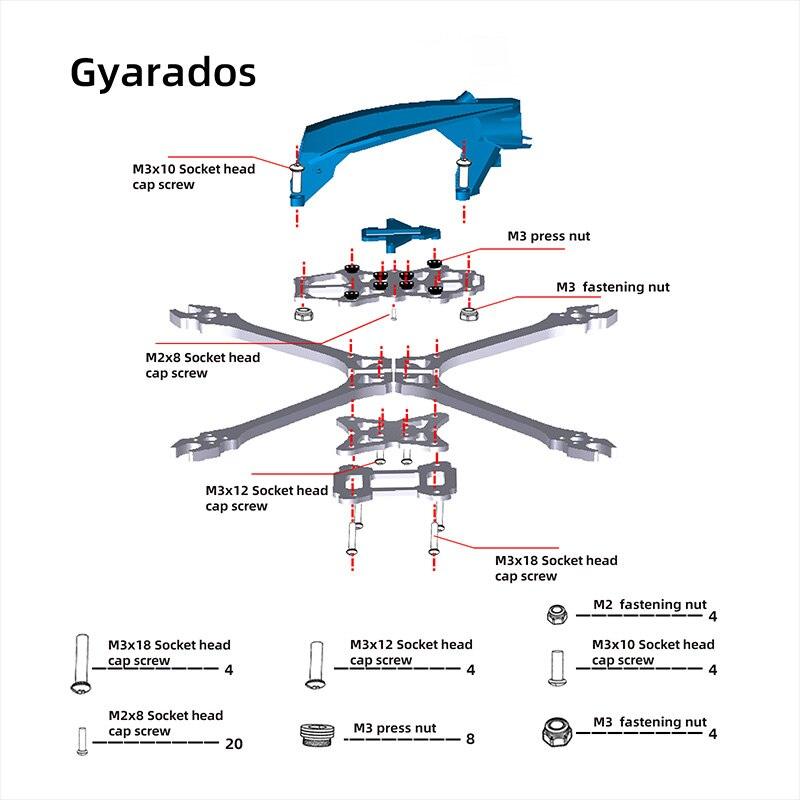

4. The frame structure is simple and easy to install and disassemble, which is convenient for novices to use.

5. The 3D-TPU prints can not only protect the rack components, but also make the rack overall technologically beautiful.

6. The 3D printing components make the overall technology of the frame beautiful. The wheelbase is 230mm and supports 5-inch 2-blade propellers; the fly tower adopts AIO flight control, which reduces the difficulty of maintenance and installation for novices; the arm mechanism adopts a wide X-shaped design, flying with default parameters The hand feels soft; the thickness of the arm is 5 mm and the width of the arm is 8 mm. The frame is lighter and meets the needs of pilots; the frame is made of T700 carbon fiber material, which is more than 38.8% stronger than ordinary frame materials and is more resistant to explosions.

7. After being assembled, the volume of the flight is not so harsh compared to the conventional rider. It is recommended to use 850Mah battery for power, with a battery life of nearly 7 minutes, which is very suitable as an entry machine for racing and flying riders.
