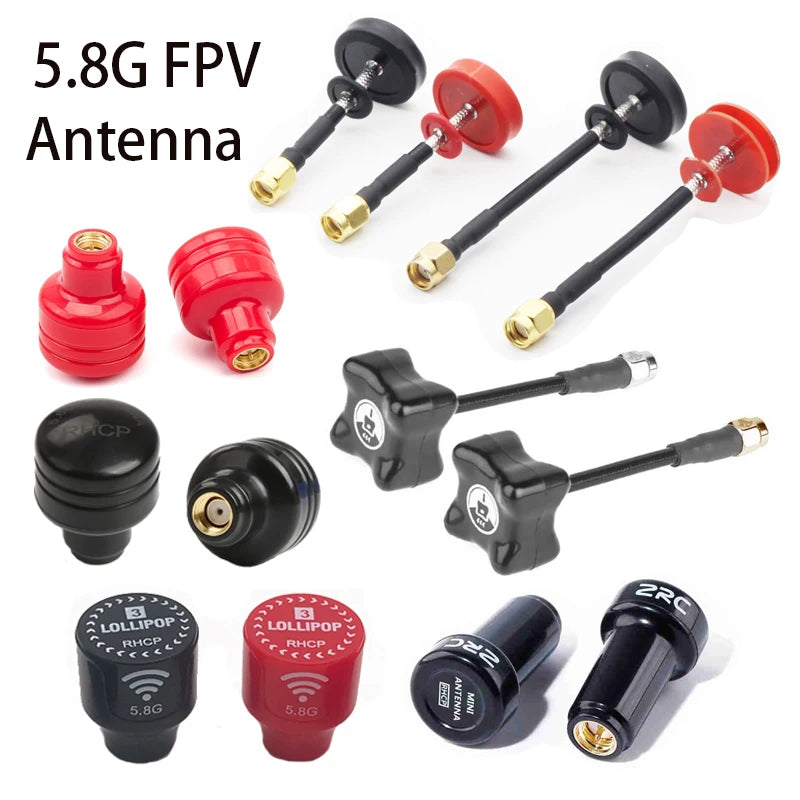

5.8G FPV antenna

1pcs Antenna (send as your choice)

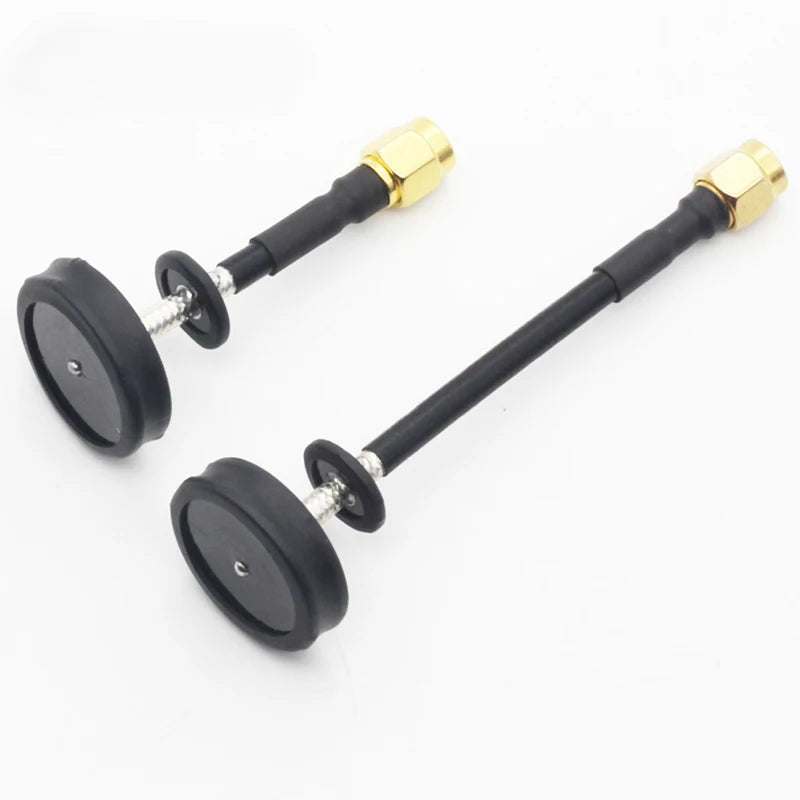

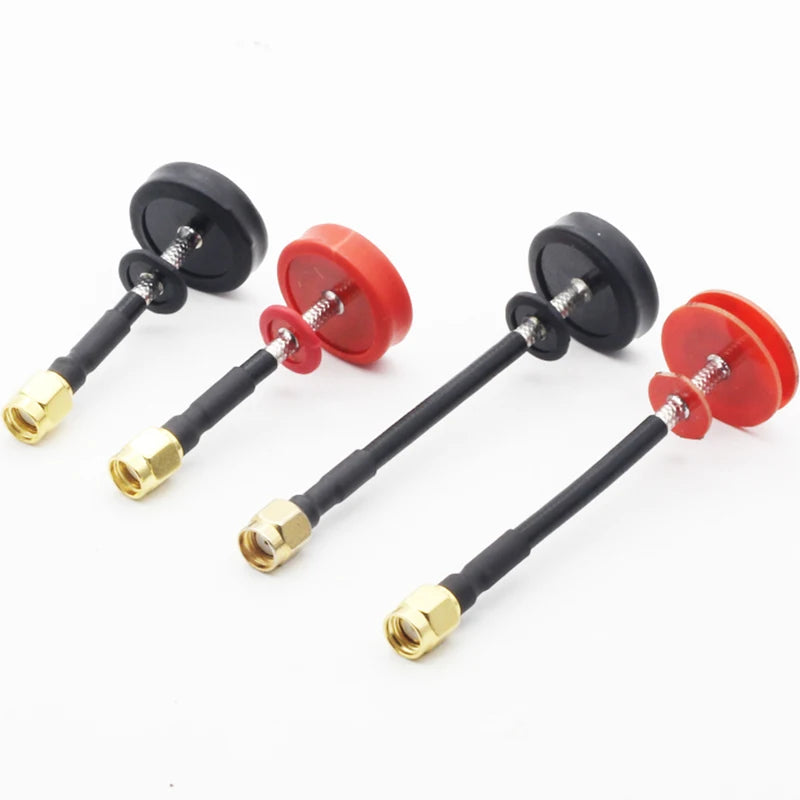

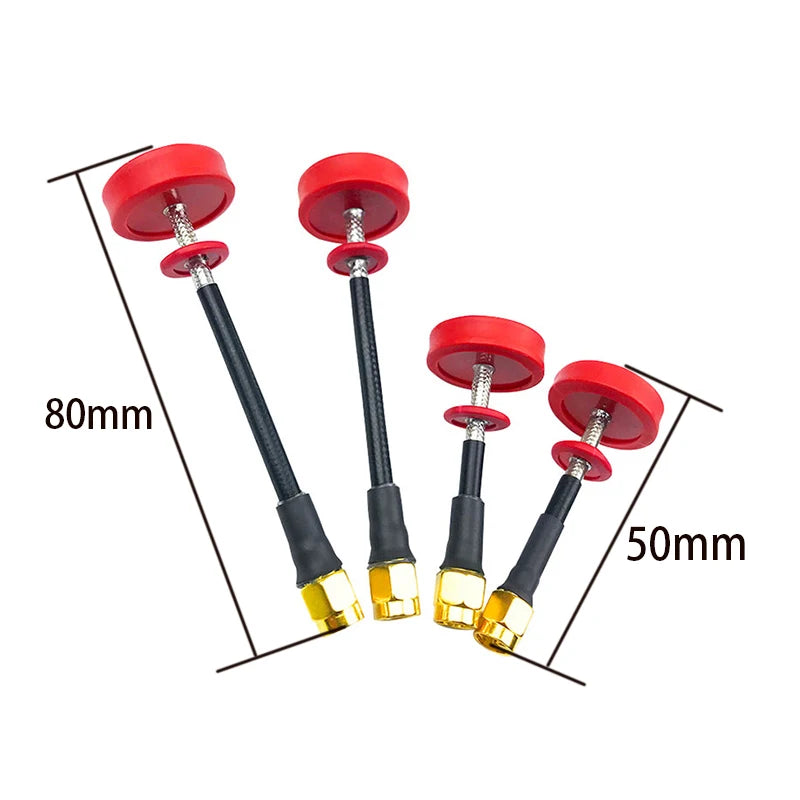

Pagoda 2 5.8G 5dBi 50W Omnidirectional Omni FPV Flat Panel Pagoda Antenna

Specification:
Center frequency: 5.8 GHz
Bandwidth: 500 MHz (5.55-6.05 GHz)
Matching: S11 <-20 dB, VSWR <1.22 (at center frequency)
Axial ratio: <1.3
Radiation efficiency: 95%
Material: ABS+Metal
Connector color: golden
Cable color: black
Bottom color: red
Size: 23 x 54mm(D x H)
Cable length: 5cm/8cm

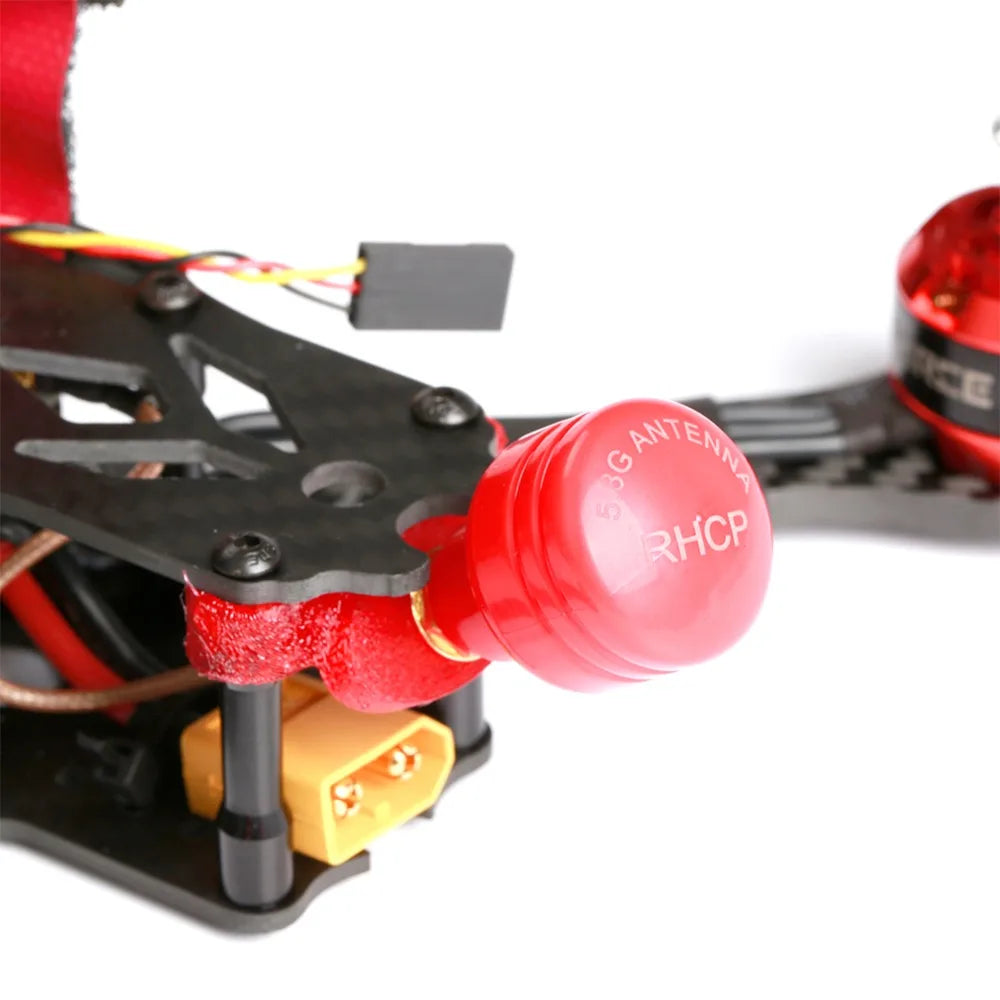

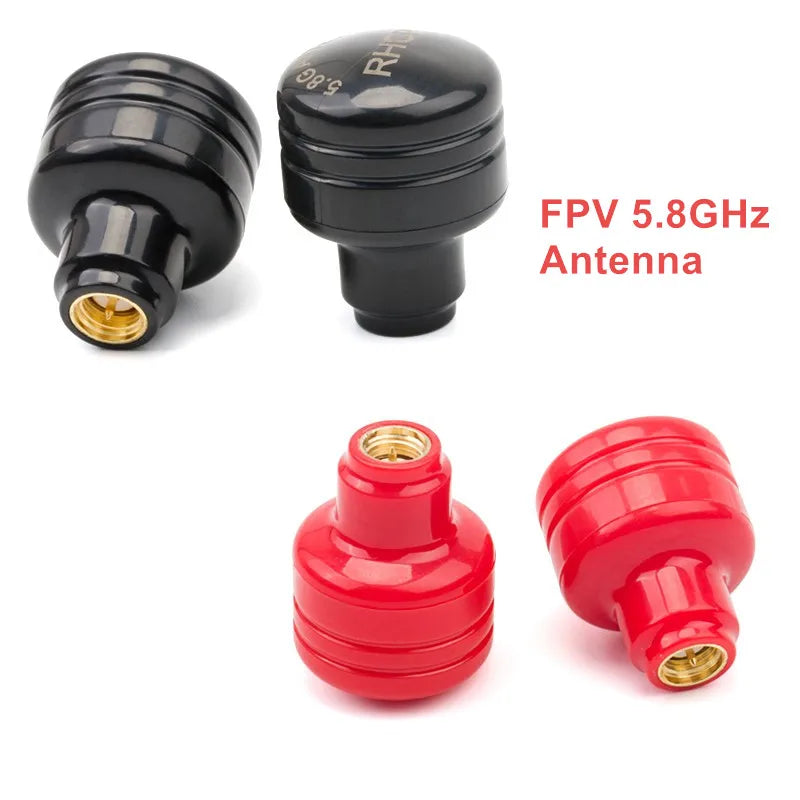

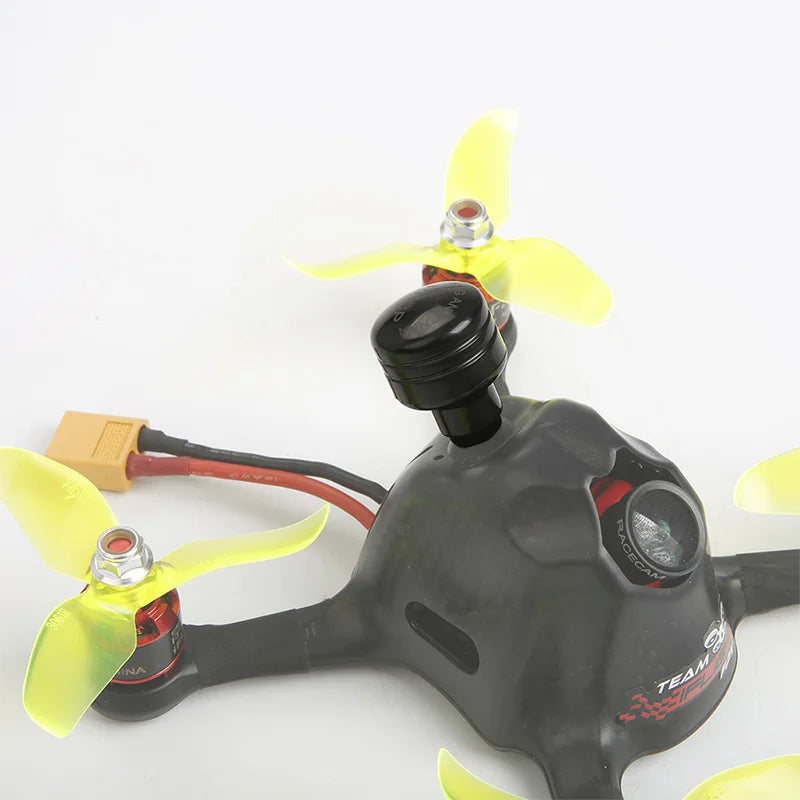

FPV mini 5.8G Stubby Antenna

Features:
1. The 5.8G mushroom antenna is specially designed for FPV aerial photography.
2. The right hand circular polarized antenna has strong anti-interference capability.
3. The shell of antenna molded ABS in one body is glossy, heat-resistant and anti-impact.
4. High gain antenna is compatible with TX and RX.
5. Transmission rate is fast, transmission range is large, and it of high sensitivity and signal stability.

Description:
Frequency：5000-6000MHz
Gain：5dBi
Axial Ratio：0.74
Weight：6.8g
Height：Φ21*28mm
Connector: RP-SMA(inner hole) or SMA (inner needle)

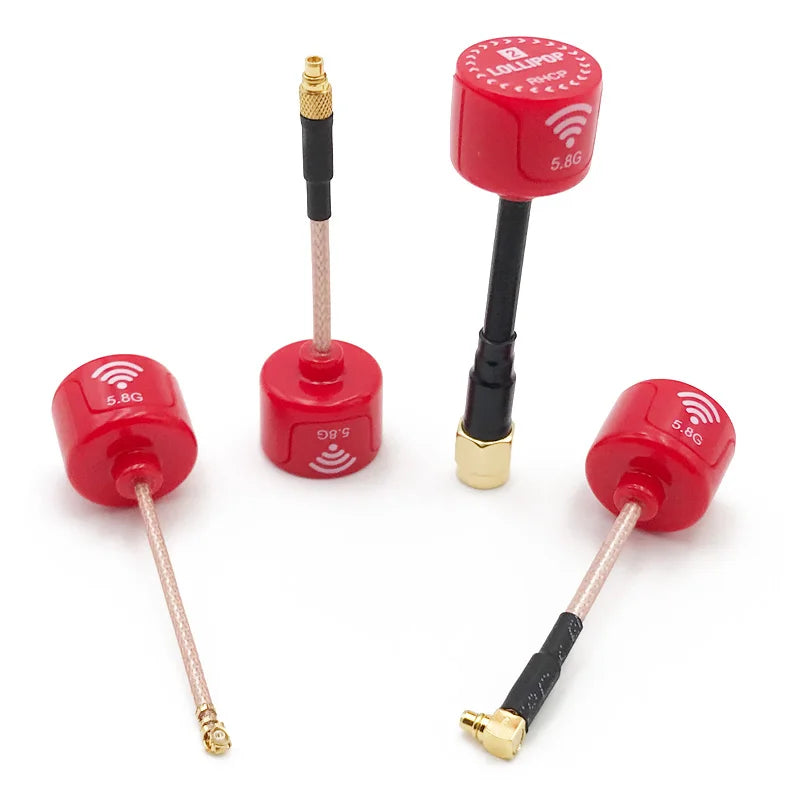

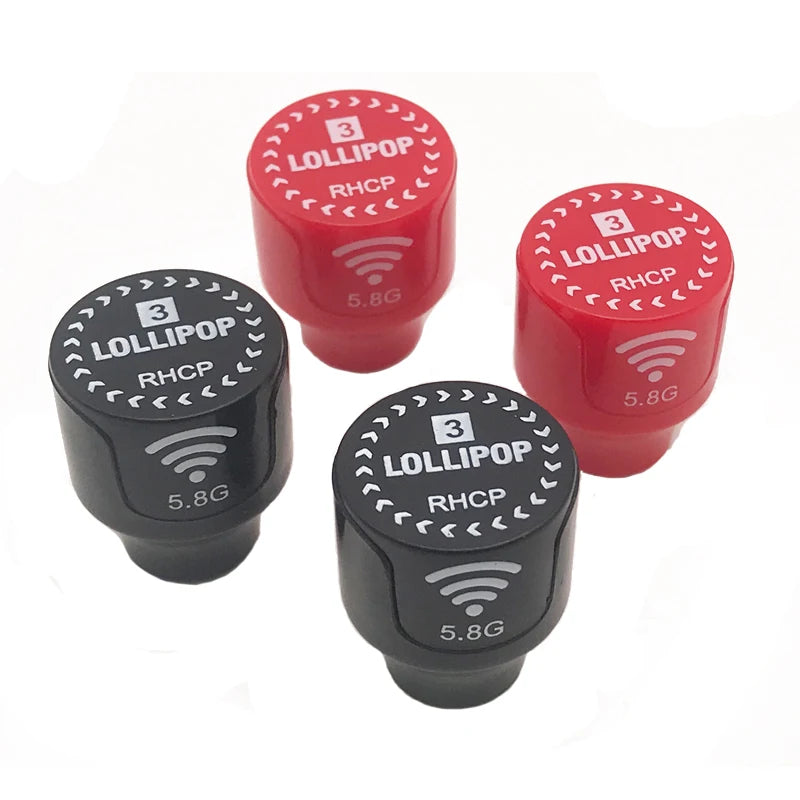

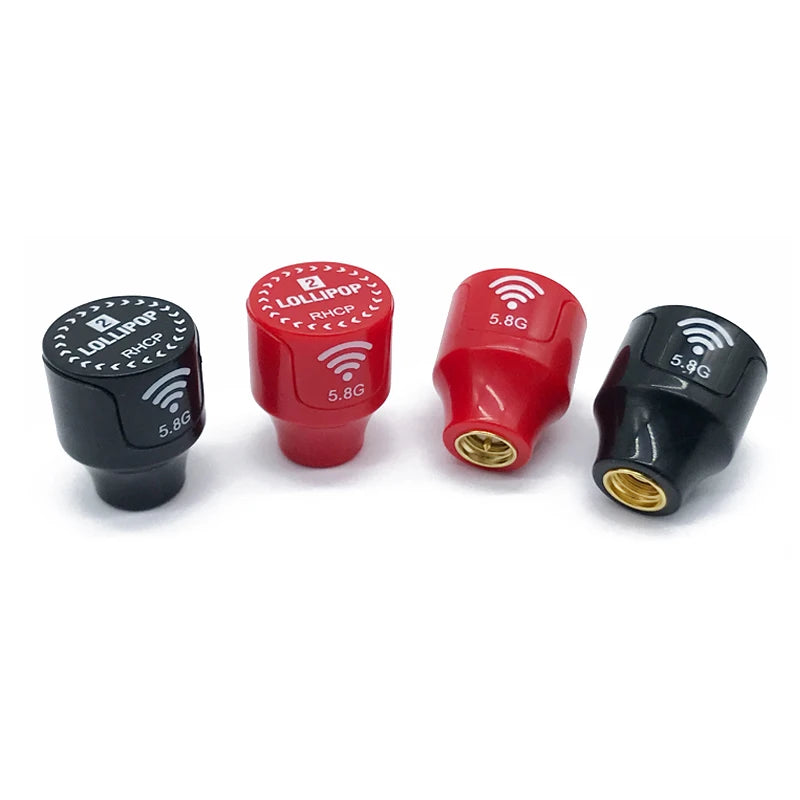

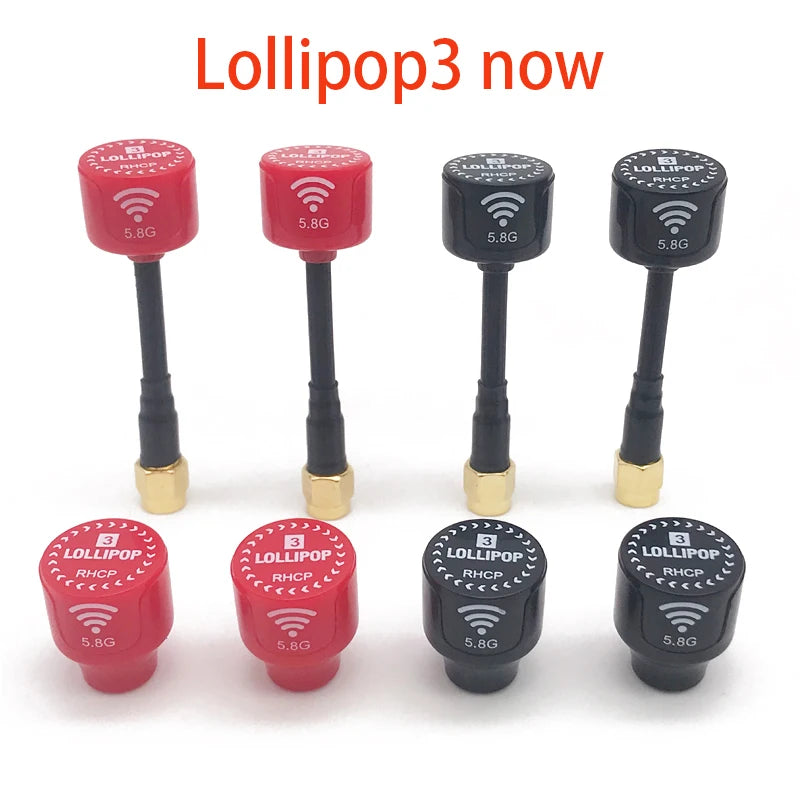

5.8Ghz Lollipop3 3dBi RHCP Antenna

Specification
RHCP
Frequency : 5325-5945MHz
Width : 100MHz
Input Impedance : 50
Vswr : <=1.5
Gain : 3dBi
Power Capacity : 50
Radiator:Cuprum
Polarization Type:Vertical
V.S.W.R:1.5-2.5
Connector : SMA Male , RP-SMA Male, UFL MMCX
Color : Red black
Weight : 7.6g(long) 5.1g(short)
Length : 63*17mm

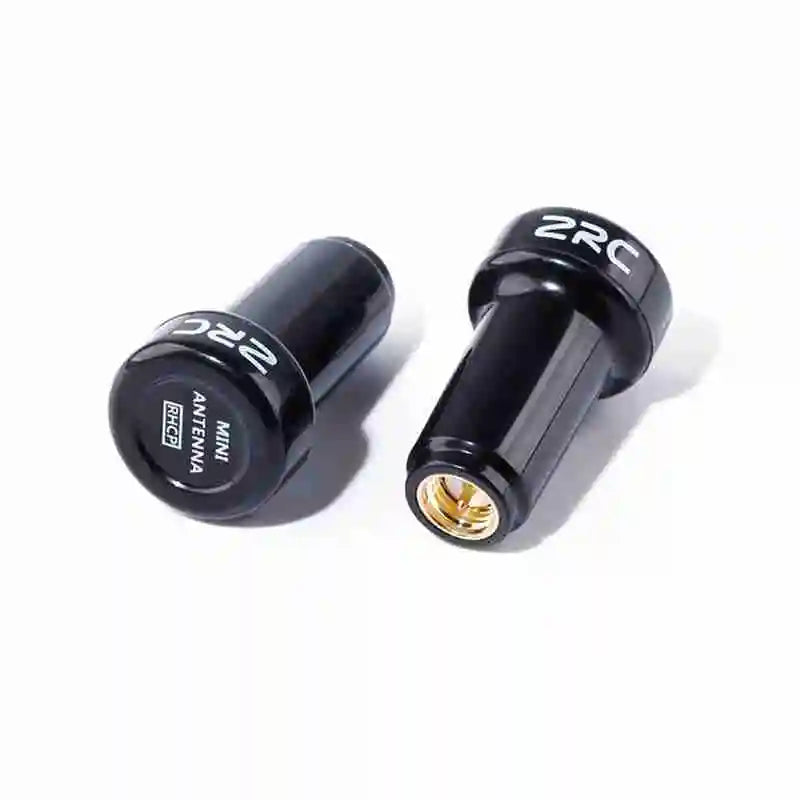

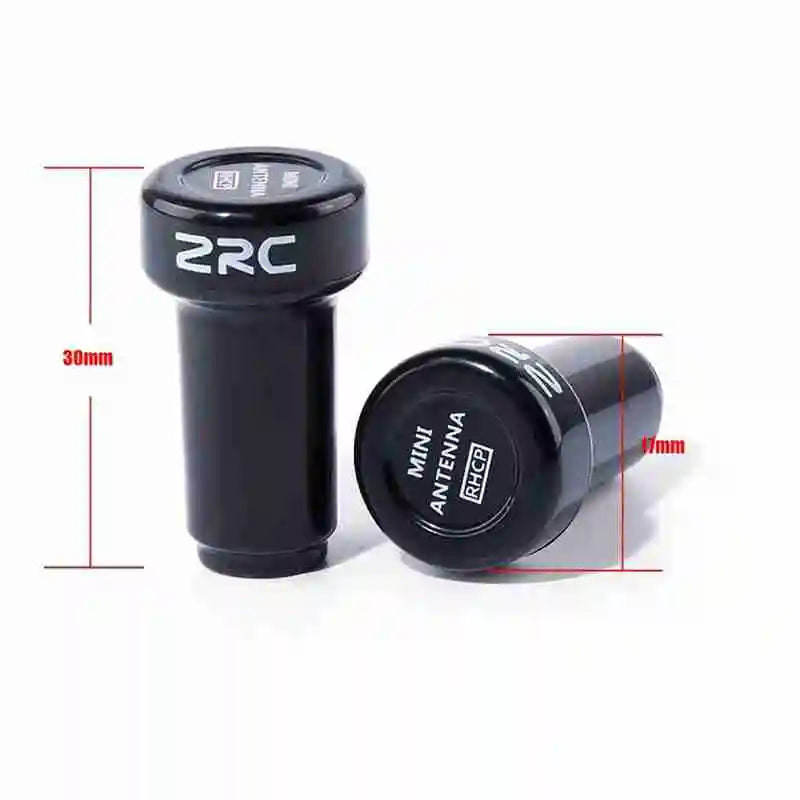

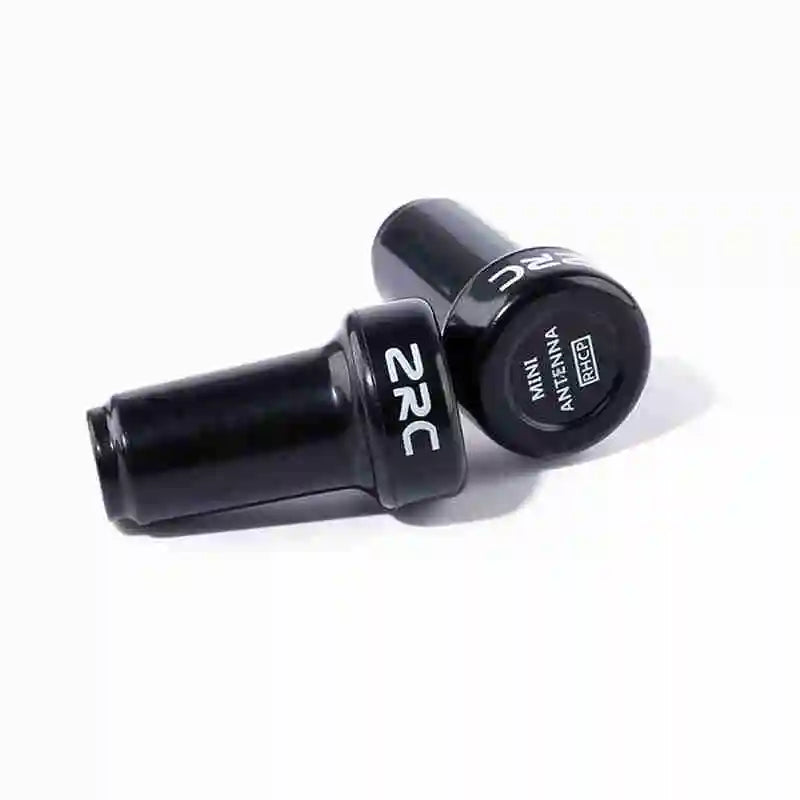

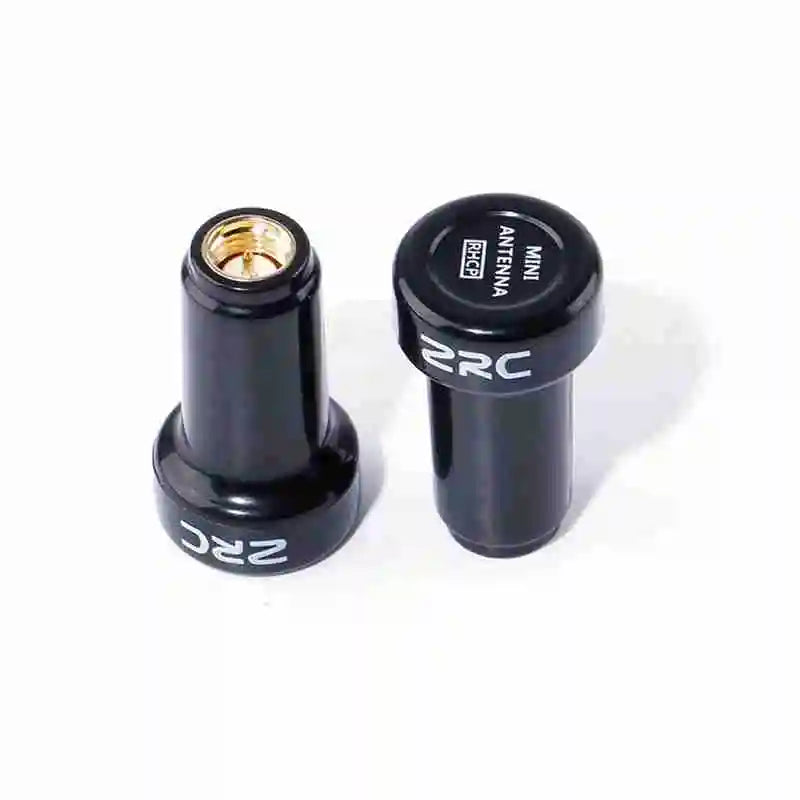

ZRC Mini 5.8G Antenna

Frequency：5500-6000MHz
Gain：2dbi
VSWR≤1.5
Polarization：RHCP
Axial Ratio：0.7
Weight：4g
Size：φ17*22mm
Connector：sma/rpsma
