Feetech FT90R – 6V 1.5kg.cm Servo SPECIFICATIONS
Brand Name: Feetech
Origin: Mainland China
Material: Composite Material
RC Parts & Accs: Servos
Size: 21x 12x6cm
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Gear
Remote Control Peripherals/Devices: Servos
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: FT90R
Four-wheel Drive Attributes: Assemblage
Wheelbase: Screws
Features

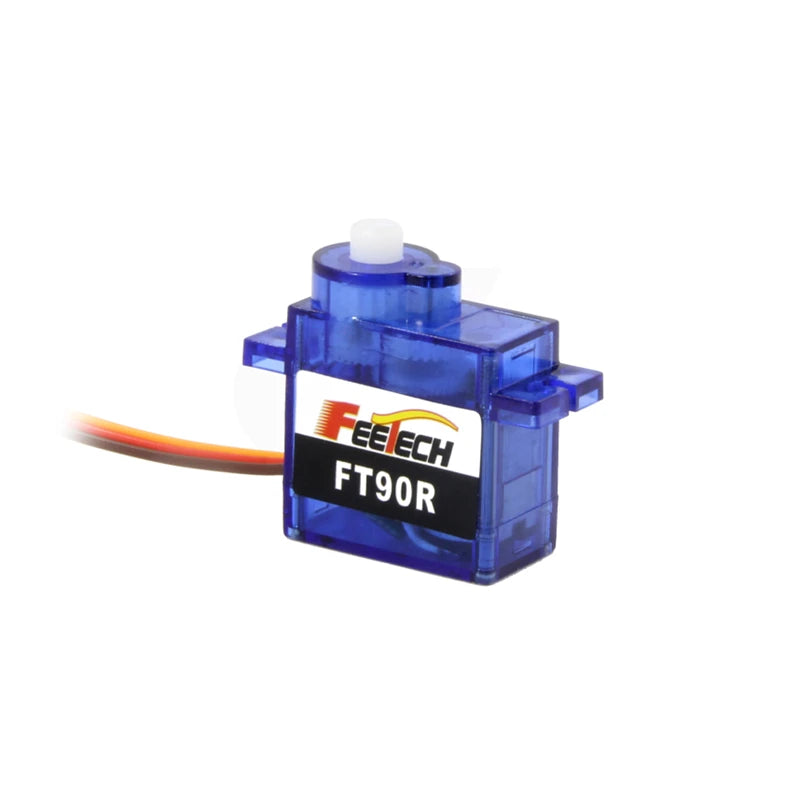

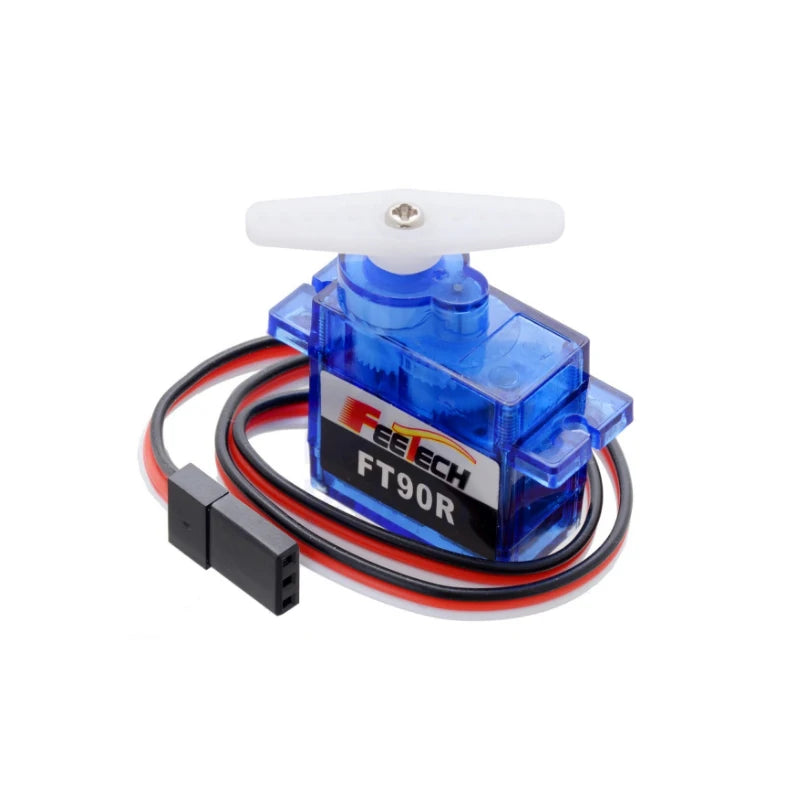

The FT90R is a micro-sized digital servo continuous rotation. At 6 V, it has a maximum rotation speed of around 170 RPM (no-load) and can produce up to 21 oz-in (1.5 kg-cm) of torque. The servo can be controlled using a direct connection to a single microcontroller I/O line without any additional electronics, which makes it a great miniature actuator for beginner robotics projects; just throw on a pair of wheels and your robot is ready to roll!

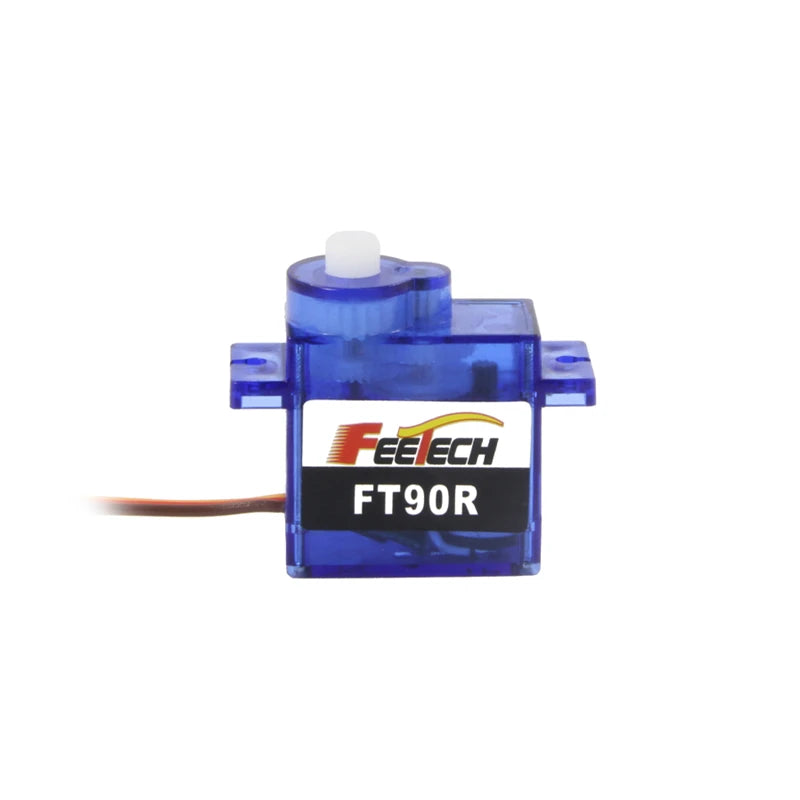

The FT90R continuous rotation servo converts standard RC servo position pulses into continuous rotation speed. The rest point is set precisely to 1.5 ms with a deadband width of ±20 µs. Pulse widths above the rest point result in counterclockwise rotation, with speed increasing as the pulse width increases; pulse widths below the rest point result in clockwise rotation, with speed increasing as the pulse width decreases.
Model：FT90R
Product Name：6V 1.5kg.cm PWM 360°Continuous rotation Digital Servo
Storage Temperature Range：-30℃～80℃
Operating Temperature Range：-10℃～70℃
Size：A：22.9mm B：12.1mm C：26.5mm
Weight：9g
Gear type：Plastic Gear
Limit angle：360°
Bearing：NO Ball bearings
Horn gear spline：20T
Horn type：Plastic,POM
Case：ABS
Connector wire：250mm ±5 mm JR
Motor：Metal brush motor
Operating Voltage Range：4.8-6V
Idle current(at stopped)：5mA-6mA
No load speed：130RPM@6V
Runnig current(at no load)：900mA @6V
Peak stall torque：1.5kg.cm@6V
Rated torque：0.5kg.cm@6V
Stall current：900mA@6V
Rotating direction：CW (1500~ 1000 μsec) ,CCW (1500~ 2000 usec)
Package Includes:
4 x FT90R servo
4 x Servo accessories

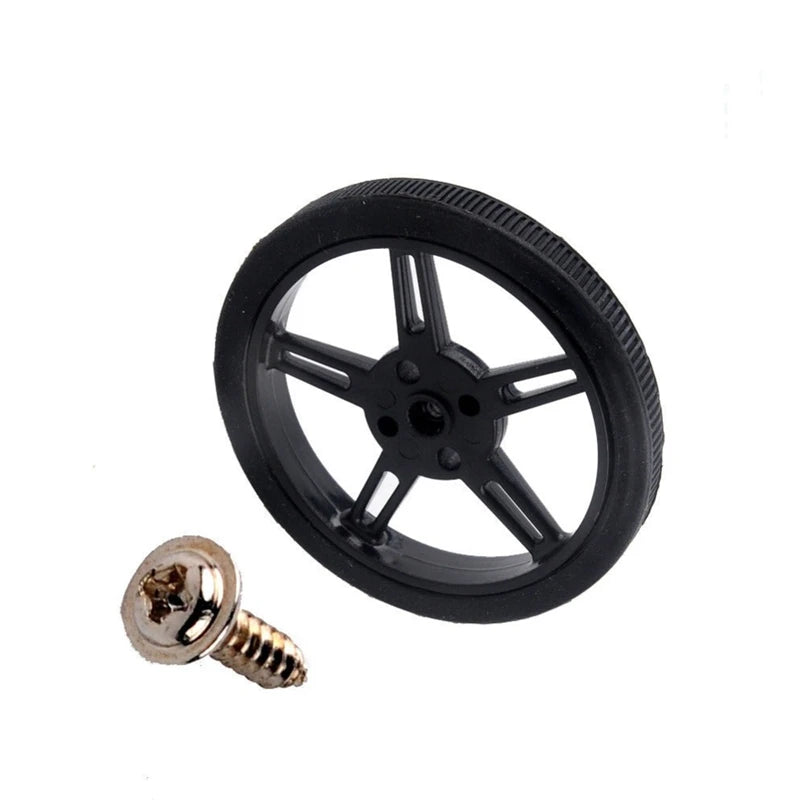

Wheel
This black plastic wheel is press-fit onto the FS90R output gear shaft, and easy to make a nice drive solution for small robots. The wheels have silicone tires and measure 60 mm (2.36″) in diameter. Two additional mounting holes for 3-40 screws make it possible to use the wheel with several of mounting hubs.
Package Includes:
4 x Wheel
4 x Screw
