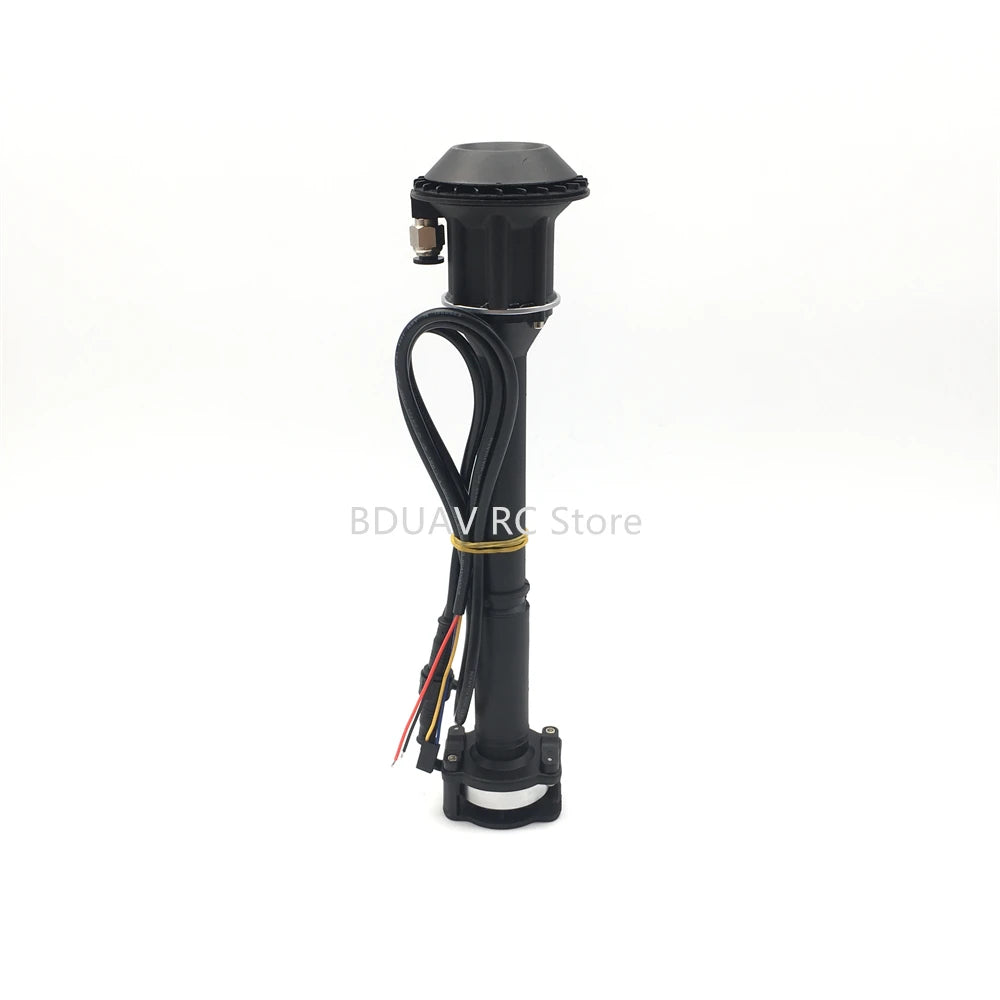

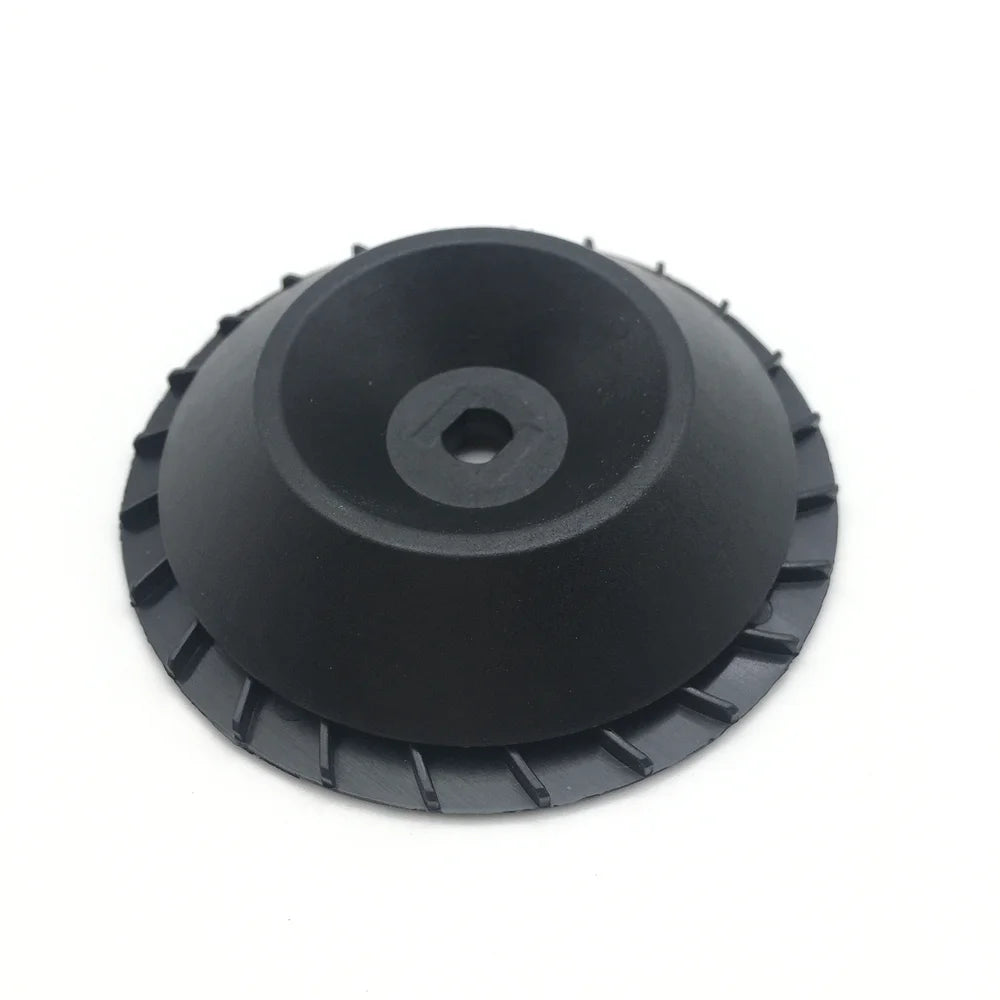

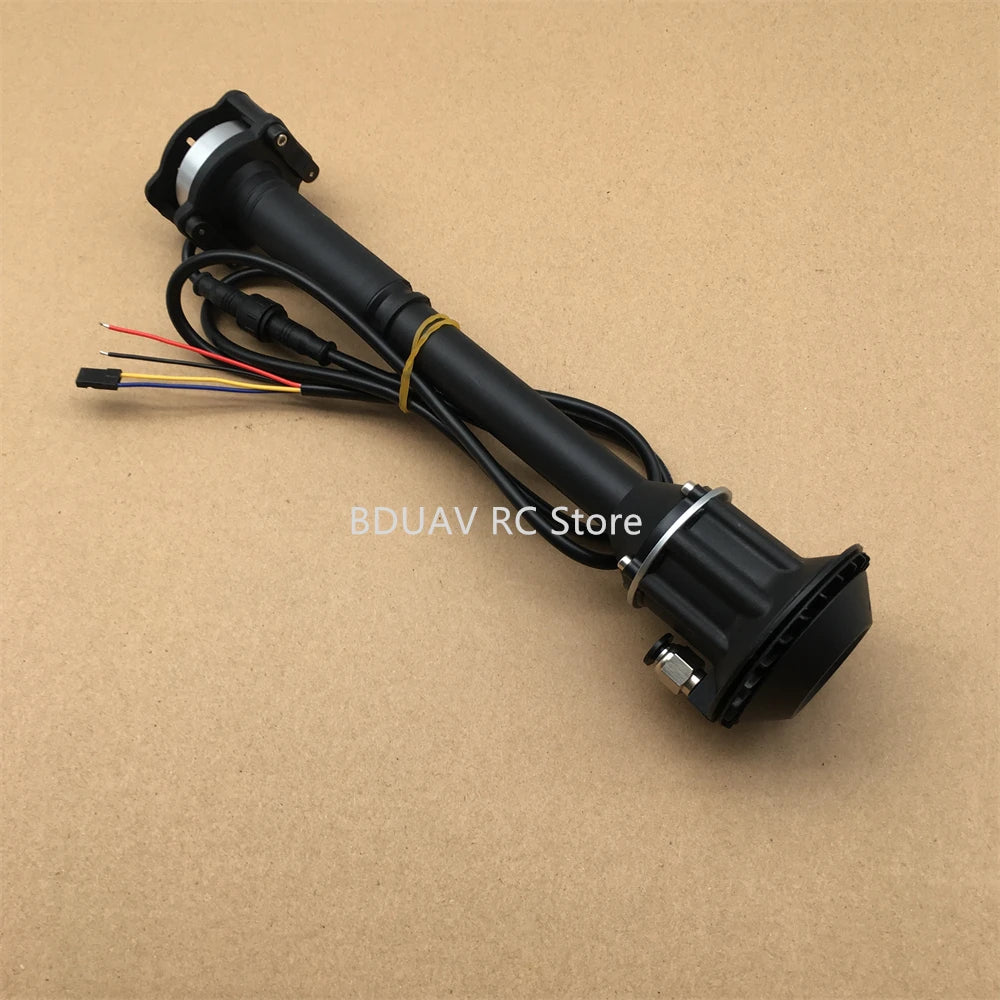

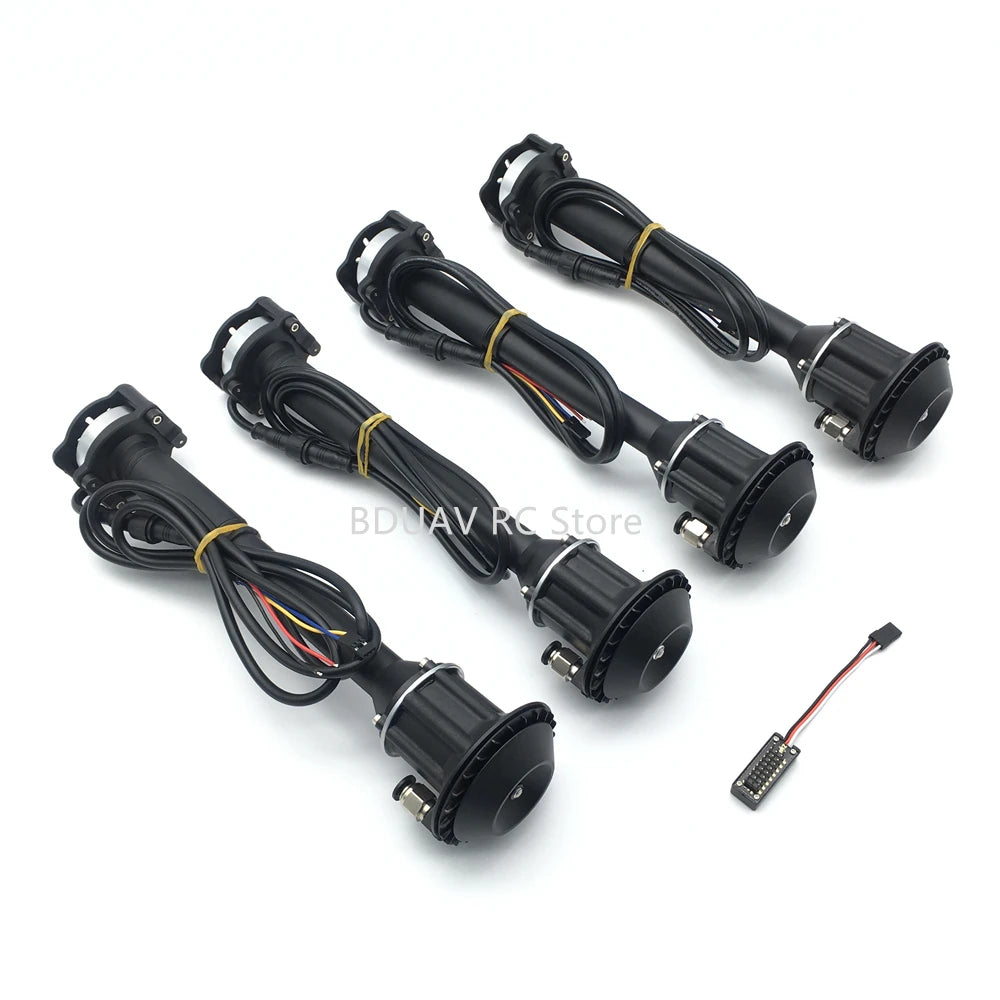

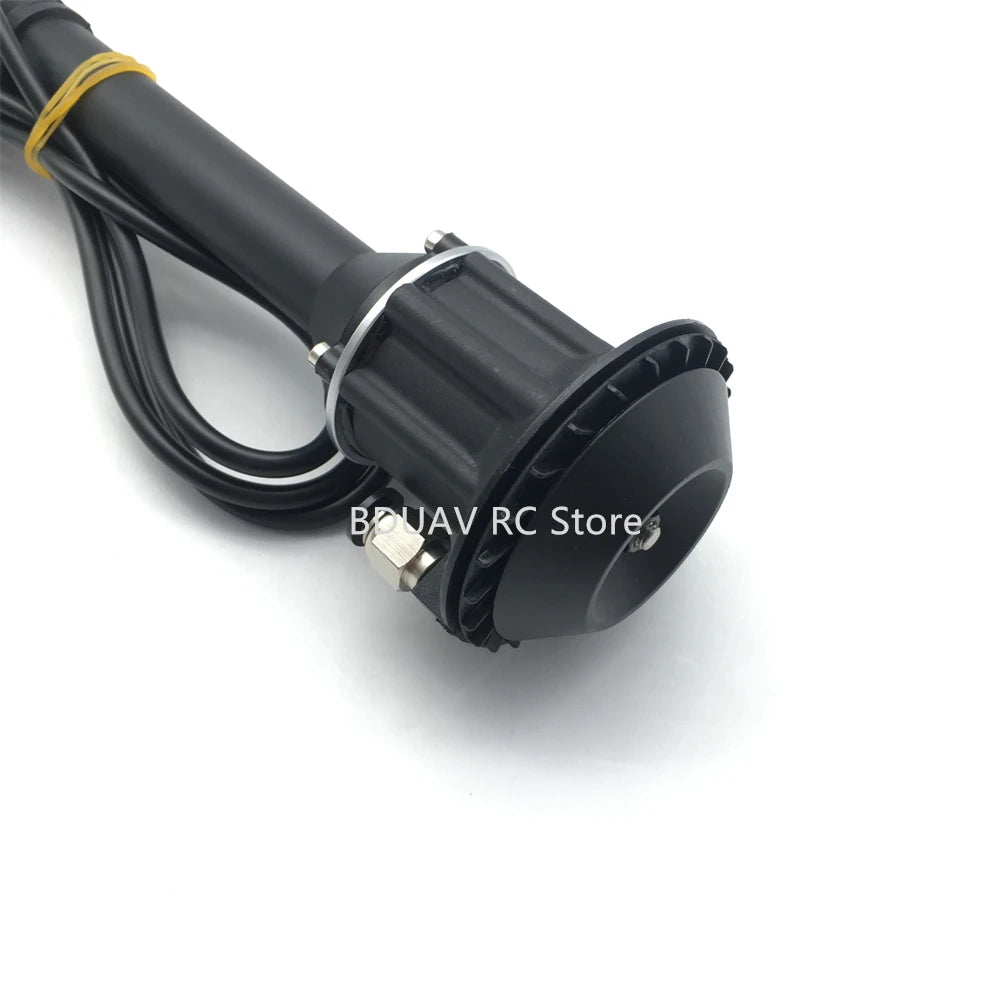

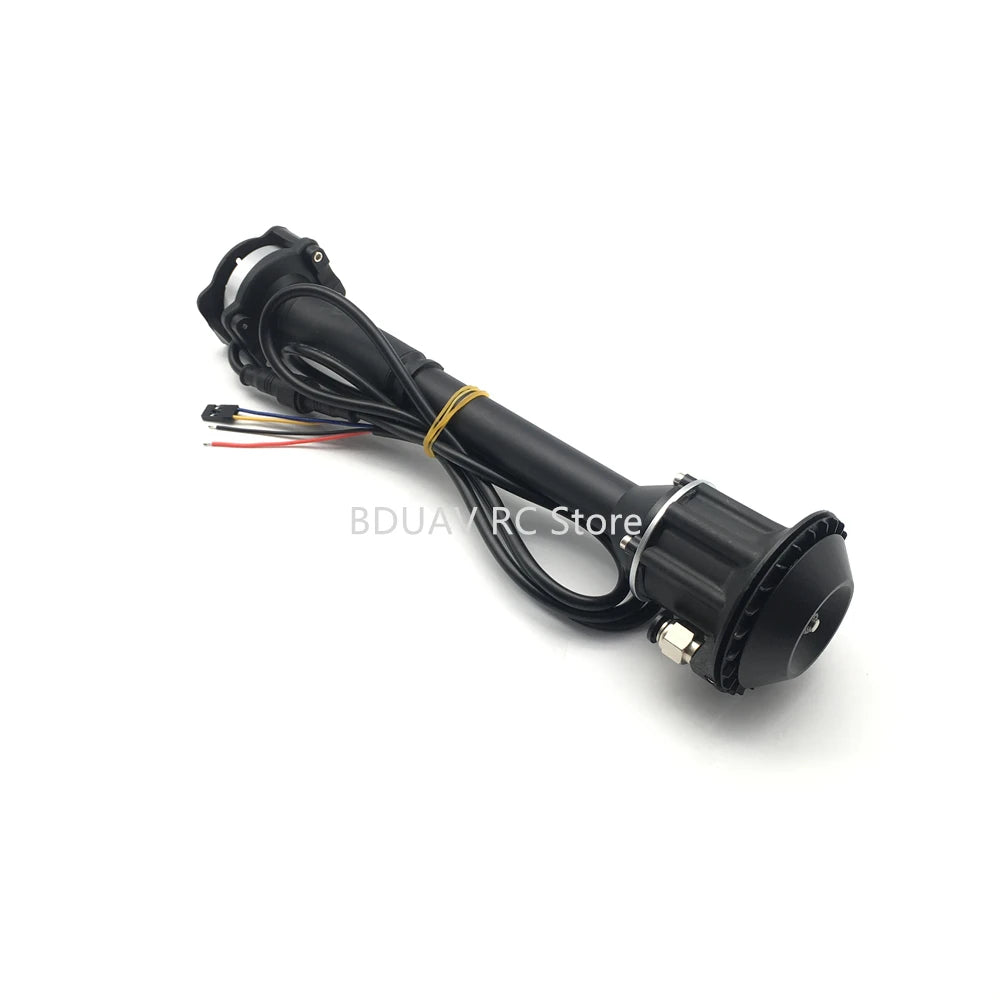

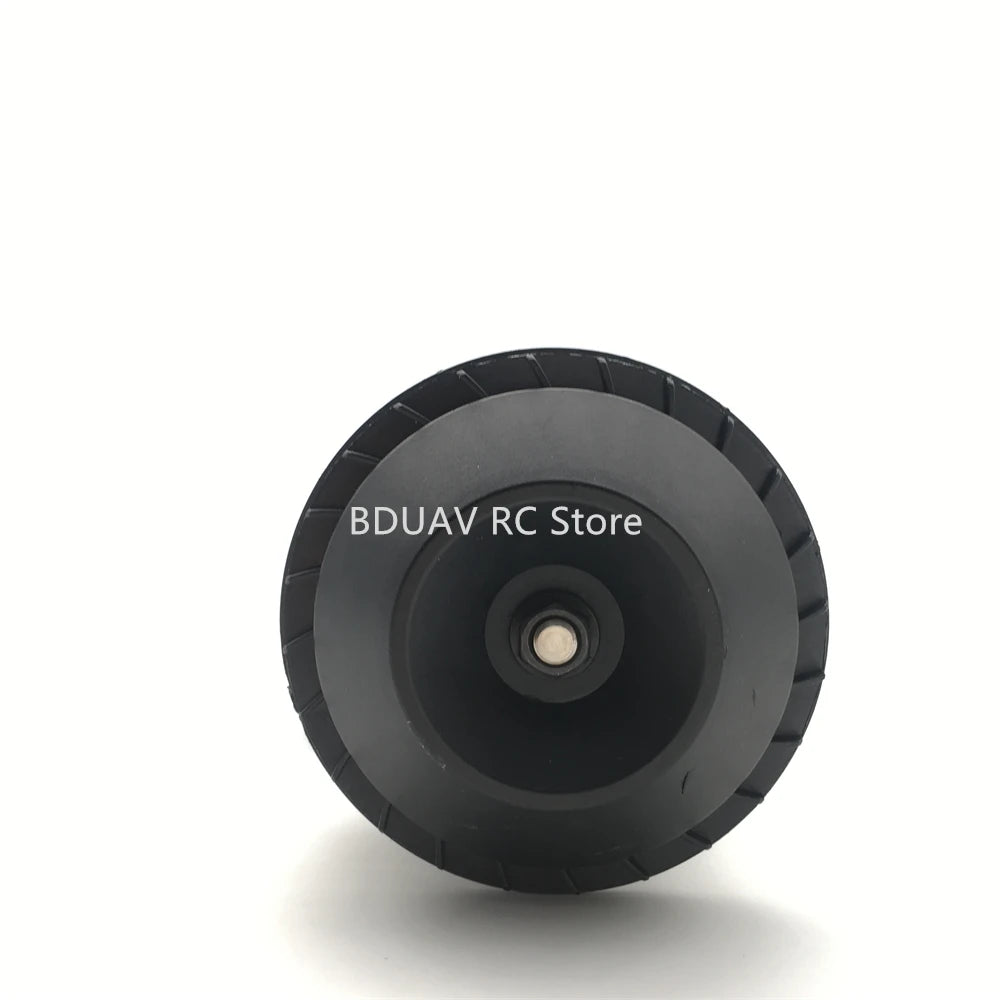

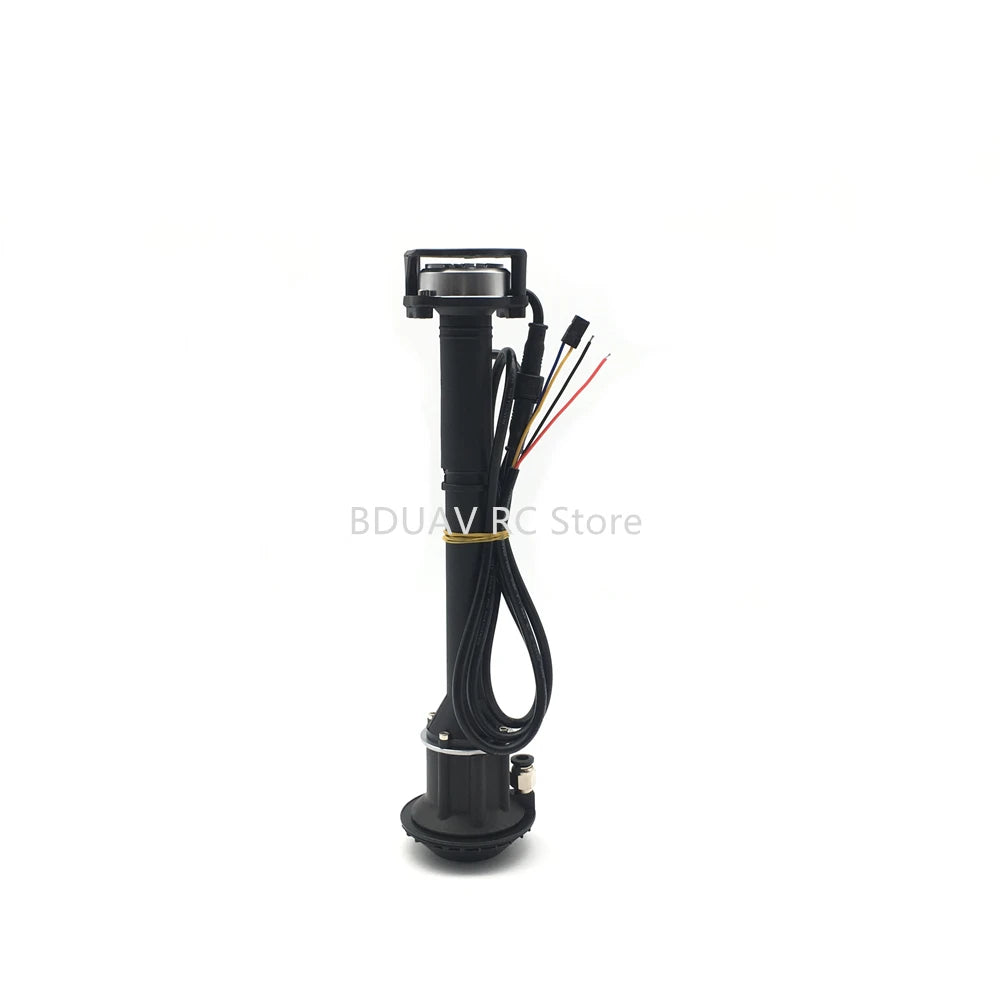

3810 Miniature Centrifugal Nozzle SPECIFICATIONS
Wheelbase: Screws
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: nozzle
Tool Supplies: Assembled class
Technical parameters: Value 2
Remote Control Peripherals/Devices: nozzle
Recommend Age: 14+y
RC Parts & Accs: nozzle
Origin: Mainland China
Material: nozzle
Four-wheel Drive Attributes: nozzle
For Vehicle Type: Airplanes
Specifications:
Shell material: aluminum alloy
Nozzle height: 30cm
Mist particle diameter: 50-200 microns

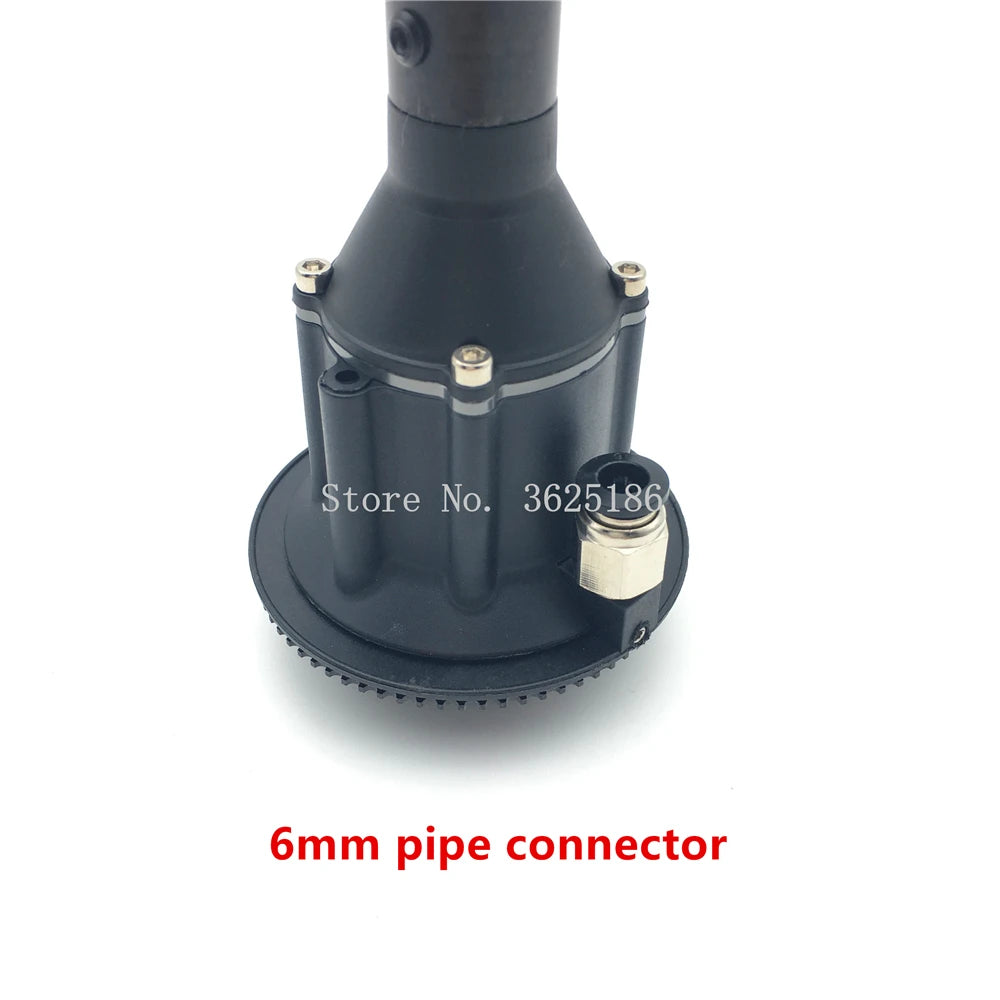

Working range: water supply 200-2000mL / min
Atomized spray width: 1.5-2.0 meters
Voltage: 12-14S power supply

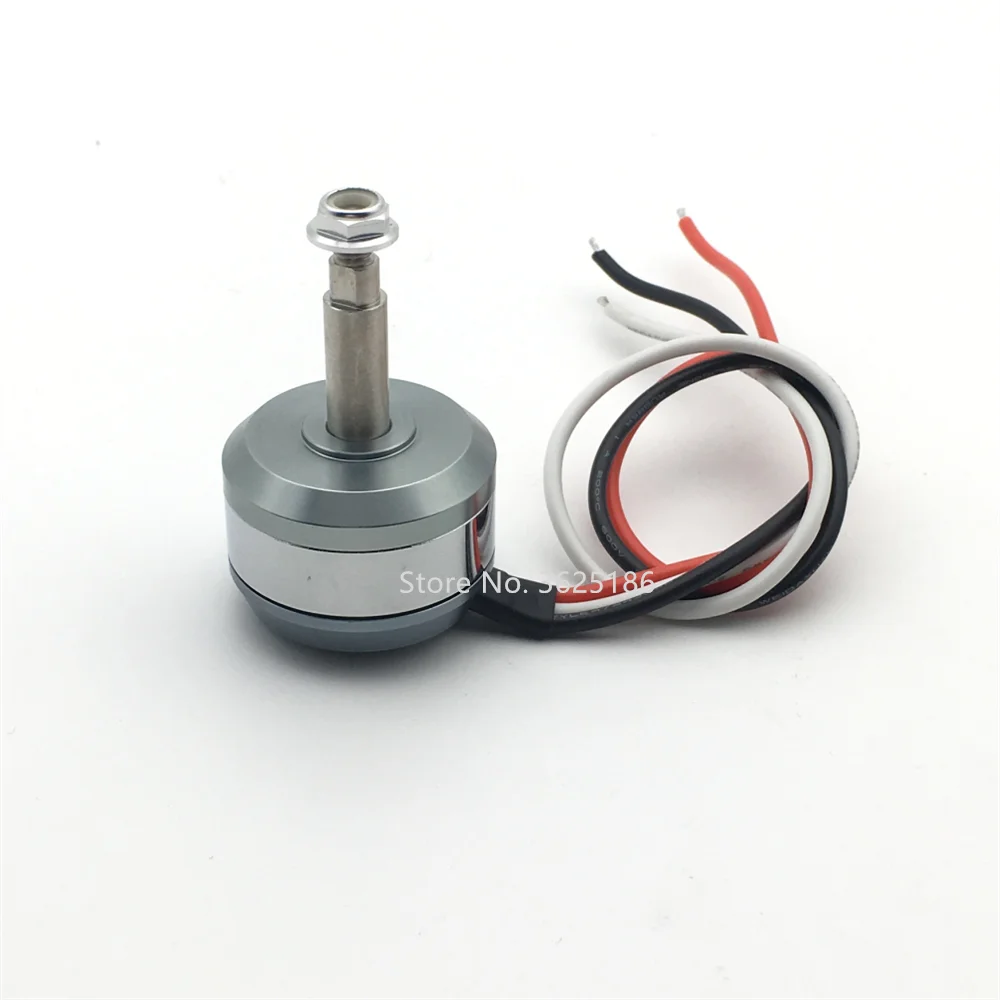

Speed: 20,000 rpm
Signal: PWM (1000-2000)
Power: 60W
Weight: 260g
Length: total length 300MM
Outgoing cable length: 1.1 meters

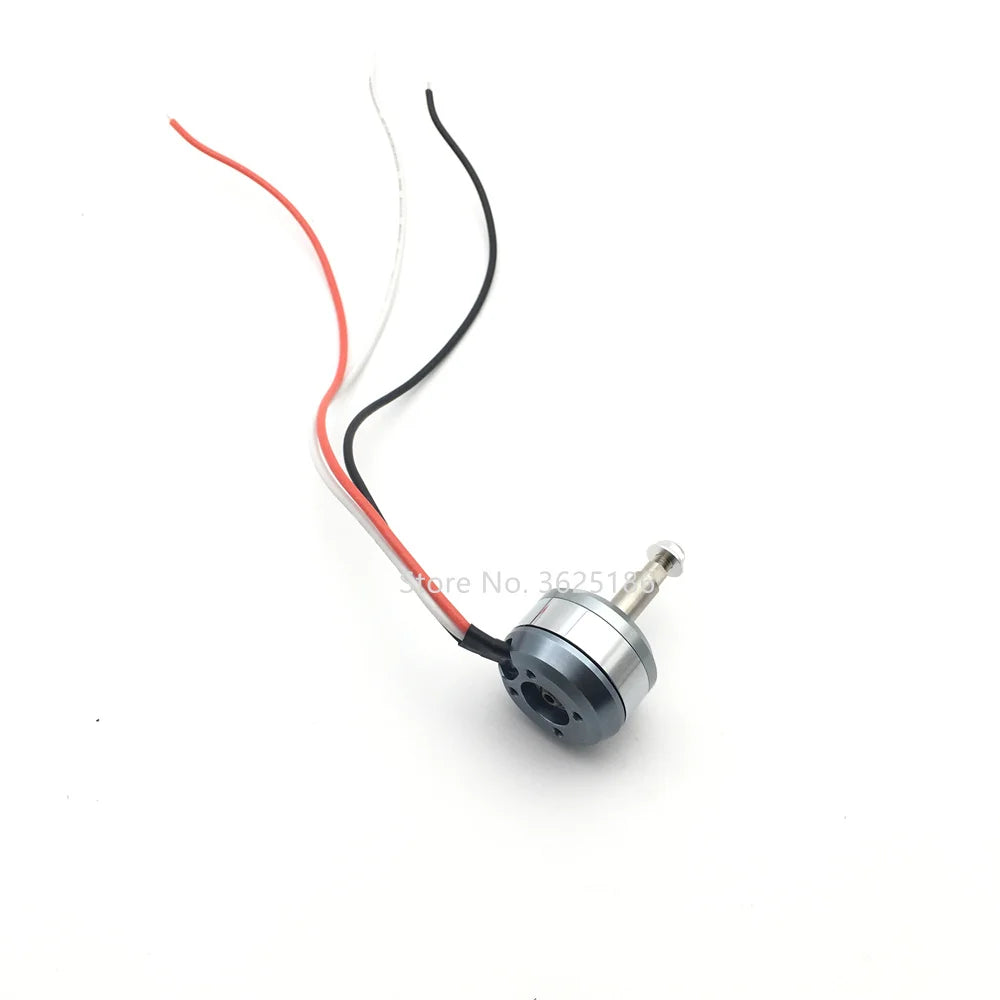

Red wire positive, black wire negative
White wire signal Yellow wire ground wire
Note:
When 12S power supply, the sprinkler rotation speed is 85% (analog 1000-1850), the life will be prolonged.
Try not to run at full speed. The speed of the nozzle is 75% when the 14S is powered (analog 1000-1750)

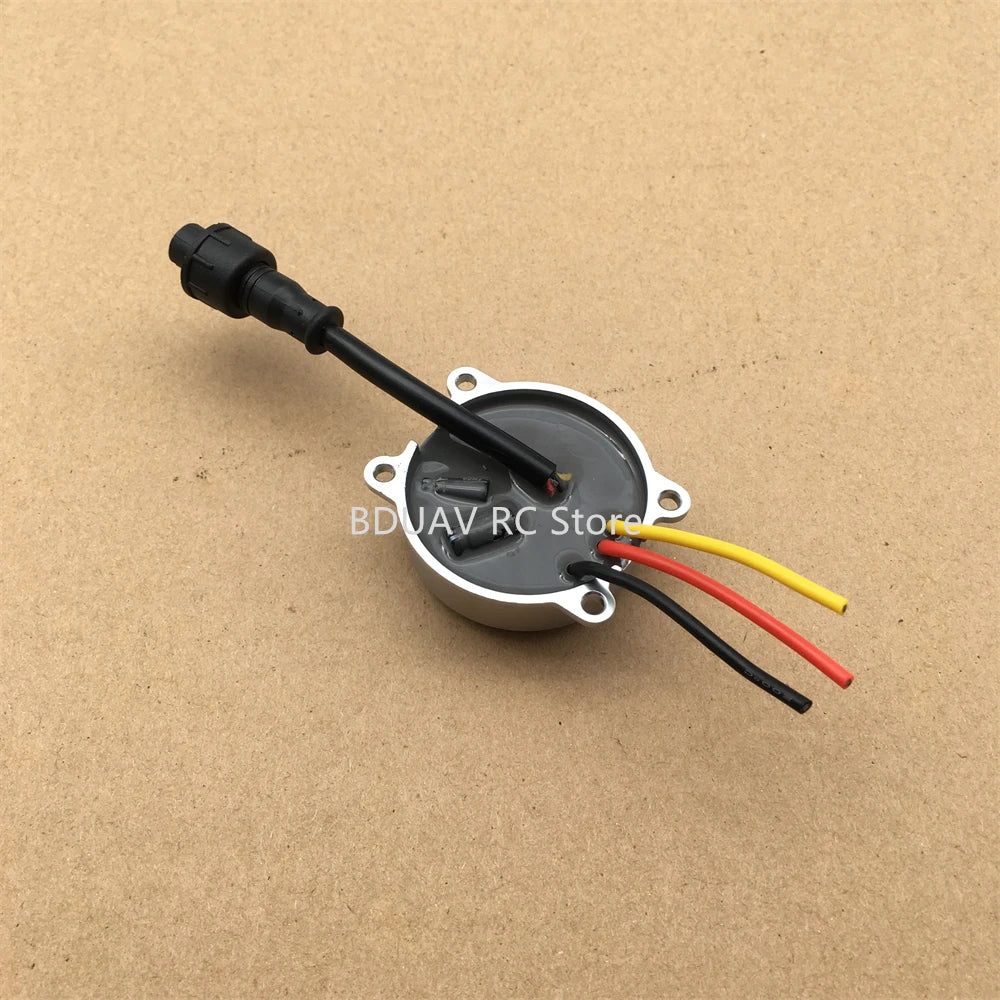

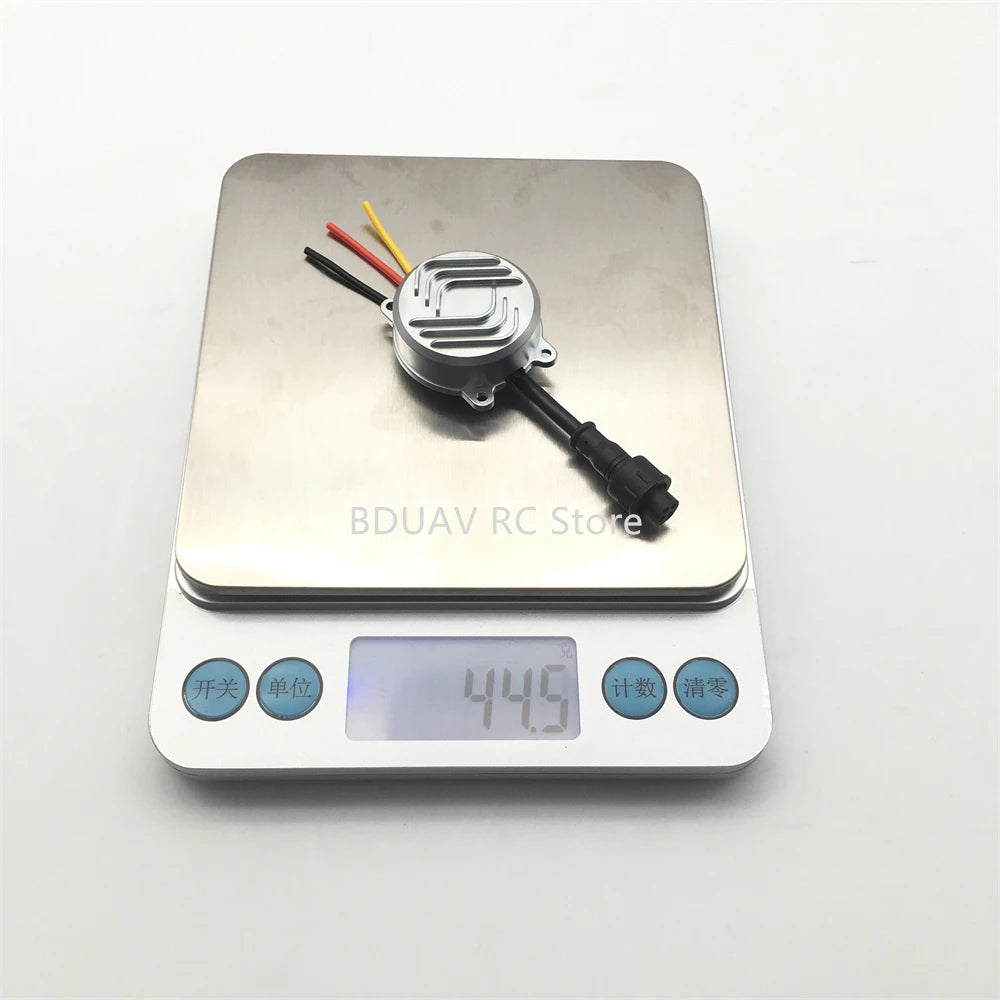

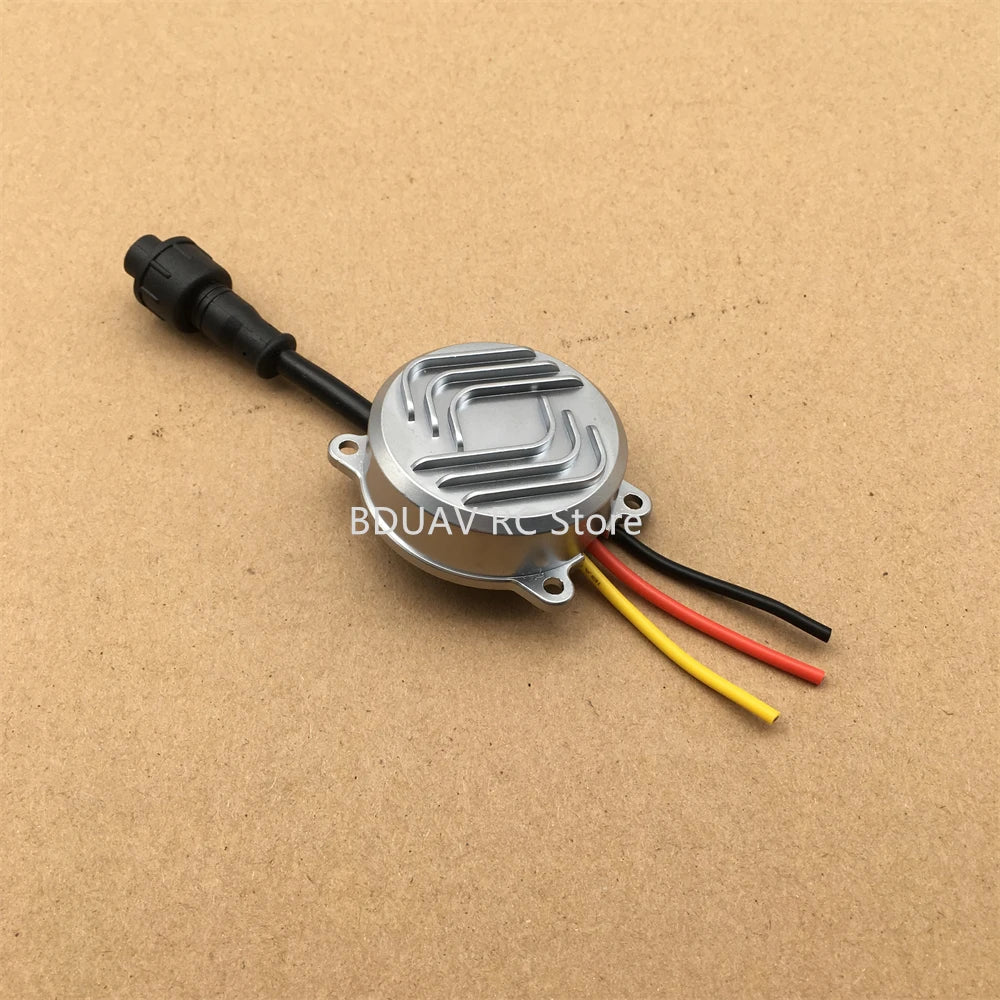

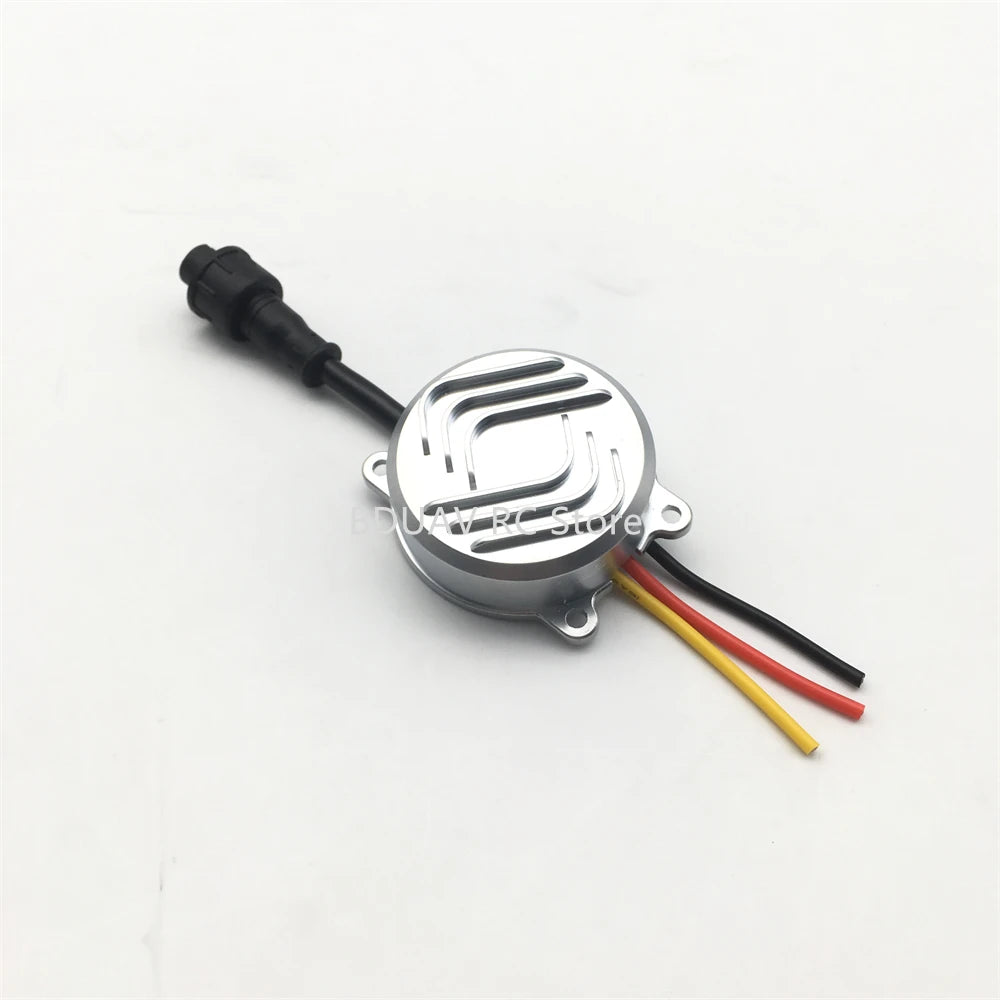

6-14S ESC:
Brand:Hobbywing
Line length: input 25cm. output 90cm
Weight: 75g

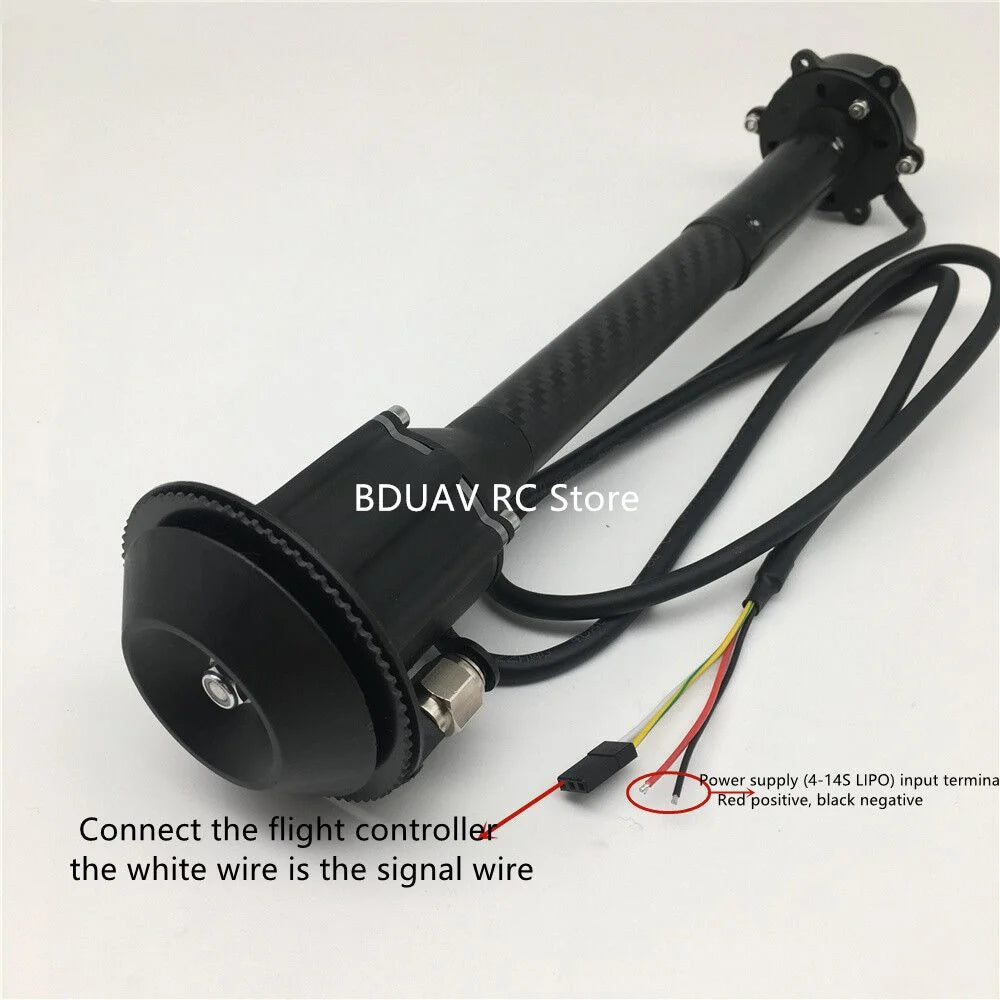

connect the flight controller to the white wire is the signal wire . connect a BDUAV RC Store ower supply (4-14S LIPO)
