3810 Centrifugal Metal Atomization Nozzle Sprinkler SPECIFICATIONS
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Atomization Nozzle
Tool Supplies: Atomization Nozzle
Technical parameters: Value 2
Size: 3810
Remote Control Peripherals/Devices: Atomization Nozzle
Recommend Age: 14+y
Recommend Age: 12+y
RC Parts & Accs: Atomization Nozzle
Origin: Mainland China
Model Number: 3810
Material: nylon
For Vehicle Type: Airplanes
Brand Name: BDUAV

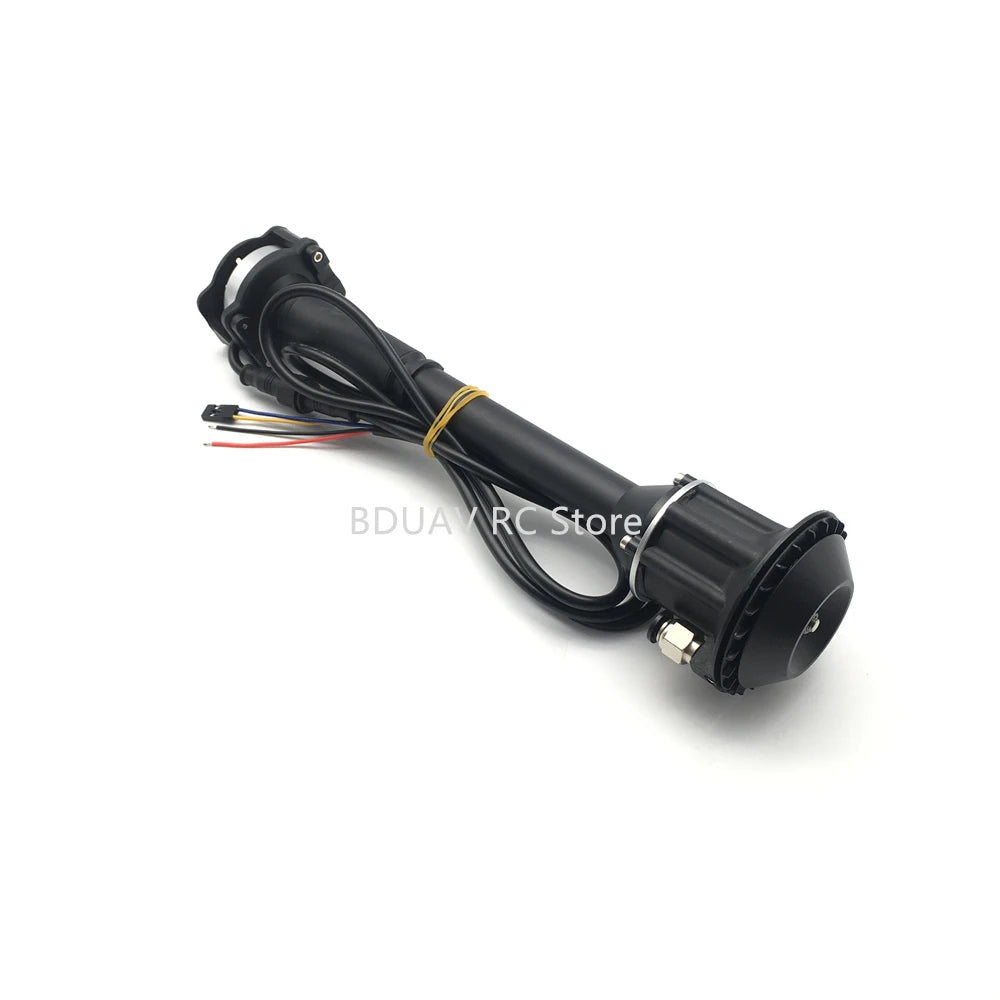

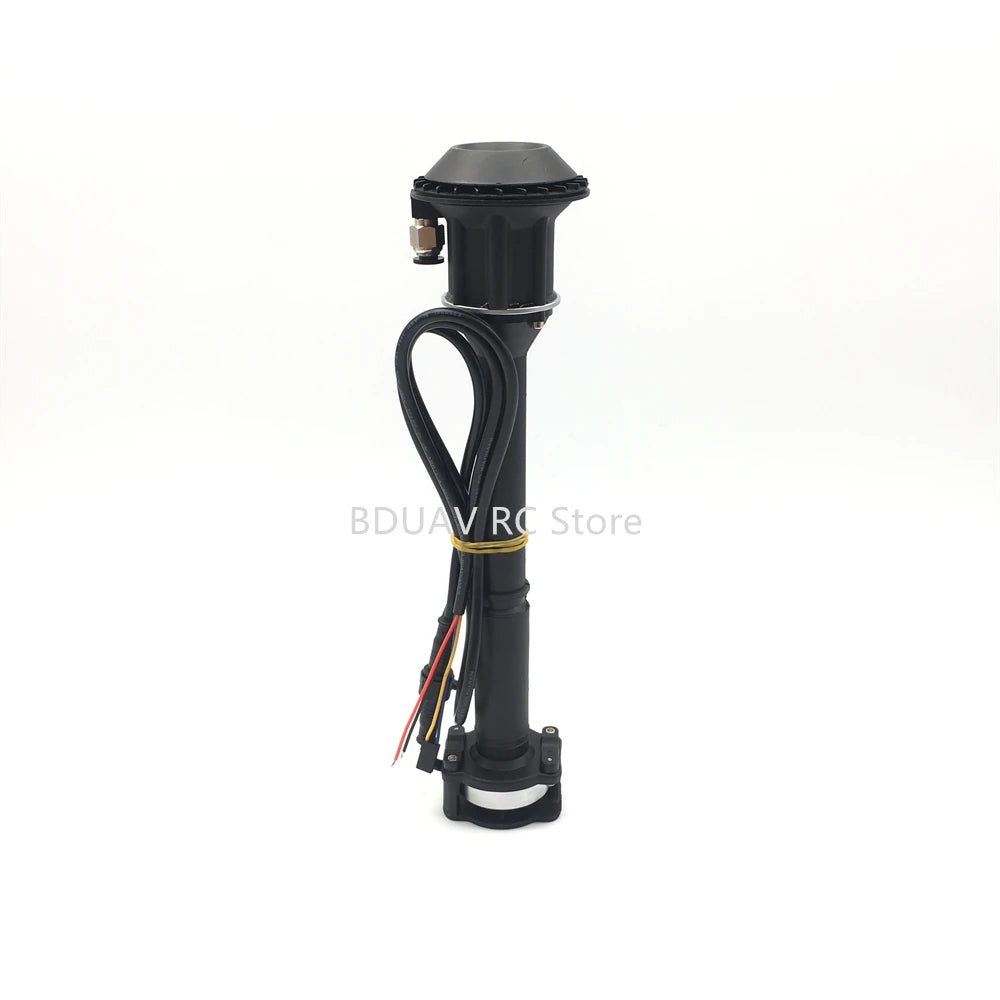

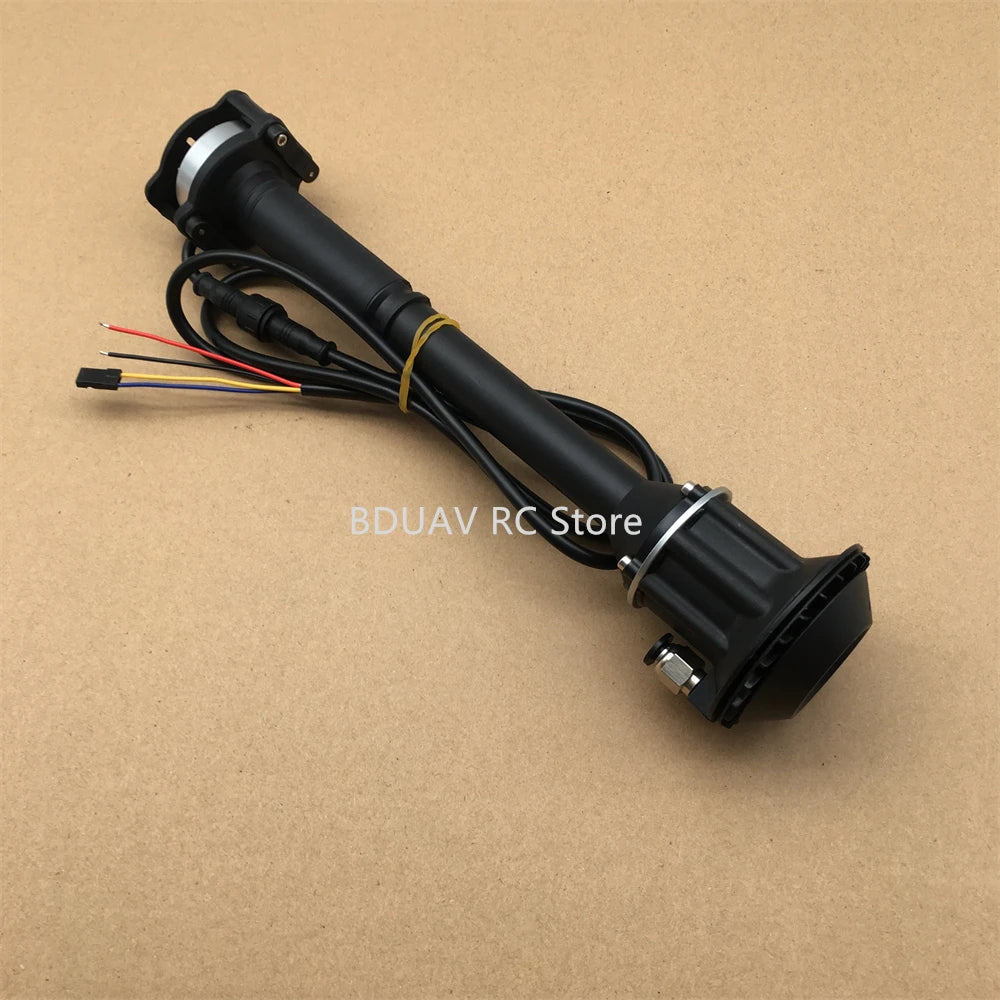

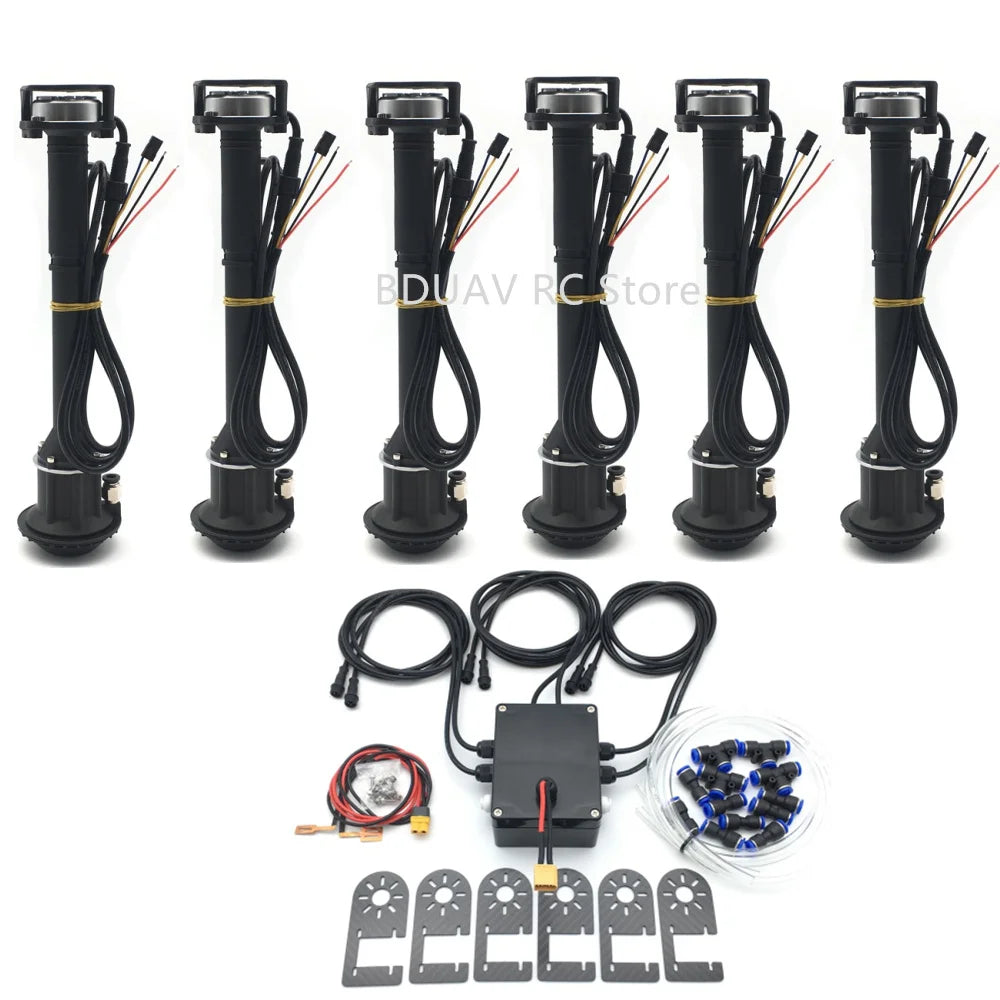

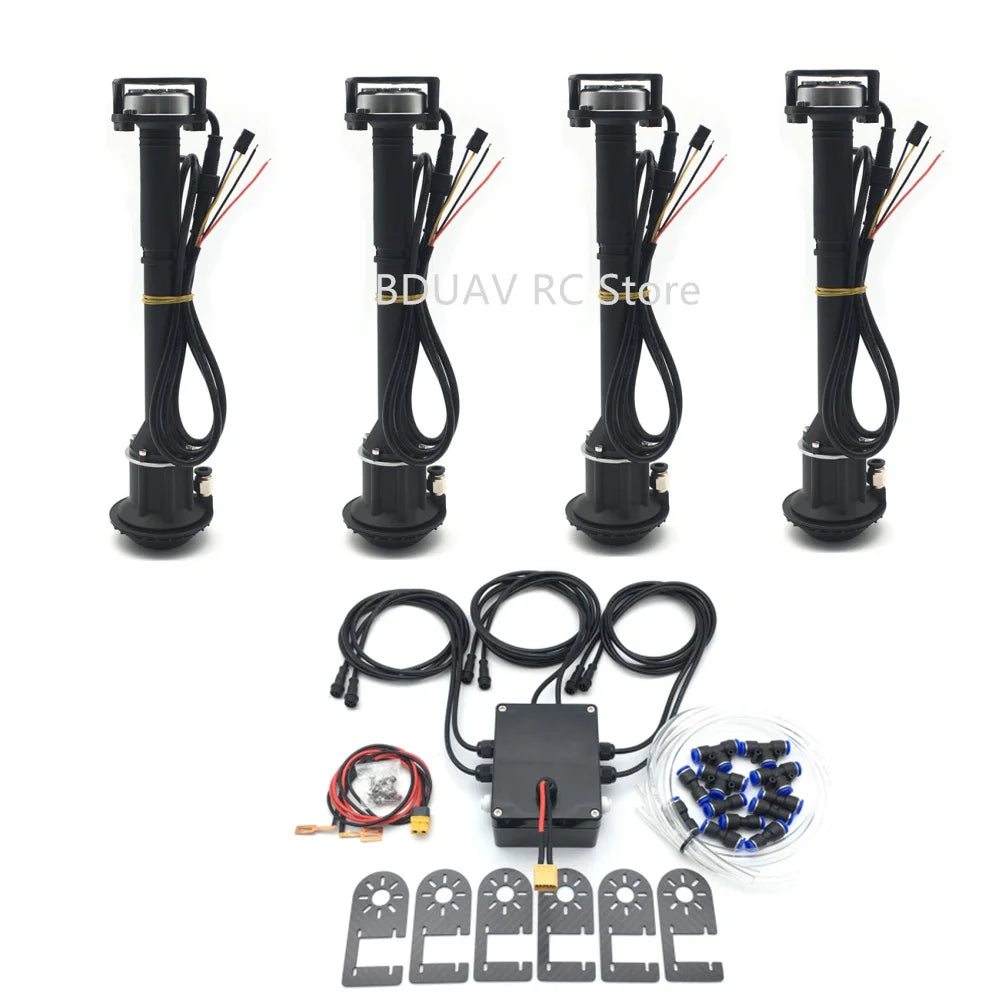

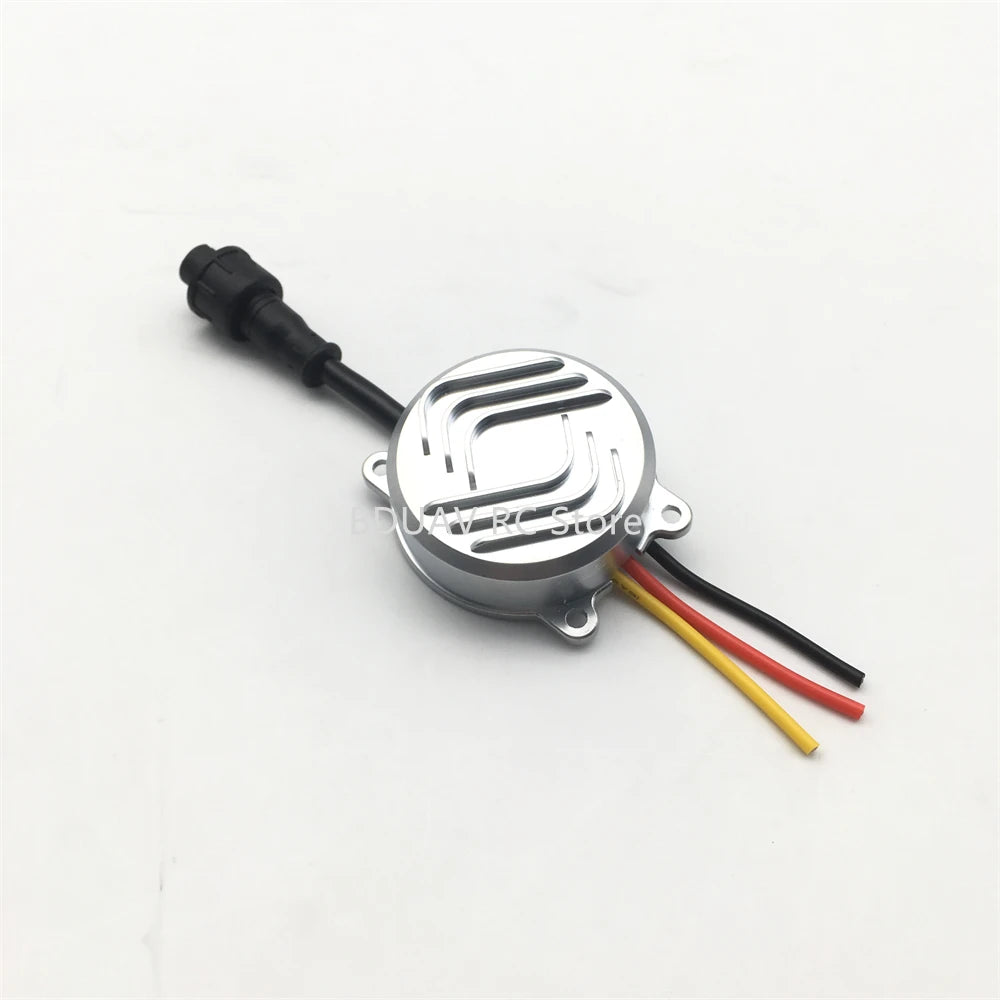

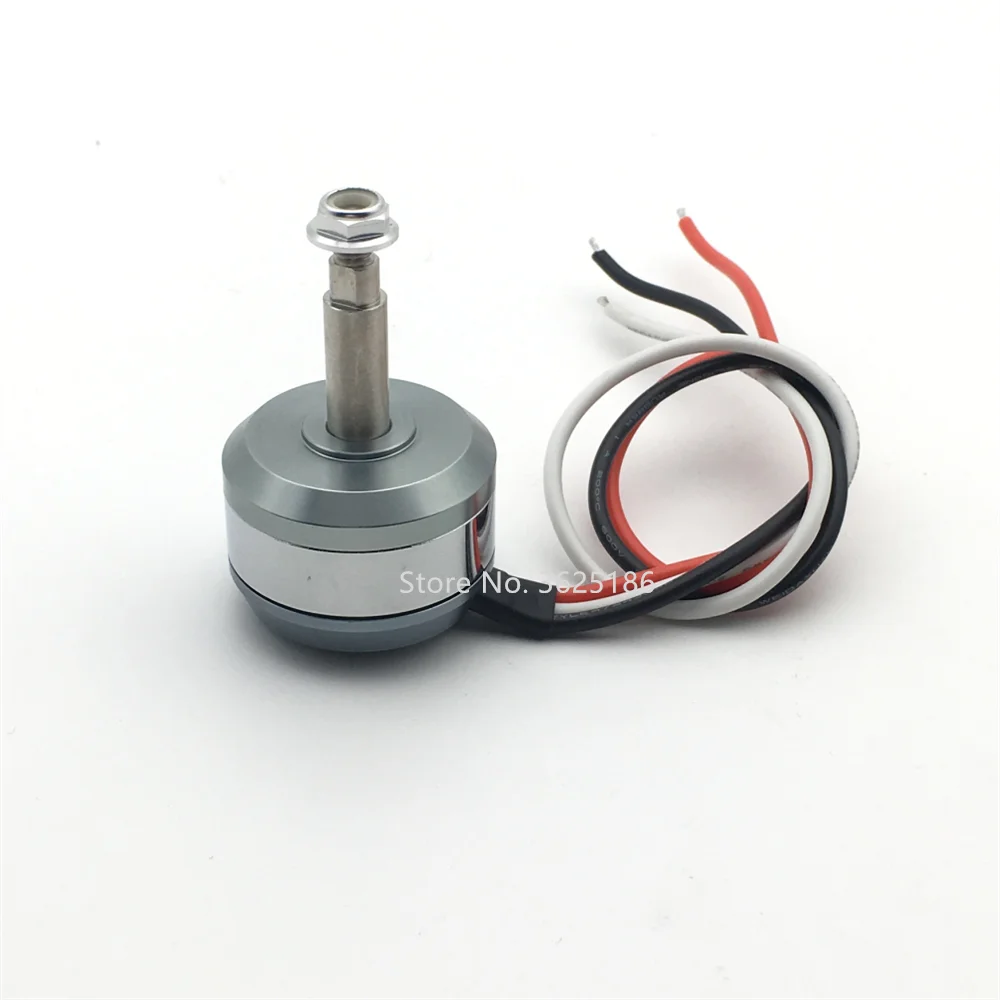

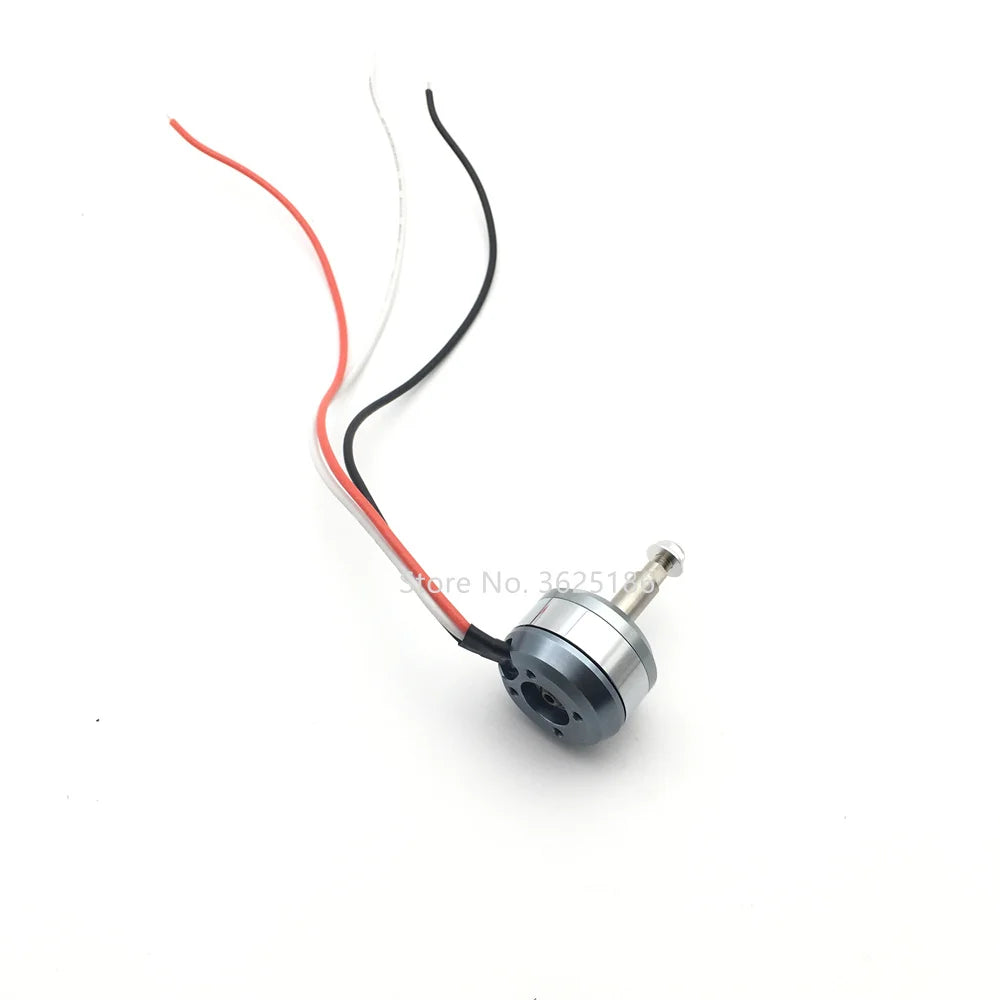

3810 Centrifugal Metal Atomization Nozzle Sprinkler With 12S 14S ESC For Dji T20 T30 T40 Agricultural Plant Protection Drone UAV
Specifications:
Shell material: aluminum alloy
Mist particle diameter: 50-200 microns
Working range: water supply 200-2000mL / min
Atomized spray width: 1.5-2.0 meters
Voltage: 12-14S power supply
Speed: 20,000 rpm
Signal: PWM (1000-2000)
Power: 60W

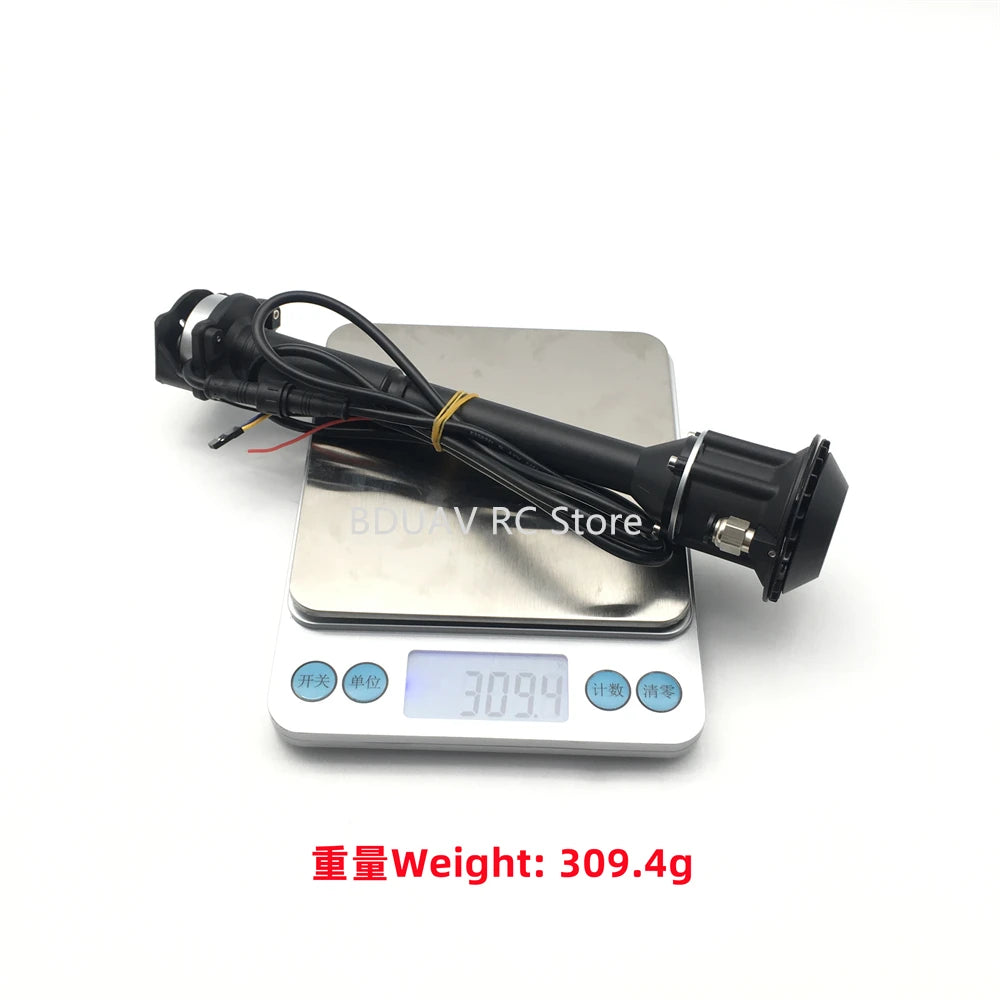

Weight: 310g
Length: total length 30cm
Outgoing cable length: 1.25 meters

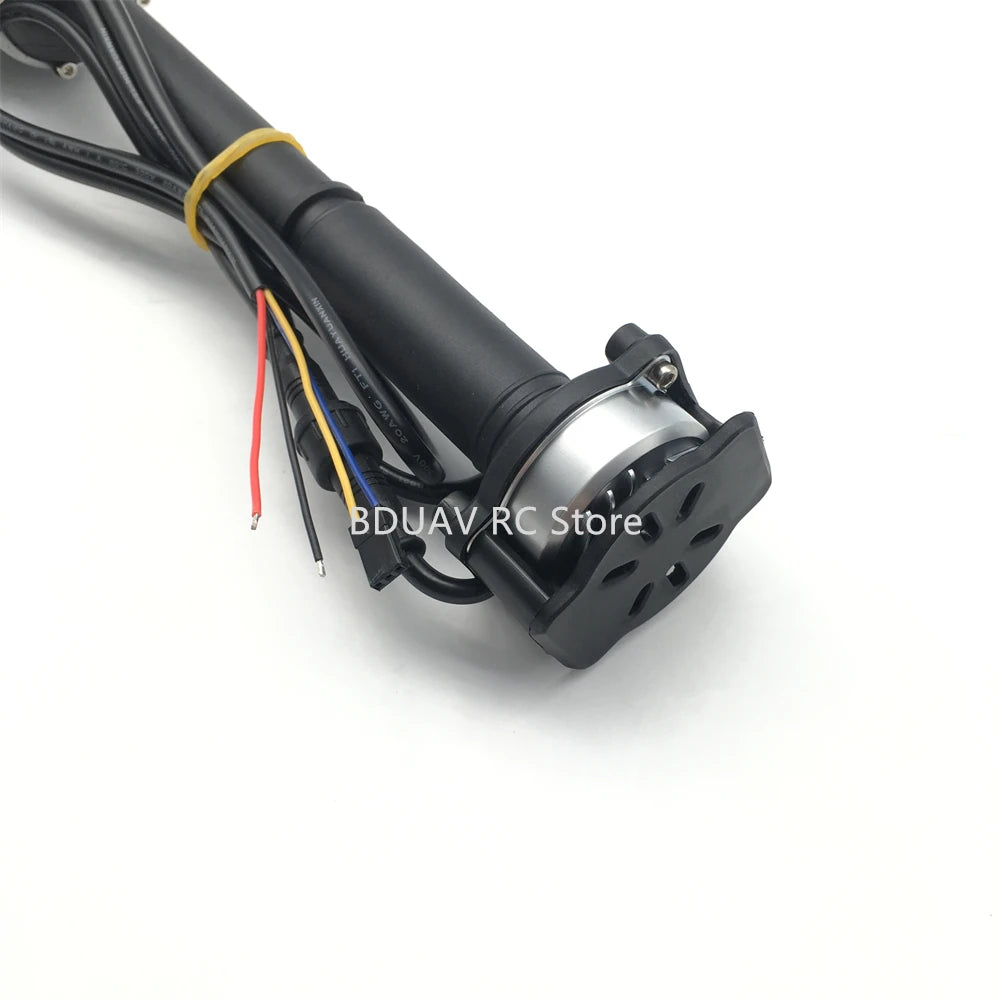

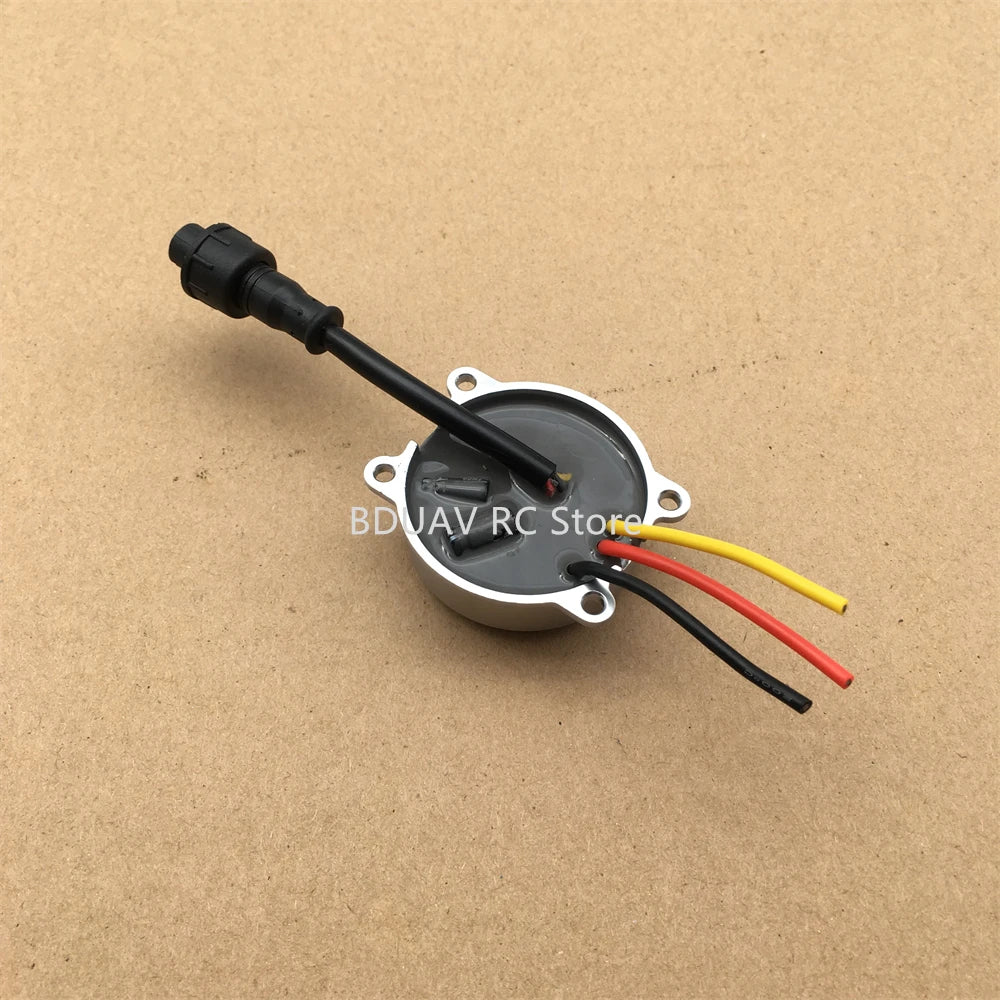

Red wire positive
Black wire negative
White wire signal
Yellow wire ground wire
Note:
When 12S power supply, the sprinkler rotation speed is 85% (analog 1000-1850), the life will be prolonged.
Try not to run at full speed. The speed of the nozzle is 75% when the 14S is powered (analog 1000-1750)
Precautions:
After each operation is completed, a tank of clean water must be filled, add cleaning fluid, turn on the centrifugal nozzle, spray a tank of water, and then idling for 1 minute. The purpose is to clean the residual pesticides to prevent corrosion, solidification and damage to the motor bearings.
