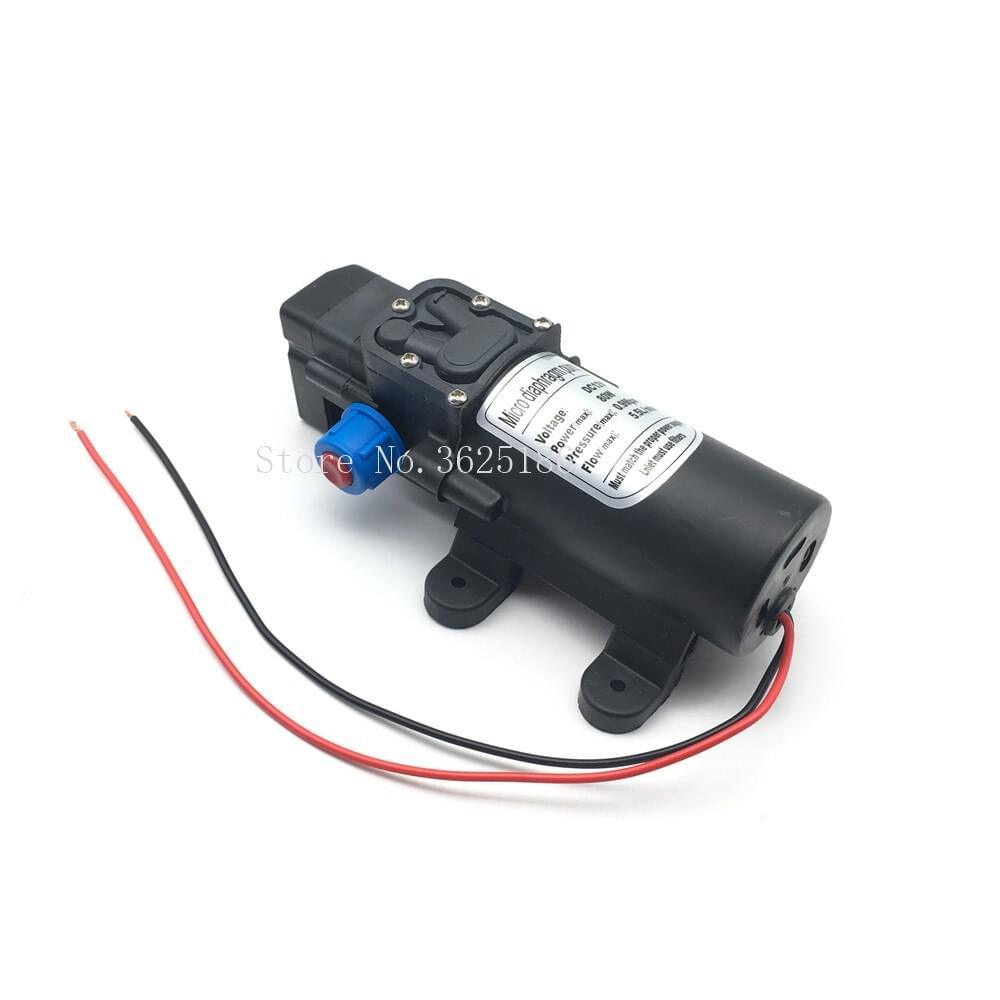

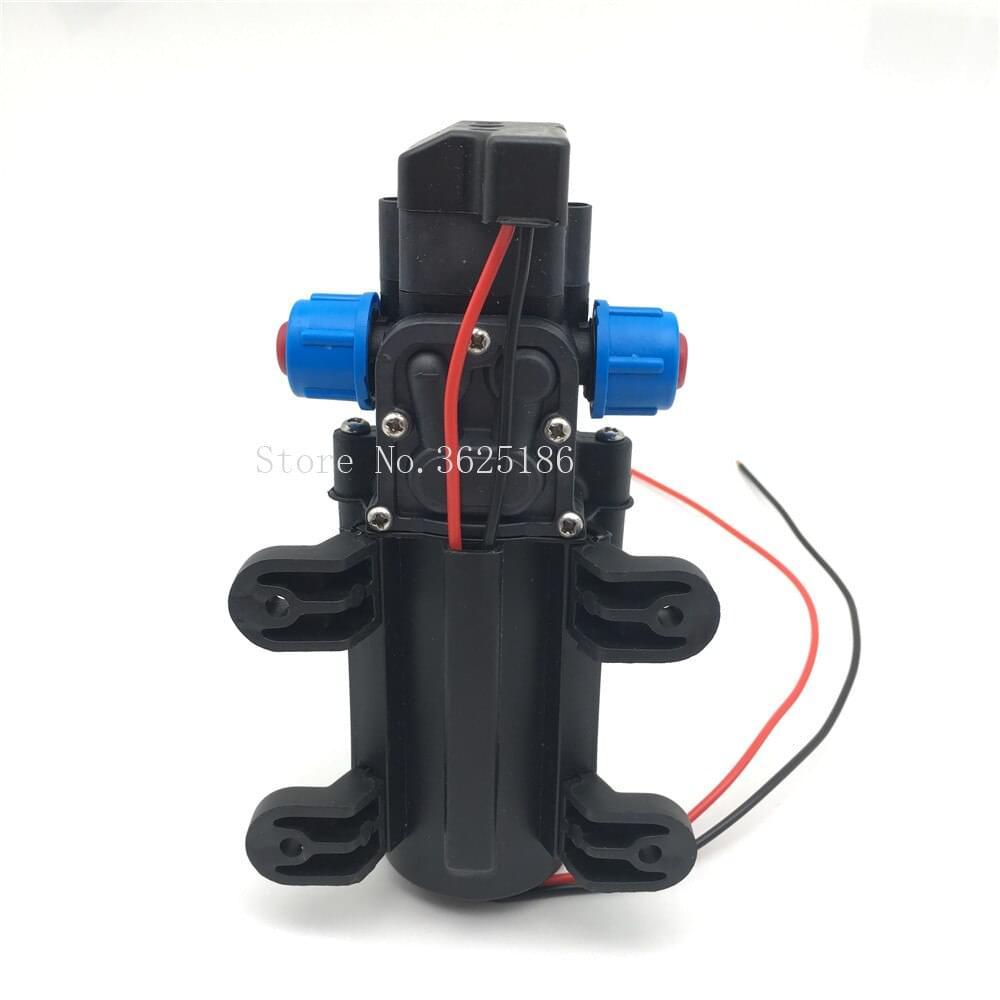

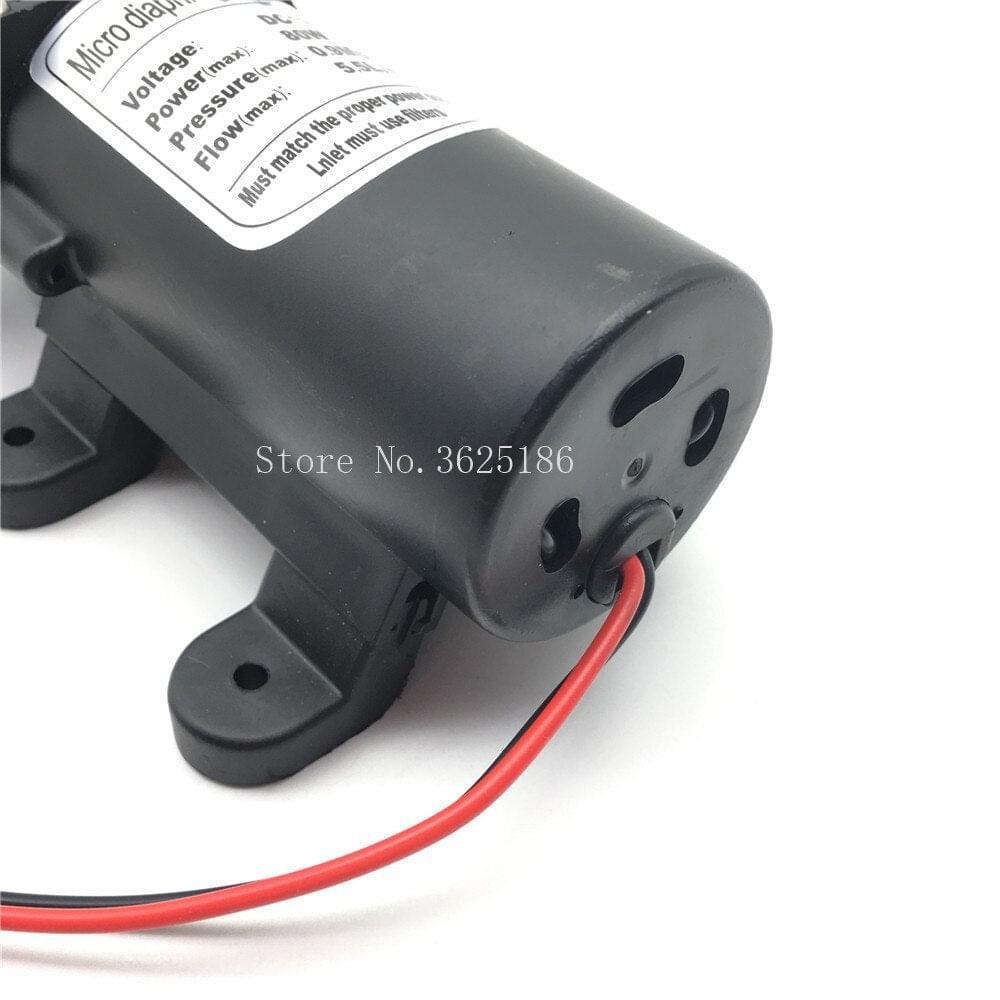

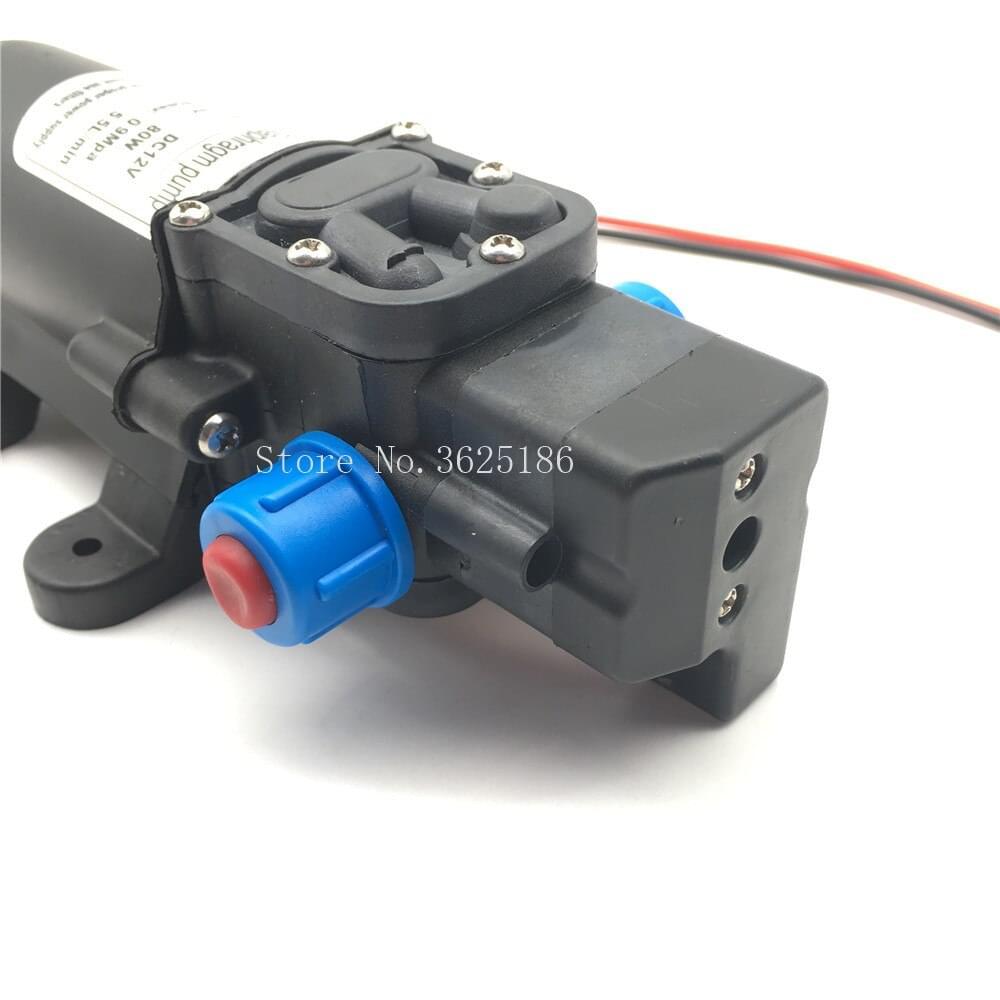

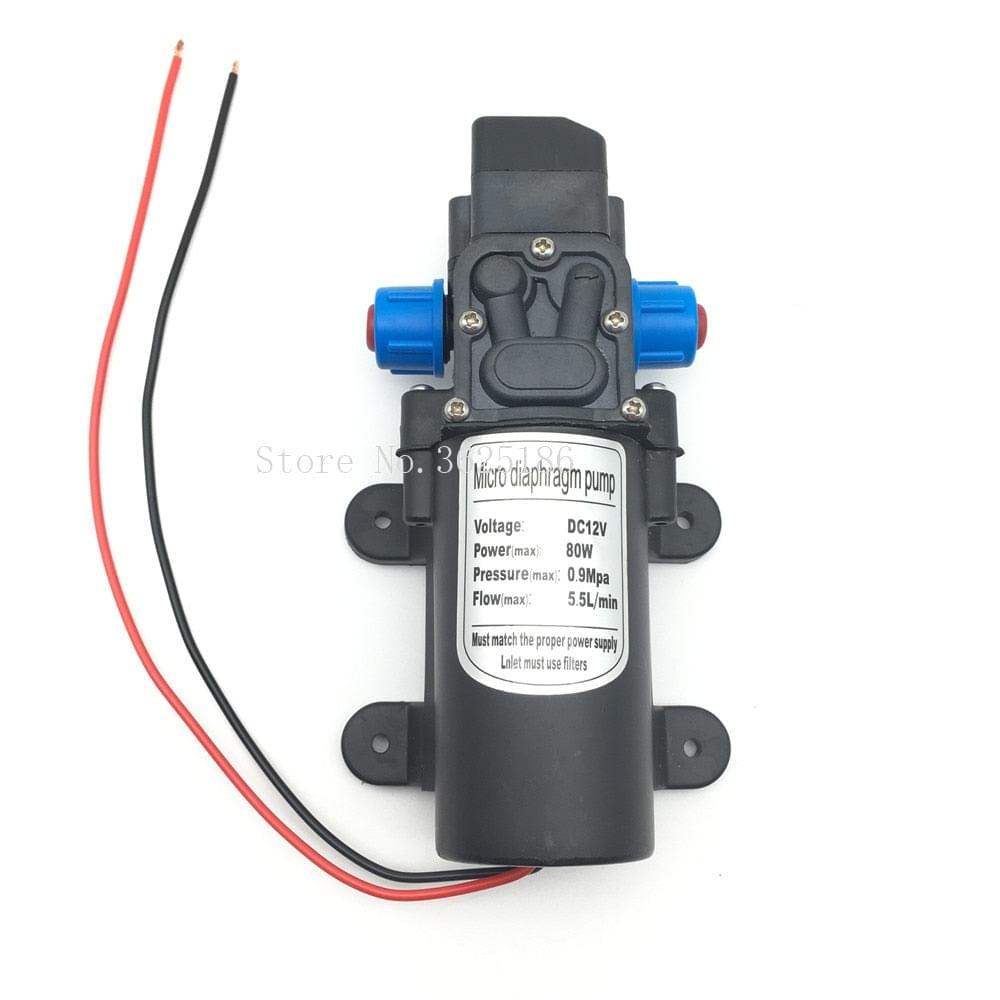

1pcs 12V 80W plant agricultural drone DC brush water pump sprayer diaphragm pump

 DC brush water pump SPECIFICATIONS

قاعدة العجلات: البراغي

الاستخدام: المركبات وألعاب التحكم عن بعد

ترقية قطع الغيار/الإكسسوارات: water pump

مستلزمات الأدوات: water pump

المعايير الفنية: القيمة 2

الحجم: 80W

الأجهزة الطرفية/الأجهزة الطرفية للتحكم عن بُعد: المحرك

قطع غيار السيارات والمركبات: المحركات

المنشأ: البر الرئيسي للصين

رقم الموديل: 80W

المواد: معدن

سمات الدفع الرباعي: المحركات

لنوع المركبة: الطائرات

Hodel Voltage Kix Power Kix pressure Working pressure low (HAX) Suction Head Range 12v-451 12v 451 SKG SKG 4min 451 24v-451 24v 12v-601 12v 601 8KG SLmin 1. 5m 551 81 24v-801 24v 801 9KG 5.

Power: Electric

Application: Submersible

Structure: Diaphragm Pump

Model Number: 607qw

Pressure: Low Pressure

Standard or Nonstandard: Standard

Fuel: Elcctric

Theory: Diaphragm Water Pump

Intake Pressure: 0.2Mpa

Rated Pressure: 0.8Mpa

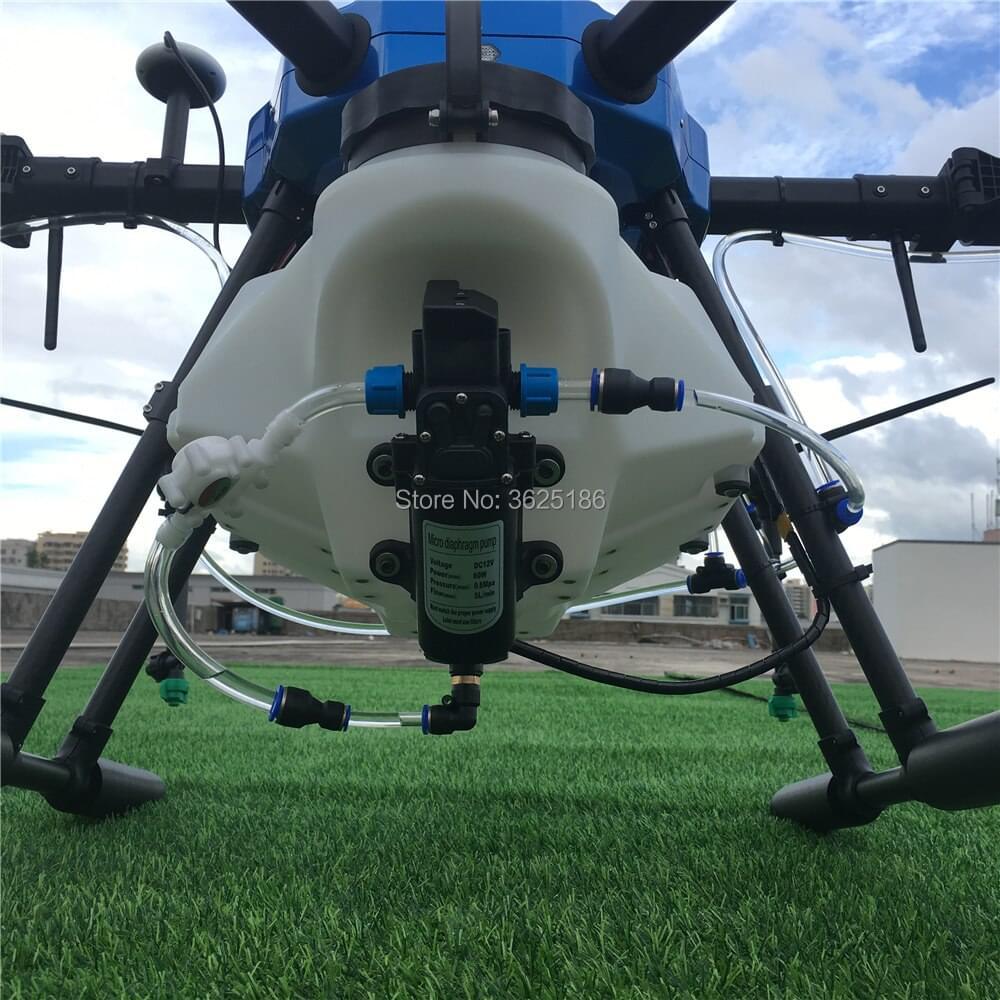

Designed for agricultural drones, this pump can deliver up to 5 liters per minute, making it suitable for applications that require reliable water spraying.

Agriculture Drone special brush water pump step-down governor, integrated buck module and governor as one, streamlined wiring, support 15-60V wide pressure input, external 12V brush pump, built-in drug detection function, module ring Oxygen resin potting, dustproof and waterproof.

Product specifications:

Size: 47mm * 34mm * 22mm (without fixed ears)

Weight: 72g

Mounting hole distance: 54-60mm

Supply voltage: 15-60V

Output voltage: 12V

Maximum current: 6A

Maximum power: 72W

Broken medicine line number: there is water – high level, no water – low level

The use of the drug detection function: the drug detection function is currently limited to the use of 25W water pump, the 3pin line of the drug-breaking signal is connected to the detection interface of the flight control level meter, the drug-breaking signal is output in high and low level mode, and water is high. Flat, no water is low, need to discharge the air in the pump before takeoff, so as not to misjudge after takeoff.

Wiring diagram

the input signal is normal and the pump is off . the green light is gradually brighter Tank has water, medicine signal output high level .
