20W 10W Anti Drone module SPECIFICATIONS
Brand Name: NoEnName_Null
Origin: Mainland China
DIY Supplies: ELECTRICAL
Type: Anti Drone module
Model Number: Anit drone
Size: 2.4G WIFI
Style: 1.5G GPS
Output Type: 5.8G drone
Anit drone
2.4G WIFI: 1.5G GPS
5.8G drone: 433M

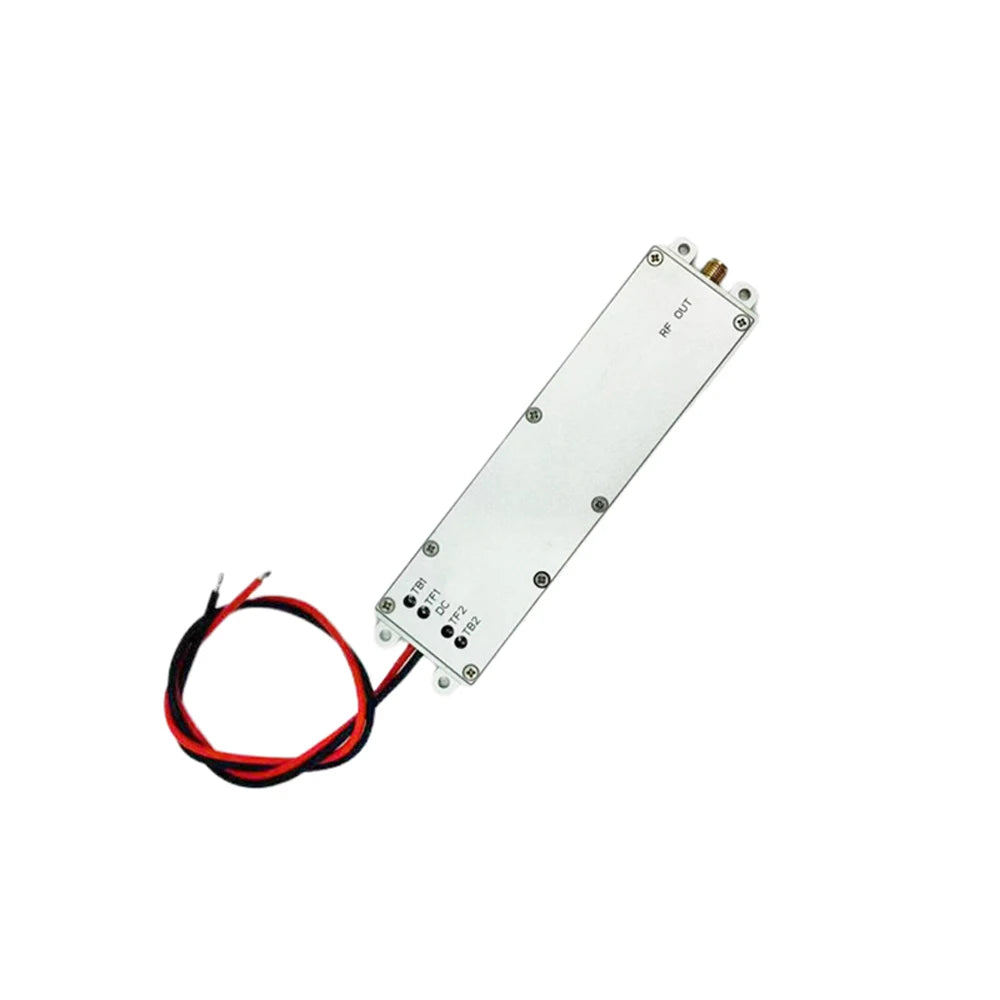

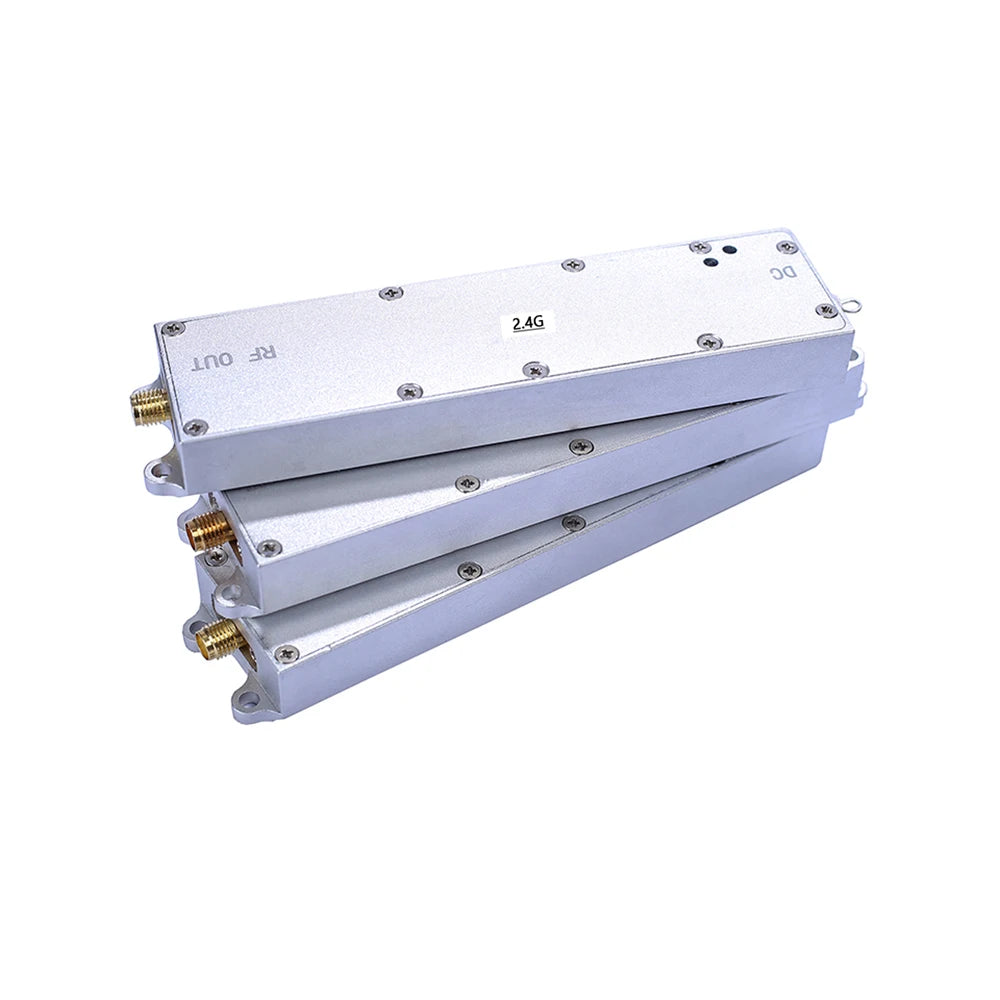

20W 10W module DC 29V 433Mhz 1.5Ghz 2.4Ghz 5.2Ghz 5.8Ghz for Anit Remote control 2.4G WIFI Bluetooth 5.8G drone UAV
Warning:

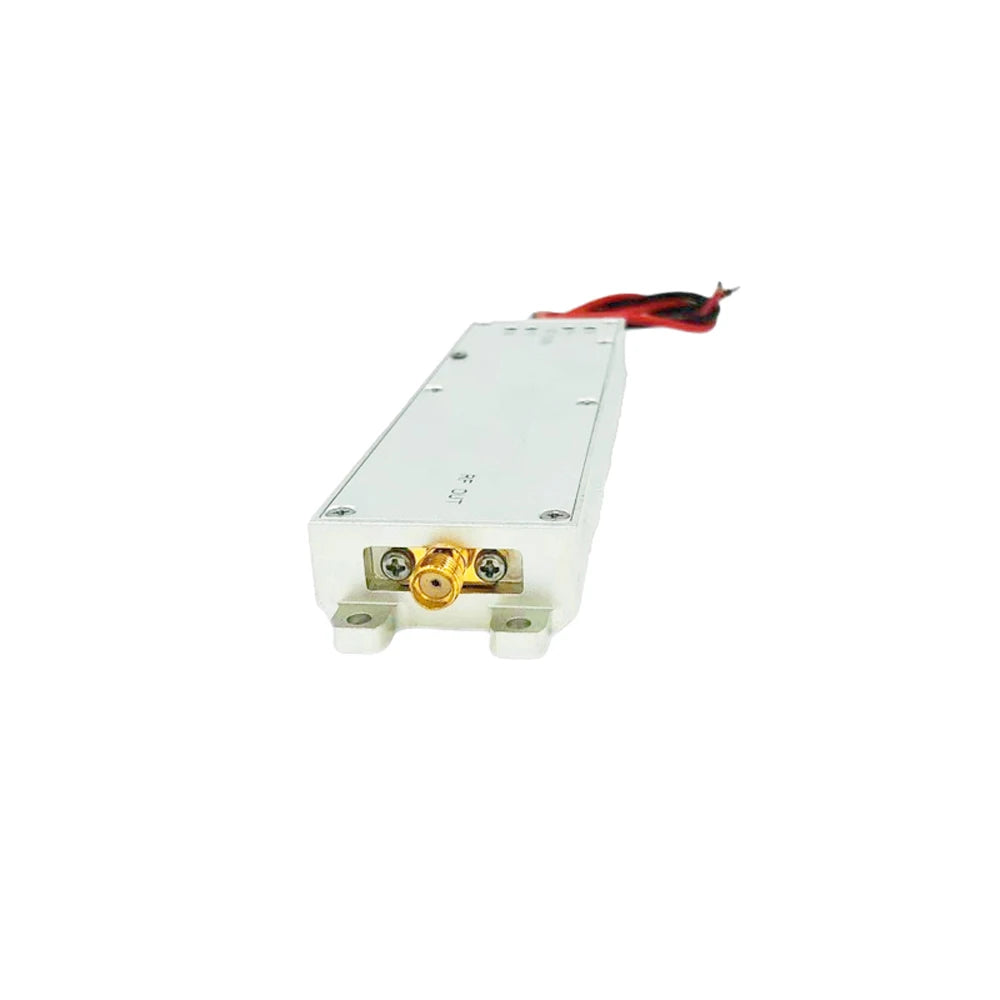

The antenna must be plugged in before powering on. Otherwise, the chip will be burned because reflected signal is too large.
How to Choose Antenna?

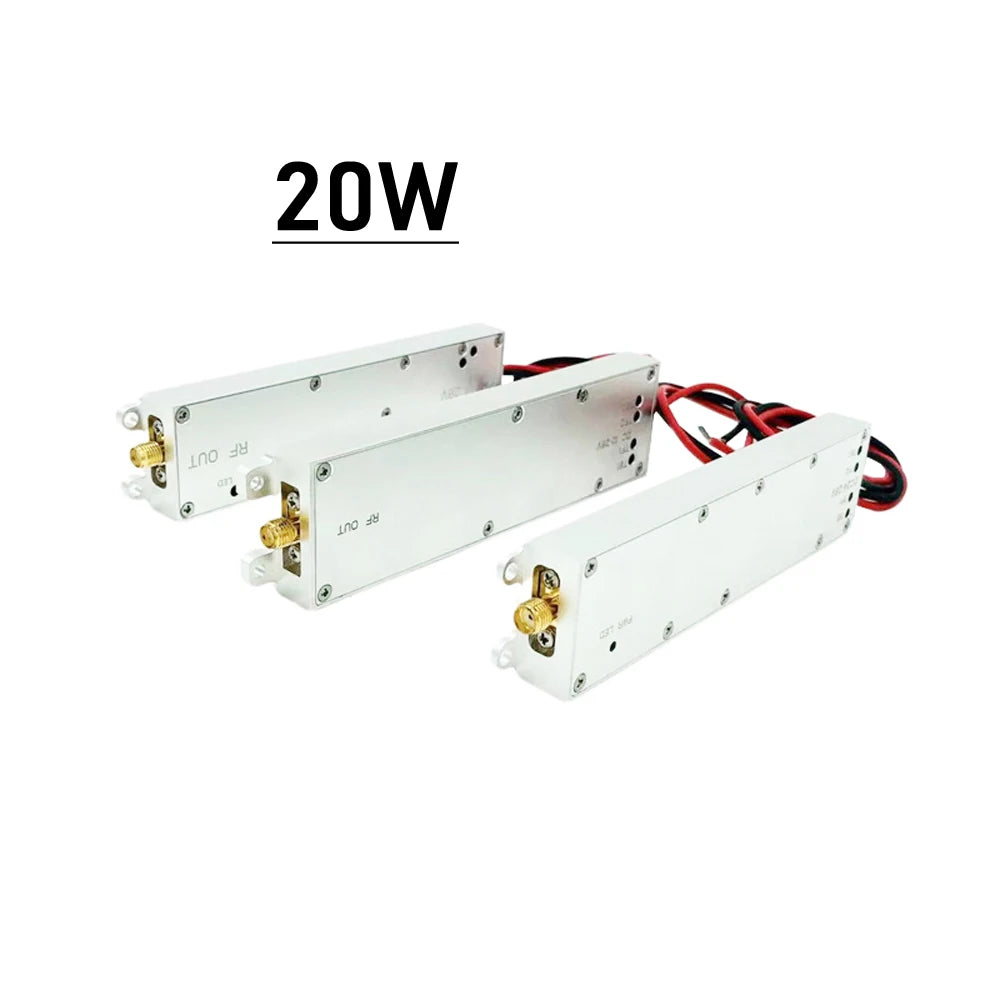

Pay attention to interface and frequency. The output interface of this module is female port, then your antenna should be with corresponding frequency + male port.

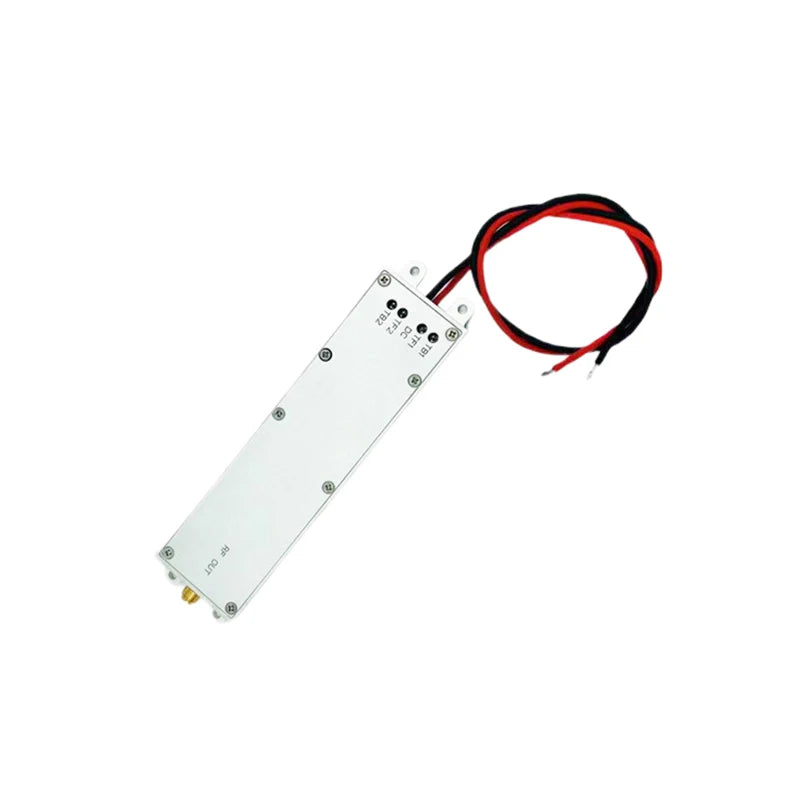

Frequnency range: 433Mhz / 900Mhz / 1.2Ghz / 1.5Ghz / 2.4Ghz / 5.2Ghz / 5.8Ghz
Supply voltage:DC 27-28V
Output power:10W / 20W
Average output power 10W (directional antenna interference distance: 3-500M)
Average output power 20W (directional antenna interference distance: 3-2000M)
Power flatness:1-1.5dB
Input/Output VSWR:1.5dB
10W Supply current: 1-1.1A
20W Supply current:2.1-2.4A
10w Size LWH: 130x30x15mm
20w Size LWH:137x34x15mm
RF connector:SMA
Weight:110g / 156g
Operating temperature:-20℃~80℃
