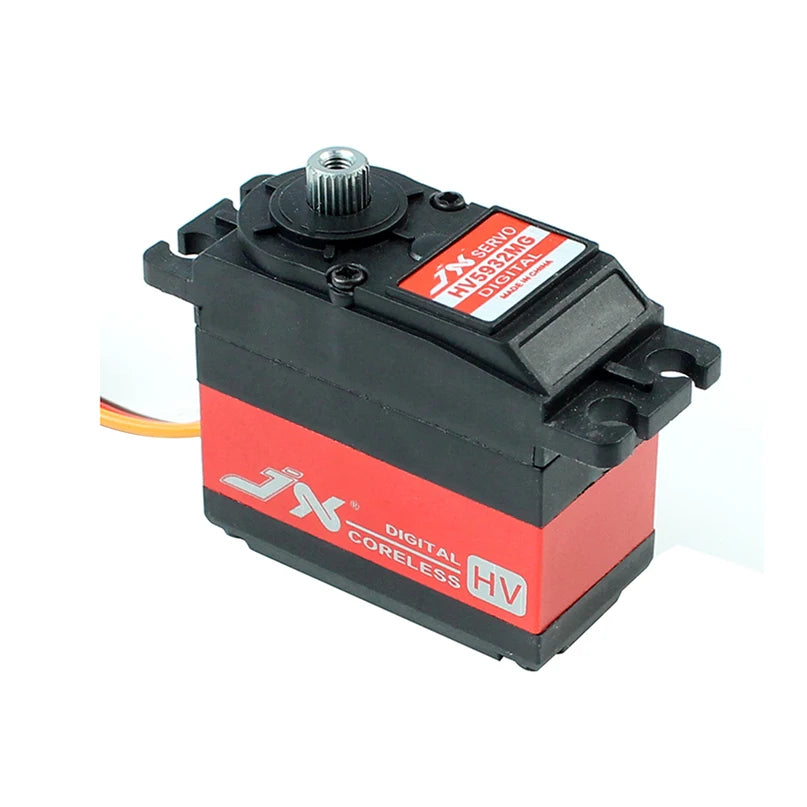

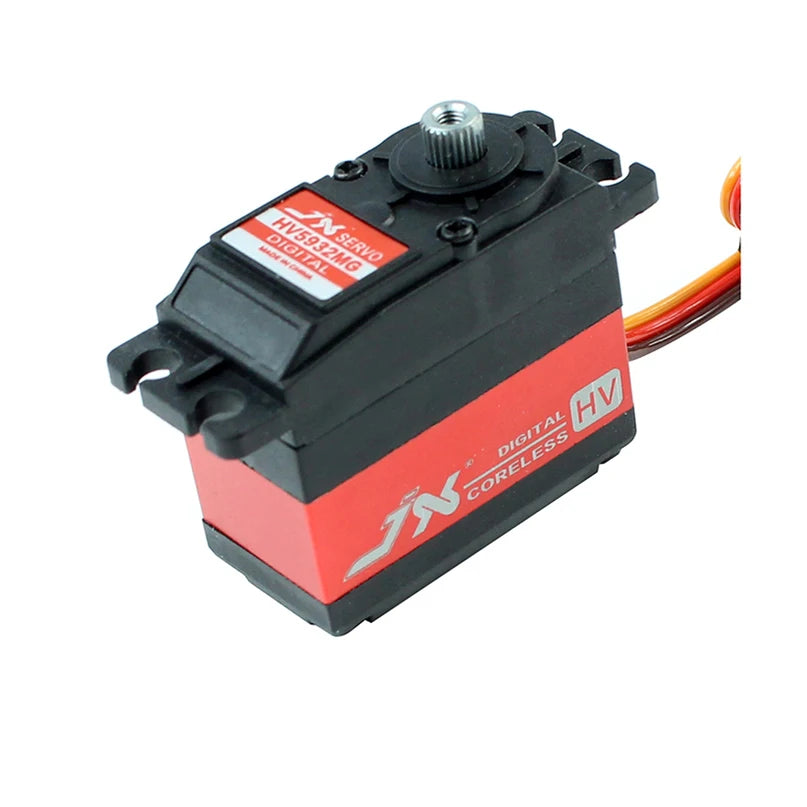

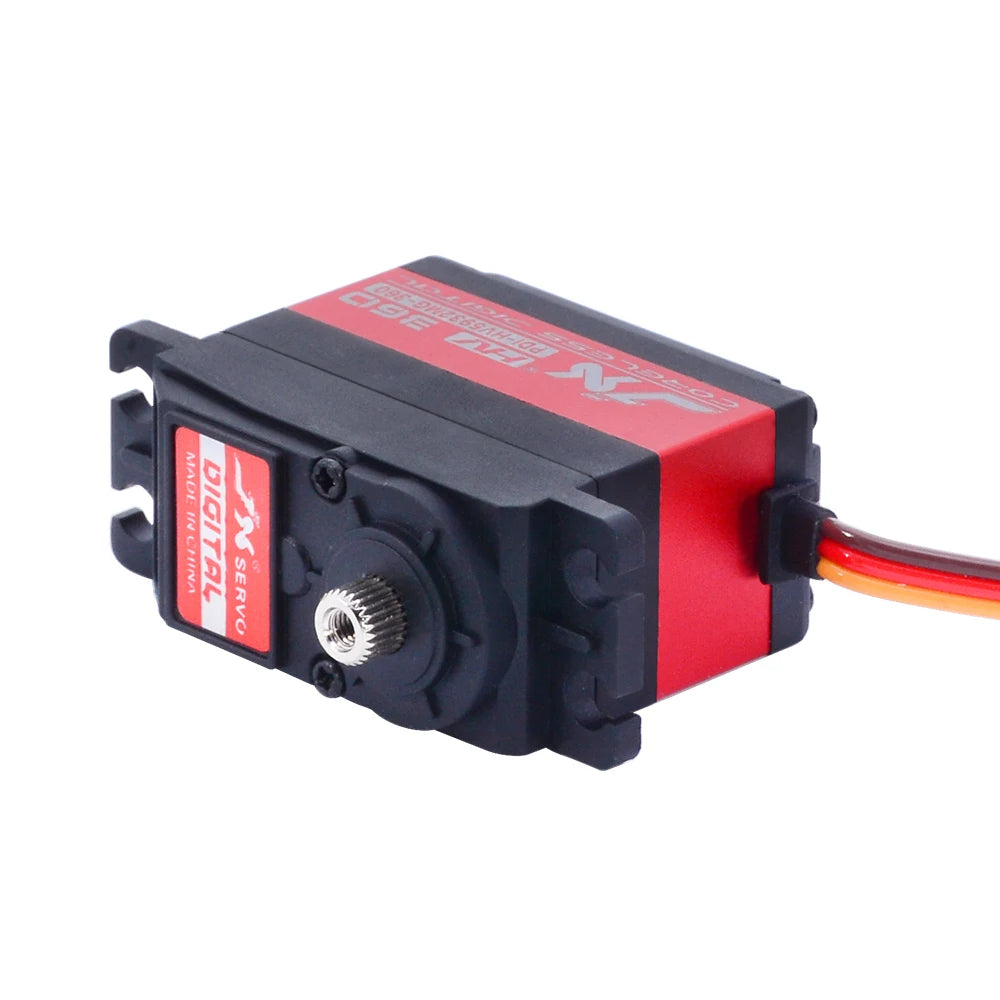

JX Servo PDI-HV5932MG – 8.4V 32KG Large Torque 120 180 360 degree High Voltage Digital Standard Servo For RC Car Boat Robot Parts

$31.35 - $34.45

+ Бесплатная доставка
360 degree180 градусов120 degree
360 degree
180 градусов
120 degree
КИТАЙ
КИТАЙ
Очистить
Артикул: Н/Д Категория:
Запросите дополнительную информацию

JX Servo PDI-HV5932MG 8.4V 32KG SPECIFICATIONS

Название бренда: JX

Происхождение: Материковый Китай

Материал: Металл

Запчасти и принадлежности RC: Сервоприводы

Размер: 40.5X20.5X36mm

Для типа автомобиля: Автомобили

Используйте: Транспортные средства и игрушки с дистанционным управлением

Модернизация деталей/аксессуаров: Шестерня

Периферийные устройства/устройства дистанционного управления: Пульт дистанционного управления

Поставки инструментов: Собранный класс

Количество: 1 шт.

Технические параметры: KV1100

Номер модели: PDI-HV5932MG

Атрибуты полного привода: Сборка

Колесная база: Нижняя пластина

Shell: CNC middle shell

Напряжение: 6.0-8.4V

Вес: 59g

Двигатель: Coreless motor

Torque: 25-32kg

Шестерня: metal gear

Gear teeth: 25T

Signal: digital servo

Control angle: 120 180 360 degree

Usage for: RC Model robot



Dear Friends,

Welcome to our shop!

We are the JX RC MODEL STORE !

Huge stocks.support wholesale

Our all the servos have passed CE,FCC and Rohs certificate

If you have big order,price can be negotiated.OEM is acceptable

(pls email to MS Maggie,email address:sales5@jx-servo.com)

Quality is the first with the best service.

Wish you a happy shopping!

If you have any question about your order.

Welcome to contact with us,

we will reply you within 24hours.

Thank you for your continuous support.

Примечания:

Please don’t bid if you are not going to make the payment.

Before payments,pls double check your delivery information

address,name,phone number etc.

Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.
JX Servo, Description JX RC Model

JX Servo PDI-HV5932MG 32KG Large Torque 120 180 360 degree High Voltage Digital Servo For RC Car Boat Robot

Особенности:

High-voltage digital hollow cup standard steering gear

Taiwan high precision gear

Double ball bearing

CNC aluminum inner shell

PDI-HV5932MG-360° continuous transfer detailed specifications:

Dead zone: 1μs

Maximum pulse width: 500-2500us, pulse width is stopped at 1500us (suitable for remote control, MCU control board)

Angle range: 360° continuous turn

Motor: Hollow cup

Speed (6.0V): 73 rpm

Speed (8.4V): 102 rpm

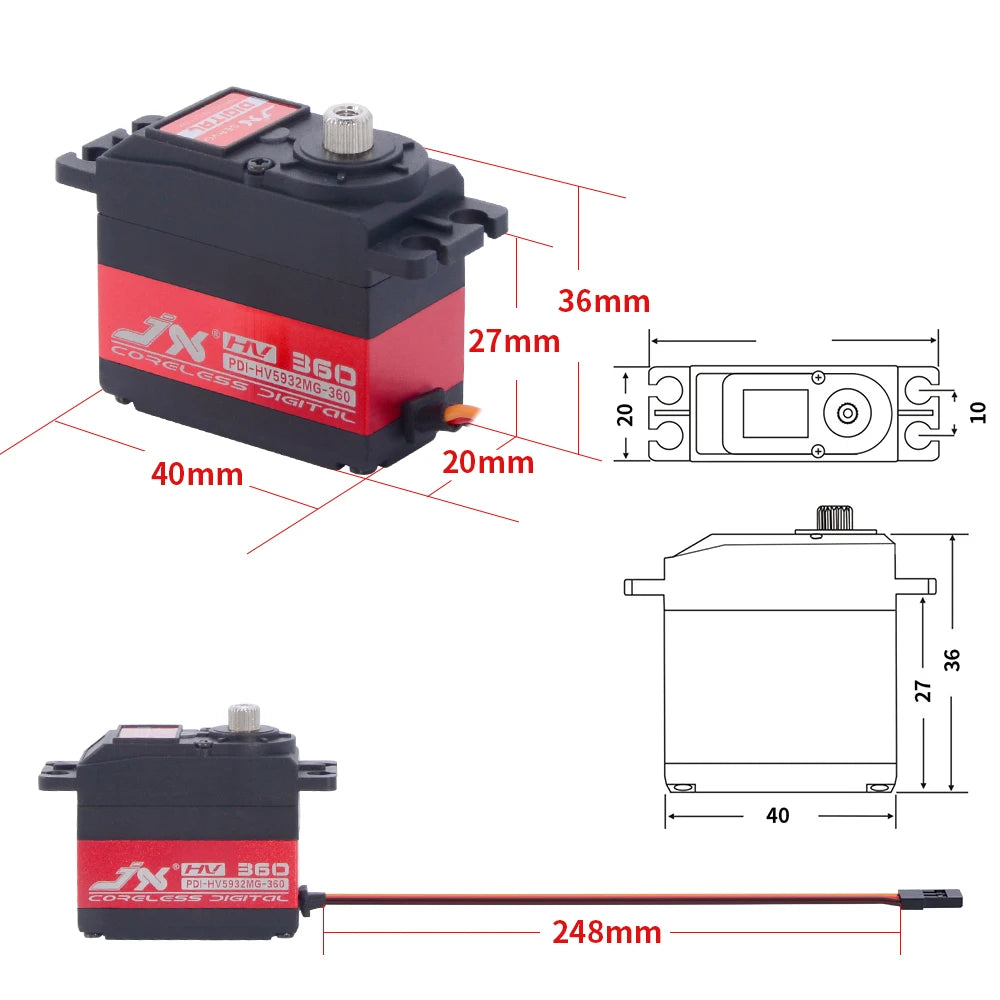

Size: 40.5X20.5X36mm

Weight: 59g

Cable: JR 265 mm (10.43in)

Подшипник: 2BB

Output teeth: 25T (Futaba universal)

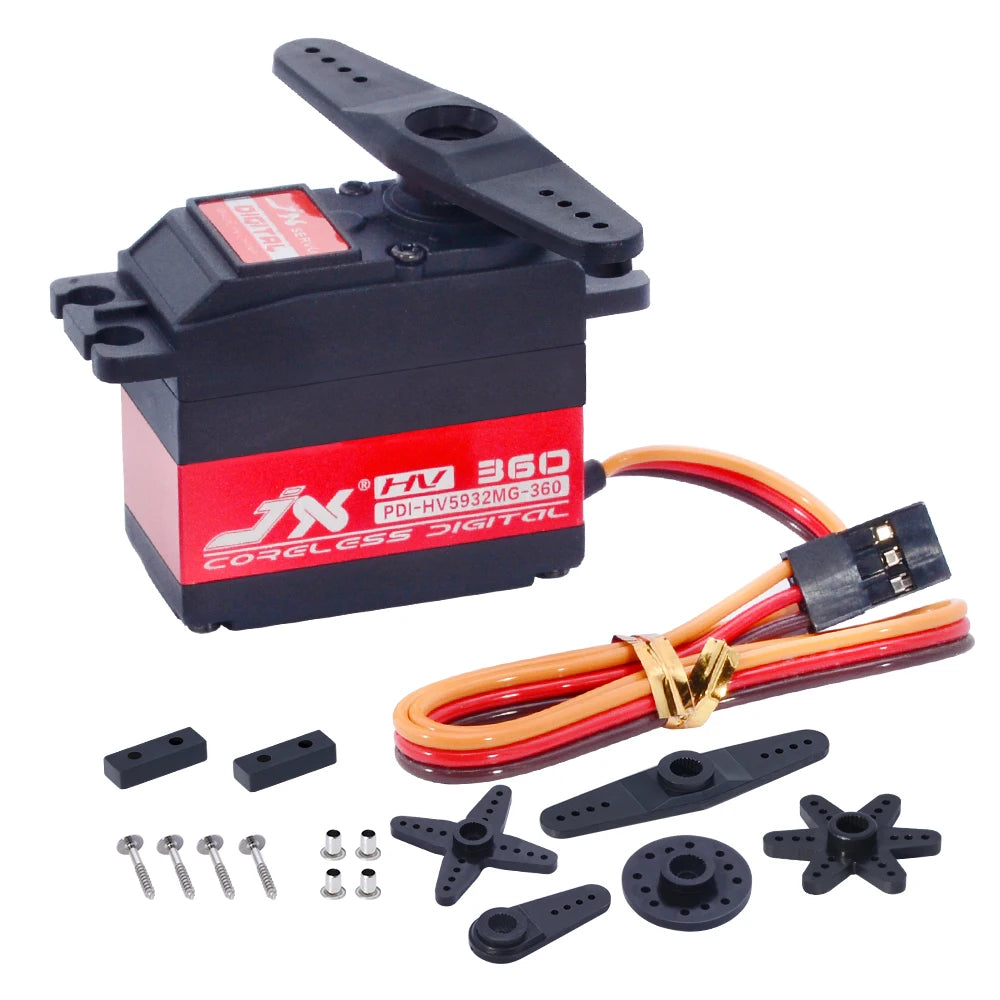

Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

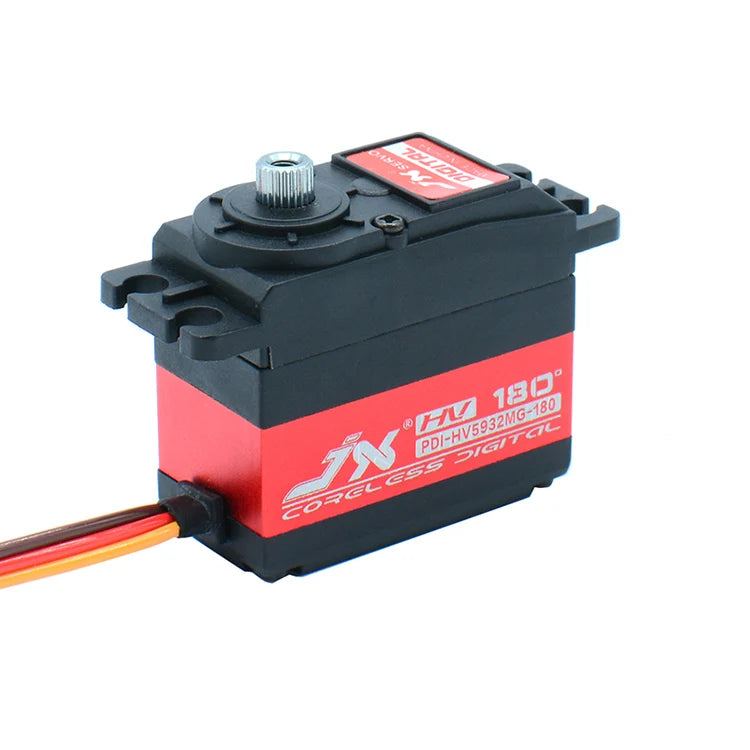

PDI-HV5932MG-180°Detailed specifications:

Dead zone: 1μs

Maximum pulse width: 500-2500us (suitable for single-chip control board)

Angle range: actual angle 172 ± 2 °

Motor: Hollow cup

Speed (6.0V): 0.12sec/85°

Speed (8.4V): 0.1sec/85°

Torque (6.0V): 25.2 kg.cm

Torque (8.4V): 32.3kg.cm

Size: 40.5X20.5X36mm

Weight: 59g

Cable: JR 265 mm (10.43in)

Подшипник: 2BB

Output teeth: 25T (Futaba universal)

Includes steering gear kit, one-word, half-section, cross, *-type, disc, related screws

PDI-HV5932MG-120° Detailed specifications:

Dead zone: 1μs

Maximum pulse width: 900-2100us (suitable for remote control)

Maximum angle: 120°

Motor: Hollow cup

Speed (6.0V): 0.12sec/60°

Speed (8.4V): 0.1sec/60°

Torque (6.0V): 25.2 kg.cm

Torque (8.4V): 32.3kg.cm

Size: 40.5X20.5X36mm

Weight: 59g

Cable: JR 265 mm (10.43in)

Подшипник: 2BB

Output teeth: 25T (Futaba universal)

В комплект входят:

1 x Servo
1 x Bag of Accessories
