JX Servo Ecoboost BLS6534HV – 7.4V 33KG Servo SPECIFICATIONS

Название бренда: JX

Происхождение: Материковый Китай

Материал: Металл

Рекомендуемый возраст: 18+

Поставки инструментов: Собранный класс

Запчасти и принадлежности RC: Сервоприводы

Размер: 40.5X20.5X40mm

Используйте: Транспортные средства и игрушки с дистанционным управлением

Количество: 1 шт.

Технические параметры: KV1100

Номер модели: BLS6534HV

Периферийные устройства/устройства дистанционного управления: Пульт дистанционного управления

Для типа автомобиля: Самолеты

Атрибуты полного привода: Сборка

Колесная база: Нижняя пластина

Shell: Full CNC Shell

Напряжение: 6.0-7.4V

Torque: 26.7-33.7

Вес: 65g

Шестерня: Metal Gear

Gear teeth: 25T

Signal: Digital Servo

Control angle: 180 градусов

Bearing: 2BB

Working Frequence: 1520μs / 330hz

Usage for: RC Models Helicopter DIY Parts

Dear Friends,

Welcome to our shop!

We are the JX RC MODEL STORE !

Huge stocks.support wholesale

Our all the servos have passed CE,FCC and Rohs certificate

If you have big order,price can be negotiated.OEM is acceptable

(pls email to MS Maggie,email address:sales5@jx-servo.com)

Quality is the first with the best service.

Wish you a happy shopping!

If you have any question about your order.

Welcome to contact with us,

we will reply you within 24hours.

Thank you for your continuous support.

Примечания:

Please don’t bid if you are not going to make the payment.

Before payments,pls double check your delivery information

address,name,phone number etc.

Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

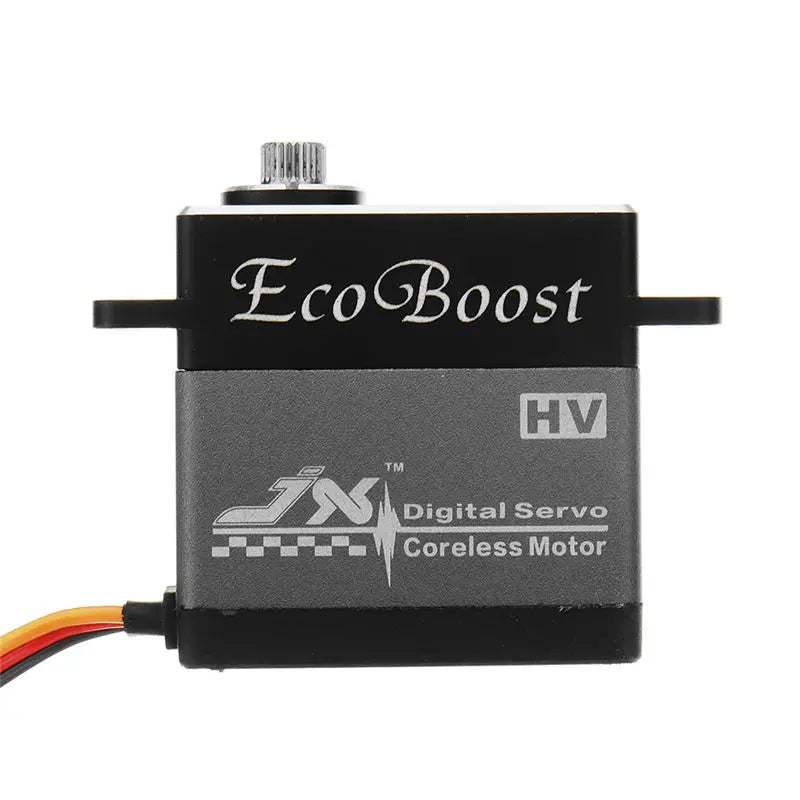

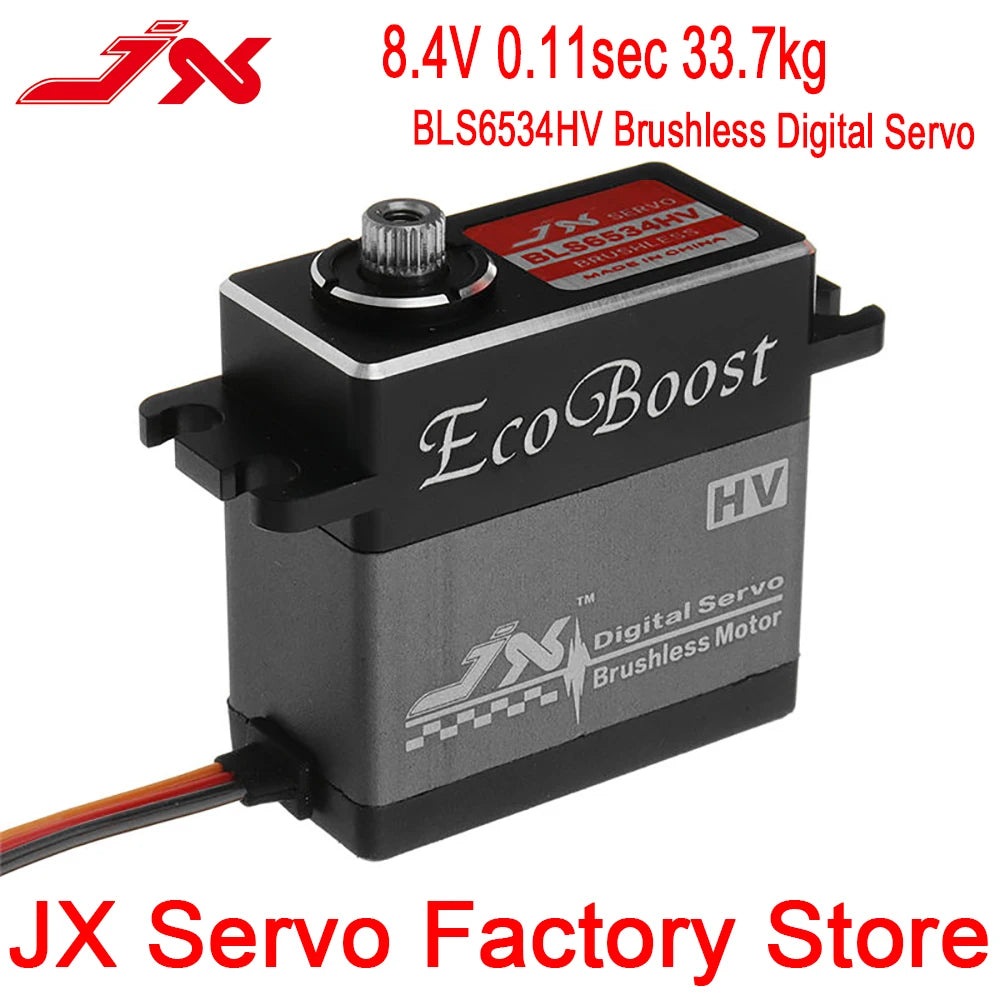

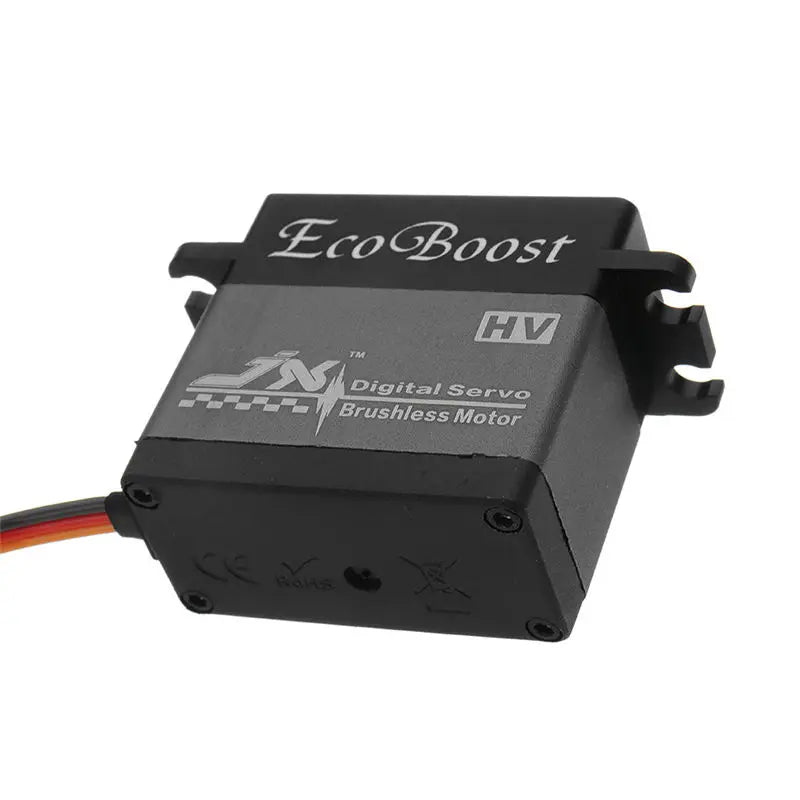

JX Ecoboost BLS6534HV 33KG Large Torque 180 Degree Brushless Digital Servo for RC Models Helicopter DIY Parts

Технические характеристики:

Brand:JX

Model:BLS6534HV

Description:8.4v 33kg brushless motor digital servo

Dead band: 2μs    1520μs / 330hz

Motor: Brushless Motor

Operating Speed (6.0V): 0.13sec/60°

Operating Speed (7.4V): 0.11sec/60°

Stall Torque (6.0V): 26.7kg.cm (370.47oz/in)

Stall Torque (7.4V): 33.7kg-cm (467.16oz/in)

Dimensions: 40.5X20.5X40mm/1.59X0.80X1.57in

Weight:  65g (2.29oz)

Connector Wire Length: JR  265 mm (10.43in)

Подшипник: 2BB

Gear teeth:25T

Control angle:180 degree

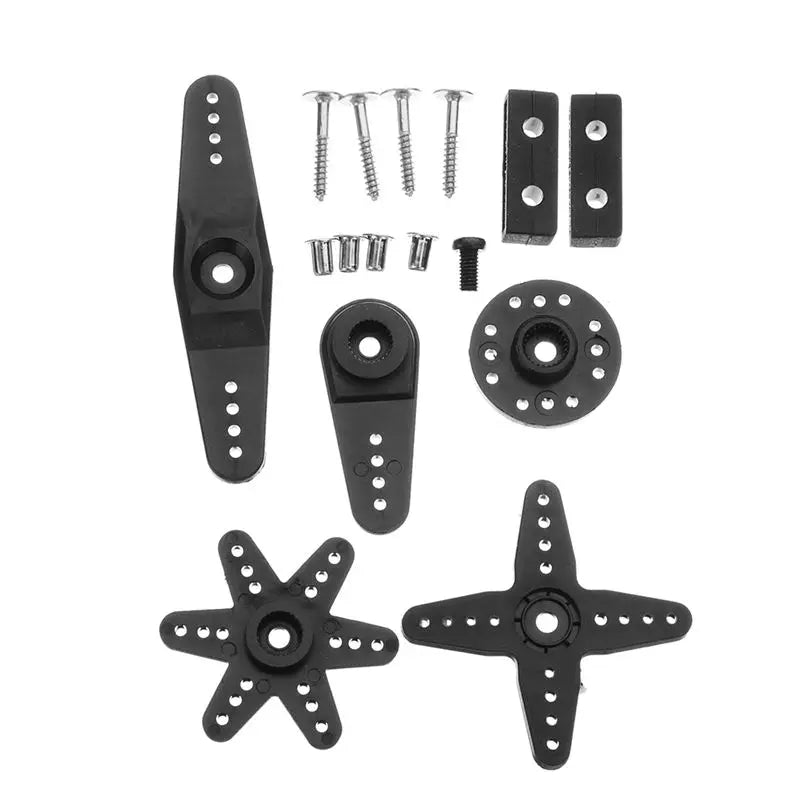

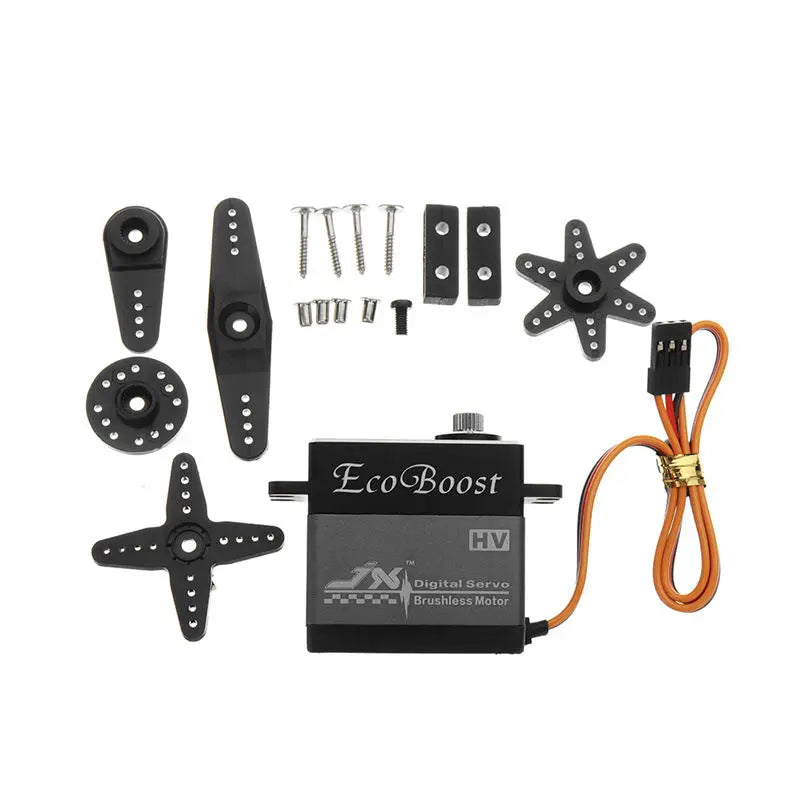

В комплект входят:

1 x Servo
1 x Bag of Accessories
