JX SERVO C60 7.4V 60KG Servo SPECIFICATIONS
Название бренда: JX
Происхождение: Материковый Китай
Материал: Металл
Запчасти и принадлежности RC: Сервоприводы
Размер: 40X20X43.3mm
Для типа автомобиля: Самолеты
Используйте: Транспортные средства и игрушки с дистанционным управлением
Модернизация деталей/аксессуаров: Шестерня
Периферийные устройства/устройства дистанционного управления: Пульт дистанционного управления
Поставки инструментов: Собранный класс
Количество: 1 шт.
Технические параметры: KV1100
Номер модели: C60
Атрибуты полного привода: Сборка
Колесная база: Нижняя пластина

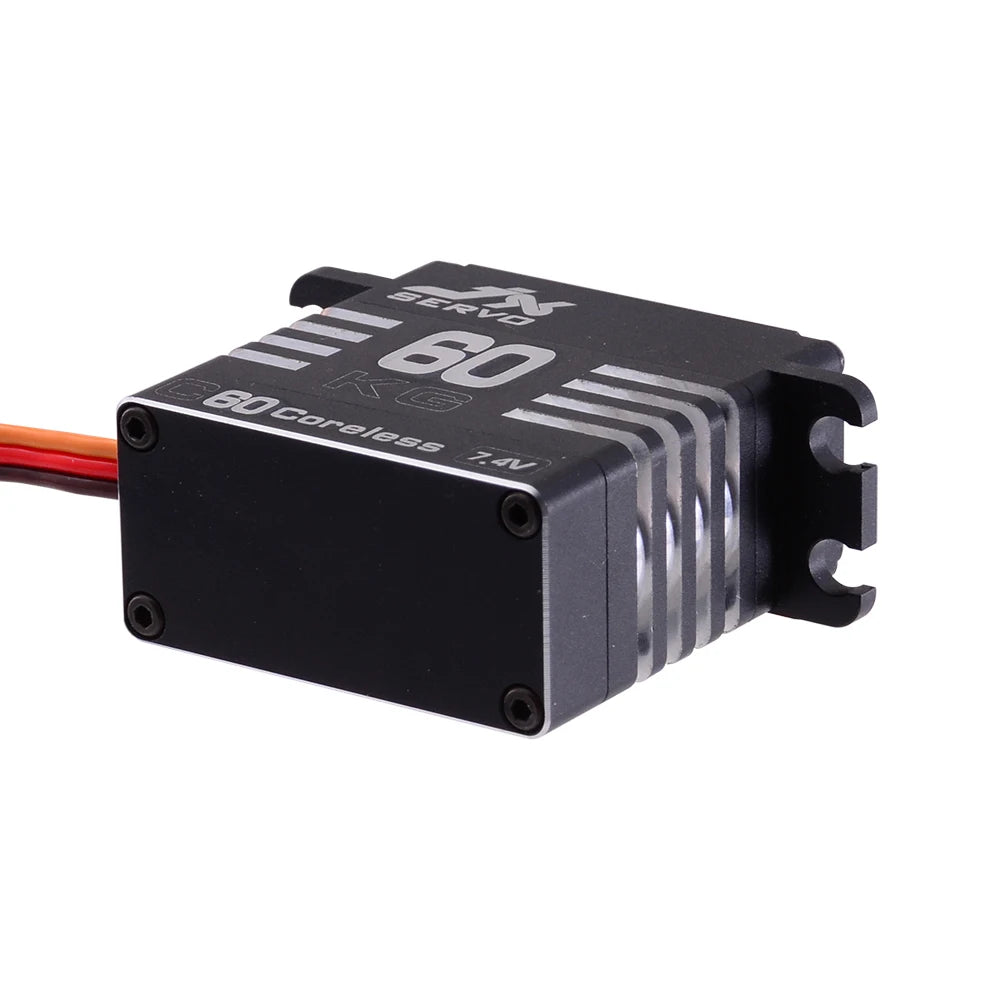

Shell: Full CNC Aluminium Shell
Вес: 87g

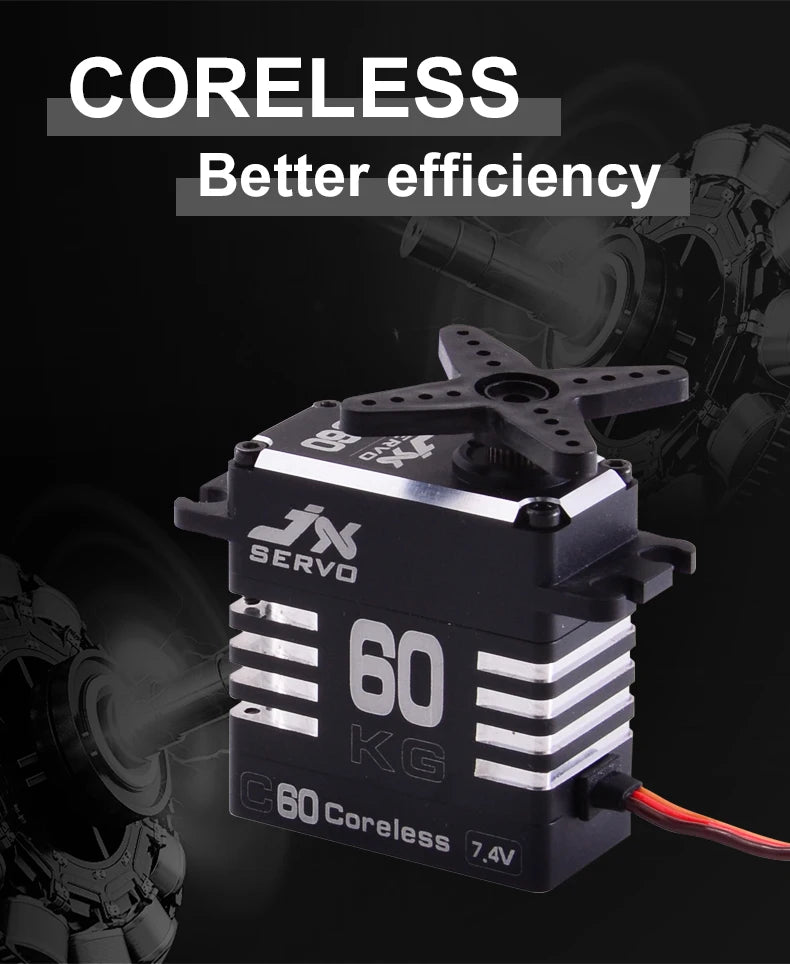

Двигатель: Coreless Motor(Hollow cup motor)
Torque: 62kg
Шестерня: Metal Gear
Gear Teeth: 25T
Напряжение: 6.0-7.4V
Тип: Digital Servo
Cable: JR265MM
Bearing: 2BB

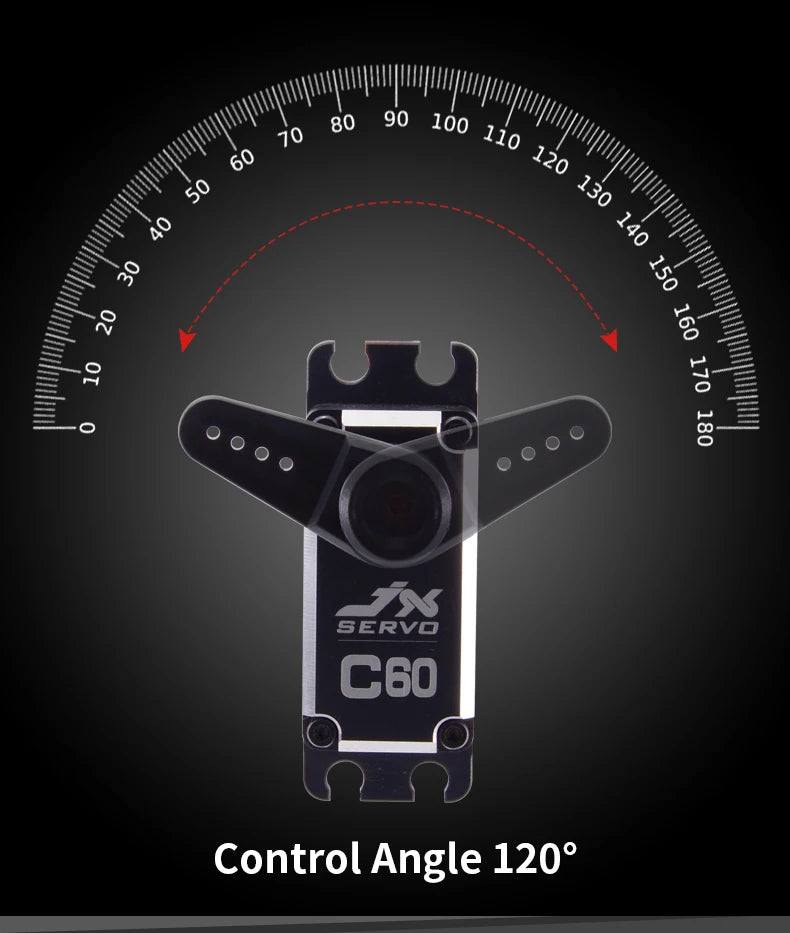

Control Angle: 120-180degree
Usage for: For RC Model/car/boat/airplane
Dear Friends,
Welcome to our shop!
We are the JX servo factory !
Huge stocks.support wholesale
Our all the servos have passed CE,FCC and Rohs certificate
If you have big order,price can be negotiated.OEM is acceptable
(pls email to MS Maggie,email address:sales5@jx-servo.com)
Quality is the first with the best service.
Wish you a happy shopping!
If you have any question about your order.
Welcome to contact with us,
we will reply you within 24hours.
Thank you for your continuous support.
Примечания:
Please don’t bid if you are not going to make the payment.
Before payments,pls double check your delivery information
address,name,phone number etc.
Noted:
1.Please allow 1-2mm errors due to manual measurement.
2.Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same.

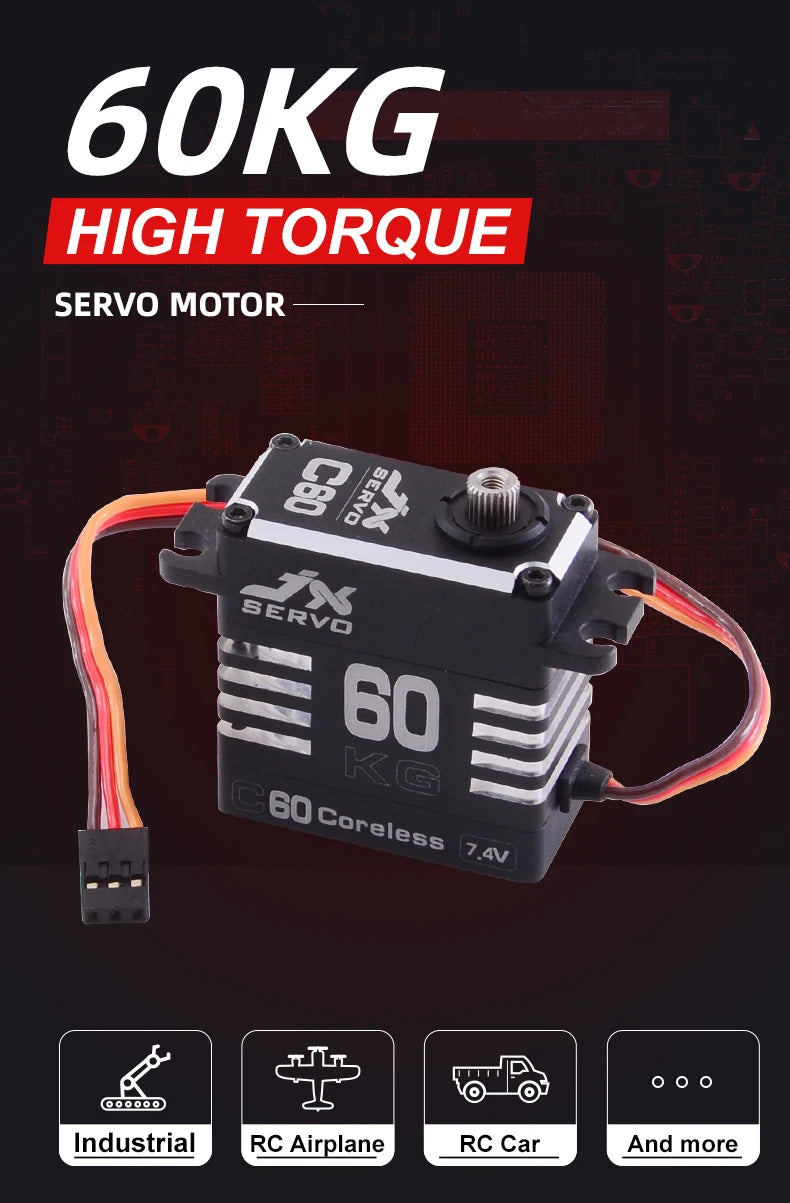

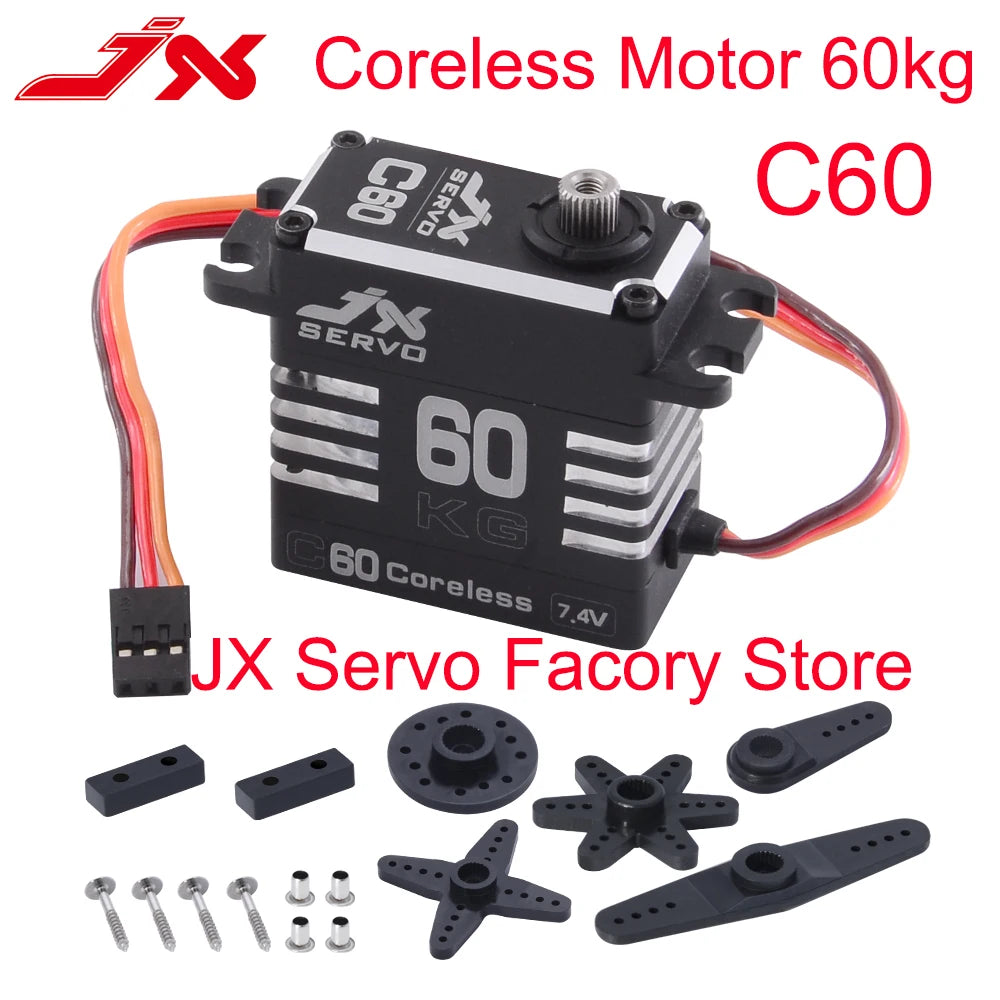

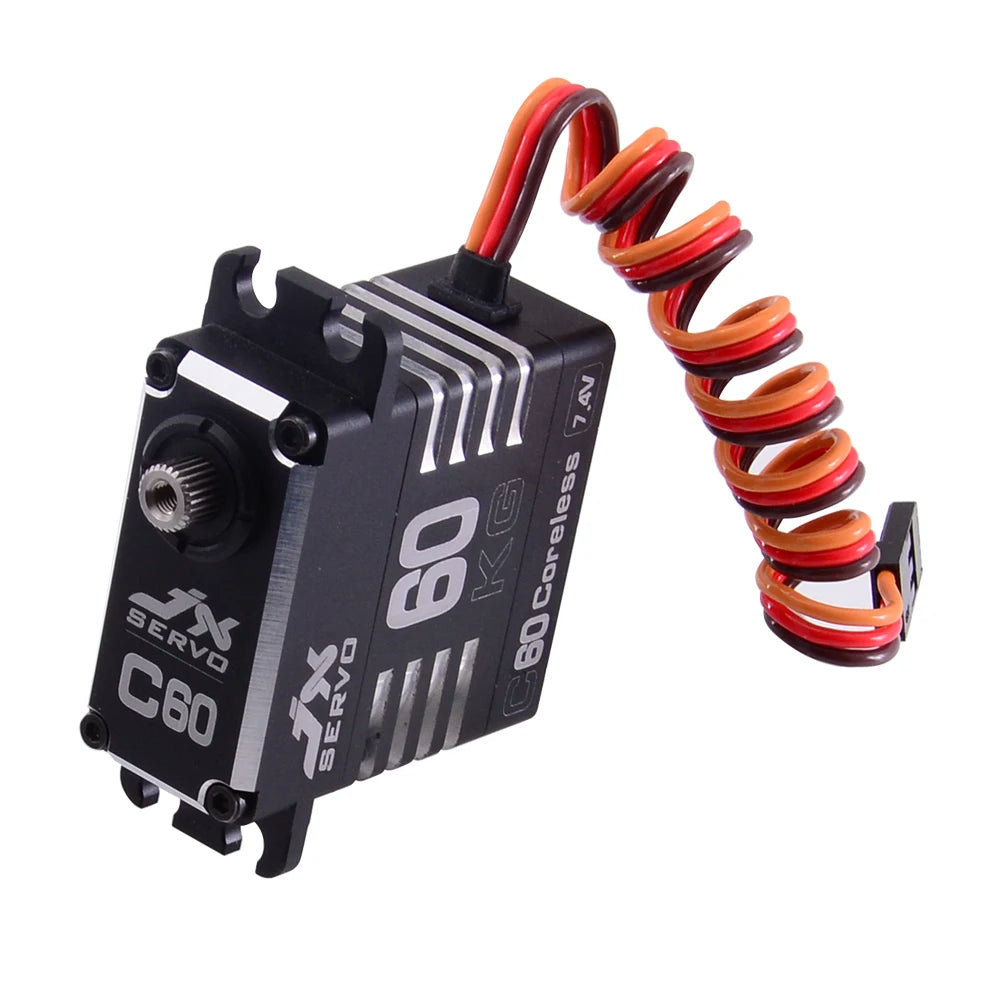

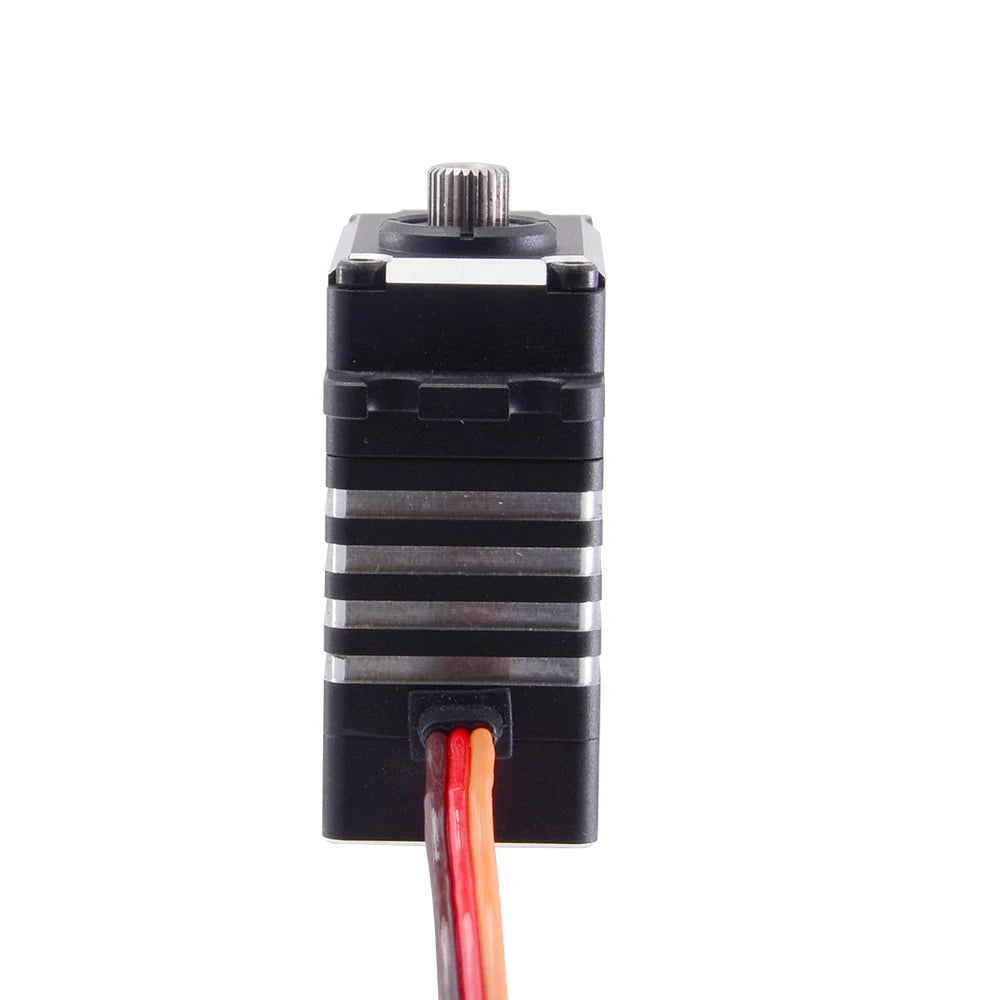

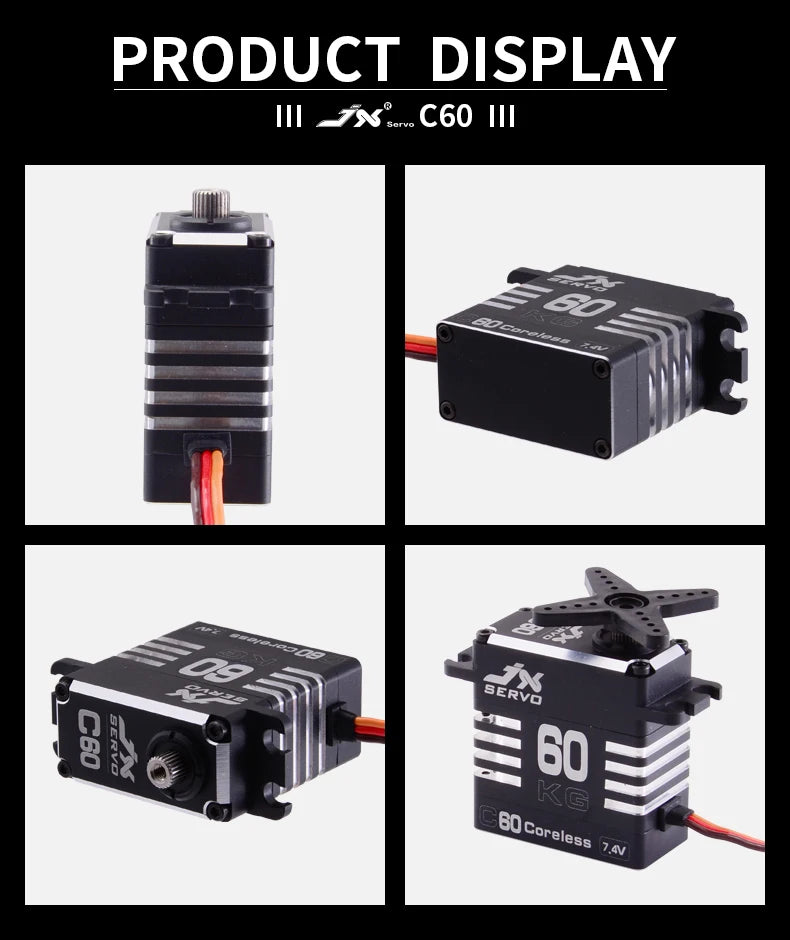

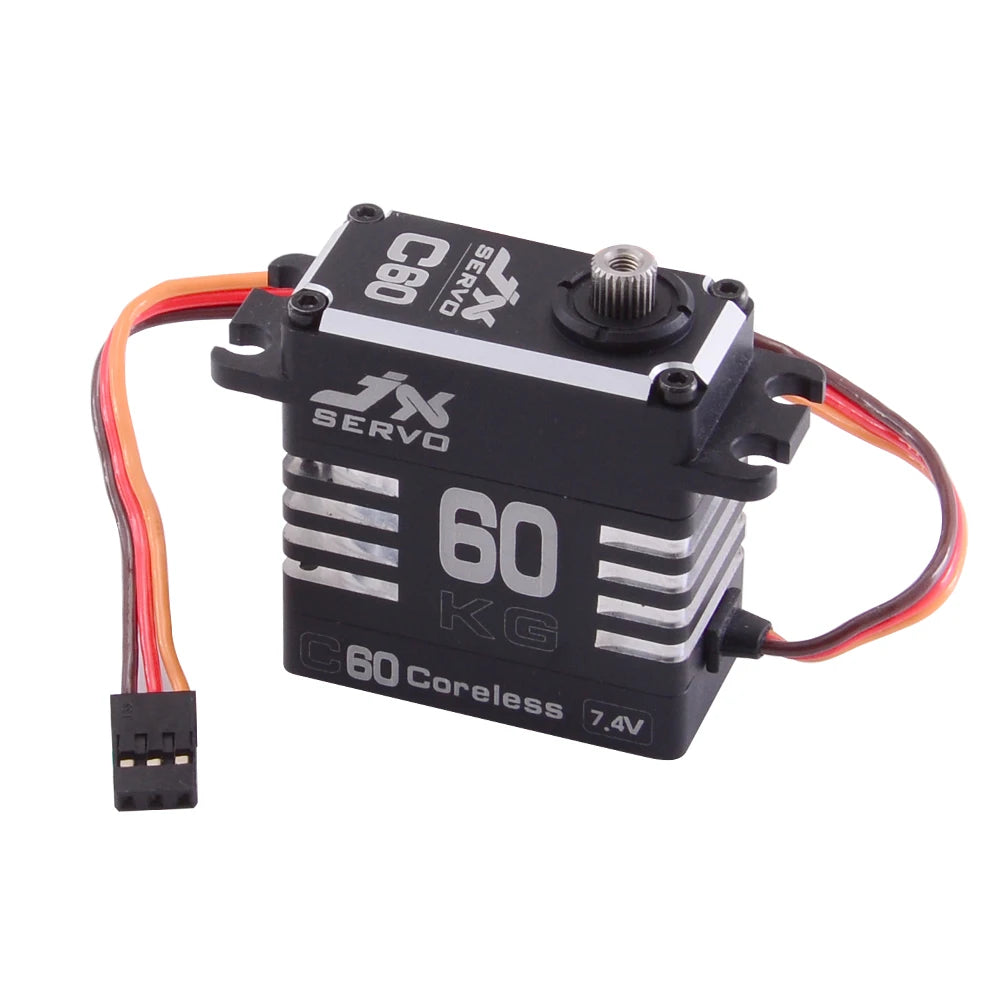

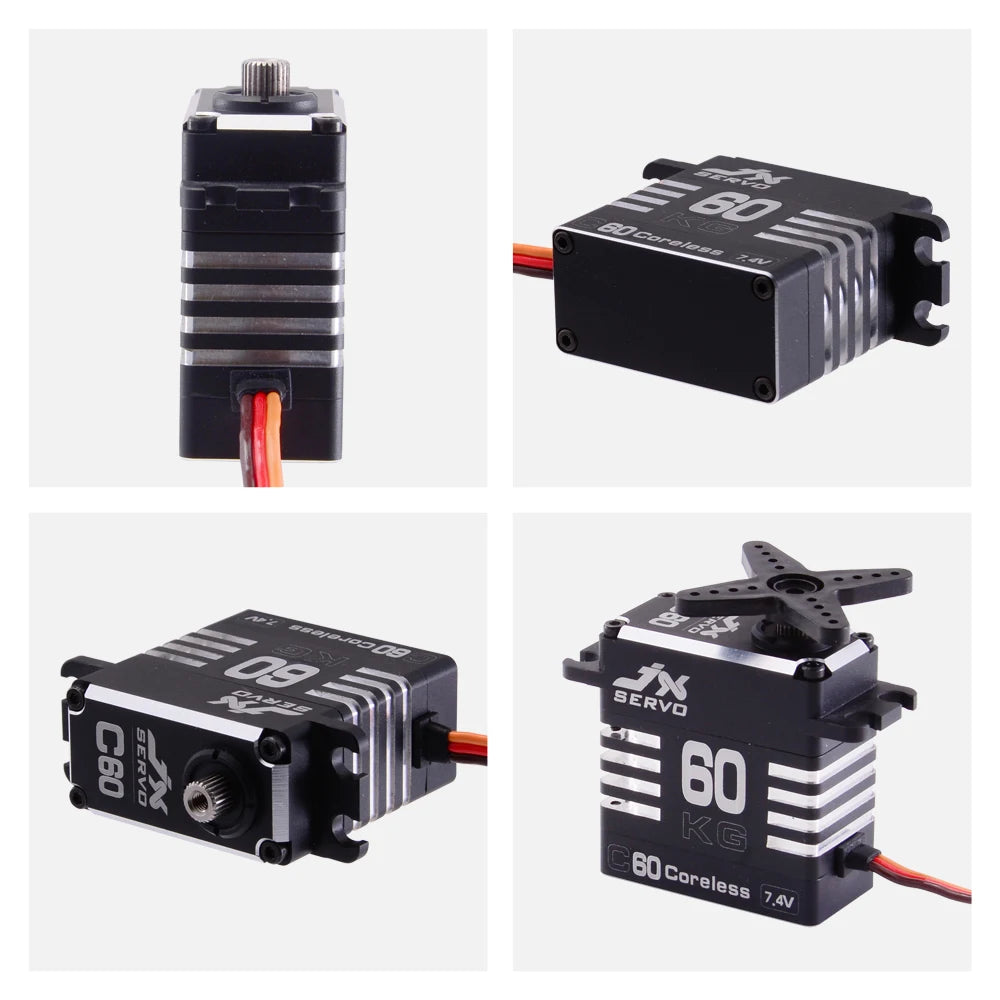

JX C60 60 KG High Torque Full Metal Shell Hollow Cup High Pressure Metal Gear Servo for RC Car Boat Helicopter Accessories
Особенности:
-60KG.CM high torque full metal hollow cup steering gear
-High precision Taiwan made metal teeth

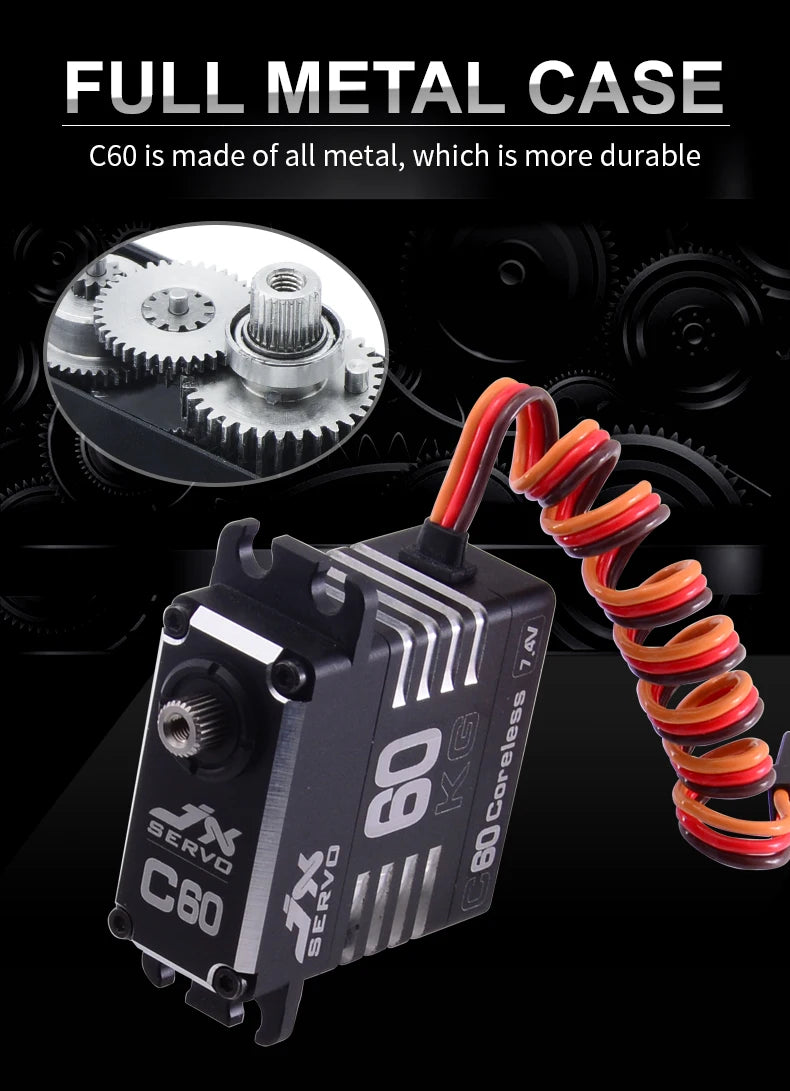

-CNC full metal aluminum case
-Double ball bearings
Detailed specifications:
Brand:JX
Model:C60 SERVO
Dead zone: 2μs
Pulse width range: 1000μs-2000μs = 90 °
500μs-2500μs = 180 °
Motor: hollow cup
Speed (6.0V): 0.13 sec / 60 °
Speed (7.4V): 0.11 sec / 60 °
Torque (6.0V): 52 kg.cm
Torque (7.4V): 62 kg.cm

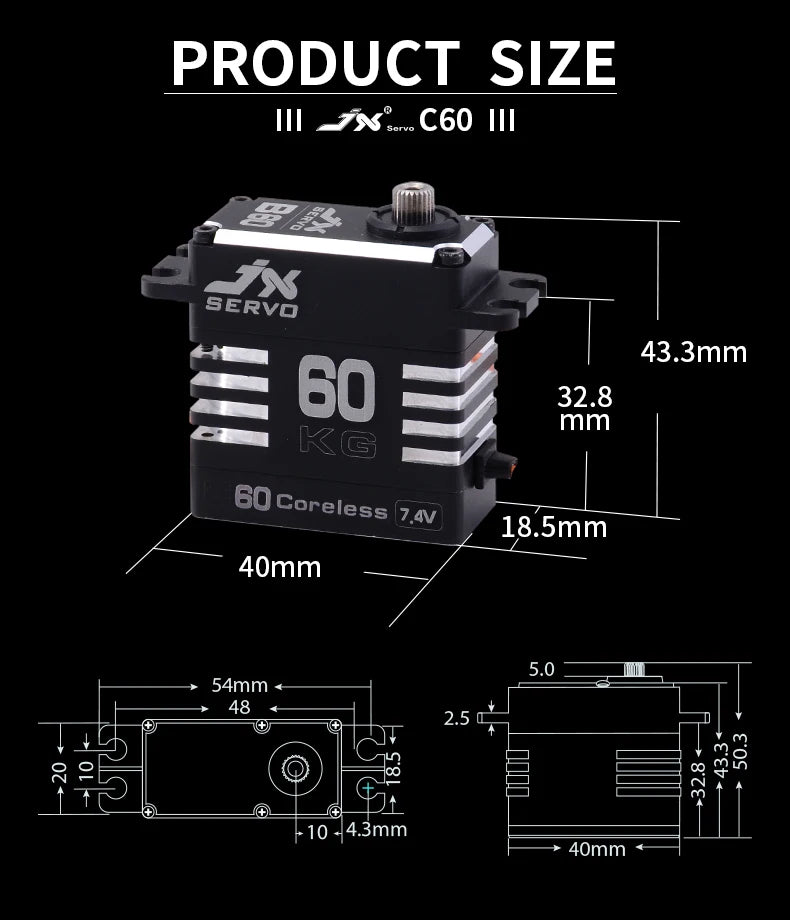

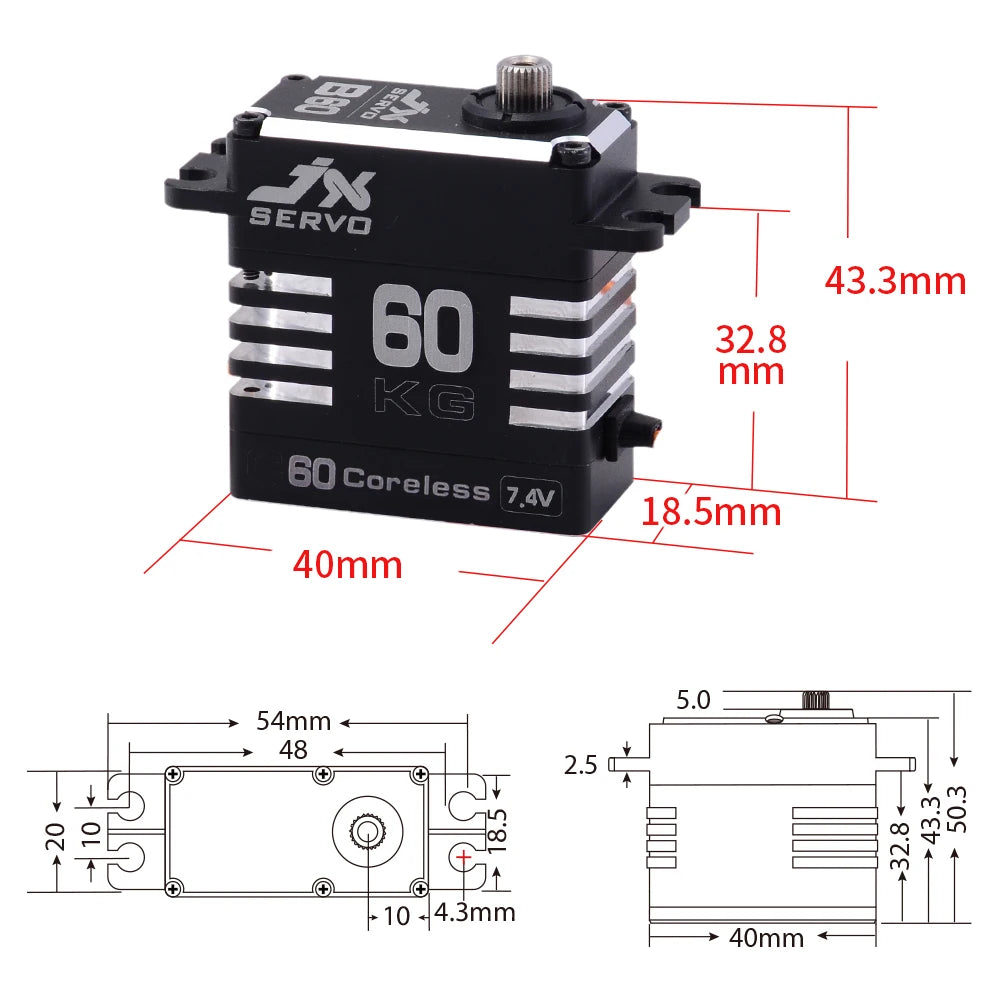

Size: 40X20X43.3mm
Weight: 87 g
Cable: JR 265 mm
Подшипник: 2BB
Output tooth: 25T
Application: For RC Models
SERVO MOTOR 88 3 60 80 CPOOO0 Industrial RC Airplane RC Car And more 1 SERvO KC Coreless 7.AV .
Please leave five sbars Posibive feedbackl Producb as agreed quesbion; please feel Communicabion free 60 conbacb wibh us Shipping bime till you are sabisfied
