Walksnail Avatar HD Goggles X with Avatar HD Kit V2 SPECIFICATIONS
Название бренда: IFLIGHT
Происхождение: Материковый Китай
Материал: другие
Рекомендуемый возраст: 14+y
Запчасти и принадлежности RC: другие
Для типа автомобиля: Вертолеты
Модернизация деталей/аксессуаров: другие
Периферийные устройства/устройства дистанционного управления: другие
Поставки инструментов: другие
Номер модели: Avatar HD FPV system
Атрибуты полного привода: другие

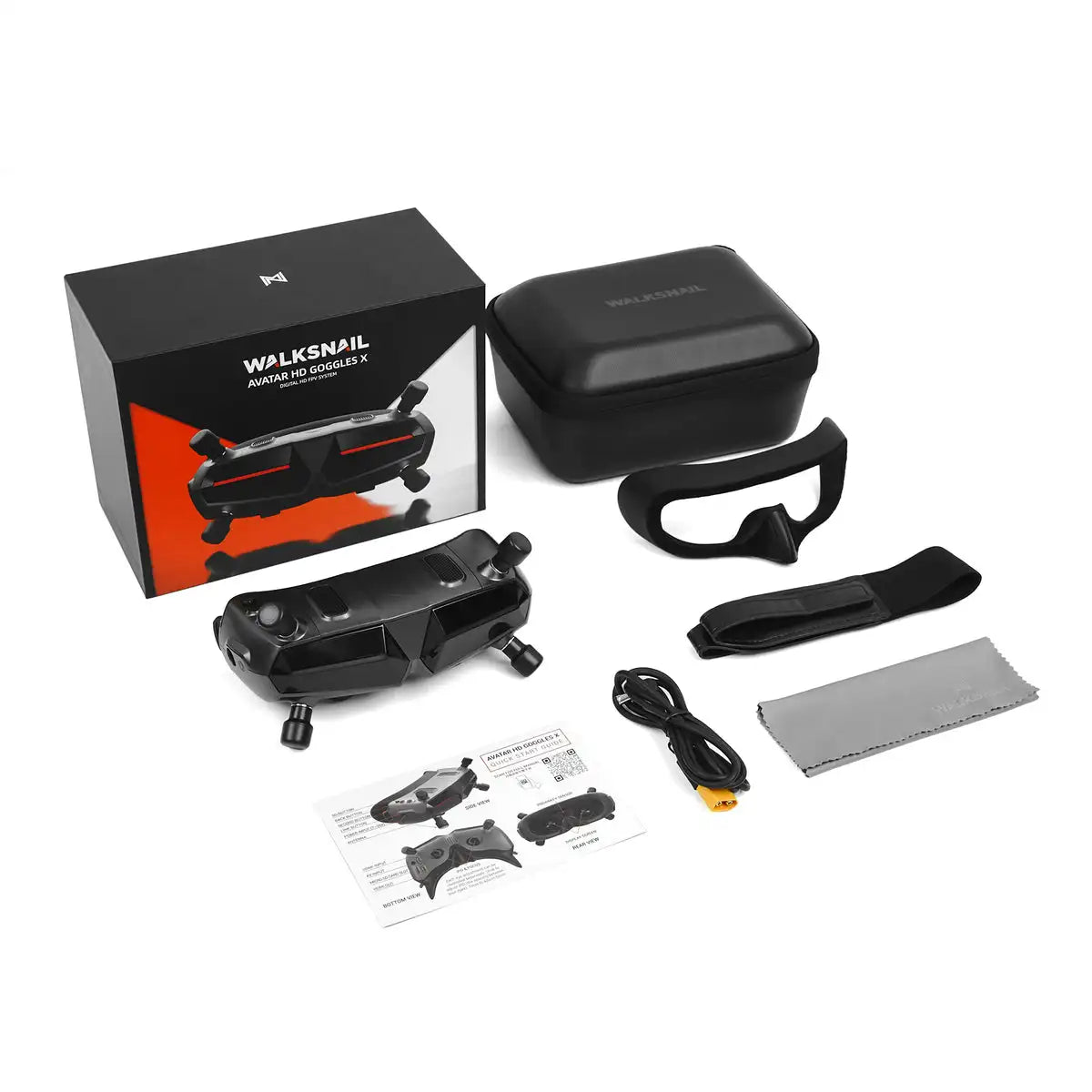

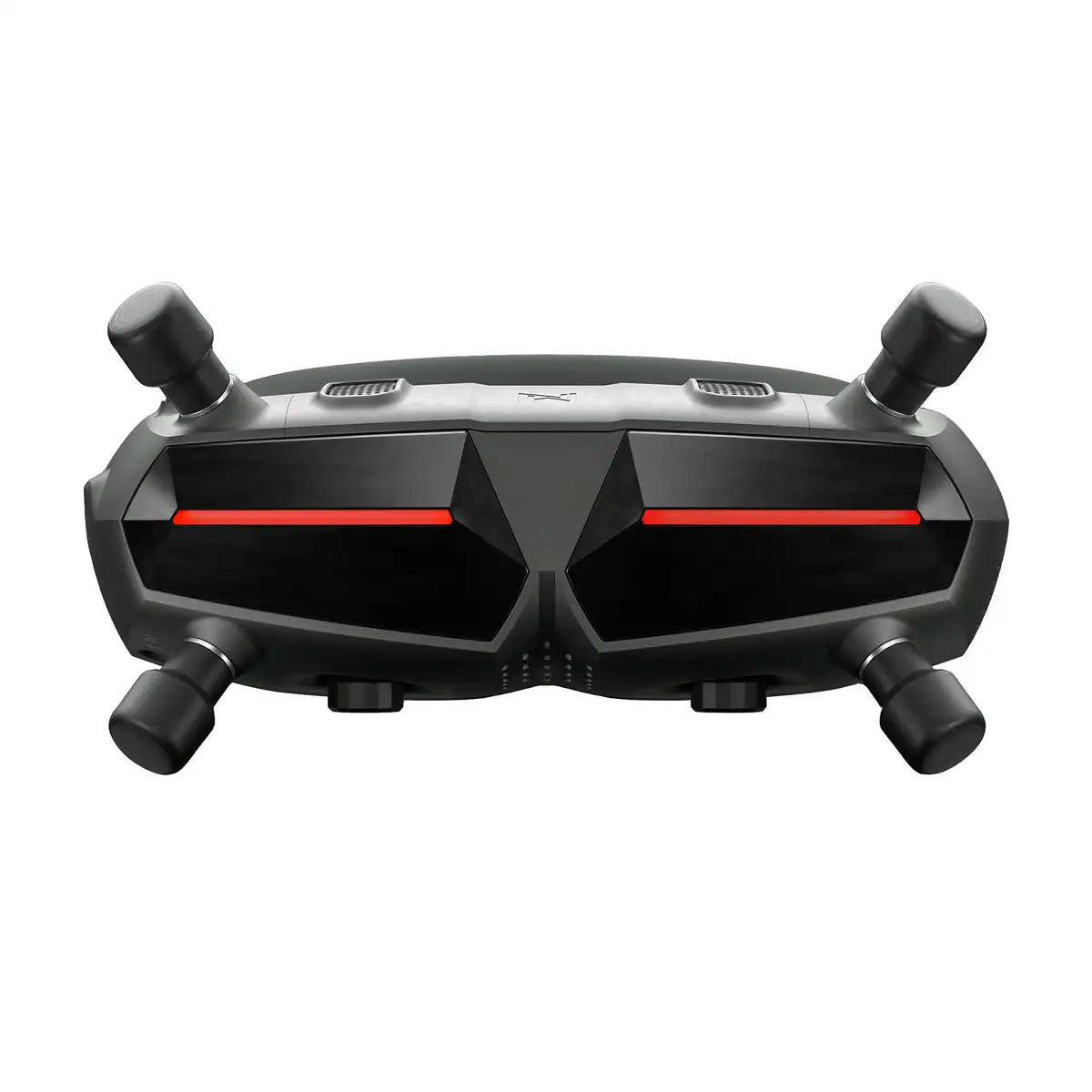

Walksnail Avatar HD Goggles X
Особенности продукта:
|
●Weight 290g
|
●+2 to-6 diopter
|
|
●FOV 50°
|
●Lenses can be replaced
|
|
●7-26V
|
●1PD57~72mm
|
|
●Front cover DIY
|
●Infrared Sensing
|
|
●1080P/100FPS
|
●Sharing mode
|
|
●HDMI input
|
●Replace VRX
|
|
●HDMI output
|
●Built-in Gyro (in development)
|
|
●AV in
|
●Built-in Bluetooth Wi-Fi module (in development) |

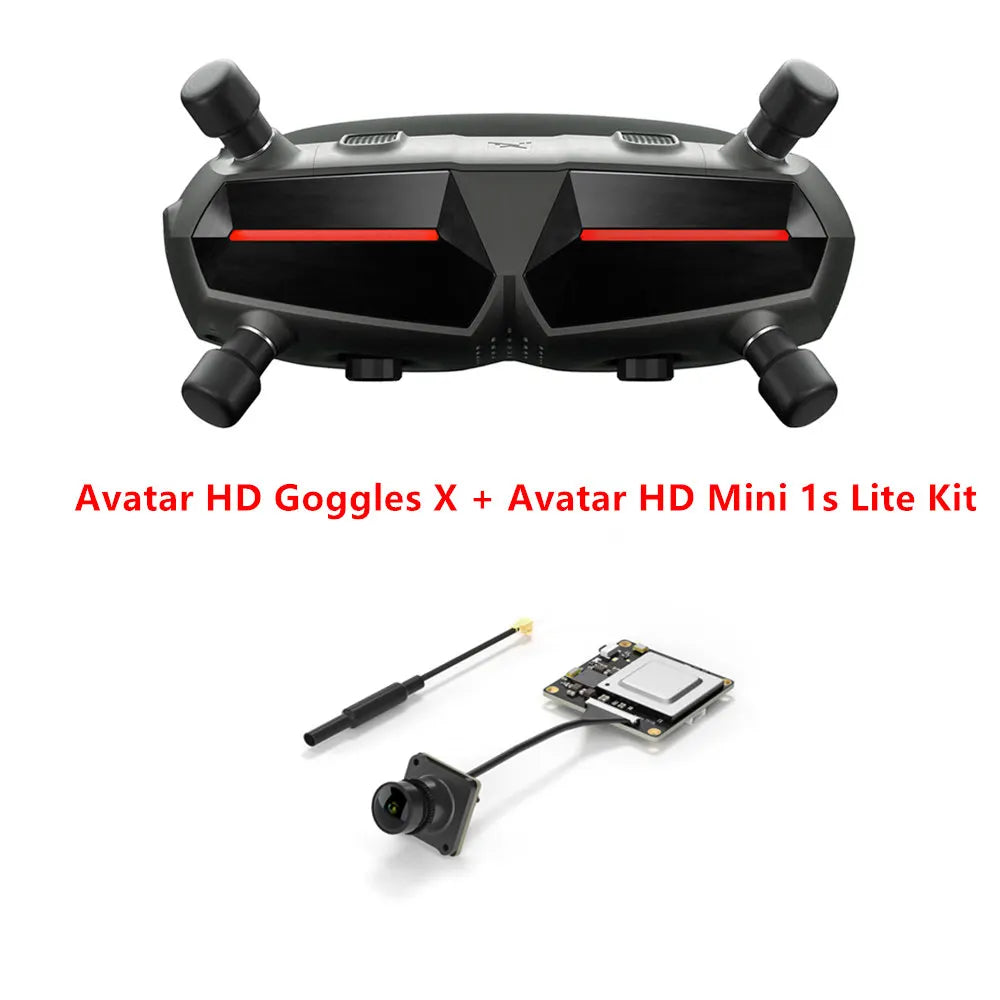

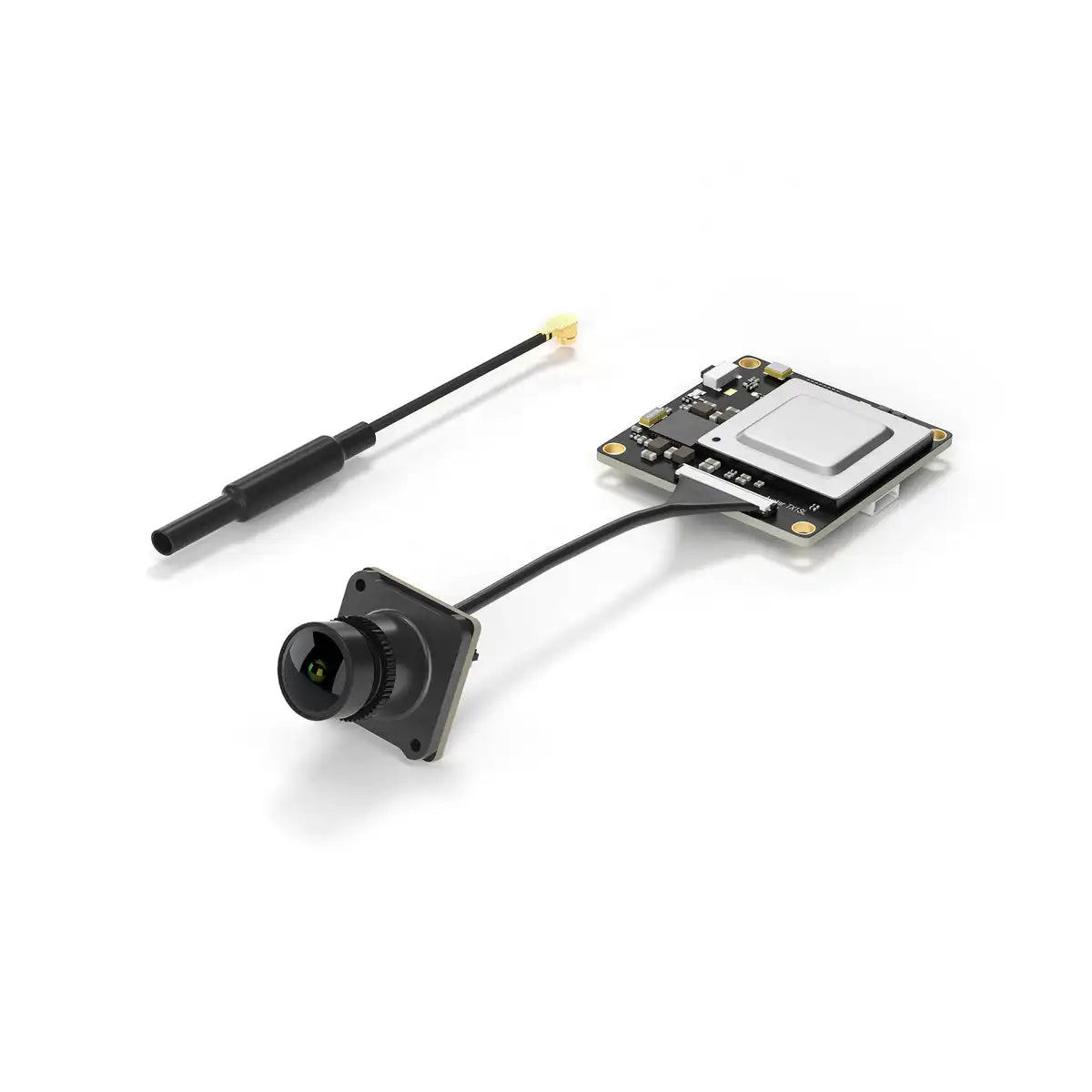

Walksnail Avatar HD Mini 1s Lite Kit
| Камера | |
| Модель | Avatar lite camera |
| Image Sensor | 1/2.7″1nch |
| Разрешение | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | Rolling shutter |
| Min.Illumination | 0.001Lux |
| Вес | 1.8g |
| Размеры | 14*14*16mm |
| VTX | |
| Модель | Avatar mini 1s module |
| Communication Frequency | 5,725-5,850 ГГц |
| Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Размеры | 30*30*6.5mm |
| Storage | 8G (V2) / 32G(V3) |
| Recording | 1080p/720p |
| Вес | 6.8g |
| Рабочая температура | -20-40℃ |
| Каналы | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average delay 22ms |
| Антенна | IPEX |
| 1s lite antenna | |
| Поляризация | Linear |
| Frequency range | 5600-5900MHz |
| Усиление | 1.6 dbi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Интерфейс | IPEX-1 |
| Размер | R 5mm,L 70mm |
| Вес | 0.5g |

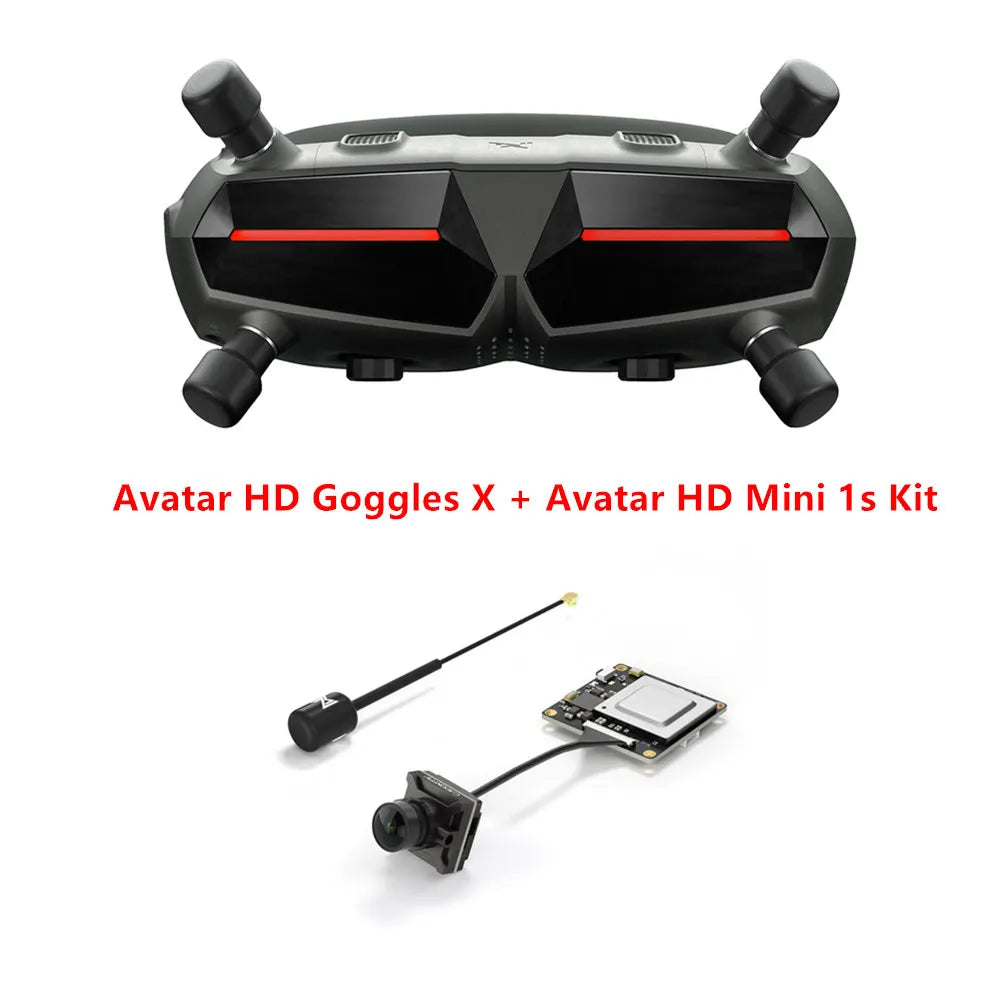

Walksnail Avatar HD Mini 1s Kit
| Камера | |
| Модель | Avatar nano |
| Image Sensor | 1/2.7″1nch |
| Разрешение | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 16/9 4/3 |
| Lens | 2.1mm |
| FOV | 170° |
| Aperture | F2.0 |
| Shutter Rolling | shutter |
| Min.Illumination | 0.001Lux |
| Вес | 3.5g |
| Размеры | 14*14*17mm |
| Coaxial Cable | 55mm(default)/90mm |
| VTX | |
| Модель | Avatar mini 1s module |
| Communication Frequency | 5,725-5,850 ГГц |
| Transmitter Power (EIRP) | FCC:<25.5dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*6(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm |
| Размеры | 30*30*6.5mm |
| Storage | 8G(v2) / 32G(v3) |
| Recording | 1080p/720p |
| Вес | 6.8g |
| Рабочая температура | -20-40℃ |
| Каналы | 8 |
| Wide Power Input | 3.1V-5V(V2) / 3.1V-13V(V3) |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Bitrate | 25mbps 50mbps |
| Latency | Average latency 22ms |
| Антенна | IPEX |
| VTX Antenna | |
| Модель | Polar antenna |
| Поляризация | LHCP |
| Bandwidth | 5.6GHz-5.9GHz |
| Average Gain | 2dBi |
| Radiation Efficiency | ≥98% |
| VSWR | ≤1.4 |
| Разъем | U.FL |
| Line Length | 90mm |
| Dimension | H105mm*R11.2mm |
| Вес | 1.5g |

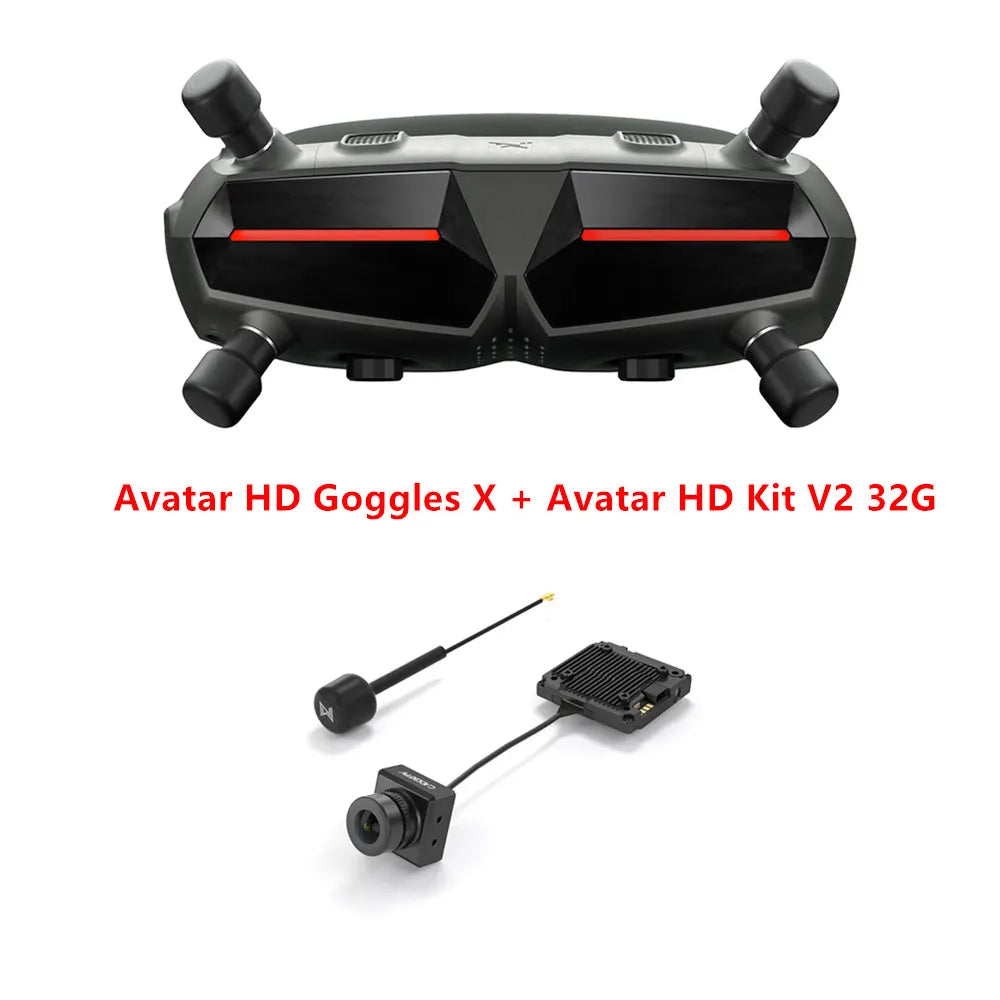

Walksnail Avatar HD Kit V2
| Камера | |
| Модель | Avatar V2 camera |
| Image Sensor | 1/3.2-Inch 4Mp 4:3sensor |
| Разрешение | 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility; |
| Ratio | 4:3 native /16:9 |
| Lens | 2.1mm |
| FOV | 160° |
| Aperture | F2.0 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.001Lux |
| Вес | 7.2g |
| Размеры | 19*19*22mm |
| Coaxial Cable | 140mm |
| Gyroflow | Only 32G VTX Supported |
| VTX | |
| Модель | Avatar V2 module |
| Communication Frequency | 5,725-5,850 ГГц |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Размеры | 33.5*33.5*10.5mm |
| Storage | 8G/32G |
| Recording | 1080p/720p |
| Вес | 17.6g |
| Рабочая температура | -20-40℃ |
| Каналы | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot; Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Антенна | 1(IPEX) |
| Avatar V2 antenna | |
| Поляризация | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Усиление | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Интерфейс | IPEX-1 |
| Размер | R15 X 45mm (without cable) |
| Вес | 2g |

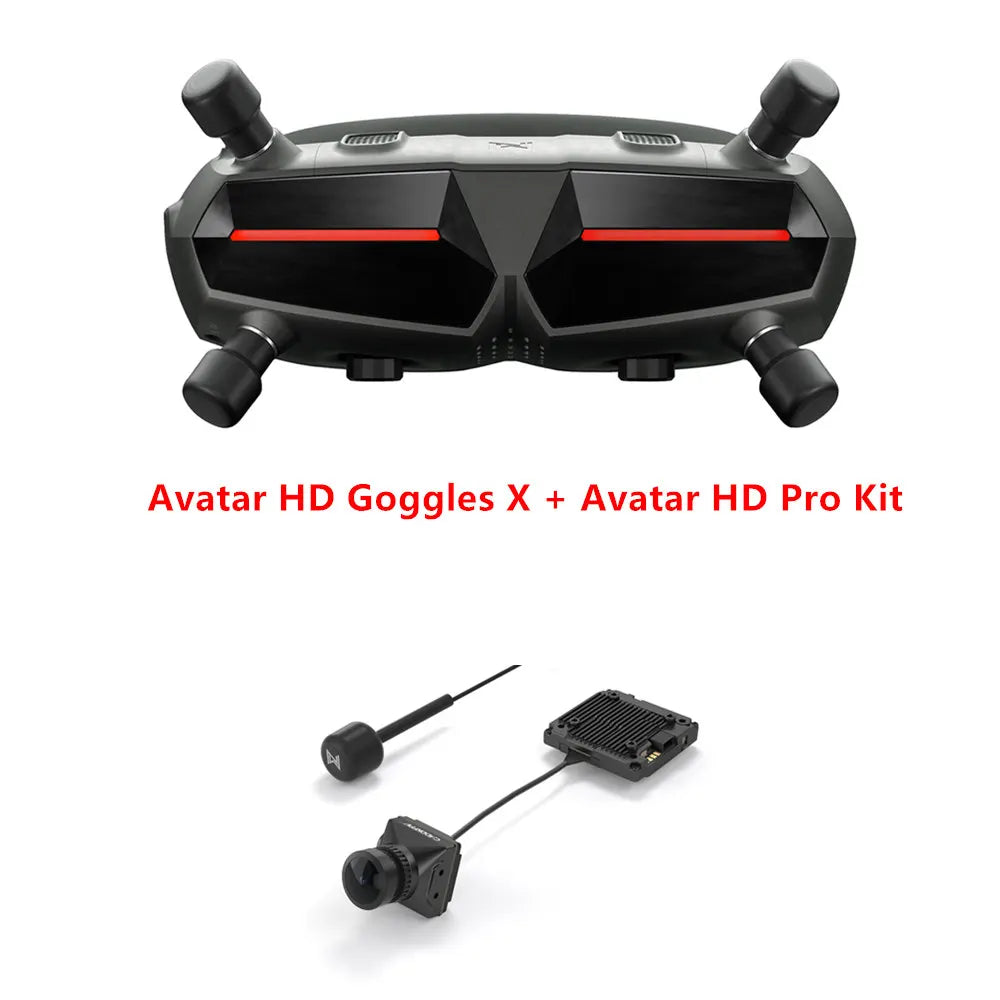

Walksnail Avatar HD Pro Kit
| Камера | |
| Модель | Avatar HD Pro Camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
| Разрешение | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Вес | 9.5g |
| Размеры | 19*19*24mm |
| Coaxial Cable | 140mm |
| VTX | |
| Модель | Avatar V2 Module |
| Communication Frequency | 5,725-5,850 ГГц |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Размеры | 33.5*33.5*10.5mm |
| Storage | 8G/32G |
| Recording | 1080p/720p |
| Вес | 17.6g |
| Рабочая температура | -20-40℃ |
| Каналы | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot;Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Антенна | 1(IPEX) |
| Avatar V2 Antenna | |
| Поляризация | LHCP |
| Frequency range | 5600MHz-6000MHz |
| Усиление | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Интерфейс | IPEX-1 |
| Размер | R15 X 45mm(without cable) |
| Вес | 2g |

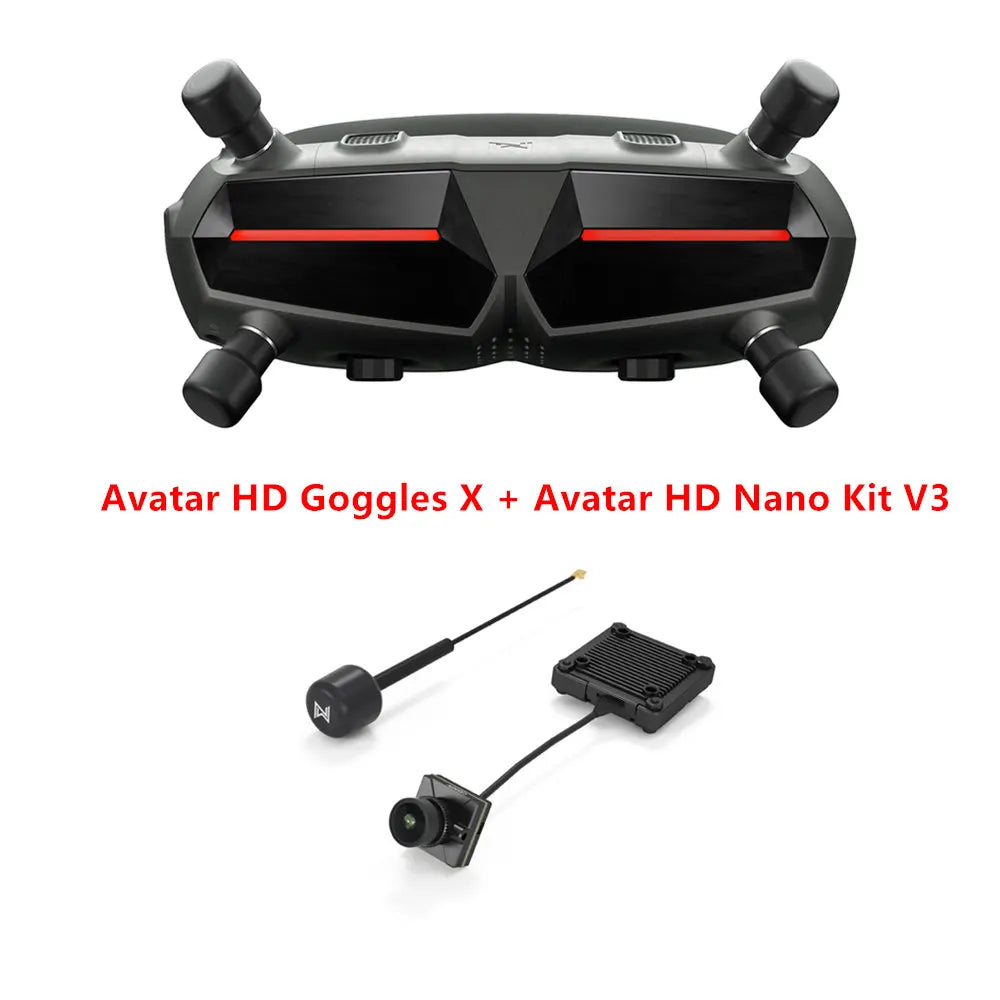

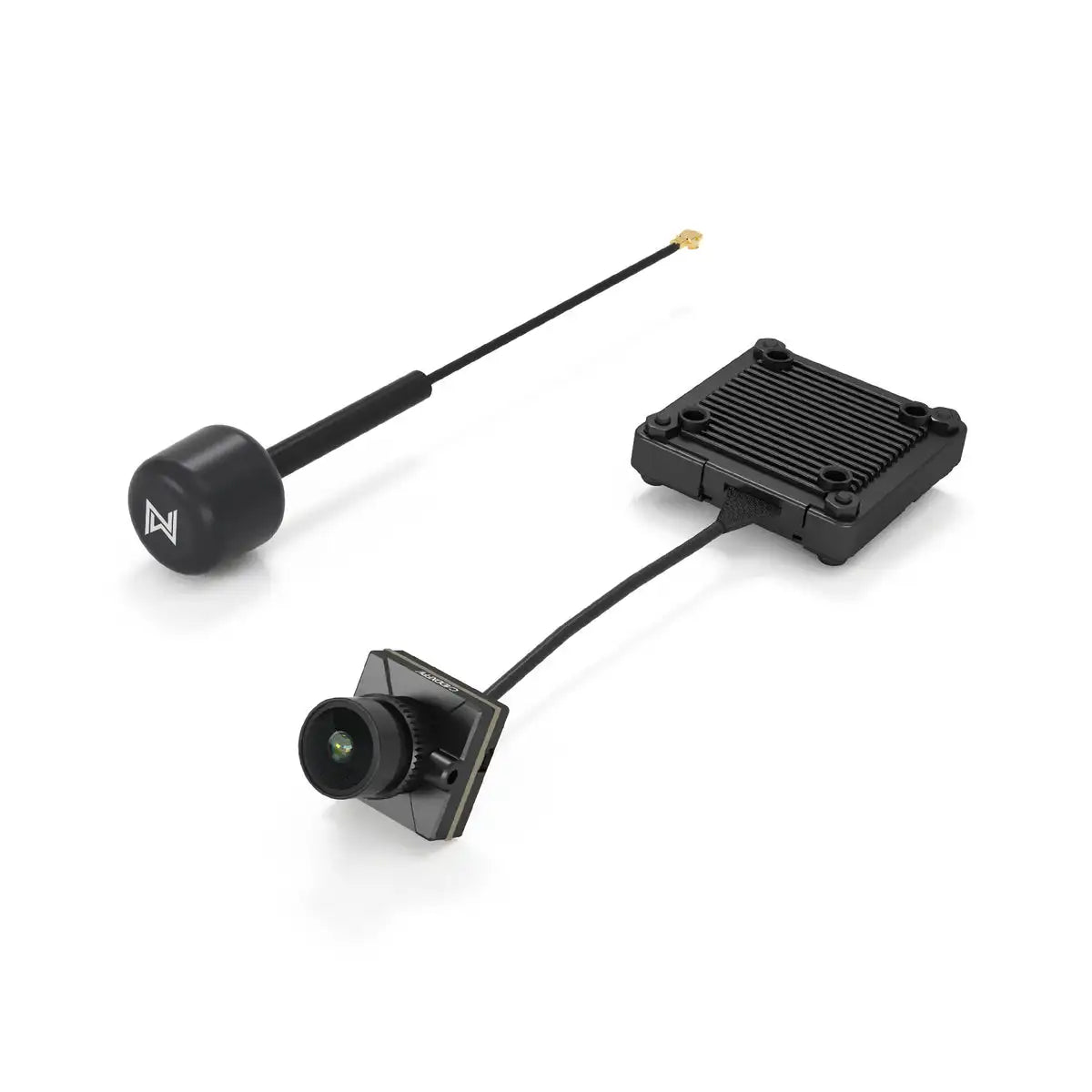

Walksnail Avatar HD Nano Kit V3
| Камера | |
| Модель | Avatar HD Nano Camera V3 |
| Image Sensor | 1/3.2-Inch 4Mp 4:3 sensor |
| Разрешение | 1080P/60fps,720P/120fps,720P/60fps |
| Ratio | 4:3 native / 16:9 |
| Lens | 2.1mm |
| FOV | 160° |
| Aperture | F2.0 |
| Shutter | Rolling Shutter |
| Min.Illumination | 0.001Lux |
| Вес | 3g (without cable) |
| Размеры | 14*14*16.8mm |
| Coaxial Cable | 90mm(default)/140mm |
| VTX | |
| Модель | Avatar HD Mini VTX V3 |
| Communication Frequency | 5,725-5,850 ГГц |
| Transmitter Power (EIRP) | FCC:<27dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| I/O Interface | JST1.0*4(Power in)JST0.8*4(USB) |
| Mounting Holes | 25.5*25.5mm(M2 hole);20*20mm(M3 hole) |
| Размеры | 31.5*31.5*9.4mm |
| Storage | 32G |
| Recording | 1080p/720p |
| Вес | 13.4g |
| Рабочая температура | -20-40℃ |
| Каналы | 8 |
| Wide Power Input | 3.1V-13V |
| Supported FC System | Betaflight; Inav; Fettec; Kiss; ArduPliot |
| OSD | Canvas mode |
| Latency | Average latency 22ms |
| Антенна | 1(IPEX) |
| VTX Antenna | |
| Модель | Avatar V2 antenna |
| Поляризация | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Average Gain | 1.9dBi |
| VSWR | ≤1.5 |
| Интерфейс | IPEX-1 |
| Line Length | 105mm |
| Dimension | R15*45mm(without cable) |
| Вес | 2g |

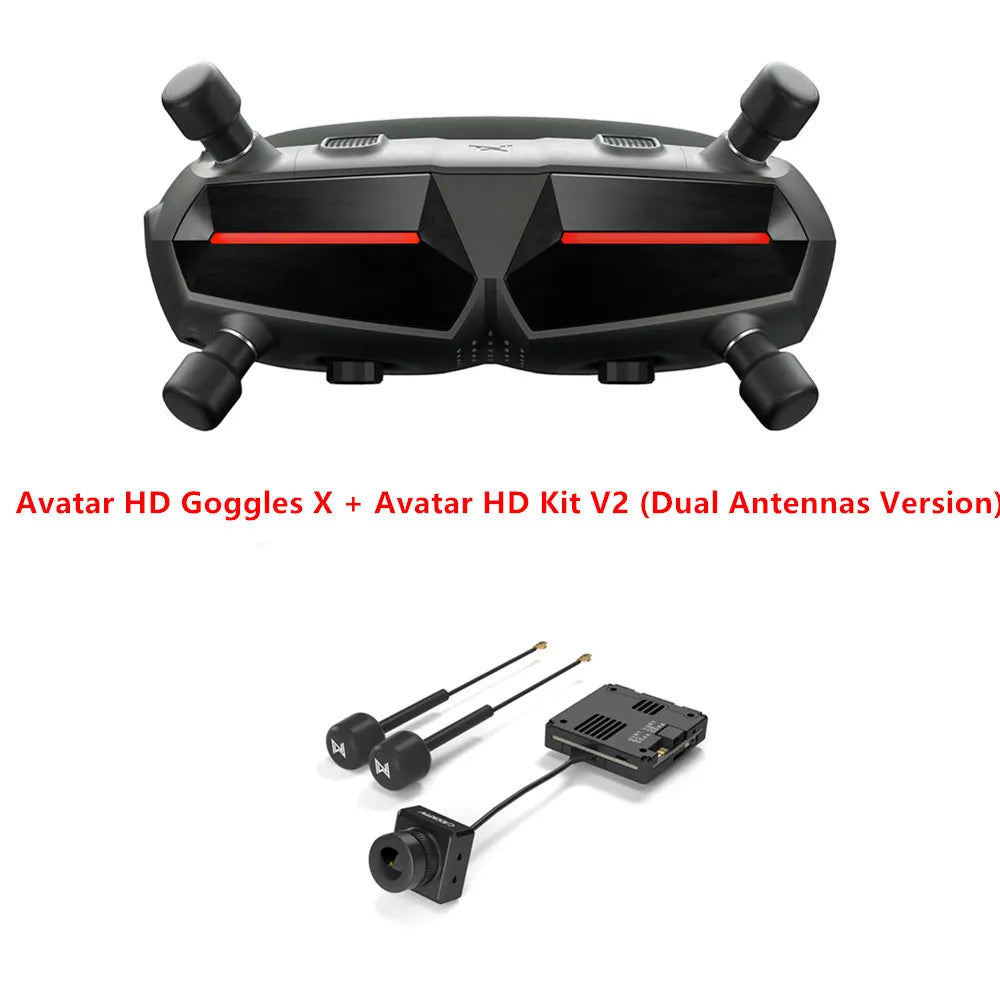

Walksnail Avatar HD Kit V2 (Dual Antennas Version)
| Камера | |
| Модель | Avatar V2 camera |
| Image Sensor | 1/3.2-Inch 4Mp 4:3sensor |
| Разрешение | 1080P/60fps; 720P/100fps; 720P/60fps;1080P/120fps compatibility; 1080P/100fps compatibility; |
| Ratio | 4:3 native /16:9 |
| Lens | 2.1mm |
| FOV | 160° |
| Aperture | F2.0 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.001Lux |
| Вес | 7.2g |
| Размеры | 19*19*22mm |
| Coaxial Cable | 140mm |
| Gyroflow | Only 32G VTX Supported |
| VTX | |
| Модель | Avatar V2 module(Dual Antenna) |
| Communication Frequency | 5,725-5,850 ГГц |
| Transmitter Power (EIRP) | FCC:<30dBm;CE:<14dBm;SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Размеры | 33.5*33.5*10.5mm |
| Storage | 32G |
| Recording | 1080p/720p |
| Вес | 15.4g |
| Рабочая температура | -20-40℃ |
| Каналы | 8 |
| Wide Power Input | 6V-25.2V |
| Supported FC System | Betaflight; Inav; Fettec; ArduPilot; Kiss |
| OSD | Canvas mode |
| Latency | Average delay 22ms |
| Антенна | 2(IPEX) |
| Avatar V2 antenna | |
| Поляризация | LHCP |
| Bandwidth | 5600MHz-6000MHz |
| Усиление | 1.9dBi |
| VSWR | ≤1.5 |
| Input Impedance | 50Ω |
| Интерфейс | IPEX-1 |
| Размер | R15 X 45mm (without cable) |
| Вес | 2g |

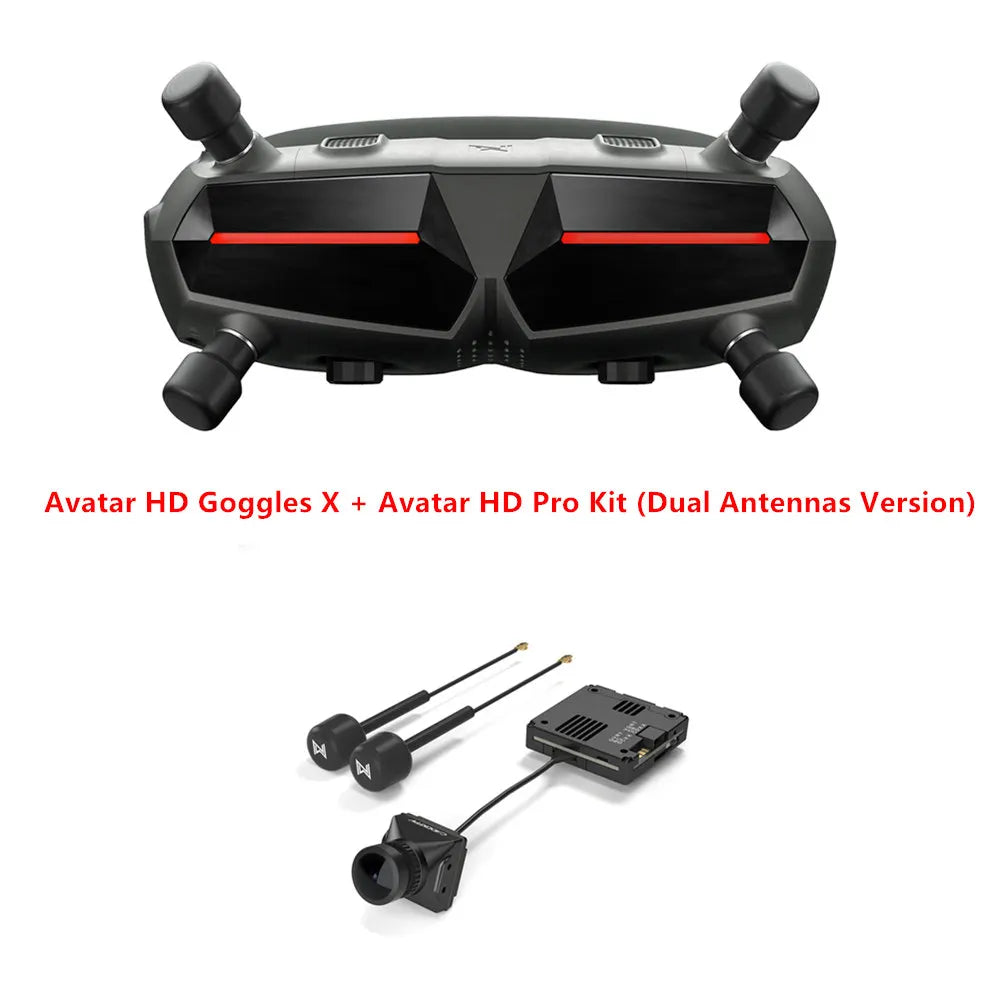

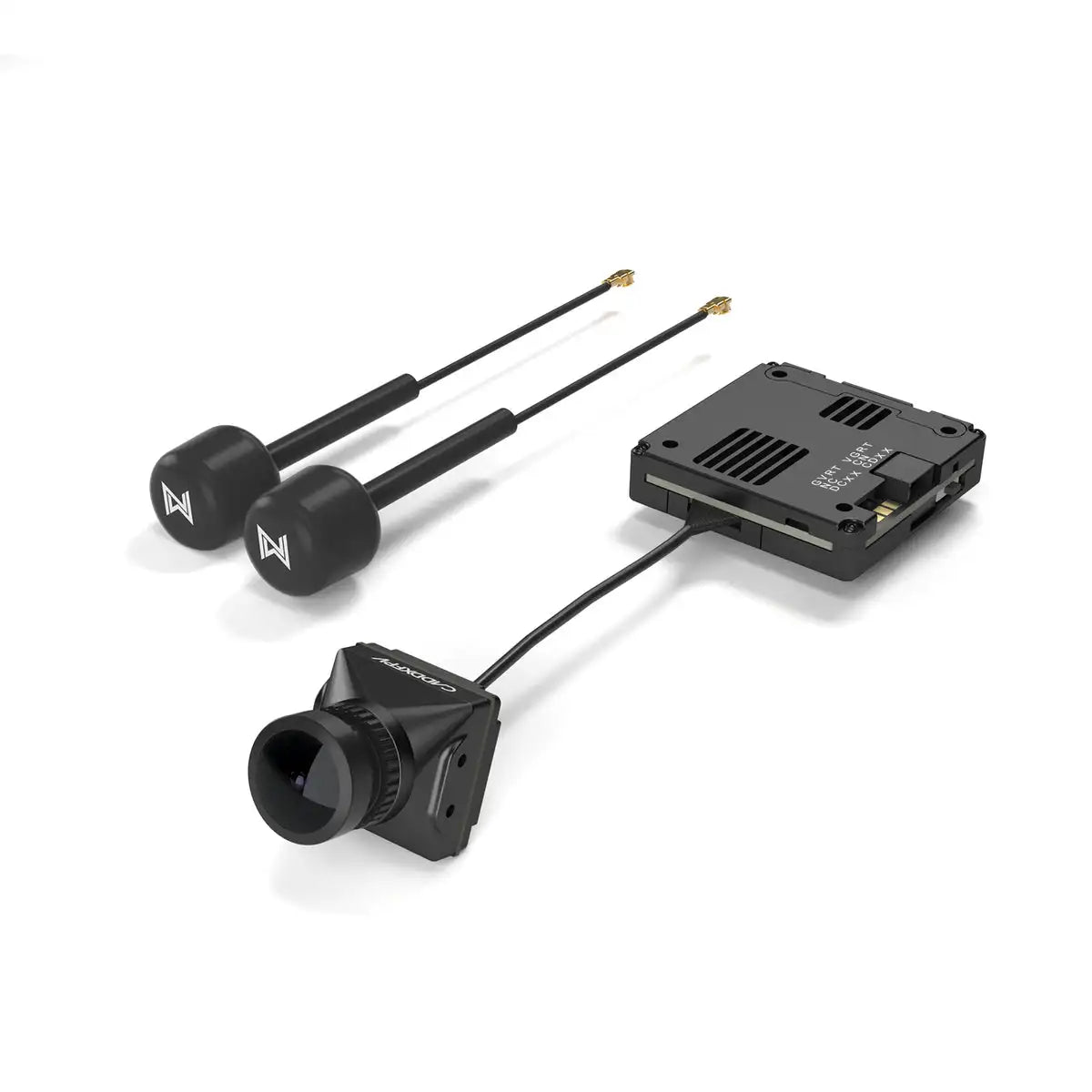

Walksnail Avatar HD Pro Kit (Dual Antennas Version)
| Камера | |
| Модель | Avatar HD Pro Camera |
| Image Sensor | 1/1.8-Inch Sony Starvis Ⅱ Sensor |
| Разрешение | 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility; |
| Ratio | 16/9; 4/3 |
| Lens | 8Mp |
| FOV | 160° |
| Aperture | F1.6 |
| Shutter | Rolling shutter |
| Min.Illumination | 0.00001Lux |
| Вес | 9.5g |
| Размеры | 19*19*24mm |
| Coaxial Cable | 140mm |
| VTX | |
| Модель | Avatar V2 Pro Module(Dual Antenna) |
| Communication Frequency | 5,725-5,850 ГГц |
| Transmitter Power (EIRP) | FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm |
| 1/O Interface | JST1.0*4(Power in)JST0.8*6(USB) |
| Mounting Holes | 25.5*25.5mm; 20*20mm |
| Размеры | 33.5*33.5*10.5mm |
| Storage | 32G |
